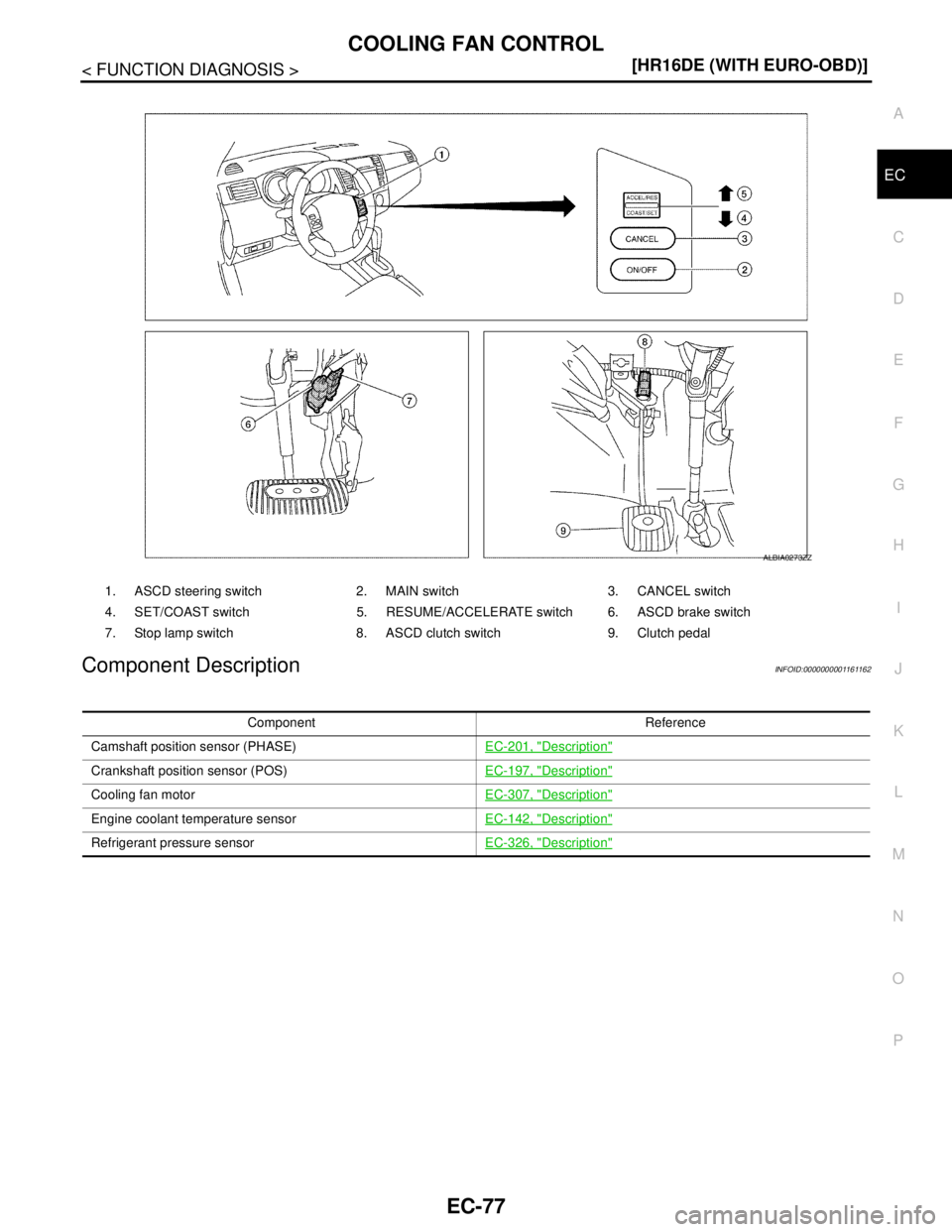

NISSAN TIIDA 2007 Service Repair Manual EC-76 < FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)] COOLING FAN CONTROL 1. Cooling fan motor harness connec- tor2. Crankshaft position sensor 3. Stop lamp switch 4. Brake pedal 5. Accelerator pedal p

Page 1426 of 5883

NISSAN TIIDA 2007 Service Repair Manual COOLING FAN CONTROL EC-77 < FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)] C D E F G H I J K L MA EC N P O Component DescriptionINFOID:0000000001161162 1. ASCD steering switch 2. MAIN switch 3. CANCEL s

Page 1427 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-78 < FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)] EVAPORATIVE EMISSION SYSTEM EVAPORATIVE EMISSION SYSTEM System DiagramINFOID:0000000001161163 EVAPORATIVE EMISSION LINE DRAWING PBIB3039E

Page 1428 of 5883

NISSAN TIIDA 2007 Service Repair Manual EVAPORATIVE EMISSION SYSTEM EC-79 < FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)] C D E F G H I J K L MA EC N P O 1. Intake manifold collector 2. EVAP canister purge volume con- trol solenoid valve3. E

Page 1429 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-80 < FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)] EVAPORATIVE EMISSION SYSTEM NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses. System DescriptionINFO

Page 1430 of 5883

NISSAN TIIDA 2007 Service Repair Manual EVAPORATIVE EMISSION SYSTEM EC-81 < FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)] C D E F G H I J K L MA EC N P O The vapor in the EVAP canister is purged by the air through the purge line to the intak

Page 1431 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-82 < FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)] EVAPORATIVE EMISSION SYSTEM 1. Mass air flow sensor (with intake air temperature sensor)2. Engine coolant temperature sensor 3. Electric throttle c

Page 1432 of 5883

NISSAN TIIDA 2007 Service Repair Manual EVAPORATIVE EMISSION SYSTEM EC-83 < FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)] C D E F G H I J K L MA EC N P O 1. ECM harness connectors 2. ECM 3. IPDM E/R 4. Fuel pump fuse (15A) 5. Intake valve ti
