Lubricating Locks, Hinges and Hood LatchINFOID:0000000001730911
Checking Seat Belts, Buckles, Retractors, Anchors and AdjustersINFOID:0000000001730912
Check the seat belt buckles, webbing, retractors, anchors and adjusters. Replace any seat belt assembly as
necessary. Refer to SB-3, "
Seat Belt Inspection" .
Check the seat belt anchors for loose bolts, damage, or excessive wear.
Check the seat belt webbing for any damage, cuts, fraying, or excessive wear.
Check the retractor for smooth operation.
Check the function of the buckles by inserting the seat belt tongue and checking for proper engagement of
the buckle and press the button on the buckle to check for proper release of the seat belt tongue.
CAUTION:
After any collision, inspect all seat belt assemblies, including retractors and other attached compo-
nents, such as the guide rail set. NISSAN recommends replacing all seat belt assemblies in use dur-
ing a collision, unless they are not damaged and are inspected to confirm they are operating
properly after a minor collision.
Also inspect all seat belt assemblies that are not in use during a collision, and replace any compo-
nents if damaged or not operating properly. The seat belt pre-tensioner should be replaced even if
the seat belts are not in use during a frontal collision where the driver and passenger air bags have
been deployed.
If any component of the seat belt assembly is suspected of being damaged or not operating prop-
erly, do not repair the component. Replace the components as an assembly.
If the seat belt webbing is cut, frayed, or damaged then replace the seat belt assembly.
Never lubricate the seat belt buckle or tongue.
PIIB7546E
Page 4298 of 5883
MA-58
< ON-VEHICLE MAINTENANCE >
CHASSIS AND BODY MAINTENANCE
When replacing any seat belt assembly always use a Genuine NISSAN seat belt assembly.
Page 4299 of 5883

MIR-1
DRIVER CONTROLS
C
D
E
F
G
H
I
J
K
M
SECTION MIR
A
B
MIR
N
O
P
CONTENTS
MIRRORS
PRECAUTION ...............................................2
PRECAUTIONS ...................................................2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................
2
COMPONENT DIAGNOSIS ..........................3
DOOR MIRROR ...................................................3
Wiring Diagram — Position Adjustment (LHD) — ......3
Wiring Diagram — Position Adjustment (RHD) — ......4
Wiring Diagram — Power Fold System (LHD) — .....5
Wiring Diagram — Power Fold System (RHD) — .....6
REMOVAL AND INSTALLATION ................7
DOOR MIRROR .................................................7
Removal and Installation ..........................................7
Disassembly and Assembly ......................................8
INSIDE MIRROR ................................................9
Removal and Installation ..........................................9
Page 4300 of 5883

MIR-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001702327
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Page 4301 of 5883
DOOR MIRROR
MIR-3
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
MIR
N
O
P
COMPONENT DIAGNOSIS
DOOR MIRROR

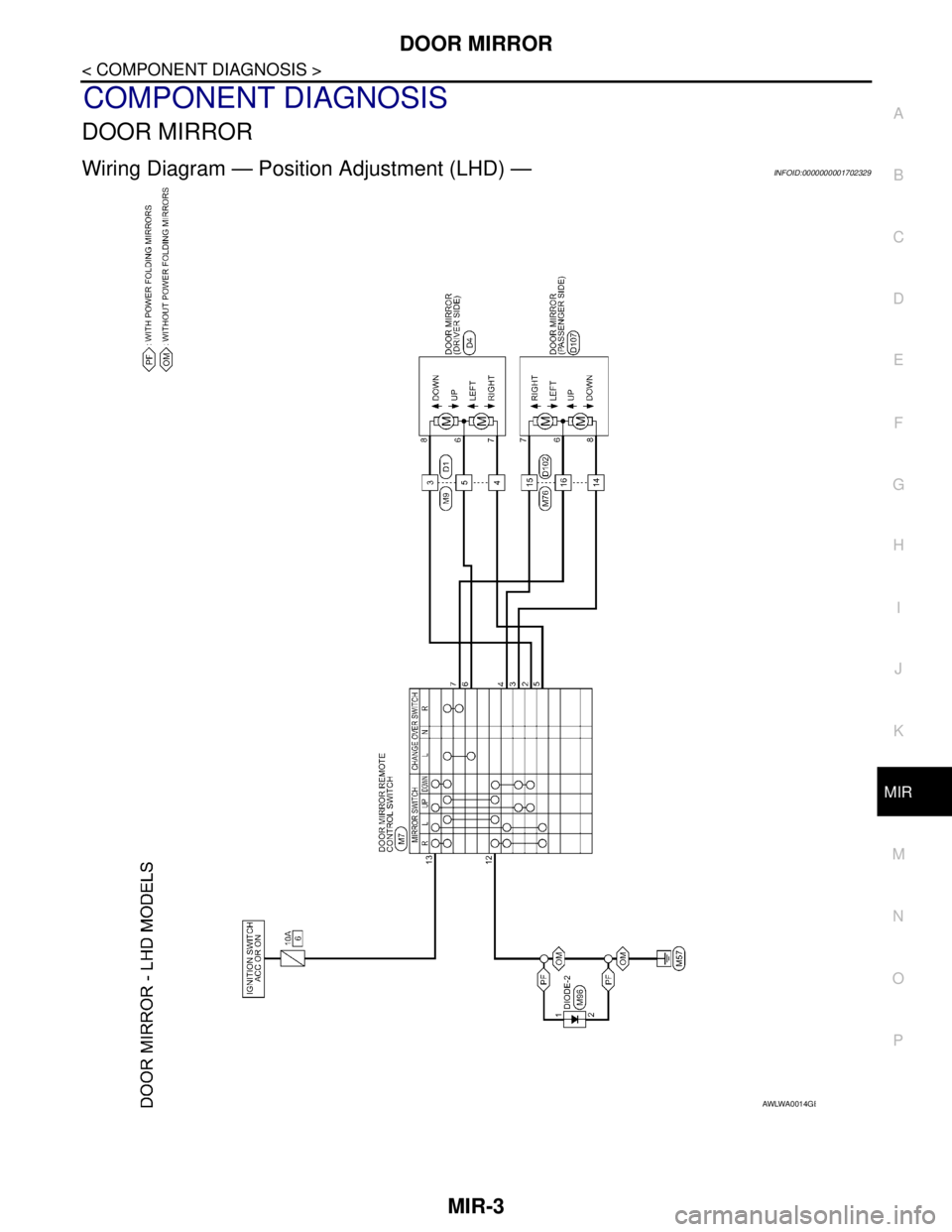

Wiring Diagram — Position Adjustment (LHD) —INFOID:0000000001702329
AWLWA0014GB
Page 4302 of 5883
MIR-4
< COMPONENT DIAGNOSIS >
DOOR MIRROR
Wiring Diagram — Position Adjustment (RHD) —
INFOID:0000000001728321
AWLWA0015GB
Page 4303 of 5883
DOOR MIRROR
MIR-5
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
MIR
N
O
P

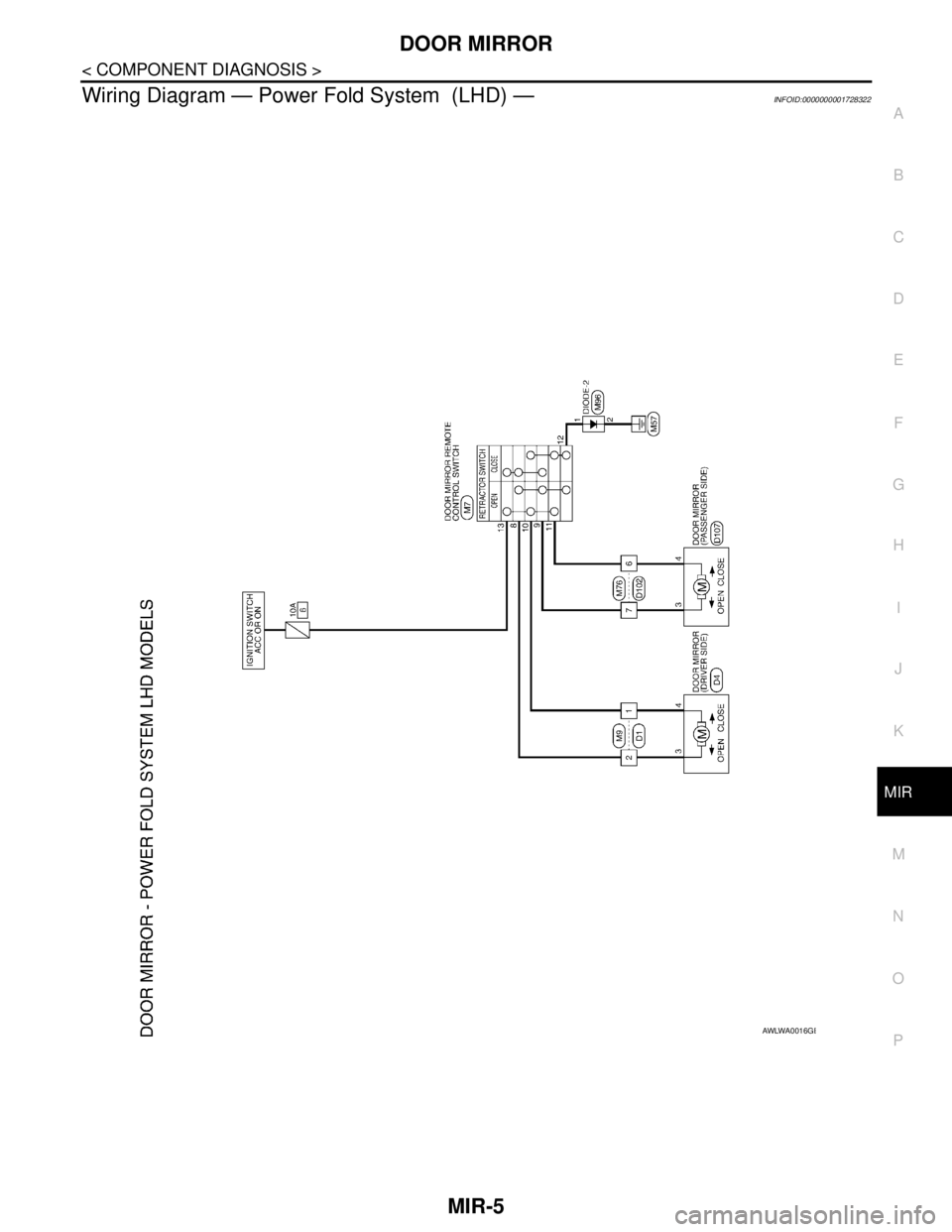

Wiring Diagram — Power Fold System (LHD) —INFOID:0000000001728322
AWLWA0016GB
Page 4304 of 5883
MIR-6
< COMPONENT DIAGNOSIS >
DOOR MIRROR

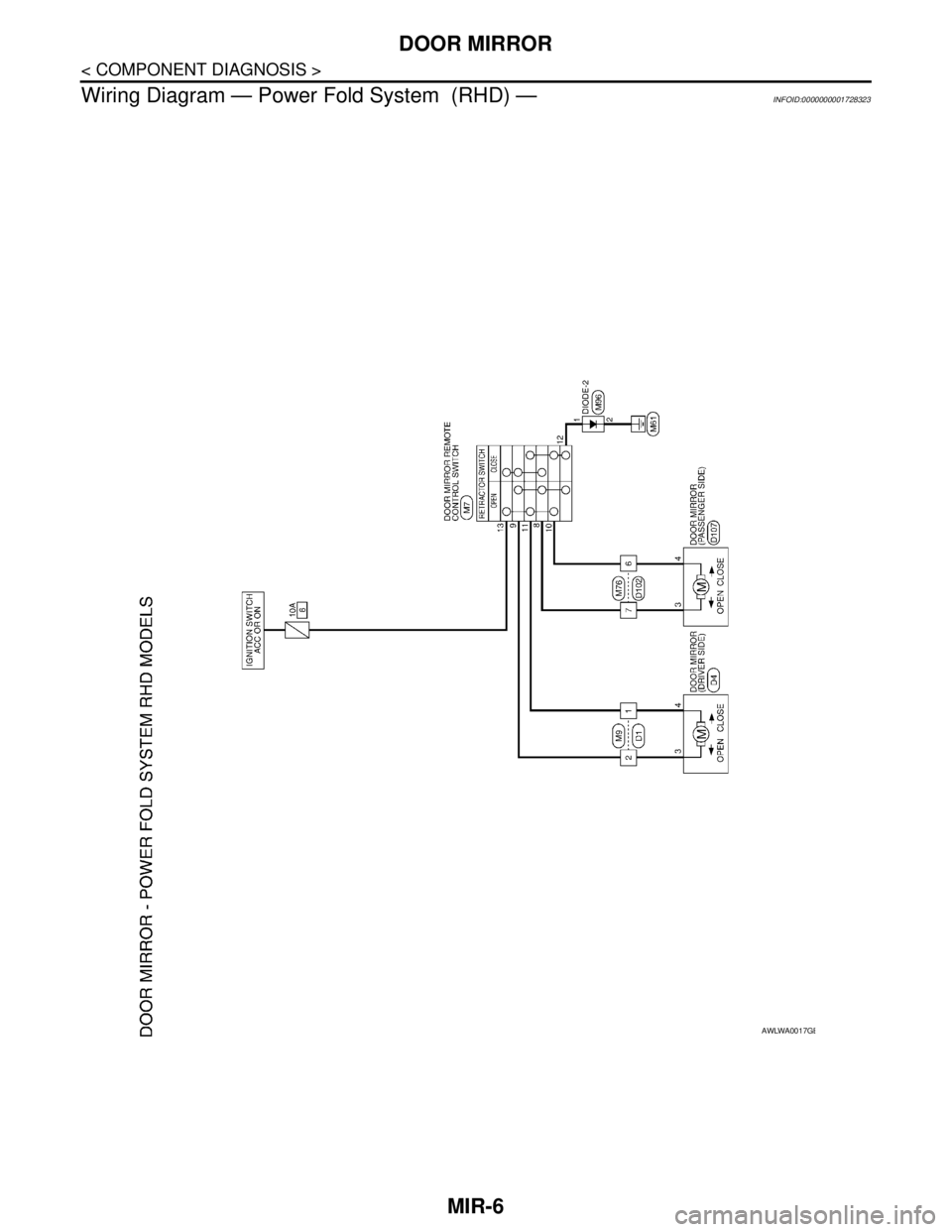

Wiring Diagram — Power Fold System (RHD) —
