2007 NISSAN TIIDA Service Repair Manual

fuel additives stop start trailer radio controls wheel engine overheat

Page 5337 of 5883

NISSAN TIIDA 2007 Service Repair Manual CAN COMMUNICATION LINE
TM-391
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CAN COMMUNICATION LINE
DescriptionINFOID:0000000001713064
CAN (Controller Area Network) is

CAN COMMUNICATION LINE
TM-391
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CAN COMMUNICATION LINE
DescriptionINFOID:0000000001713064
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicINFOID:0000000001713065
Diagnostic trouble code “U1000 CAN COMM CIRCUIT” with CONSULT-III or 12th judgement flicker without
CONSULT-III is detected when TCM cannot communicate to other control units.
Possible CauseINFOID:0000000001713066
Harness or connector
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000001713067
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Touch “START”.
4. Wait at least 6 seconds or start engine and wait for at least 6 seconds.
5. If DTC is detected, go to TM-391, "
Diagnosis Procedure".
WITHOUT CONSULT-III
1. Turn ignition switch ON.
2. Wait at least 6 seconds or start engine and wait at least 6 seconds.
3. Perform self-diagnosis. Refer to TM-350, "
Diagnosis Procedure without CONSULT-III".
4. If DTC is detected, go to TM-391, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001713069
1.CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-III
1. Turn ignition switch ON and start engine.
2. Select “SELF-DIAGNOSTIC RESULTS” mode for “TRANSMISSION” with CONSULT-III.
Is any malfunction of the
“CAN COMM CIRCUIT” indicated?
YES >> Print out CONSULT-III screen, GO TO LAN section. Refer to XX-XX, "*****"
NO >>INSPECTION END

Page 5338 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-392
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]

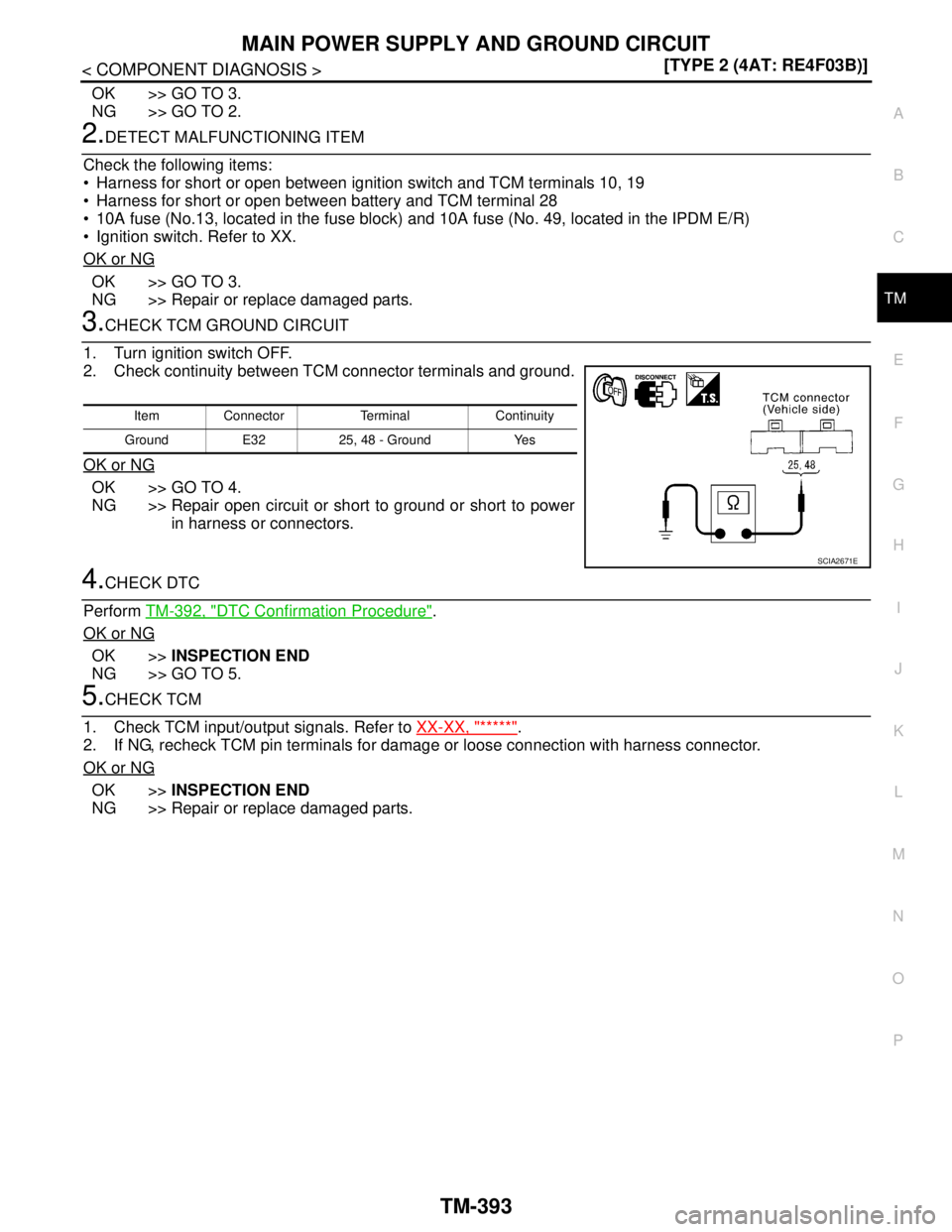

MAIN POWER SUPPLY AND GROUND CIRCUIT
MAIN POWER SUPPLY AND GROUND CIRCUIT
DescriptionINFOID:0000000001713070
When the power supply to the TCM is c

Page 5339 of 5883

NISSAN TIIDA 2007 Service Repair Manual MAIN POWER SUPPLY AND GROUND CIRCUIT
TM-393
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTIONING ITEM
Check the followin

Page 5340 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-394
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 1ST GEAR FUNCTION
A/T 1ST GEAR FUNCTION
DescriptionINFOID:0000000001713076
This malfunction will not be detected while the OD OFF indicator

TM-394
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 1ST GEAR FUNCTION
A/T 1ST GEAR FUNCTION
DescriptionINFOID:0000000001713076
This malfunction will not be detected while the OD OFF indicator lamp is indicating another self-diagnosis
malfunction.
This malfunction is detected when the A/T does not shift into first gear position as instructed by the TCM.
This is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such as
control valve sticking, improper solenoid valve operation, etc.
On Board Diagnosis LogicINFOID:0000000001713077
Diagnostic trouble code “A/T 1ST GR FNCTN” with CONSULT-III is detected when A/T cannot be shifted to
the 1st gear position even if electrical circuit is good.
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (1st) supposed by TCM, the slip ratio will be more than
normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when either shift solenoid valve A is stuck open or shift solenoid valve B is
stuck open.
Gear positions supposed by TCM are as follows:
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck open: 2*, 2, 3 and 3 positions
In case of gear position with shift solenoid valve B stuck open: 4*, 3, 3 and 4 positions to each gear position
above
*: “A/T 1ST GR FNCTN” is detected.
Possible CauseINFOID:0000000001713078
Shift solenoid valve A
Shift solenoid valve B
Each clutch
Hydraulic control circuit
DTC Confirmation ProcedureINFOID:0000000001713079
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Touch “START”.
3. Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SE: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the
voltage (cool down the fluid).
4. Select “1ST GR FNCTN P0731” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III and touch “START”.
5. Accelerate vehicle to 20 to 25 km/h (12 to 16 MPH) under the following conditions and release the accel-
erator pedal completely.
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed)ON (Closed) OFF (Open) OFF (Open)

Page 5341 of 5883

NISSAN TIIDA 2007 Service Repair Manual A/T 1ST GEAR FUNCTION
TM-395
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
SLCT LVR POSI: “D” position

A/T 1ST GEAR FUNCTION
TM-395
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
SLCT LVR POSI: “D” position
-Make sure that “GEAR” shows “2” after releasing pedal.
6. Depress accelerator pedal to WOT (more than 7.0/8 of “THROTTLE POSI”) quickly from a speed of 20 to
25 km/h (12 to 16 MPH) until “TESTING” changes to “STOP VEHICLE” or “COMPLETED”. (It will take
approximately 3 seconds.)
If the check result NG appears on CONSULT-III screen, go to TM-395, "
Diagnosis Procedure".
If “STOP VEHICLE” appears on CONSULT-III screen, go to the following step.
-Make sure that “GEAR” shows “1” when depressing accelerator pedal to WOT.
-If “TESTING” does not appear on CONSULT-III for a long time, select “SELF-DIAGNOSTIC
RESULTS” for “TRANSMISSION”. In case a DTC other than “A/T 1ST GR FNCTN” is shown, refer
to XX-XX, "*****"
.
7. Stop vehicle.
8. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
9. Make sure that “OK” is displayed. (If “NG” is displayed, refer to “Diagnostic Procedure”.)
Refer to TM-395, "
Diagnosis Procedure".
Refer to XX-XX, "*****"
.
Diagnosis ProcedureINFOID:0000000001713080

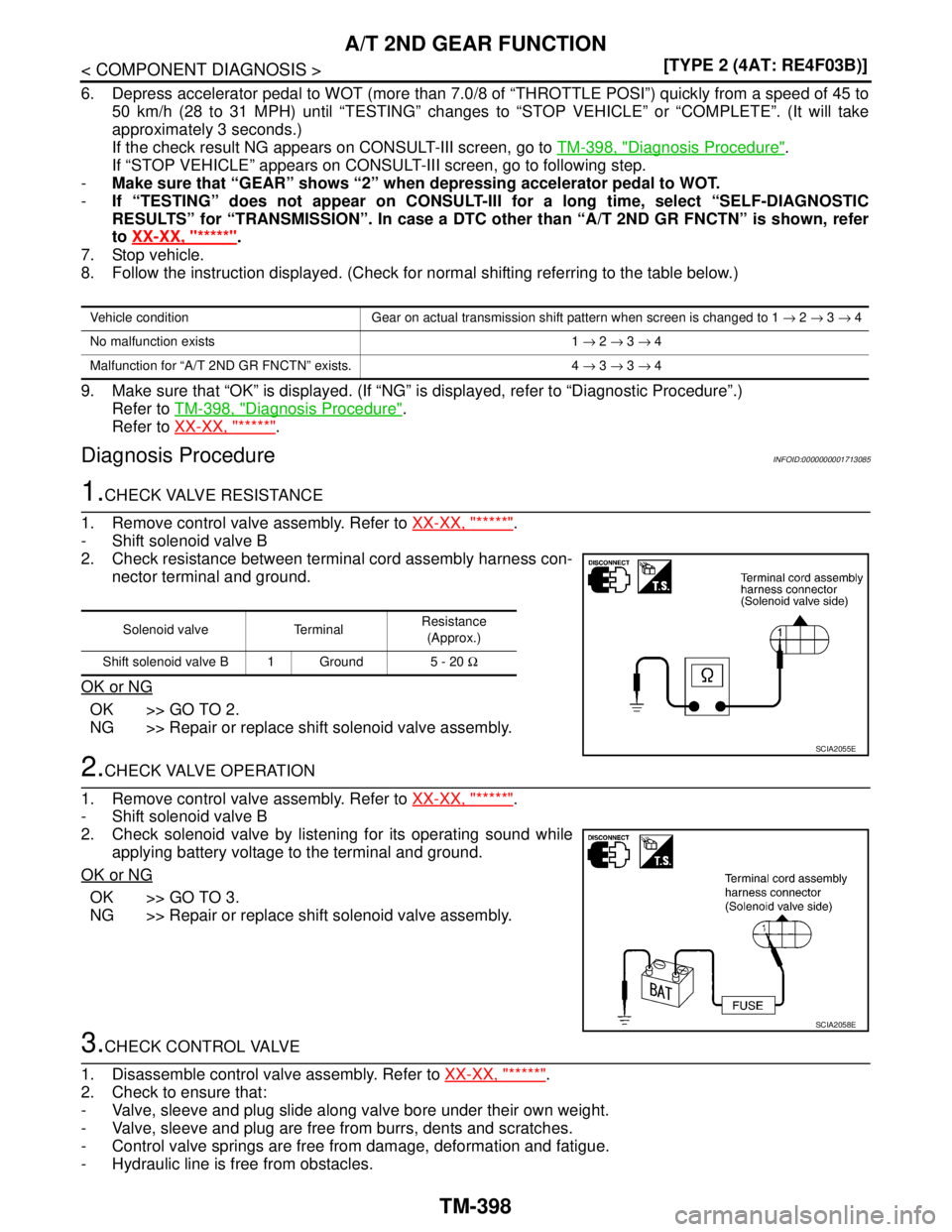

1.CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Shift solenoid valve A
- Shift solenoid valve B
2. Check resistance between terminal cord assembly harness con-
nector terminals and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.
2.CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Shift solenoid valve A
- Shift solenoid valve B
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists. 1 → 2 → 3 → 4
Malfunction for “A/T 1ST GR FNCTN ” exists. 2 → 2 → 3 → 3
4 → 3 → 3 → 4
Solenoid valve TerminalResistance
(Approx.)
Shift solenoid valve A 2
Ground20 - 30 Ω
Shift solenoid valve B 1 5 - 20 Ω
SCIA3594E

Page 5342 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-396
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 1ST GEAR FUNCTION
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminals and ground.
OK

Page 5343 of 5883

NISSAN TIIDA 2007 Service Repair Manual A/T 2ND GEAR FUNCTION
TM-397
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
A/T 2ND GEAR FUNCTION
DescriptionINFOID:0000000001713081
This malfunction will not be dete

A/T 2ND GEAR FUNCTION
TM-397
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
A/T 2ND GEAR FUNCTION
DescriptionINFOID:0000000001713081
This malfunction will not be detected while the OD OFF indicator lamp is indicating another self-diagnosis
malfunction.
This malfunction is detected when the A/T does not shift into second gear position as instructed by the TCM.
This is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such as
control valve sticking, improper solenoid valve operation, etc.
On Board Diagnosis LogicINFOID:0000000001713082
Diagnostic trouble code “A/T 2ND GR FNCTN” with CONSULT-III is detected when A/T cannot be shifted to
the 2nd gear position even if electrical circuit is good.
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (2nd) supposed by TCM, the slip ratio will be more than
normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when shift solenoid valve B is stuck open.
Gear positions supposed by TCM are as follows:
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve B stuck open: 4, 3*, 3 and 4 positions to each gear position
above
*: “A/T 2ND GR FNCTN” is detected.
Possible CauseINFOID:0000000001713083
Shift solenoid valve B
Each clutch
Hydraulic control circuit
DTC Confirmation ProcedureINFOID:0000000001713084
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Touch “START”.
3. Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SE: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the
voltage (cool down the fluid).
4. Select “2ND GR FNCTN P0732” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III and touch “START”.
5. Accelerate vehicle to 45 to 50 km/h (28 to 31 MPH) under the following conditions and release the accel-
erator pedal completely.
THROTTLE POSI: Less than 1.0/8
SLCT LVR POSI: “D” position
-Make sure that “GEAR” shows “3” or “4” after releasing pedal.
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)

Page 5344 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-398
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 2ND GEAR FUNCTION
6. Depress accelerator pedal to WOT (more than 7.0/8 of “THROTTLE POSI”) quickly from a speed of 45 to
50 km/h (28 to 31

TM-398
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 2ND GEAR FUNCTION
6. Depress accelerator pedal to WOT (more than 7.0/8 of “THROTTLE POSI”) quickly from a speed of 45 to
50 km/h (28 to 31 MPH) until “TESTING” changes to “STOP VEHICLE” or “COMPLETE”. (It will take
approximately 3 seconds.)
If the check result NG appears on CONSULT-III screen, go to TM-398, "
Diagnosis Procedure".
If “STOP VEHICLE” appears on CONSULT-III screen, go to following step.
-Make sure that “GEAR” shows “2” when depressing accelerator pedal to WOT.
-If “TESTING” does not appear on CONSULT-III for a long time, select “SELF-DIAGNOSTIC
RESULTS” for “TRANSMISSION”. In case a DTC other than “A/T 2ND GR FNCTN” is shown, refer
to XX-XX, "*****"
.
7. Stop vehicle.
8. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
9. Make sure that “OK” is displayed. (If “NG” is displayed, refer to “Diagnostic Procedure”.)
Refer to TM-398, "
Diagnosis Procedure".
Refer to XX-XX, "*****"
.
Diagnosis ProcedureINFOID:0000000001713085
1.CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Shift solenoid valve B
2. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace shift solenoid valve assembly.
2.CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Shift solenoid valve B
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace shift solenoid valve assembly.
3.CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to XX-XX, "*****"
.
2. Check to ensure that:
- Valve, sleeve and plug slide along valve bore under their own weight.
- Valve, sleeve and plug are free from burrs, dents and scratches.
- Control valve springs are free from damage, deformation and fatigue.
- Hydraulic line is free from obstacles.
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists 1 → 2 → 3 → 4
Malfunction for “A/T 2ND GR FNCTN” exists. 4 → 3 → 3 → 4
Solenoid valve TerminalResistance
(Approx.)
Shift solenoid valve B 1 Ground 5 - 20 Ω
SCIA2055E
SCIA2058E

Load next 8 pages

Page: < prev 1-10 ... 5305-5312 5313-5320 5321-5328 5329-5336 5337-5344 5345-5352 5353-5360 5361-5368 5369-5376 ... 5888 next >

air suspension sport mode headlight bulb rear entertainment gas mileage fuel filter
