EC-1020
< ECU DIAGNOSIS >[MR18DE]
ECM
DTC Index
INFOID:0000000001161994
×:Applicable —: Not applicable
DTC*1Items
(CONSULT-III screen
terms)SRT codeTest value/
Test limit
(GST only)Trip MIReference
page CONSULT-III
GST*
2ECM*3
U1000
1000*4CAN COMM CIRCUIT — — 2 —EC-793
U1001
1001*4CAN COMM CIRCUIT — — 2 —EC-793
U1010 1010 CONTROL UNIT(CAN) — — 2 —EC-794
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.—— —Flashing —
P0011 0011 INT/V TIM CONT-B1 — — 2 —EC-795
P0102 0102 MAF SEN/CIRCUIT-B1 — — 1×EC-799
P0103 0103 MAF SEN/CIRCUIT-B1 — — 1×EC-799
P0112 0112 IAT SEN/CIRCUIT-B1 — — 2×EC-804
P0113 0113 IAT SEN/CIRCUIT-B1 — — 2×EC-804
P0117 0117 ECT SEN/CIRC — — 1×EC-807
P0118 0118 ECT SEN/CIRC — — 1×EC-807
P0122 0122 TP SEN 2/CIRC-B1 — — 1×EC-810
P0123 0123 TP SEN 2/CIRC-B1 — — 1×EC-810
P0132 0132 HO2S1 (B1) —×2×EC-813
P0133 0133 HO2S1 (B1)××2×EC-817
P0134 0134 HO2S1 (B1) —×2×EC-823
P0135 0135 HO2S1 HTR (B1)××2×EC-828
P0138 0138 HO2S2 (B1)××2×EC-831
P0139 0139 HO2S2 (B1)××2×EC-835
P0141 0141 HO2S2 HTR (B1)××2×EC-841
P0171 0171 FUEL SYS-LEAN-B1 — — 2×EC-844
P0172 0172 FUEL SYS-RICH-B1 — — 2×EC-848
P0222 0222 TP SEN 1/CIRC-B1 — — 1×EC-852
P0223 0223 TP SEN 1/CIRC-B1 — — 1×EC-852
P0300 0300 MULTICYL MISFIRE — — 2×EC-855
P0301 0301 CYL 1 MISFIRE — — 2×EC-855
P0302 0302 CYL 2 MISFIRE — — 2×EC-855
P0303 0303 CYL 3 MISFIRE — — 2×EC-855
P0304 0304 CYL 4 MISFIRE — — 2×EC-855
P0327 0327 KNOCK SEN/CIRC-B1 — — 2 —EC-860
P0328 0328 KNOCK SEN/CIRC-B1 — — 2 —EC-860
P0335 0335 CKP SEN/CIRCUIT — — 2×EC-862
P0340 0340 CMP SEN/CIRC-B1 — — 2×EC-866
P0420 0420 TW CATALYST SYS-B1××2×EC-870
P0444 0444 PURG VOLUME CONT/V — — 2×EC-875
P0500 0500
VEH SPEED SEN/CIRC*5—— 2×EC-878
P0605 0605 ECM — — 1 or 2× or —EC-880
P 1111 1111 I N T / V T I M C / C I R C — — 1×EC-882
Page 2370 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ECM
EC-1021
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-dia NISSAN TIIDA 2007 Service Repair Manual ECM
EC-1021
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-dia](/manual-img/5/57395/w960_57395-2369.png)
ECM
EC-1021
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: The troubleshooting for this DTC needs CONSULT-III.
*5: When the fail-safe operations for both self-diagnoses occur, the MI illuminates.
How to Set SRT CodeINFOID:0000000001161995
To set all SRT codes, self-diagnosis for the items indicated above must be performed one or more times. Each
diagnosis may require a long period of actual driving under various conditions.
WITH CONSULT-III
Perform corresponding DTC CONFIRMATION PROCEDURE one by one based on Performance Priority in
the table on “SRT Item”.
WITHOUT CONSULT-III
The most efficient driving pattern in which SRT codes can be properly set is explained on the next page. The
driving pattern should be performed one or more times to set all SRT codes.
P1121 1121 ETC ACTR - B1 — — 1×EC-885
P1122 1122 ETC FUNCTION/CIRC - B1 — — 1×EC-887
P1124 1124 ETC MOT PWP — — 1×EC-891
P1126 1126 ETC MOT PWP - B1 — — 1×EC-891
P1128 1128 ETC MOT - B1 — — 1×EC-894
P1143 1143 HO2S1 (B1)××2×EC-896
P1144 1144 HO2S1 (B1)××2×EC-901
P1146 1146 HO2S2 (B1)××2×EC-906
P1147 1147 HO2S2 (B1)××2×EC-912
P1211 1211 TCS C/U FUNCTN — — 2 —EC-918
P1212 1212 TCS/CIRC — — 2 —EC-919
P1217 1217 ENG OVER TEMP — — 1×EC-920
P1225 1225 CTP LEARNING-B1 — — 2 —EC-924
P1226 1226 CTP LEARNING-B1 — — 2 —EC-926
P1229 1129 SENSOR POWER/CIRC — — 1×EC-928
P1564 1564 ASCD SW — — 1 —EC-930
P1572 1572 ASCD BRAKE SW — — 1 —EC-933
P1574 1574 ASCD VHL SPD SEN — — 1 —EC-940
P1610 1610 LOCK MODE — — 2 —SEC-36
P1611 1611 ID DISCARD IMM-ECM — — 2 —SEC-30
P1614 1615 DIFFERENCE OF KEY — — 2 —SEC-29
P1706 1706 P-N POS SW/CIRCUIT — — 2×EC-942
P1805 1805 BRAKE SW/CIRCUIT — — 2 —EC-945
P2122 2122 APP SEN 1/CIRC — — 1×EC-948
P2123 2123 APP SEN 1/CIRC — — 1×EC-948
P2127 2127 APP SEN 2/CIRC — — 1×EC-952
P2128 2128 APP SEN 2/CIRC — — 1×EC-952
P2135 2135 TP SENSOR-B1 — — 1×EC-956
P2138 2138 APP SENSOR — — 1×EC-959
DTC*1Items
(CONSULT-III screen
terms)SRT codeTe s t v a l u e /
Test limit
(GST only)Trip MIReference
page CONSULT-III
GST*
2ECM*3
Page 2371 of 5883
EC-1022
< ECU DIAGNOSIS >[MR18DE]
ECM

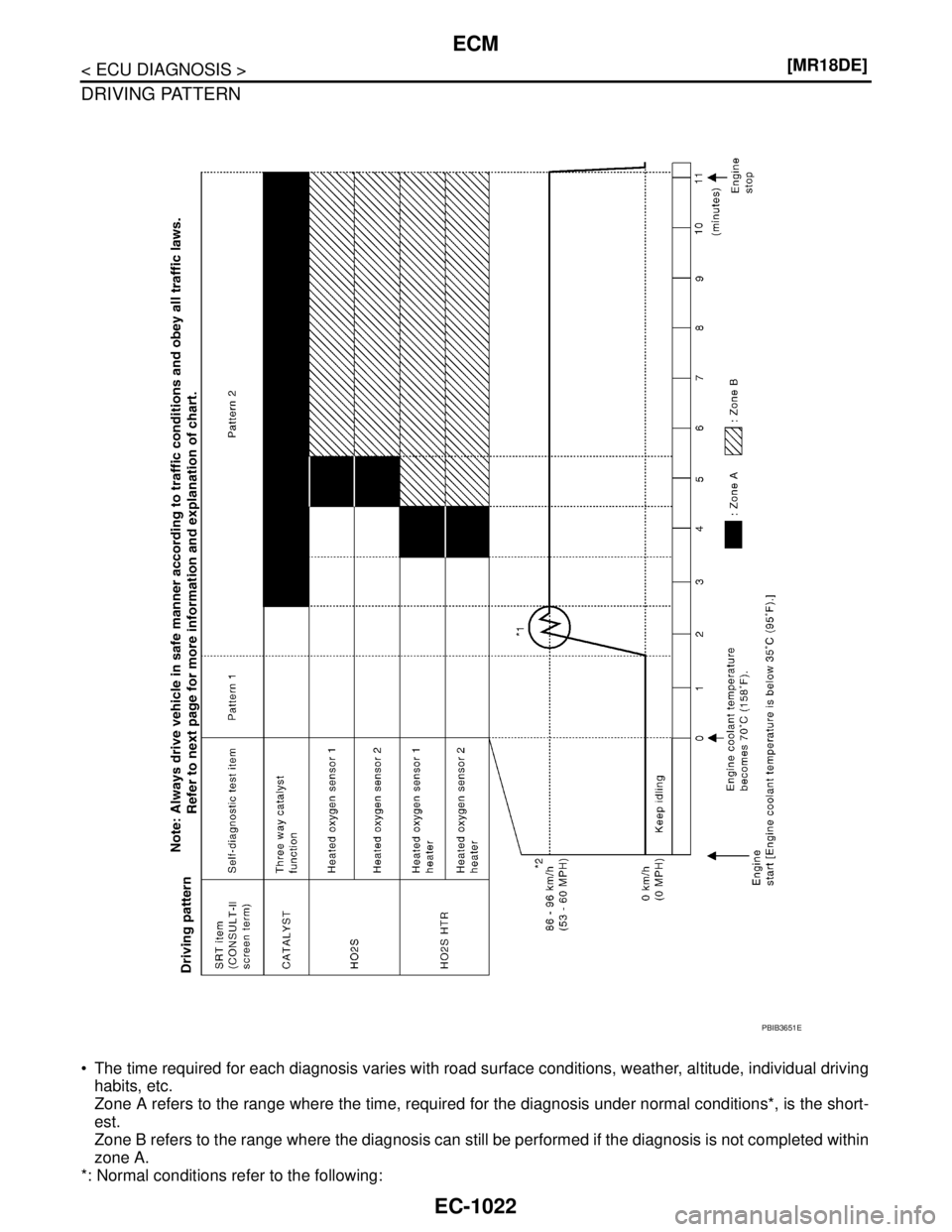

DRIVING PATTERN
The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving
habits, etc.
Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the short-
est.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within
zone A.
*: Normal conditions refer to the following:
PBIB3651E
Page 2372 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ECM
EC-1023
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Sea level
Flat road
Ambient air temperature: 20 - 30°C (68 - 86°F)
Diagnosis is performed as quickly as possible under n NISSAN TIIDA 2007 Service Repair Manual ECM
EC-1023
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Sea level
Flat road
Ambient air temperature: 20 - 30°C (68 - 86°F)
Diagnosis is performed as quickly as possible under n](/manual-img/5/57395/w960_57395-2371.png)
ECM
EC-1023
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Sea level
Flat road
Ambient air temperature: 20 - 30°C (68 - 86°F)
Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30°C (68 - 86°F)], diagno-
sis may also be performed.
Pattern 1:
The engine is started at the engine coolant temperature of −10 to 35°C (14 to 95°F)
(where the voltage between the ECM terminal 46 and ground is 3.0 - 4.3V).
The engine must be operated at idle speed until the engine coolant temperature is greater than 70°C
(158°F) (where the voltage between the ECM terminal 46 and ground is lower than 1.4V).
The engine is started at the fuel tank temperature of warmer than 0°C (32°F) (where the voltage
between the ECM terminal 95 and ground is less than 4.1V).
Pattern 2:
When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.
In this case, the time required for diagnosis may be extended.
Test Value and Test LimitINFOID:0000000001161996
The following is the information specified in Service $06 of ISO 15031-5.
The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.
SRT item Self-diagnostic test item DTCTe s t v a l u e
(GST display)
Te s t l i m i t
TID CID
CATALYST Three way catalyst functionP0420 01H 01H Max.
P0420 02H 81H Min.
HO2SHeated oxygen sensor 1P0133 09H 04H Max.
P1143 0AH 84H Min.
P1144 0BH 04H Max.
P0132 0CH 04H Max.
P0134 0DH 04H Max.
Heated oxygen sensor 2P0139 19H 86H Min.
P1147 1AH 86H Min.
P1146 1BH 06H Max.
P0138 1CH 06H Max.
HO2S HTRHeated oxygen sensor 1 heater P013529H 08H Max.
2AH 88H Min.
Heated oxygen sensor 2 heater P01412DH 0AH Max.
2EH 8AH Min.
Page 2373 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-1024
< SYMPTOM DIAGNOSIS >[MR18DE]
ENGINE CONTROL SYSTEM
SYMPTOM DIAGNOSIS
ENGINE CONTROL SYSTEM
Symptom TableINFOID:0000000001161997
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
NISSAN TIIDA 2007 Service Repair Manual EC-1024
< SYMPTOM DIAGNOSIS >[MR18DE]
ENGINE CONTROL SYSTEM
SYMPTOM DIAGNOSIS
ENGINE CONTROL SYSTEM
Symptom TableINFOID:0000000001161997
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page](/manual-img/5/57395/w960_57395-2372.png)
EC-1024
< SYMPTOM DIAGNOSIS >[MR18DE]
ENGINE CONTROL SYSTEM
SYMPTOM DIAGNOSIS
ENGINE CONTROL SYSTEM
Symptom TableINFOID:0000000001161997
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-978
Fuel pressure regulator system 334444444 4EC-1035
Fuel injector circuit 11232 22 2EC-975
Evaporative emission system 334444444 4EC-745
Air Positive crankcase ventilation sys-
tem
334444444 41EC-987
Incorrect idle speed adjustment 1 1 1 1 1EC-692
Electric throttle control actuator 112332222 2 2EC-885,
EC-887
IgnitionIncorrect ignition timing adjustment33111 11 1EC-693
Ignition circuit 11222 22 2EC-981
Main power supply and ground circuit 22333 33 23EC-789
Mass air flow sensor circuit
1
122
222 2EC-799
Engine coolant temperature sensor circuit
333EC-807
Heated oxygen sensor 1 circuitEC-813
,
EC-817
,
EC-823
,
EC-896
,
EC-901
Throttle position sensor circuit
22EC-810
,
EC-852
,
EC-924
,
EC-926
,
EC-956
Accelerator pedal position sensor circuit 3 2 1EC-948
,
EC-952
,
EC-956
Knock sensor circuit 2 3EC-860
Crankshaft position sensor (POS) circuit 2 2EC-862
Page 2374 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ENGINE CONTROL SYSTEM
EC-1025
< SYMPTOM DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL & NISSAN TIIDA 2007 Service Repair Manual ENGINE CONTROL SYSTEM
EC-1025
< SYMPTOM DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL &](/manual-img/5/57395/w960_57395-2373.png)
ENGINE CONTROL SYSTEM
EC-1025
< SYMPTOM DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL & OTHER
Camshaft position sensor (PHASE) circuit 3 2EC-866
Vehicle speed signal circuit 2 3 3 3EC-878
ECM 22333333333EC-880
Intake valve timing control solenoid valve cir-
cuit32 13223 3EC-882
PNP switch circuit 3 3 3 3 3EC-942
Refrigerant pressure sensor circuit 2 3 3 4EC-988
Electrical load signal circuit 3EC-973
Air conditioner circuit 223333333 3 2HAC-92,
HAC-207
ABS actuator and electric unit (control unit) 4BRC-86
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Page 2375 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-1026
< SYMPTOM DIAGNOSIS >[MR18DE]
ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR NISSAN TIIDA 2007 Service Repair Manual EC-1026
< SYMPTOM DIAGNOSIS >[MR18DE]
ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR](/manual-img/5/57395/w960_57395-2374.png)
EC-1026
< SYMPTOM DIAGNOSIS >[MR18DE]
ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code A
AAB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-10
Fuel piping 555 55 5EM-162
Va p o r l o c k—
Valve deposit
5 555 55 5—
Poor fuel (Heavy weight gasoline,
Low octane)—
Air Air duct
55555 5EM-154
Air cleanerEM-154
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator)
555 5EM-156
Electric throttle control actuator
Air leakage from intake manifold/
Collector/Gasket
Cranking Battery
111111
11PG-6
Generator circuitCHG-29
Starter circuit 3STR-24
Signal plate 6EM-219
PNP switch 4TM-665
Engine Cylinder head
55555 55 5EM-198
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-200
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTiming chain
55555 55 5EM-177
CamshaftEM-186
Intake valve timing controlEM-177
Intake valve
3EM-198
Exhaust valve
Page 2376 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ENGINE CONTROL SYSTEM
EC-1027
< SYMPTOM DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1 - 6: The numbers refer to the order of inspection.Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5 NISSAN TIIDA 2007 Service Repair Manual ENGINE CONTROL SYSTEM
EC-1027
< SYMPTOM DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1 - 6: The numbers refer to the order of inspection.Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5](/manual-img/5/57395/w960_57395-2375.png)
ENGINE CONTROL SYSTEM
EC-1027
< SYMPTOM DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1 - 6: The numbers refer to the order of inspection.Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5EX-5
, EX-9
Three way catalyst
Lubrica-
tionOil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery/Oil cooler
55555 55 5EM-166
,
LU-18
, LU-
19
Oil level (Low)/Filthy oilLU-15
Cooling Radiator/Hose/Radiator filler cap
55555 55 45CO-40
Thermostat 5CO-45
Water pumpCO-44
Water galleryCO-28
Cooling fan
5CO-43
Coolant level (Low)/Contaminat-
ed coolantCO-35
NATS (NISSAN Anti-Theft System) 1 1SEC-7
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code A
AAB AC AD AE AF AG AH AJ AK AL AM HA
