Page 1833 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-484
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
P0011 IVT CONTROL
CAUTION:
Always drive at a safe speed.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-484, "Diagnosis Proc

Page 1834 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0011 IVT CONTROL
EC-485
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

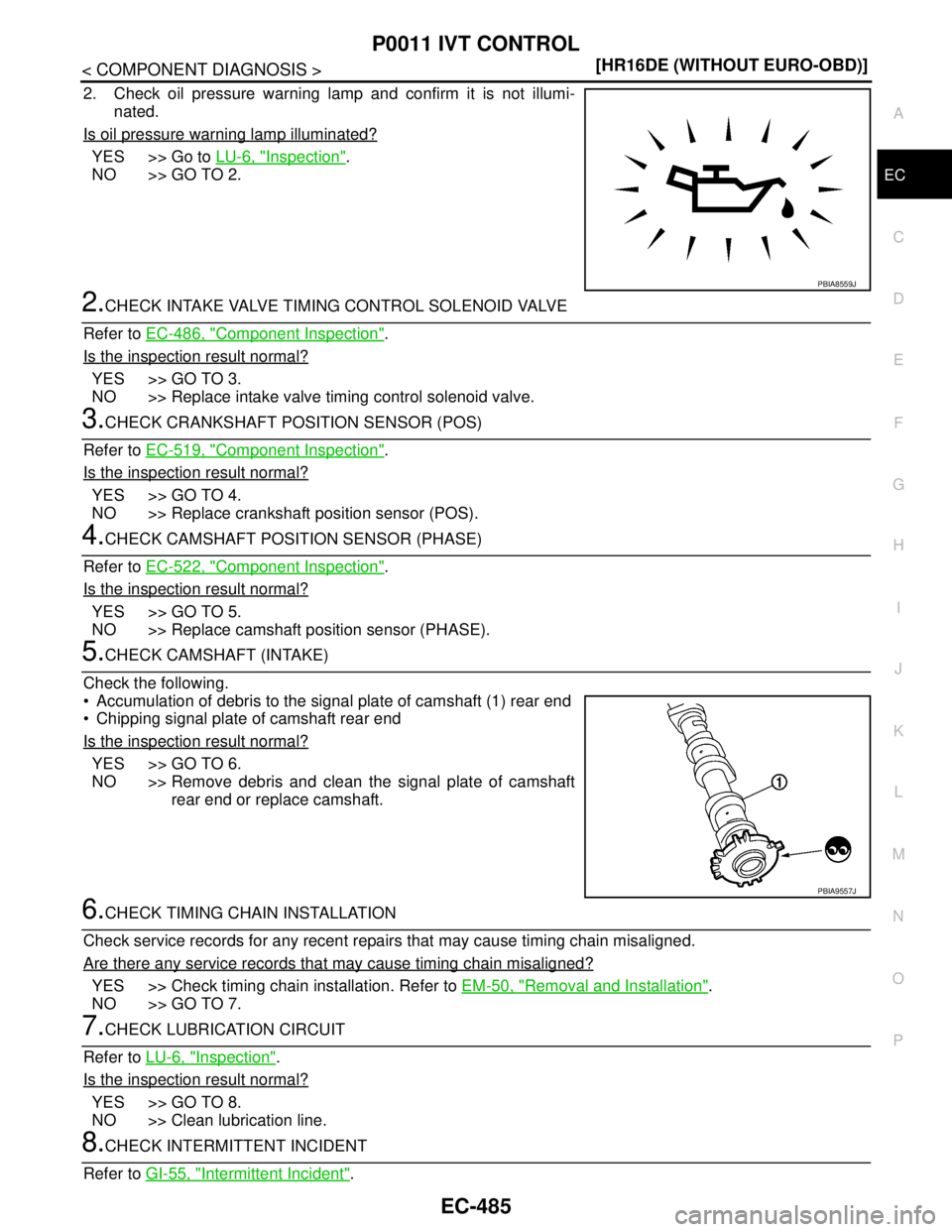

2. Check oil pressure warning lamp and confirm it is not illumi-
nated.
Is oil pressure warn

Page 1835 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-486
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
P0011 IVT CONTROL
>> INSPECTION END
Component InspectionINFOID:0000000001693233

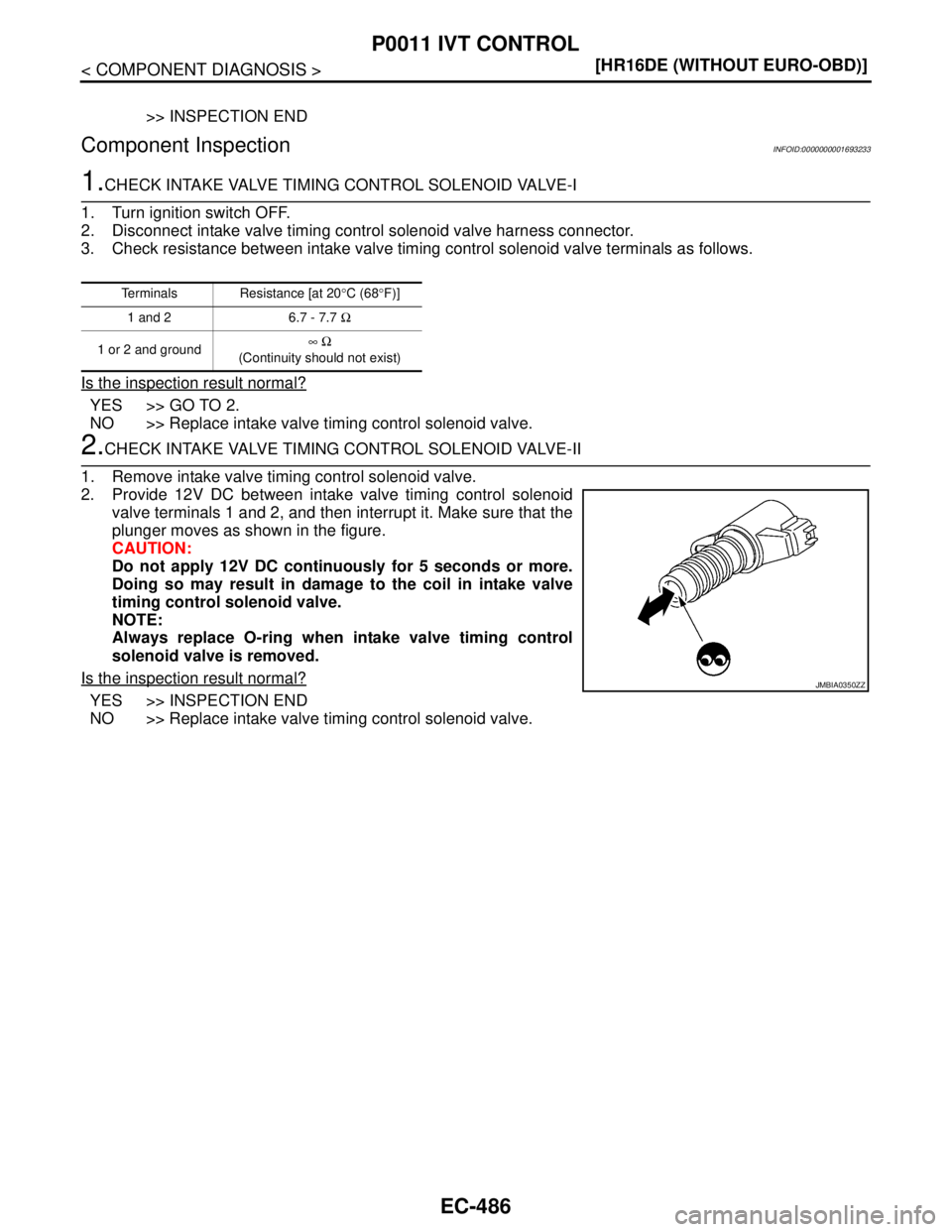

1.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-I
1. Turn i

Page 1836 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0102, P0103 MAF SENSOR
EC-487
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P0102, P0103 MAF SENSOR
DescriptionINFOID:0000000001693234
The mass air flow sensor (1

P0102, P0103 MAF SENSOR
EC-487
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P0102, P0103 MAF SENSOR
DescriptionINFOID:0000000001693234

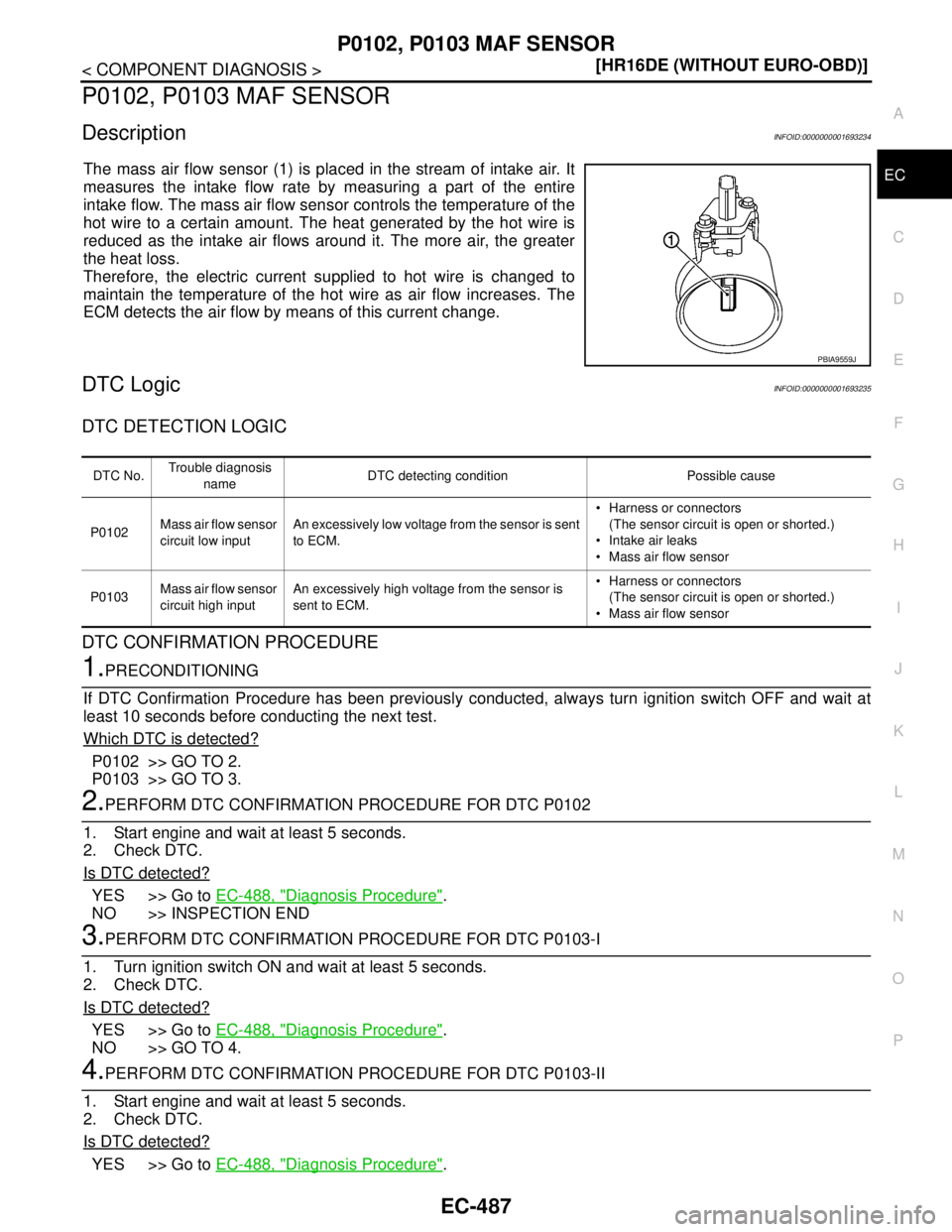

The mass air flow sensor (1) is placed in the stream of intake air. It
measures the intake flow rate by measuring a part of the entire
intake flow. The mass air flow sensor controls the temperature of the
hot wire to a certain amount. The heat generated by the hot wire is
reduced as the intake air flows around it. The more air, the greater
the heat loss.
Therefore, the electric current supplied to hot wire is changed to
maintain the temperature of the hot wire as air flow increases. The
ECM detects the air flow by means of this current change.
DTC LogicINFOID:0000000001693235
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
Which DTC is detected?
P0102 >> GO TO 2.
P0103 >> GO TO 3.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P0102
1. Start engine and wait at least 5 seconds.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-488, "Diagnosis Procedure".
NO >> INSPECTION END
3.PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P0103-I
1. Turn ignition switch ON and wait at least 5 seconds.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-488, "Diagnosis Procedure".
NO >> GO TO 4.
4.PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P0103-II
1. Start engine and wait at least 5 seconds.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-488, "Diagnosis Procedure".
PBIA9559J
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0102Mass air flow sensor
circuit low inputAn excessively low voltage from the sensor is sent
to ECM. Harness or connectors
(The sensor circuit is open or shorted.)
Intake air leaks
Mass air flow sensor
P0103Mass air flow sensor
circuit high inputAn excessively high voltage from the sensor is
sent to ECM. Harness or connectors
(The sensor circuit is open or shorted.)
Mass air flow sensor

Page 1837 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-488
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
P0102, P0103 MAF SENSOR
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001693236
1.INSPECTION START
Confirm the detected DTC.
Which DTC

Page 1838 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0102, P0103 MAF SENSOR
EC-489
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2. Also check harness for short to ground and short to power.
Is the inspection result

P0102, P0103 MAF SENSOR
EC-489
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK MASS AIR FLOW SENSOR
Refer to EC-489, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace mass air flow sensor.
8.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000001693237
1.CHECK MASS AIR FLOW SENSOR-I
With CONSULT-III
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Start engine and warm it up to normal operating temperature.
4. Connect CONSULT-III and select “DATA MONITOR” mode.
5. Select “MAS A/F SE-B1” and check indication.
*: Check for linear voltage rise in response to engine being increased to about 4,000 rpm.
Without CONSULT-III
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Start engine and warm it up to normal operating temperature.
4. Check the voltage between ECM harness connector terminals as follows.
*: Check for linear voltage rise in response to engine being increased to about 4,000 rpm.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 2.
2.CHECK FOR THE CAUSE OF UNEVEN AIR FLOW THROUGH MASS AIR FLOW SENSOR
MAF sensor ECM
Continuity
Connector Terminal Connector Terminal
F31 4 F11 45 Existed
Monitor item Condition MAS A/F SE-B1
MAS A/F SE-B1Ignition switch ON (Engine stopped.) Approx. 0.4V
Idle (Engine is warmed-up to normal operating temperature.) 1.0 - 1.3V
Idle to about 4,000 rpm 1.0 - 1.3V to Approx. 2.4V*
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1145
(MAF sensor)F11 52Ignition switch ON (Engine stopped.) Approx. 0.4V
Idle (Engine is warmed-up to normal operating
temperature.)1.0 - 1.3V
Idle to about 4,000 rpm 1.0 - 1.3V to Approx. 2.4V*

Page 1839 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-490
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
P0102, P0103 MAF SENSOR
1. Turn ignition switch OFF.
2. Check for the cause of uneven air flow through mass air flow sensor. Refer to followin

EC-490
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
P0102, P0103 MAF SENSOR
1. Turn ignition switch OFF.
2. Check for the cause of uneven air flow through mass air flow sensor. Refer to following.
- Crushed air ducts
- Malfunctioning seal of air cleaner element
- Uneven dirt of air cleaner element
- Improper specification of intake air system parts
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.CHECK MASS AIR FLOW SENSOR-II
With CONSULT-III
1. Repair or replace malfunctioning part.
2. Start engine and warm it up to normal operating temperature.
3. Connect CONSULT-III and select “DATA MONITOR” mode.
4. Select “MAS A/F SE-B1” and check indication.
*: Check for linear voltage rise in response to engine being increased to about 4,000 rpm.
Without CONSULT-III
1. Repair or replace malfunctioning part.
2. Start engine and warm it up to normal operating temperature.
3. Check the voltage between ECM harness connector terminals as follows.
*: Check for linear voltage rise in response to engine being increased to about 4,000 rpm.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 4.
4.CHECK MASS AIR FLOW SENSOR-III
With CONSULT-III
1. Turn ignition switch OFF.
2. Disconnect mass air flow sensor harness connector and reconnect it again.
3. Start engine and warm it up to normal operating temperature.
4. Connect CONSULT-III and select “DATA MONITOR” mode.
5. Select “MAS A/F SE-B1” and check indication.
*: Check for linear voltage rise in response to engine being increased to about 4,000 rpm.
Without CONSULT-III
1. Turn ignition switch OFF.
2. Disconnect mass air flow sensor harness connector and reconnect it again.
Monitor item Condition MAS A/F SE-B1
MAS A/F SE-B1Ignition switch ON (Engine stopped.) Approx. 0.4V
Idle (Engine is warmed-up to normal operating temperature.) 1.0 - 1.3V
Idle to about 4,000 rpm 1.0 - 1.3V to Approx. 2.4V*
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1145
(MAF sensor)F11 52Ignition switch ON (Engine stopped.) Approx. 0.4V
Idle (Engine is warmed-up to normal operat-
ing temperature.)1.0 - 1.3V
Idle to about 4,000 rpm 1.0 - 1.3V to Approx. 2.4V*
Monitor item Condition MAS A/F SE-B1
MAS A/F SE-B1Ignition switch ON (Engine stopped.) Approx. 0.4V
Idle (Engine is warmed-up to normal operating temperature.) 1.0 - 1.3V
Idle to about 4,000 rpm 1.0 - 1.3V to Approx. 2.4V*

Page 1840 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0102, P0103 MAF SENSOR
EC-491
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Start engine and warm it up to normal operating temperature.
4. Check the voltage b
