Page 4025 of 4264

ISUZU TF SERIES 2004 Workshop Manual DIAGNOSIS (JR405E) 7A2-33

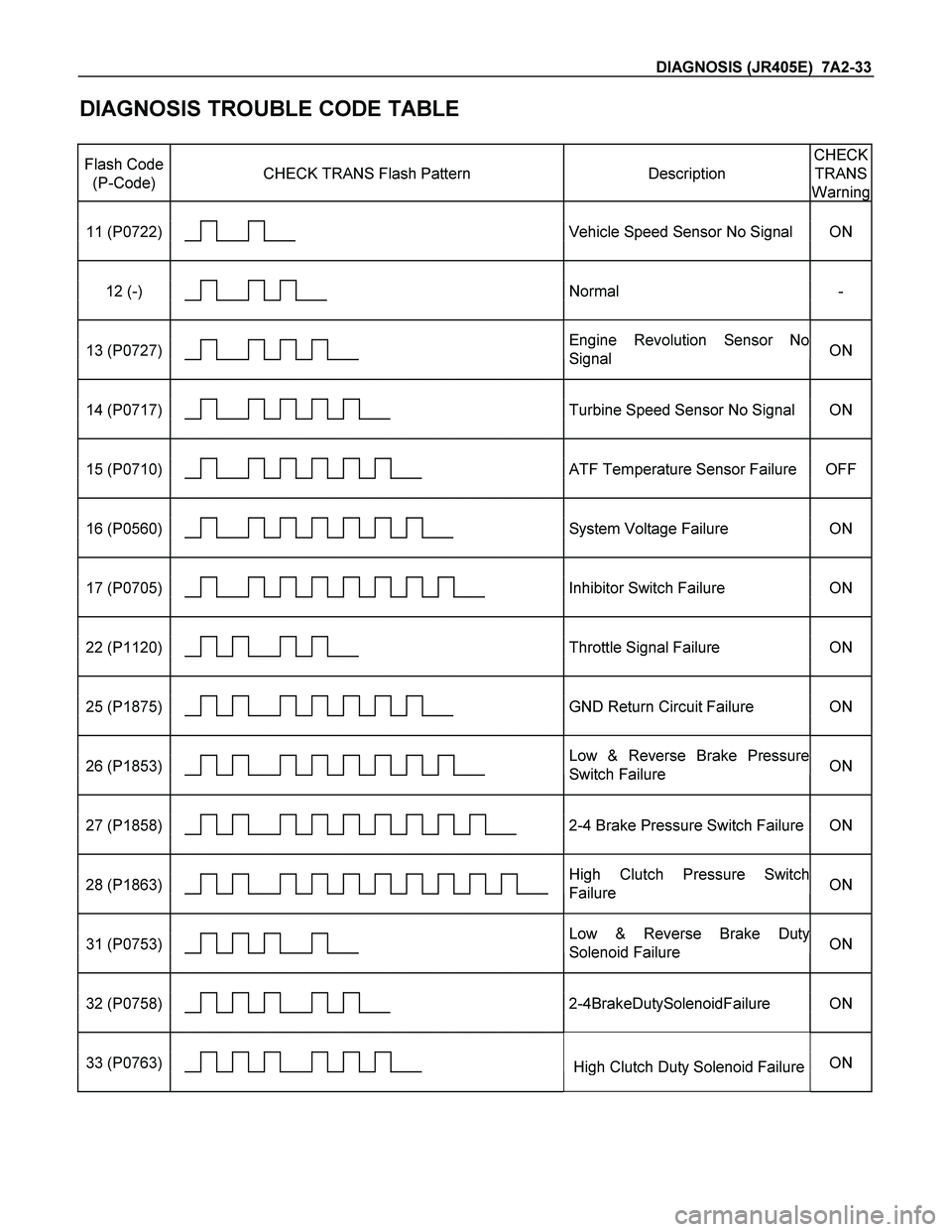

DIAGNOSIS TROUBLE CODE TABLE

Flash Code
(P-Code)

CHECK TRANS Flash Pattern

Description
CHECK
TRANS
Warning

11 (P0722)

DIAGNOSIS (JR405E) 7A2-33
DIAGNOSIS TROUBLE CODE TABLE

Flash Code
(P-Code)

CHECK TRANS Flash Pattern

Description
CHECK
TRANS
Warning

11 (P0722) Vehicle Speed Sensor No Signal ON

12 (-) Normal -

13 (P0727) ON

Engine Revolution Sensor No
Signal

14 (P0717) Turbine Speed Sensor No Signal ON

15 (P0710) ATF Temperature Sensor FailureOFF

16 (P0560) System Voltage Failure ON

17 (P0705) Inhibitor Switch Failure ON

22 (P1120) Throttle Signal Failure ON

25 (P1875) GND Return Circuit Failure ON

26 (P1853) ON

Low & Reverse Brake Pressure
Switch Failure

27 (P1858) 2-4 Brake Pressure Switch FailureON

28 (P1863) ON

High Clutch Pressure Switch
Failure

31 (P0753) ON

Low & Reverse Brake Duty
Solenoid Failure

32 (P0758) 2-4BrakeDutySolenoidFailure ON

33 (P0763) ON
High Clutch Duty Solenoid Failure

Page 4026 of 4264

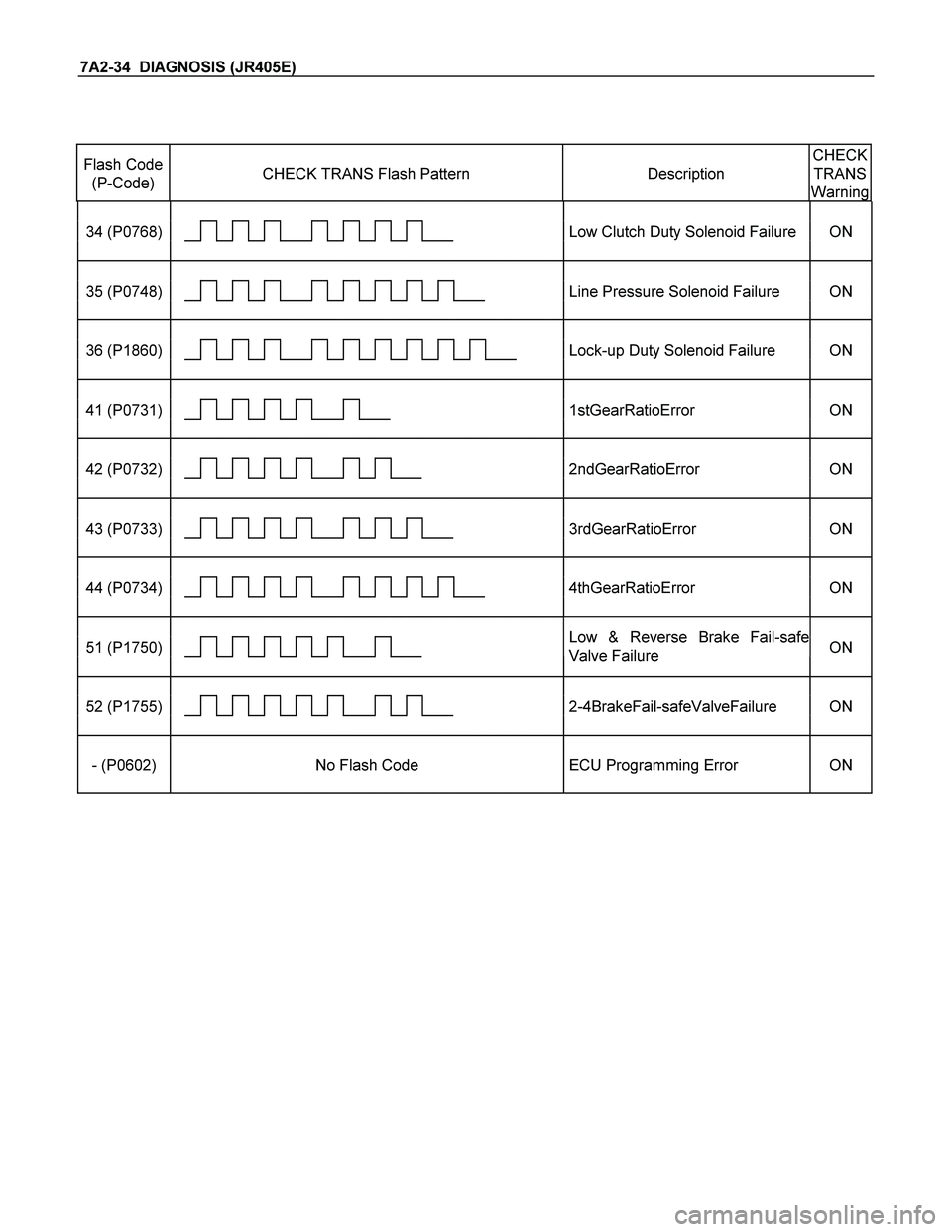

ISUZU TF SERIES 2004 Workshop Manual 7A2-34 DIAGNOSIS (JR405E)

Flash Code
(P-Code)

CHECK TRANS Flash Pattern

Description
CHECK
TRANS
Warning

34 (P0768) Low Clutch Duty S

Page 4027 of 4264

ISUZU TF SERIES 2004 Workshop Manual DIAGNOSIS (JR405E) 7A2-35

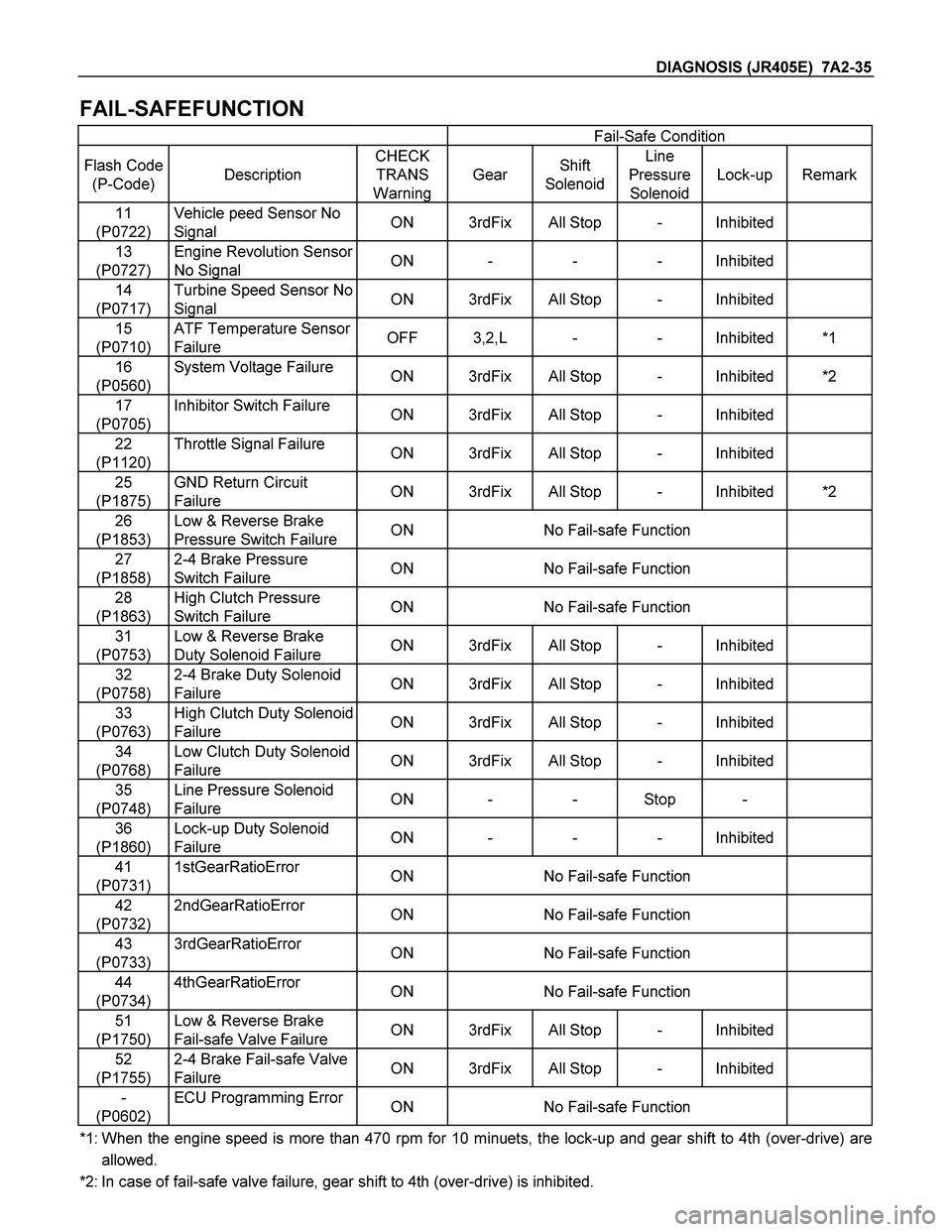

FAIL-SAFEFUNCTION
Fail-Safe Condition
Flash Code
(P-Code)

Description
CHECK
TRANS
Warning

Gear Shift
Solenoid
Line
Pressure
Solenoid

Lock-up

Remark

DIAGNOSIS (JR405E) 7A2-35
FAIL-SAFEFUNCTION
Fail-Safe Condition
Flash Code
(P-Code)

Description
CHECK
TRANS
Warning

Gear Shift
Solenoid
Line
Pressure
Solenoid

Lock-up

Remark
11
(P0722)
Vehicle peed Sensor No
Signal ON 3rdFix All Stop - Inhibited
13
(P0727)
Engine Revolution Sensor
No Signal ON - - - Inhibited
14
(P0717)
Turbine Speed Sensor No
Signal ON 3rdFix All Stop - Inhibited
15
(P0710)
ATF Temperature Sensor
Failure OFF 3,2,L - - Inhibited*1
16
(P0560)
System Voltage Failure ON 3rdFix All Stop - Inhibited*2
17
(P0705)
Inhibitor Switch Failure ON 3rdFix All Stop - Inhibited
22
(P1120)
Throttle Signal Failure ON 3rdFix All Stop - Inhibited
25
(P1875)
GND Return Circuit
Failure ON 3rdFix All Stop - Inhibited*2
26
(P1853)
Low & Reverse Brake
Pressure Switch Failure ON No Fail-safe Function
27
(P1858)
2-4 Brake Pressure
Switch Failure ON No Fail-safe Function
28
(P1863)
High Clutch Pressure
Switch Failure ON No Fail-safe Function
31
(P0753)
Low & Reverse Brake
Duty Solenoid Failure ON 3rdFix All Stop - Inhibited
32
(P0758)
2-4 Brake Duty Solenoid
Failure ON 3rdFix All Stop - Inhibited
33
(P0763)
High Clutch Duty Solenoid
Failure ON 3rdFix All Stop - Inhibited
34
(P0768)
Low Clutch Duty Solenoid
Failure ON 3rdFix All Stop - Inhibited
35
(P0748)
Line Pressure Solenoid
Failure ON - - Stop -
36
(P1860)
Lock-up Duty Solenoid
Failure ON - - - Inhibited
41
(P0731)
1stGearRatioError ON No Fail-safe Function
42
(P0732)
2ndGearRatioError ON No Fail-safe Function
43
(P0733)
3rdGearRatioError ON No Fail-safe Function
44
(P0734)
4thGearRatioError ON No Fail-safe Function
51
(P1750)
Low & Reverse Brake
Fail-safe Valve Failure ON 3rdFix All Stop - Inhibited
52
(P1755)
2-4 Brake Fail-safe Valve
Failure ON 3rdFix All Stop - Inhibited
-
(P0602)
ECU Programming Error ON No Fail-safe Function
*1: When the engine speed is more than 470 rpm for 10 minuets, the lock-up and gear shift to 4th (over-drive) are
allowed.
*2: In case of fail-safe valve failure, gear shift to 4th (over-drive) is inhibited.

Page 4028 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A2-36 DIAGNOSIS (JR405E)
DTC P0722 (Flash Code 11) Vehicle Speed Sensor No Signal

Speed
Sensor
TCM

B13
H23
(4)C95
(13)E30
(2)
(1)
(3)
E10
Key SW
YEL/RED
BLK YEL/RED

Speed Sens

Page 4029 of 4264

ISUZU TF SERIES 2004 Workshop Manual DIAGNOSIS (JR405E) 7A2-37

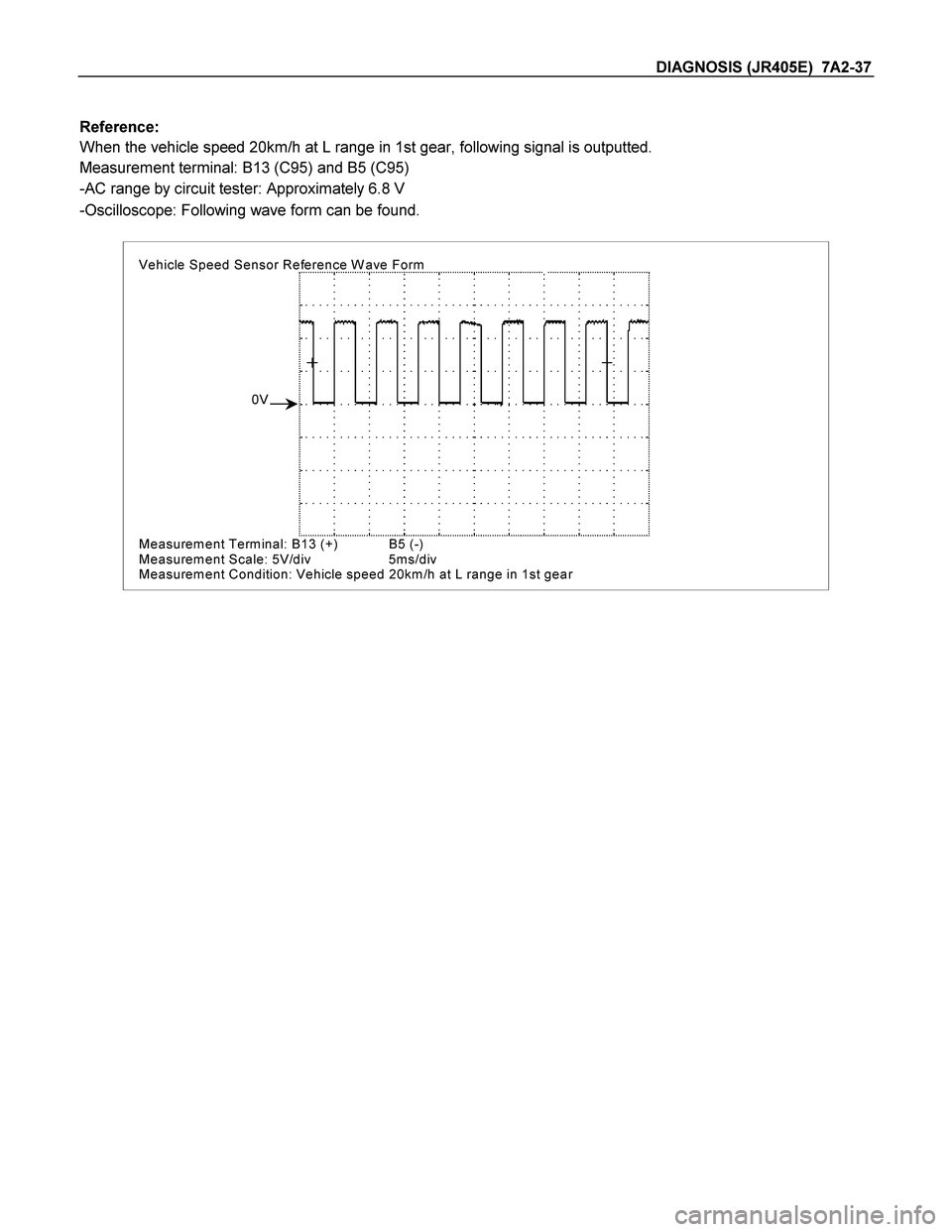

Reference:
When the vehicle speed 20km/h at L range in 1st gear, following signal is outputted.
Measurement terminal: B13 (C95) and B5 (C95)
-AC range by circuit test

Page 4030 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A2-38 DIAGNOSIS (JR405E)

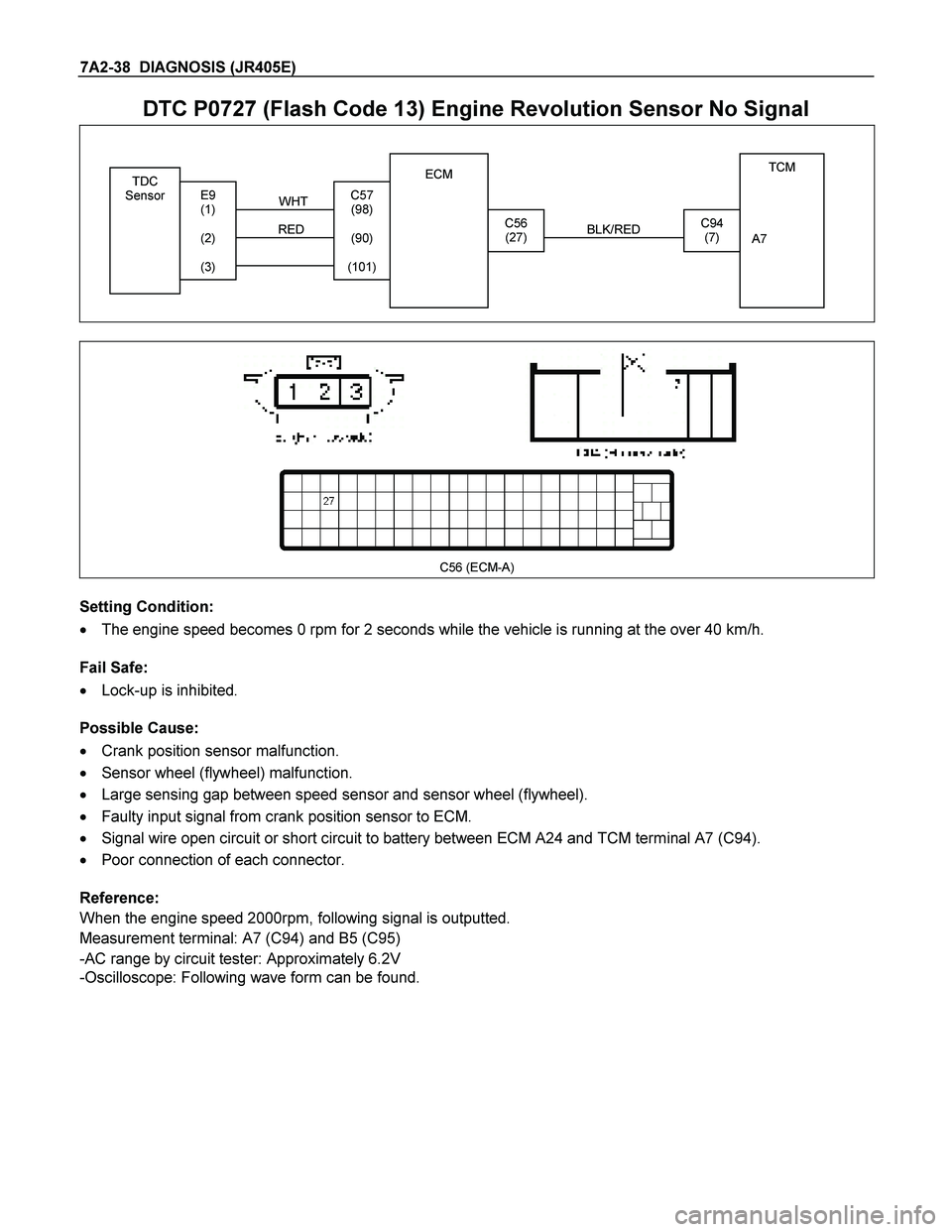

DTC P0727 (Flash Code 13) Engine Revolution Sensor No Signal

RED
TDC
Sensor TCM

A7
C94 (7)
BLK/RED
WHT
C56
(27)
E9
(1)

(2)
(3)

Page 4031 of 4264

ISUZU TF SERIES 2004 Workshop Manual DIAGNOSIS (JR405E) 7A2-39

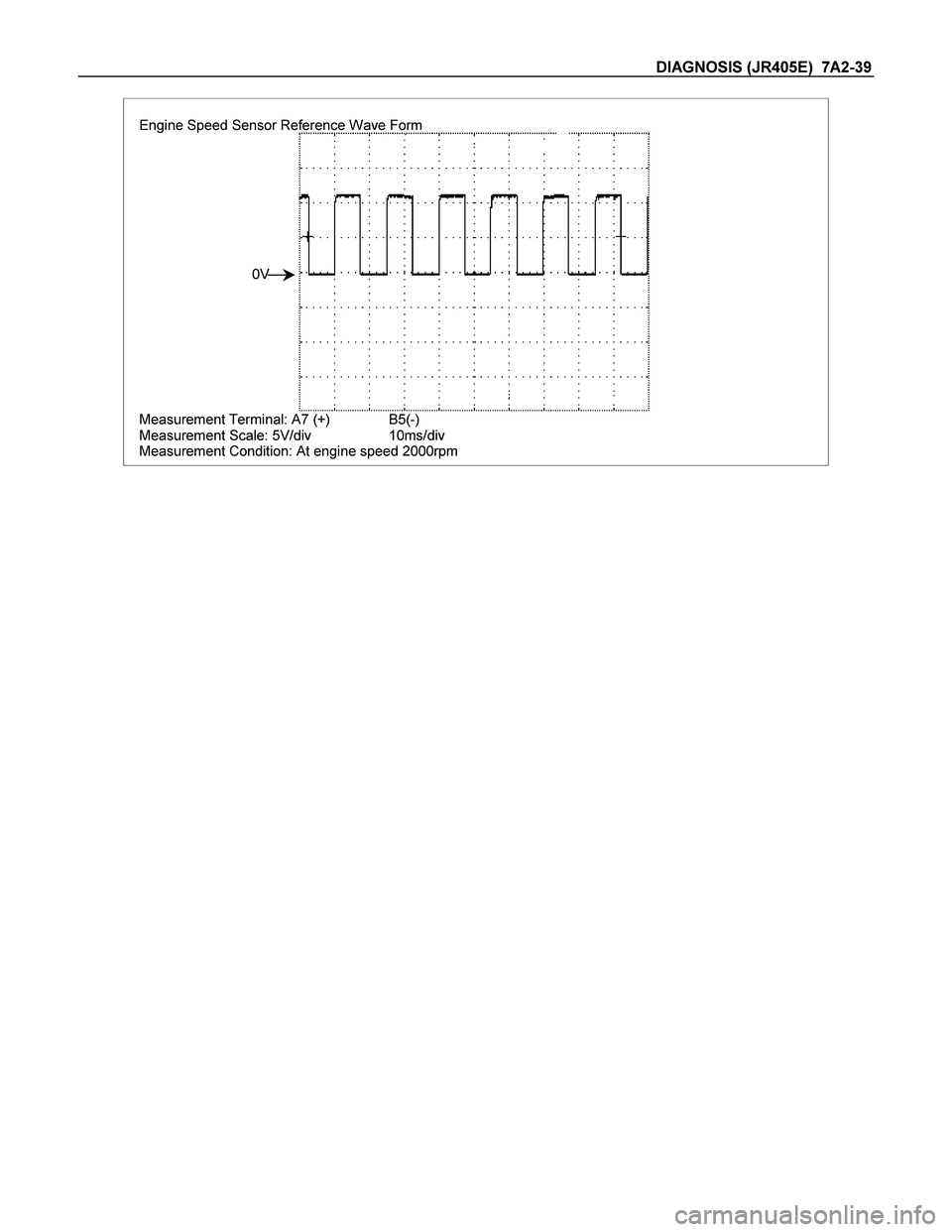

Engine Speed Sensor Reference Wave Form
Measurement Terminal: A7 (+) B5(-)
Measurement Scale: 5V/div 10ms/div
Measurement Condition: At engine speed 2000rpm
0V

Page 4032 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A2-40 DIAGNOSIS (JR405E)

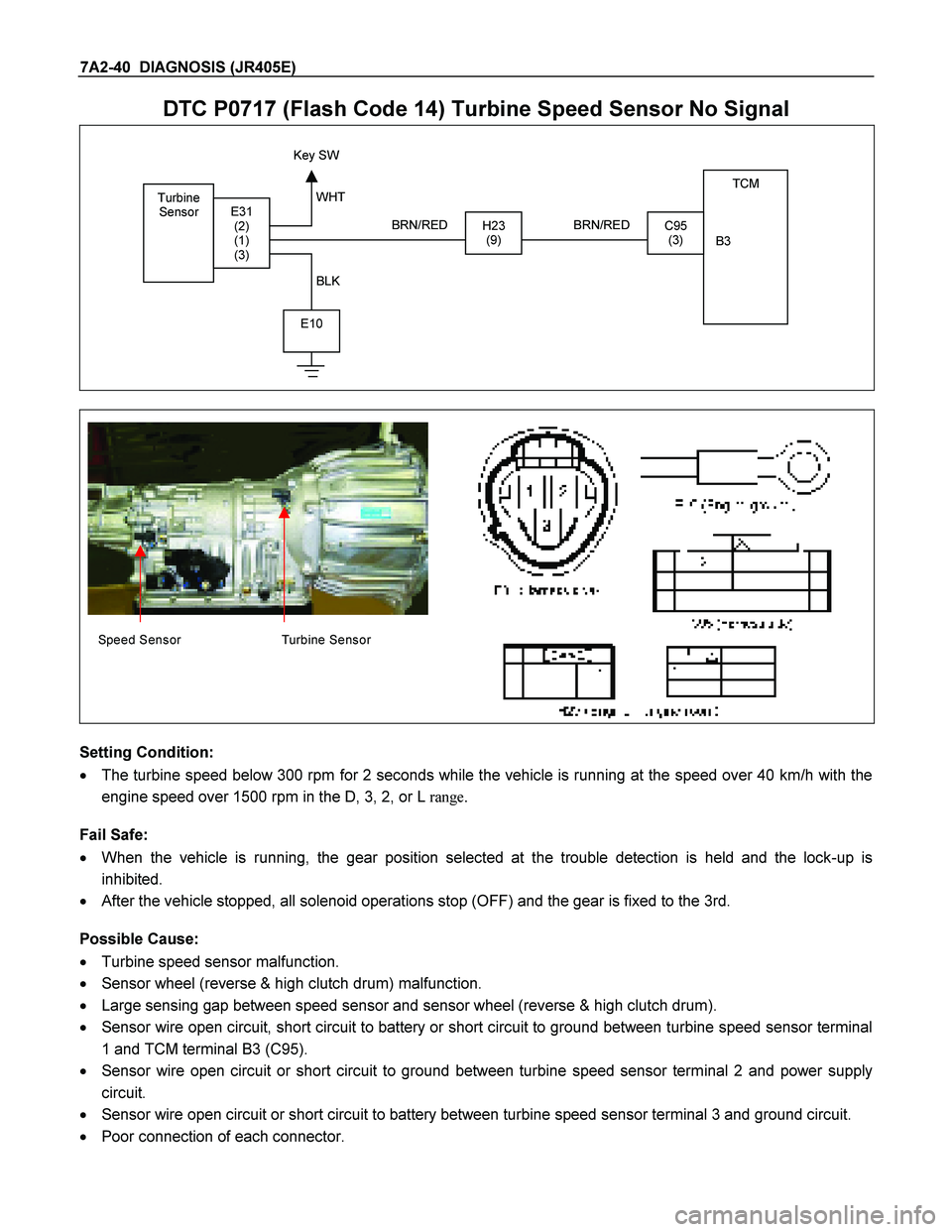

DTC P0717 (Flash Code 14) Turbine Speed Sensor No Signal

Turbine
Sensor TCM

B3
H23 (9)C95 (3) E31 (2)
(1)
(3)
E10
Key SW
BRN/RED
WHT
BLK BRN
