Page 3985 of 4264

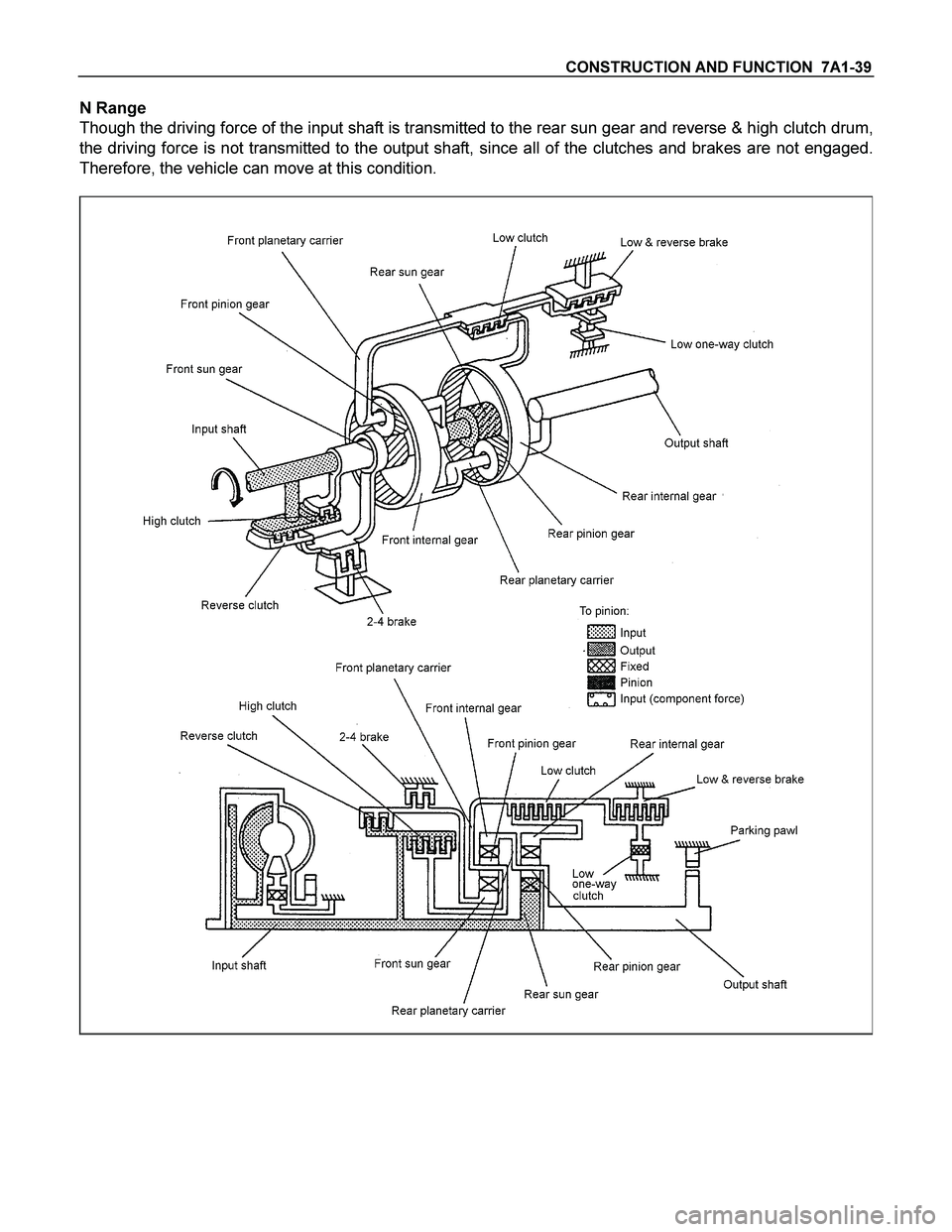

ISUZU TF SERIES 2004 Workshop Manual CONSTRUCTION AND FUNCTION 7A1-39 N Range Though the driving force of the input shaft is transmitted to the rear sun gear and reverse & high clutch drum, the driving force is not transmitted to the

Page 3986 of 4264

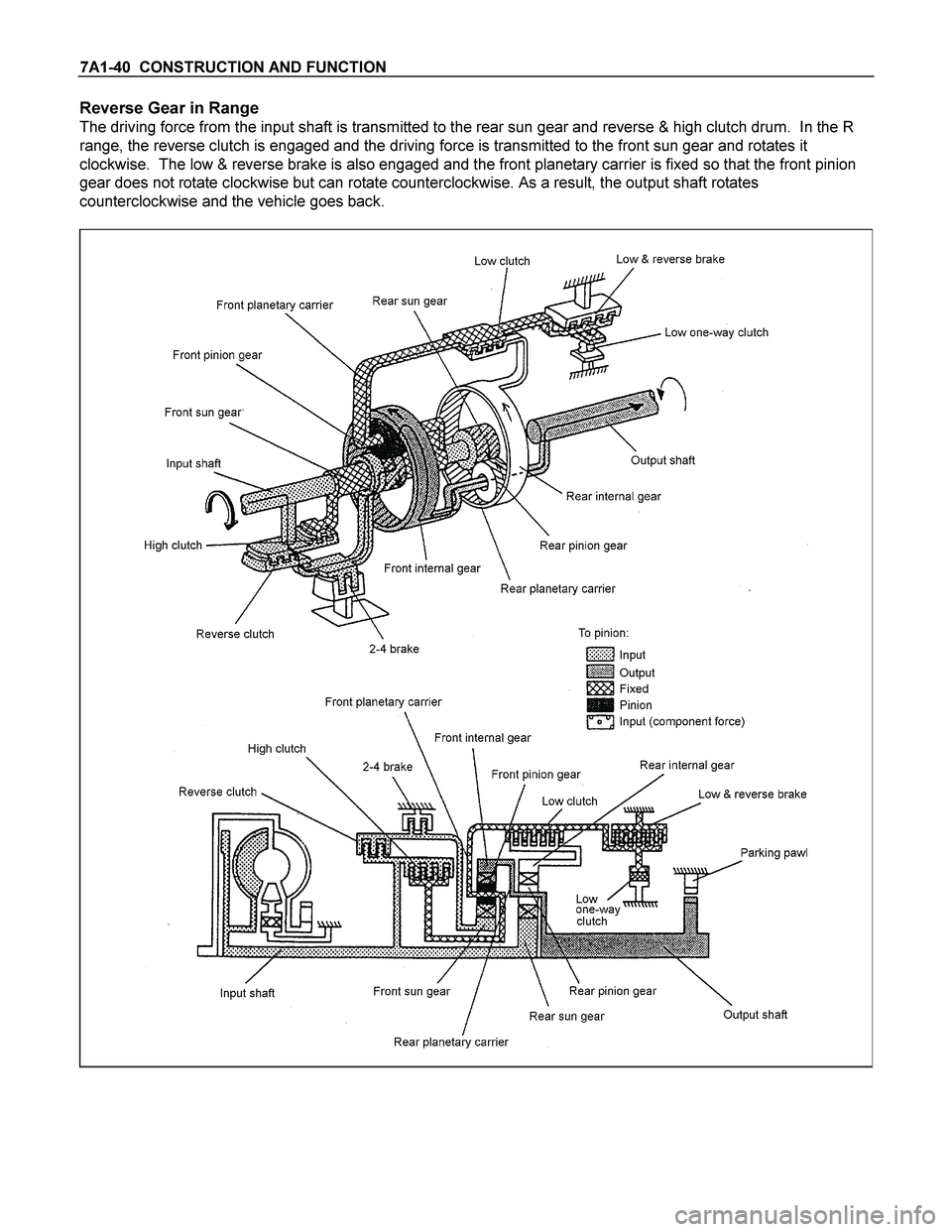

ISUZU TF SERIES 2004 Workshop Manual 7A1-40 CONSTRUCTION AND FUNCTION Reverse Gear in Range The driving force from the input shaft is transmitted to the rear sun gear and reverse & high clutch drum. In the R range, the reverse clutc

Page 3987 of 4264

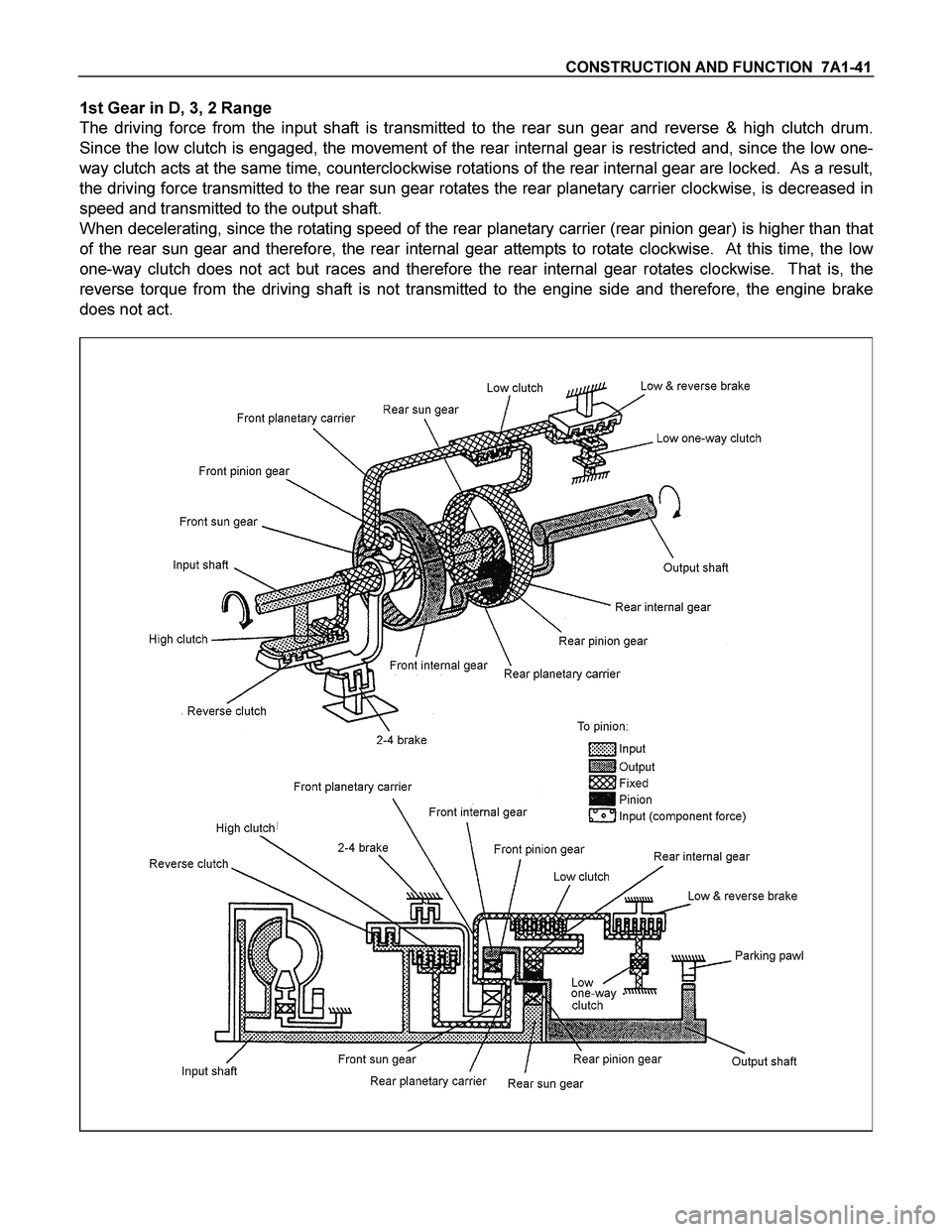

ISUZU TF SERIES 2004 Workshop Manual CONSTRUCTION AND FUNCTION 7A1-41 1st Gear in D, 3, 2 Range The driving force from the input shaft is transmitted to the rear sun gear and reverse & high clutch drum. Since the low clutch is engag

Page 3988 of 4264

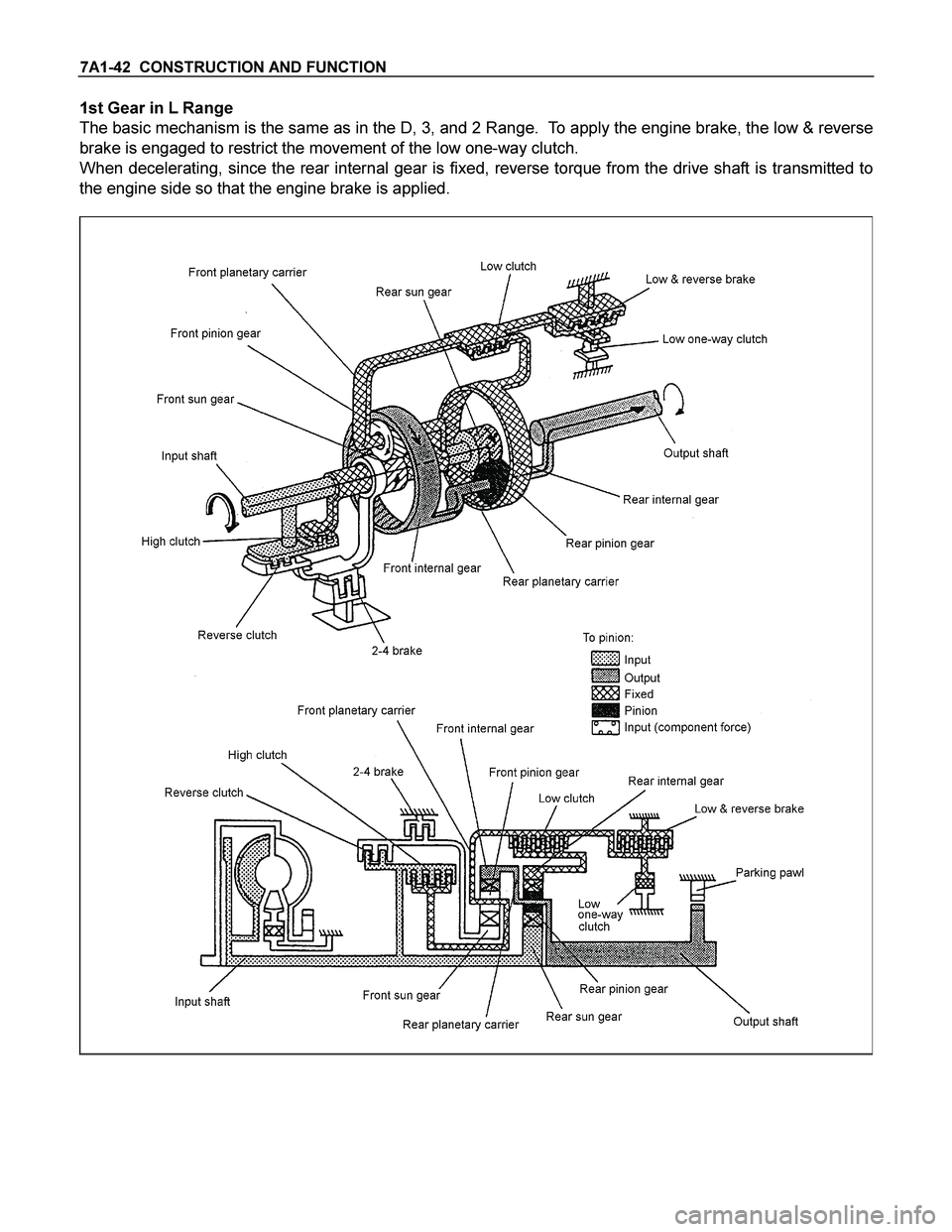

ISUZU TF SERIES 2004 Workshop Manual 7A1-42 CONSTRUCTION AND FUNCTION 1st Gear in L Range The basic mechanism is the same as in the D, 3, and 2 Range. To apply the engine brake, the low & reverse brake is engaged to restrict the mov

Page 3989 of 4264

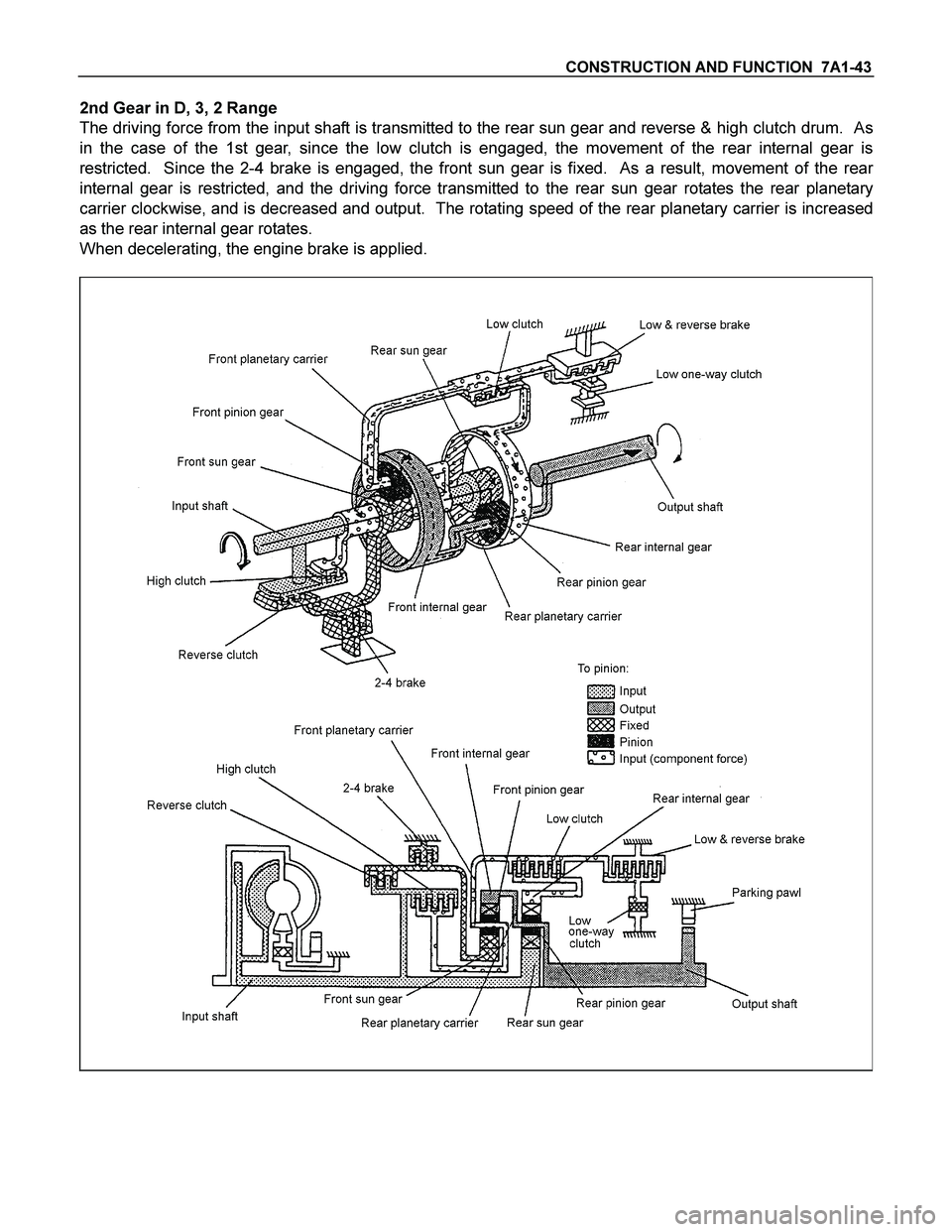

ISUZU TF SERIES 2004 Workshop Manual CONSTRUCTION AND FUNCTION 7A1-43 2nd Gear in D, 3, 2 Range The driving force from the input shaft is transmitted to the rear sun gear and reverse & high clutch drum. As in the case of the 1st gea

Page 3990 of 4264

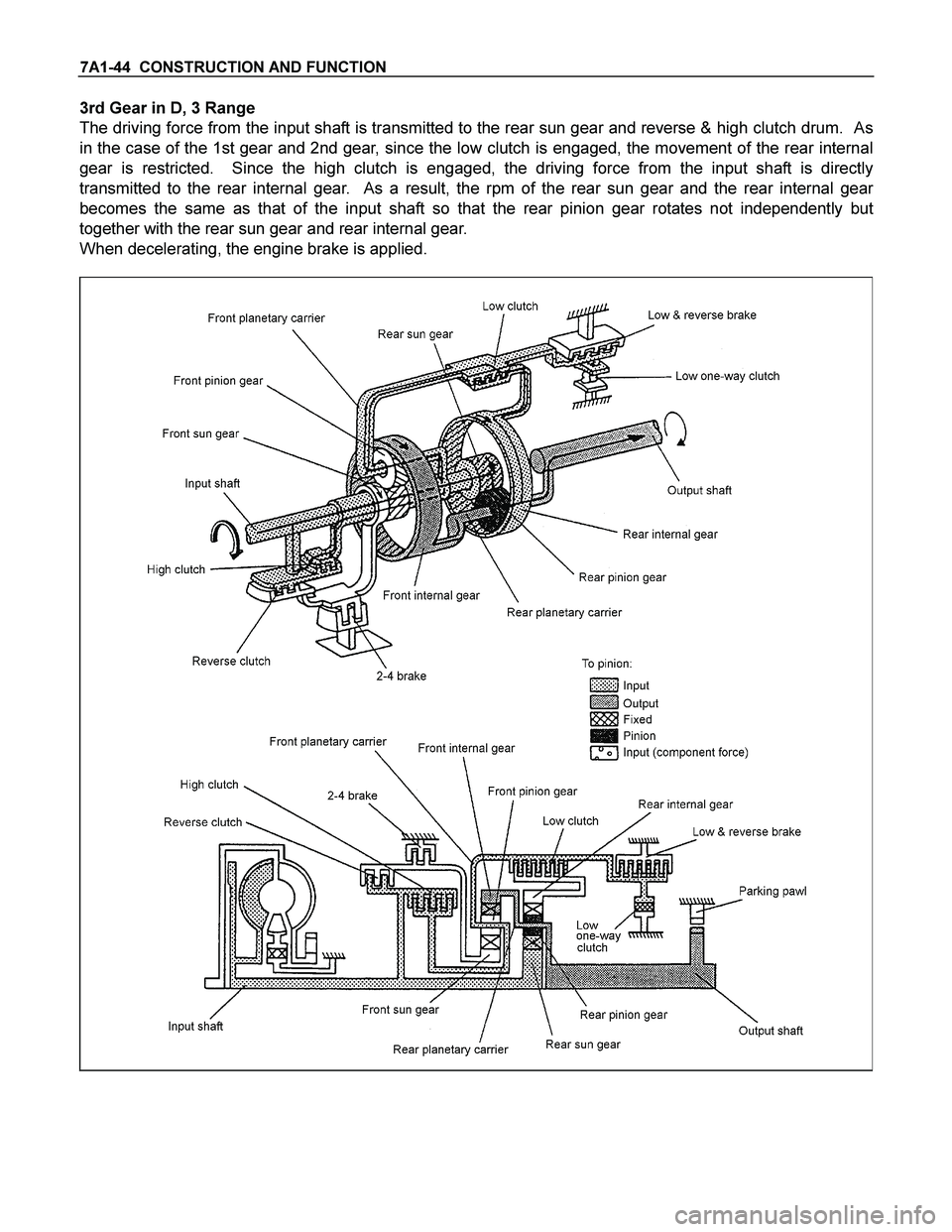

ISUZU TF SERIES 2004 Workshop Manual 7A1-44 CONSTRUCTION AND FUNCTION 3rd Gear in D, 3 Range The driving force from the input shaft is transmitted to the rear sun gear and reverse & high clutch drum. As in the case of the 1st gear a

Page 3991 of 4264

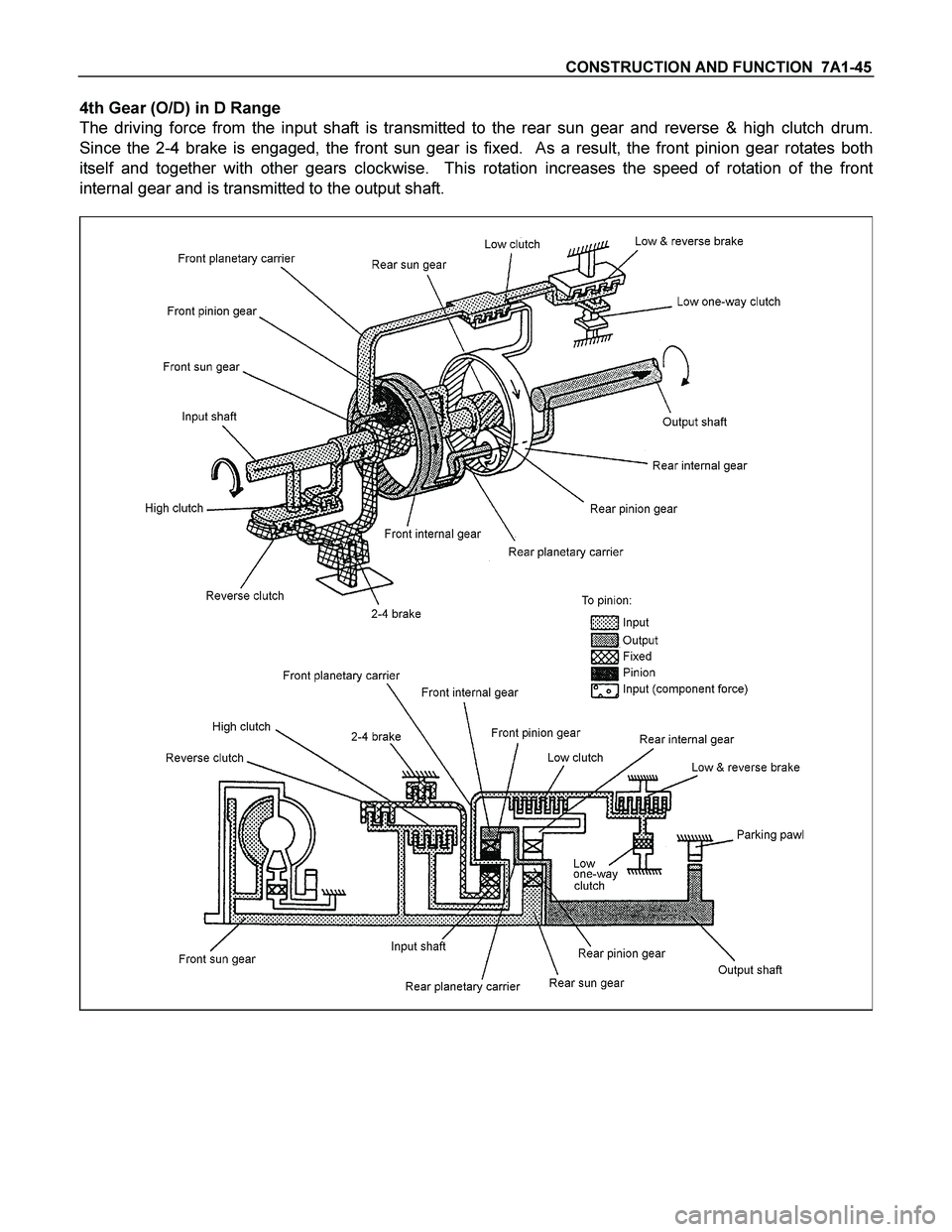

ISUZU TF SERIES 2004 Workshop Manual CONSTRUCTION AND FUNCTION 7A1-45 4th Gear (O/D) in D Range The driving force from the input shaft is transmitted to the rear sun gear and reverse & high clutch drum. Since the 2-4 brake is engage

Page 3992 of 4264

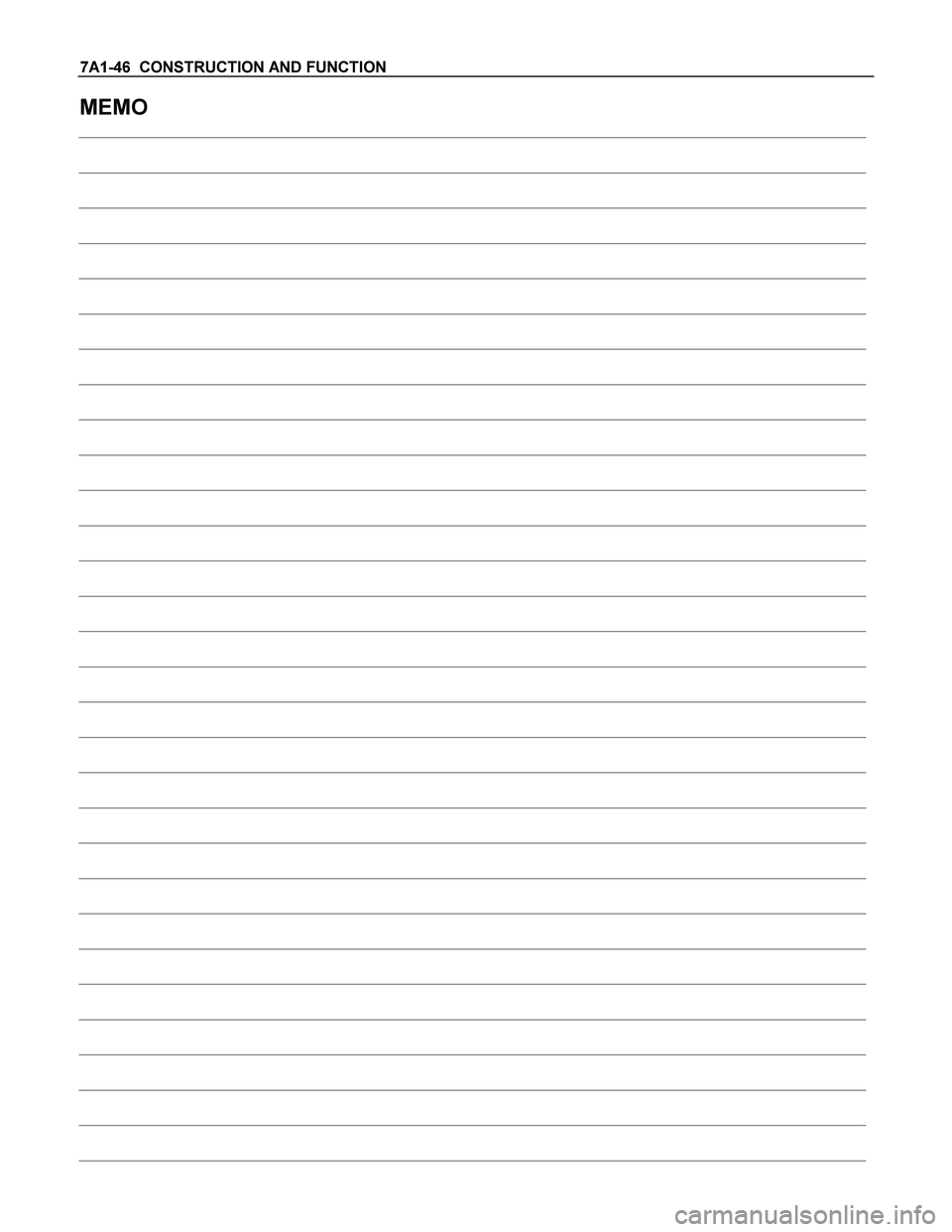

ISUZU TF SERIES 2004 Workshop Manual 7A1-46 CONSTRUCTION AND FUNCTION MEMO
