Page 3545 of 4264

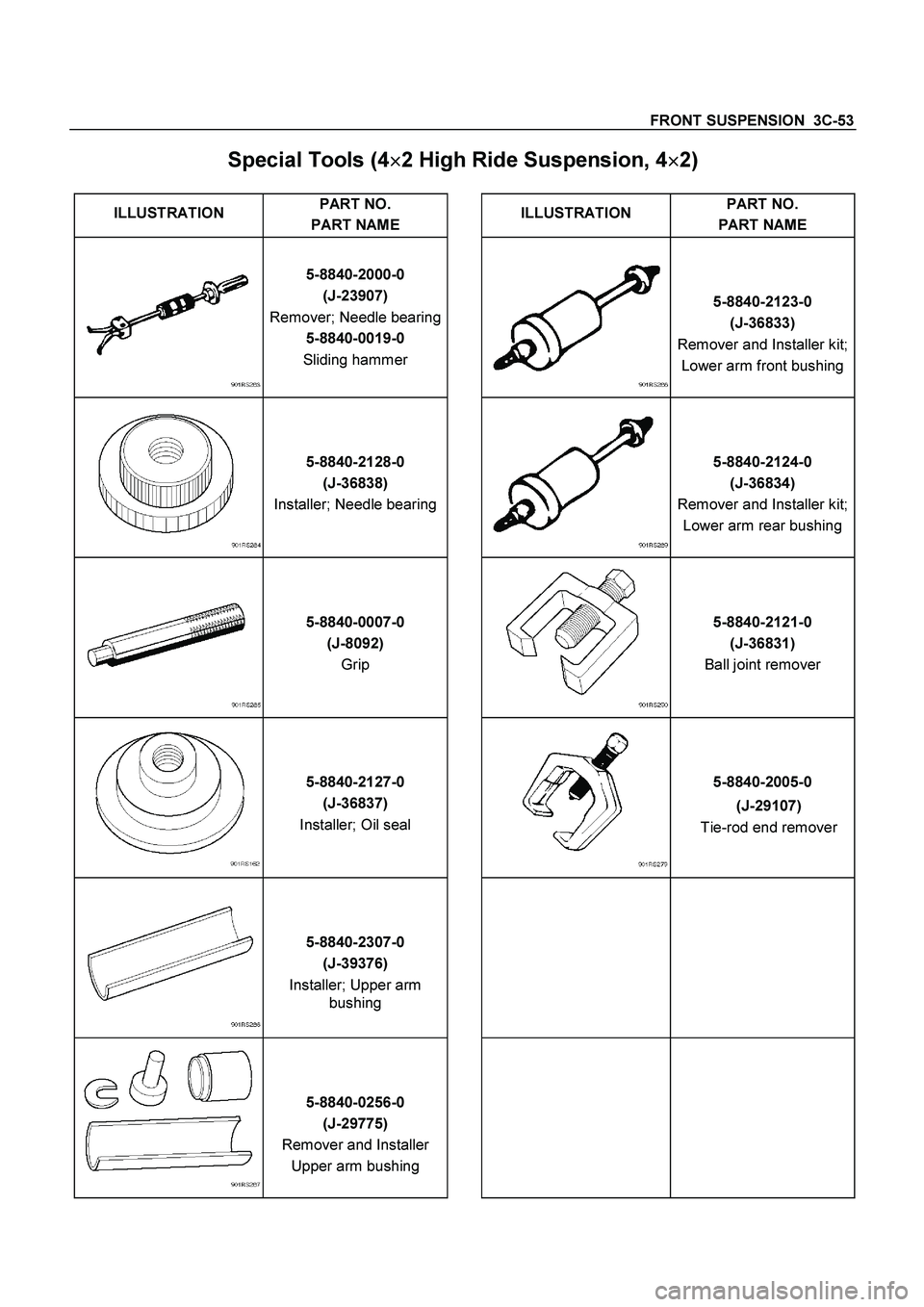

ISUZU TF SERIES 2004 Workshop Manual FRONT SUSPENSION 3C-53 Special Tools (4   2 High Ride Suspension, 4   2) ILLUSTRATION PART NO. PART NAME ILLUSTRATION PART NO. PART NAME 5-8840-2000-0 (J-23907) Remover; Needle

Page 3546 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3C-54 FRONT SUSPENSION TROUBLESHOOTING 1. VIBRATION, SHOCK, AND SHIMMY OF STEERING WHEEL Checkpoint Trouble Cause Countermeasure Check front axle Check wheel alignment Check

Page 3547 of 4264

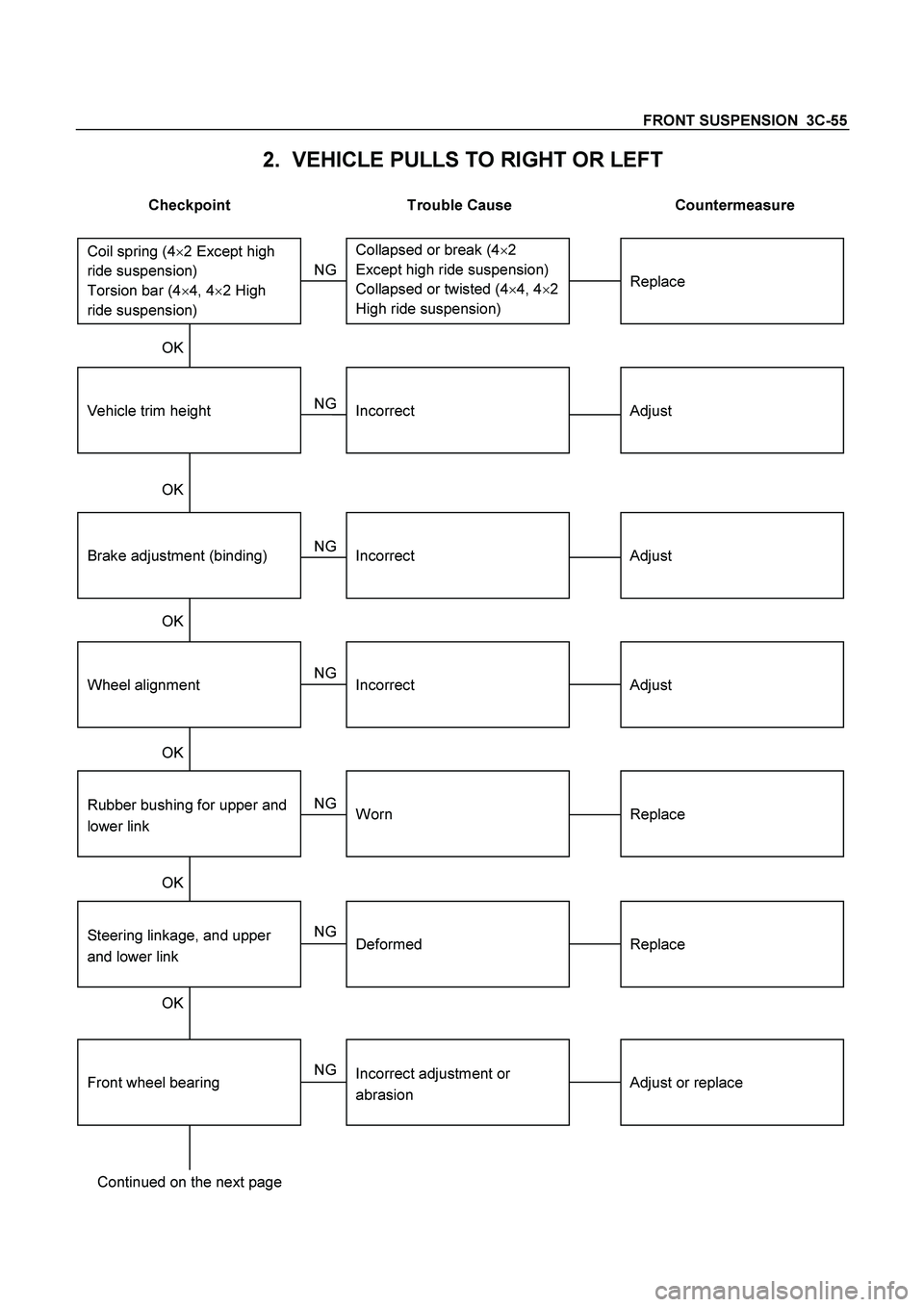

ISUZU TF SERIES 2004 Workshop Manual FRONT SUSPENSION 3C-55 2. VEHICLE PULLS TO RIGHT OR LEFT Checkpoint Trouble Cause Countermeasure Steering linkage, and upper and lower link Rubber bushing for upper and lower lin

Page 3548 of 4264

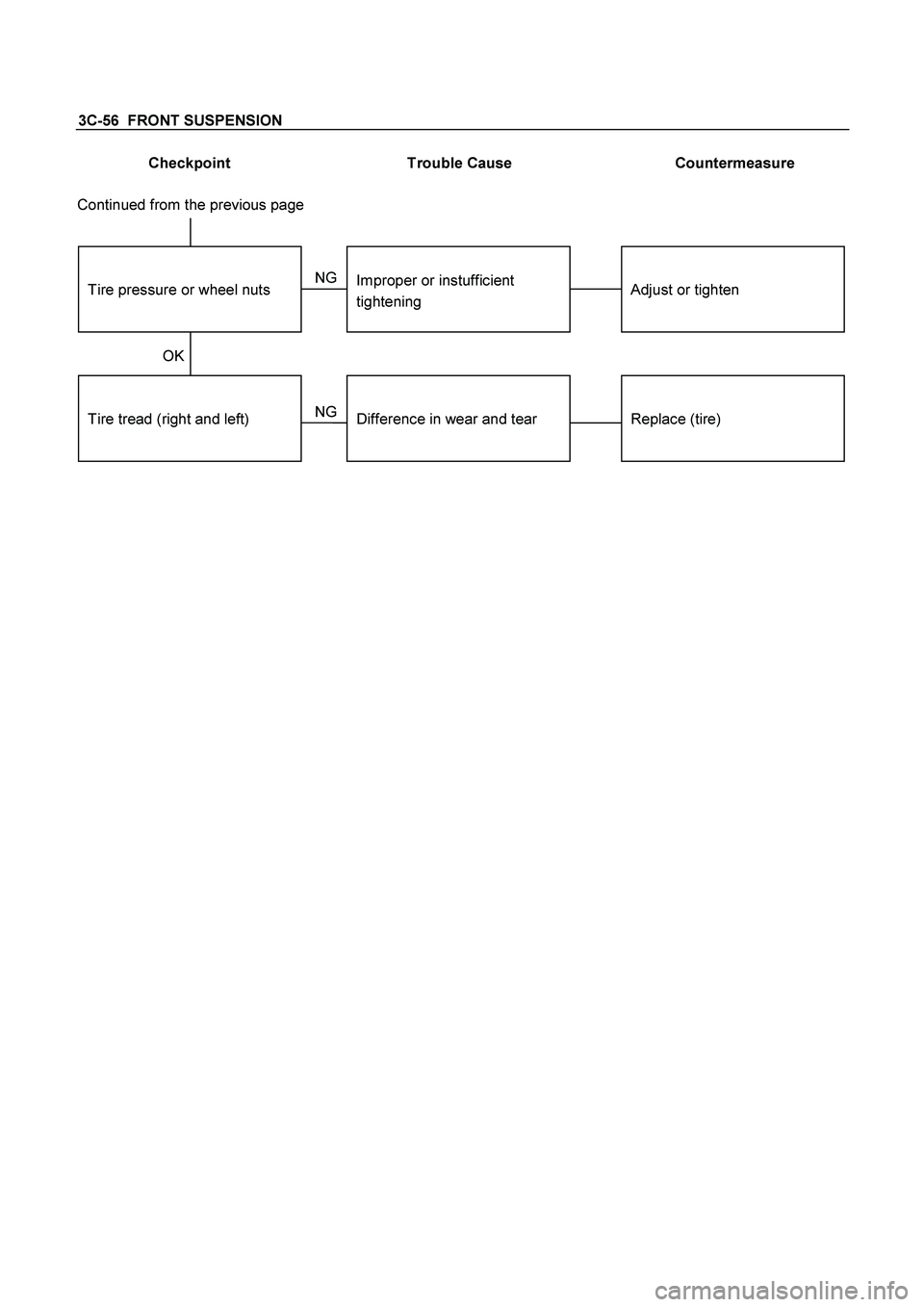

ISUZU TF SERIES 2004 Workshop Manual 3C-56 FRONT SUSPENSION Checkpoint Trouble Cause Countermeasure Tire tread (right and left) Replace (tire) Difference in wear and tear Adjust or tighten Improper or instuffi

Page 3549 of 4264

ISUZU TF SERIES 2004 Workshop Manual FRONT SUSPENSION 3C-57 3. INSTABILITY OF VEHICLE Checkpoint Trouble Cause Countermeasure Tire pressure Wheel alignment Rubber bushings for upper and lower links. (4  2 Except

Page 3550 of 4264

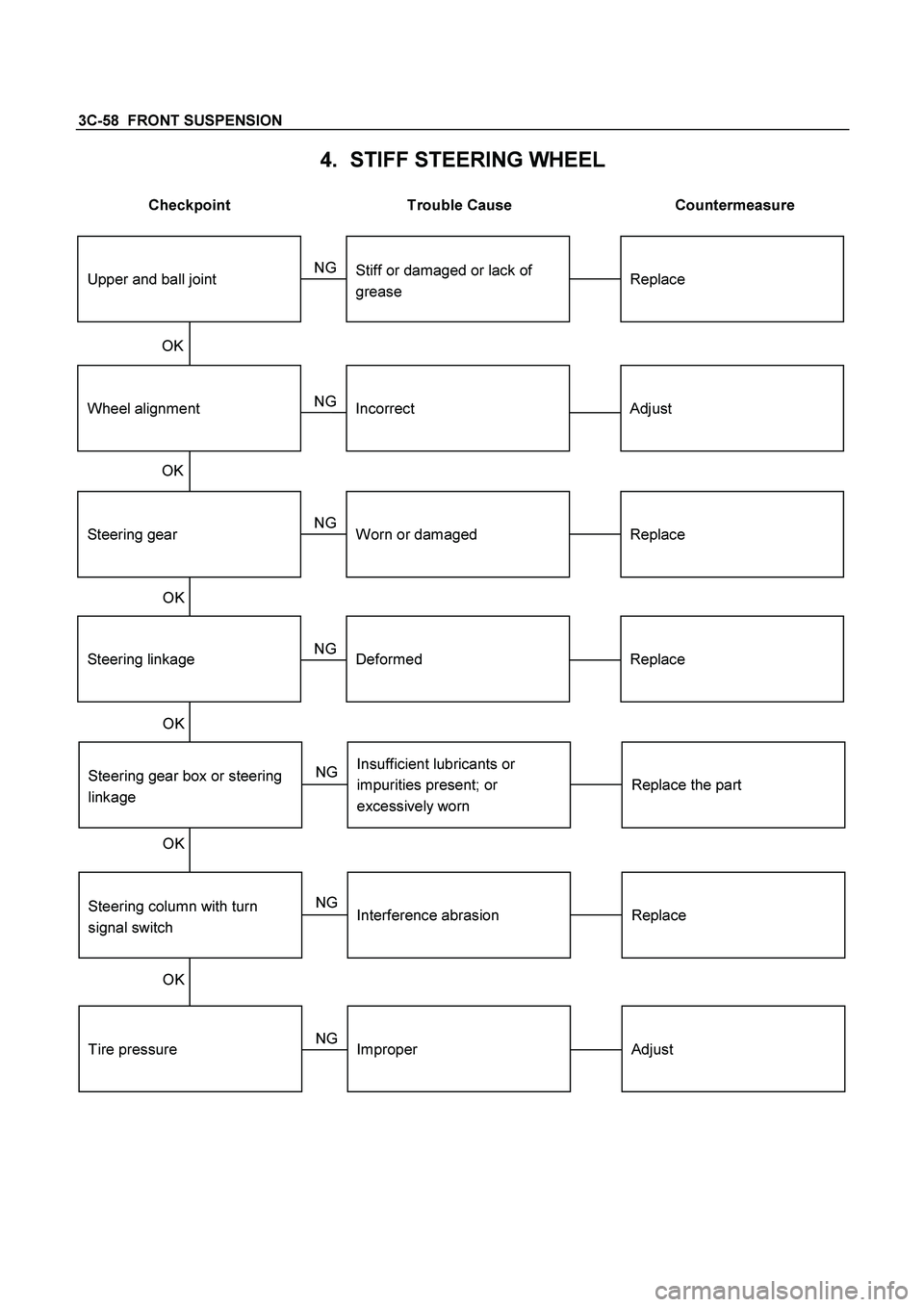

ISUZU TF SERIES 2004 Workshop Manual 3C-58 FRONT SUSPENSION 4. STIFF STEERING WHEEL Checkpoint Trouble Cause Countermeasure Steering gear box or steering linkage Steering linkage Steering gear Wheel alignme

Page 3551 of 4264

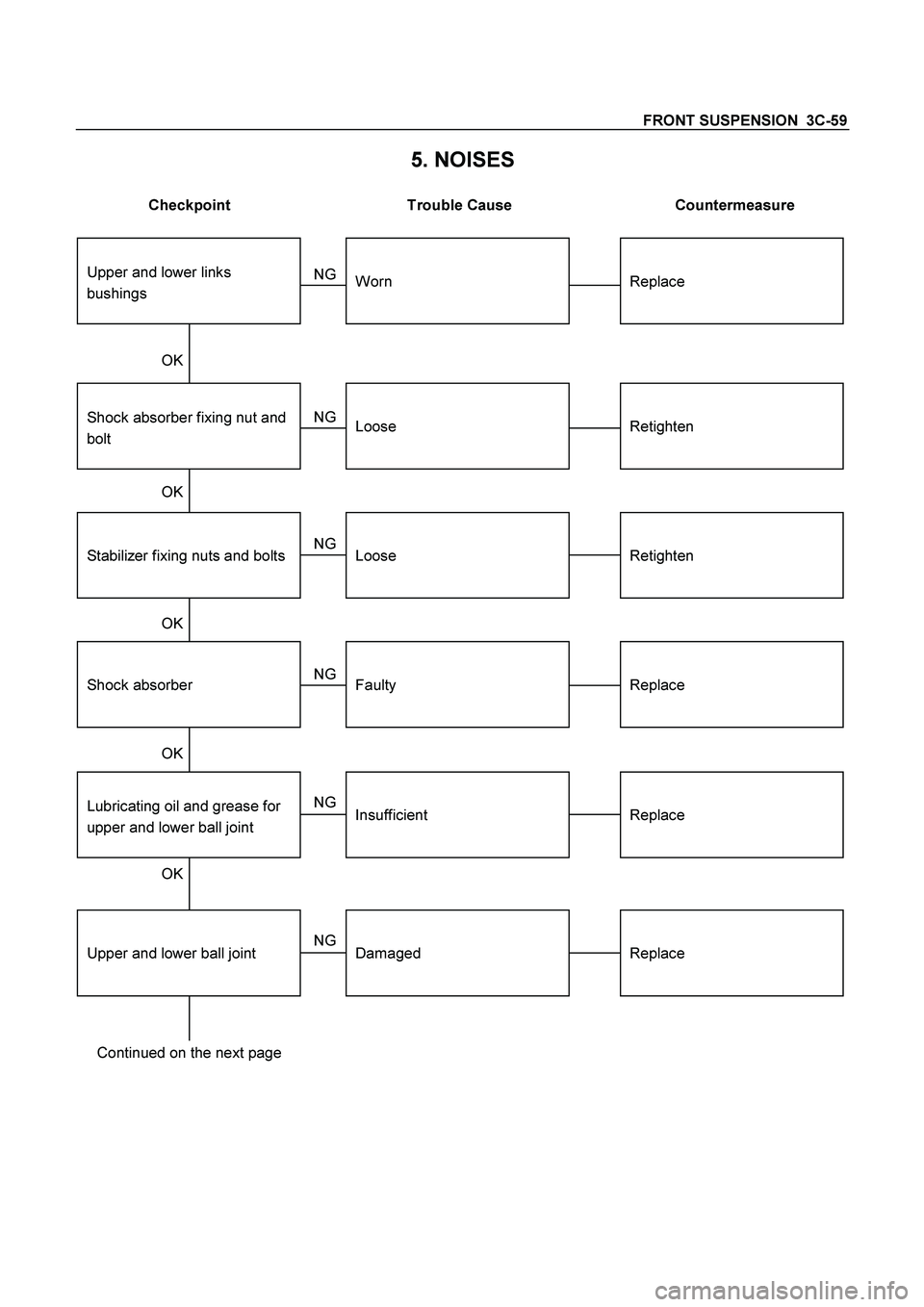

ISUZU TF SERIES 2004 Workshop Manual FRONT SUSPENSION 3C-59 5. NOISES Checkpoint Trouble Cause Countermeasure Lubricating oil and grease for upper and lower ball joint Shock absorber Stabilizer fixing nuts and bo

Page 3552 of 4264

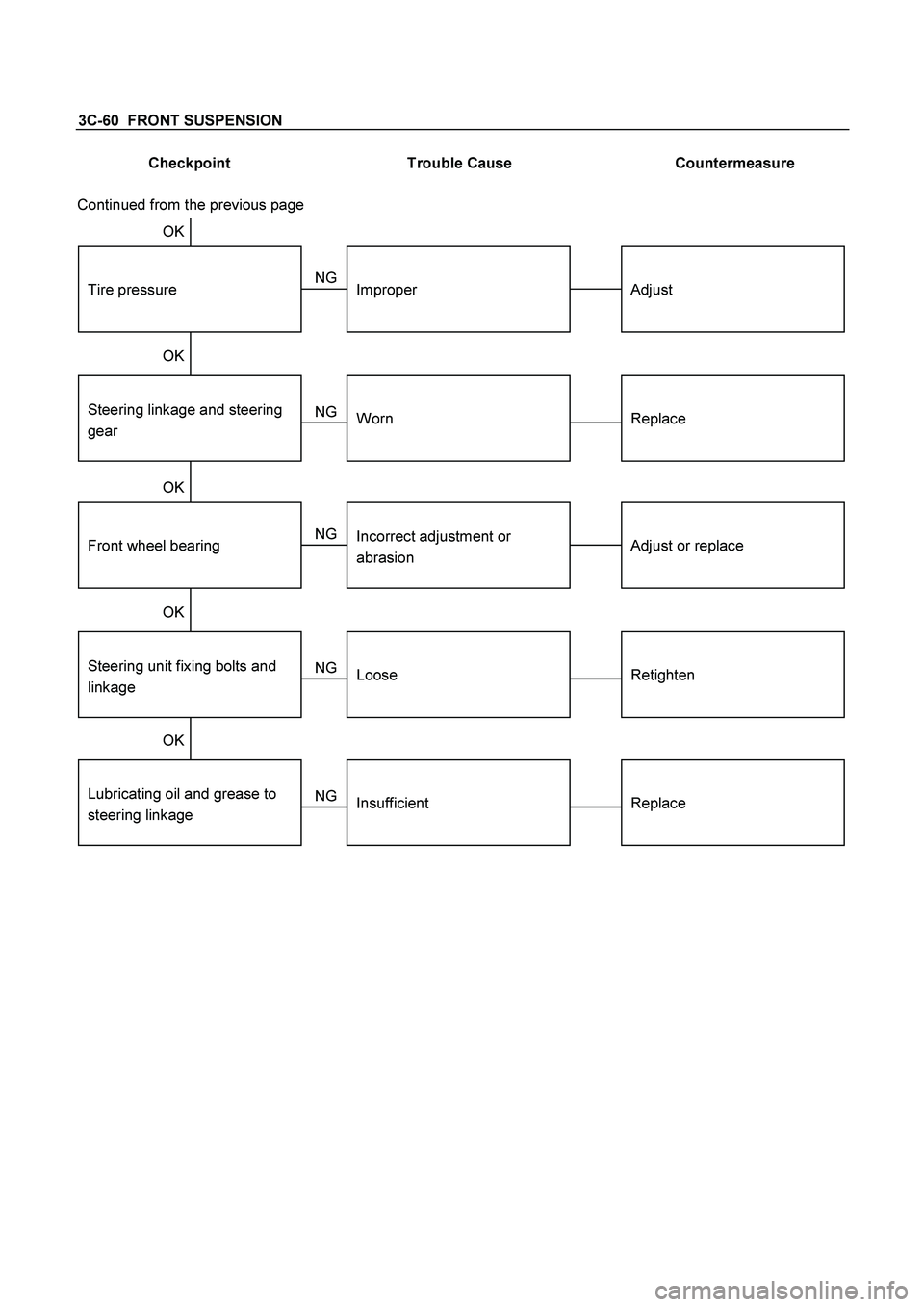

ISUZU TF SERIES 2004 Workshop Manual 3C-60 FRONT SUSPENSION Checkpoint Trouble Cause Countermeasure Steering linkage and steering gearReplaceWorn AdjustImproper OK NG NG OKTire pressure Continued from the previous page Steering un
