ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-1
ENGINE
CONTENTS
Engine Mechanical.................................................6A
Engine Cooling........................................................6B
E

ENGINE MECHANICAL (6VE1 3.5L) 6A-1
ENGINE
CONTENTS
Engine Mechanical.................................................6A
Engine Cooling........................................................6B
Engine Fuel.............................................................6C
Engine Electrical.....................................................6D1
Ignition System.......................................................6D2
Starting and Changing System.............................6D3 Driveability and Emissions.....................................6E
Engine Exhaust.......................................................6F
Engine Lubrication..................................................6G
Engine Speed Control System..............................6H
Induction...................................................................6J

ENGINE MECHANICAL (6VE1 3.5L)
CONTENTS

Service Precaution................................................. 6A-2
General Description............................................... 6A-3
Engine Diagnosis.................................................... 6A-4
Cylinder Head Cover LH........................................ 6A-21
Removal............................................................... 6A-21
Installation............................................................ 6A-21
Cylinder Head Cover RH....................................... 6A-23
Removal............................................................... 6A-23
Installation............................................................ 6A-23
Common Chamber................................................. 6A-24
Removal............................................................... 6A-24
Installation............................................................ 6A-25
Exhaust Manifold LH.............................................. 6A-26
Removal............................................................... 6A-26
Installation............................................................ 6A-26
Exhaust Manifold RH............................................. 6A-27
Removal............................................................... 6A-27
Installation............................................................ 6A-27
Crankshaft Pulley................................................... 6A-28
Removal............................................................... 6A-28
Installation............................................................ 6A-28
Timing Belt.............................................................. 6A-29
Removal............................................................... 6A-29
Installation............................................................ 6A-30
Camshaft................................................................. 6A-34
Removal............................................................... 6A-34
Installation............................................................ 6A-34
Cylinder Head......................................................... 6A-37
Removal............................................................... 6A-37
Installation............................................................ 6A-37
Valve Stem Oil Controller , Valve Spring
and Valve Guide.................................................... 6A-39
Removal................................................................ 6A-39
Installation............................................................. 6A-39
Piston, Piston Ring and Connecting Rod............ 6A-40
Removal................................................................ 6A-40
Installation............................................................. 6A-41
Crankshaft and Main Bearings.............................. 6A-43
Removal................................................................ 6A-43
Installation............................................................. 6A-44
Rear Oil Seal........................................................... 6A-48
Removal................................................................ 6A-48
Installation............................................................. 6A-48
Engine Assembly.................................................... 6A-49
Removal................................................................ 6A-49
Installation............................................................. 6A-49
Cylinder Head.......................................................... 6A-52
Cylinder Head and Associated Parts................ 6A-52
Disassembly......................................................... 6A-53
Clean..................................................................... 6A-53
Inspection and Repair......................................... 6A-53
Reassembly.......................................................... 6A-54
Valve Spring, Oil Controller, Valve, Valve
Guide....................................................................... 6A-56
Valve Spring, Oil Controller, Valve, Valve
Guide and Associated Parts............................. 6A-56
Disassembly......................................................... 6A-57
Inspection and Repair......................................... 6A-57
Reassembly.......................................................... 6A-61
Camshaft.................................................................. 6A-64
Camshaft and Associated Parts........................ 6A-64
Disassembly......................................................... 6A-64
Inspection and Repair......................................... 6A-65
Reassembly.......................................................... 6A-67

Page 1826 of 4264

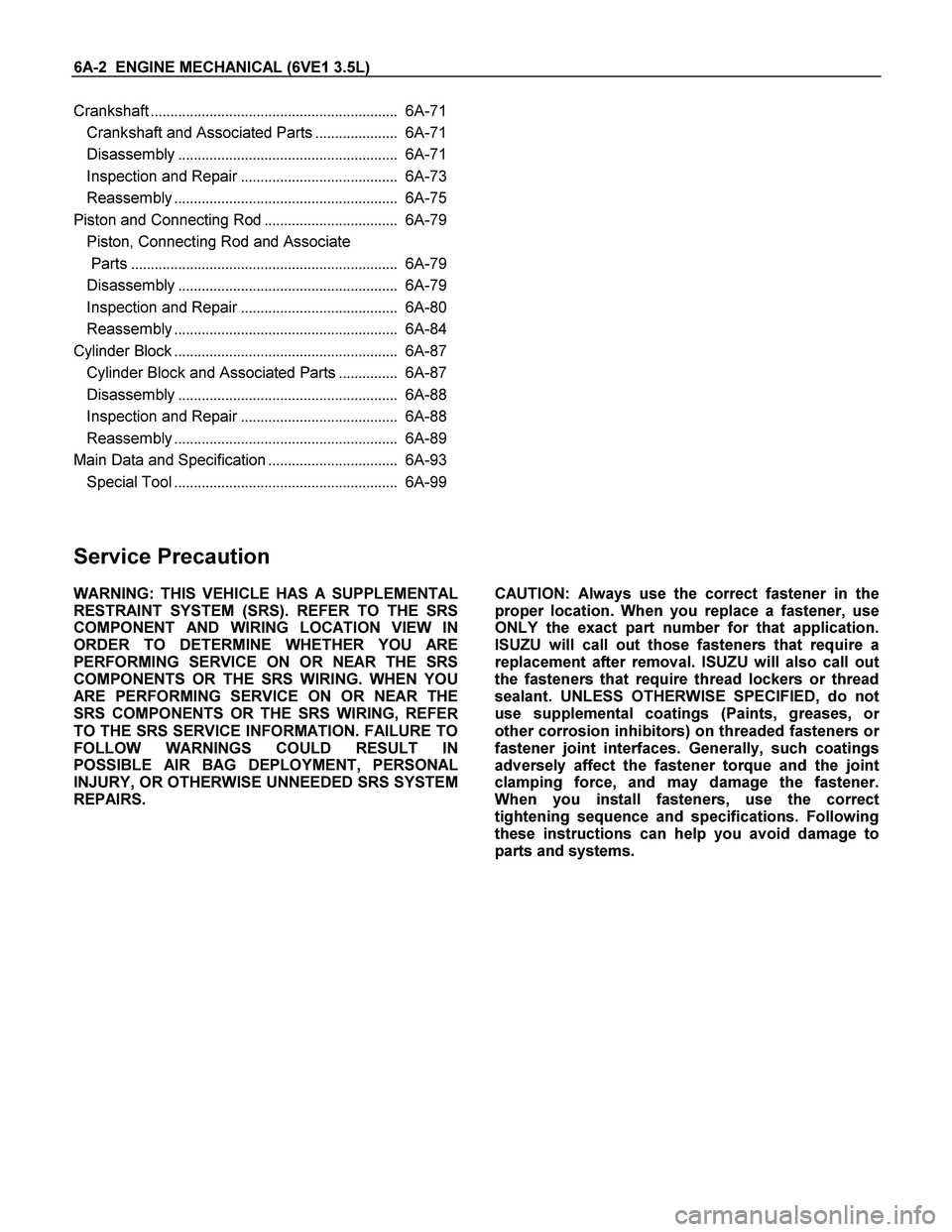

ISUZU TF SERIES 2004 Workshop Manual 6A-2 ENGINE MECHANICAL (6VE1 3.5L)
Crankshaft............................................................... 6A-71
Crankshaft and Associated Parts..................... 6A-71
Disassembly...........

6A-2 ENGINE MECHANICAL (6VE1 3.5L)
Crankshaft............................................................... 6A-71
Crankshaft and Associated Parts..................... 6A-71
Disassembly........................................................ 6A-71
Inspection and Repair........................................ 6A-73
Reassembly......................................................... 6A-75
Piston and Connecting Rod.................................. 6A-79
Piston, Connecting Rod and Associate
Parts.................................................................... 6A-79
Disassembly........................................................ 6A-79
Inspection and Repair........................................ 6A-80
Reassembly......................................................... 6A-84
Cylinder Block......................................................... 6A-87
Cylinder Block and Associated Parts............... 6A-87
Disassembly........................................................ 6A-88
Inspection and Repair........................................ 6A-88
Reassembly......................................................... 6A-89
Main Data and Specification................................. 6A-93
Special Tool......................................................... 6A-99

Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFE
R
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, o
r
other corrosion inhibitors) on threaded fasteners o
r
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

Page 1827 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-3

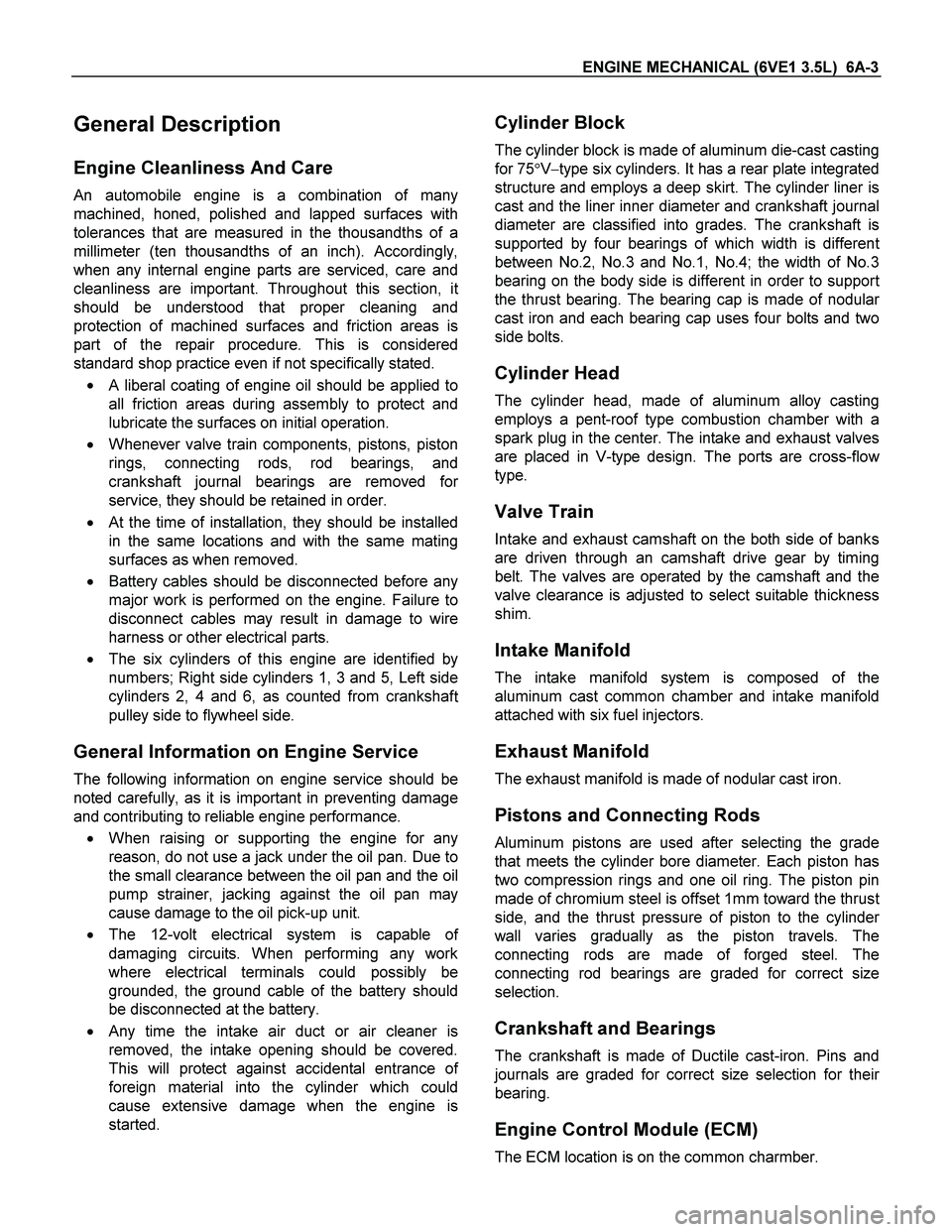

General Description
Engine Cleanliness And Care
An automobile engine is a combination of many
machined, honed, polished and lapped surfaces with
tolerances that

ENGINE MECHANICAL (6VE1 3.5L) 6A-3
General Description
Engine Cleanliness And Care
An automobile engine is a combination of many
machined, honed, polished and lapped surfaces with
tolerances that are measured in the thousandths of a
millimeter (ten thousandths of an inch). Accordingly,
when any internal engine parts are serviced, care and
cleanliness are important. Throughout this section, i
t
should be understood that proper cleaning and
protection of machined surfaces and friction areas is
part of the repair procedure. This is considered
standard shop practice even if not specifically stated.

A liberal coating of engine oil should be applied to
all friction areas during assembly to protect and
lubricate the surfaces on initial operation.
Whenever valve train components, pistons, piston
rings, connecting rods, rod bearings, and
crankshaft journal bearings are removed fo
r
service, they should be retained in order.

At the time of installation, they should be installed
in the same locations and with the same mating
surfaces as when removed.
Battery cables should be disconnected before any
major work is performed on the engine. Failure to
disconnect cables may result in damage to wire
harness or other electrical parts.
The six cylinders of this engine are identified by
numbers; Right side cylinders 1, 3 and 5, Left side
cylinders 2, 4 and 6, as counted from crankshaf
t
pulley side to flywheel side.
General Information on Engine Service
The following information on engine service should be
noted carefully, as it is important in preventing damage
and contributing to reliable engine performance.
When raising or supporting the engine for any
reason, do not use a jack under the oil pan. Due to
the small clearance between the oil pan and the oil
pump strainer, jacking against the oil pan may
cause damage to the oil pick-up unit.
The 12-volt electrical system is capable o
f
damaging circuits. When performing any work
where electrical terminals could possibly be
grounded, the ground cable of the battery should
be disconnected at the battery.

Any time the intake air duct or air cleaner is
removed, the intake opening should be covered.
This will protect against accidental entrance o
f
foreign material into the cylinder which could
cause extensive damage when the engine is
started.
Cylinder Block
The cylinder block is made of aluminum die-cast casting
for 75Vtype six cylinders. It has a rear plate integrated
structure and employs a deep skirt. The cylinder liner is
cast and the liner inner diameter and crankshaft journal
diameter are classified into grades. The crankshaft is
supported by four bearings of which width is differen
t
between No.2, No.3 and No.1, No.4; the width of No.3
bearing on the body side is different in order to suppor
t
the thrust bearing. The bearing cap is made of nodular
cast iron and each bearing cap uses four bolts and two
side bolts.
Cylinder Head
The cylinder head, made of aluminum alloy casting
employs a pent-roof type combustion chamber with a
spark plug in the center. The intake and exhaust valves
are placed in V-type design. The ports are cross-flo
w
type.
Valve Train
Intake and exhaust camshaft on the both side of banks
are driven through an camshaft drive gear by timing
belt. The valves are operated by the camshaft and the
valve clearance is adjusted to select suitable thickness
shim.
Intake Manifold
The intake manifold system is composed of the
aluminum cast common chamber and intake manifold
attached with six fuel injectors.
Exhaust Manifold
The exhaust manifold is made of nodular cast iron.
Pistons and Connecting Rods
Aluminum pistons are used after selecting the grade
that meets the cylinder bore diameter. Each piston has
two compression rings and one oil ring. The piston pin
made of chromium steel is offset 1mm toward the thrus
t
side, and the thrust pressure of piston to the cylinder
wall varies gradually as the piston travels. The
connecting rods are made of forged steel. The
connecting rod bearings are graded for correct size
selection.
Crankshaft and Bearings
The crankshaft is made of Ductile cast-iron. Pins and
journals are graded for correct size selection for thei
r
bearing.
Engine Control Module (ECM)
The ECM location is on the common charmber.

Page 1828 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A-4 ENGINE MECHANICAL (6VE1 3.5L)
Engine Diagnosis
Hard Starting
1. Starting Motor Does Not Turn Over
Troubleshooting Procedure
Turn on headlights and starter switch.

Symptom Possible Cau

Page 1829 of 4264

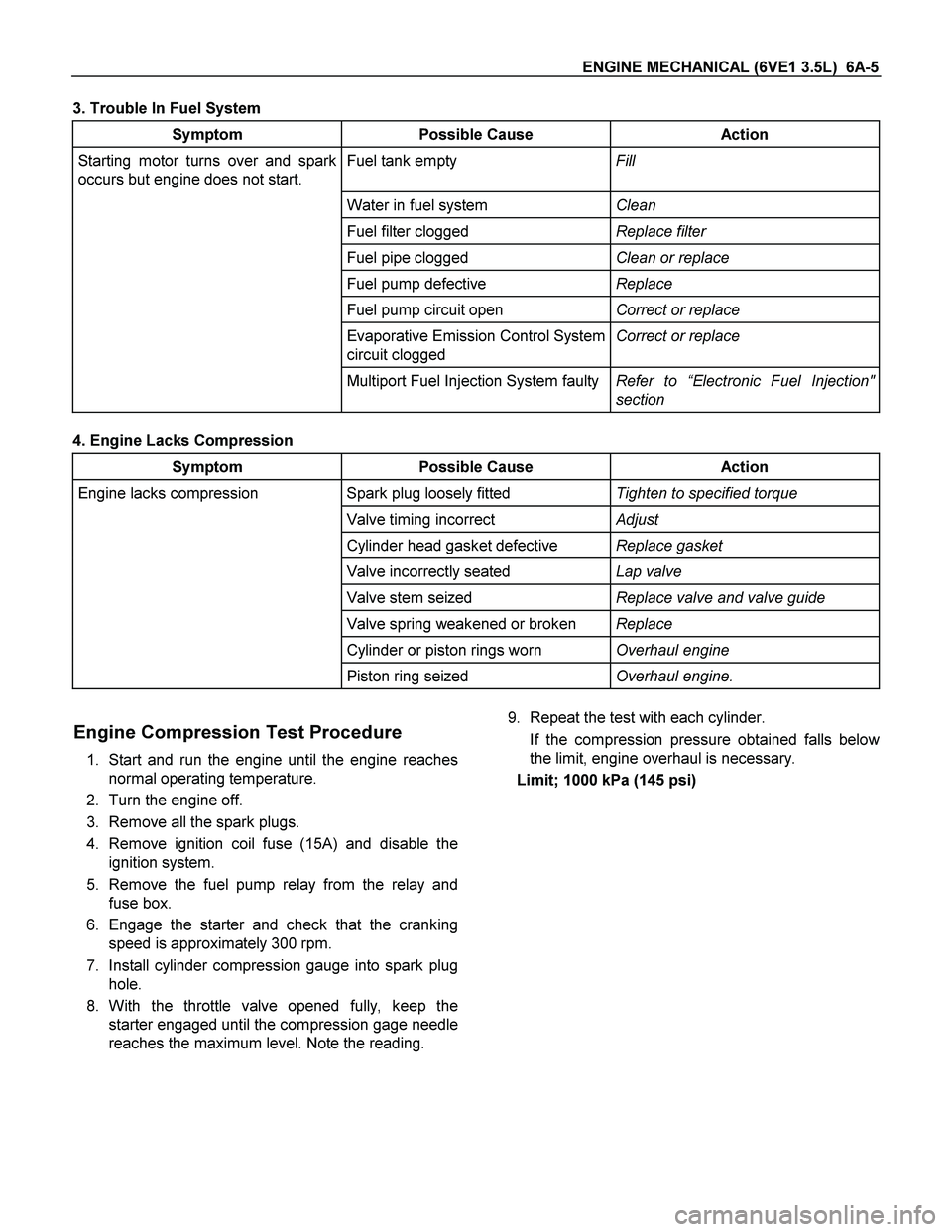

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-5
3. Trouble In Fuel System
Symptom Possible Cause Action
Starting motor turns over and spark
occurs but engine does not start. Fuel tank empty Fill
Water in f

Page 1830 of 4264

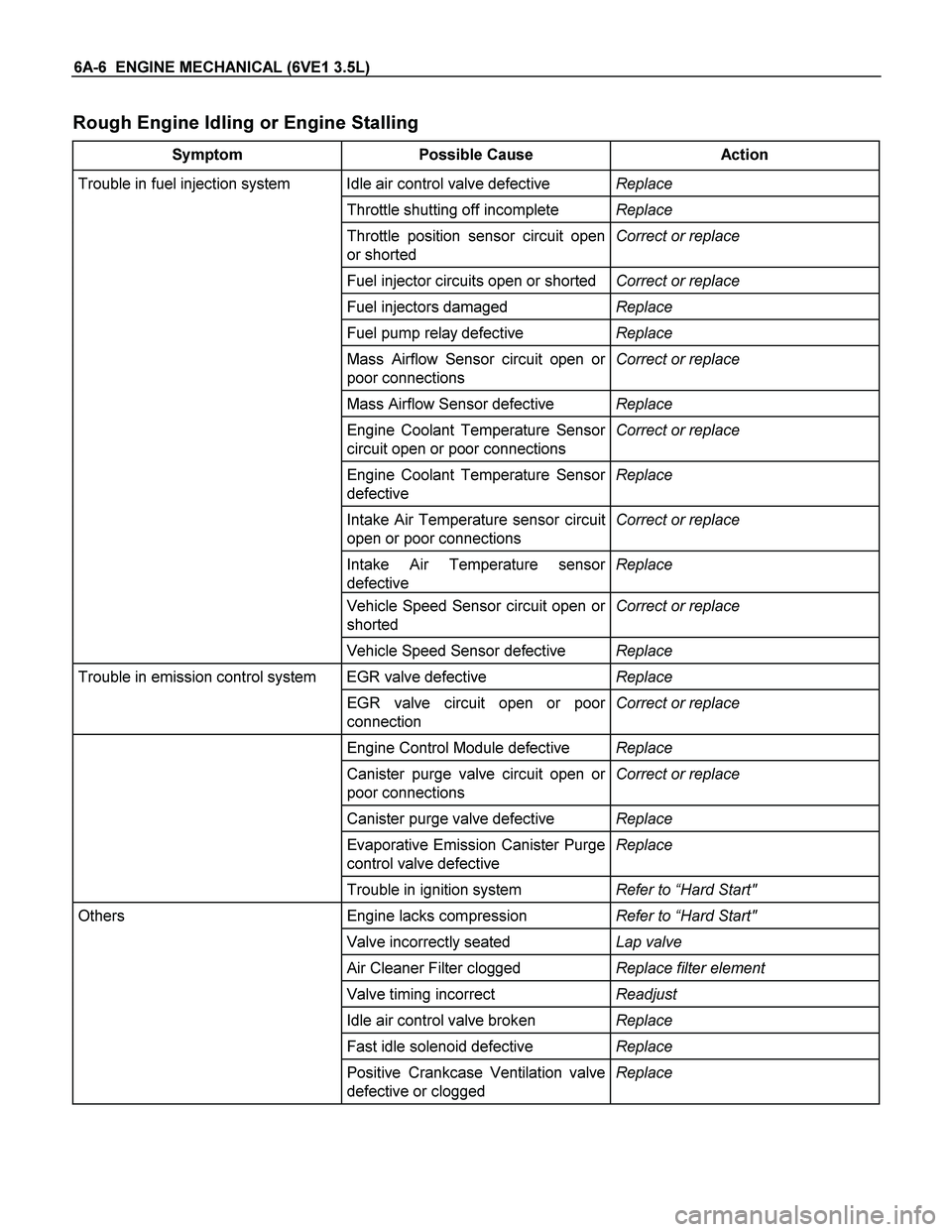

ISUZU TF SERIES 2004 Workshop Manual 6A-6 ENGINE MECHANICAL (6VE1 3.5L)
Rough Engine Idling or Engine Stalling
Symptom Possible Cause Action
Trouble in fuel injection system Idle air control valve defective Replace
Throttle shutt

Page 1831 of 4264

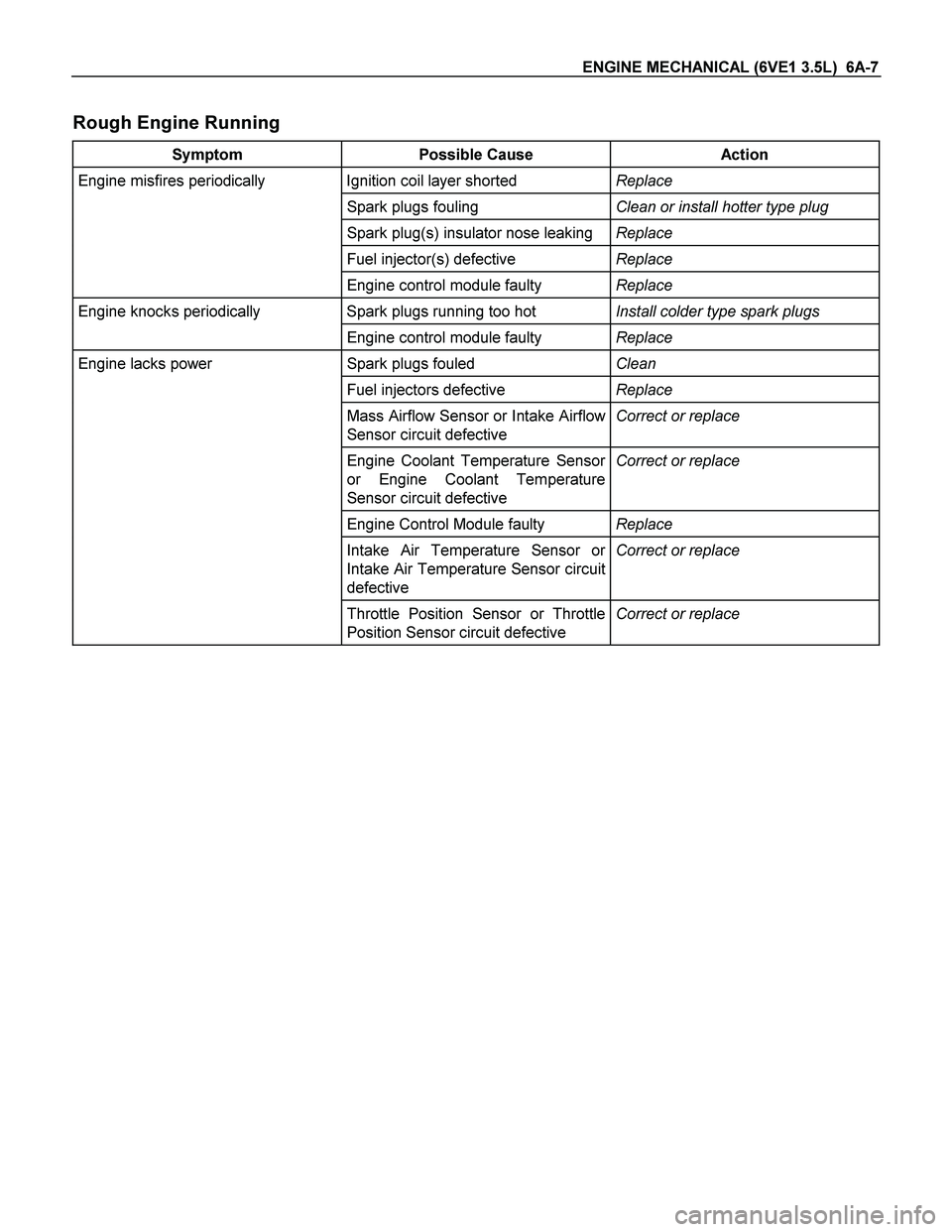

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-7
Rough Engine Running
Symptom Possible Cause Action
Engine misfires periodically Ignition coil layer shorted Replace
Spark plugs fouling Clean or install hott

Page 1832 of 4264

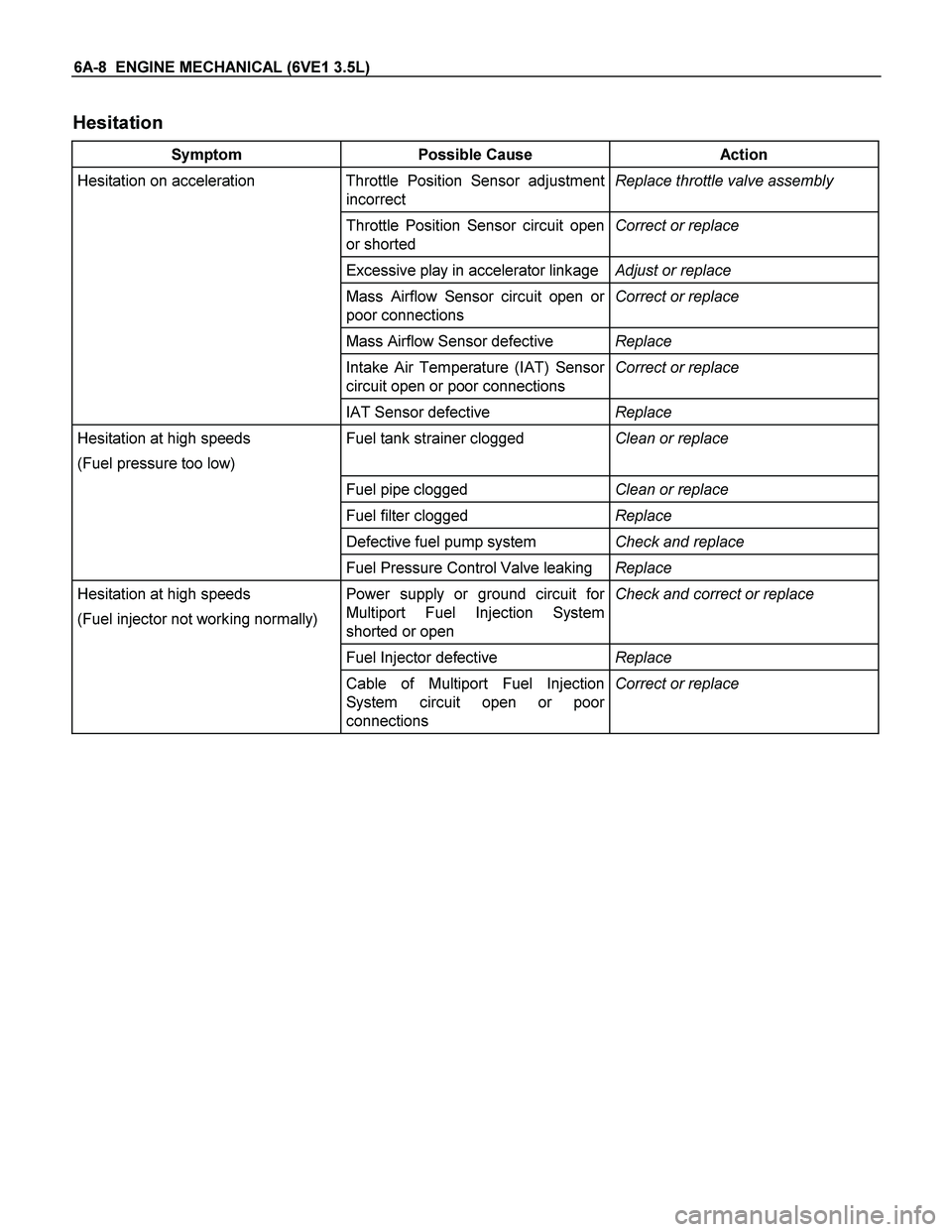

ISUZU TF SERIES 2004 Workshop Manual 6A-8 ENGINE MECHANICAL (6VE1 3.5L)
Hesitation
Symptom Possible Cause Action
Hesitation on acceleration Throttle Position Sensor adjustment
incorrect Replace throttle valve assembly
Throttl

Load next 8 pages

Page: < prev 1-10 ... 1793-1800 1801-1808 1809-1816 1817-1824 1825-1832 1833-1840 1841-1848 1849-1856 1857-1864 ... 4264 next >

service interval reset fuel additives bonnet jacking points brake brake sensor
