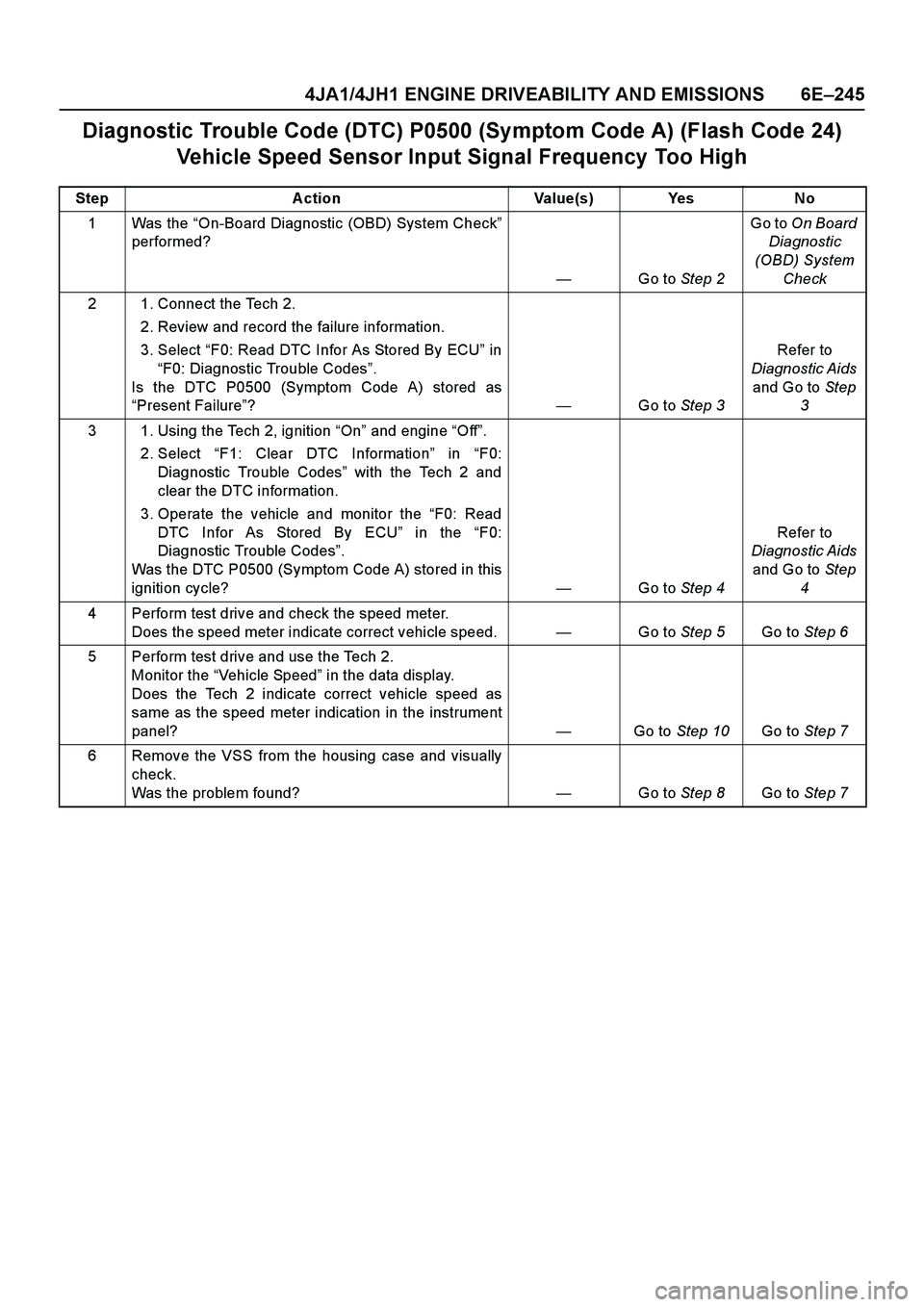

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–245
Diagnostic Trouble Code (DTC) P0500 (Symptom Code A) (Flash Code 24)
Vehicle Speed Sensor Input Signal Frequency Too High
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0500 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0500 (Symptom Code A) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Perform test drive and check the speed meter.
Does the speed meter indicate correct vehicle speed.—Go to Step 5Go to Step 6
5 Perform test drive and use the Tech 2.
Monitor the “Vehicle Speed” in the data display.
Does the Tech 2 indicate correct vehicle speed as
same as the speed meter indication in the instrument
panel?—Go to Step 10Go to Step 7
6 Remove the VSS from the housing case and visually
check.
Was the problem found? —Go to Step 8Go to Step 7
Page 1618 of 4264

6E–246 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
7 Using the DVM and check the VSS signal.
1. Ignition “On”, vehicle “Run (lift up)”.
2. Measure the VSS output voltage at sensor, TCM
(A/T 2WD), meter and ECM.
Does the tester indicate specified value?
If a oscilloscope is available, monitor the VSS signal
at each connector connection. Does the oscilloscope
indicate correct wave form?
Refer to
Diagnostic Aids
and Go to Step
10Refer the table
8 Replace the VSS.
Is the action complete?—Verify repair
9 Replace the TCM.
Is the action complete?
IMPORTANT: The replacement TCM must be
programmed. “SPS (Service Programming System)
is necessary.” —Verify repair—
10 Check any accessory parts which may cause electric
interference or magnetic interference.
Was the problem found?—Remove the
accessory parts
and verify repair Go to Step 12
11 Replace the speed meter.
Is the action complete?—Verify repair—
12 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 13 Step Action Value(s) Yes No
Me asure ment Position Vo lta ge (V)
(AC Range)If No
Go od
VSS terminal 3 & GND Approximately 6.0
V at 20km/hGo to
Step 8
TCM te rmina l A10 & B5
(A/T 2WD)Go to
Step 9
Meter B24 connector 9 &
GNDGo to
St e p 1 0
Meter B24 connector 10 &
GNDGo to
Step 11
ECM C56 connector 68 &
GNDGo to
St e p 1 0
Ve hicle Spee d Sensor (VSS) Refe re nce Wav e Fo rm
0V
Mea sure me nt Terminal: 68(+) GND(-)
Mea sure me nt Scale: 5V/div 50ms/div
Measurement Condition: Approximately 20km/h
Page 1619 of 4264

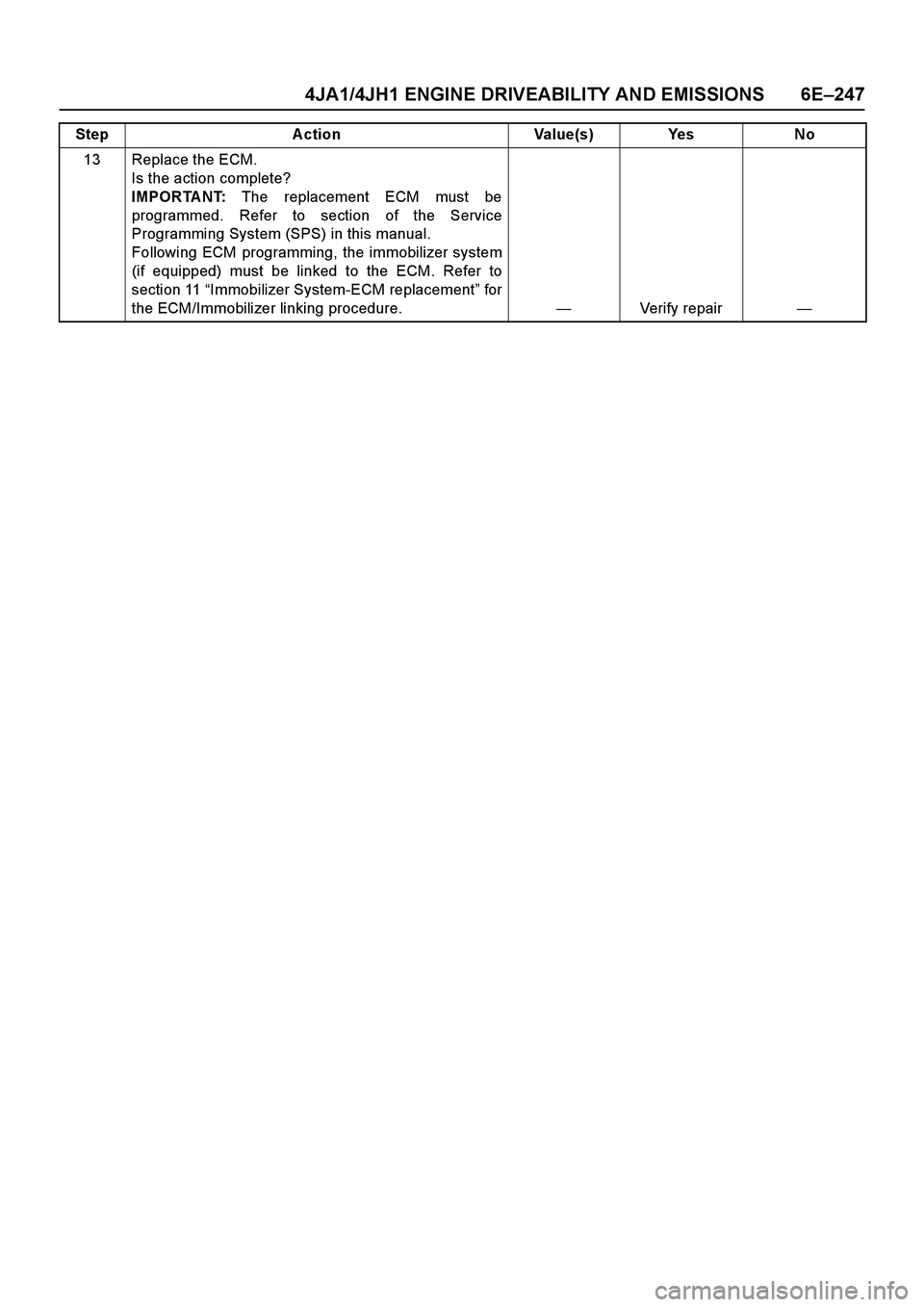

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–247
13 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
Page 1620 of 4264

6E –248 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0500 (Symptom Code B) (Flash Code 24)
Vehicle Speed Sensor Incorrect Signal
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check ”
performed?
— Go to Step 2 Go to
On Board
Diagnostic
(OBD) System Check
2 1. Connect the Tech 2. 2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU ” in
“ F0: Diagnostic Trouble Codes ”.
Is the DTC P0500 (Symptom Code B) stored as
“ Present Failure ”? —Go to Step 3 Refer to
Diagnostic Aids and Go to Step
3
3 1. Using the Tech 2, ignition “On ” and engine “Off ”.
2. Select “F1: Clear DTC Information ” in “F0:
Diagnostic Trouble Codes ” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU ” in the “F0:
Diagnostic Trouble Codes ”.
Was the DTC P0500 (Symptom Code B) stored in this
ignition cycle? —Go to Step 4 Refer to
Diagnostic Aids and Go to Step
4
4 Perform test drive and check the speed meter. Does the speed meter indicate correct vehicle speed. —Go to Step 5 Go to Step 6
5 Perform test drive and use the Tech 2. Monitor the “Vehicle Speed ” in the data display.
Does the Tech 2 indicate correct vehicle speed as
same as the speed meter indication in the instrument
panel? —Go to Step 17 Go to Step 7
6 Check for poor/faulty connection at the VSS, TCM (A/ T 2WD) and meter connectors. If a poor/faulty
connection is found, repair the faulty terminal.
Was the problem found?
— Verify repair Go to Step 8
13
2
9 10
10 B-24
C-94(10) E-44
Page 1621 of 4264

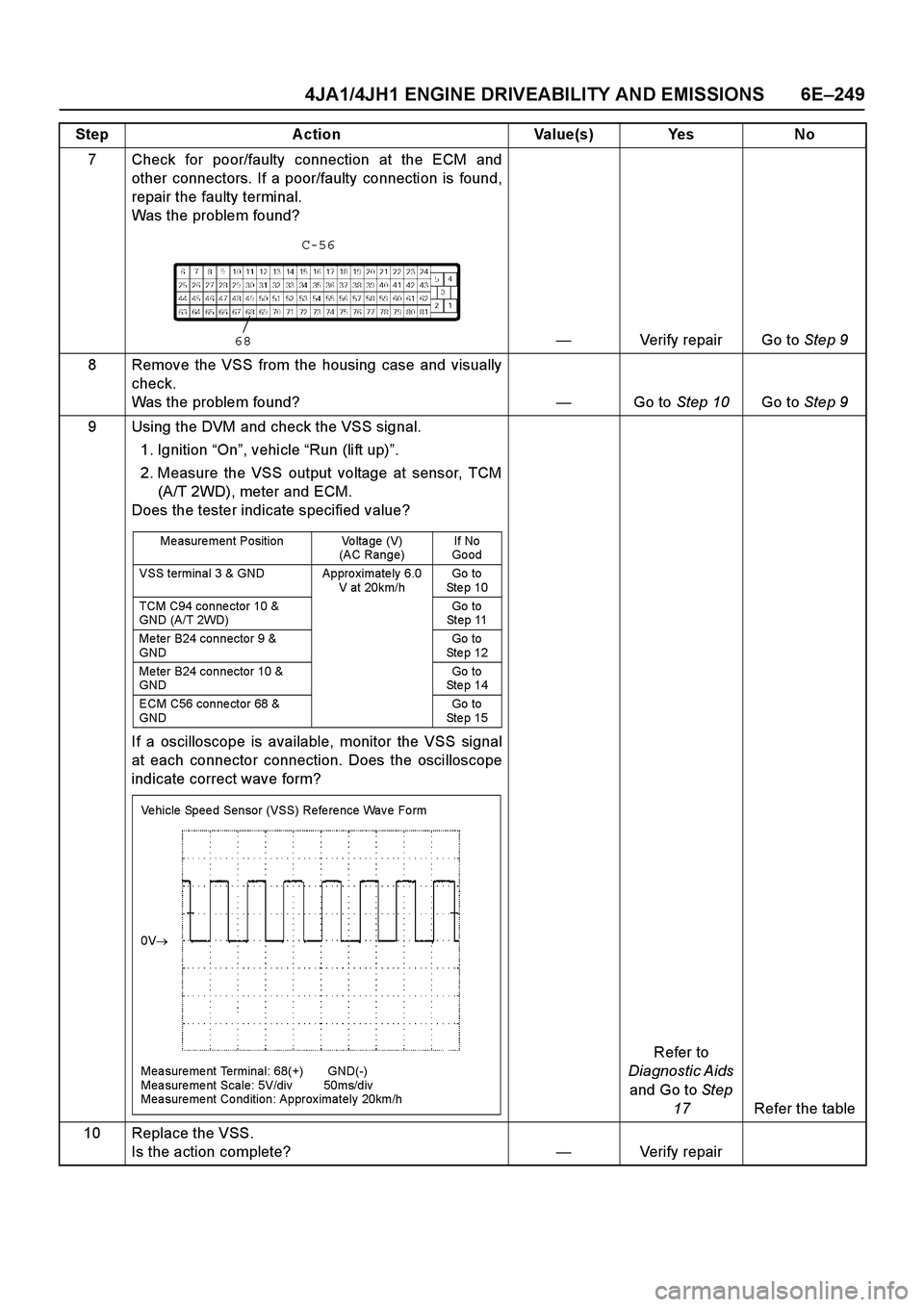

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E –249
7 Check for poor/faulty connection at the ECM and
other connectors. If a poor/faulty connection is found,
repair the faulty terminal.
Was the problem found?
— Verify repair Go to Step 9
8 Remove the VSS from the housing case and visually
check.
Was the problem found? —Go to Step 10 Go to Step 9
9 Using the DVM and check the VSS signal. 1. Ignition “On ”, vehicle “Run (lift up) ”.
2. Measure the VSS output voltage at sensor, TCM (A/T 2WD), meter and ECM.
Does the tester indicate specified value?
If a oscilloscope is available, monitor the VSS si gnal
at each connector connection. Does the oscilloscope
indicate correct wave form?
Refer to
Diagnostic Aids
and Go to Step
17 Refer the table
10 Replace the VSS. Is the action complete? —Verify repair
Step Action Value(s) Yes No
68
C-56
Me asure ment Position Vo lta ge (V)
(AC Range) If No
Go od
VSS terminal 3 & GND Approximately 6.0 V at 20km/h Go to
St e p 1 0
TCM C94 conne ctor 10 &
GND (A/T 2WD) Go to
Step 11
Meter B24 connector 9 &
GND Go to
St e p 1 2
Meter B24 connector 10 &
GND Go to
St e p 1 4
ECM C56 connector 68 &
GND Go to
St e p 1 5
Ve hicle Spee d Sensor (VSS) Refe re nce Wav e Fo rm
0V
Mea sure me nt Terminal: 68(+) GND(-)
Mea sure me nt Scale: 5V/div 50ms/div
Measurement Condition: Approximately 20km/h
Page 1622 of 4264

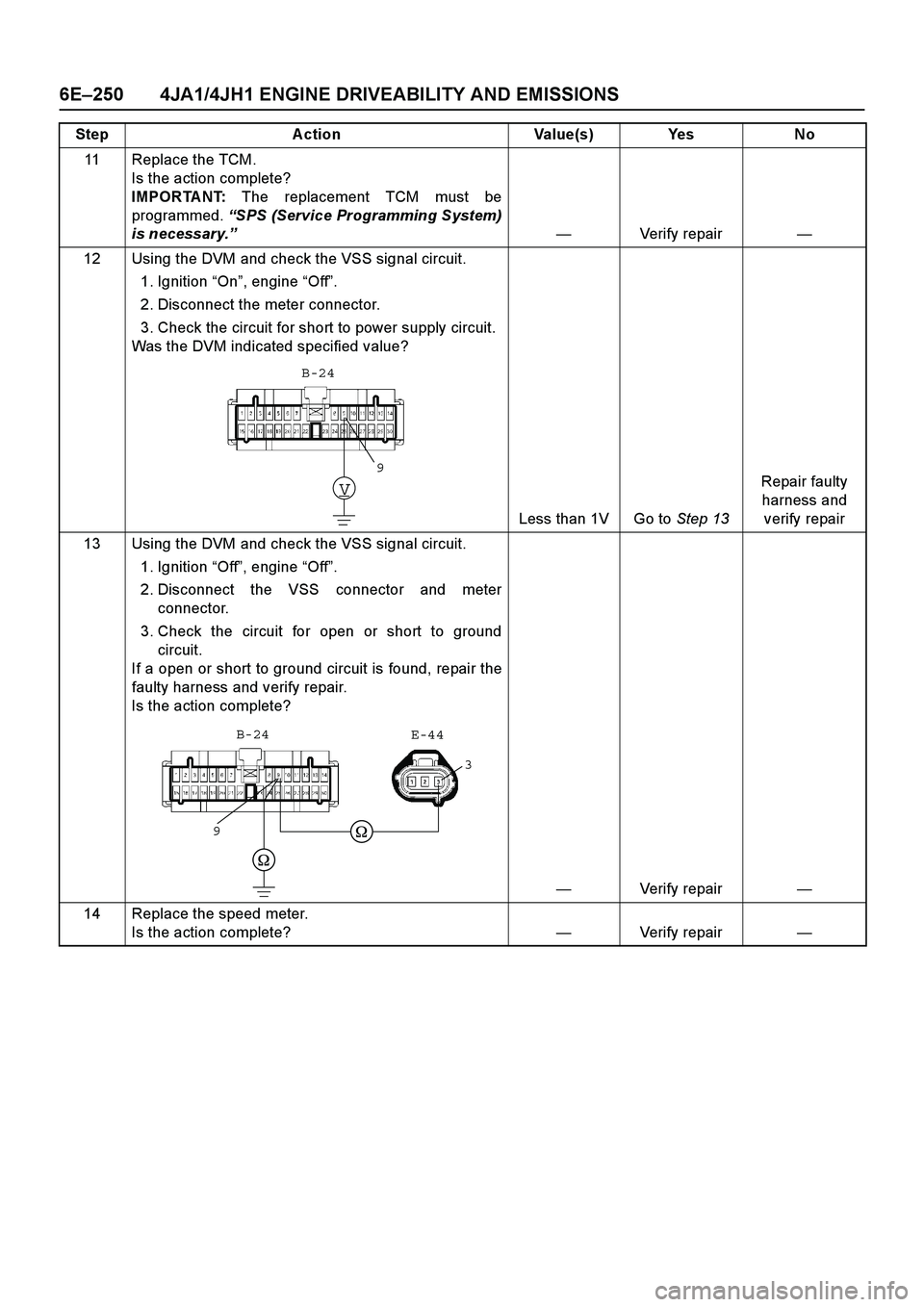

6E –250 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
11 Replace the TCM.
Is the action complete?
IMPORTANT: The replacement TCM must be
programmed. “SPS (Service Programming System)
is necessary. ” —Verify repair —
12 Using the DVM and check the VSS signal circuit. 1. Ignition “On ”, engine “Off ”.
2. Disconnect the meter connector.
3. Check the circuit for short to power supply circuit.
Was the DVM indicated specified value?
Less than 1V Go to Step 13 Repair faulty
harness and verify repair
13 Using the DVM and check the VSS signal circuit. 1. Ignition “Off ”, engine “Off ”.
2. Disconnect the VSS connector and meter connector.
3. Check the circuit for open or short to ground circuit.
If a open or short to ground circuit is found, repair the
faulty harness and verify repair.
Is the action complete?
— Verify repair —
14 Replace the speed meter. Is the action complete? —Verify repair —
Step Action Value(s) Yes No
9
V
B-24
3
9
E-44
B-24
Page 1623 of 4264

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E –251
15 Using the DVM and check the VSS signal circuit.
1. Ignition “Off ”, engine “Off ”.
2. Disconnect the meter connector and ECM connector.
3. Ignition “On ”.
4. Check the circuit for short to power supply circuit.
Was the DVM indicated specified value?
Less than 1V Go to Step 16 Repair faulty
harness and verify repair
16 Using the DVM and check the VSS signal circuit. Breaker box is available:
1. Ignition “Off ”, engine “Off ”.
2. Install the breaker box as type A. (ECM disconnected) Ref. Page 6E-103
3. Disconnect the meter connector.
4. Check the circuit for open or shot to ground circuit.
Was the problem found?
Breaker box is not available:
1. Ignition “Off ”, engine “Off ”.
2. Disconnect the meter connector and ECM connector.
3. Check the circuit for open or short to ground circuit.
Was the problem found?
— Repair faulty
harness and verify repair Go to Step 17
Step Action Value(s) Yes No
10
V
B-24
68
Breaker BoxB-24
68
10
B-24
C-56
Page 1624 of 4264

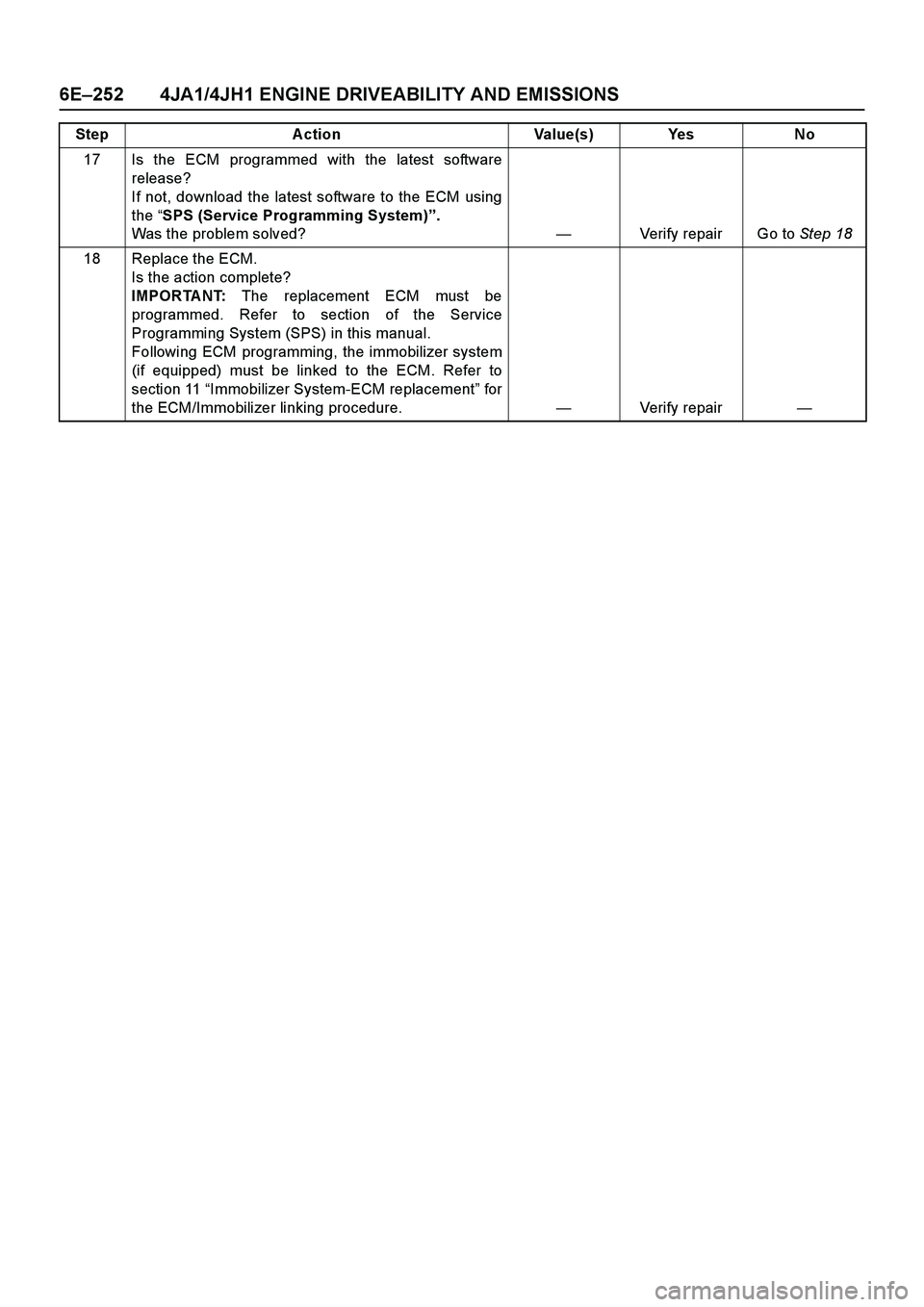

6E–252 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
17 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 18
18 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
