TRANSFER CASE 7D-21
Oil Pump
Remove foreign materials from the strainer. If the
strainer is damaged, replace it.
If the area into which the shaft is inserted is excessively
worn or damaged, replace the oil pump assembly.
Clutch Hub Spline Play
Set a dial indicator to the clutch hub to be measured.
Move the clutch hub as far as possible to both the
right and the left.
Note the dial indicator reading.
If the measured value exceeds the specified limit,
the clutch hub must be replaced.
Clutch hub spline play
Standard : 0 – 0.1 mm (0 – 0.004 in)
Limit : 0.2 mm (0.008 in)
226RS042
Bearings
1.
Inspect the condition of all the needles and ball
bearings. Wash bearings thoroughly in a cleaning
solvent. Apply compressed air to the bearings.
NOTE: Do not allow the bearings to spin. Turn them
slowly by hand. Spinning bearings may damage the
rollers.
2.
Lubricate the bearings with a light oil and check them
for roughness by slowly turning the race by hand.
Ball Bearing Play
1.
Use a dial indicator to measure the ball bearing play.
2.
If the measured value exceeds the specified limit, the
ball bearing must be replaced.
Limit : 0.2 mm (0.008 in)
226R3043
Synchronizers
The synchronizer hubs and sliding sleeves are a
selected assembly and should be kept together as
originally assembled.
Clean synchronizer components with clean solvent and
air dry.
Inspect the components for the following:
Teeth for wear, scuffs, nicks, burrs or breaks.
Keys and springs for wear, cracks or distortion,
replace if these conditions are present.
If scuffed, nicked or burred conditions cannot be
corrected with a soft stone or crocus cloth, replace
the component.
Page 3610 of 4264

7D-22 TRANSFER CASE
Block Ring and Insert Clearance
1.
Use a vernier caliper to measure the clearance
between the block ring and the insert.
2.
If the measured value exceeds the specified limit,
the block ring and the insert must be replaced.
Block ring and insert clearance
Standard : 3.86 – 4.14 mm (0.152 – 0.163 in)
Limit : 4.9 mm (0.193 in)
226RS037
2WD-4WD Synchronizer (3-Cone)
1.
Use a thickness gauge to measure the clearance
between the block ring and the dog teeth.
2.
If the measured value exceeds the specified limit,
the 2WD-4WD synchronizer assembly must be
replaced.
Block ring and dog teeth clearance
Standard : 1.5 mm (0.059 in)
Limit : 0.8 mm (0.031 in)
226R300019
Clutch Hub and Insert Clearance
1.
Clutch Hub and Insert Clearance
2.
Use a thickness gauge to measure the clearance
between the clutch hub and the insert.
3.
If the measured value exceeds the specified limit, the
clutch hub and the insert must be replaced.
Clutch hub and insert clearance
Standard : 0.01-0.19 mm (0.0004-0.0075 in)
Limit : 0.3 mm (0.012 in)
226RS038
Detent Springs
1.
Inspect the springs for distortion, cracks or wear.
Replace if these conditions are present.
Page 3611 of 4264

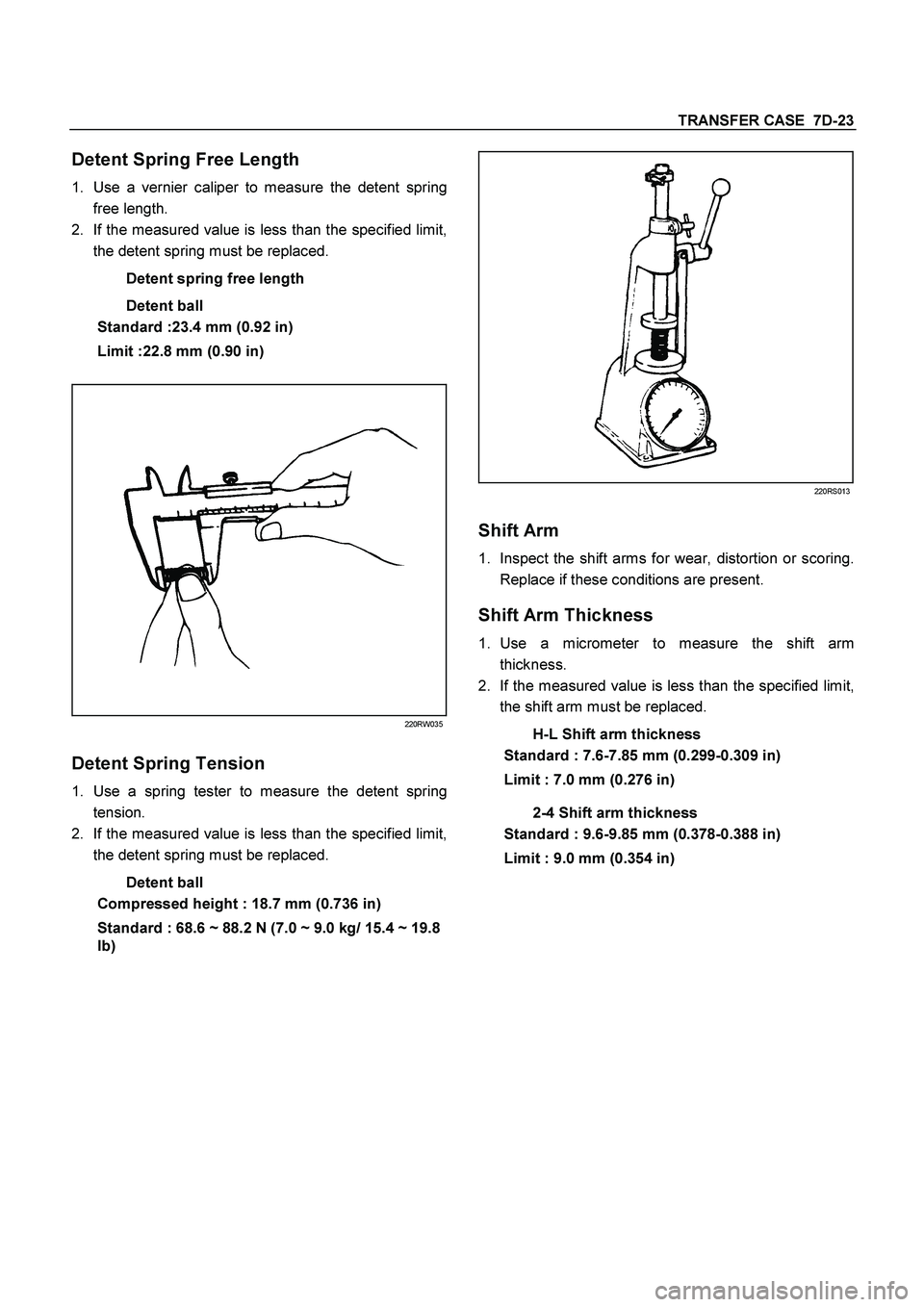

TRANSFER CASE 7D-23
Detent Spring Free Length
1.
Use a vernier caliper to measure the detent spring
free length.
2.
If the measured value is less than the specified limit,
the detent spring must be replaced.
Detent spring free length
Detent ball
Standard :23.4 mm (0.92 in)
Limit :22.8 mm (0.90 in)
220RW035
Detent Spring Tension
1.
Use a spring tester to measure the detent spring
tension.
2.
If the measured value is less than the specified limit,
the detent spring must be replaced.
Detent ball
Compressed height : 18.7 mm (0.736 in)
Standard : 68.6 ~ 88.2 N (7.0 ~ 9.0 kg/ 15.4 ~ 19.8
lb)
220RS013
Shift Arm
1.
Inspect the shift arms for wear, distortion or scoring.
Replace if these conditions are present.
Shift Arm Thickness
1.
Use a micrometer to measure the shift arm
thickness.
2.
If the measured value is less than the specified limit,
the shift arm must be replaced.
H-L Shift arm thickness
Standard : 7.6-7.85 mm (0.299-0.309 in)
Limit : 7.0 mm (0.276 in)
2-4 Shift arm thickness
Standard : 9.6-9.85 mm (0.378-0.388 in)
Limit : 9.0 mm (0.354 in)
Page 3612 of 4264

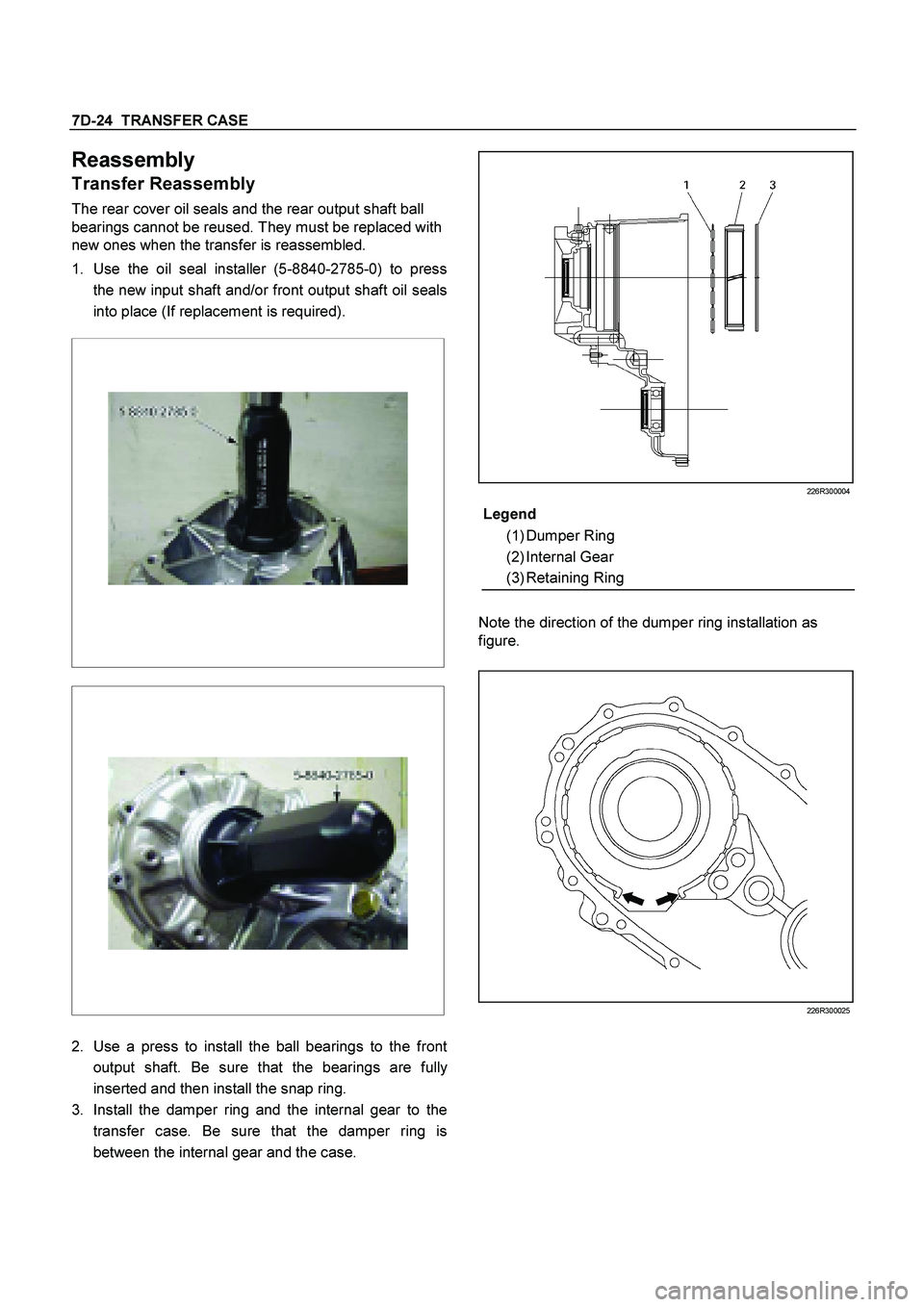

7D-24 TRANSFER CASE
Reassembly
Transfer Reassembly
The rear cover oil seals and the rear output shaft ball
bearings cannot be reused. They must be replaced with
new ones when the transfer is reassembled.
1.
Use the oil seal installer (5-8840-2785-0) to press
the new input shaft and/or front output shaft oil seals
into place (If replacement is required).
2.
Use a press to install the ball bearings to the front
output shaft. Be sure that the bearings are fully
inserted and then install the snap ring.
3.
Install the damper ring and the internal gear to the
transfer case. Be sure that the damper ring is
between the internal gear and the case.
226R300004
Note the direction of the dumper ring installation as
figure.
226R300025
Legend
(1) Dumper Ring
(2) Internal Gear
(3) Retaining Ring
Page 3613 of 4264

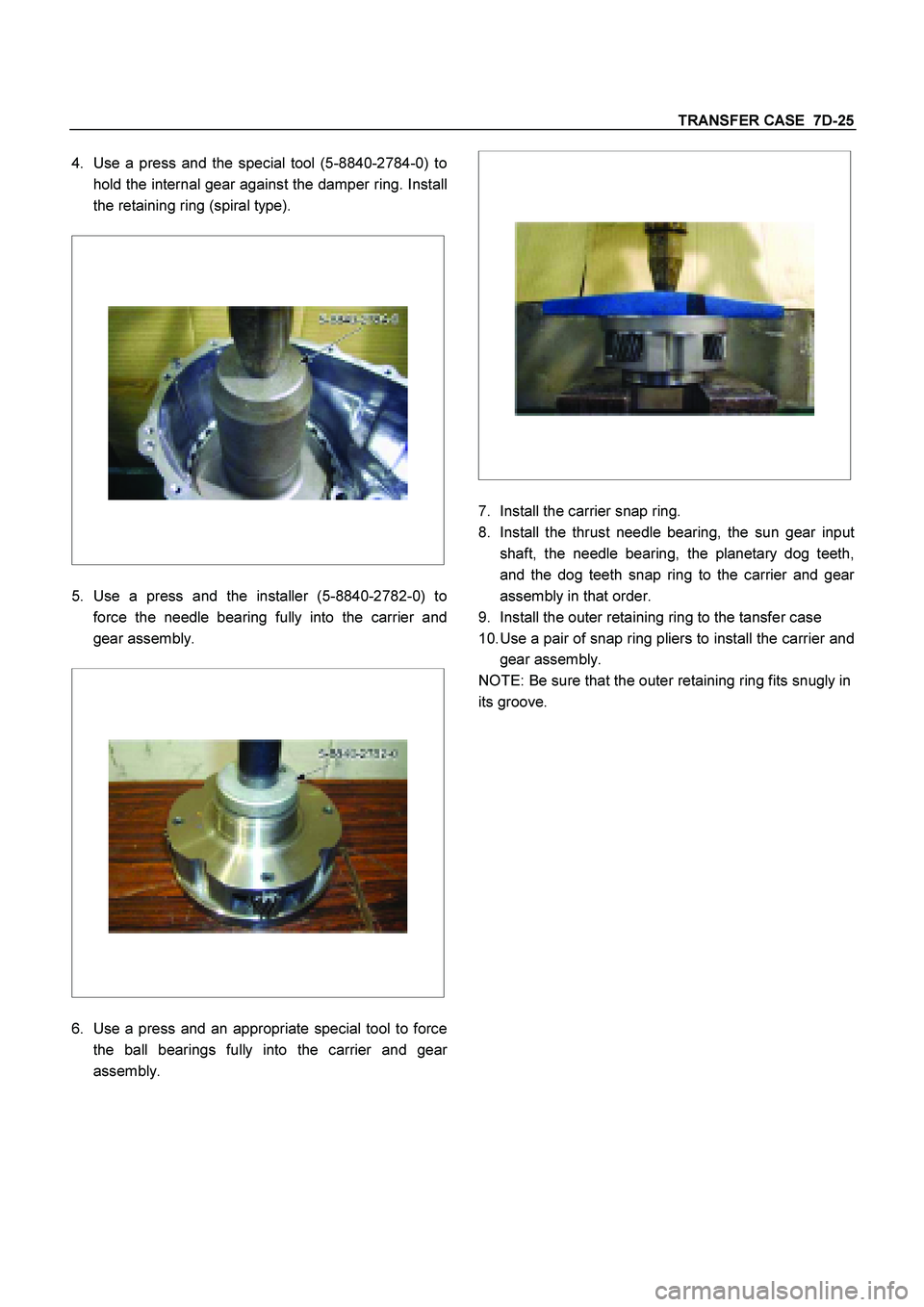

TRANSFER CASE 7D-25
4.
Use a press and the special tool (5-8840-2784-0) to
hold the internal gear against the damper ring. Install
the retaining ring (spiral type).
5.
Use a press and the installer (5-8840-2782-0) to
force the needle bearing fully into the carrier and
gear assembly.
6. Use a press and an appropriate special tool to force
the ball bearings fully into the carrier and gear
assembly.
7.
Install the carrier snap ring.
8.
Install the thrust needle bearing, the sun gear input
shaft, the needle bearing, the planetary dog teeth,
and the dog teeth snap ring to the carrier and gea
r
assembly in that order.
9.
Install the outer retaining ring to the tansfer case
10. Use a pair of snap ring pliers to install the carrier and
gear assembly.
NOTE: Be sure that the outer retaining ring fits snugly in
its groove.
Page 3614 of 4264

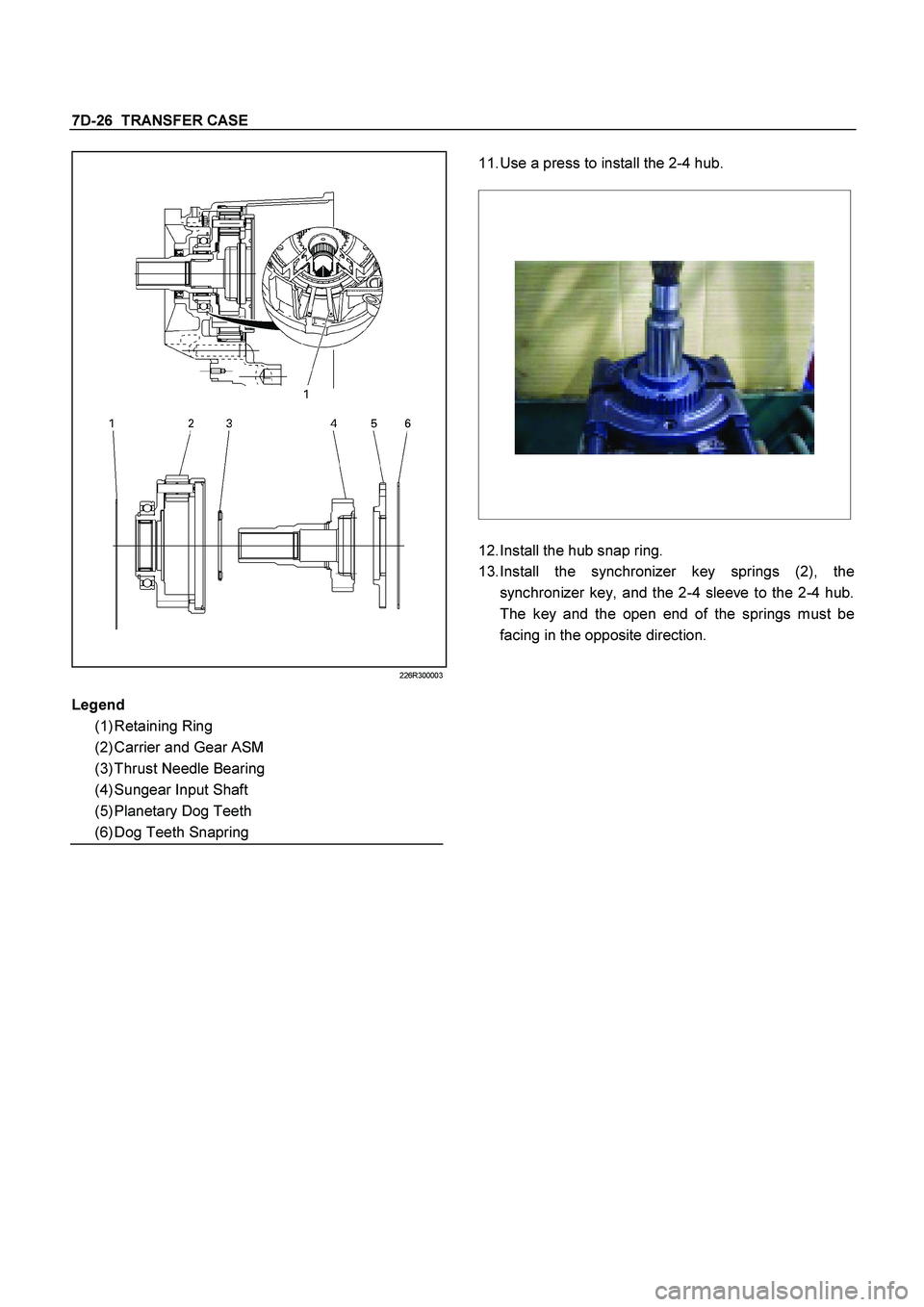

7D-26 TRANSFER CASE
226R300003
11.
Use a press to install the 2-4 hub.
12.
Install the hub snap ring.
13.
Install the synchronizer key springs (2), the
synchronizer key, and the 2-4 sleeve to the 2-4 hub.
The key and the open end of the springs must be
facing in the opposite direction.
Legend
(1) Retaining Ring
(2) Carrier and Gear ASM
(3) Thrust Needle Bearing
(4) Sungear Input Shaft
(5) Planetary Dog Teeth
(6) Dog Teeth Snapring
Page 3615 of 4264

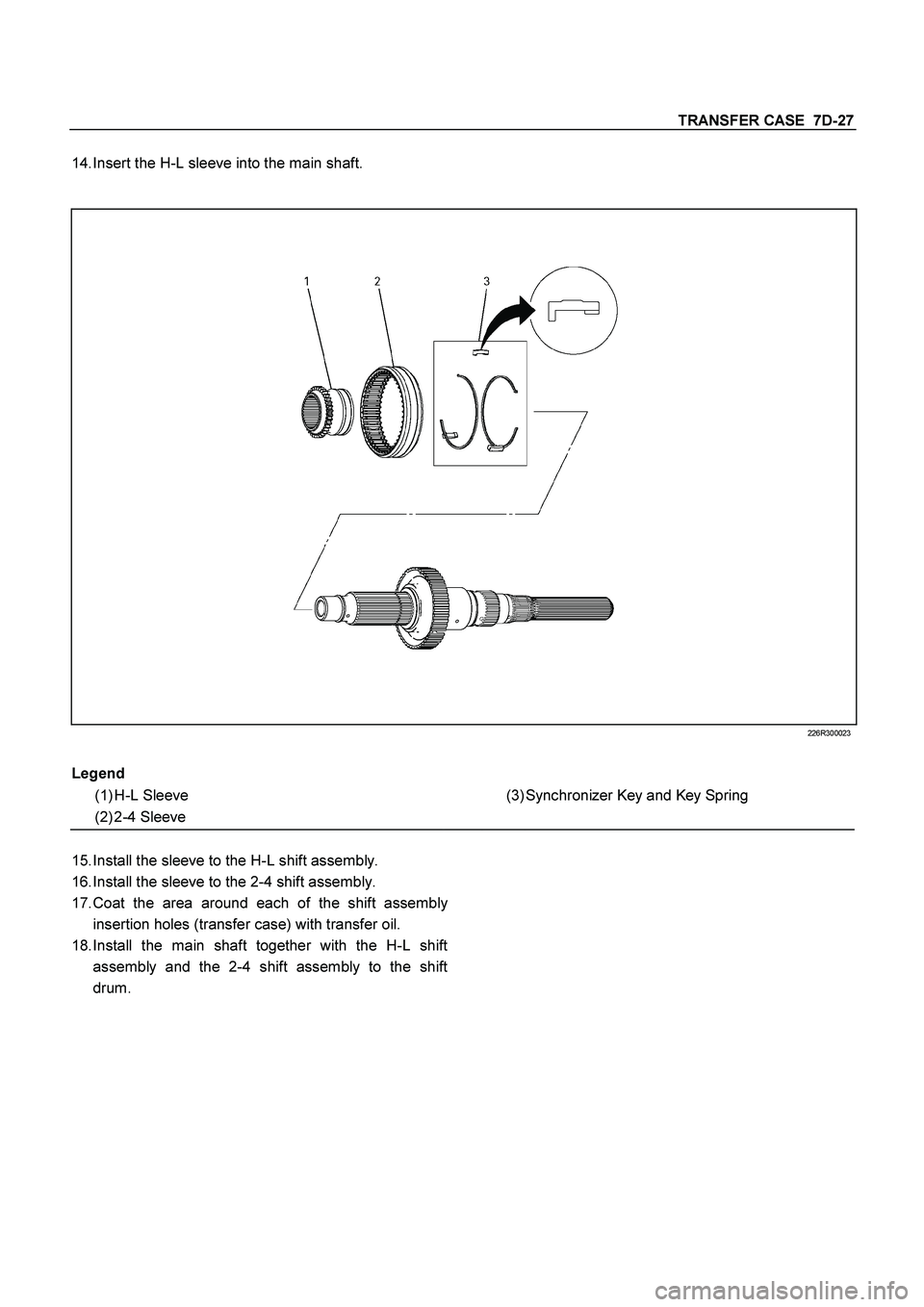

TRANSFER CASE 7D-27
14.
Insert the H-L sleeve into the main shaft.
226R300023
Legend
(1) H-L Sleeve
(3) Synchronizer Key and Key Spring
(2) 2-4 Sleeve
15.
Install the sleeve to the H-L shift assembly.
16.
Install the sleeve to the 2-4 shift assembly.
17.
Coat the area around each of the shift assembl
y
insertion holes (transfer case) with transfer oil.
18.
Install the main shaft together with the H-L shif
t
assembly and the 2-4 shift assembly to the shif
t
drum.
Page 3616 of 4264

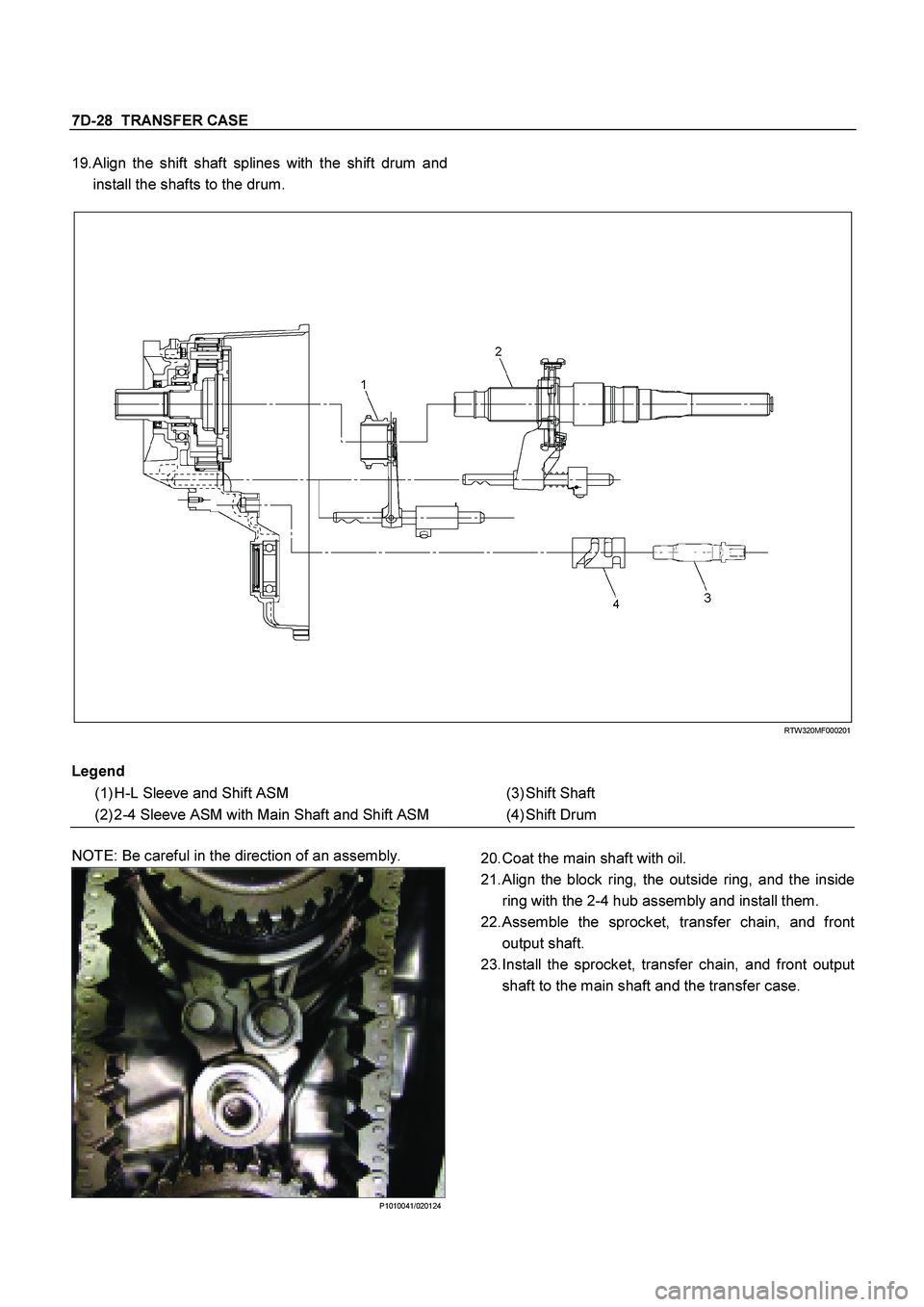

7D-28 TRANSFER CASE
19. Align the shift shaft splines with the shift drum and
install the shafts to the drum.
RTW320MF000201
Legend
(1) H-L Sleeve and Shift ASM
(3) Shift Shaft
(2) 2-4 Sleeve ASM with Main Shaft and Shift ASM
(4) Shift Drum
NOTE: Be careful in the direction of an assembly.
P1010041/020124
20.
Coat the main shaft with oil.
21.
Align the block ring, the outside ring, and the inside
ring with the 2-4 hub assembly and install them.
22.
Assemble the sprocket, transfer chain, and front
output shaft.
23.
Install the sprocket, transfer chain, and front output
shaft to the main shaft and the transfer case.
