Page 4241 of 4264
UNIT REPAIR (JR405E) 7A4-67
BEARING AND BEARING RACE
INSTALLATION POSITION
A07L300001
Page 4242 of 4264

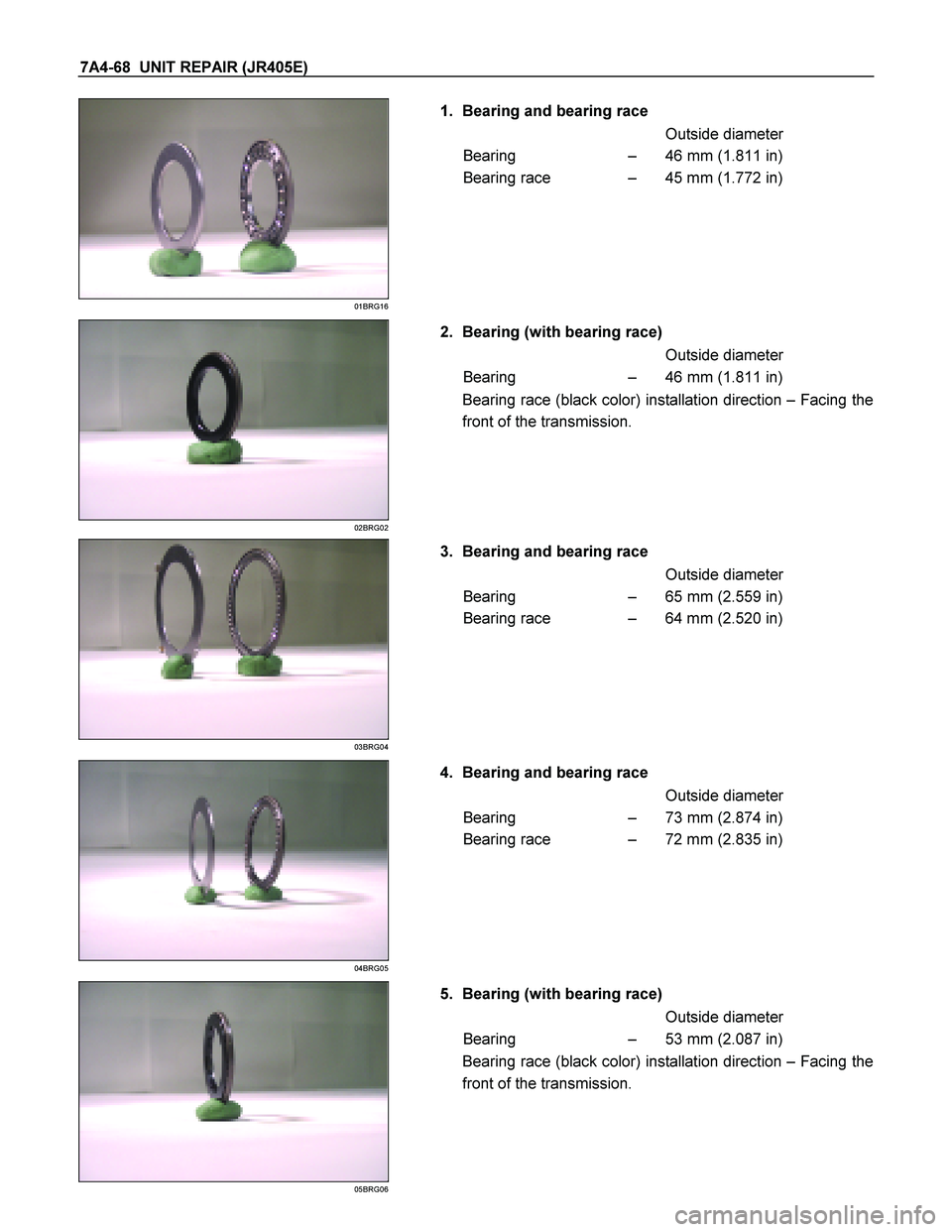

7A4-68 UNIT REPAIR (JR405E)
1. Bearing and bearing race
Outside diameter Bearing – 46 mm (1.811 in)
Bearing race – 45 mm (1.772 in)
01BRG16
2. Bearing (with bearing race)
Outside diameter
Bearing – 46 mm (1.811 in)
02BRG02
Bearing race (black color) installation direction – Facing the
front of the transmission.
3. Bearing and bearing race
Outside diameter Bearing – 65 mm (2.559 in)
Bearing race – 64 mm (2.520 in)
03BRG04
4. Bearing and bearing race
Outside diameter Bearing – 73 mm (2.874 in)
Bearing race – 72 mm (2.835 in)
04BRG05
5. Bearing (with bearing race)
Outside diameter
Bearing – 53 mm (2.087 in)
05BRG06
Bearing race (black color) installation direction – Facing the
front of the transmission.
Page 4243 of 4264

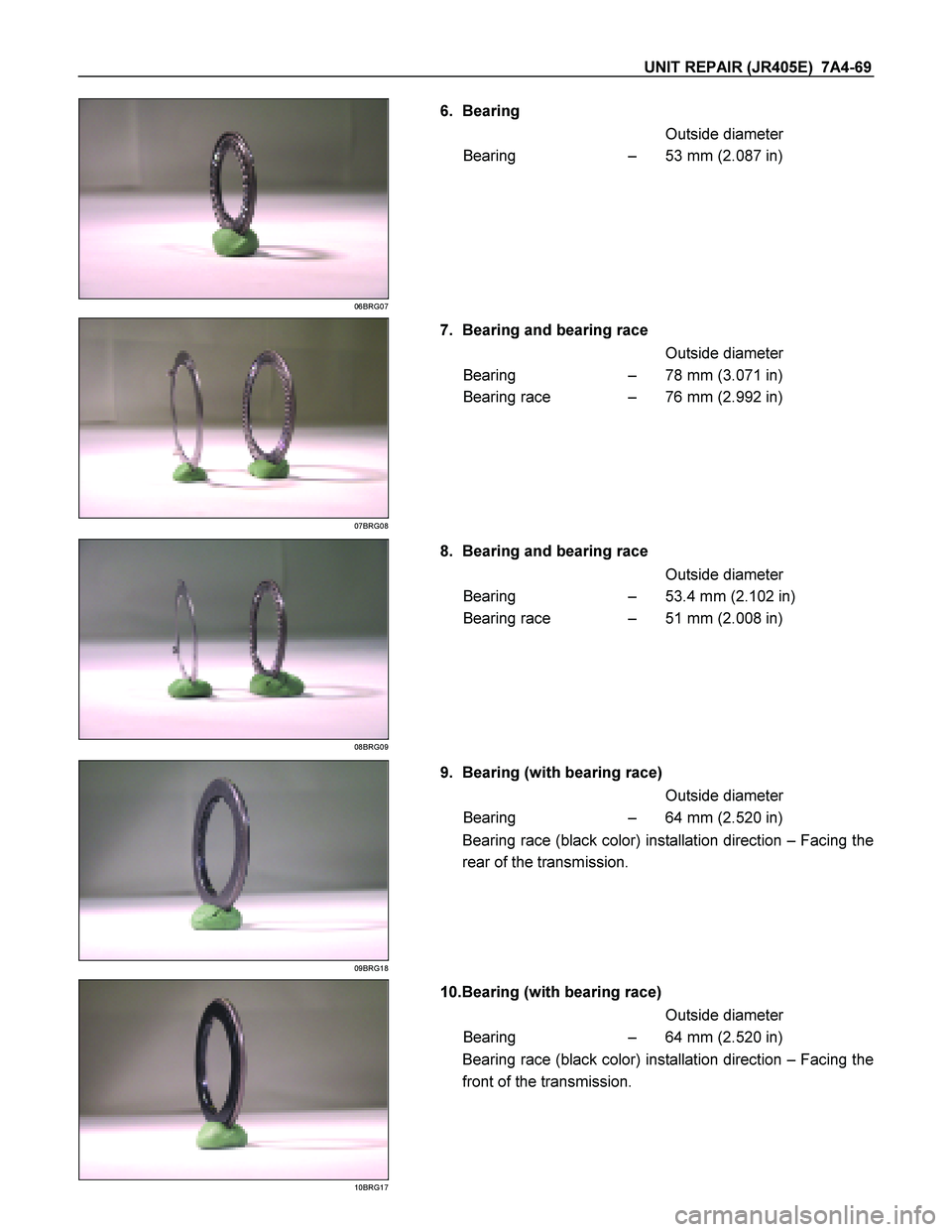

UNIT REPAIR (JR405E) 7A4-69
6. Bearing
Outside diameter
Bearing – 53 mm (2.087 in)
06BRG07
7. Bearing and bearing race
Outside diameter Bearing – 78 mm (3.071 in)
Bearing race – 76 mm (2.992 in)
07BRG08
8. Bearing and bearing race
Outside diameter Bearing – 53.4 mm (2.102 in)
Bearing race – 51 mm (2.008 in)
08BRG09
9. Bearing (with bearing race)
Outside diameter
Bearing – 64 mm (2.520 in)
09BRG18
Bearing race (black color) installation direction –Facing the
rear of the transmission.
10.Bearing (with bearing race)
Outside diameter
Bearing – 64 mm (2.520 in)
10BRG17
Bearing race (black color) installation direction –Facing the
front of the transmission.
Page 4244 of 4264

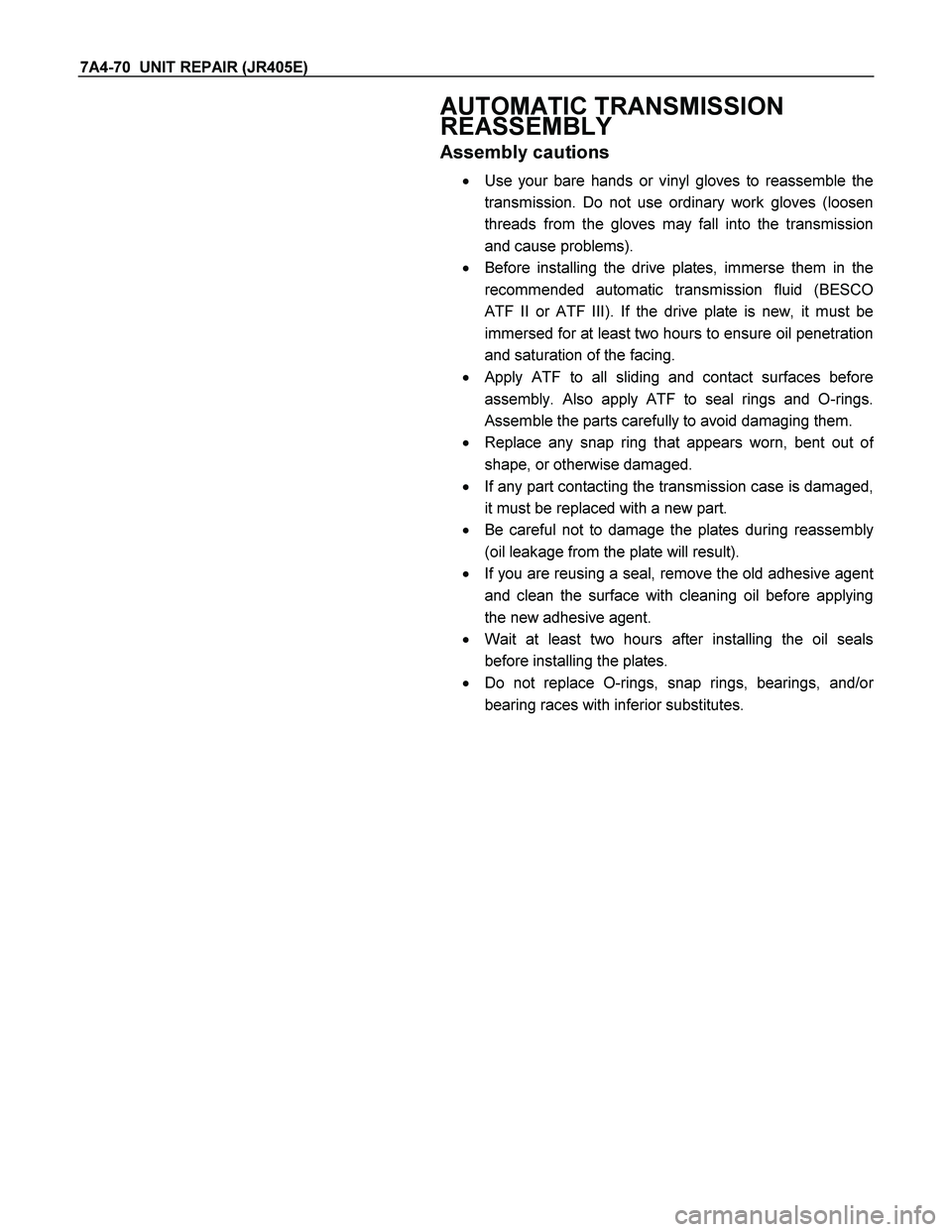

7A4-70 UNIT REPAIR (JR405E)
AUTOMATIC TRANSMISSION
REASSEMBLY
Assembly cautions
Use your bare hands or vinyl gloves to reassemble the
transmission. Do not use ordinary work gloves (loosen
threads from the gloves may fall into the transmission
and cause problems).
Before installing the drive plates, immerse them in the
recommended automatic transmission fluid (BESCO
ATF II or ATF III). If the drive plate is new, it must be
immersed for at least two hours to ensure oil penetration
and saturation of the facing.
Apply ATF to all sliding and contact surfaces before
assembly. Also apply ATF to seal rings and O-rings.
Assemble the parts carefully to avoid damaging them.
Replace any snap ring that appears worn, bent out o
f
shape, or otherwise damaged.
If any part contacting the transmission case is damaged,
it must be replaced with a new part.
Be careful not to damage the plates during reassembly
(oil leakage from the plate will result).
If you are reusing a seal, remove the old adhesive agen
t
and clean the surface with cleaning oil before applying
the new adhesive agent.
Wait at least two hours after installing the oil seals
before installing the plates.
Do not replace O-rings, snap rings, bearings, and/o
r
bearing races with inferior substitutes.
Page 4245 of 4264

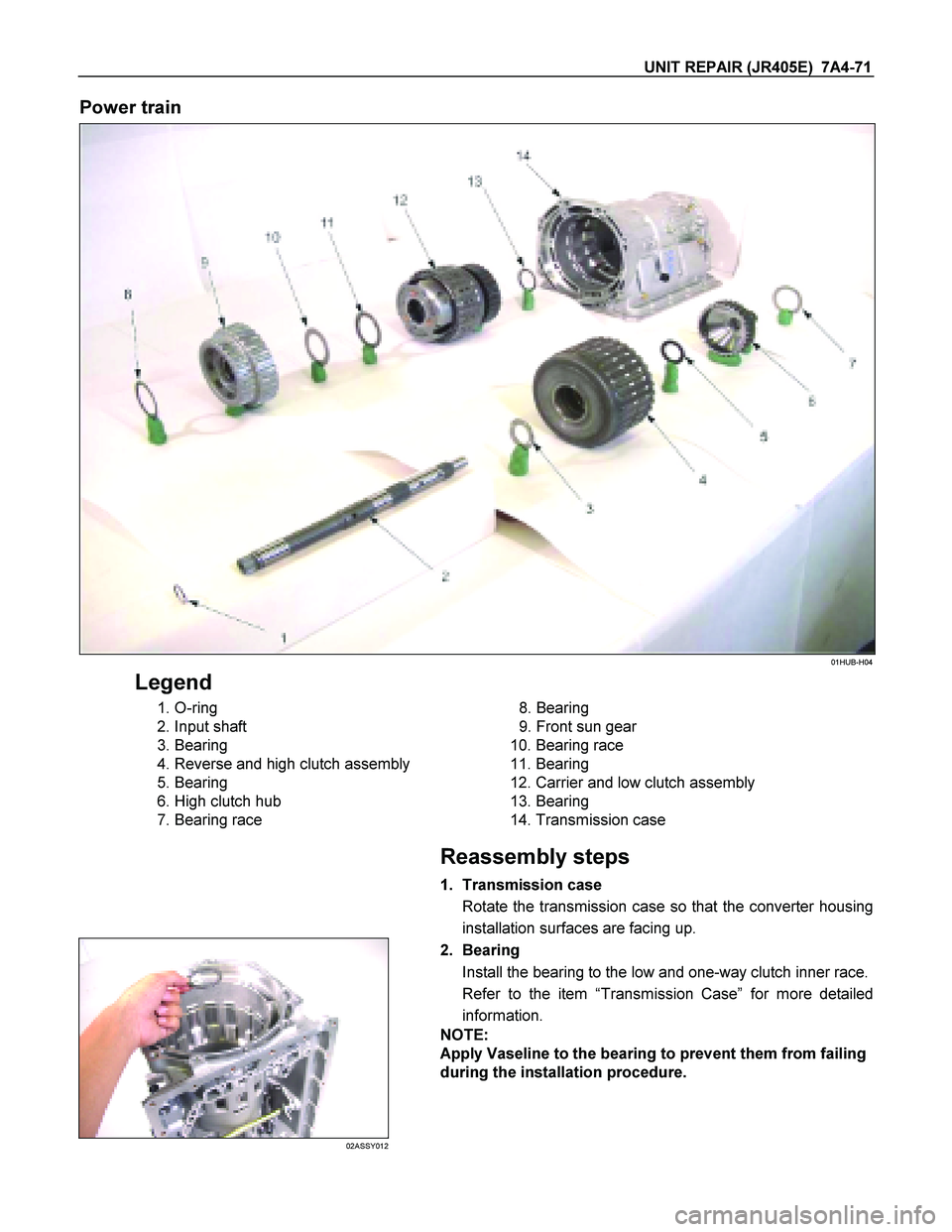

UNIT REPAIR (JR405E) 7A4-71
Power train
01HUB-H04
Legend
1. O-ring
2. Input shaft
3. Bearing
4. Reverse and high clutch assembly
5. Bearing
6. High clutch hub
7. Bearing race
8. Bearing
9. Front sun gear
10. Bearing race
11. Bearing
12. Carrier and low clutch assembly
13. Bearing
14. Transmission case
Reassembly steps
1. Transmission case
Rotate the transmission case so that the converter housing
installation surfaces are facing up.
02ASSY012
2. Bearing
Install the bearing to the low and one-way clutch inner race.
Refer to the item “Transmission Case ” for more detailed
information.
NOTE:
Apply Vaseline to the bearing to prevent them from failing
during the installation procedure.
Page 4246 of 4264

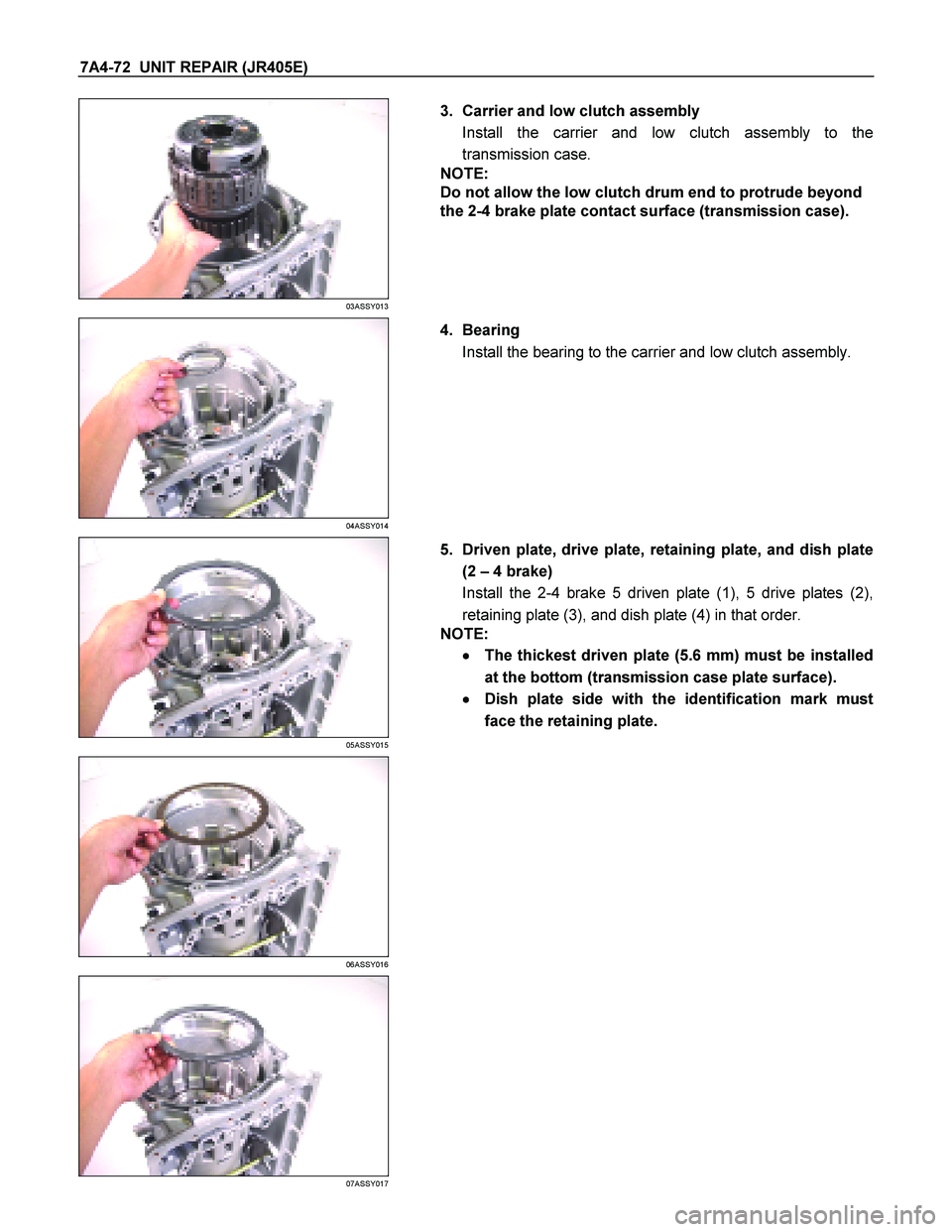

7A4-72 UNIT REPAIR (JR405E)
03ASSY013
3. Carrier and low clutch assembly
Install the carrier and low clutch assembly to the
transmission case.
NOTE:
Do not allow the low clutch drum end to protrude beyond
the 2-4 brake plate contact surface (transmission case).
04ASSY014
4. Bearing
Install the bearing to the carrier and low clutch assembly.
05ASSY015
5. Driven plate, drive plate, retaining plate, and dish plate
(2 – 4 brake)
Install the 2-4 brake 5 driven plate (1), 5 drive plates (2),
retaining plate (3), and dish plate (4) in that order.
NOTE:
The thickest driven plate (5.6 mm) must be installed
at the bottom (transmission case plate surface).
Dish plate side with the identification mark must
face the retaining plate.
06ASSY016
07ASSY017
Page 4247 of 4264
UNIT REPAIR (JR405E) 7A4-73
08ASSY018
RTW47ASH000401
09U-SPG2
6. 2
– 4 brake spring
Install the 2-4 brake springs (3) to the transmission case.
248L300009
Page 4248 of 4264

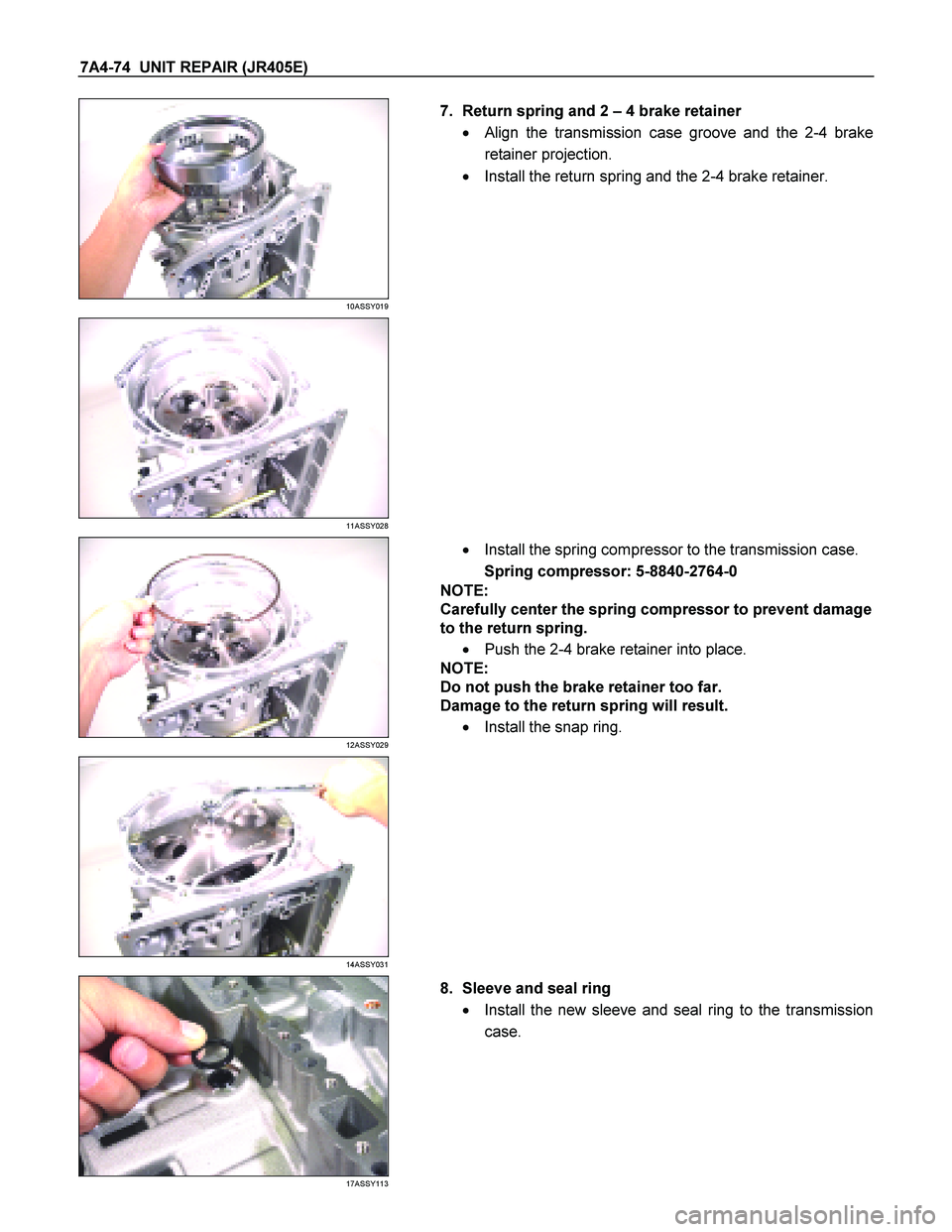

7A4-74 UNIT REPAIR (JR405E)
10ASSY019
7. Return spring and 2
– 4 brake retainer
Align the transmission case groove and the 2-4 brake
retainer projection.
Install the return spring and the 2-4 brake retainer.
11ASSY028
12ASSY029
Install the spring compressor to the transmission case.
Spring compressor: 5-8840-2764-0
NOTE:
Carefully center the spring compressor to prevent damage
to the return spring.
Push the 2-4 brake retainer into place.
NOTE:
Do not push the brake retainer too far.
Damage to the return spring will result.
Install the snap ring.
14ASSY031
17ASSY113
8. Sleeve and seal ring
Install the new sleeve and seal ring to the transmission
case.
