Page 4097 of 4264

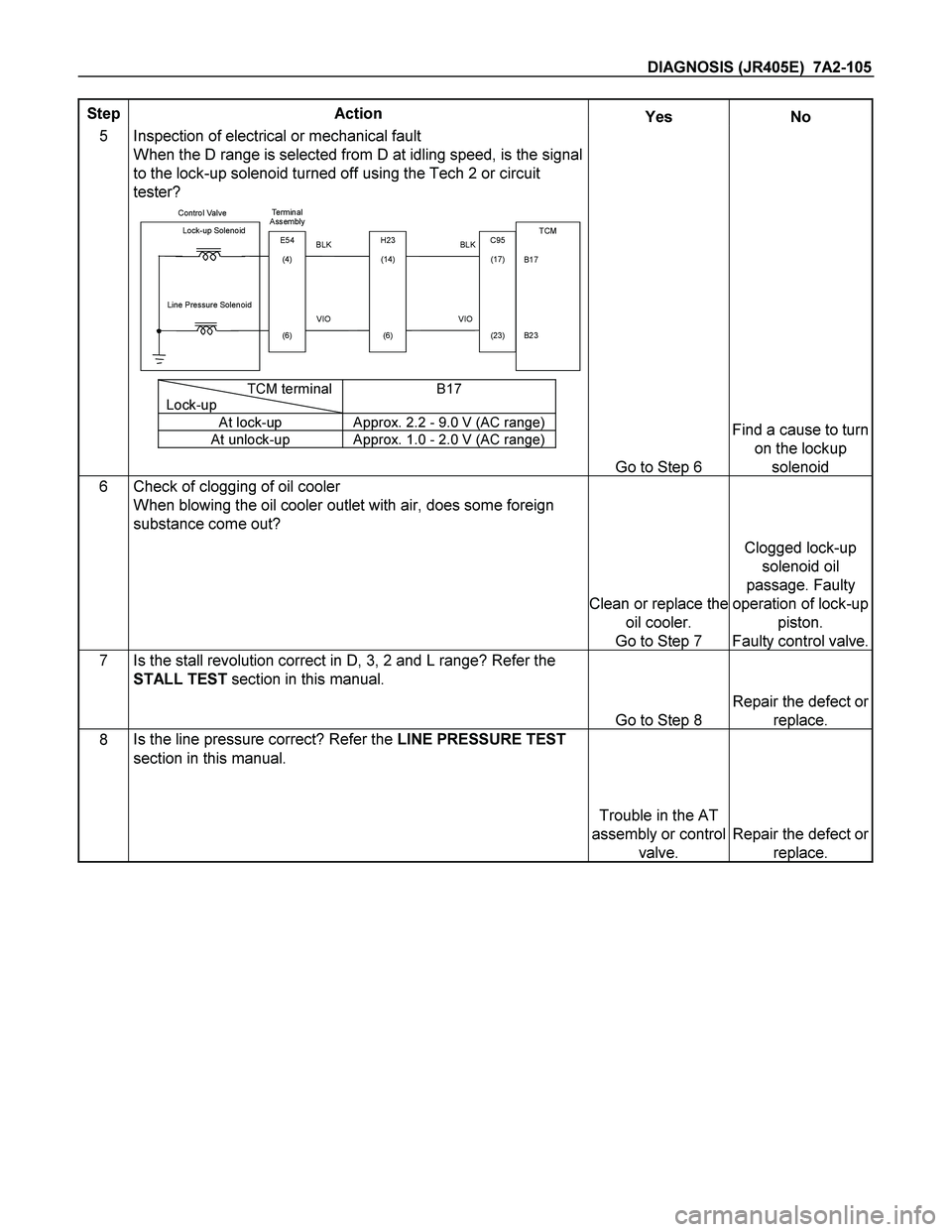

DIAGNOSIS (JR405E) 7A2-105
Step Action Yes No
5 Inspection of electrical or mechanical fault
When the D range is selected from D at idling speed, is the signal
to the lock-up solenoid turned off using the Tech 2 or circuit
tester?
Control Valve
TCM
B17
B23 BLK Lock-up Solenoid
Te rm i n a l
Assembly
VIO Line Pressure Solenoid
E54
(4)
(6)H23
(14)
(6)C95
(17)
(23) BLK
VIO
TCM terminal
Lock-upB17
At lock-up Approx. 2.2 - 9.0 V (AC range)
At unlock-up Approx. 1.0 - 2.0 V (AC range)
Go to Step 6
Find a cause to turn
on the lockup
solenoid
6 Check of clogging of oil cooler
When blowing the oil cooler outlet with air, does some foreign
substance come out?
Clean or replace the
oil cooler.
Go to Step 7
Clogged lock-up
solenoid oil
passage. Faulty
operation of lock-up
piston.
Faulty control valve.
7 Is the stall revolution correct in D, 3, 2 and L range? Refer the
STALL TEST section in this manual.
Go to Step 8
Repair the defect or
replace.
8 Is the line pressure correct? Refer the LINE PRESSURE TEST
section in this manual.
Trouble in the AT
assembly or control
valve.
Repair the defect or
replace.
Page 4098 of 4264

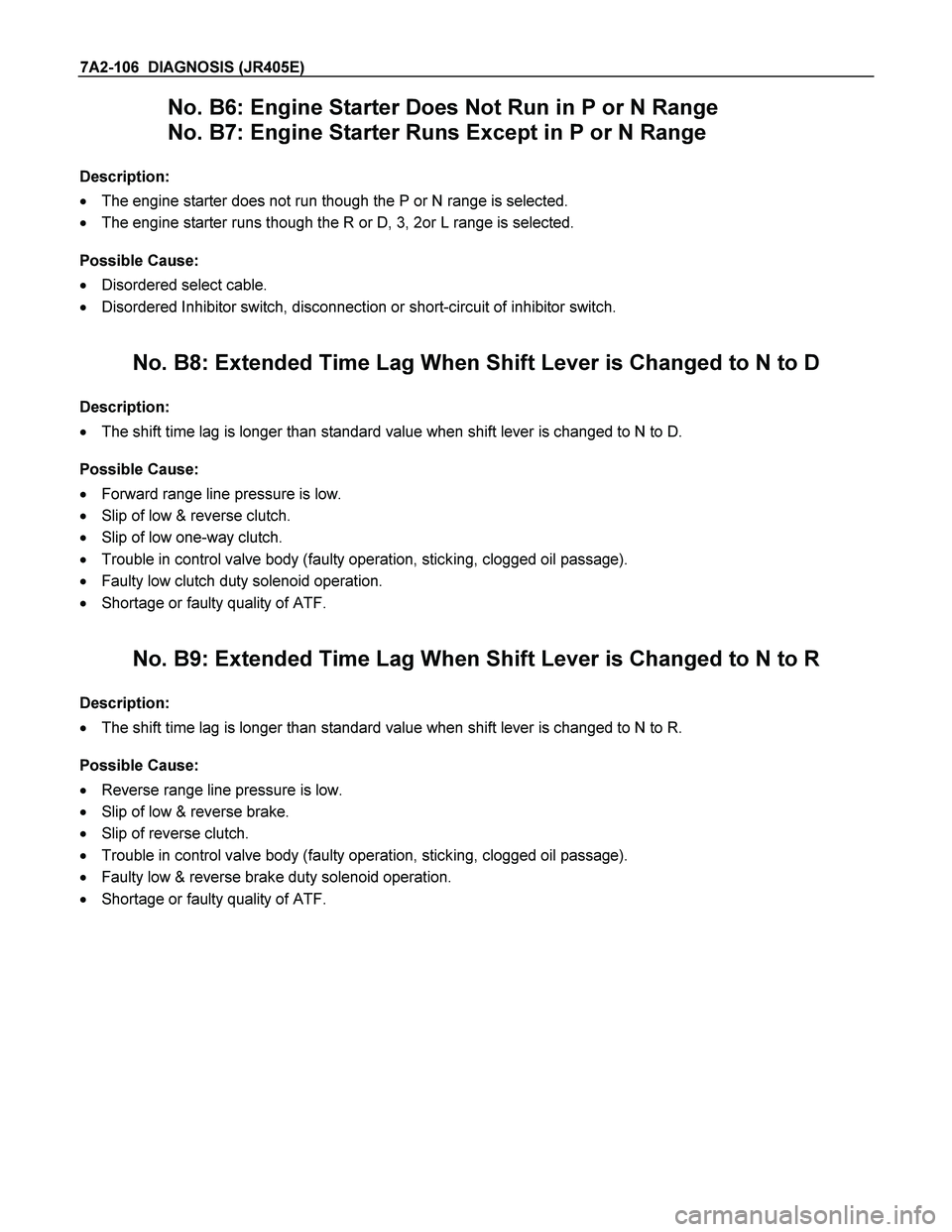

7A2-106 DIAGNOSIS (JR405E)
No. B6: Engine Starter Does Not Run in P or N Range
No. B7: Engine Starter Runs Except in P or N Range
Description:
The engine starter does not run though the P or N range is selected.
The engine starter runs though the R or D, 3, 2or L range is selected.
Possible Cause:
Disordered select cable.
Disordered Inhibitor switch, disconnection or short-circuit of inhibitor switch.
No. B8: Extended Time Lag When Shift Lever is Changed to N to D
Description:
The shift time lag is longer than standard value when shift lever is changed to N to D.
Possible Cause:
Forward range line pressure is low.
Slip of low & reverse clutch.
Slip of low one-way clutch.
Trouble in control valve body (faulty operation, sticking, clogged oil passage).
Faulty low clutch duty solenoid operation.
Shortage or faulty quality of ATF.
No. B9: Extended Time Lag When Shift Lever is Changed to N to R
Description:
The shift time lag is longer than standard value when shift lever is changed to N to R.
Possible Cause:
Reverse range line pressure is low.
Slip of low & reverse brake.
Slip of reverse clutch.
Trouble in control valve body (faulty operation, sticking, clogged oil passage).
Faulty low & reverse brake duty solenoid operation.
Shortage or faulty quality of ATF.
Page 4099 of 4264

DIAGNOSIS (JR405E) 7A2-107
No. B10: Brake is Applied in R Range
Description:
Brake is applied suddenly in R range.
Diagnosis Hints:
Basically a trouble in the AT main unit. However, some trouble in the sensor system or output system may have
some influence on the trouble in the main unit and therefore these systems should be also checked to prevent
reproduce of the trouble.
Possible Cause:
Seized clutch (low clutch, high clutch, 2-4 brake).
Shortage or faulty quality of ATF.
Trouble in control valve body (faulty operation, sticking, clogged oil passage).
Disordered select cable (select indicator light indicates R but the hydraulic system is not in the R range).
Malfunction of parking mechanism.
No. B11: Insufficient Starting or Shaking in D Range
Description:
Insufficient starting or shaking in D range.
Possible Cause:
Slip of clutch (low clutch, low one-way clutch, reverse clutch, low & reverse brake).
If slip of clutch is caused, a DTC (gear ratio error) is stored.
Shortage or faulty quality of ATF.
Dropped line pressure.
Trouble in control valve body (faulty operation, sticking, clogged oil passage).
No. B12: Noise or Vibration is Generated at Starting
Description:
Noise or vibration is generated in the vicinity of AT at starting.
Diagnosis Hints:
Cause other than AT can be also considered. It is effective means to reproduce a running condition using a lift
up, chassis dynamo, etc. to investigate the origin (generating condition) of noise and vibration.
Caution:
Lifting up some unit to test it accompanies danger. Provide safety measures as far as possible and
carry out the test with sufficient care.
Possible Cause:
Following sources of noise or vibration other than the AT can be considered.
Noise from differential gears.
Noise from propeller shaft.
The bearing support in the middle of the propeller shaft has fatigued, and the bend angle of the propeller shaft
has changed, causing vibration at the time of start.
Unbalanced and poor uniformity of tires cause vibration.
Page 4100 of 4264

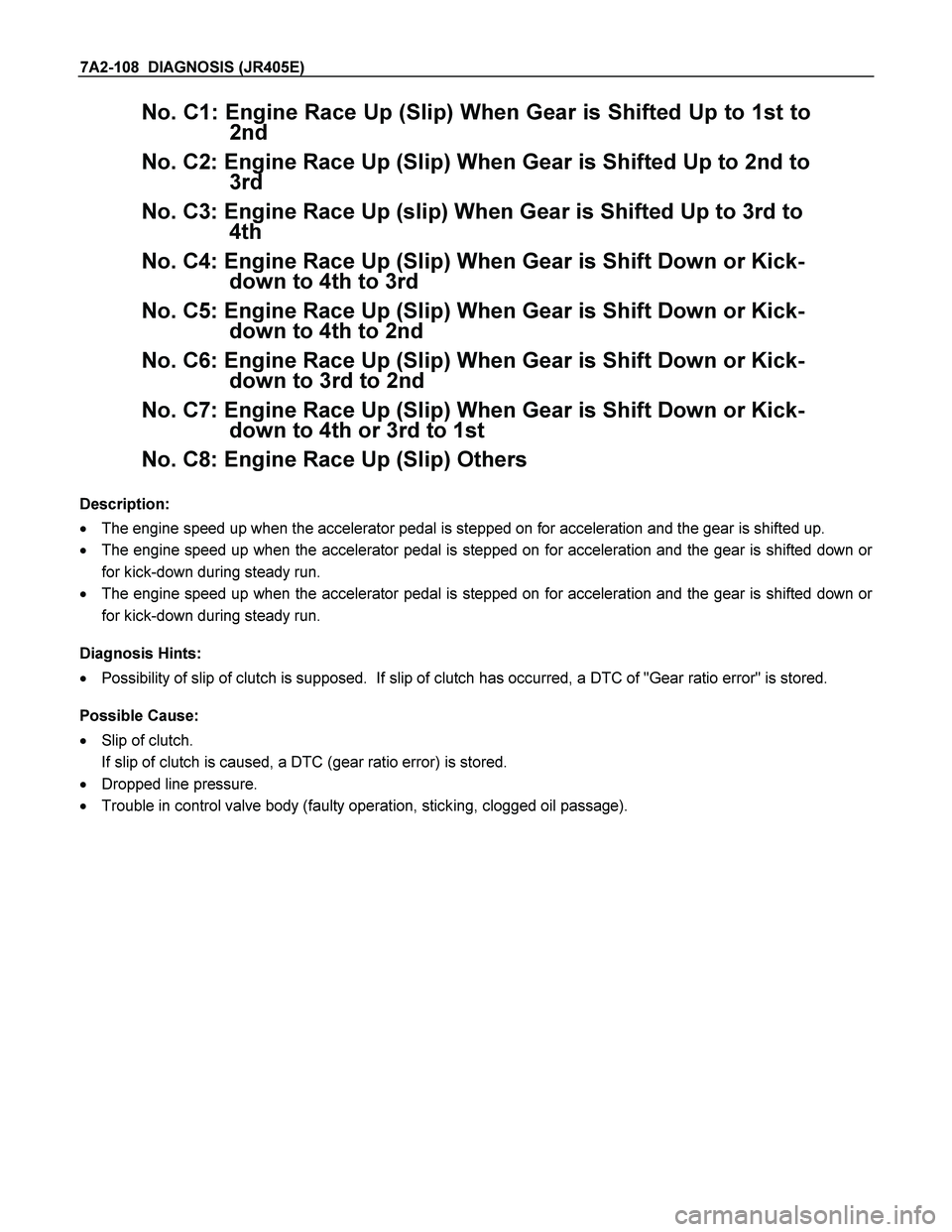

7A2-108 DIAGNOSIS (JR405E)
No. C1: Engine Race Up (Slip) When Gear is Shifted Up to 1st to
2nd
No. C2: Engine Race Up (Slip) When Gear is Shifted Up to 2nd to
3rd
No. C3: Engine Race Up (slip) When Gear is Shifted Up to 3rd to
4th
No. C4: Engine Race Up (Slip) When Gear is Shift Down or Kick-
down to 4th to 3rd
No. C5: Engine Race Up (Slip) When Gear is Shift Down or Kick-
down to 4th to 2nd
No. C6: Engine Race Up (Slip) When Gear is Shift Down or Kick-
down to 3rd to 2nd
No. C7: Engine Race Up (Slip) When Gear is Shift Down or Kick-
down to 4th or 3rd to 1st
No. C8: Engine Race Up (Slip) Others
Description:
The engine speed up when the accelerator pedal is stepped on for acceleration and the gear is shifted up.
The engine speed up when the accelerator pedal is stepped on for acceleration and the gear is shifted down or
for kick-down during steady run.
The engine speed up when the accelerator pedal is stepped on for acceleration and the gear is shifted down or
for kick-down during steady run.
Diagnosis Hints:
Possibility of slip of clutch is supposed. If slip of clutch has occurred, a DTC of "Gear ratio error" is stored.
Possible Cause:
Slip of clutch.
If slip of clutch is caused, a DTC (gear ratio error) is stored.
Dropped line pressure.
Trouble in control valve body (faulty operation, sticking, clogged oil passage).
Page 4101 of 4264

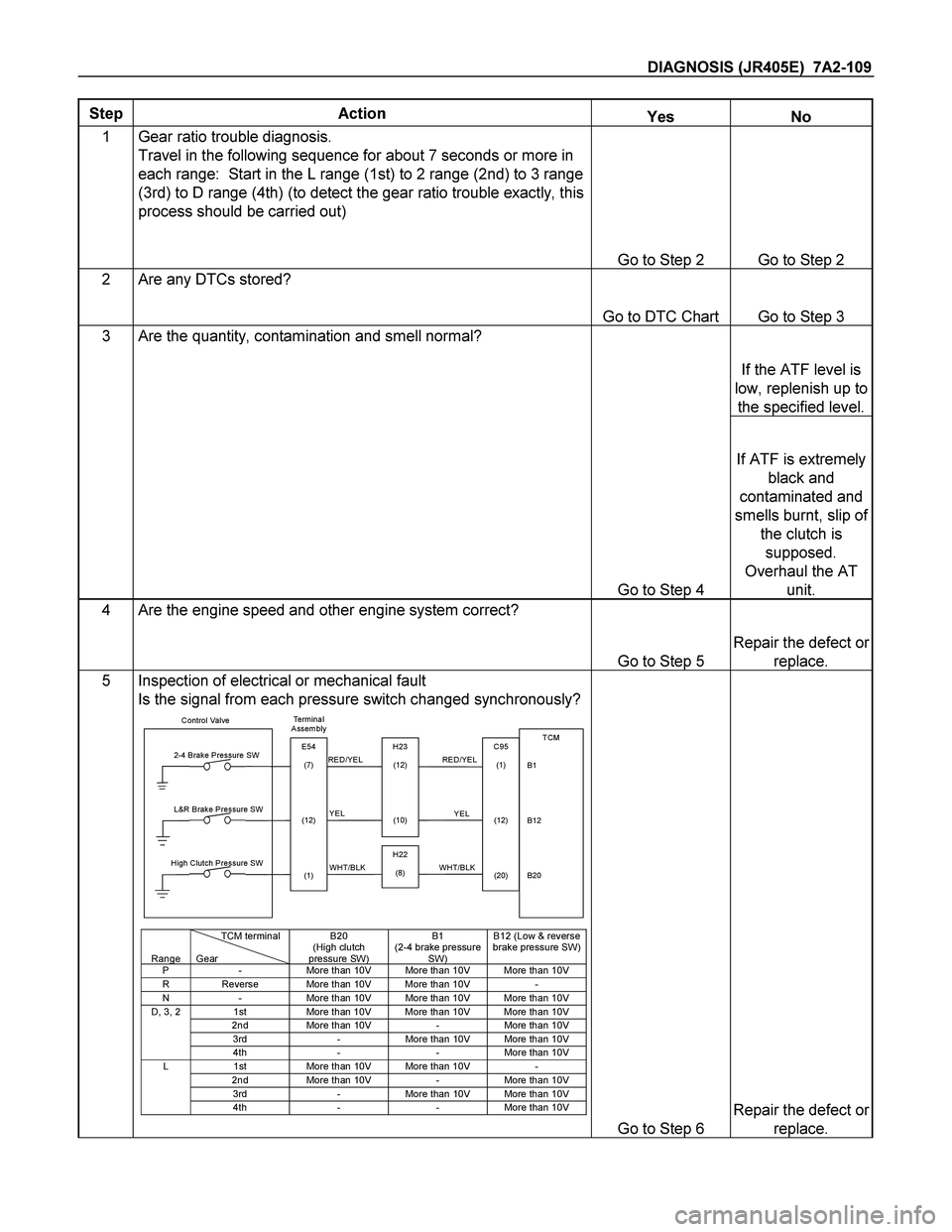

DIAGNOSIS (JR405E) 7A2-109
Step Action Yes No
1 Gear ratio trouble diagnosis.
Travel in the following sequence for about 7 seconds or more in
each range: Start in the L range (1st) to 2 range (2nd) to 3 range
(3rd) to D range (4th) (to detect the gear ratio trouble exactly, this
process should be carried out)
Go to Step 2 Go to Step 2
2 Are any DTCs stored?
Go to DTC Chart Go to Step 3
3 Are the quantity, contamination and smell normal?
If the ATF level is
low, replenish up to
the specified level.
Go to Step 4
If ATF is extremely
black and
contaminated and
smells burnt, slip of
the clutch is
supposed.
Overhaul the AT
unit.
4 Are the engine speed and other engine system correct?
Go to Step 5
Repair the defect or
replace.
5 Inspection of electrical or mechanical fault
Is the signal from each pressure switch changed synchronously?
Control Valve
TCM
B1
B12
B20 RED/YEL
WHT/BLK 2-4 Brake Pressure SW
Terminal
Assembly
YEL
E54
(7)
(12)
(1)H23
(12)
(10)C95
(1)
(12)
(20) RED/YEL
YEL
WHT/BLK
L&R Brake Pressure SW
High Clutch Pressure SWH22
(8)
Range TCM terminal
GearB20
(High clutch
pressure SW)B1
(2-4 brake pressure
SW)B12 (Low & reverse
brake pressu re SW)
P - More than 10V More than 10V More than 10VR Reverse More than 10V More than 10V -N - More than 10V More than 10V More than 10VD, 3, 2 1st More than 10V More than 10V More than 10V2nd More than 10V - More than 10V3rd - More than 10V More than 10V4th - - More than 10VL 1st More than 10V More than 10V -2nd More than 10V - More than 10V3rd - More than 10V More than 10V4th - - More than 10V
Go to Step 6
Repair the defect or
replace.
Page 4102 of 4264
7A2-110 DIAGNOSIS (JR405E)
Step Action Yes No
6 Inspect the output voltage and throttle opening signal of the
throttle position sensor using a Tech 2 or circuit tester.
Is a voltage value in proportion to the throttle opening output?
TPSTCM
A16
C56
(28)C94
(16) RED/ WHT
C56
(49)
(38)
(57)
(69)ECM
A47 (GND)
A35 (Out put )
A26
A55 (+5V)
A69 (I dl e SW)
Go to Step 7
Repair the defect or
replace.
7 Check of power supply to and earth of TCM.
Are the power supply and earth proper?
TCM
A1 (+B)
B5
B15
H23
(15)C95
(5)
(15) BLK/YEL
BLK BLK Battery
C94
(1)
BLK
Go to Step 8
Check the power
source harness and
earth harness (bolt
tightening to the
body).
8 Is the stall revolution correct in D, 3, 2 and L range? Refer the
STALL TEST section in this manual.
Go to Step 9
Repair the defect or
replace.
9 Is the line pressure correct? Refer the LINE PRESSURE TEST
section in this manual.
Trouble in the AT
assembly or control
valve.
Repair the defect or
replace.
Page 4103 of 4264

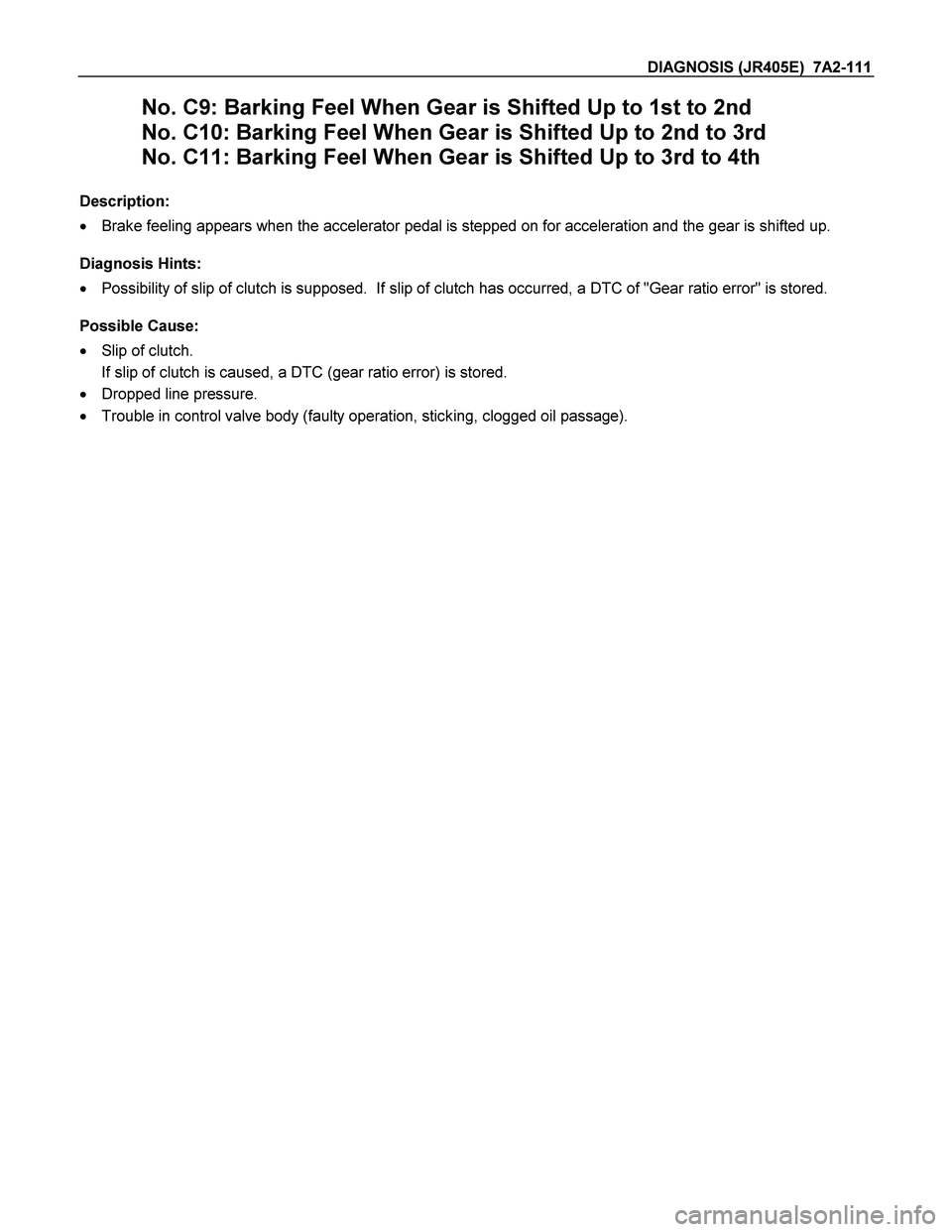

DIAGNOSIS (JR405E) 7A2-111
No. C9: Barking Feel When Gear is Shifted Up to 1st to 2nd
No. C10: Barking Feel When Gear is Shifted Up to 2nd to 3rd
No. C11: Barking Feel When Gear is Shifted Up to 3rd to 4th
Description:
Brake feeling appears when the accelerator pedal is stepped on for acceleration and the gear is shifted up.
Diagnosis Hints:
Possibility of slip of clutch is supposed. If slip of clutch has occurred, a DTC of "Gear ratio error" is stored.
Possible Cause:
Slip of clutch.
If slip of clutch is caused, a DTC (gear ratio error) is stored.
Dropped line pressure.
Trouble in control valve body (faulty operation, sticking, clogged oil passage).
Page 4104 of 4264

7A2-112 DIAGNOSIS (JR405E)
Step Action Yes No
1
Gear ratio trouble diagnosis.
Travel in the following sequence for about 7 seconds or more in
each range: Start in the L range (1st) to 2 range (2nd) to 3 range
(3rd) to D range (4th) (to detect the gear ratio trouble exactly, this
process should be carried out)
Go to Step 2 Go to Step 2
2 Are any DTCs stored?
Go to DTC Chart Go to Step 3
3 Are the quantity, contamination and smell normal?
If the ATF level is
low, replenish up to
the specified level.
Go to Step 4
If ATF is extremely
black and
contaminated and
smells burnt, slip of
the clutch is
supposed.
Overhaul the AT
unit.
4 Are the engine speed and other engine system correct?
Go to Step 5
Repair the defect or
replace.
5 Inspection of electrical or mechanical fault
Is the signal from each pressure switch changed synchronously?
Control Valve
TCM
B1
B12
B20 RED/YEL
WHT/BLK 2-4 Brake Pressure SW
Te r m i n a l
Assembly
YEL
E54
(7)
(12)
(1)H23
(12)
(10)C95
(1)
(12)
(20) RED/YEL
YEL
WHT/BLK
L&R Brake Pressure SW
High Clutch Pressure SWH22
(8)
Range TCM terminal
GearB20
(High clutch
pressure SW)B1
(2-4 brake pressure
SW)B12 (Low & reverse
brake pressure SW)
P - More than 10V More than 10V More than 10VR Reverse More than 10V More than 10V -N - More than 10V More than 10V More than 10VD, 3, 2 1st More than 10V More than 10V More than 10V2nd More than 10V - More than 10V3rd - More than 10V More than 10V4th - - More than 10VL 1st More than 10V More than 10V -2nd More than 10V - More than 10V3rd - More than 10V More than 10V4th - - More than 10VGo to Step 6
Repair the defect or
replace.
