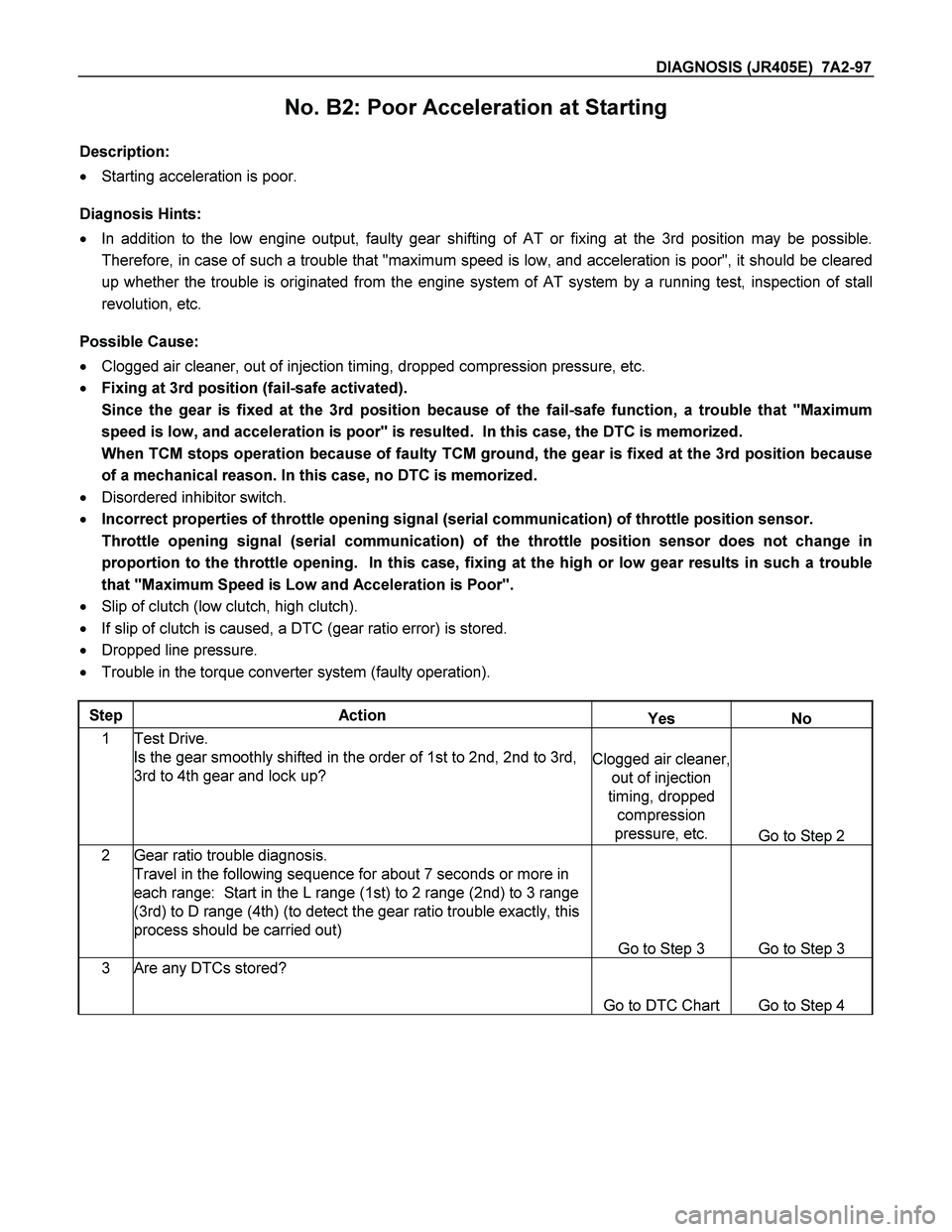

DIAGNOSIS (JR405E) 7A2-97
No. B2: Poor Acceleration at Starting
Description:
Starting acceleration is poor.
Diagnosis Hints:
In addition to the low engine output, faulty gear shifting of AT or fixing at the 3rd position may be possible.
Therefore, in case of such a trouble that "maximum speed is low, and acceleration is poor", it should be cleared
up whether the trouble is originated from the engine system of AT system by a running test, inspection of stall
revolution, etc.
Possible Cause:
Clogged air cleaner, out of injection timing, dropped compression pressure, etc.
Fixing at 3rd position (fail-safe activated).
Since the gear is fixed at the 3rd position because of the fail-safe function, a trouble that "Maximum
speed is low, and acceleration is poor" is resulted. In this case, the DTC is memorized.
When TCM stops operation because of faulty TCM ground, the gear is fixed at the 3rd position because
of a mechanical reason. In this case, no DTC is memorized.
Disordered inhibitor switch.
Incorrect properties of throttle opening signal (serial communication) of throttle position sensor.
Throttle opening signal (serial communication) of the throttle position sensor does not change in
proportion to the throttle opening. In this case, fixing at the high or low gear results in such a trouble
that "Maximum Speed is Low and Acceleration is Poor".
Slip of clutch (low clutch, high clutch).
If slip of clutch is caused, a DTC (gear ratio error) is stored.
Dropped line pressure.
Trouble in the torque converter system (faulty operation).
Step Action Yes No
1 Test Drive.
Is the gear smoothly shifted in the order of 1st to 2nd, 2nd to 3rd,
3rd to 4th gear and lock up?
Clogged air cleaner,
out of injection
timing, dropped
compression
pressure, etc.
Go to Step 2
2 Gear ratio trouble diagnosis.
Travel in the following sequence for about 7 seconds or more in
each range: Start in the L range (1st) to 2 range (2nd) to 3 range
(3rd) to D range (4th) (to detect the gear ratio trouble exactly, this
process should be carried out)
Go to Step 3 Go to Step 3
3 Are any DTCs stored?
Go to DTC Chart Go to Step 4
Page 4090 of 4264

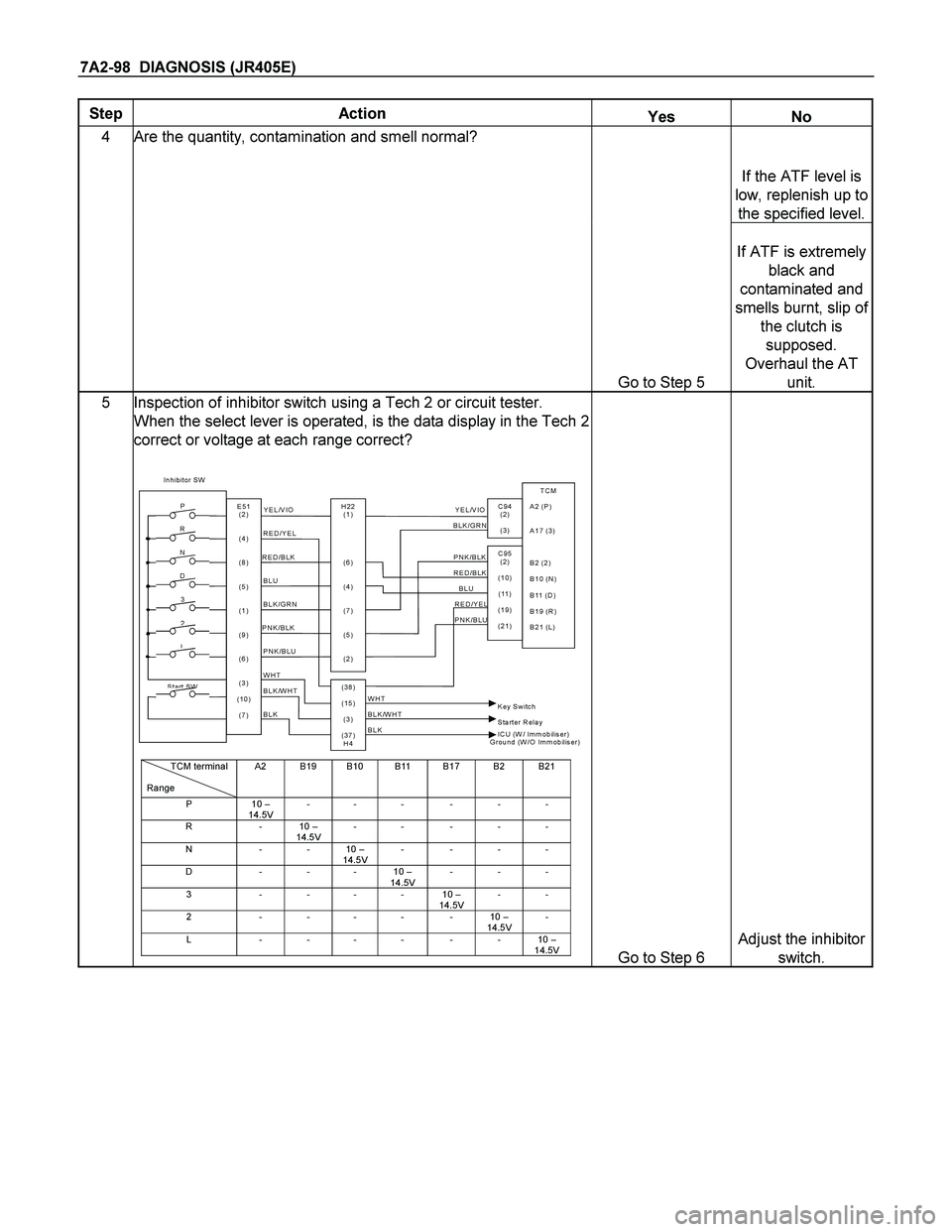

7A2-98 DIAGNOSIS (JR405E)
Step Action Yes No
4 Are the quantity, contamination and smell normal?
If the ATF level is
low, replenish up to
the specified level.
Go to Step 5
If ATF is extremely
black and
contaminated and
smells burnt, slip of
the clutch is
supposed.
Overhaul the AT
unit.
5 Inspection of inhibitor switch using a Tech 2 or circuit tester.
When the select lever is operated, is the data display in the Tech 2
correct or voltage at each range correct?
Inhibitor SW
TCM
A2 (P)
A17 (3)
B2 (2)
B10 (N)
B11 (D)
B19 (R)
B21 (L)
C95
(2 )
(10)
(11 )
(19)
(21) Y E L /V IO
RED/BLK
BLUBLK/GRN
Starter Relay
C94
(2 )
(3 )
BH22
(1)
(6)
(4)
(7)
(5)
(2) P
2
R
N
D
3
L
Start SW
PNK/BLU
E51
(2)
(4)
(8)
(5)
(1)
(9)
(6)
(3)
(10)
(7)
(38)
(15)
(3)
(37)
H4PNK/BLK
RED/YEL Y E L /V IO
BLK/GRN
PNK/BLK RED/BLK
BLU RED/YEL
PNK/BLU
BLK/WHT
BLK
BLK BLK/WHT Key Switch WHT
WHT
ICU (W/ Immobilis e r)
Ground (W/O Immobilis e r)
TCM terminal
RangeA2 B19 B10 B11 B17 B2 B21
P10 –
14.5V-- - - - -
R-10 –
14.5V-- ---
N--10 –
14.5V----
D - - - 10 –
14.5V---
3----10 –
14.5V--
2-----10 –
14.5V-
L------10 –
14.5V
Go to Step 6
Adjust the inhibitor
switch.
Page 4091 of 4264
DIAGNOSIS (JR405E) 7A2-99
Step Action Yes No
6 Inspect the output voltage and throttle opening signal of the throttle
position sensor using a Tech 2 or circuit tester.
Is a voltage value in proportion to the throttle opening output?
TPSTCM
A16
C56
(28)C94
(16) RED/ WHT
C56
(49)
(38)
(57)
(69)ECM
A47 (GND)
A35 (Output)
A26
A55 (+5V)
A69 (I dl e SW)
Go to Step 7
Repair the defect or
replace.
7 Check of power supply to and earth of TCM.
Are the power supply and earth proper?
TCM
A1 (+B)
B5
B15
H23
(15)C95
(5)
(15) BLK/YEL
BLK BLK Battery
C94
(1)
BLK
Go to Step 8
Check the power
source harness and
earth harness (bolt
tightening to the
body).
8 Is the stall revolution correct in D, 3, 2 and L range? Refer the
STALL TEST section in this manual.
Go to Step 6
Repair the defect or
replace.
9 Is the line pressure correct? Refer the LINE PRESSURE TEST
section in this manual. Trouble in the AT
assembly or control
valve.
Repair the defect or
replace.
Page 4092 of 4264

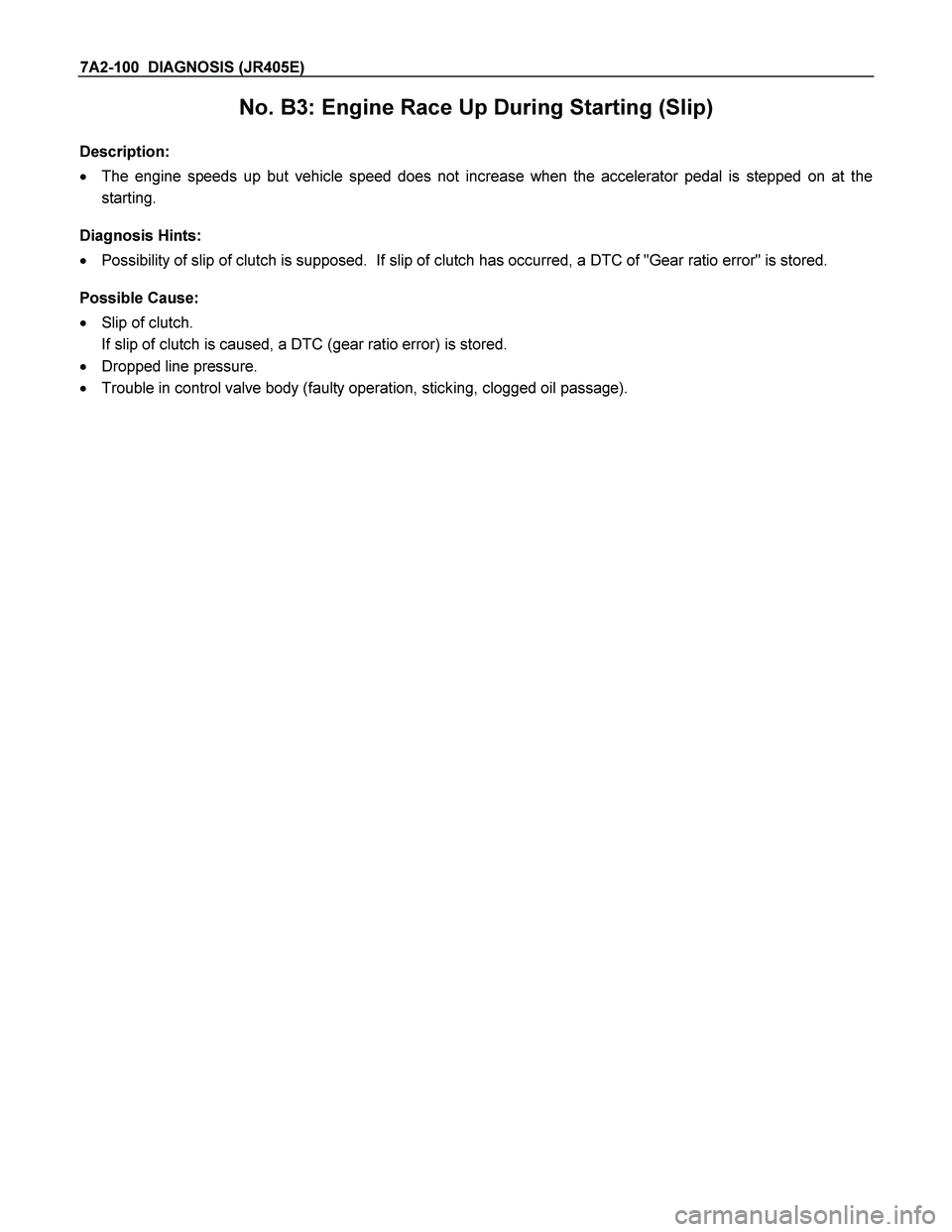

7A2-100 DIAGNOSIS (JR405E)
No. B3: Engine Race Up During Starting (Slip)
Description:
The engine speeds up but vehicle speed does not increase when the accelerator pedal is stepped on at the
starting.
Diagnosis Hints:
Possibility of slip of clutch is supposed. If slip of clutch has occurred, a DTC of "Gear ratio error" is stored.
Possible Cause:
Slip of clutch.
If slip of clutch is caused, a DTC (gear ratio error) is stored.
Dropped line pressure.
Trouble in control valve body (faulty operation, sticking, clogged oil passage).
Page 4093 of 4264

DIAGNOSIS (JR405E) 7A2-101
Step Action Yes No
1 Gear ratio trouble diagnosis.
Travel in the following sequence for about 7 seconds or more in
each range: Start in the L range (1st) to 2 range (2nd) to 3 range
(3rd) to D range (4th) (to detect the gear ratio trouble exactly, this
process should be carried out)
Go to Step 2 Go to Step 2
2 Are any DTCs stored?
Go to DTC Chart Go to Step 3
3 Are the quantity, contamination and smell normal?
If the ATF level is
low, replenish up to
the specified level.
Go to Step 4
If ATF is extremely
black and
contaminated and
smells burnt, slip of
the clutch is
supposed.
Overhaul the AT
unit.
4 Are the engine speed and other engine system correct?
Go to Step 5
Repair the defect or
replace.
5 Inspection of electrical or mechanical fault
Is the signal from each pressure switch changed synchronously?
Control Valve
TCM
B1
B12
B20 RED/YEL
WHT/BLK 2-4 Brake Pressure SW
Terminal
Assembly
YEL
E54
(7)
(12)
(1)H23
(12)
(10)C95
(1)
(12)
(20) RED/YEL
YEL
WHT/BLK
L&R Brake Pressure SW
High Clutch Pressure SWH22
(8)
Range TCM terminal
GearB20
(High clutch
pressure SW)B1
(2-4 brake pressure
SW)B12 (Low & reverse
brake pressu re SW)
P - More than 10V More than 10V More than 10VR Reverse More than 10V More than 10V -N - More than 10V More than 10V More than 10VD, 3, 2 1st More than 10V More than 10V More than 10V2nd More than 10V - More than 10V3rd - More than 10V More than 10V4th - - More than 10VL 1st More than 10V More than 10V -2nd More than 10V - More than 10V3rd - More than 10V More than 10V4th - - More than 10VGo to Step 6
Repair the defect or
replace.
Page 4094 of 4264
7A2-102 DIAGNOSIS (JR405E)
Step Action Yes No
6 Inspect the output voltage and throttle opening signal of the
throttle position sensor using a Tech 2 or circuit tester.
Is a voltage value in proportion to the throttle opening output?
TPSTCM
A16
C56
(28)C94
(16) RED/ WHT
C56
(49)
(38)
(57)
(69)ECM
A47 ( GND)
A35 (Out put)
A26
A55 (+5V)
A69 (I dl e SW)
Go to Step 7
Repair the defect or
replace.
7 Check of power supply to and earth of TCM.
Are the power supply and earth proper?
TCM
A1 (+B)
B5
B15
H23
(15)C95
(5)
(15) BLK/YEL
BLK BLK Battery
C94
(1)
BLK
Go to Step 8
Check the power
source harness and
earth harness (bolt
tightening to the
body).
8 Is the stall revolution correct in D, 3, 2 and L range? Refer the
STALL TEST section in this manual.
Go to Step 9
Repair the defect or
replace.
9 Is the line pressure correct? Refer the LINE PRESSURE TEST
section in this manual.
Trouble in the AT
assembly or control
valve.
Repair the defect or
replace.
Page 4095 of 4264

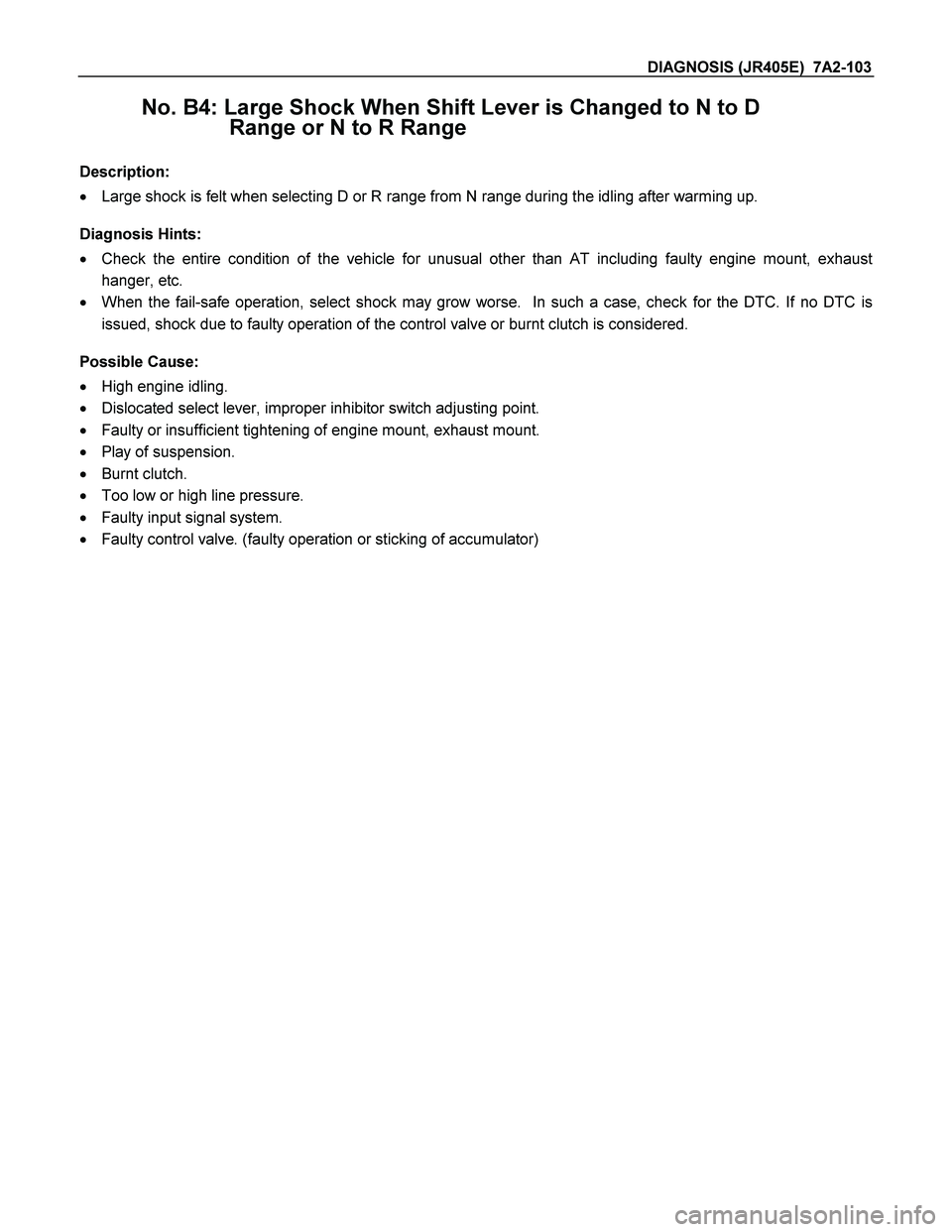

DIAGNOSIS (JR405E) 7A2-103
No. B4: Large Shock When Shift Lever is Changed to N to D
Range or N to R Range
Description:
Large shock is felt when selecting D or R range from N range during the idling after warming up.
Diagnosis Hints:
Check the entire condition of the vehicle for unusual other than AT including faulty engine mount, exhaust
hanger, etc.
When the fail-safe operation, select shock may grow worse. In such a case, check for the DTC. If no DTC is
issued, shock due to faulty operation of the control valve or burnt clutch is considered.
Possible Cause:
High engine idling.
Dislocated select lever, improper inhibitor switch adjusting point.
Faulty or insufficient tightening of engine mount, exhaust mount.
Play of suspension.
Burnt clutch.
Too low or high line pressure.
Faulty input signal system.
Faulty control valve. (faulty operation or sticking of accumulator)
Page 4096 of 4264

7A2-104 DIAGNOSIS (JR405E)
No. B5: Engine Stalls When Selecting From N Range to
R, D, 3, 2 or L Range
Description:
The engine stalls when selecting from N or P range to a run range during the engine idling.
Diagnosis Hints:
As causes attributable to the engine, faulty idle up, insufficient engine output, etc. are considered.
As a cause of the AT system, faulty lockup piston system (lockup engine stall) is considered.
If the oil through resistance increases remarkably due to clogged oil cooler or some other reason, or if the ATF
level decreases, the lock-up piston works causing the engine stall.
Possible Cause:
Disordered idling speed, faulty idle up, faulty engine output, shortage output.
Insufficient ATF quantity (dropped level).
Clogged oil cooler (foreign substance mixed in).
Faulty lock-up piston (clogged oil passage of solenoid drive circuit, faulty operation).
Step Action Yes No
1 Gear ratio trouble diagnosis.
Travel in the following sequence for about 7 seconds or more in
each range: Start in the L range (1st) to 2 range (2nd) to 3 range
(3rd) to D range (4th) (to detect the gear ratio trouble exactly, this
process should be carried out)
Go to Step 2 Go to Step 2
2 Are any DTCs stored?
Go to DTC Chart Go to Step 3
3 Are the quantity, contamination and smell normal?
If the ATF level is
low, replenish up to
the specified level.
Go to Step 4
If ATF is extremely
black and
contaminated and
smells burnt, slip of
the clutch is
supposed.
Overhaul the AT
unit.
4 Check of engine idle up speed
Does the idle speed increase when the air conditioning or other
electric load is turned on?
Go to Step 5
Repair the defect or
replace.
