Page 3337 of 4264

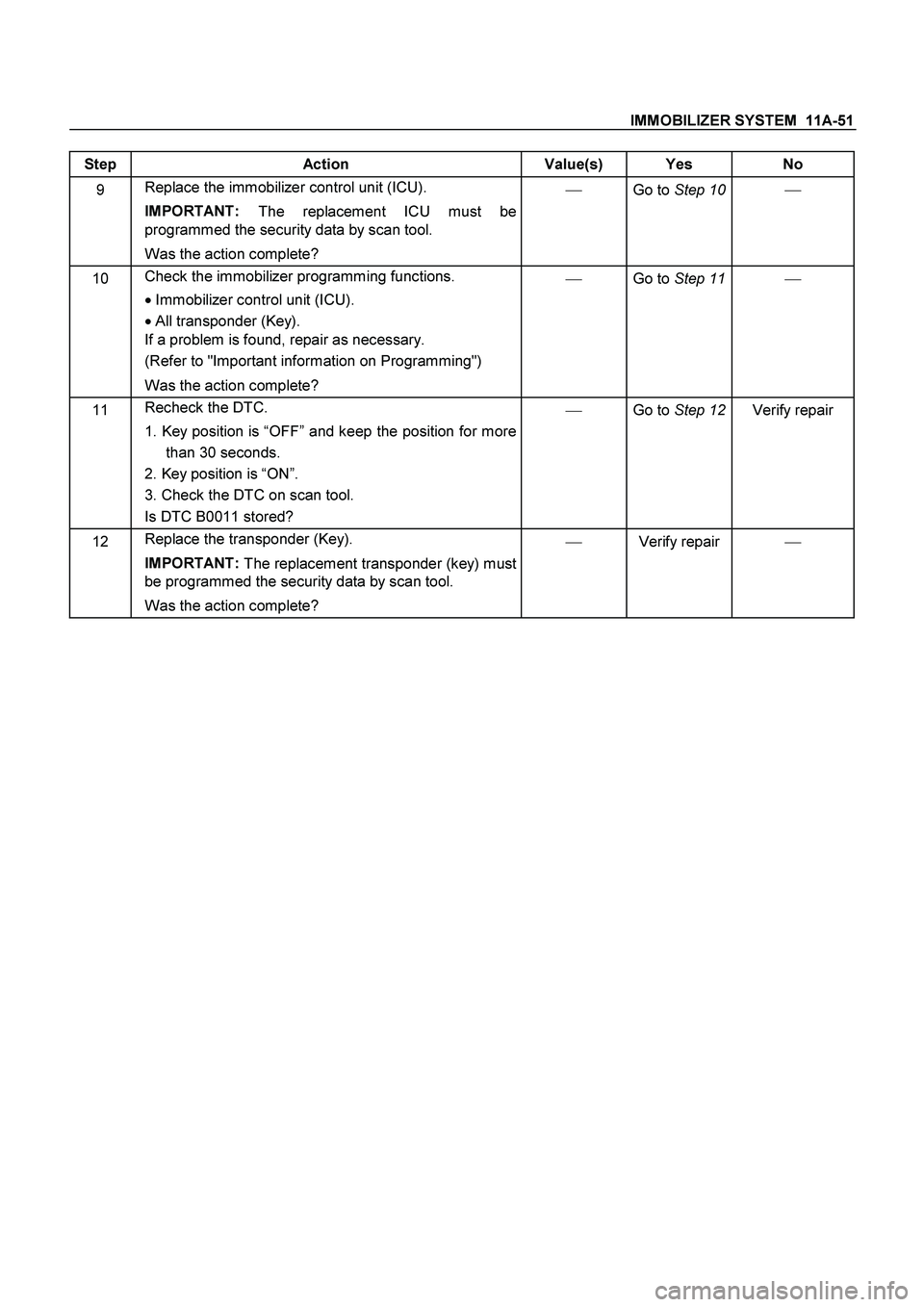

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-51 Step Action Value(s) Yes No 9 Replace the immobilizer control unit (ICU). IMPORTANT: The replacement ICU must be programmed the security data by scan tool. Was the a

Page 3338 of 4264

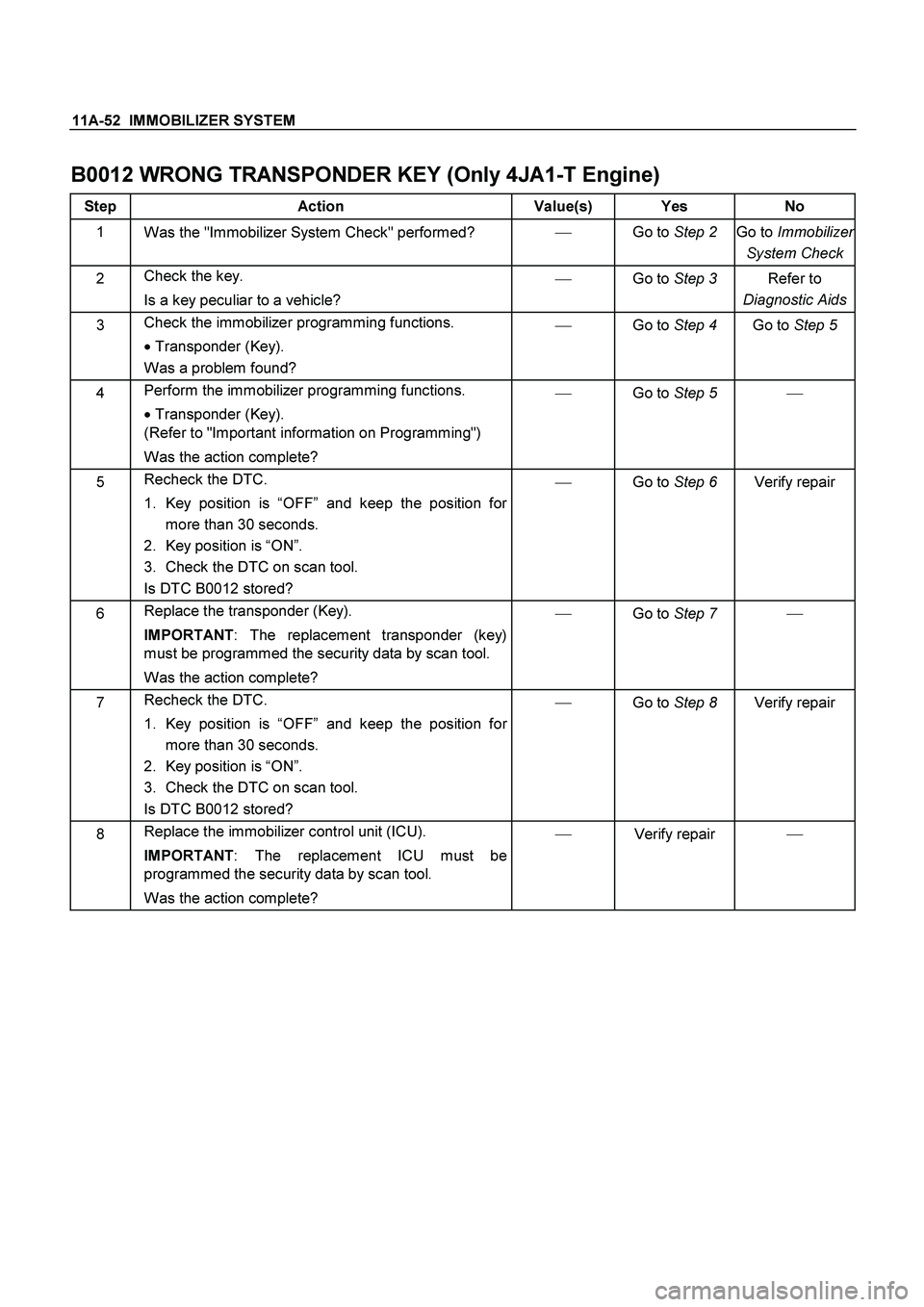

ISUZU TF SERIES 2004 Workshop Manual 11A-52 IMMOBILIZER SYSTEM B0012 WRONG TRANSPONDER KEY (Only 4JA1-T Engine) Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System

Page 3339 of 4264

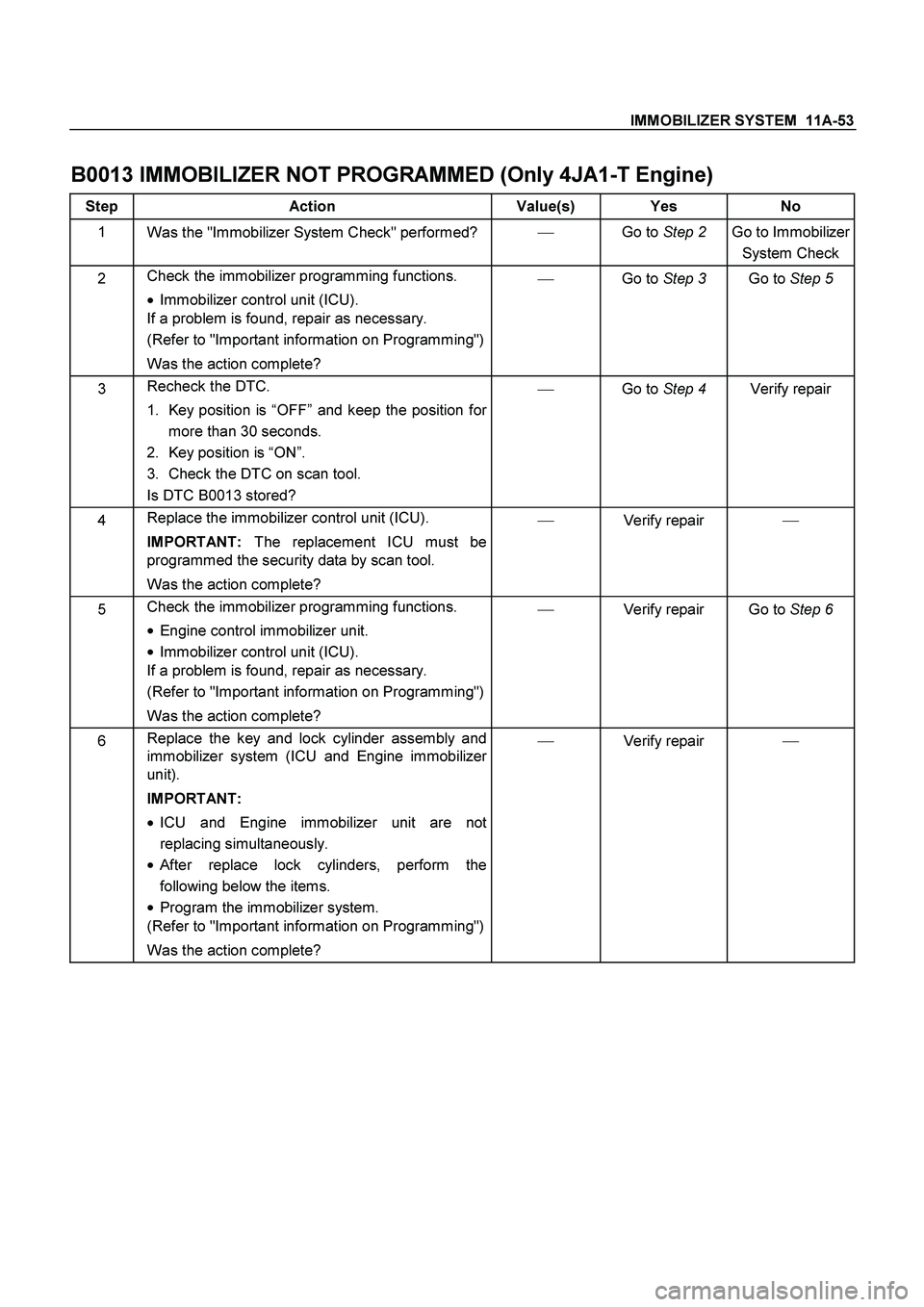

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-53 B0013 IMMOBILIZER NOT PROGRAMMED (Only 4JA1-T Engine) Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed? Go to Step 2 Go to Immobilizer Sys

Page 3340 of 4264

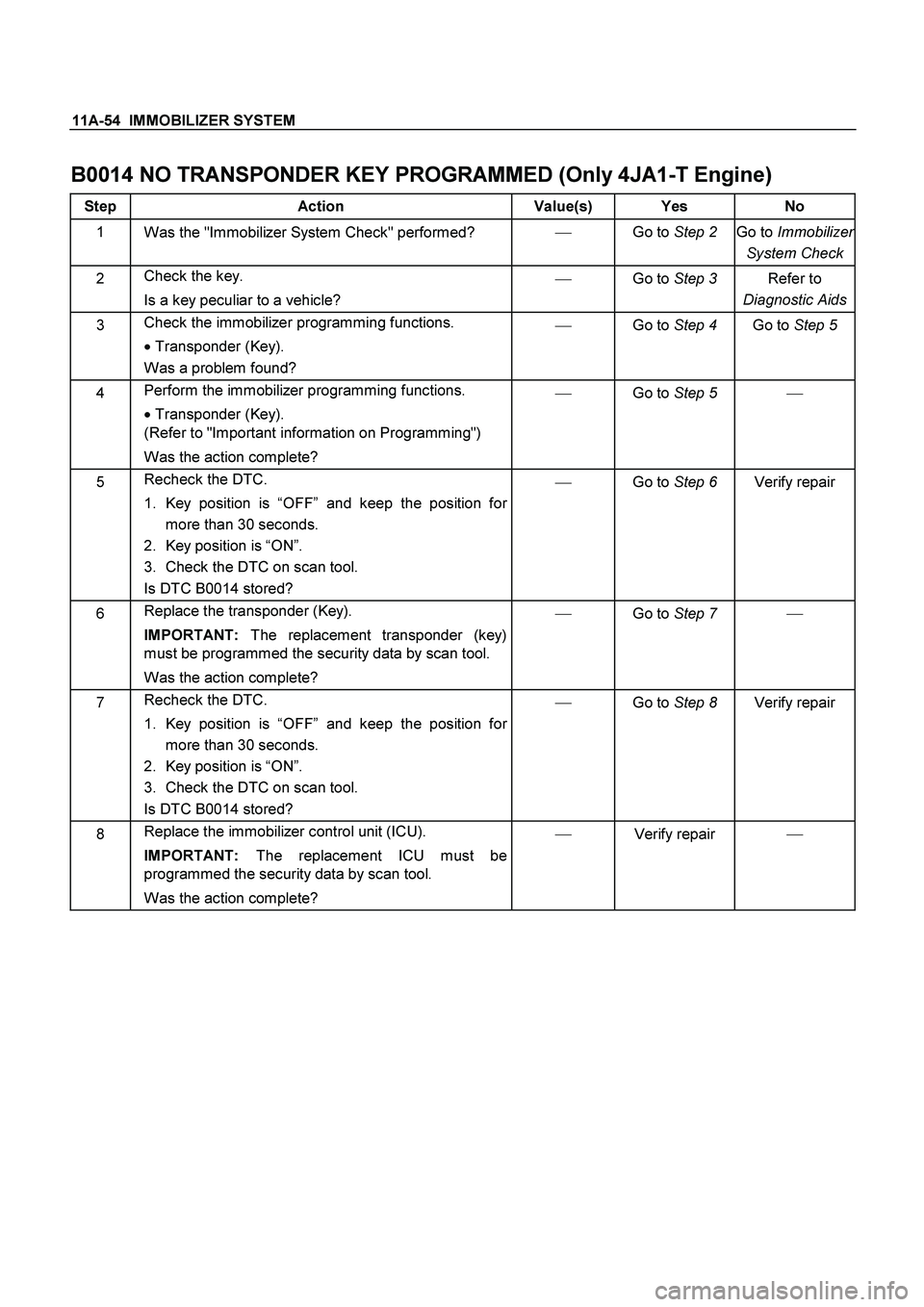

ISUZU TF SERIES 2004 Workshop Manual 11A-54 IMMOBILIZER SYSTEM B0014 NO TRANSPONDER KEY PROGRAMMED (Only 4JA1-T Engine) Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer

Page 3341 of 4264

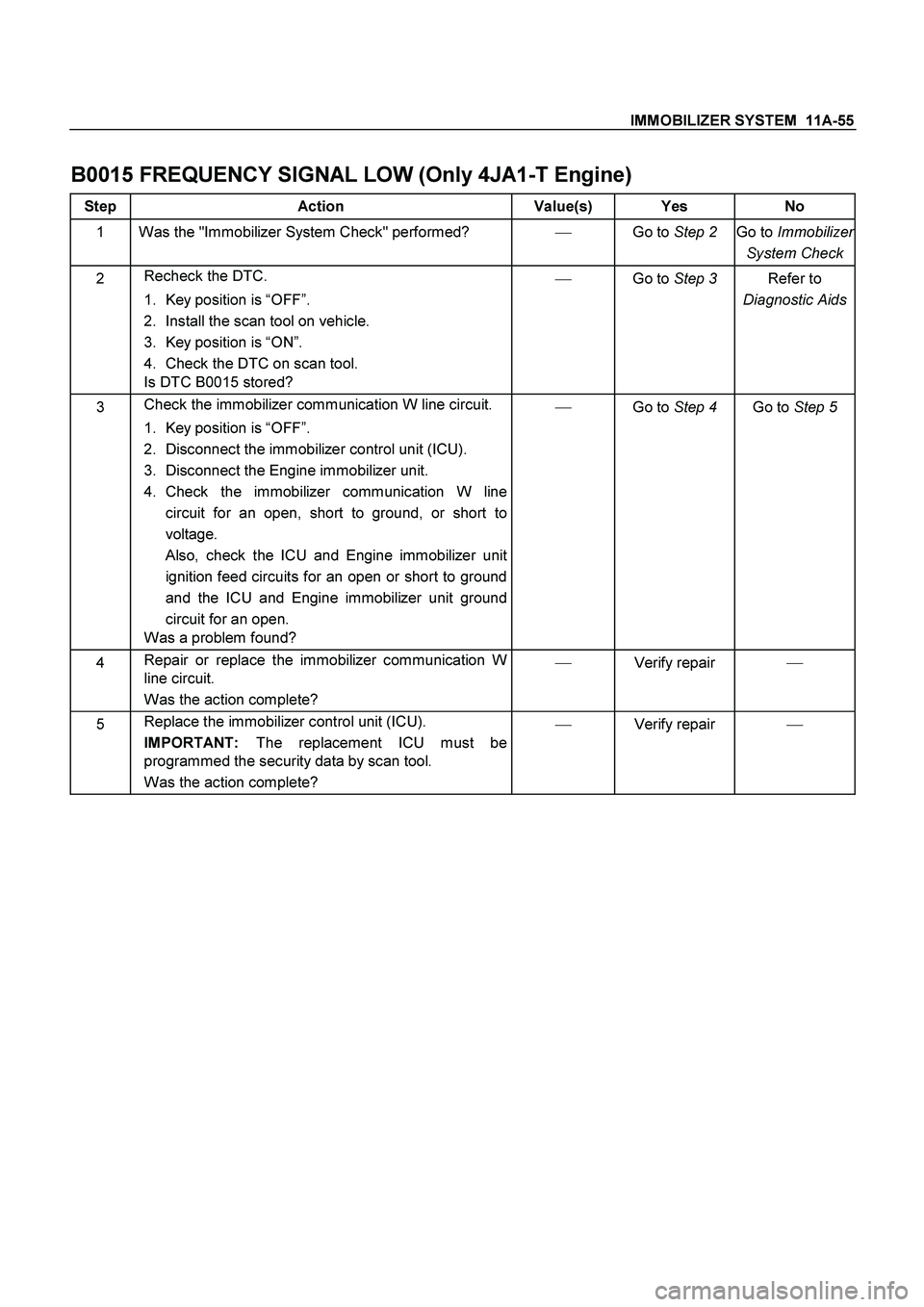

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-55 B0015 FREQUENCY SIGNAL LOW (Only 4JA1-T Engine) Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System C

Page 3342 of 4264

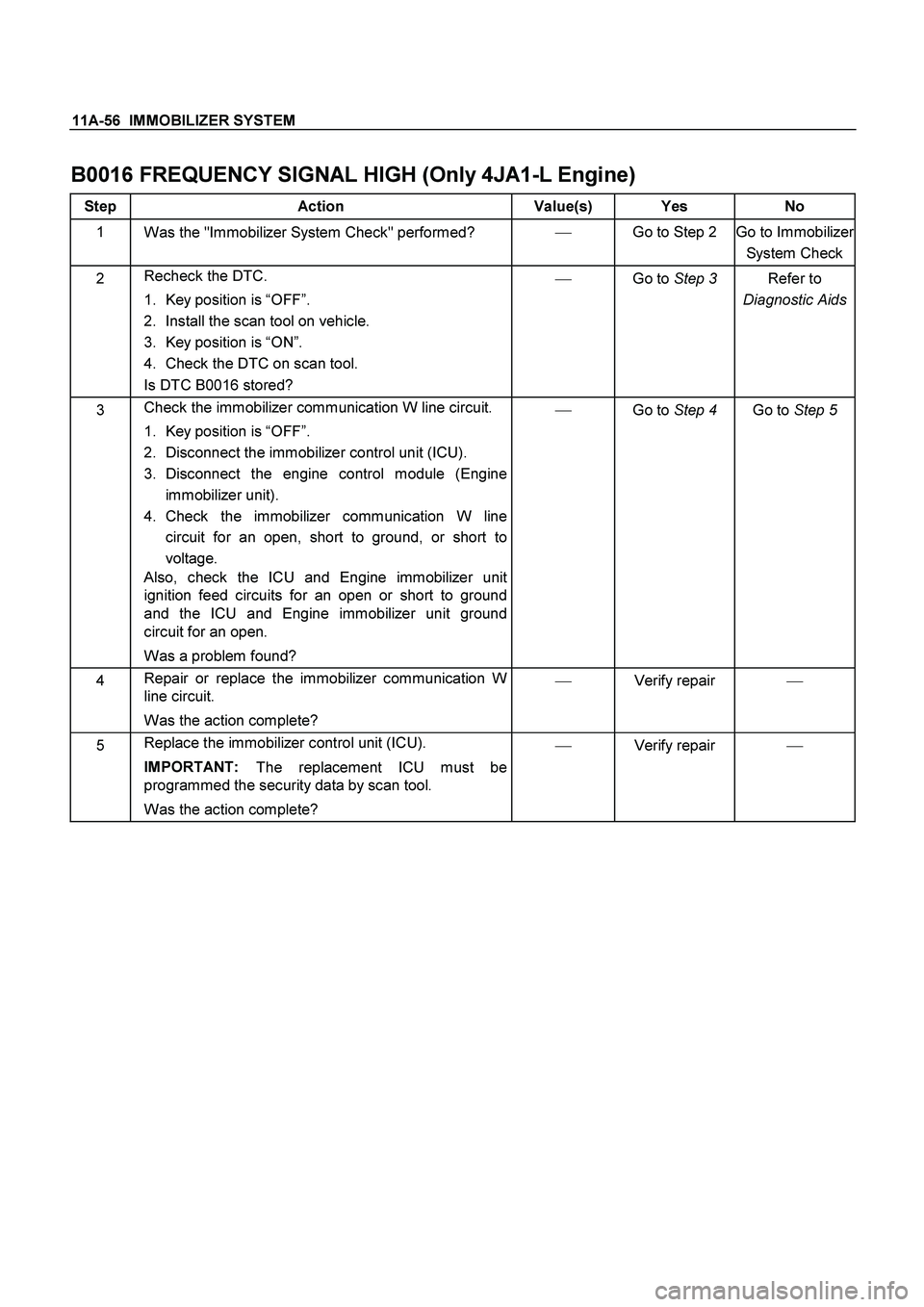

ISUZU TF SERIES 2004 Workshop Manual 11A-56 IMMOBILIZER SYSTEM B0016 FREQUENCY SIGNAL HIGH (Only 4JA1-L Engine) Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System

Page 3343 of 4264

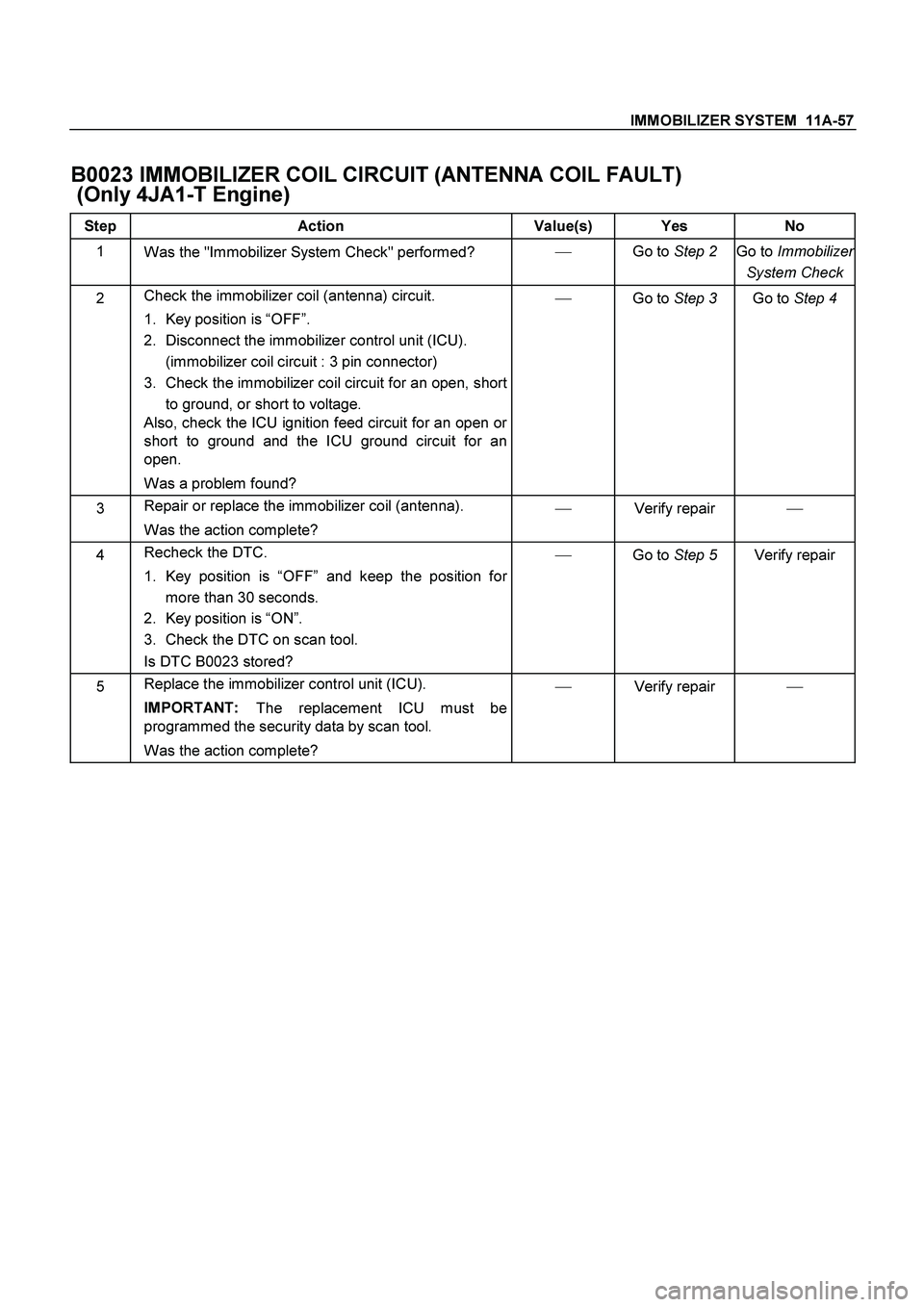

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-57 B0023 IMMOBILIZER COIL CIRCUIT (ANTENNA COIL FAULT) (Only 4JA1-T Engine) Step Action Value(s) Yes No 1 Was the "Immobilizer System Check" performed?  Go to Step 2

Page 3344 of 4264

ISUZU TF SERIES 2004 Workshop Manual 11A-58 IMMOBILIZER SYSTEM B0024 WRONG TRANSPONDER KEY (Only 4JA1-T Engine) Step Action Value(s) Yes No 1 W as the "Immobilizer System Check" performed?  Go to Step 2 Go to Immobilizer System
