Page 4193 of 4264

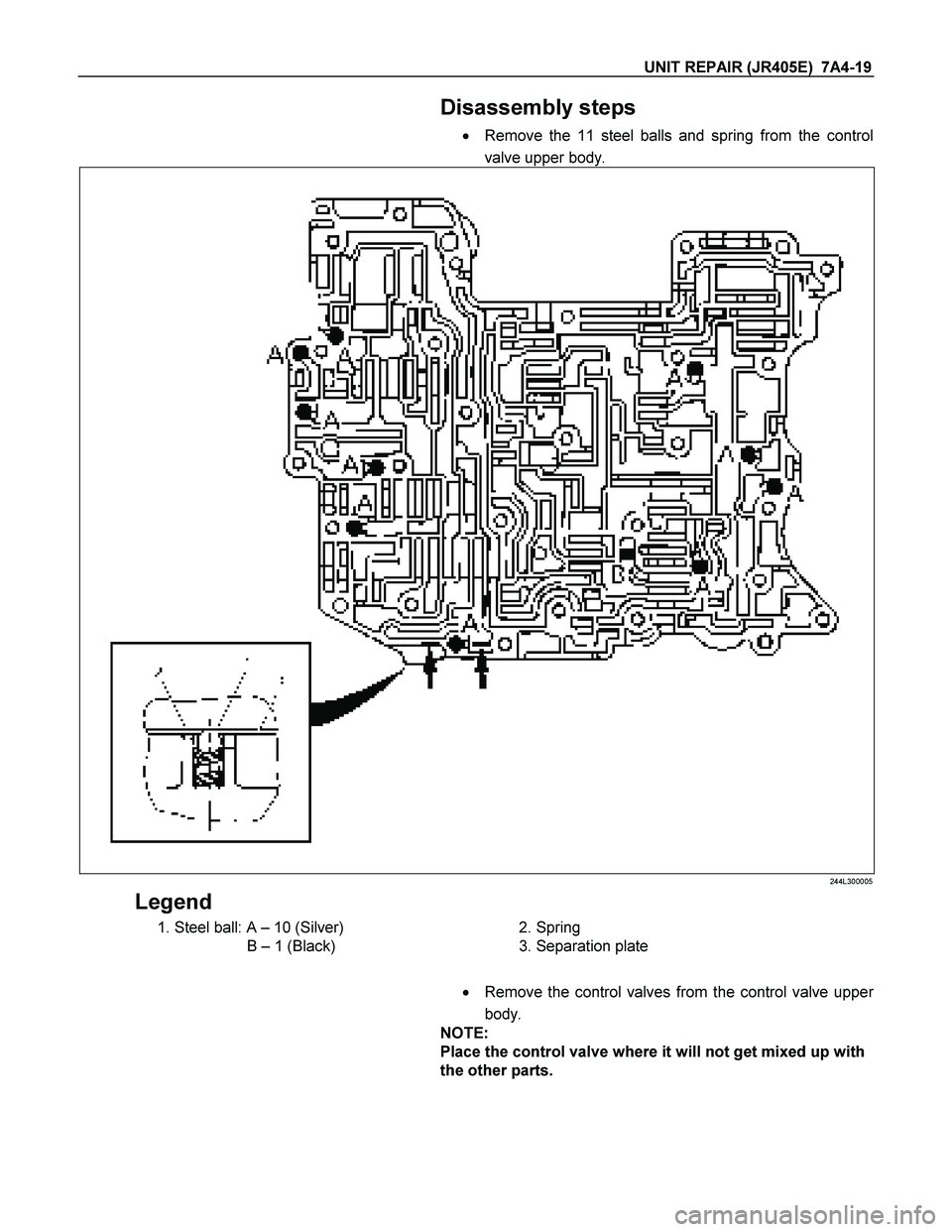

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-19 Disassembly steps  Remove the 11 steel balls and spring from the control valve upper body. 244L300005 Legend 1. Steel ball: A – 10 (Silver) B – 1 (Black

Page 4194 of 4264

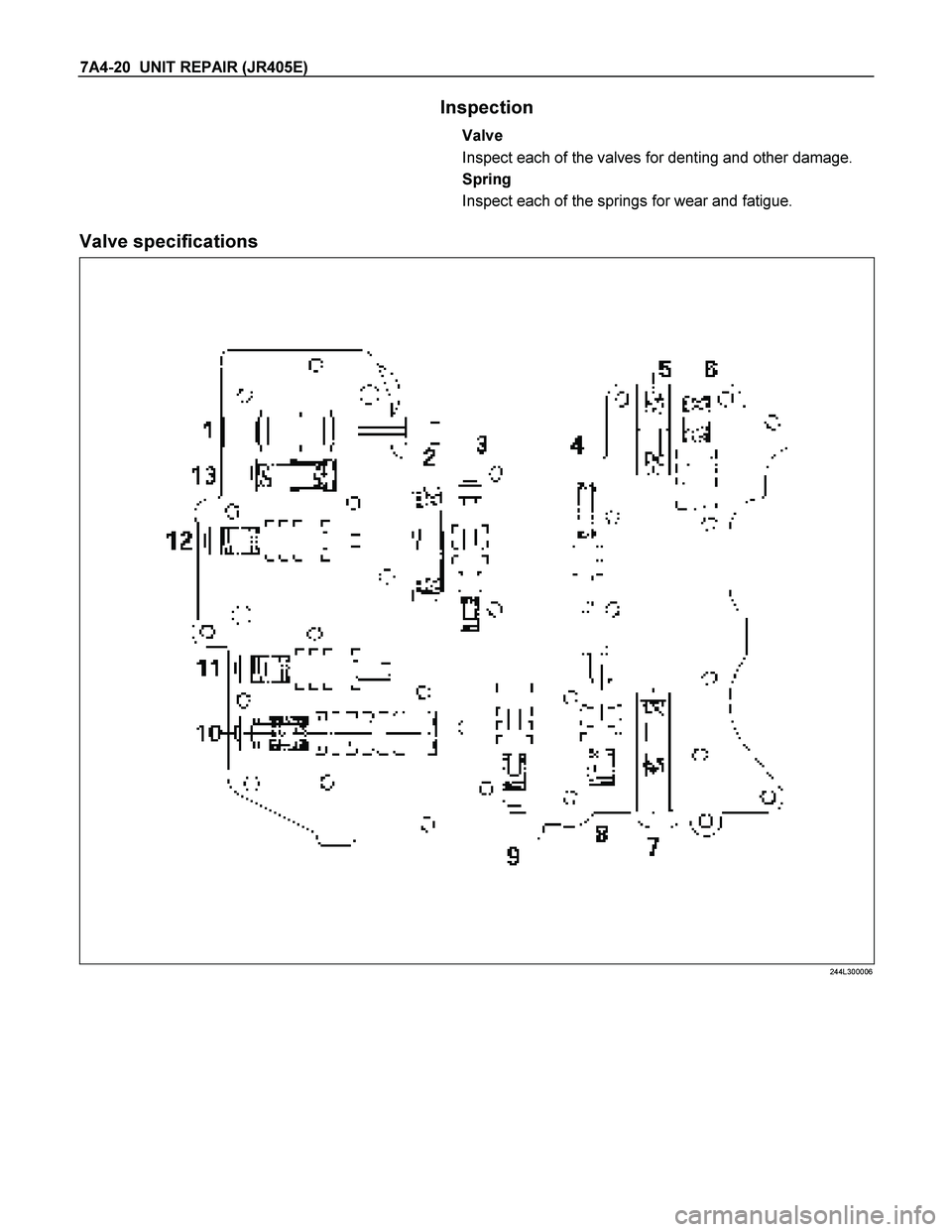

ISUZU TF SERIES 2004 Workshop Manual 7A4-20 UNIT REPAIR (JR405E) Inspection Valve Inspect each of the valves for denting and other damage. Spring Inspect each of the springs for wear and fatigue. Valve specifications 244L3

Page 4195 of 4264

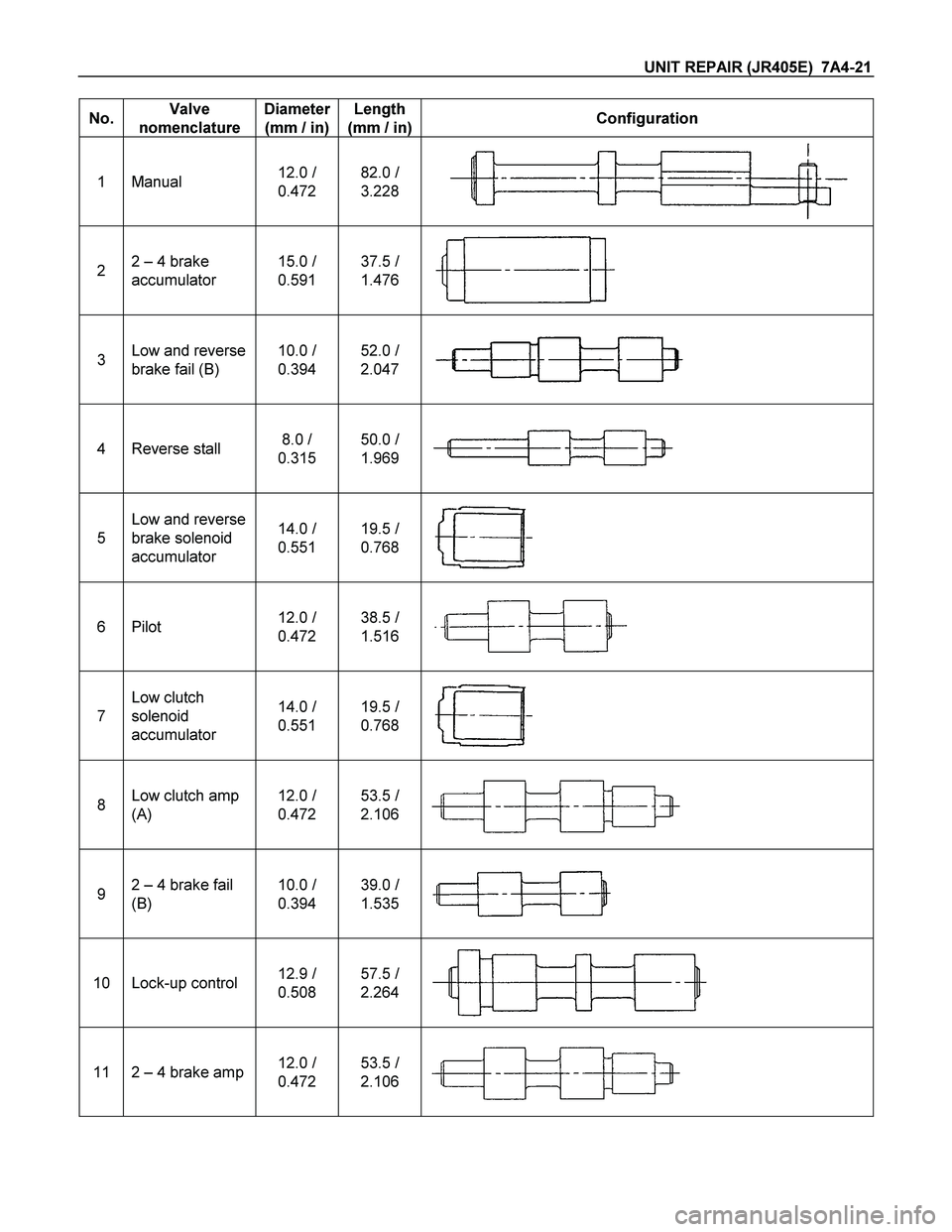

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-21 No. Valve nomenclature Diameter (mm / in) Length (mm / in)Configuration 1 Manual 12.0 / 0.472 82.0 / 3.228 2 2 – 4 brake accumulator 15.0 / 0.591 37.5 / 1.476

Page 4196 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A4-22 UNIT REPAIR (JR405E) 12 High clutch amp 12.0 / 0.472 53.5 / 2.106 13 High clutch solenoid accumulator 14.0 / 0.551 19.5 / 0.768 Spring specifications No. Valve nomenclature Free

Page 4197 of 4264

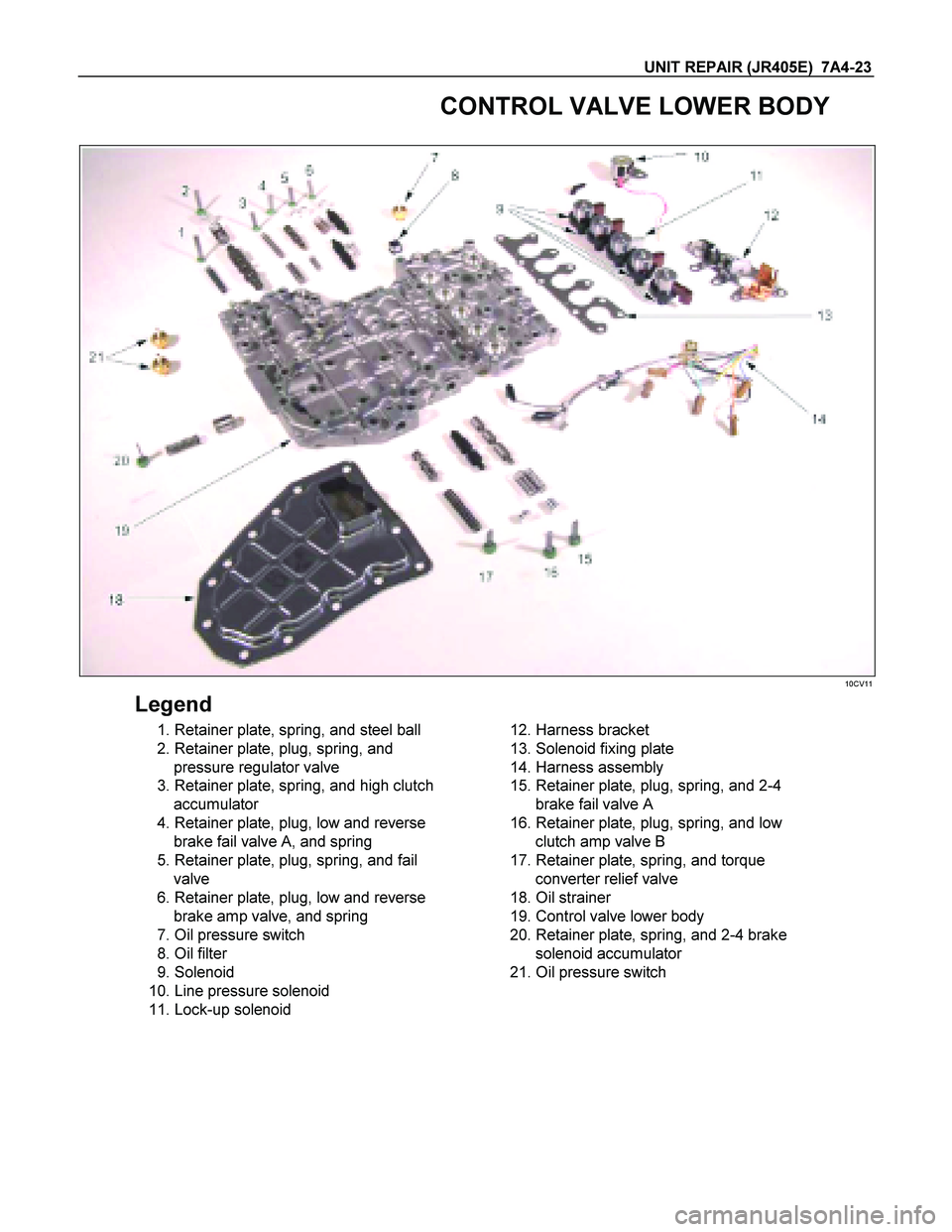

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-23 CONTROL VALVE LOWER BODY 10CV11 Legend 1. Retainer plate, spring, and steel ball 2. Retainer plate, plug, spring, and pressure regulator valve 3. Retain

Page 4198 of 4264

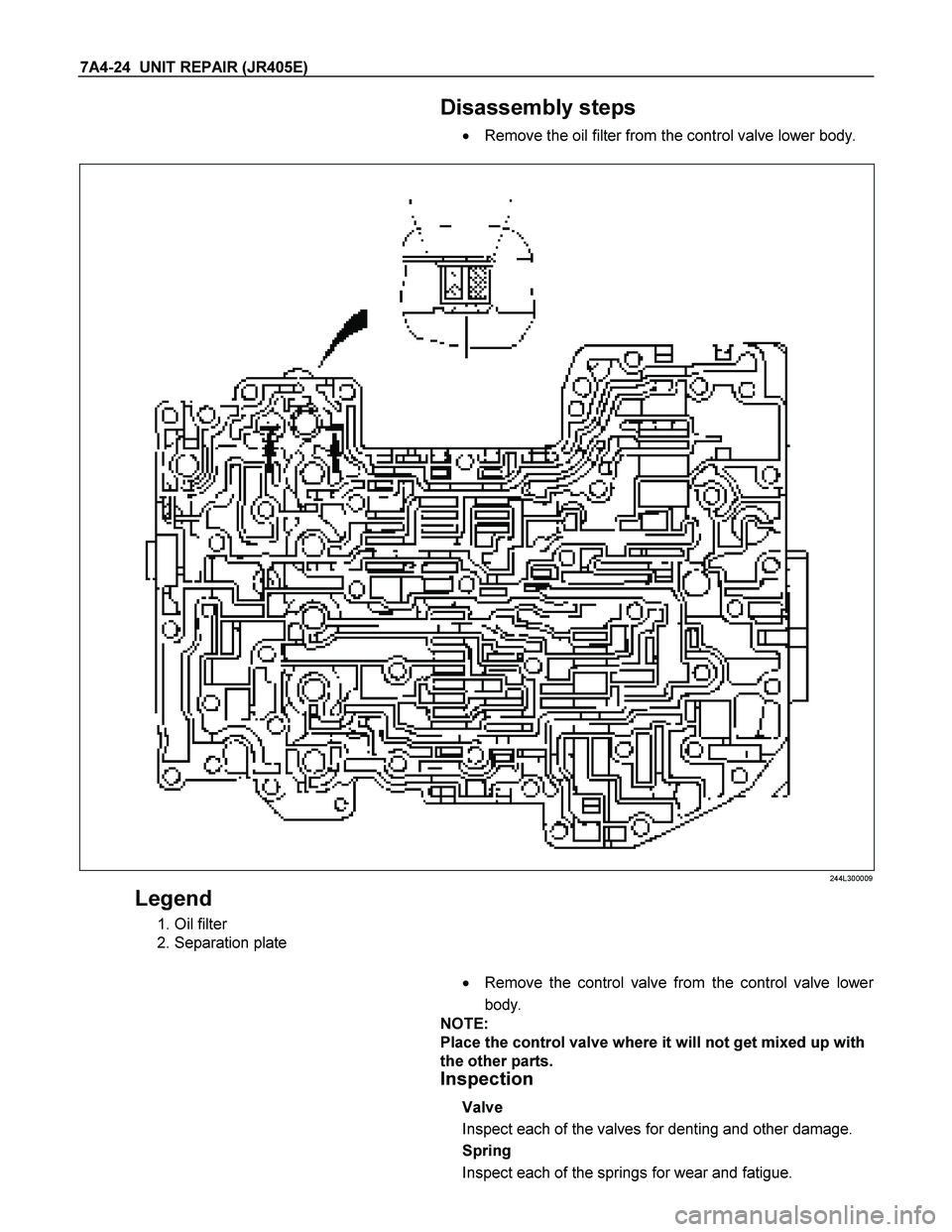

ISUZU TF SERIES 2004 Workshop Manual 7A4-24 UNIT REPAIR (JR405E) Disassembly steps  Remove the oil filter from the control valve lower body. 244L300009 Legend 1. Oil filter 2. Separation plate  Remove the

Page 4199 of 4264

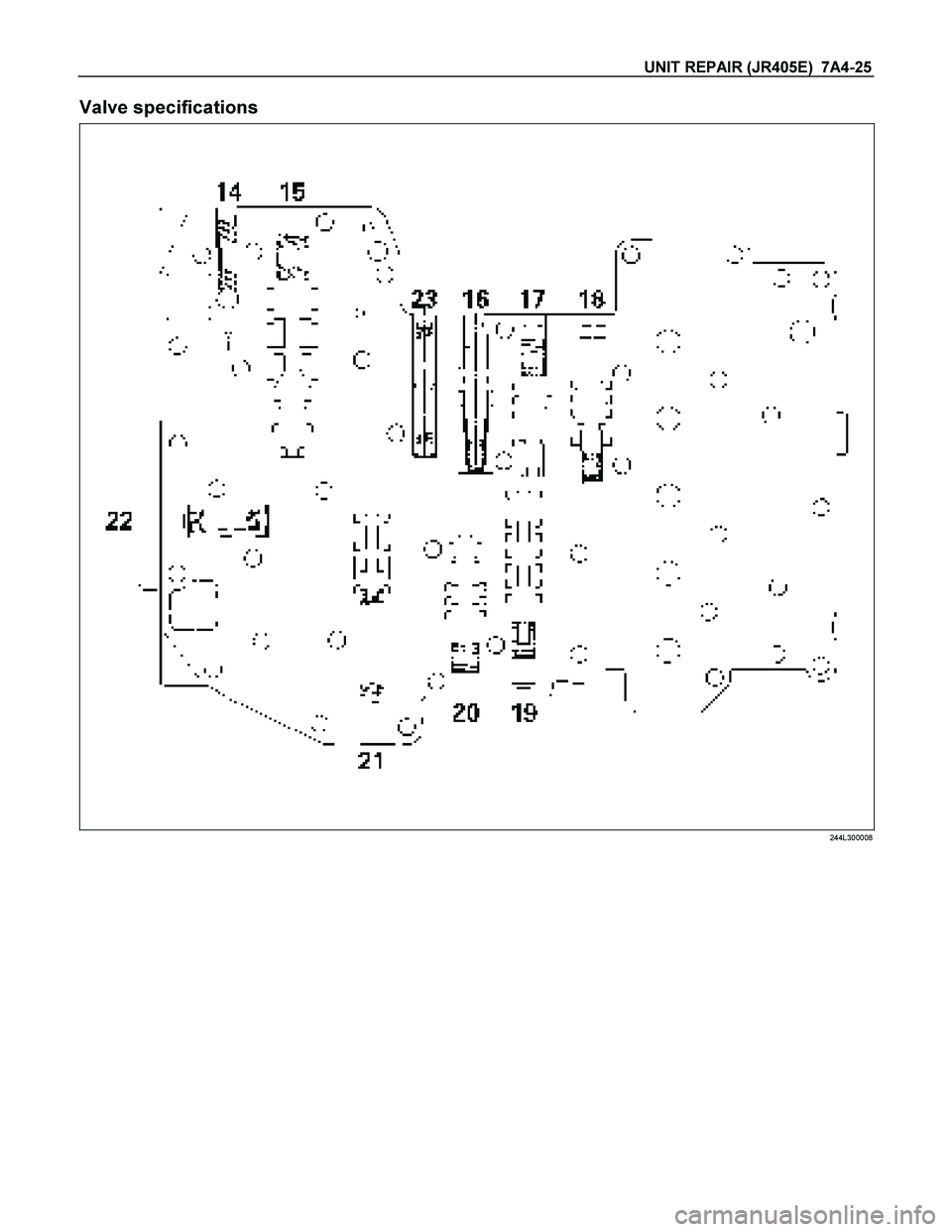

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-25 Valve specifications 244L300008

Page 4200 of 4264

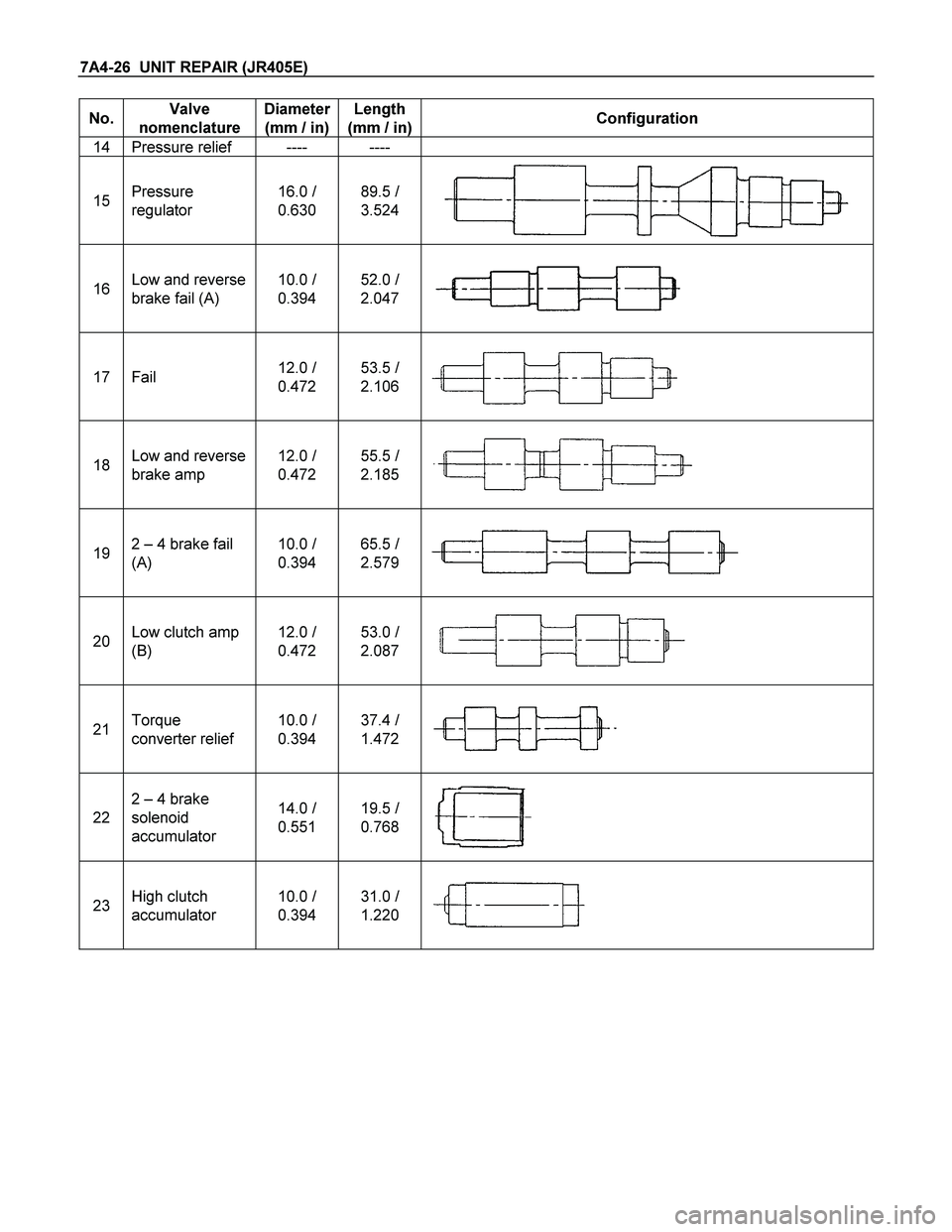

ISUZU TF SERIES 2004 Workshop Manual 7A4-26 UNIT REPAIR (JR405E) No. Valve nomenclature Diameter (mm / in) Length (mm / in)Configuration 14 Pressure relief ---- ---- 15 Pressure regulator 16.0 / 0.630 89.5 / 3.524 16 Low a
