Page 3377 of 4264

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 31
Program Antitheft Warning
1. Select “Body” and “Antitheft”.
2. Select “Programming”.
3. Select “Program Antitheft Warning”.
4. The following screen shows u

Page 3378 of 4264

ISUZU TF SERIES 2004 Workshop Manual 11B

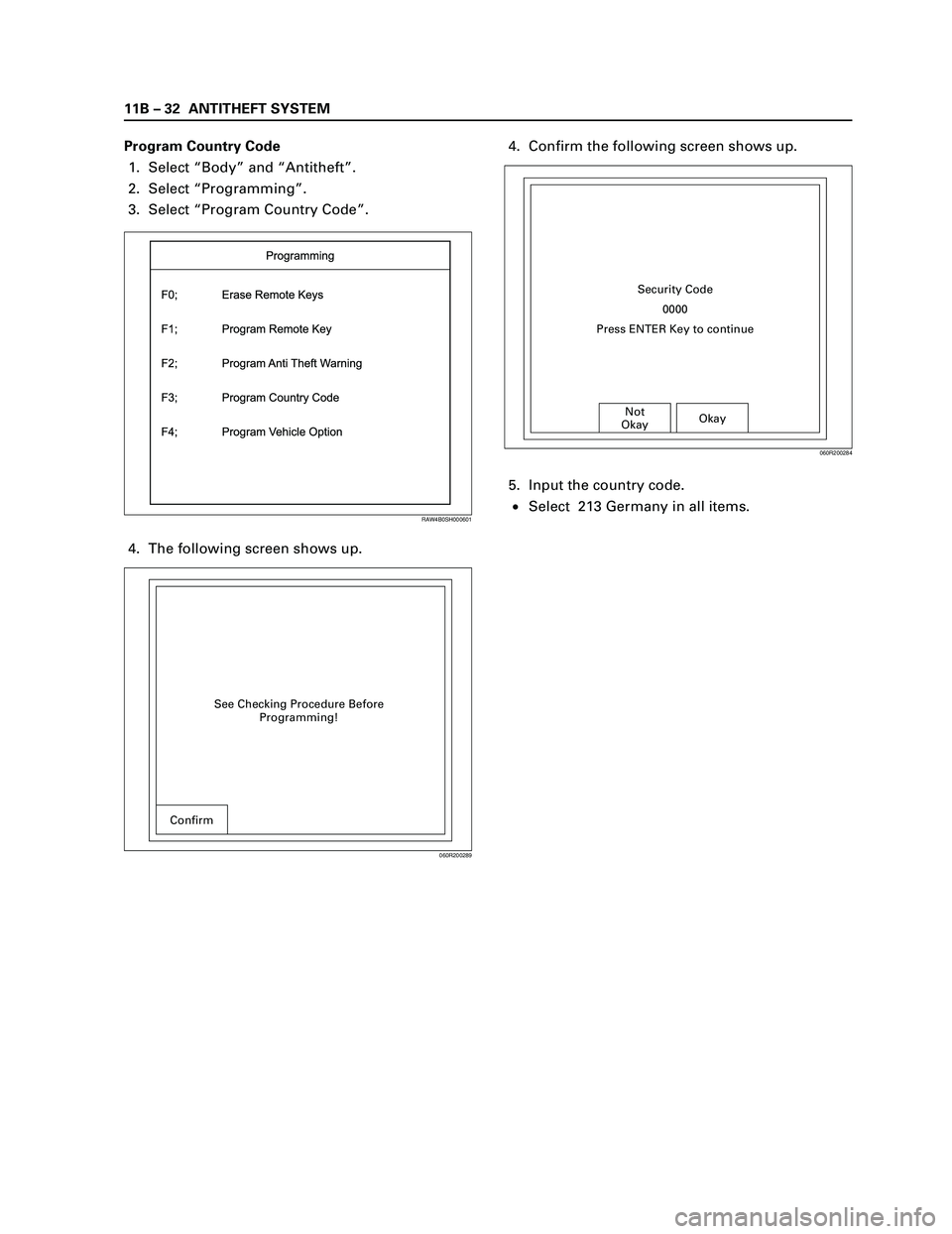

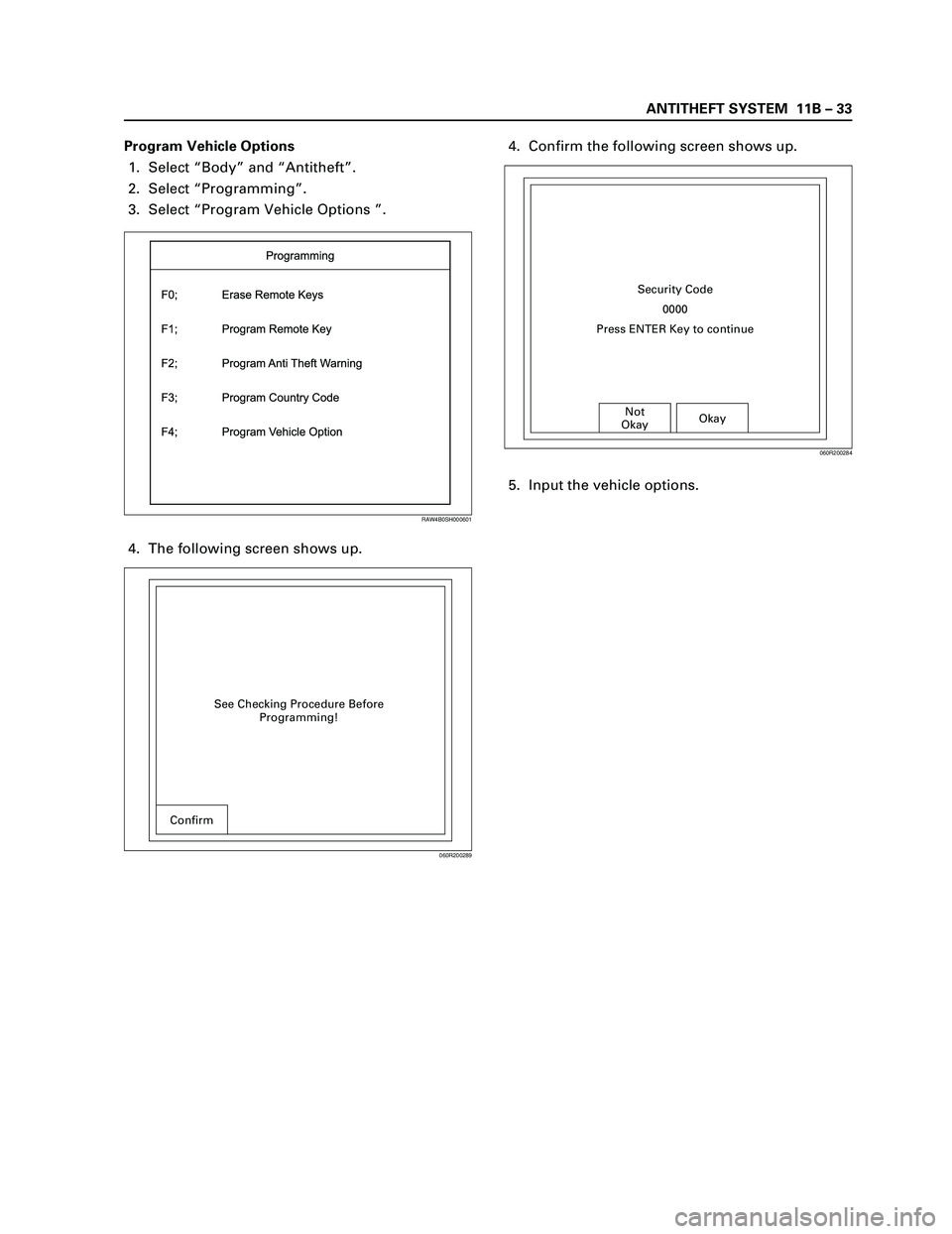

Page 3379 of 4264

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 33
Program Vehicle Options
1. Select “Body” and “Antitheft”.
2. Select “Programming”.
3. Select “Program Vehicle Options ”.
4. The following screen shows up.4

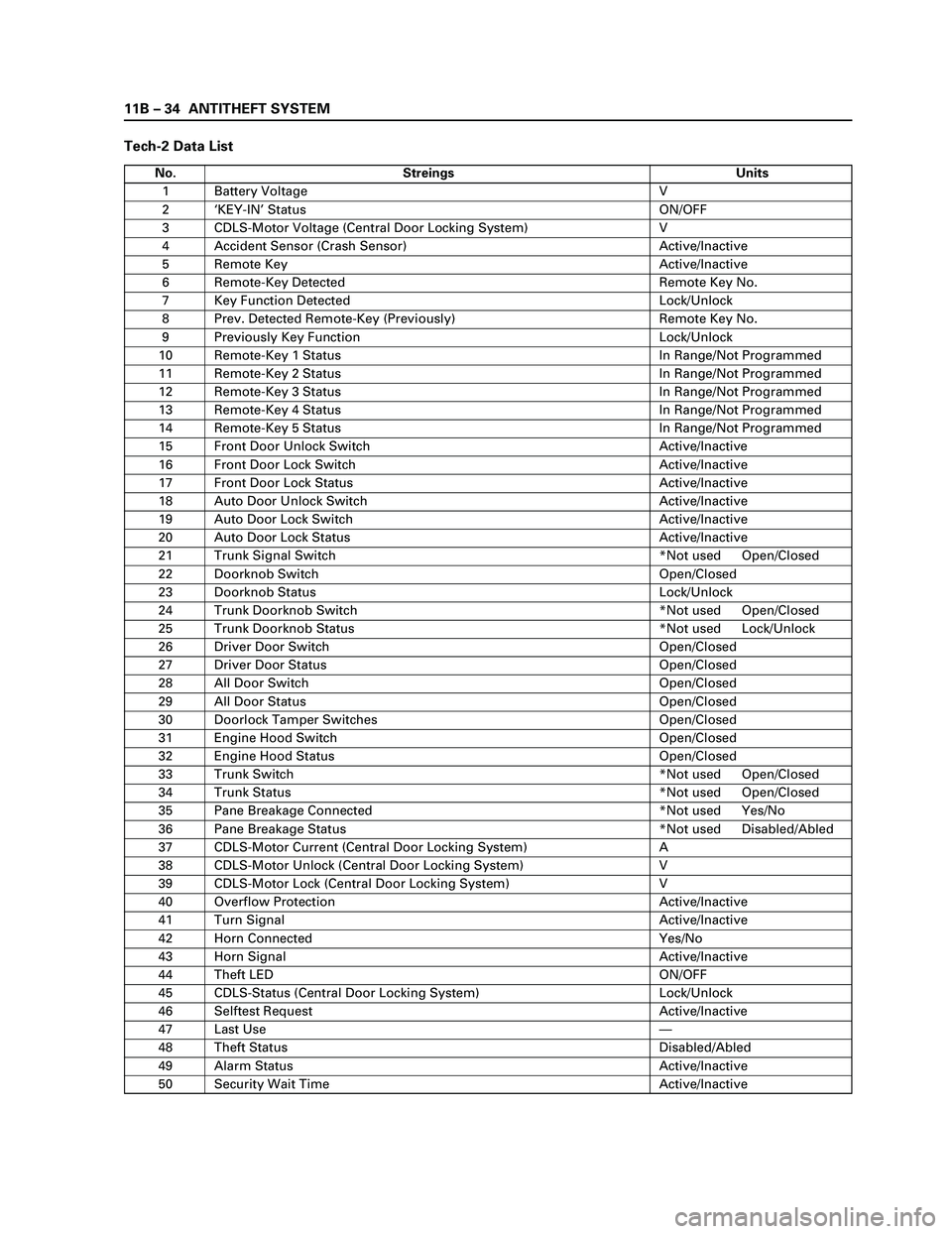

Page 3380 of 4264

ISUZU TF SERIES 2004 Workshop Manual 11B – 34 ANTITHEFT SYSTEM
Tech-2 Data List
No. Streings Units
1 Battery Voltage V
2‘KEY-IN’ Status ON/OFF
3 CDLS-Motor Voltage (Central Door Locking System) V
4 Accident Sensor (Crash Sensor) Ac

11B – 34 ANTITHEFT SYSTEM
Tech-2 Data List
No. Streings Units
1 Battery Voltage V
2‘KEY-IN’ Status ON/OFF
3 CDLS-Motor Voltage (Central Door Locking System) V
4 Accident Sensor (Crash Sensor) Active/Inactive
5 Remote Key Active/Inactive
6 Remote-Key Detected Remote Key No.
7 Key Function Detected Lock/Unlock
8 Prev. Detected Remote-Key (Previously) Remote Key No.
9 Previously Key Function Lock/Unlock
10 Remote-Key 1 Status In Range/Not Programmed
11 Remote-Key 2 Status In Range/Not Programmed
12 Remote-Key 3 Status In Range/Not Programmed
13 Remote-Key 4 Status In Range/Not Programmed
14 Remote-Key 5 Status In Range/Not Programmed
15 Front Door Unlock Switch Active/Inactive
16 Front Door Lock Switch Active/Inactive
17 Front Door Lock Status Active/Inactive
18 Auto Door Unlock Switch Active/Inactive
19 Auto Door Lock Switch Active/Inactive
20 Auto Door Lock Status Active/Inactive
21 Trunk Signal Switch *Not used Open/Closed
22 Doorknob Switch Open/Closed
23 Doorknob Status Lock/Unlock
24 Trunk Doorknob Switch *Not used Open/Closed
25 Trunk Doorknob Status *Not used Lock/Unlock
26 Driver Door Switch Open/Closed
27 Driver Door Status Open/Closed
28 All Door Switch Open/Closed
29 All Door Status Open/Closed
30 Doorlock Tamper Switches Open/Closed
31 Engine Hood Switch Open/Closed
32 Engine Hood Status Open/Closed
33 Trunk Switch *Not used Open/Closed
34 Trunk Status *Not used Open/Closed
35 Pane Breakage Connected *Not used Yes/No
36 Pane Breakage Status *Not used Disabled/Abled
37 CDLS-Motor Current (Central Door Locking System) A
38 CDLS-Motor Unlock (Central Door Locking System) V
39 CDLS-Motor Lock (Central Door Locking System) V
40 Overflow Protection Active/Inactive
41 Turn Signal Active/Inactive
42 Horn Connected Yes/No
43 Horn Signal Active/Inactive
44 Theft LED ON/OFF
45 CDLS-Status (Central Door Locking System) Lock/Unlock
46 Selftest Request Active/Inactive
47 Last Use—
48 Theft Status Disabled/Abled
49 Alarm Status Active/Inactive
50 Security Wait Time Active/Inactive

Page 3381 of 4264

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B

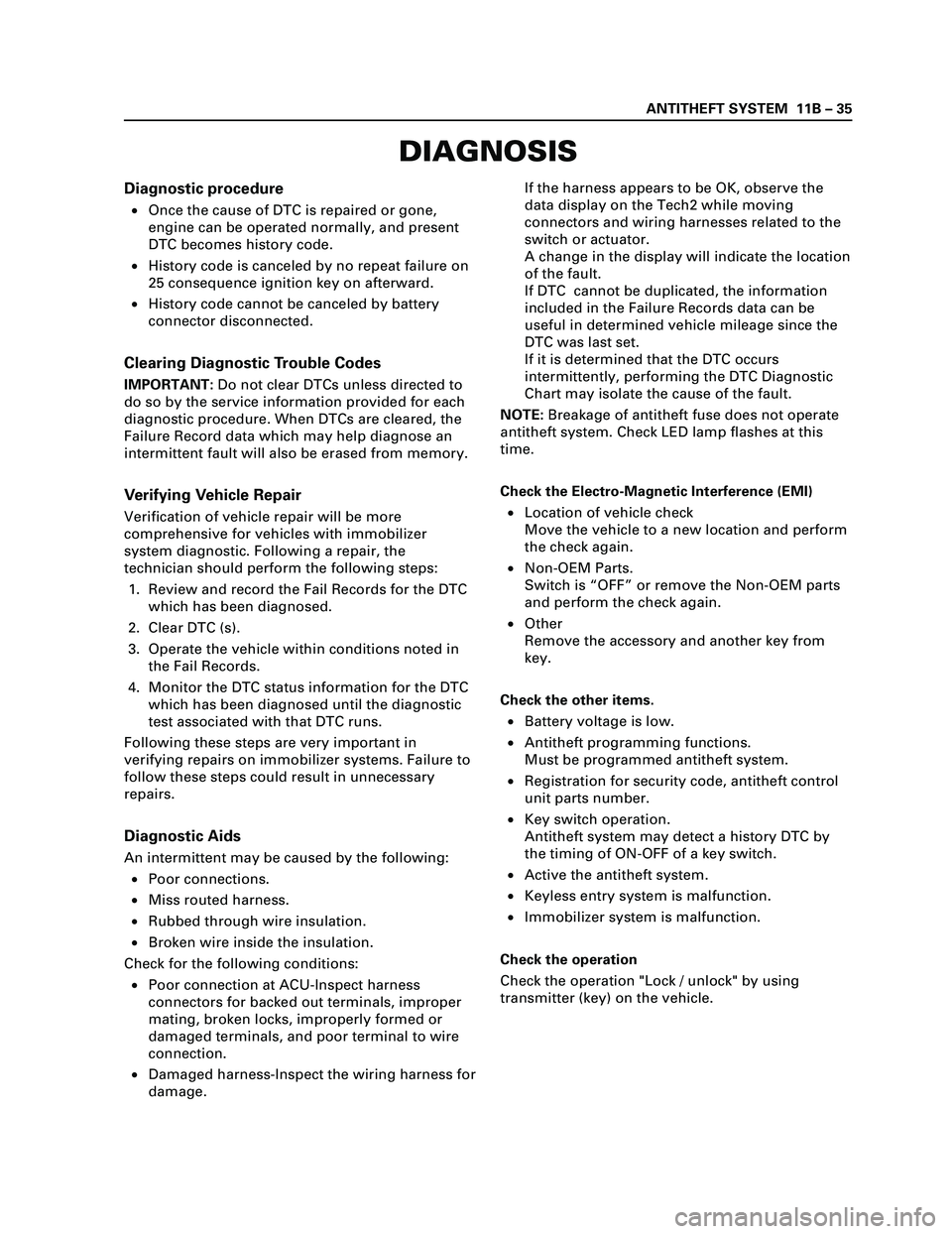

Page 3382 of 4264

ISUZU TF SERIES 2004 Workshop Manual 11B – 36 ANTITHEFT SYSTEM

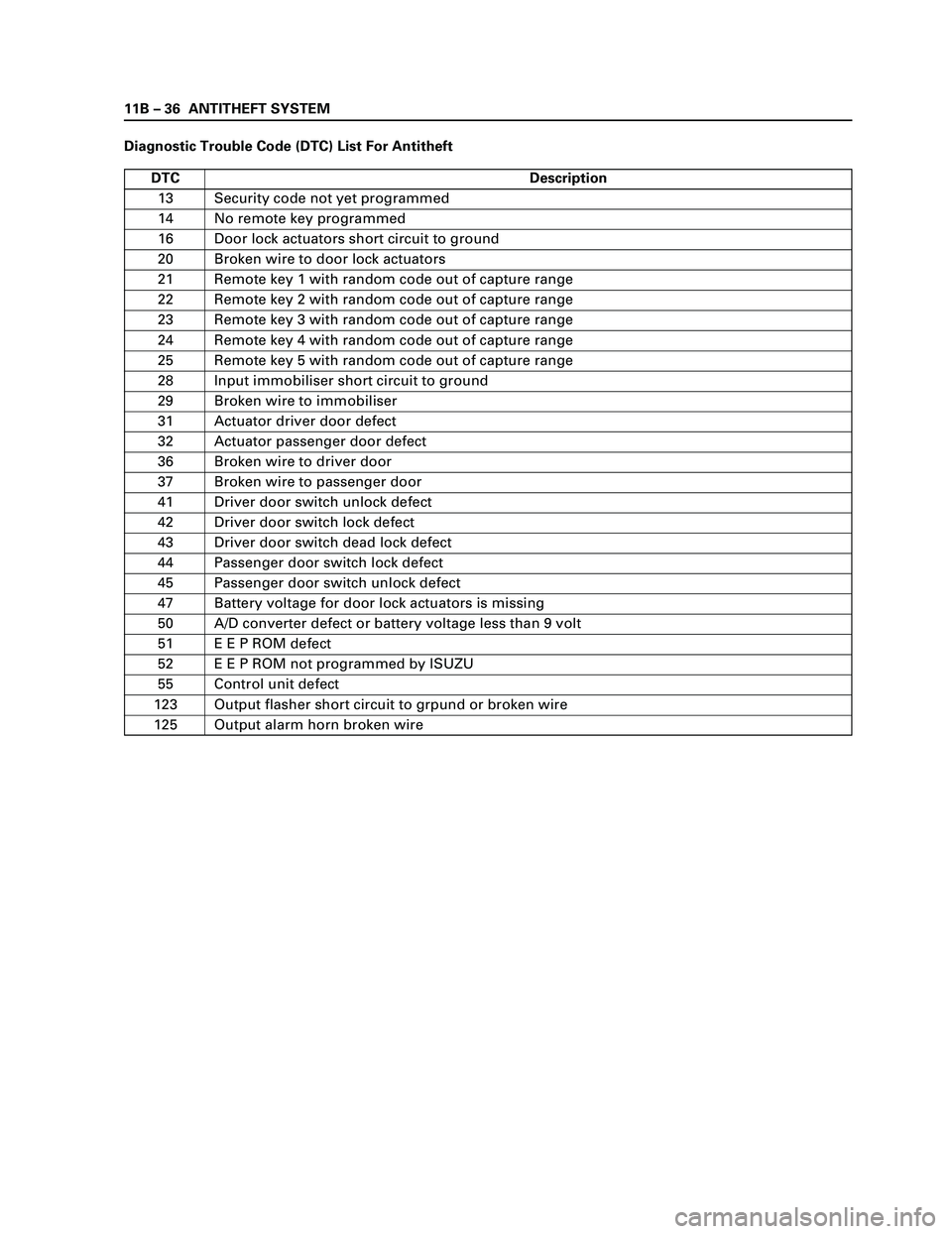

Diagnostic Trouble Code (DTC) List For Antitheft
DTC Description
13 Security code not yet programmed
14 No remote key programmed
16 Door lock actuators short circuit to gro

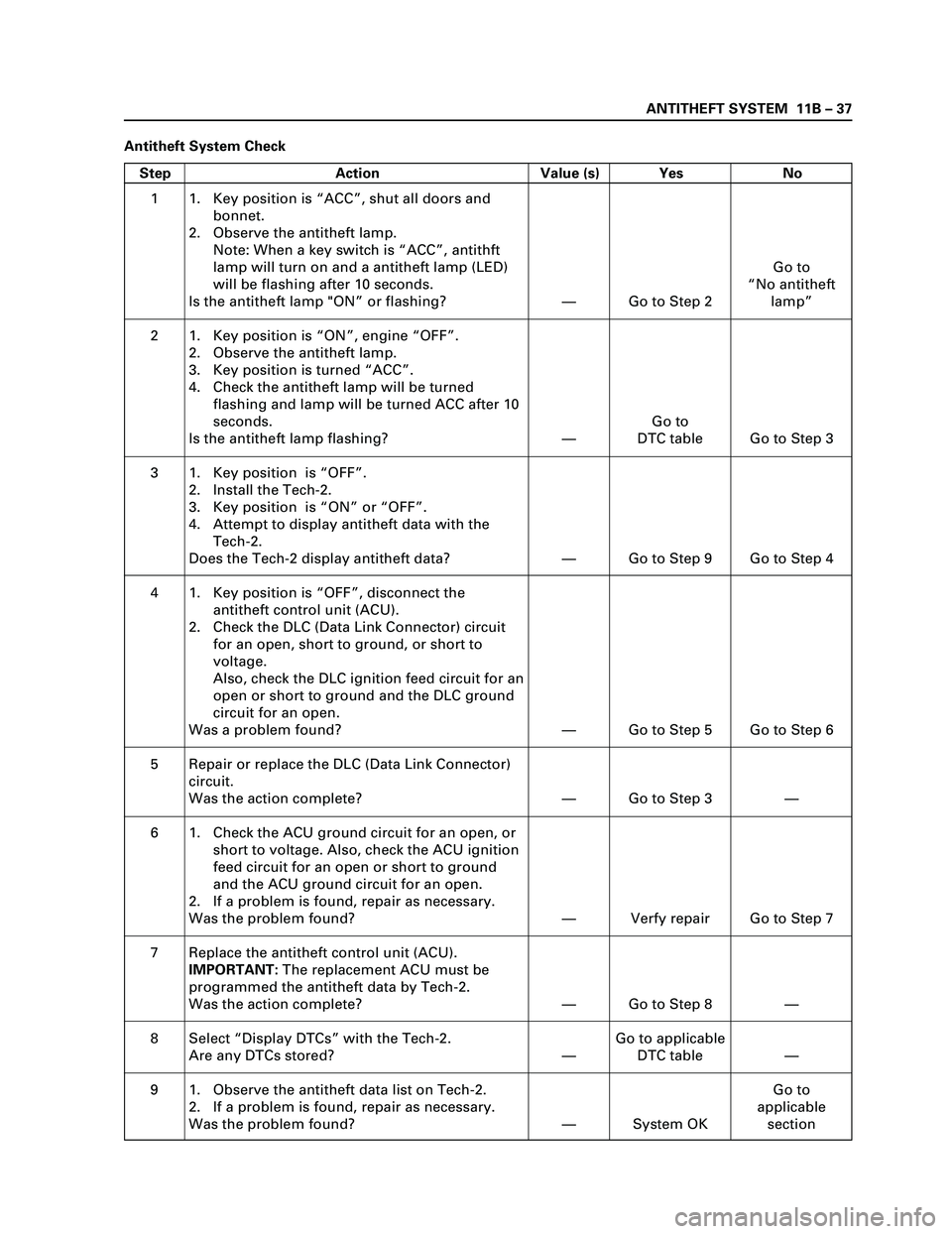

Page 3383 of 4264

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 37
Antitheft System Check
Step Action Value (s) Yes No
1
2
3
4
5
6
7
8
91. Key position is “ACC”, shut all doors and
bonnet.
2. Observe the antitheft lamp.
Note: When a k

ANTITHEFT SYSTEM 11B – 37
Antitheft System Check
Step Action Value (s) Yes No
1
2
3
4
5
6
7
8
91. Key position is “ACC”, shut all doors and
bonnet.
2. Observe the antitheft lamp.
Note: When a key switch is “ACC”, antithft
lamp will turn on and a antitheft lamp (LED)
will be flashing after 10 seconds.
Is the antitheft lamp "ON” or flashing?
1. Key position is “ON”, engine “OFF”.
2. Observe the antitheft lamp.
3. Key position is turned “ACC”.
4. Check the antitheft lamp will be turned
flashing and lamp will be turned ACC after 10
seconds.
Is the antitheft lamp flashing?
1. Key position is “OFF”.
2. Install the Tech-2.
3. Key position is “ON” or “OFF”.
4. Attempt to display antitheft data with the
Tech-2.
Does the Tech-2 display antitheft data?
1. Key position is “OFF”, disconnect the
antitheft control unit (ACU).
2. Check the DLC (Data Link Connector) circuit
for an open, short to ground, or short to
voltage.
Also, check the DLC ignition feed circuit for an
open or short to ground and the DLC ground
circuit for an open.
Was a problem found?
Repair or replace the DLC (Data Link Connector)
circuit.
Was the action complete?
1. Check the ACU ground circuit for an open, or
short to voltage. Also, check the ACU ignition
feed circuit for an open or short to ground
and the ACU ground circuit for an open.
2. If a problem is found, repair as necessary.
Was the problem found?
Replace the antitheft control unit (ACU).
IMPORTANT: The replacement ACU must be
programmed the antitheft data by Tech-2.
Was the action complete?
Select “Display DTCs” with the Tech-2.
Are any DTCs stored?
1. Observe the antitheft data list on Tech-2.
2. If a problem is found, repair as necessary.
Was the problem found?—
—
—
—
—
—
—
—
—Go to Step 2
Go to
DTC table
Go to Step 9
Go to Step 5
Go to Step 3
Verfy repair
Go to Step 8
Go to applicable
DTC table
System OKGo to
“No antitheft
lamp”
Go to Step 3
Go to Step 4
Go to Step 6
—
Go to Step 7
—
—
Go to
applicable
section

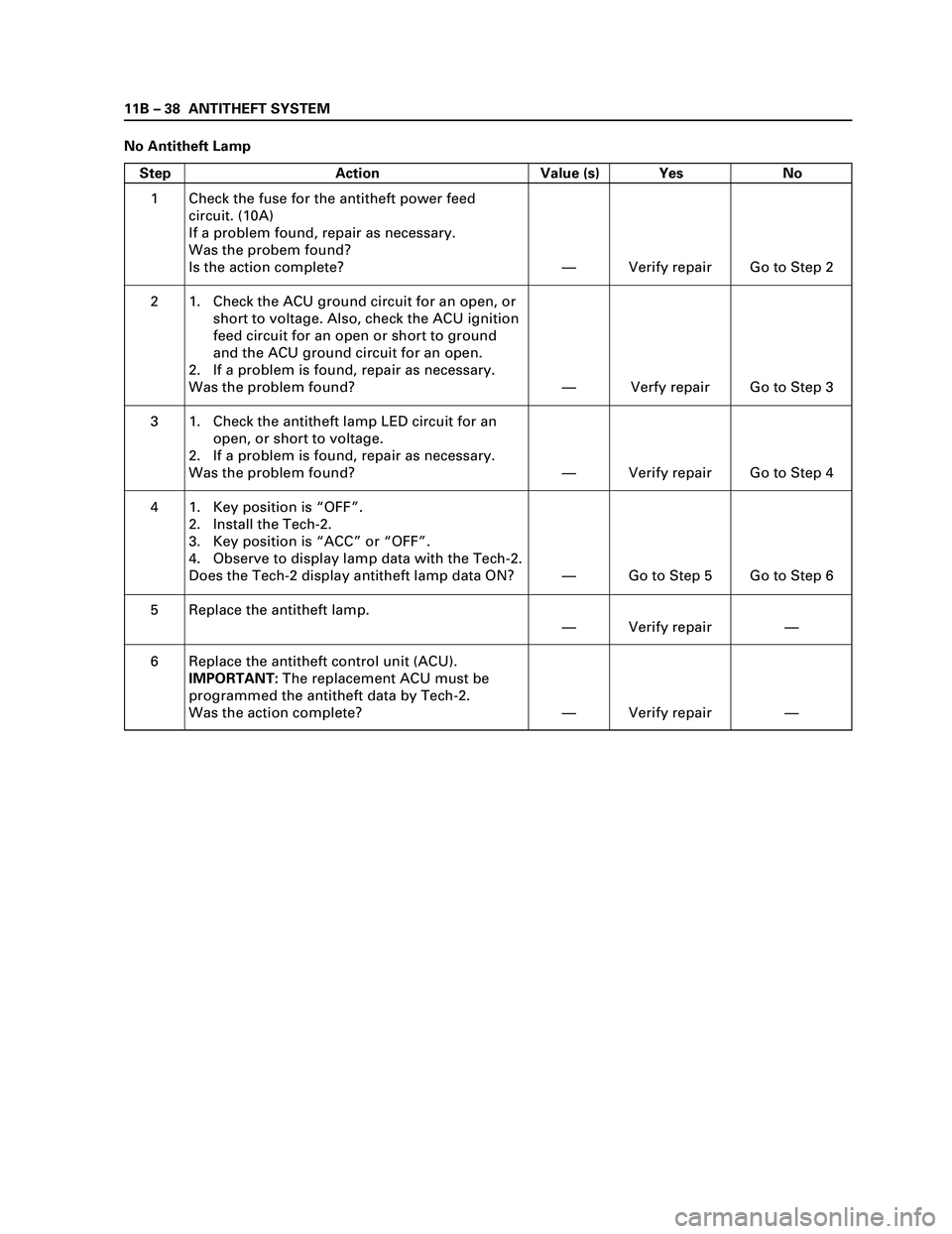

Page 3384 of 4264
