Page 3017 of 4264

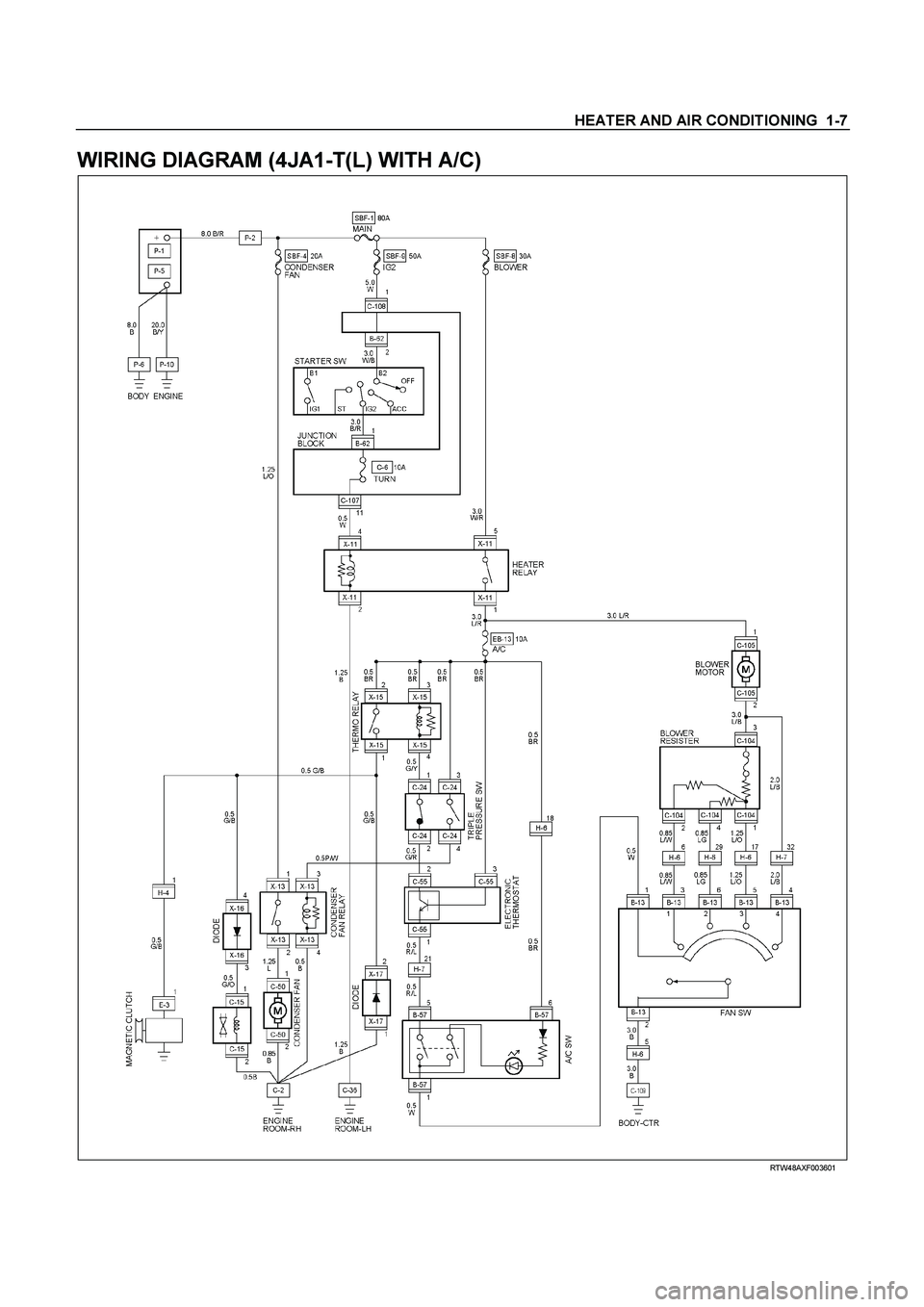

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-7 WIRING DIAGRAM (4JA1-T(L) WITH A/C) RTW48AXF003601

Page 3018 of 4264

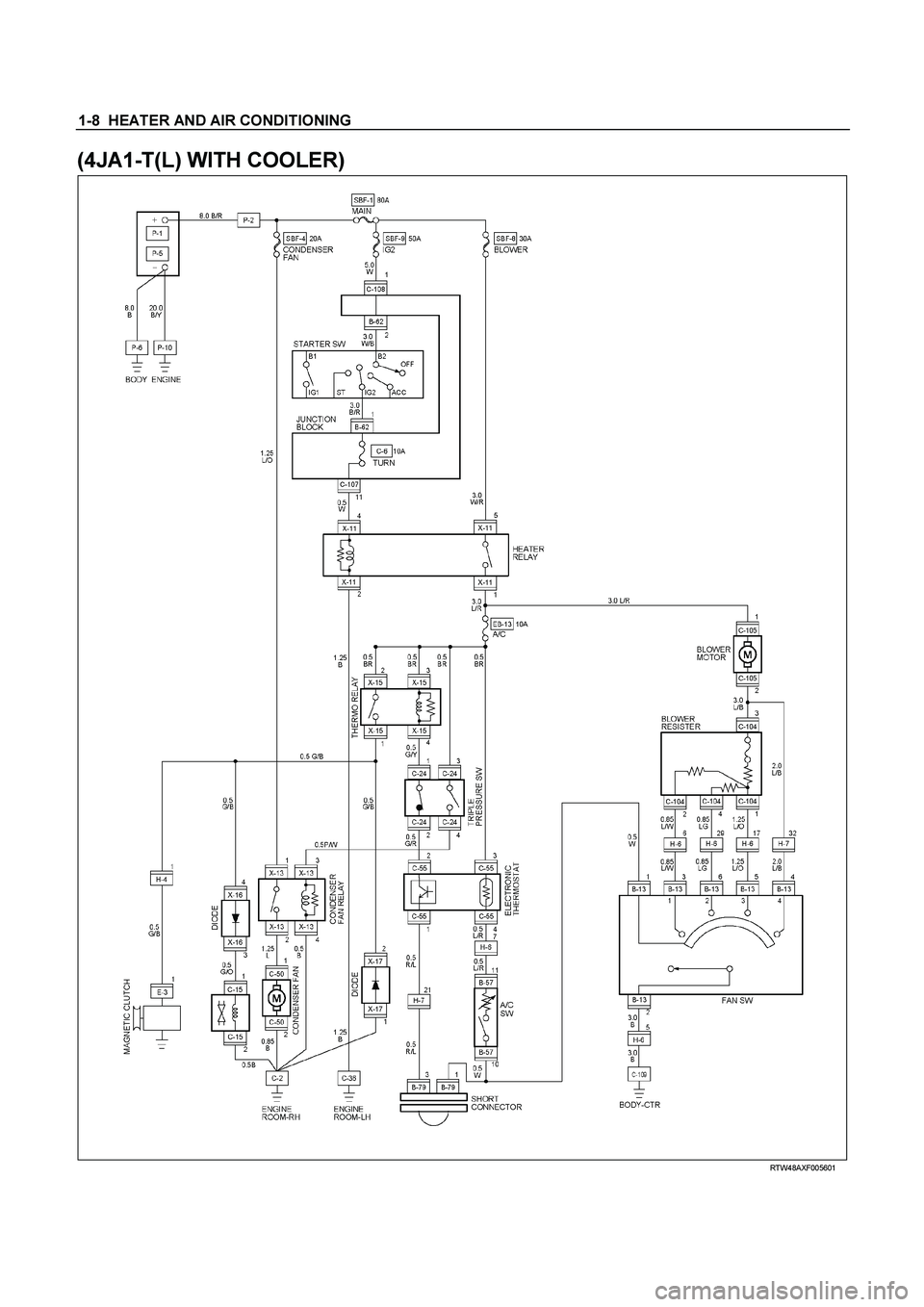

ISUZU TF SERIES 2004 Workshop Manual 1-8 HEATER AND AIR CONDITIONING (4JA1-T(L) WITH COOLER) RTW48AXF005601

Page 3019 of 4264

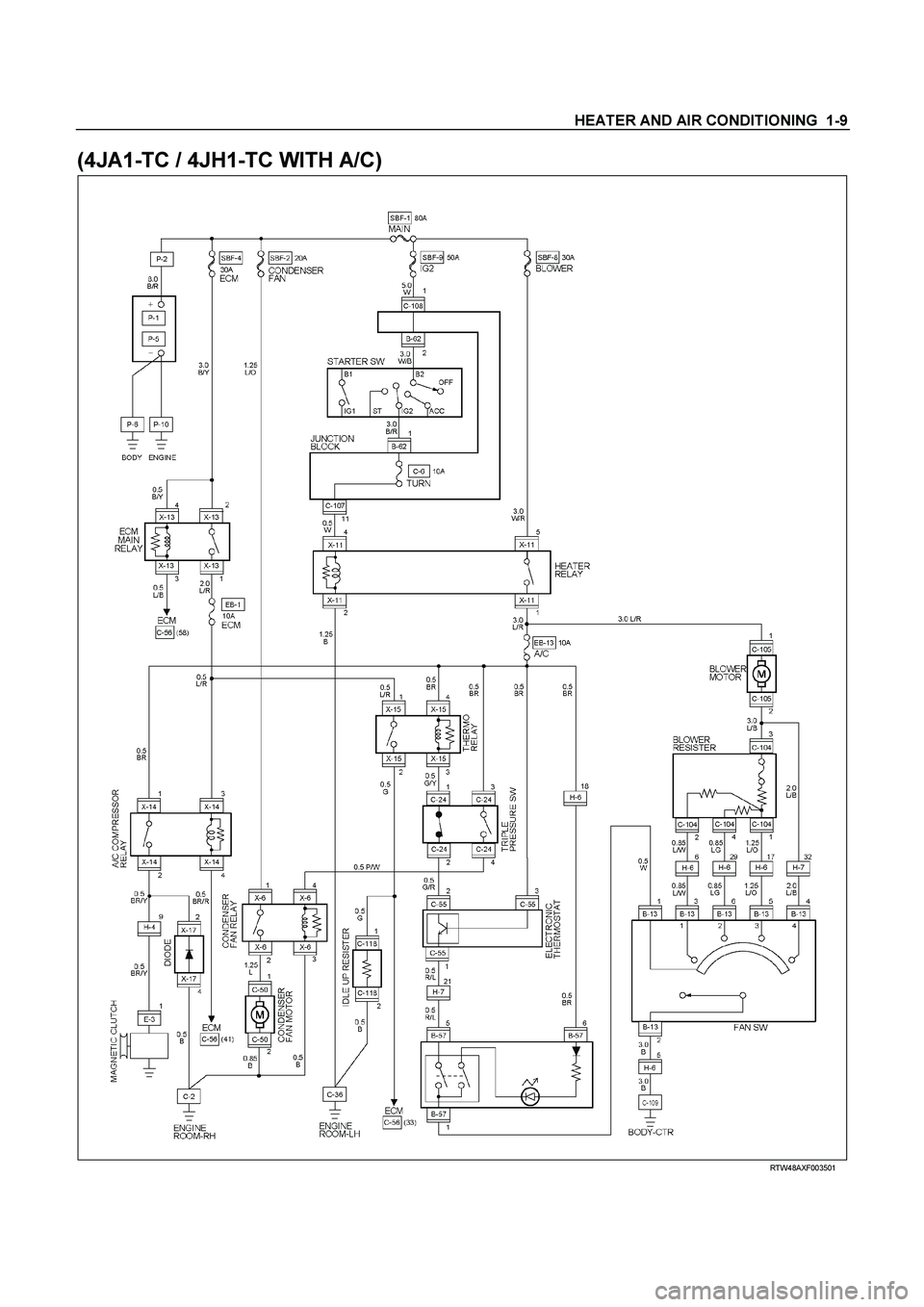

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-9 (4JA1-TC / 4JH1-TC WITH A/C) RTW48AXF003501

Page 3020 of 4264

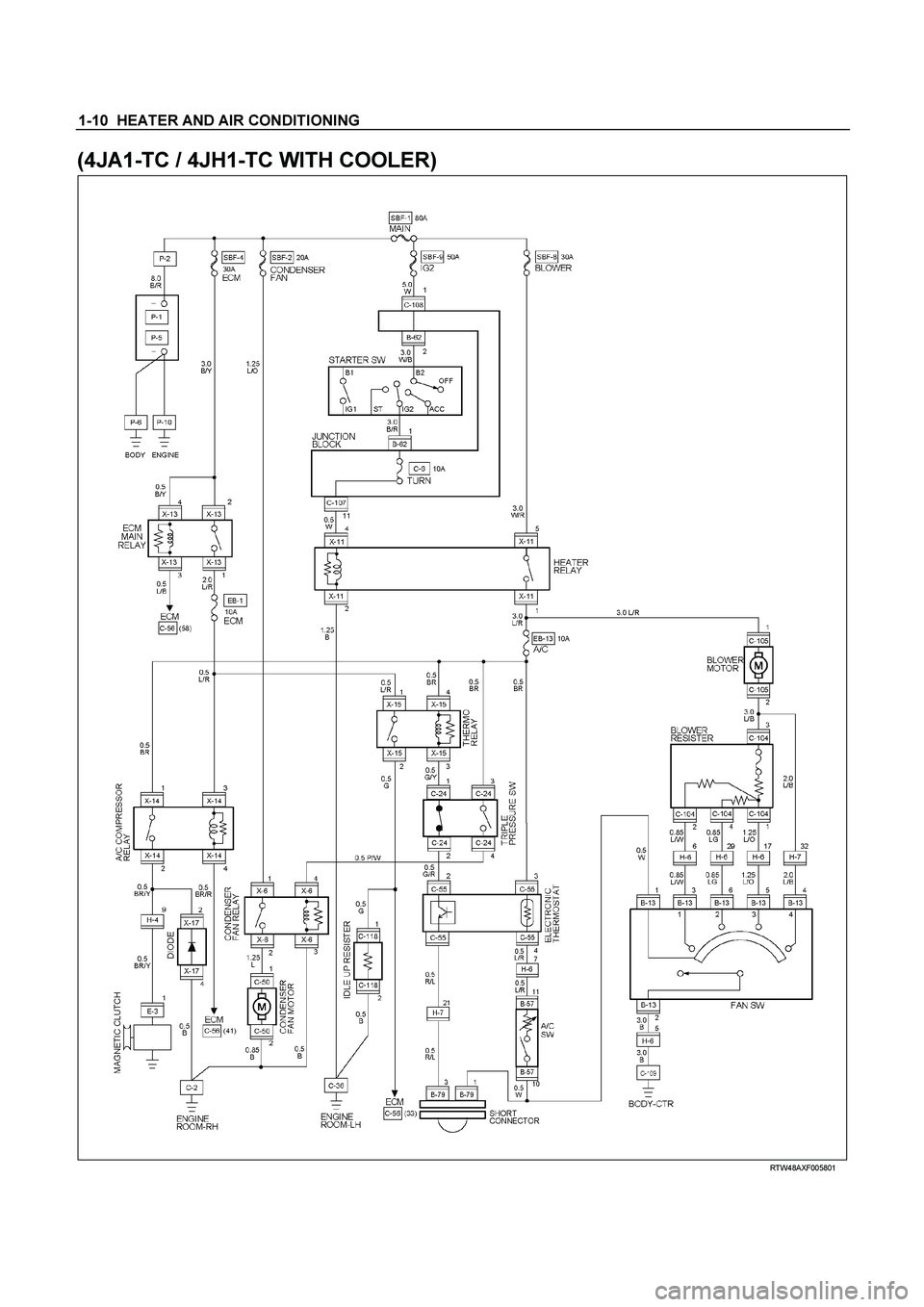

ISUZU TF SERIES 2004 Workshop Manual 1-10 HEATER AND AIR CONDITIONING (4JA1-TC / 4JH1-TC WITH COOLER) RTW48AXF005801

Page 3021 of 4264

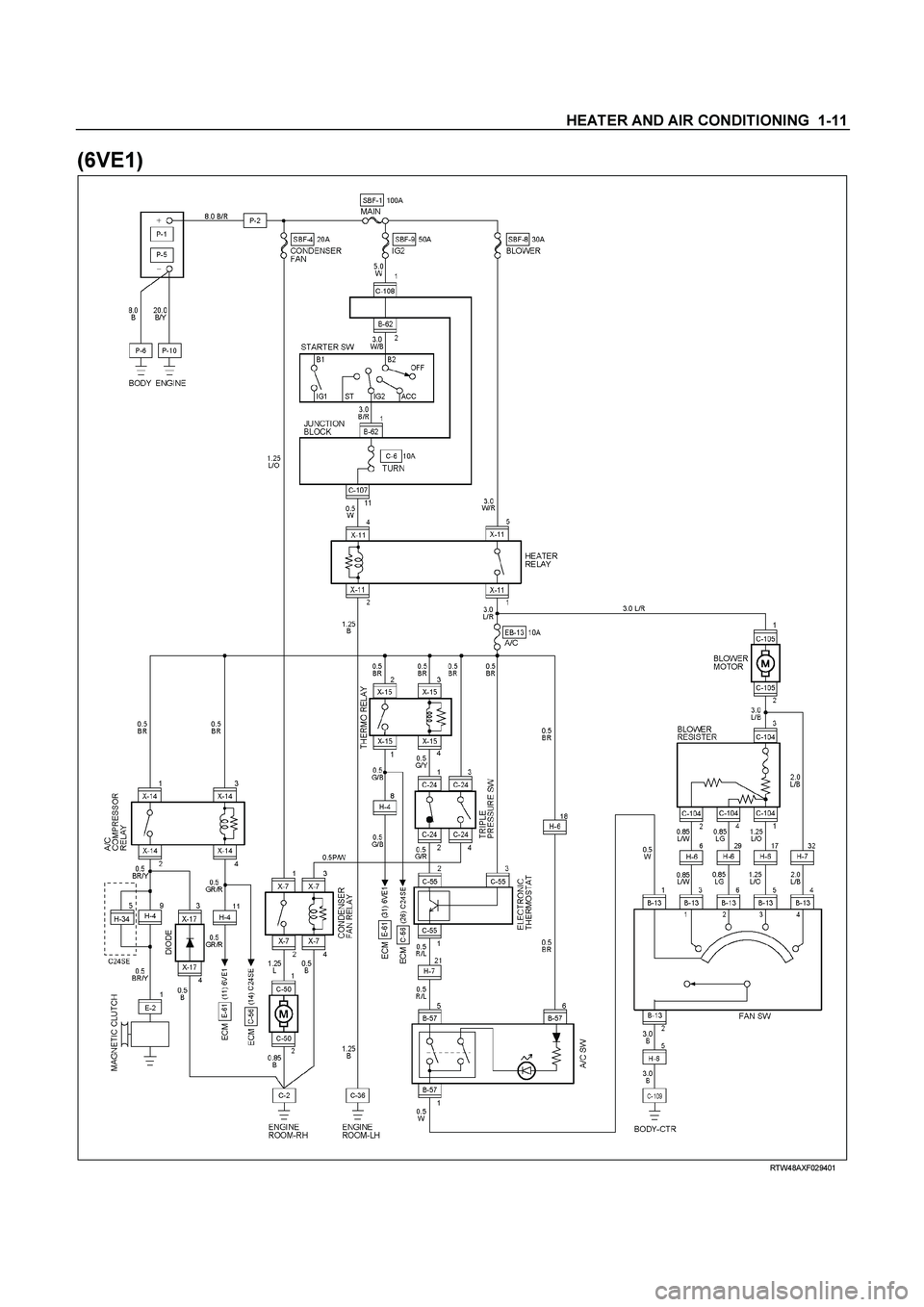

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-11 (6VE1) RTW48AXF029401

Page 3022 of 4264

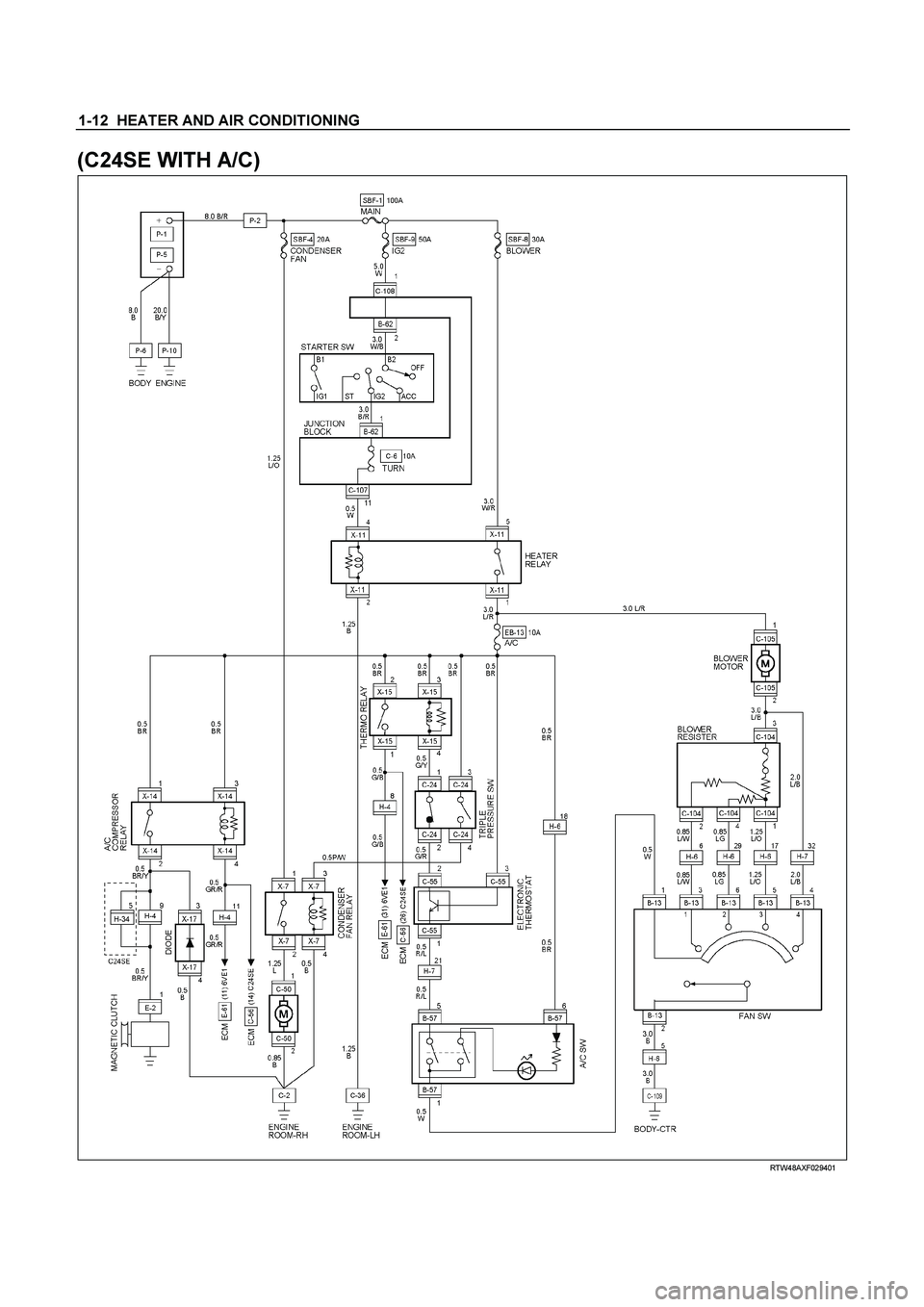

ISUZU TF SERIES 2004 Workshop Manual 1-12 HEATER AND AIR CONDITIONING (C24SE WITH A/C) RTW48AXF029401

Page 3023 of 4264

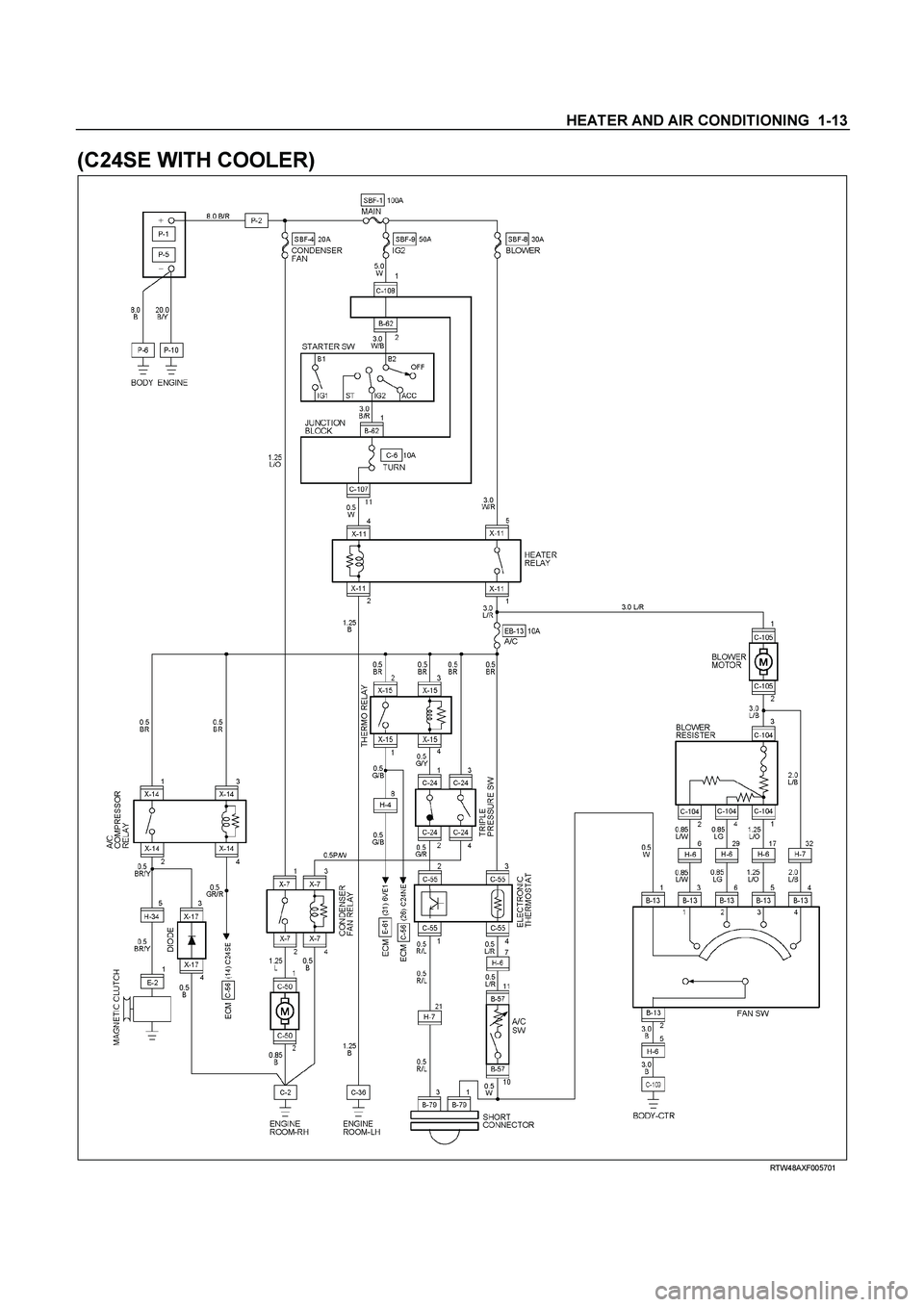

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-13 (C24SE WITH COOLER) RTW48AXF005701

Page 3024 of 4264

ISUZU TF SERIES 2004 Workshop Manual 1-14 HEATER AND AIR CONDITIONING VENTILATION This illustration is based on RHD model 840R300008 & RTW410MF000301
