6 – 2 TROUBLESHOOTING
Basic Inspection Procedure
Follow the under inspection procedure, when the problem vehicle comes workshop.
Step Inspection point Inspection result YES NO
1 Check the check engine lamp Is the check engine lamp turn
ON ? Go to section
6E “On Board
Diagnostic
(OBD) System
Check" Go to Step 2
2 The battery fluid level and the
gravity Was the problem found? Re-charge the
battery or
replace the
battery Go to Step 3
3 The engine coolant capacity Was the problem found? Replenish the
engine coolant Go to Step 4
4 The engine oil level Was the problem found? Replenish the
engine oil Go to Step 5
5 The air cleaner element Was the problem found? Clean or
replace Go to Step 6
6 The piping fixing condition (oil,
vacuum and fuel piping) Was the problem found? Return normal
condition Go to Step 7
7 The drive belt tension and break Was the problem found? Re-adjust the
tension or
replace Go to Step 8
8 Go to section 6E “On Board
Diagnostic (OBD) System
Check” Was the problem found?
Verify repair Go to Step 9
9 Go to mechanical
troubleshooting chart Was the problem found?
Verify repair —

6A – 6 ENGINE MECHANICAL
MAIN DATA AND SPECIFICATIONS
Engine model
Item 4JH1TC
Engine type Four-cycle, overhead valve, water cooled
Combustion chamber type Direct injection
Cylinder liner type
Timing gear train system Dry type, chrome plated
Gear drive
No. of cylinders-bore
stroke mm (in) 4 – 95.4
104.9 (3.76
4.13)
No. of piston rings Compression ring: 2 / Oil ring: 1
Total piston displacement liter
Compression ratio (to 1) 2,999
18.3
Compression pressure MPa(kg/cm2/psi) 3.0 (31.0/441) – 200 rpm
Engine weight (dry) kg (lb) MT : Approximately 249 (549)
AT : Approximately 236 (520)
Fuel injection order 1 – 3 – 4 - 2
Specified fuel type JIS No.2, DIN/EN590, GB252-1944 Diesel fuel
Idling speed rpm
700
25 (A/C OFF)
800
25 (A/C ON)
Valve clearances (At cold): Intake mm (in)
Exhaust mm (in)
Intake valves Open at (BTDC) deg
Close at (ABDC) deg
Exhaust valves Open at (BBDC) deg
Close at (ATDC) deg
Fuel system
Injection pump type 0.4 (0.016)
0.4 (0.016)
24.5
55.5
54.0
26.0

BOSCH distributor VP44 type
Injection nozzle type
Injection nozzle opening pressure
MPa(kg/cm
2/psi)Hole with 5 orifices

1st 19.5 (199/2,828)
2nd (Reference) 34.335.8 (350365/4,9805,197)
Main fuel filter type
Lubricating system
Lubricating method Cartridge paper element and water separator

Pressure circulation
Specified engine oil (API grade) ISUZU genuine 10W – 30 (API CD of ACEA B2/B3)
Oil pump type
Oil filter type Gear
Cartridge paper element
Oil capacity lit (US/UK gal)
6.2 (1.64/1.36) (For 4
2)
7.0 (1.85/1.54) (For 4
4)
Oil cooler type Water cooled

ENGINE MECHANICAL 6A – 45



4JA1L
RTW46ASH001001
4. EGR Valve
1) Remove four nuts and remove the EGR valve
assembly from the intake manifold.
2) Remove four bolts and remove the adapter from the
EGR valve assembly.




4JA1TC RTW46ASH000901
5. Oil Level Gauge
1) Disconnect PCV hose.
2) Remove two bolts and remove the engine oil level
gauge.


6. Fuel Filter Assembly (Except EURO III model)
1) Disconnect fuel hose.
2) Remove two bolts and remove the fuel filter.

7. Fuel Filter Bracket (Except EURO III model)
Remove three bolts and remove the fuel filter bracket with
leak pipe.



4JH1TC RTW36ASH001201
8. Fuel Injection Pipe with Clip
1) Loosen the injection pipe sleeve nuts at pump side
and nozzle side.
Do not apply excessive force to the injection pipes.
2) Loosen the injection pipe clips.
3) Remove the injection pipe.
NOTE:
Plug the delivery holder ports with the caps to prevent the
entry of foreign material.

9. Power Steering Oil Pump Bracket


RTW36ASH000701
10. Intake Manifold
1) Disconnect the PCV hose from the cylinder head
cover.
2) Remove the intake manifold with gasket.

11. Engine Mounting Bracket and Foot
12. Injection Pump Cover

FUEL SYSTEM 6C – 1


SECTION 6C
FUEL SYSTEM


TABLE OF CONTENTS
PAGE
Main Data and Specifications ....................................................................................... 6C - 3
General Description....................................................................................................... 6C - 4
Fuel Flow .................................................................................................................... 6C - 4
Fuel Filter and Water Separator ............................................................................... 6C - 5
Injection Pump ........................................................................................................... 6C - 7
Injection Nozzle ......................................................................................................... 6C - 8
Fuel Tank ........................................................................................................................ 6C - 9
Removal ..................................................................................................................... 6C - 9
Installation ................................................................................................................. 6C - 10
Fuel Pump ...................................................................................................................... 6C - 12
Removal...................................................................................................................... 6C - 13
Installation.................................................................................................................. 6C - 13
Fuel Tube / Quick - Connector Fittings ........................................................................ 6C - 14
Filler Neck ...................................................................................................................... 6C - 16
Removal...................................................................................................................... 6C - 16
Installation.................................................................................................................. 6C - 16
Fuel Filler Cap ................................................................................................................ 6C - 17
Injection Pump ............................................................................................................... 6C - 18
Removal and Installation .......................................................................................... 6C - 18
Removal...................................................................................................................... 6C - 18
Installation.................................................................................................................. 6C - 21

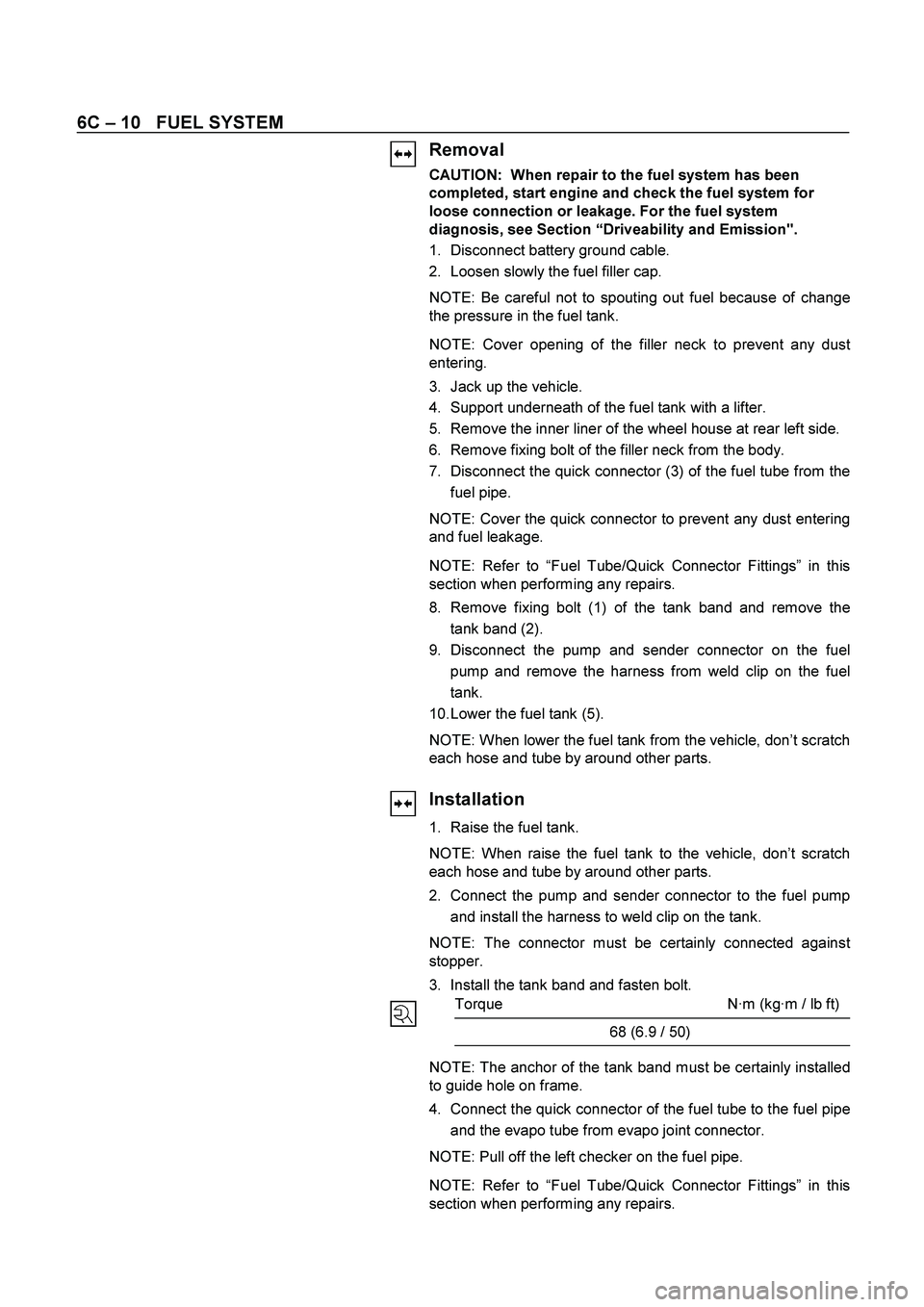

6C – 10 FUEL SYSTEM
Removal
CAUTION: When repair to the fuel system has been
completed, start engine and check the fuel system for
loose connection or leakage. For the fuel system
diagnosis, see Section “Driveability and Emission".
1. Disconnect battery ground cable.
2. Loosen slowly the fuel filler cap.
NOTE: Be careful not to spouting out fuel because of change
the pressure in the fuel tank.
NOTE: Cover opening of the filler neck to prevent any dus
t
entering.
3. Jack up the vehicle.
4. Support underneath of the fuel tank with a lifter.
5. Remove the inner liner of the wheel house at rear left side.
6. Remove fixing bolt of the filler neck from the body.
7.
Disconnect the quick connector (3) of the fuel tube from the
fuel pipe.
NOTE: Cover the quick connector to prevent any dust entering
and fuel leakage.
NOTE: Refer to“Fuel Tube/Quick Connector Fittings” in this
section when performing any repairs.
8. Remove fixing bolt (1) of the tank band and remove the
tank band (2).
9.
Disconnect the pump and sender connector on the fuel
pump and remove the harness from weld clip on the fuel
tank.
10.
Lower the fuel tank (5).
NOTE: When lower the fuel tank from the vehicle, don’t scratch
each hose and tube by around other parts.













Installation
1. Raise the fuel tank.
NOTE: When raise the fuel tank to the vehicle, don’t scratch
each hose and tube by around other parts.
2. Connect the pump and sender connector to the fuel pump
and install the harness to weld clip on the tank.
NOTE: The connector must be certainly connected agains
t
stopper.
3. Install the tank band and fasten bolt.
Torque N·m (kg·m / lb ft)
68 (6.9 / 50)
NOTE: The anchor of the tank band must be certainly installed
to guide hole on frame.
4. Connect the quick connector of the fuel tube to the fuel pipe
and the evapo tube from evapo joint connector.
NOTE: Pull off the left checker on the fuel pipe.
NOTE: Refer to “Fuel Tube/Quick Connector Fittings” in this
section when performing any repairs.

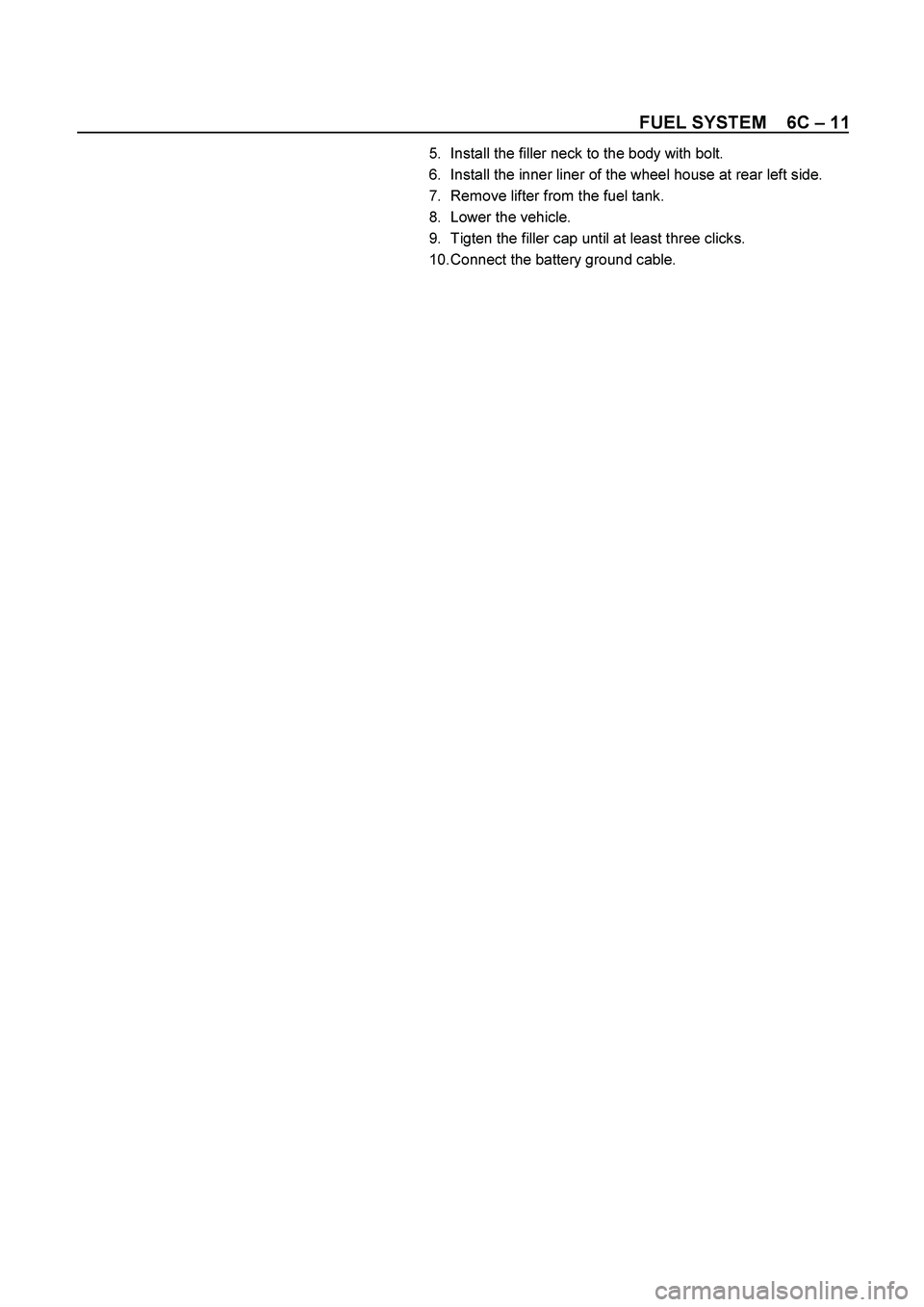

FUEL SYSTEM 6C – 11
5. Install the filler neck to the body with bolt.
6. Install the inner liner of the wheel house at rear left side.
7. Remove lifter from the fuel tank.
8.
Lower the vehicle.
9.
Tigten the filler cap until at least three clicks.
10.
Connect the battery ground cable.

6C – 14 FUEL SYSTEM

8.
Check leak.
Methed of leak check.

(1)
Plug end of quick connector and breather hose (Pull of
f
the breather hose from fuel tank) and tighten fuel fille
r
cap until at least one click are heard.
(2)
Apply water soap around the fuel gauge unit seal area.
(3)
Pressure air into the fuel tank from end of breather pipe
at 5psi (34.3 kPa/2.8kgf/cm
2) over 15 seconds.
(4)
Verify no bubbles around the fuel gauge unit seal area.
9.
Install the fuel tank assembly (9).
NOTE: Refer to “Install the fuel tank” in this section.

FUEL SYSTEM 6C – 15
FUEL TUBE / QUICK – CONNECTOR FITTINGS



Precautions


Do not light a match or create a flame.


Keep flames away from your work area to preven
t
flammable materials from catching fire.


Disconnect battery ground cable to prevent electrical shorts.


Pre-treat piping system or associated parts from thermal
damage or from spattering when welding or simila
r
heat-generating work.



140R100032
Legend

(1)
O-ring

(2)
Port

(3)
Connector

(4)
Plastic Tube


Cautions During Work
Do not expose the assembly to battery electrolyte or do not
wipe the assembly with a cloth used to wipe off spilt battery
electrolyte.
Piping that has been splattered with battery electrolyte or
battery electrolyte soaked cloth that was wiped on the piping
cannot be used.




141R100002
Removal
1. Open the fuel cap to relieve the fuel pressure in the tank.
Use compressed air to remove any dirt on the fuel quick
connect fittings prior to disconnecting the fittings.
When disconnecting the fuel pipe, cover the area with a
cloth to prevent fuel from splashing as the fuel pipe ma
y
still have some pressure in it.
