ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-75 192-4B22  Force compressed air (392 kPa/4.0 kg/cm2) through the transmission case oil passage to 2-4 brake operation. If the 2-4 brake does not operate, th

Page 4250 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A4-76 UNIT REPAIR (JR405E) 24ASSY047  Install the high clutch hub and the bearing race to the transmission case. 25R&H42 11.Clutch pack (reverse and high clutch assembly)

Page 4251 of 4264

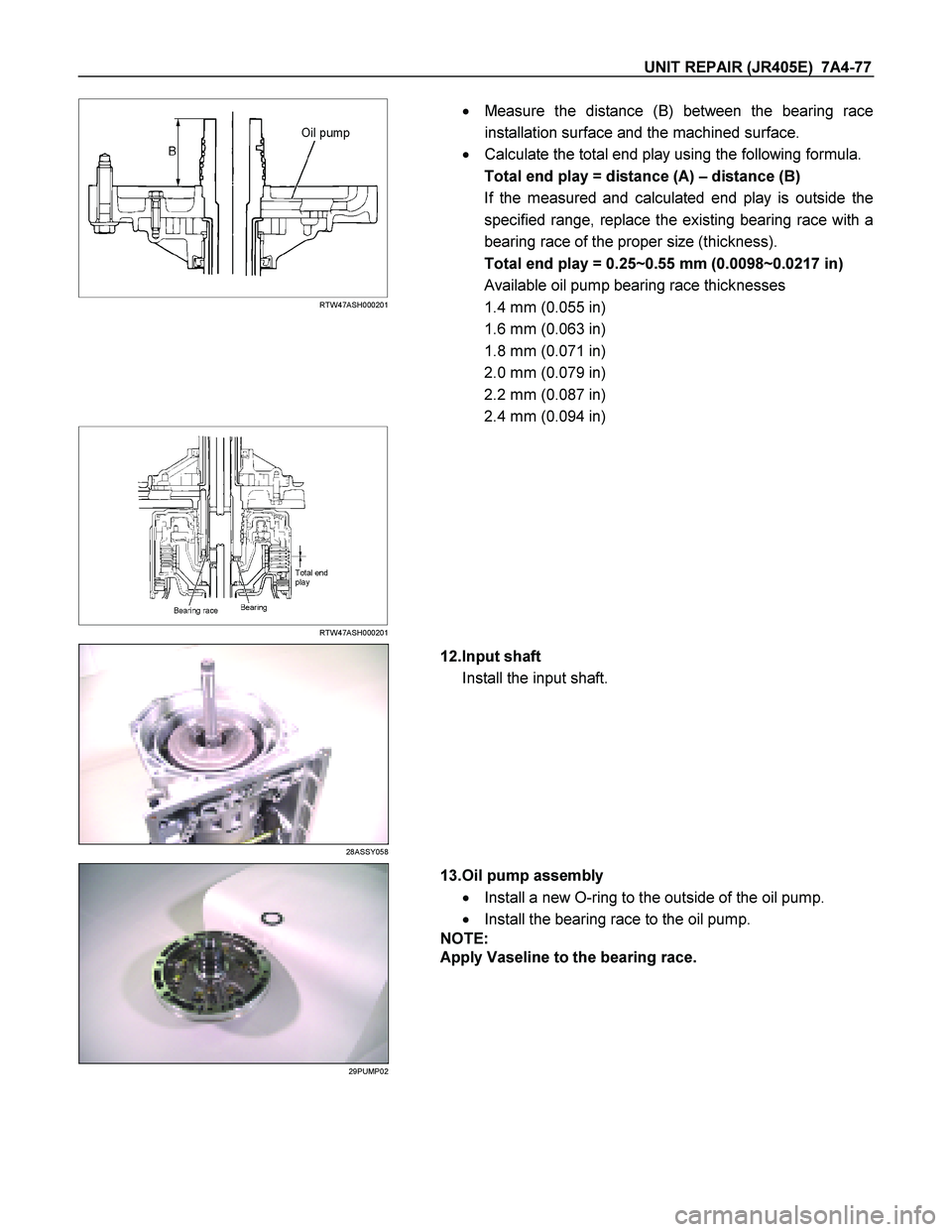

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-77 RTW47ASH000201  Measure the distance (B) between the bearing race installation surface and the machined surface.  Calculate the total end pl

Page 4252 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A4-78 UNIT REPAIR (JR405E) 30ASSY067  Apply ATF to the O-ring at the outside of the oil pump.  Install the oil pump assembly to the transmission case.  Apply sealing agent

Page 4253 of 4264

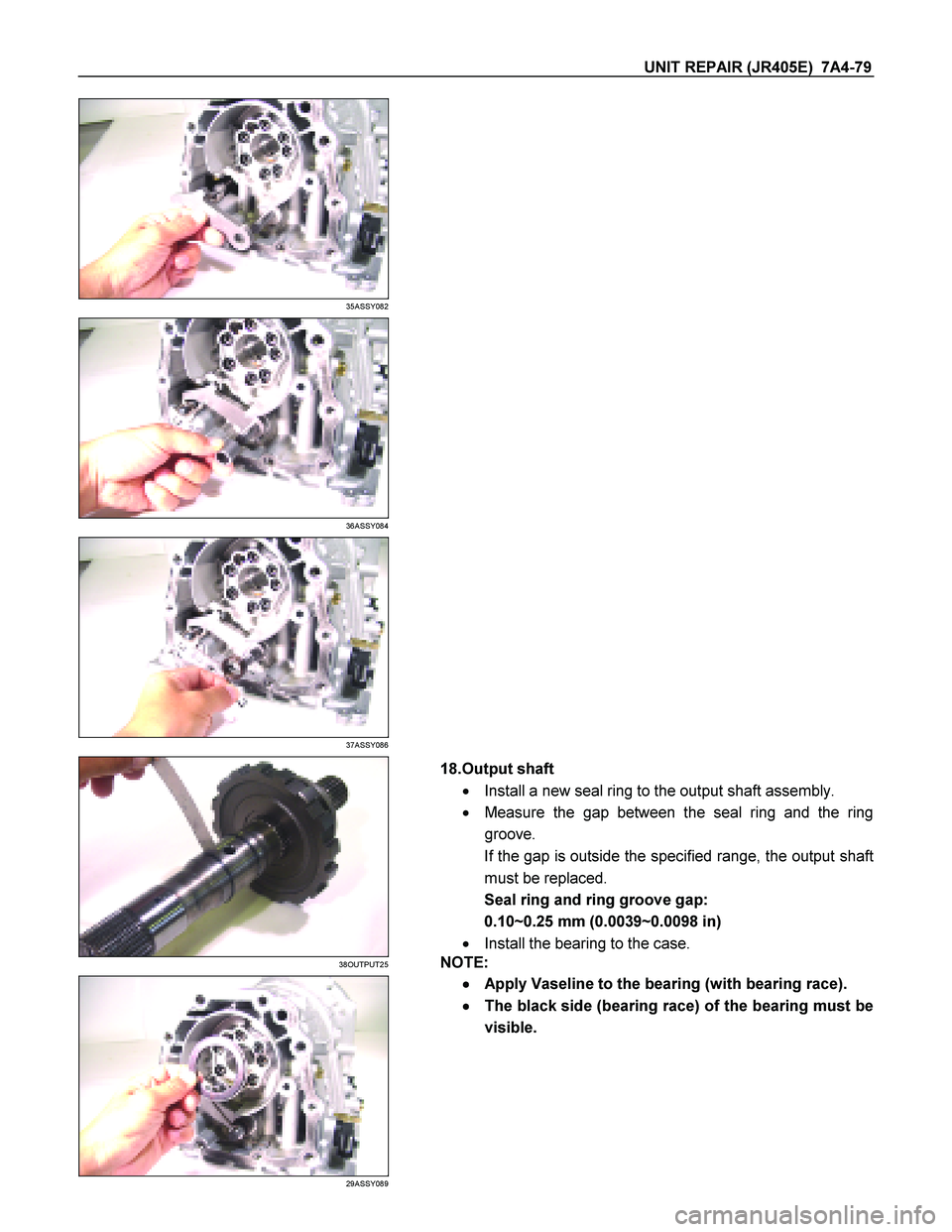

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-79 35ASSY082 36ASSY084 37ASSY086 38OUTPUT25 29ASSY089 18.Output shaft  Install a new seal ring to the output shaft assembly.  Mea

Page 4254 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A4-80 UNIT REPAIR (JR405E) 40ASSY091  Push the output shaft into place. 19.Rear extension (2WD) or adapter case (4WD)  Use the oil seal installer to install the oil sea

Page 4255 of 4264

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-81 43ASSY119 20.Control valve assembly  Align the manual valve and the manual plate of the transmission case.  Install the control va

Page 4256 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A4-82 UNIT REPAIR (JR405E) 244L300001 21.Oil pan  Install a new gasket and the oil pan.  Tighten the bolts to the specified torque. Torque: 8 N    m (69 Ib
