ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-31 FUSE AND SLOW BLOW FUSE LOCATION (RELAY AND FUSE BOX) RELAY & FUSE BOX RHD FUSE  ENGINE MODEL FUSE NO. C24SE 6VE1 4JA1-TC / 4JH1-TC4JA1-L EB-1 15A EC

Page 690 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-32 ELECTRICAL-BODY AND CHASSIS FUSE AND SLOW BLOW FUSE LOCATION (RELAY AND FUSE BOX) RELAY & FUSE BOX LHD FUSE  Saudi Arabia ENGINE MODEL FUSE NO. C24SE 6VE1 4JA1-TC / 4JH1-TC4JA1-L

Page 691 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-33 FUSE LOCATION RHD/LHD RTW38DMF000101 FUSE

Page 692 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-34 ELECTRICAL-BODY AND CHASSIS DIODE LOCATION RELAY & FUSE BOX DIODE C24SE 6VE1 4JA1-TC / 4JH1-TC 4JA1-L No. RHD LHD RHD LHD RHD LHD RHD LHD X-16  TCM  TCM A/C

Page 693 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-35 FUSE BLOCK CIRCUIT C24SE Sheet 1/2 RTW48AXF000101

Page 694 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-36 ELECTRICAL-BODY AND CHASSIS FUSE BLOCK CIRCUIT C24SE Sheet 2/2 RTW48AXF026901

Page 695 of 4264

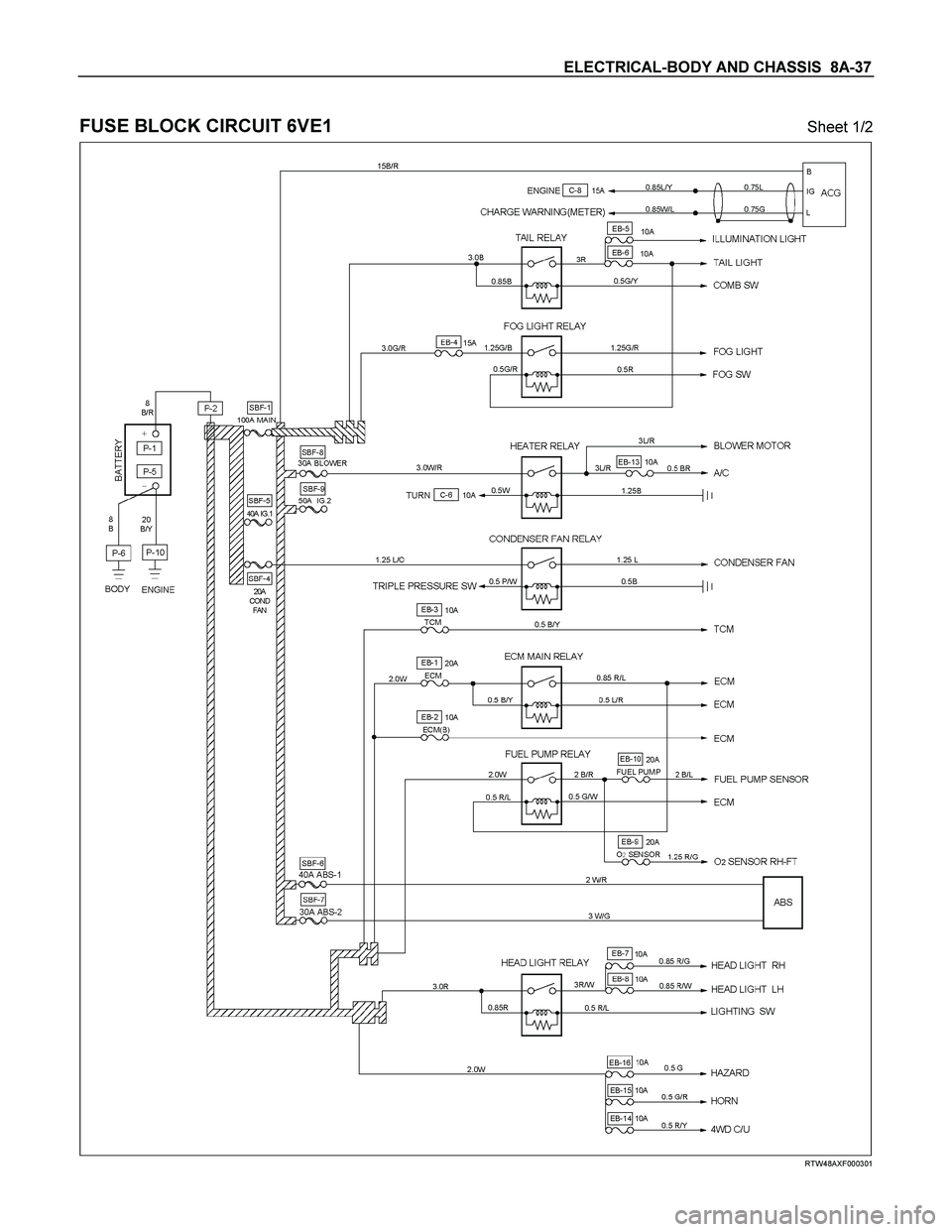

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-37 FUSE BLOCK CIRCUIT 6VE1 Sheet 1/2 RTW48AXF000301

Page 696 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-38 ELECTRICAL-BODY AND CHASSIS FUSE BLOCK CIRCUIT 6VE1 Sheet 2/2 RTW48AXF026701
