Page 2177 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-181 Step Action Value (s) Yes No 6 Check for the following conditions.  Objects blocking the throttle valve.  Vacuum leaking at throttle body.

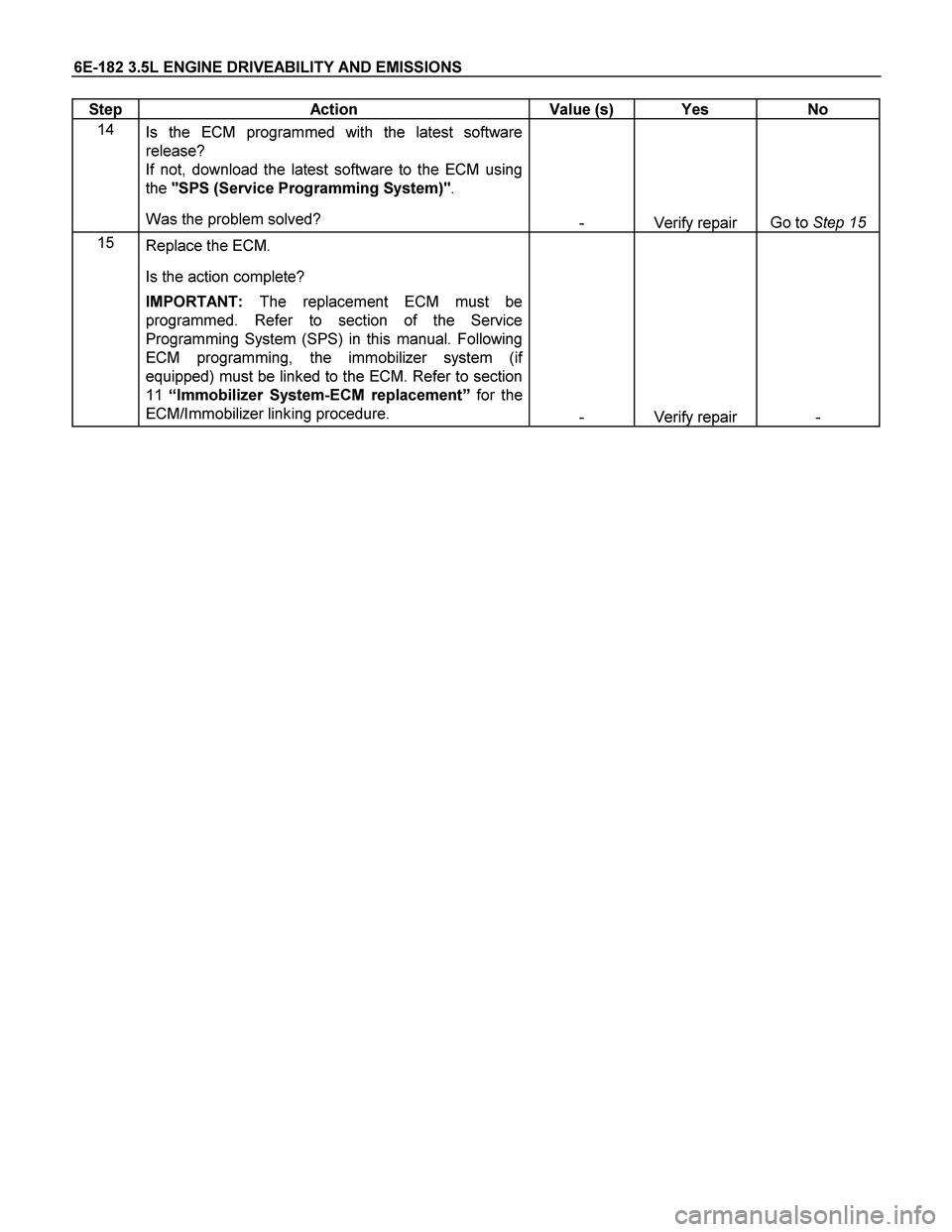

Page 2178 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-182 3.5L ENGINE DRIVEABILITY AND EMISSIONS Step Action Value (s) Yes No 14 Is the ECM programmed with the latest software release? If not, download the latest software to the ECM using

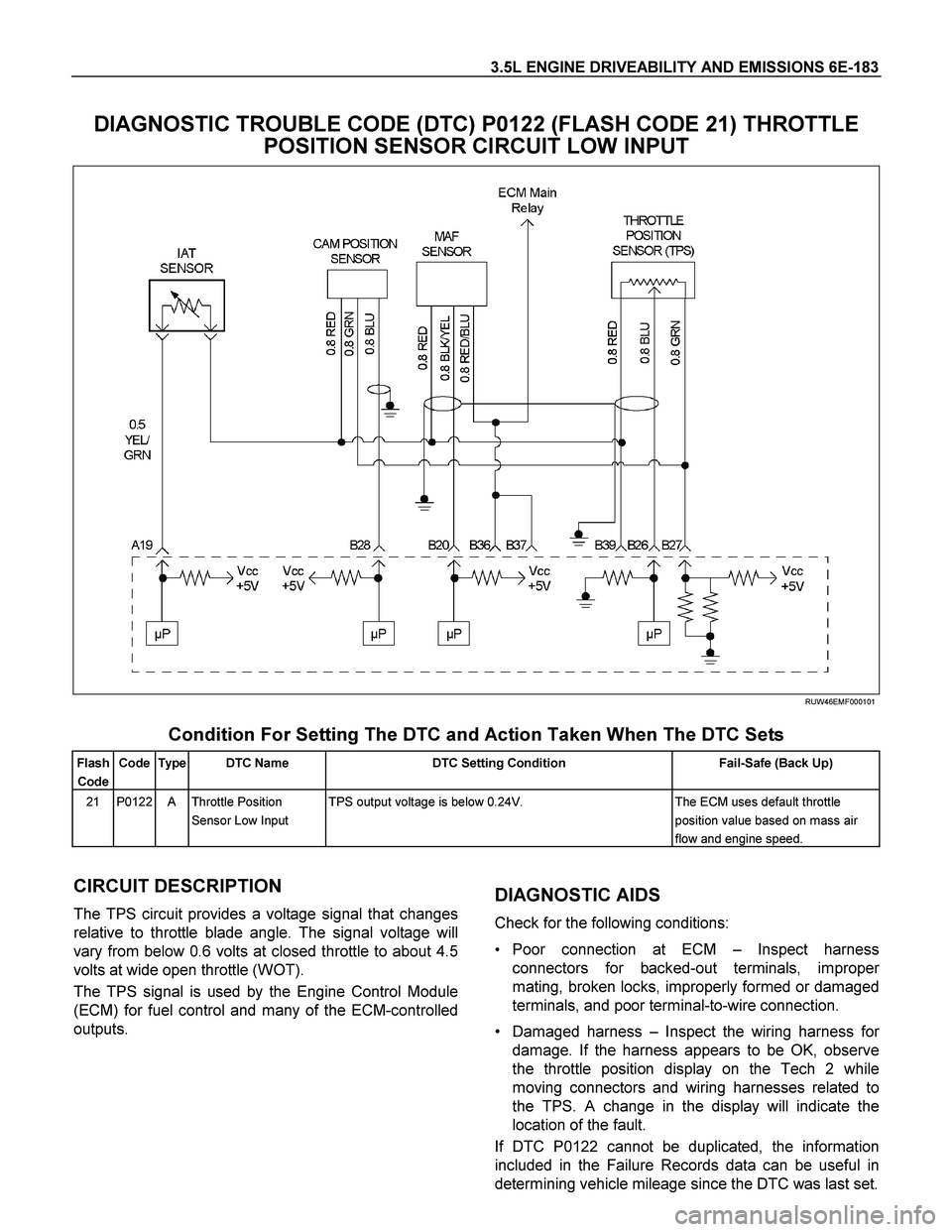

Page 2179 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-183 DIAGNOSTIC TROUBLE CODE (DTC) P0122 (FLASH CODE 21) THROTTLE POSITION SENSOR CIRCUIT LOW INPUT RUW46EMF000101 Condition For Setting The DTC a

Page 2180 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-184 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P0122 (Flash Code 21) Throttle Position Sensor Circuit Low Input Step Action Value (s) Yes No 1 Was the "On-Board

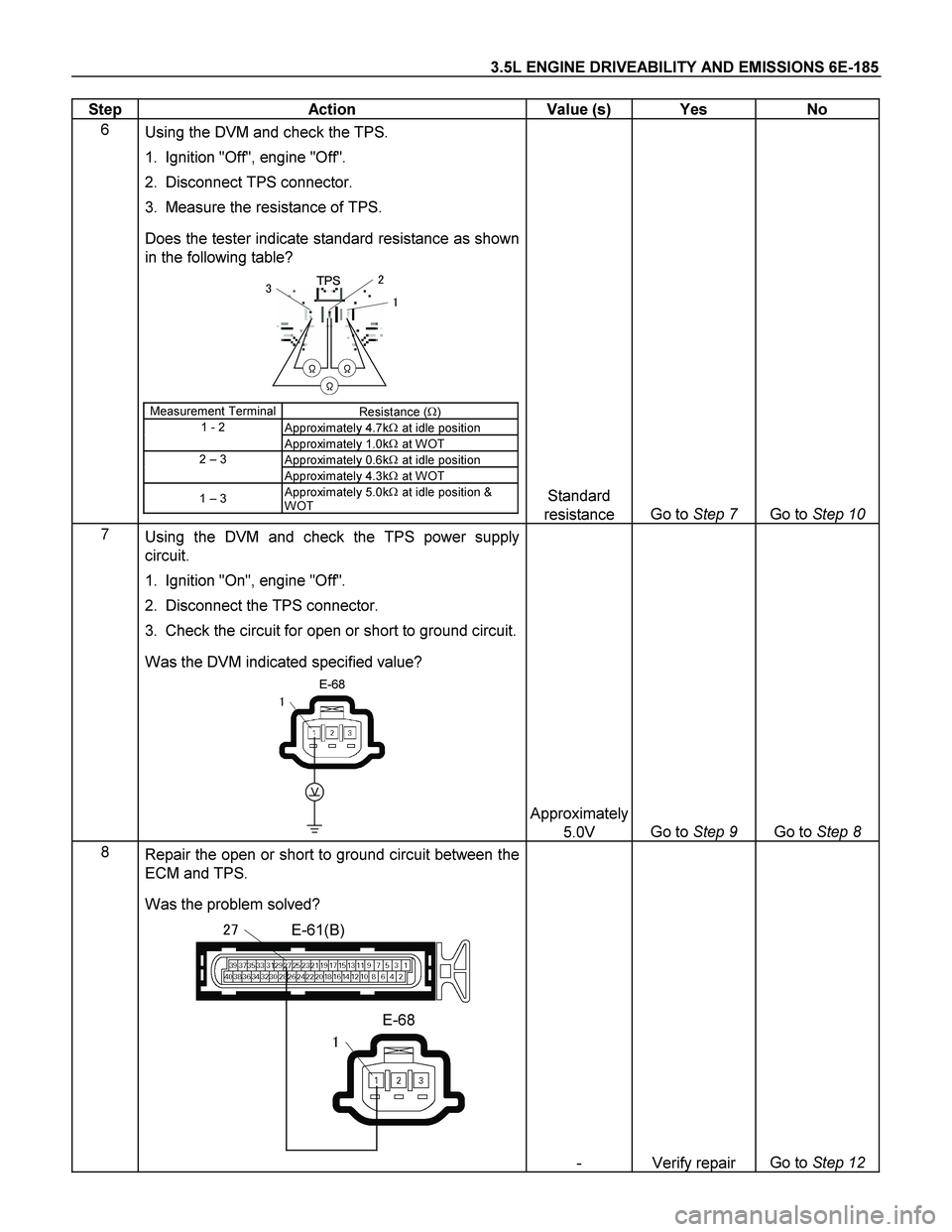

Page 2181 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-185 Step Action Value (s) Yes No 6 Using the DVM and check the TPS. 1. Ignition "Off", engine "Off". 2. Disconnect TPS connector. 3. Measure t

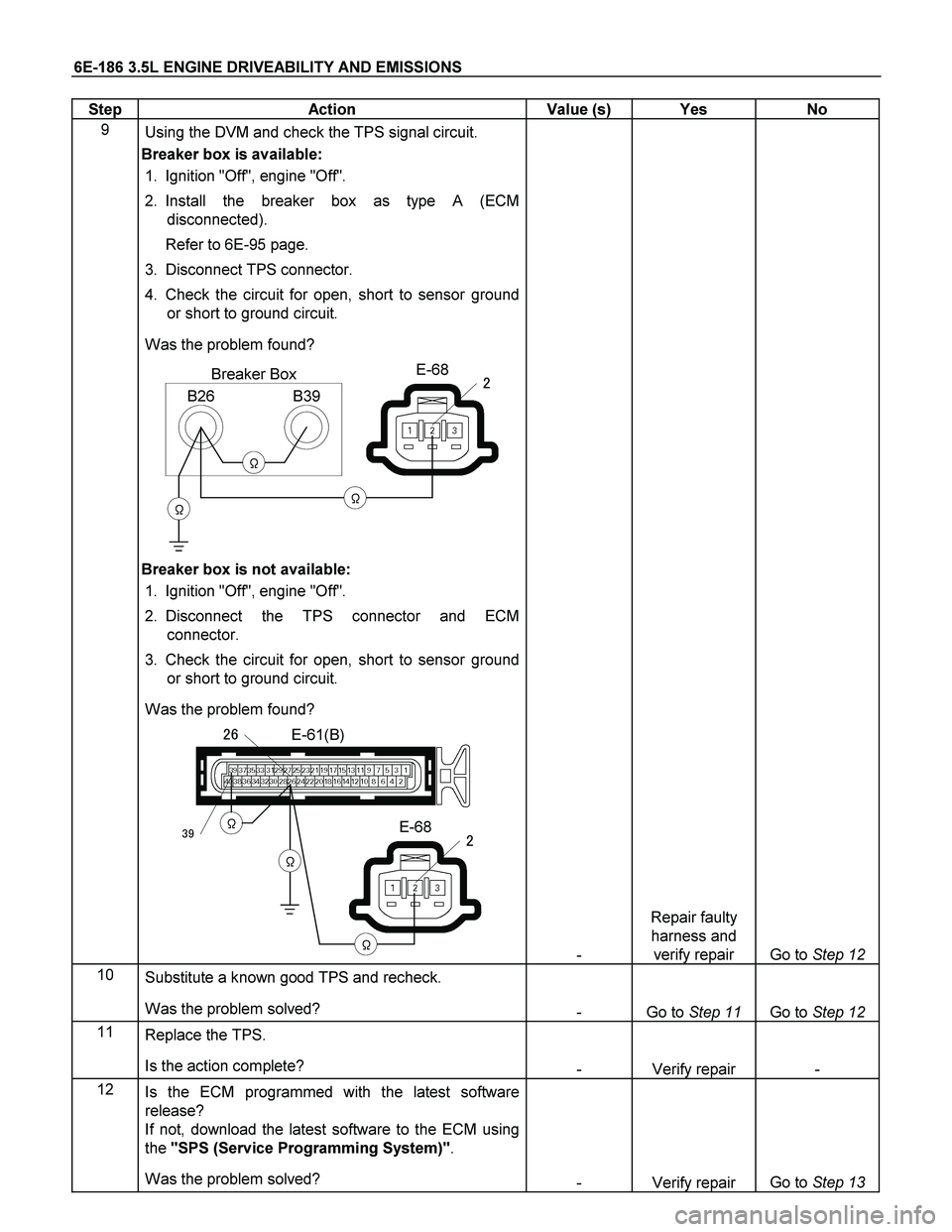

Page 2182 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-186 3.5L ENGINE DRIVEABILITY AND EMISSIONS Step Action Value (s) Yes No 9 Using the DVM and check the TPS signal circuit. Breaker box is available: 1. Ignition "Off", engine "Off".

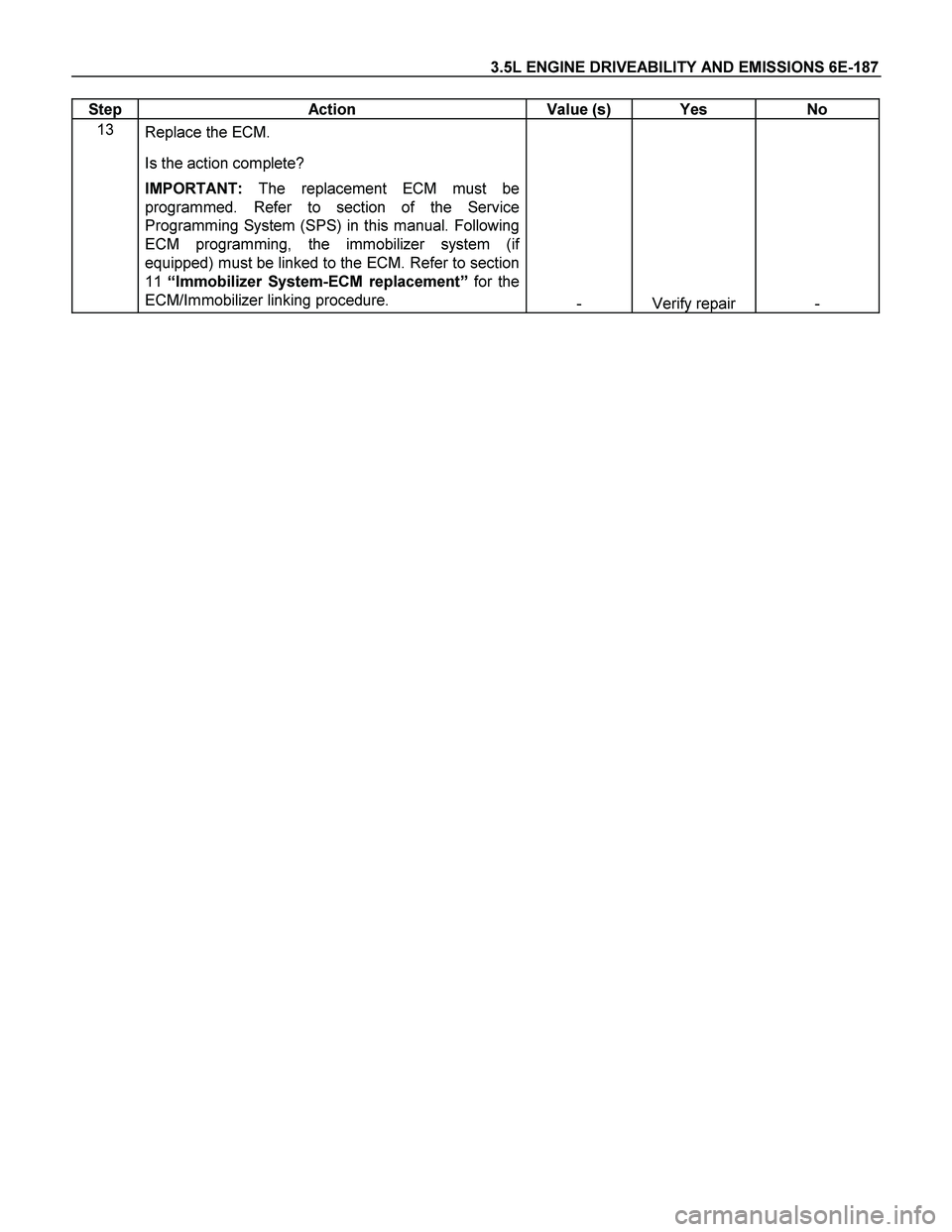

Page 2183 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-187 Step Action Value (s) Yes No 13 Replace the ECM. Is the action complete? IMPORTANT: The replacement ECM must be programmed. Refer to section of

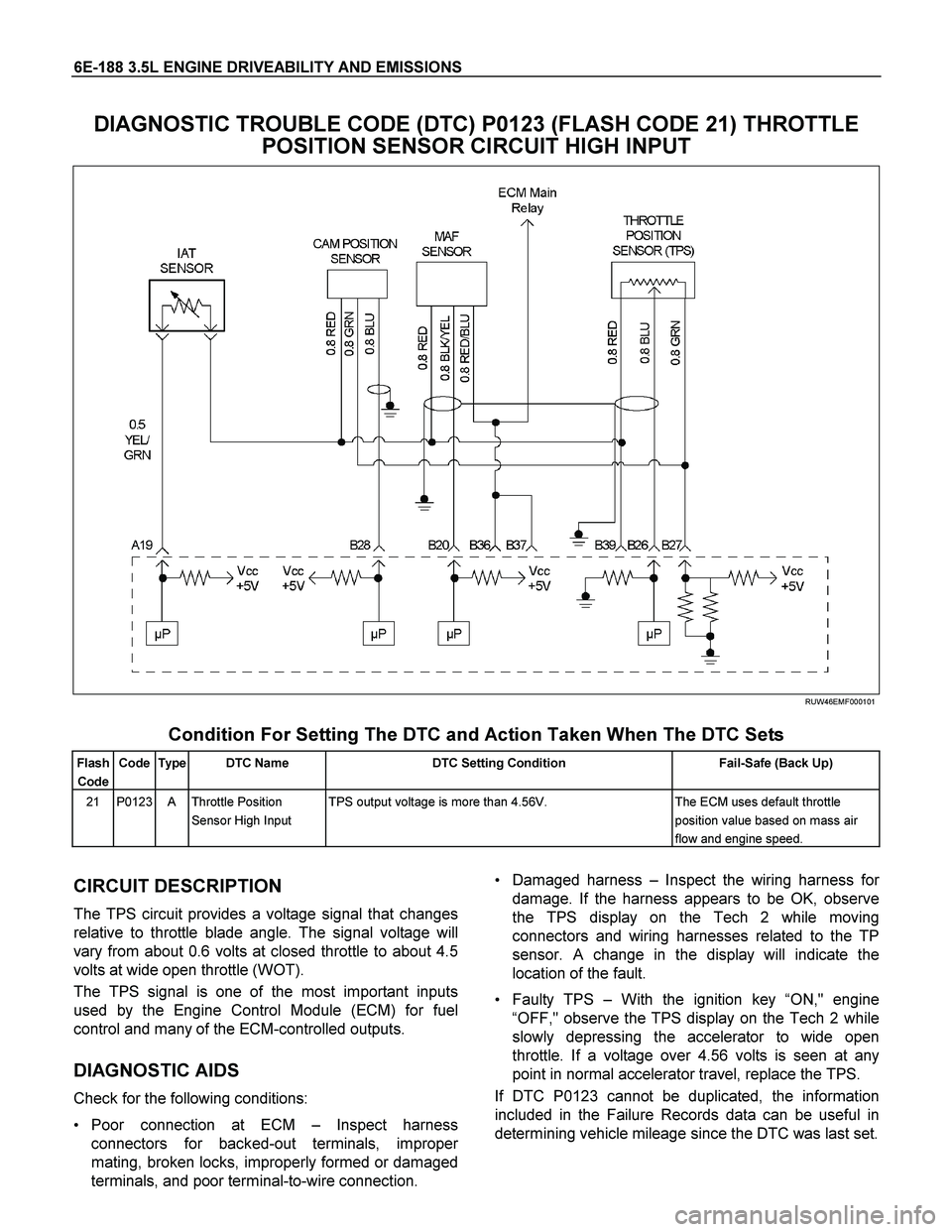

Page 2184 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-188 3.5L ENGINE DRIVEABILITY AND EMISSIONS DIAGNOSTIC TROUBLE CODE (DTC) P0123 (FLASH CODE 21) THROTTLE POSITION SENSOR CIRCUIT HIGH INPUT RUW46EMF000101 Condition For Setting The DTC
