FRAME AND BUMPER 2A-37
4

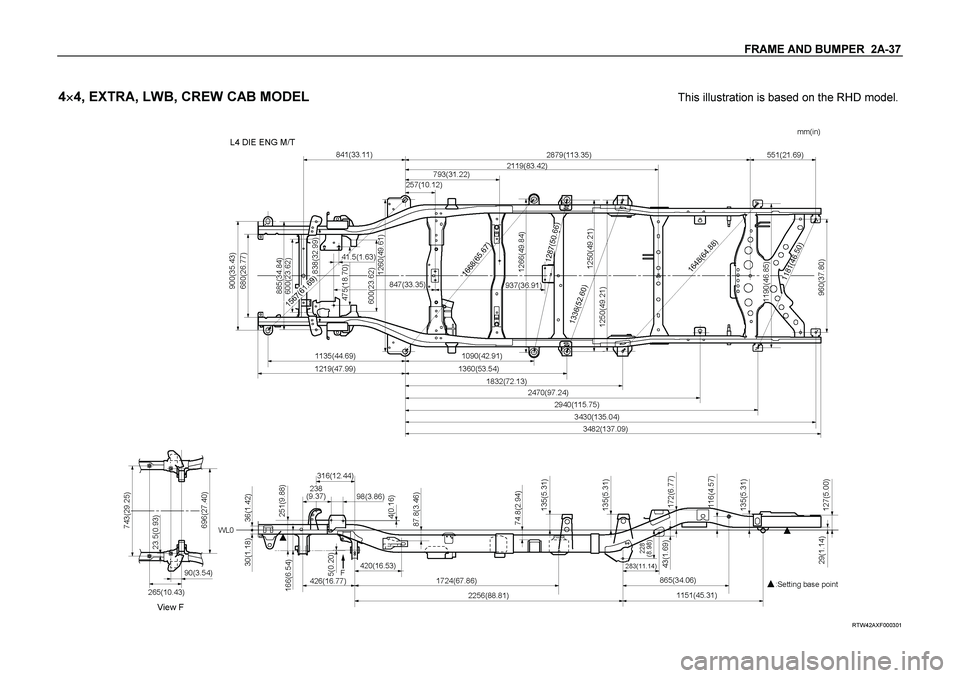

4, EXTRA, LWB, CREW CAB MODEL
This illustration is based on the RHD model.
RTW42AXF000301
Page 2930 of 4264
2A-38 FRAME AND BUMPER

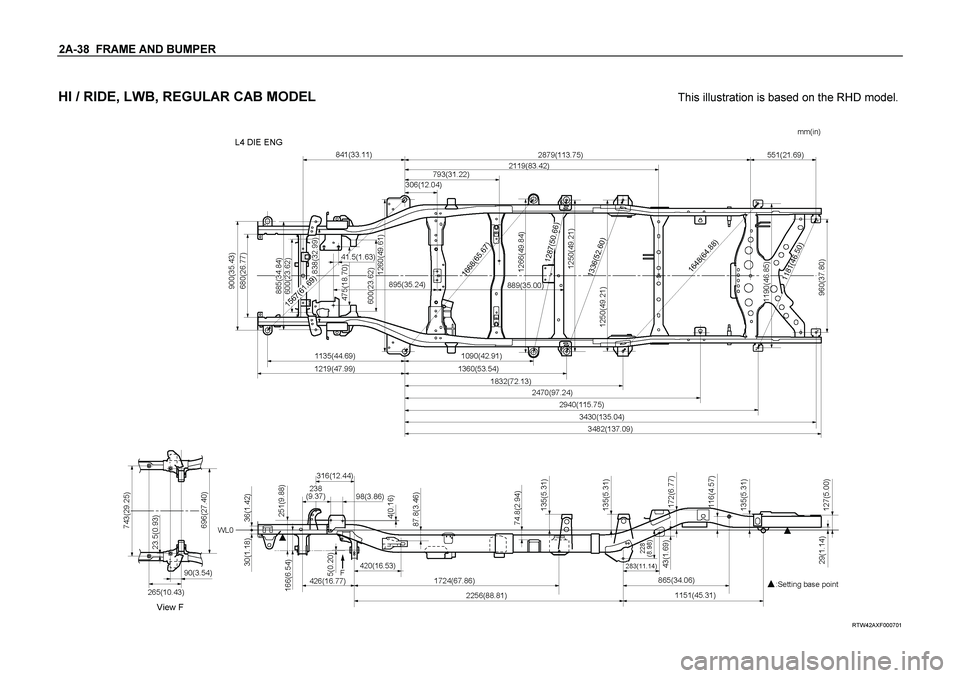

HI / RIDE, LWB, REGULAR CAB MODEL
This illustration is based on the RHD model.
RTW42AXF000701
Page 2931 of 4264
FRAME AND BUMPER 2A-39

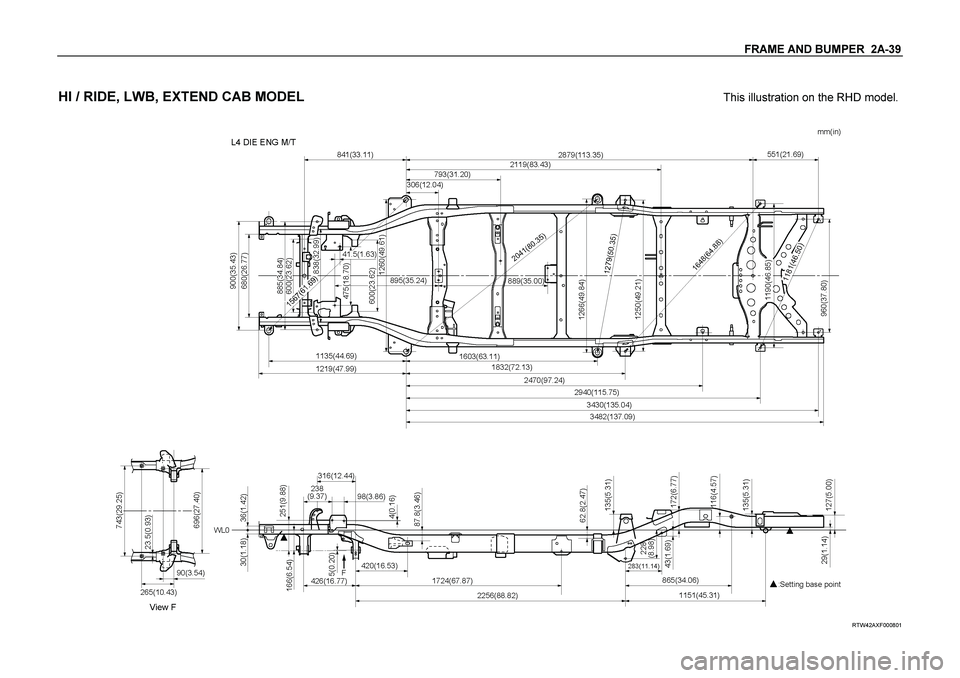

HI / RIDE, LWB, EXTEND CAB MODEL
This illustration on the RHD model.
RTW42AXF000801
Page 2932 of 4264

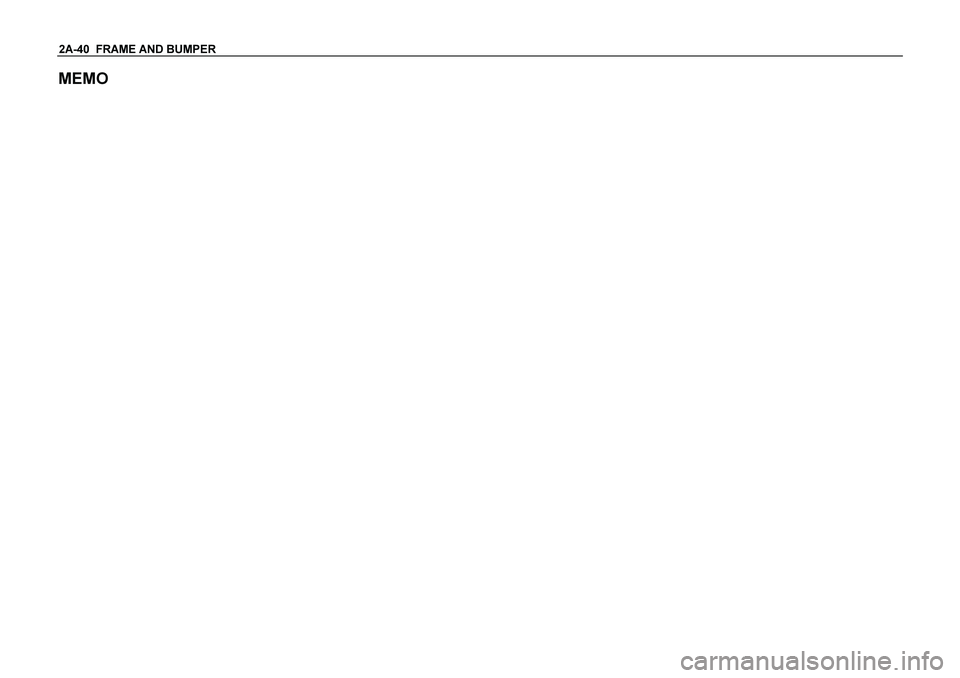

2A-40 FRAME AND BUMPER MEMO
Page 2933 of 4264

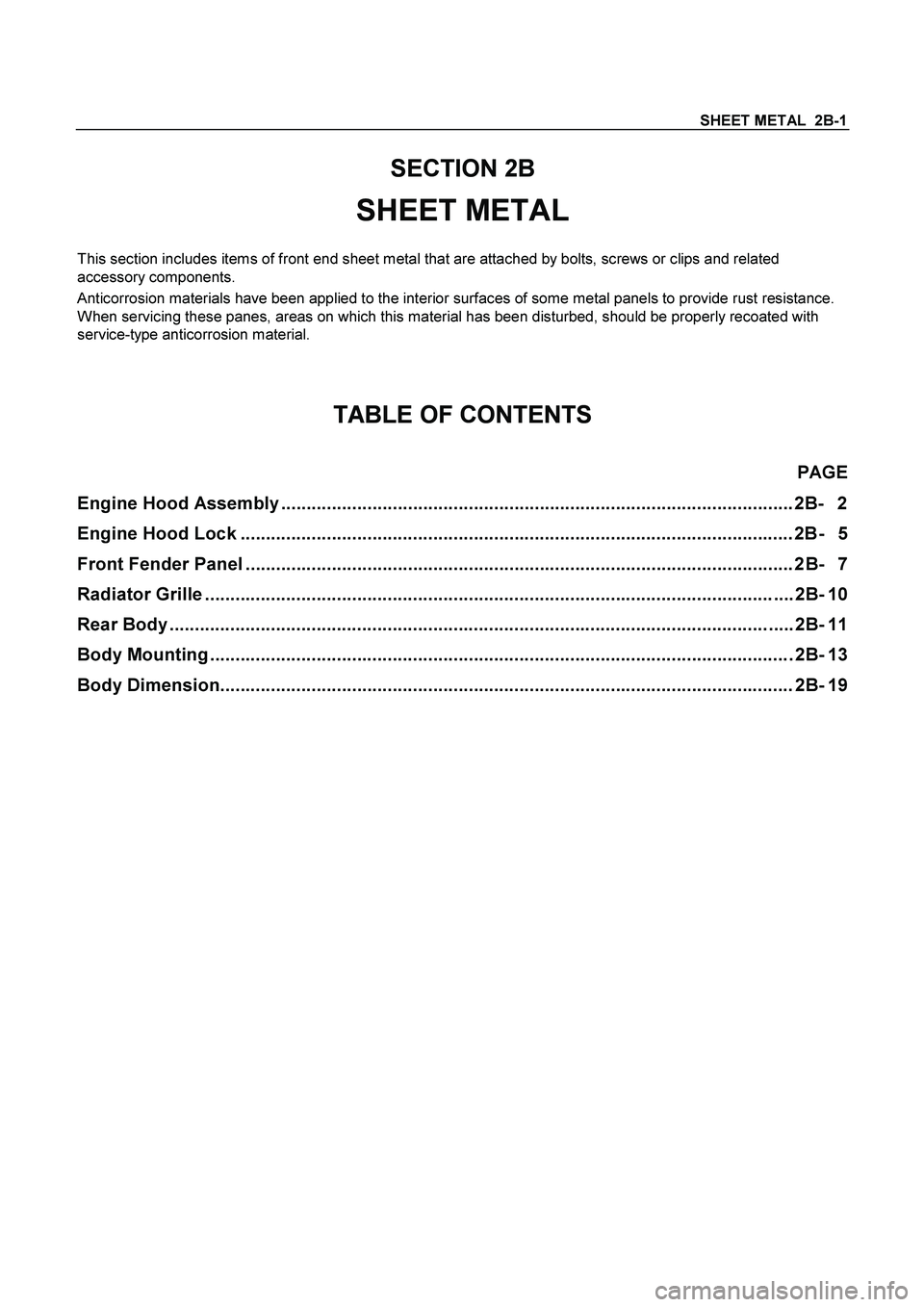

SHEET METAL 2B-1
SECTION 2B
SHEET METAL
This section includes items of front end sheet metal that are attached by bolts, screws or clips and related
accessory components.
Anticorrosion materials have been applied to the interior surfaces of some metal panels to provide rust resistance.
When servicing these panes, areas on which this material has been disturbed, should be properly recoated with
service-type anticorrosion material.
TABLE OF CONTENTS
PAGE
Engine Hood Assembly ..................................................................................................... 2B- 2
Engine Hood Lock ............................................................................................................. 2B- 5
Front Fender Panel ............................................................................................................ 2B- 7
Radiator Grille .................................................................................................................... 2B- 10
Rear Body ........................................................................................................................... 2B- 11
Body Mounting ................................................................................................................... 2B- 13
Body Dimension.................................................................................................................2B- 19
Page 2934 of 4264
2B-2 SHEET METAL

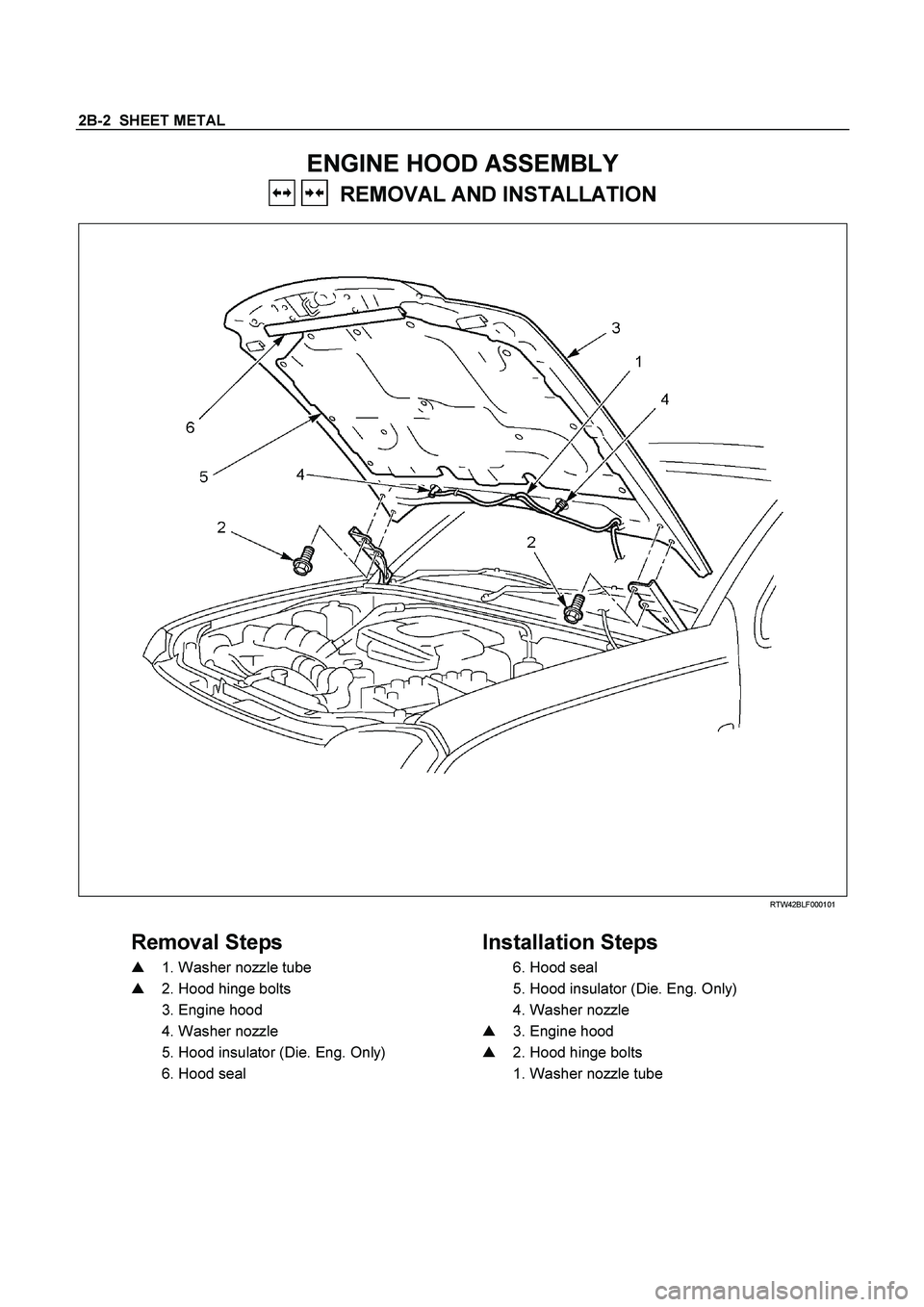

ENGINE HOOD ASSEMBLY
REMOVAL AND INSTALLATION
RTW42BLF000101
Removal Steps
Installation Steps
1. Washer nozzle tube
6. Hood seal
2. Hood hinge bolts
5. Hood insulator (Die. Eng. Only)
3. Engine hood
4. Washer nozzle
4. Washer nozzle
3. Engine hood
5. Hood insulator (Die. Eng. Only)
2. Hood hinge bolts
6. Hood seal
1. Washer nozzle tube
Page 2935 of 4264
SHEET METAL 2B-3

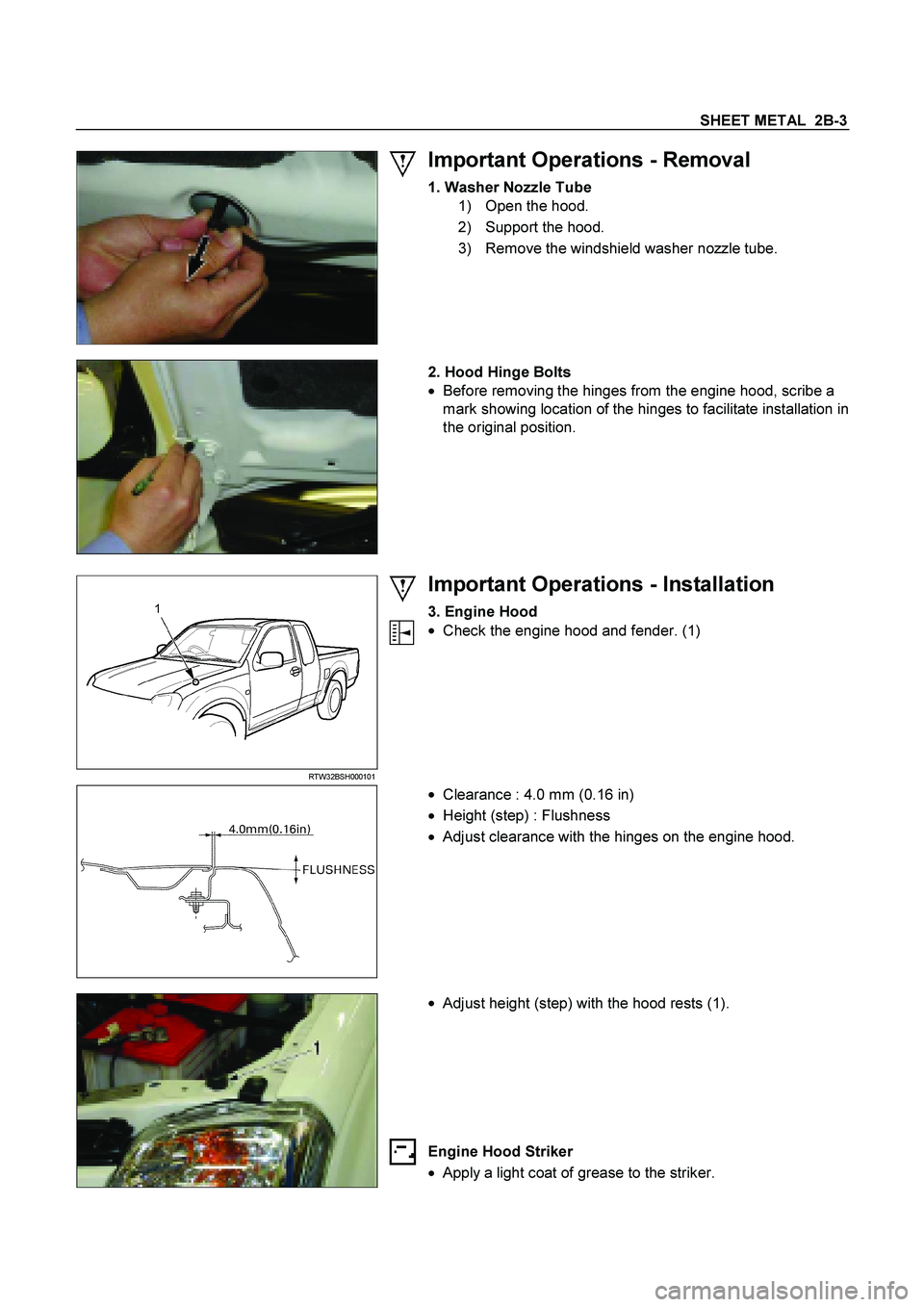

Important Operations - Removal
1. Washer Nozzle Tube
1) Open the hood.
2) Support the hood.
3) Remove the windshield washer nozzle tube.
2. Hood Hinge Bolts
Before removing
the hinges from the engine hood, scribe a
mark showing location of
the hinges to facilitate installation in
the original position.
RTW32BSH000101
Important Operations - Installation
3. Engine Hood
Check the engine hood and fender. (1)
Clearance : 4.0 mm (0.16 in)
Height (step) : Flushness
Adjust clearance with the hinges on the engine hood.
Adjust height (step) with the hood rests (1).
Engine Hood Striker
Apply a light coat of grease to the striker.
Page 2936 of 4264
2B-4 SHEET METAL

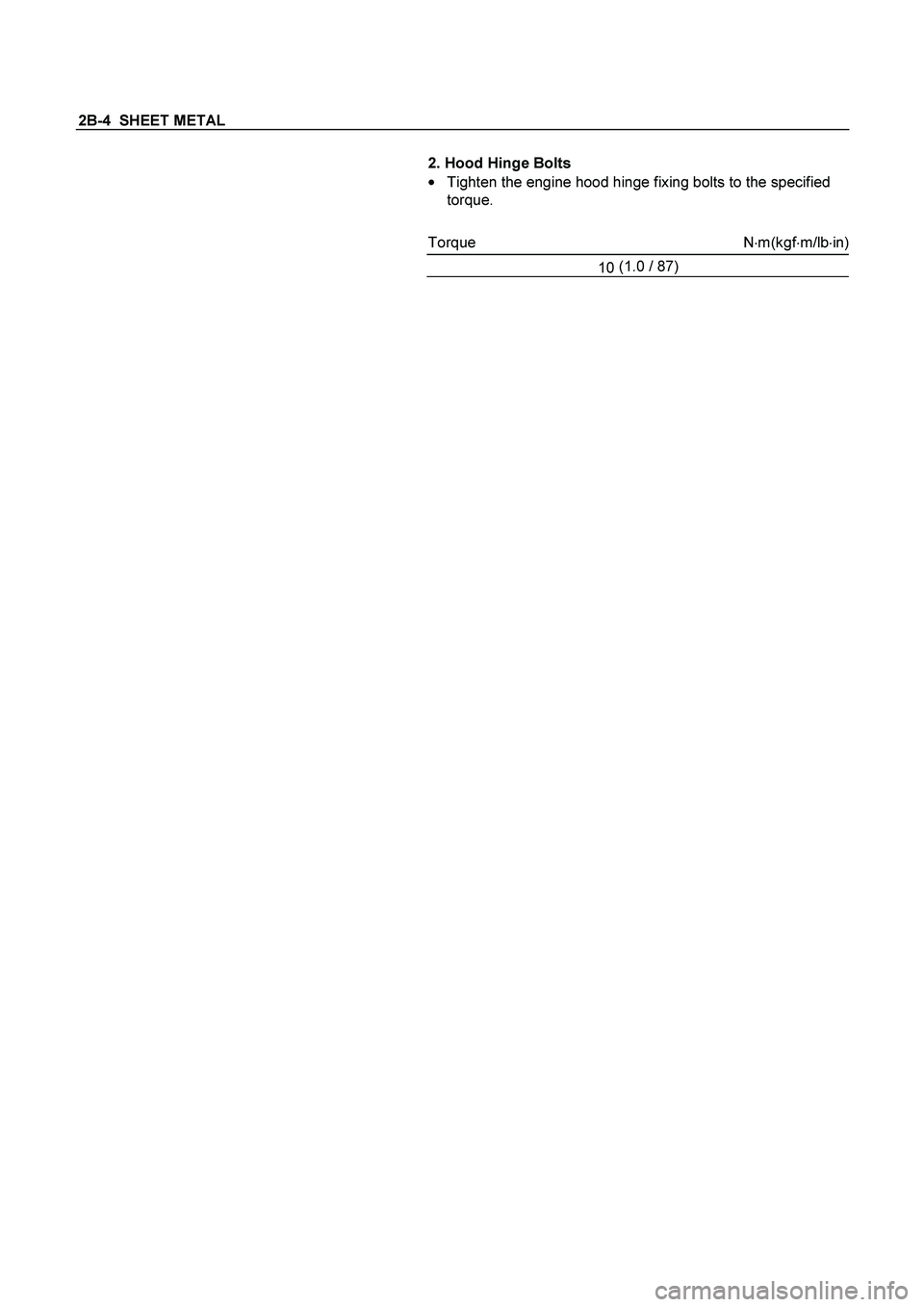

2. Hood Hinge Bolts
Tighten the engine hood hinge fixing bolts to the specified
torque.
Torque N
m(kgf
m/lb
in)
10 (1.0
/ 87)
