Page 1833 of 4264

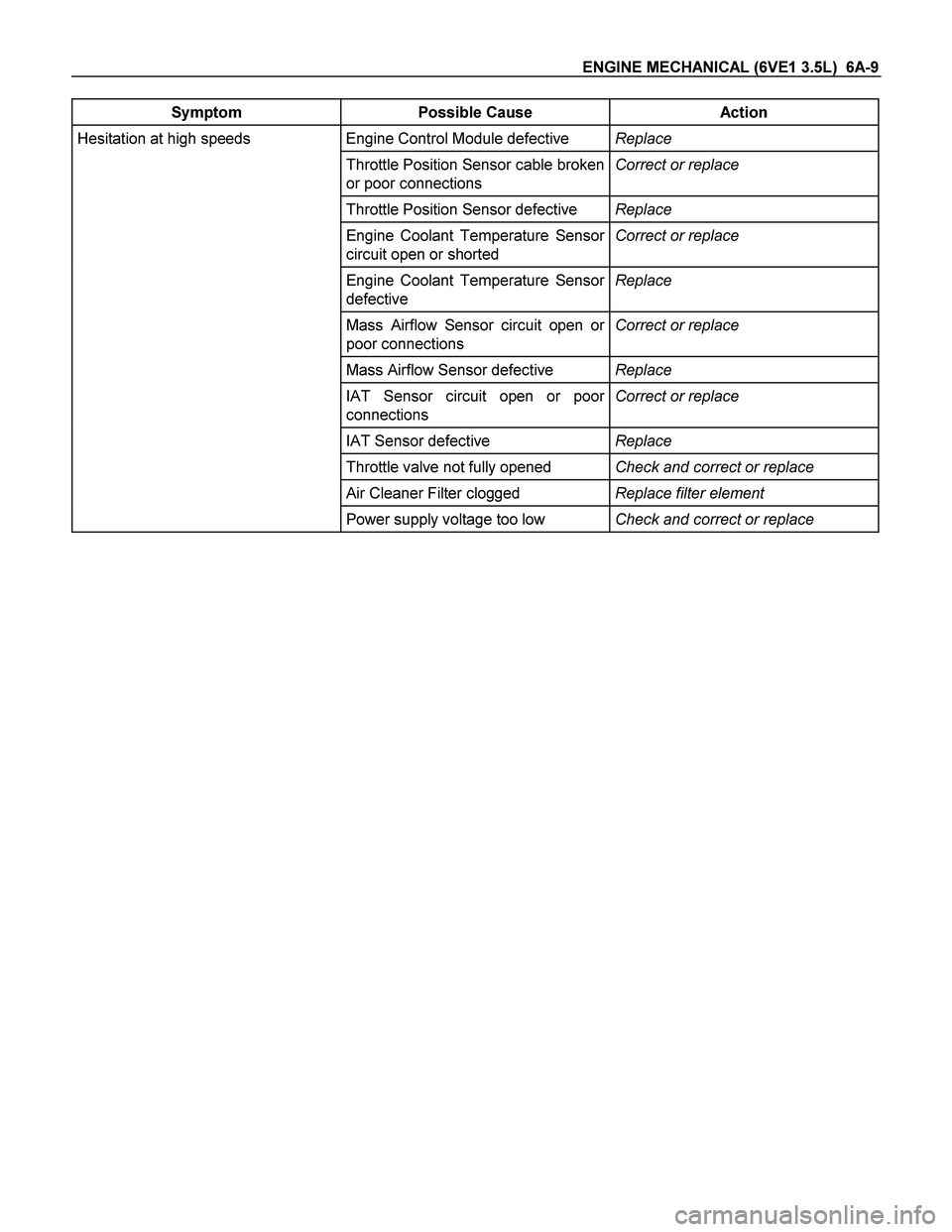

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-9 Symptom Possible Cause Action Hesitation at high speeds Engine Control Module defective Replace Throttle Position Sensor cable broken or poor connections Cor

Page 1834 of 4264

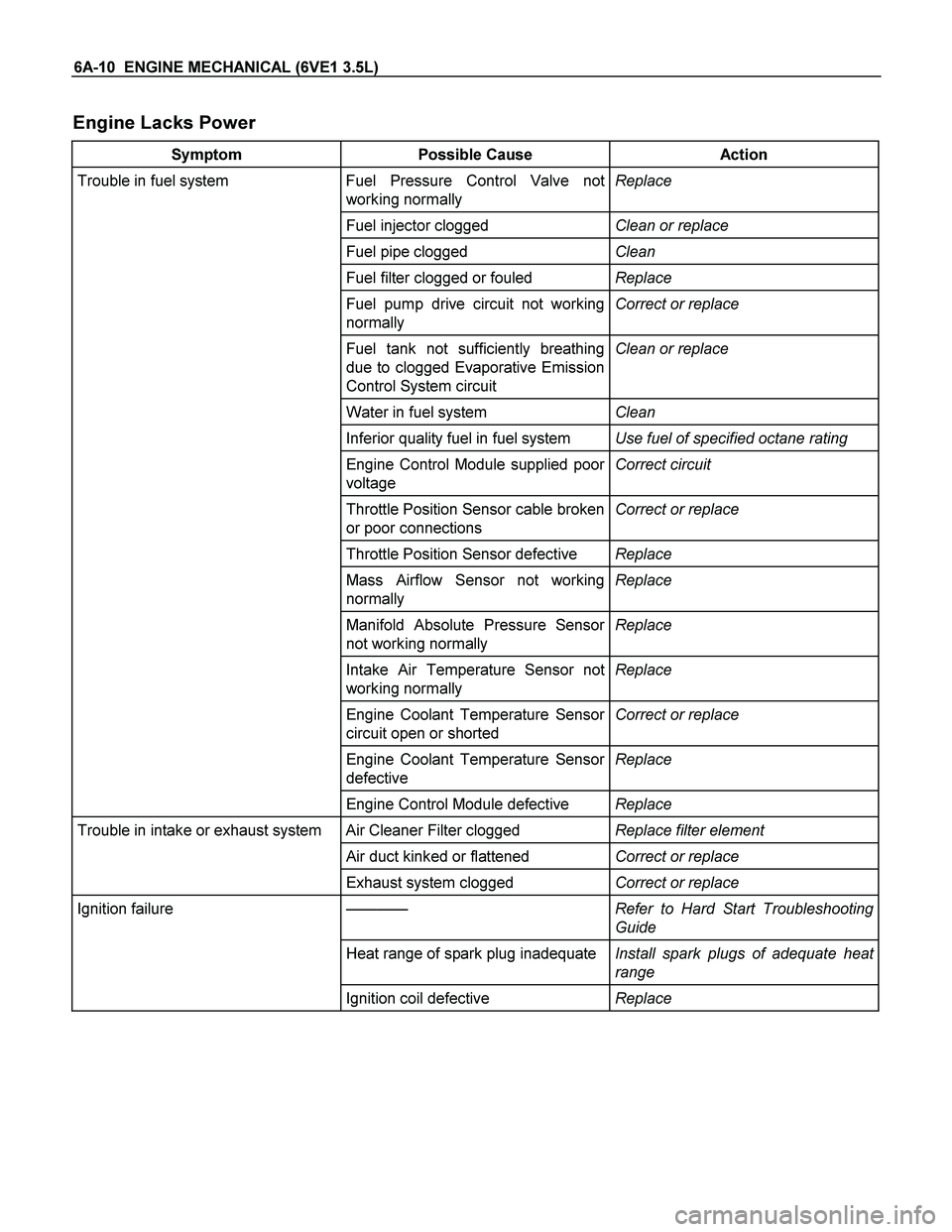

ISUZU TF SERIES 2004 Workshop Manual 6A-10 ENGINE MECHANICAL (6VE1 3.5L) Engine Lacks Power Symptom Possible Cause Action Trouble in fuel system Fuel Pressure Control Valve not working normally Replace Fuel injector clogged Clea

Page 1835 of 4264

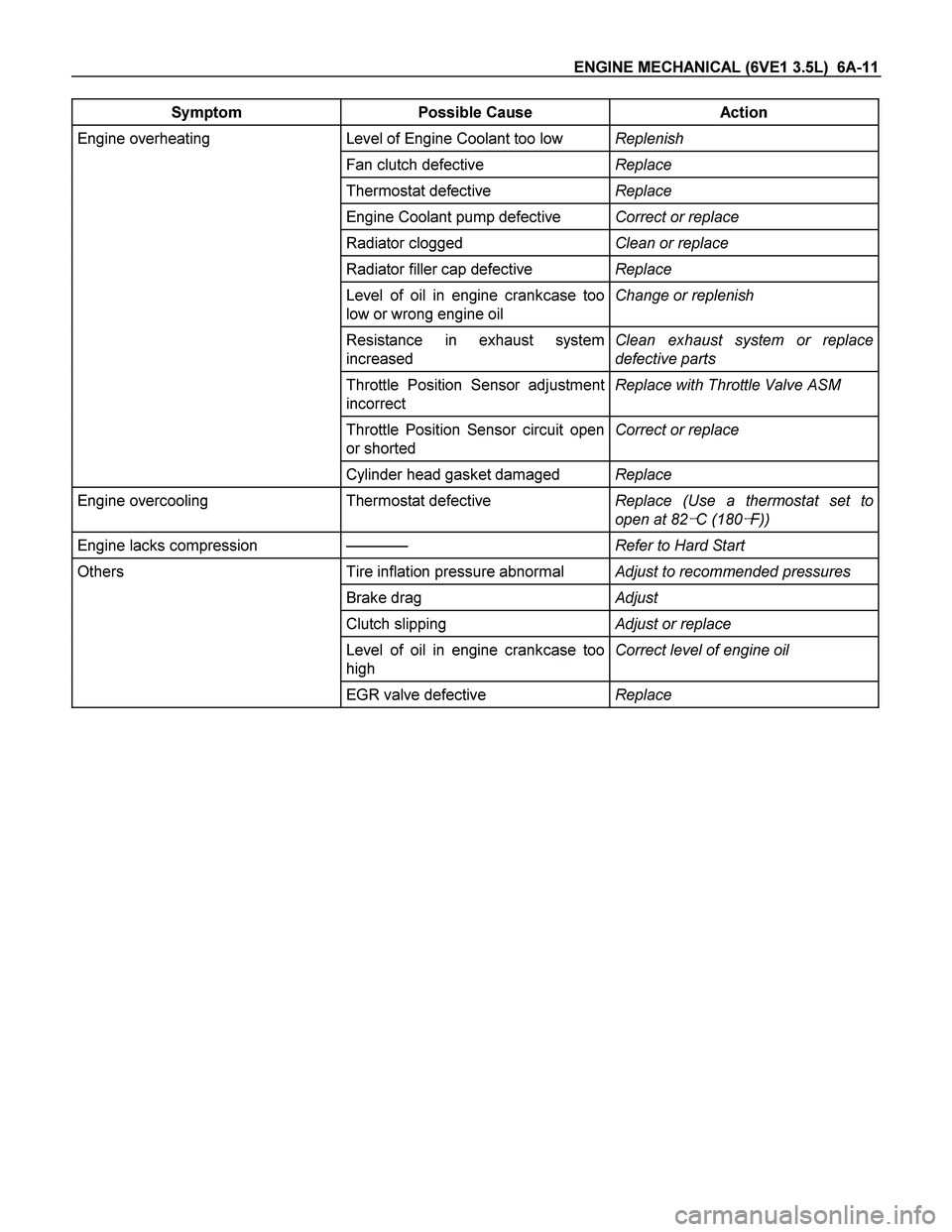

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-11 Symptom Possible Cause Action Engine overheating Level of Engine Coolant too low Replenish Fan clutch defective Replace Thermostat defective Replace Engi

Page 1836 of 4264

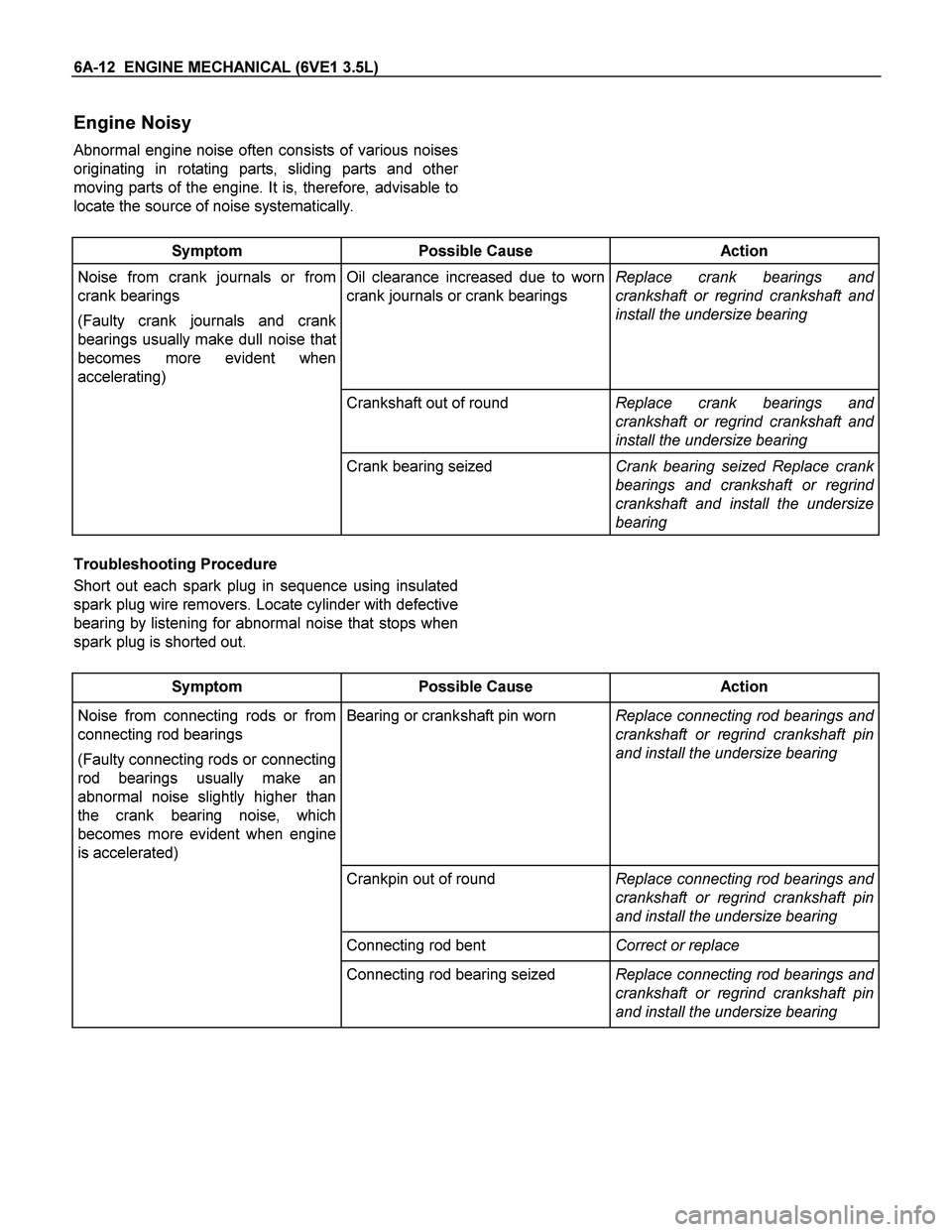

ISUZU TF SERIES 2004 Workshop Manual 6A-12 ENGINE MECHANICAL (6VE1 3.5L) Engine Noisy Abnormal engine noise often consists of various noises originating in rotating parts, sliding parts and othe r moving parts of the engine. It is, th

Page 1837 of 4264

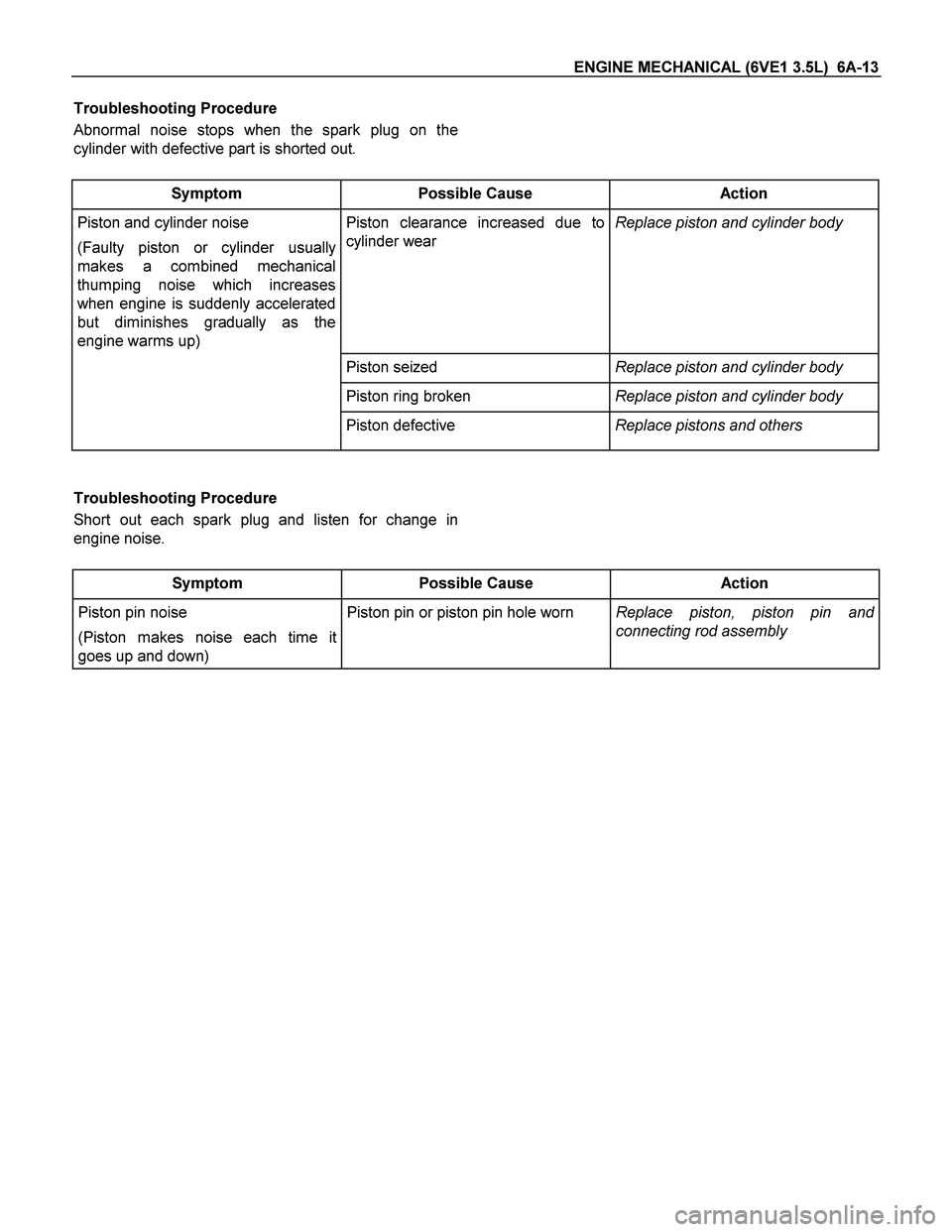

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-13 Troubleshooting Procedure Abnormal noise stops when the spark plug on the cylinder with defective part is shorted out. Symptom Possible Cause Action Pisto

Page 1838 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A-14 ENGINE MECHANICAL (6VE1 3.5L) Troubleshooting Procedure The slapping sound stops when spark plug on bad cylinder is shorted out. Symptom Possible Cause Action Timing belt noise Timing

Page 1839 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (6VE1 3.5L) 6A-15 Abnormal Combustion Symptom Possible Cause Action Trouble in fuel system Fuel pressure control valve defectiveReplace Fuel filter clogged Replace Fuel pum

Page 1840 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A-16 ENGINE MECHANICAL (6VE1 3.5L) Symptom Possible Cause Action Trouble in emission control system Heated Oxygen Sensor circuit open Correct or replace Heated Oxygen Sensor defective Replace
