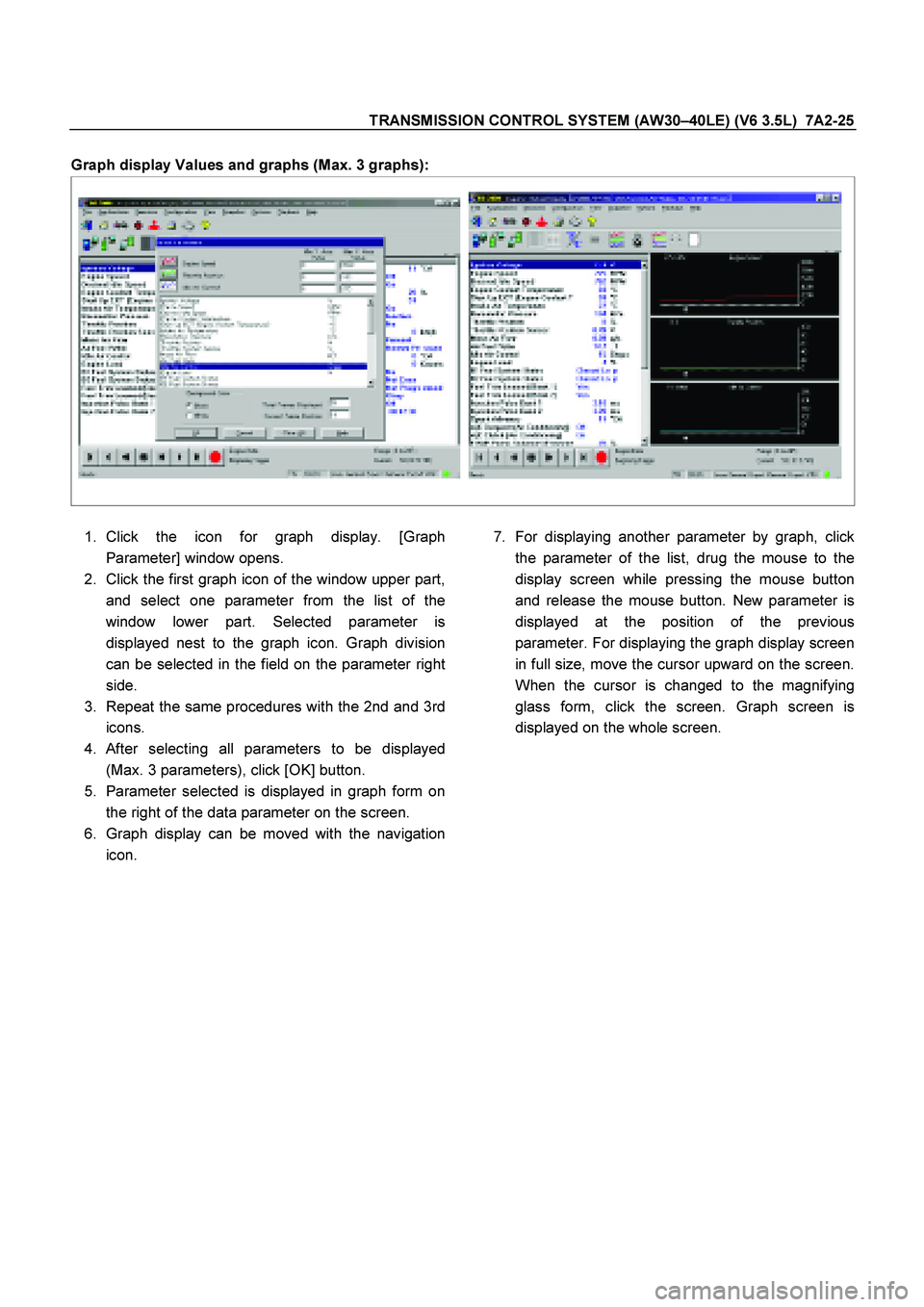

TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-25

Graph display Values and graphs (Max. 3 graphs):



1.
Click the icon for graph display. [Graph
Parameter] window opens.
2.
Click the first graph icon of the window upper part,
and select one parameter from the list of the
window lower part. Selected parameter is
displayed nest to the graph icon. Graph division
can be selected in the field on the parameter right
side.
3.
Repeat the same procedures with the 2nd and 3rd
icons.
4.
After selecting all parameters to be displayed
(Max. 3 parameters), click [OK] button.
5.
Parameter selected is displayed in graph form on
the right of the data parameter on the screen.
6.
Graph display can be moved with the navigation
icon.

7.
For displaying another parameter by graph, click
the parameter of the list, drug the mouse to the
display screen while pressing the mouse button
and release the mouse button. New parameter is
displayed at the position of the previous
parameter. For displaying the graph display screen
in full size, move the cursor upward on the screen.
When the cursor is changed to the magnifying
glass form, click the screen. Graph screen is
displayed on the whole screen.

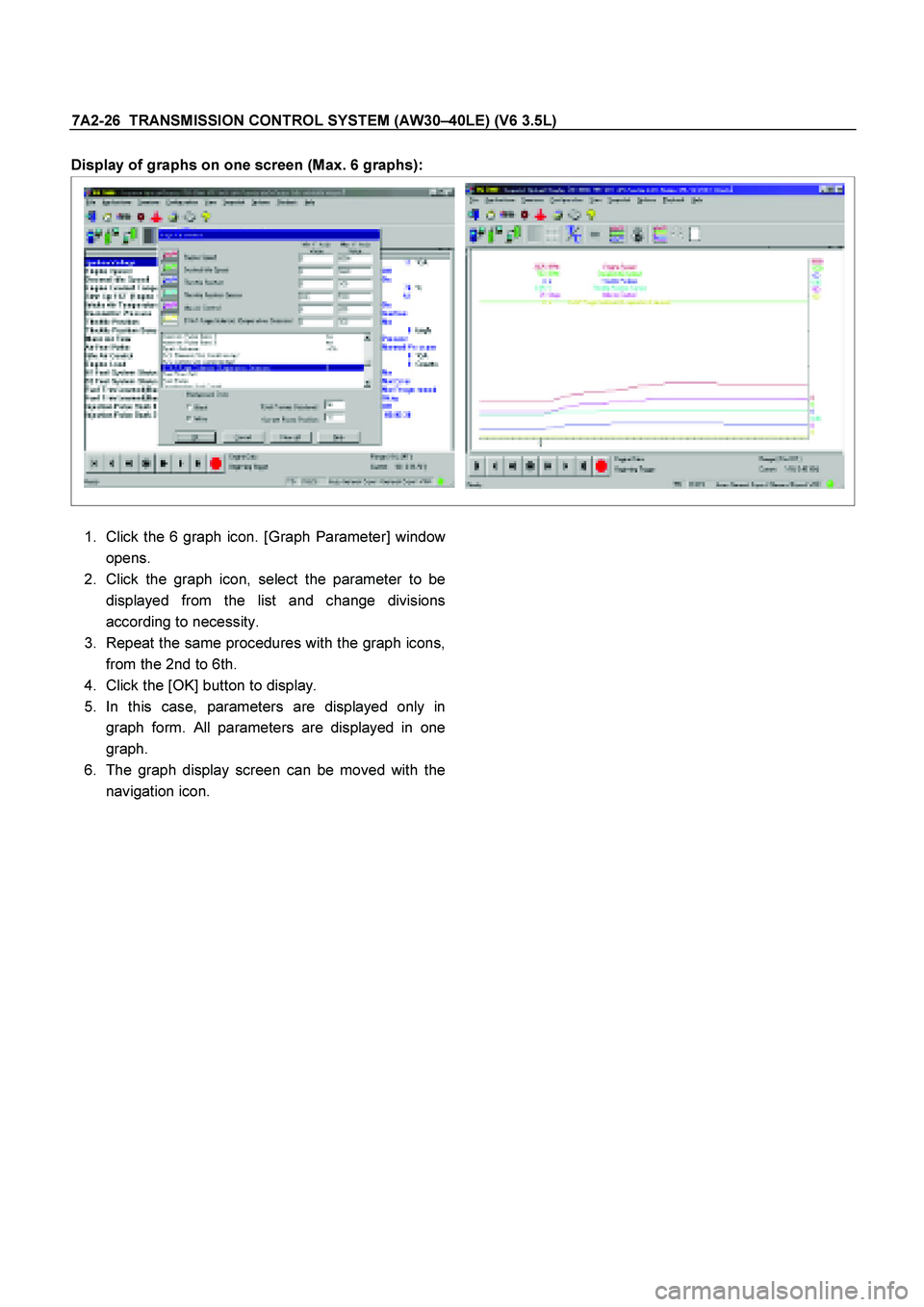

7A2-26 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

Display of graphs on one screen (Max. 6 graphs):



1.
Click the 6 graph icon. [Graph Parameter] window
opens.
2.
Click the graph icon, select the parameter to be
displayed from the list and change divisions
according to necessity.
3.
Repeat the same procedures with the graph icons,
from the 2nd to 6th.
4.
Click the [OK] button to display.
5.
In this case, parameters are displayed only in
graph form. All parameters are displayed in one
graph.
6.
The graph display screen can be moved with the
navigation icon.
