ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E -85

PLOTTING SNAPSHOT GRAPH
This test selects several necessary items from the data
list to plot graphs and makes data comparison on a long
term basis. It

Page 2082 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-86 3.5L ENGINE DRIVEABILITY AND EMISSIONS

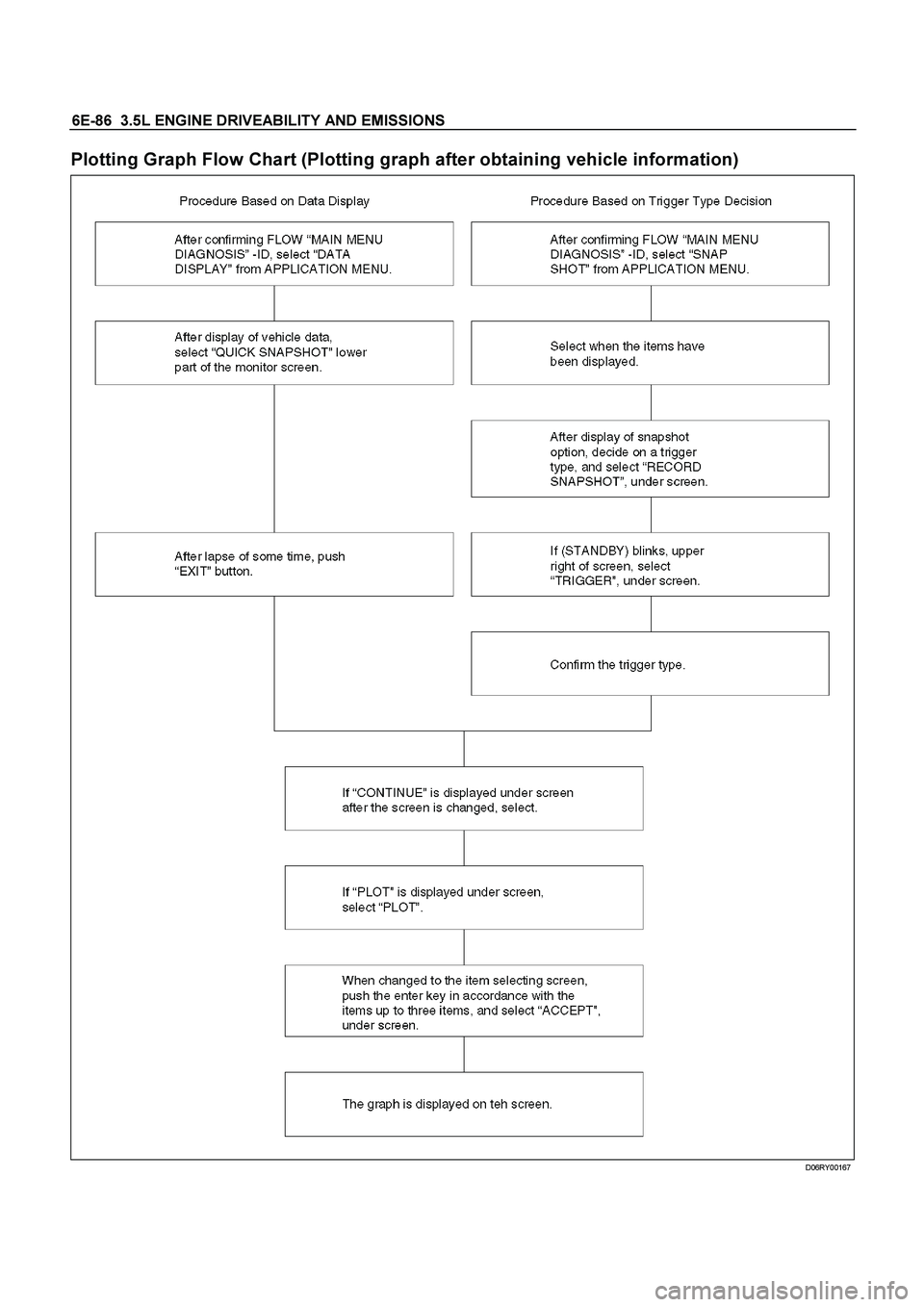

Plotting Graph Flow Chart (Plotting graph after obtaining vehicle information)

D06RY00167

Page 2083 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E -87

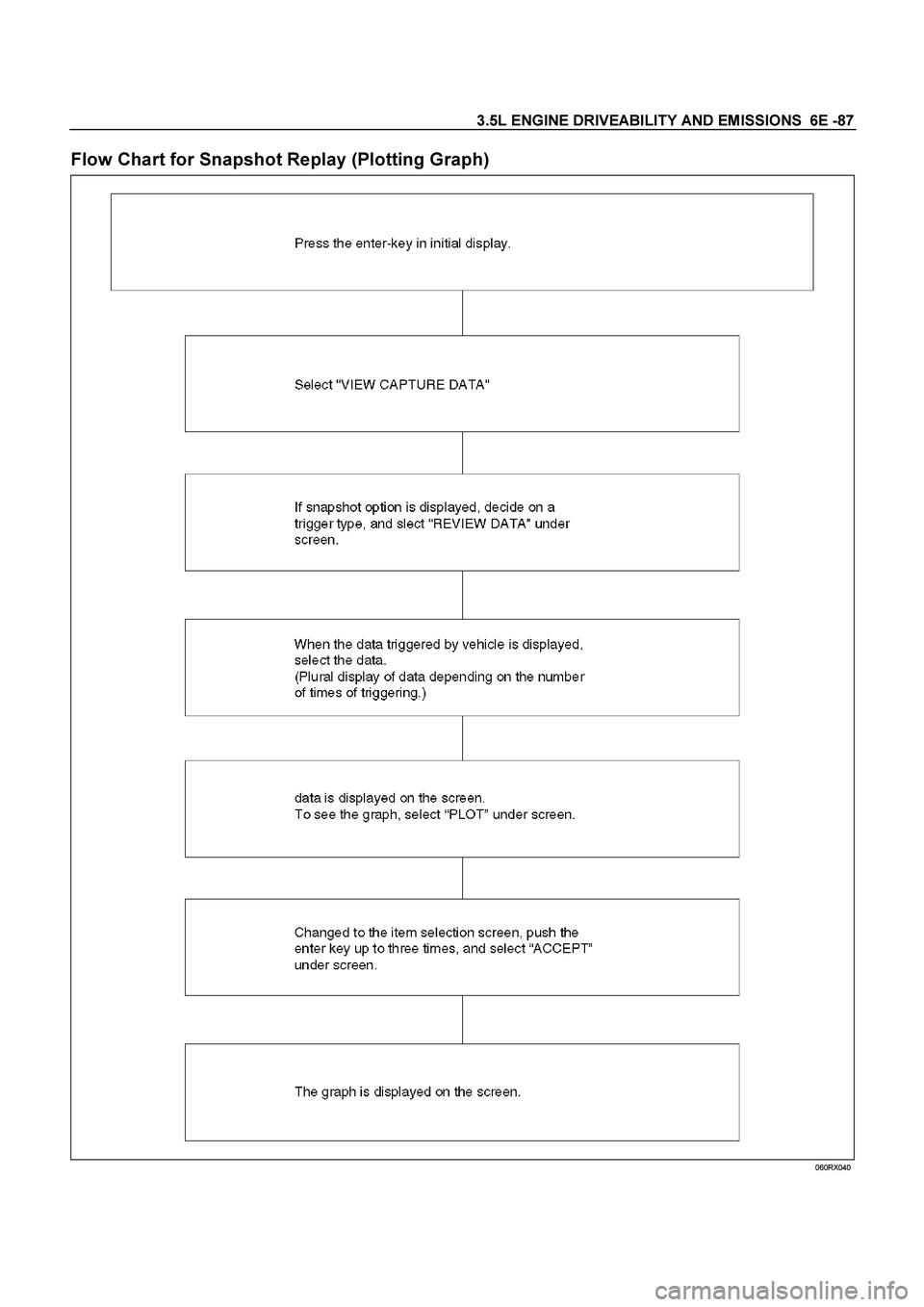

Flow Chart for Snapshot Replay (Plotting Graph)

060RX040

Page 2084 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-88 3.5L ENGINE DRIVEABILITY AND EMISSIONS

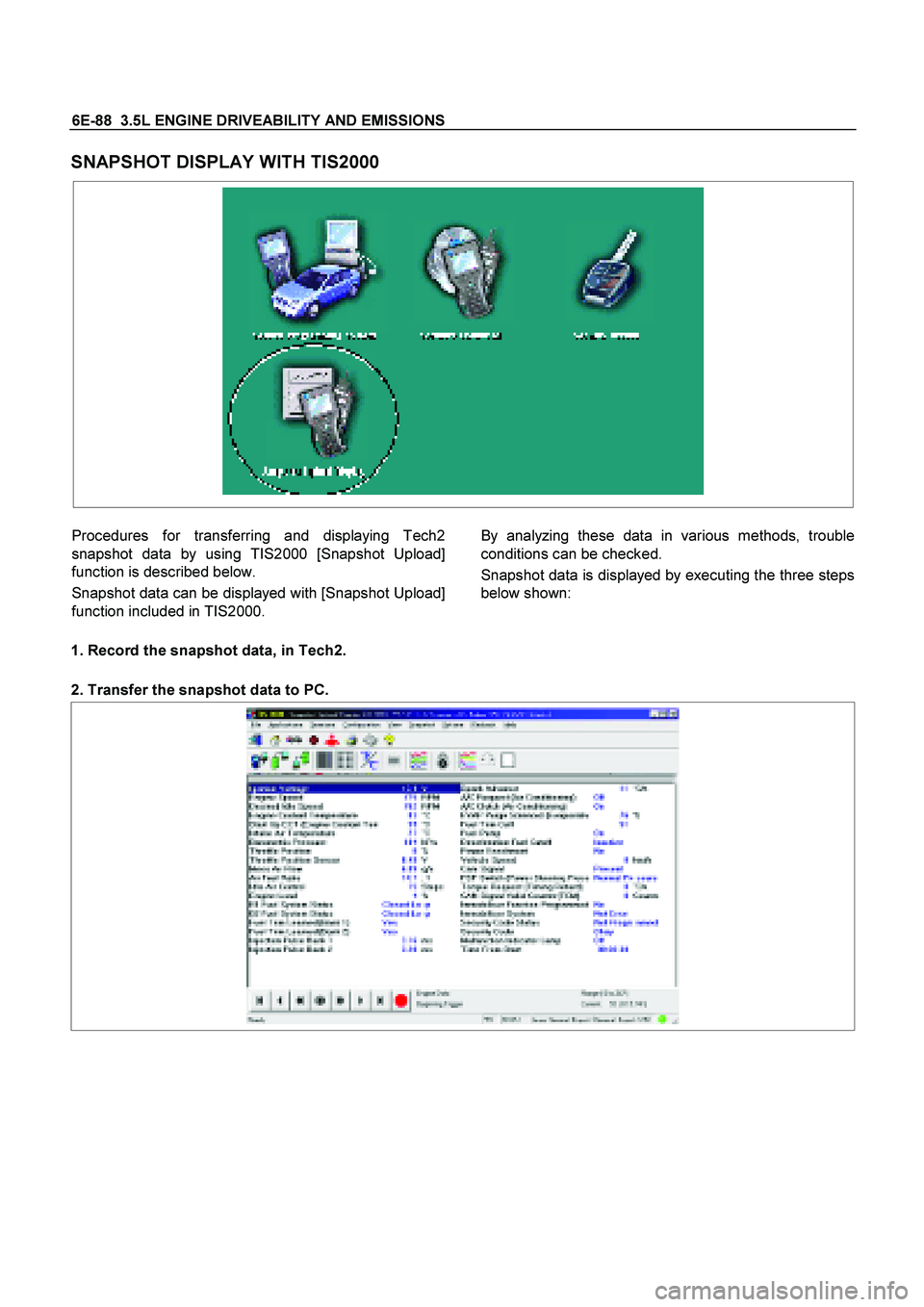

SNAPSHOT DISPLAY WITH TIS2000

Procedures for transferring and displaying Tech2
snapshot data by using TIS2000 [Snapshot Upload]
function is d

Page 2085 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E -89

After recording the snapshot in Tech2, transfer the data
from Tech2 to PC by the below procedures.
1.
Start TIS2000.
2.
Select [Snapshot Upload] on

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E -89

After recording the snapshot in Tech2, transfer the data
from Tech2 to PC by the below procedures.
1.
Start TIS2000.
2.
Select [Snapshot Upload] on the TIS2000 start
screen.
3.
Select [Upload from trouble diagnosis tool (transfe
r
from diagnosis tester)] or click the corresponding
icon of the tool bar.
4.
Select Tech2, and transfer the recorded snapshot
information.
5.
Select the transferred snapshot.
6.
After ending transfer of the snapshot, data
parameter list is displayed on the screen. 3. Snapshot data is displayed with TIS2000
[Snapshot Upload] function.
Snapshot is stored in the PC hard disk or floppy disk,
and can be displayed any time.
Stored snapshot can be displayed by the below
procedures.
1.
Start TIS2000.
2.
Select [Snapshot Upload] on the TIS2000 start
screen.
3.
Select [Open the existing files] or click the
corresponding icon of the tool bar.
4.
Select the transferred snapshot.
5.
Open the snapshot, to display the data paramete
r
list on the screen.

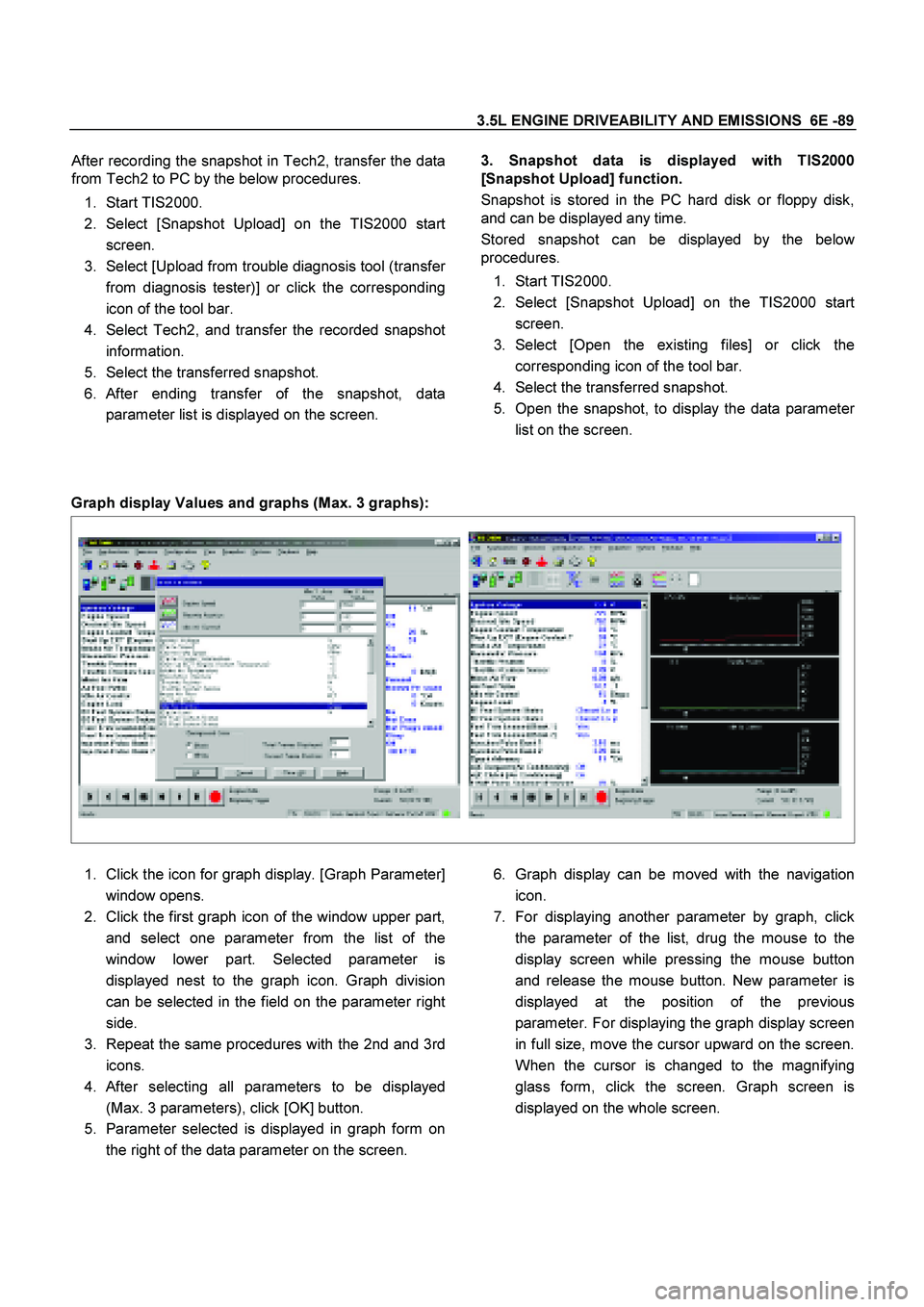

Graph display Values and graphs (Max. 3 graphs):

1.
Click the icon for graph display. [Graph Parameter]
window opens.
2.
Click the first graph icon of the window upper part,
and select one parameter from the list of the
window lower part. Selected parameter is
displayed nest to the graph icon. Graph division
can be selected in the field on the parameter right
side.
3.
Repeat the same procedures with the 2nd and 3rd
icons.
4.
After selecting all parameters to be displayed
(Max. 3 parameters), click [OK] button.
5.
Parameter selected is displayed in graph form on
the right of the data parameter on the screen.

6.
Graph display can be moved with the navigation
icon.
7.
For displaying another parameter by graph, click
the parameter of the list, drug the mouse to the
display screen while pressing the mouse button
and release the mouse button. New parameter is
displayed at the position of the previous
parameter. For displaying the graph display screen
in full size, move the cursor upward on the screen.
When the cursor is changed to the magnifying
glass form, click the screen. Graph screen is
displayed on the whole screen.

Page 2086 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-90 3.5L ENGINE DRIVEABILITY AND EMISSIONS

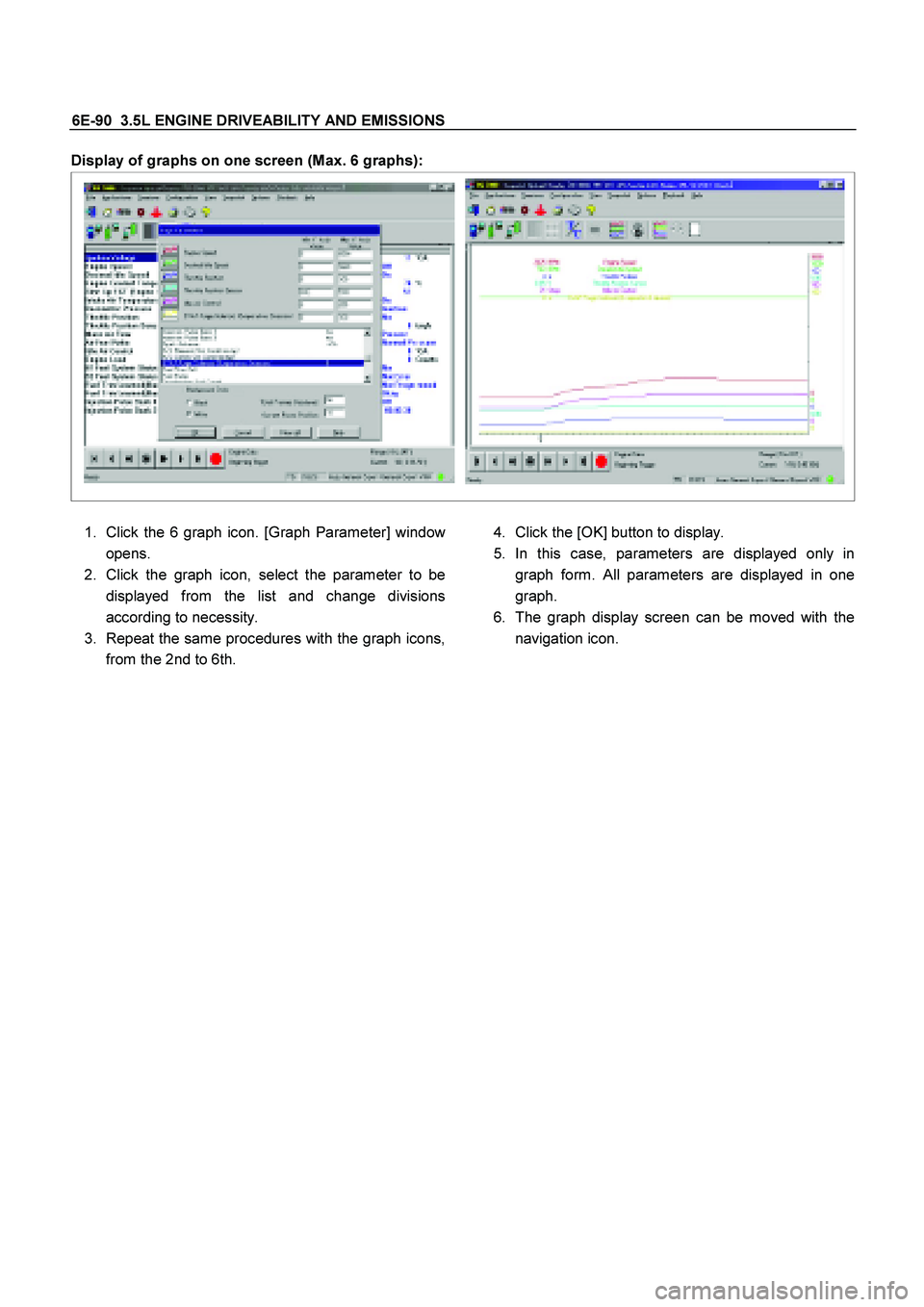

Display of graphs on one screen (Max. 6 graphs):

1.
Click the 6 graph icon. [Graph Parameter] window
opens.
2.
Click the graph icon, select t

Page 2087 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E -91
SERVICE PROGRAMMING SYSTEM (SPS)
The procedure to program the control unit by using the
Service Programming System (SPS) software
contained in TIS20

Page 2088 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-92 3.5L ENGINE DRIVEABILITY AND EMISSIONS

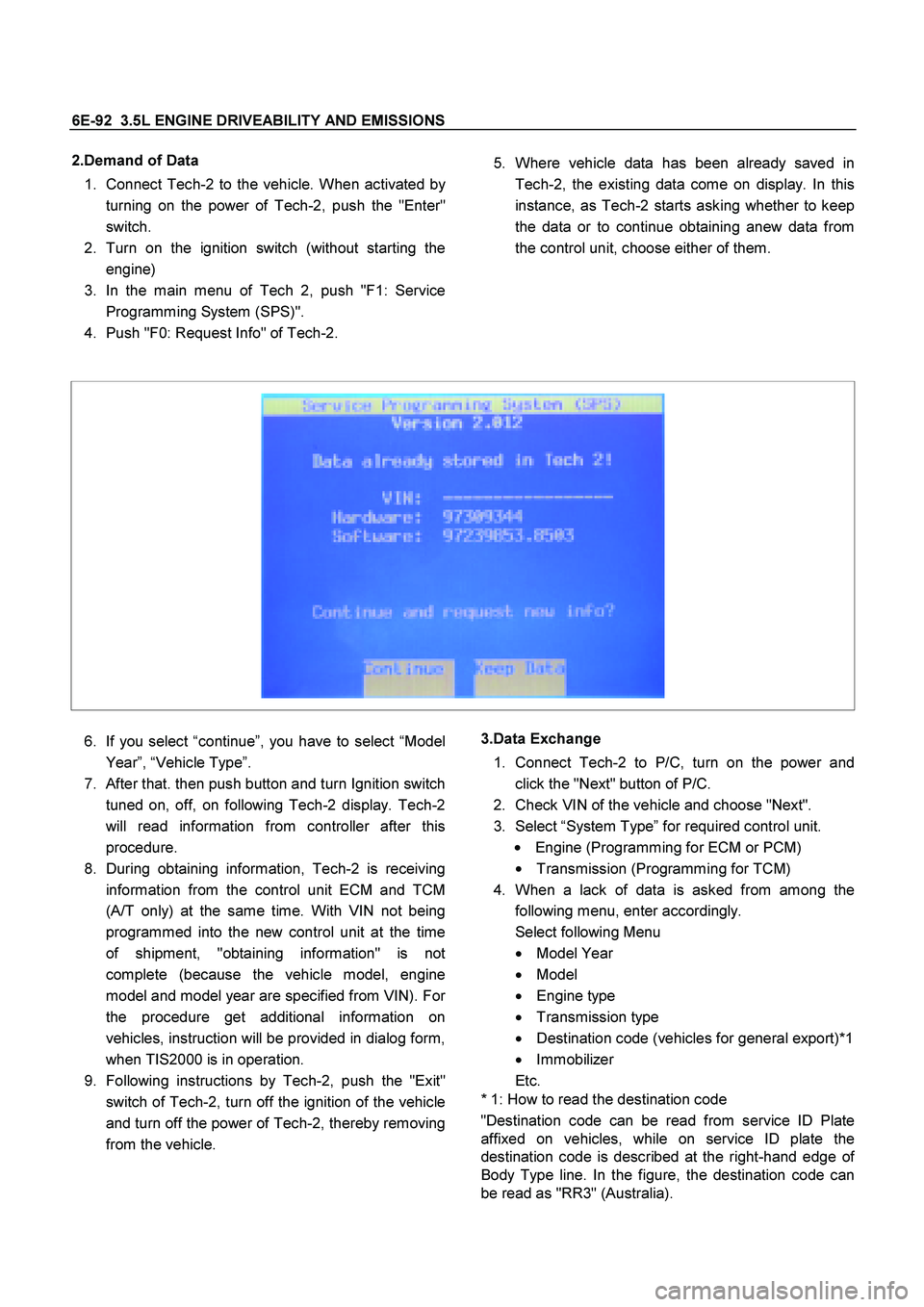

2.Demand of Data
1.
Connect Tech-2 to the vehicle. When activated b
y
turning on the power of Tech-2, push the "Enter"
switch.
2.
Turn on the igniti

6E-92 3.5L ENGINE DRIVEABILITY AND EMISSIONS

2.Demand of Data
1.
Connect Tech-2 to the vehicle. When activated b
y
turning on the power of Tech-2, push the "Enter"
switch.
2.
Turn on the ignition switch (without starting the
engine)
3.
In the main menu of Tech 2, push "F1: Service
Programming System (SPS)".
4.
Push "F0: Request Info" of Tech-2.

5.
Where vehicle data has been already saved in
Tech-2, the existing data come on display. In this
instance, as Tech-2 starts asking whether to keep
the data or to continue obtaining anew data from
the control unit, choose either of them.

6.
If you select “continue”, you have to select “Model
Year”, “Vehicle Type”.
7.
After that. then push button and turn Ignition switch
tuned on, off, on following Tech-2 display. Tech-2
will read information from controller after this
procedure.
8.
During obtaining information, Tech-2 is receiving
information from the control unit ECM and TCM
(A/T only) at the same time. With VIN not being
programmed into the new control unit at the time
of shipment, "obtaining information" is not
complete (because the vehicle model, engine
model and model year are specified from VIN). Fo
r
the procedure get additional information on
vehicles, instruction will be provided in dialog form,
when TIS2000 is in operation.
9.
Following instructions by Tech-2, push the "Exit"
switch of Tech-2, turn off the ignition of the vehicle
and turn off the power of Tech-2, thereby removing
from the vehicle.

3.Data Exchange
1.
Connect Tech-2 to P/C, turn on the power and
click the "Next" button of P/C.
2. Check VIN of the vehicle and choose "Next".
3. Select “System Type” for required control unit.

Engine (Programming for ECM or PCM)

Transmission (Programming for TCM)
4.
When a lack of data is asked from among the
following menu, enter accordingly.

Select following Menu

Model Year

Model

Engine type

Transmission type

Destination code (vehicles for general export)*1

Immobilizer
Etc.
* 1: How to read the destination code
"Destination code can be read from service ID Plate
affixed on vehicles, while on service ID plate the
destination code is described at the right-hand edge o
f
Body Type line. In the figure, the destination code can
be read as "RR3" (Australia).
