Page 305 of 4264

ISUZU TF SERIES 2004 Workshop Manual SHIFT ON THE FLY SYSTEM 4C2-7 RTW440SH000101 Inner Shaft Bearing Inspect the state of inner shaft bearing. If any abnormality such as smoothlessness is found, replace with a new inner sh

Page 306 of 4264

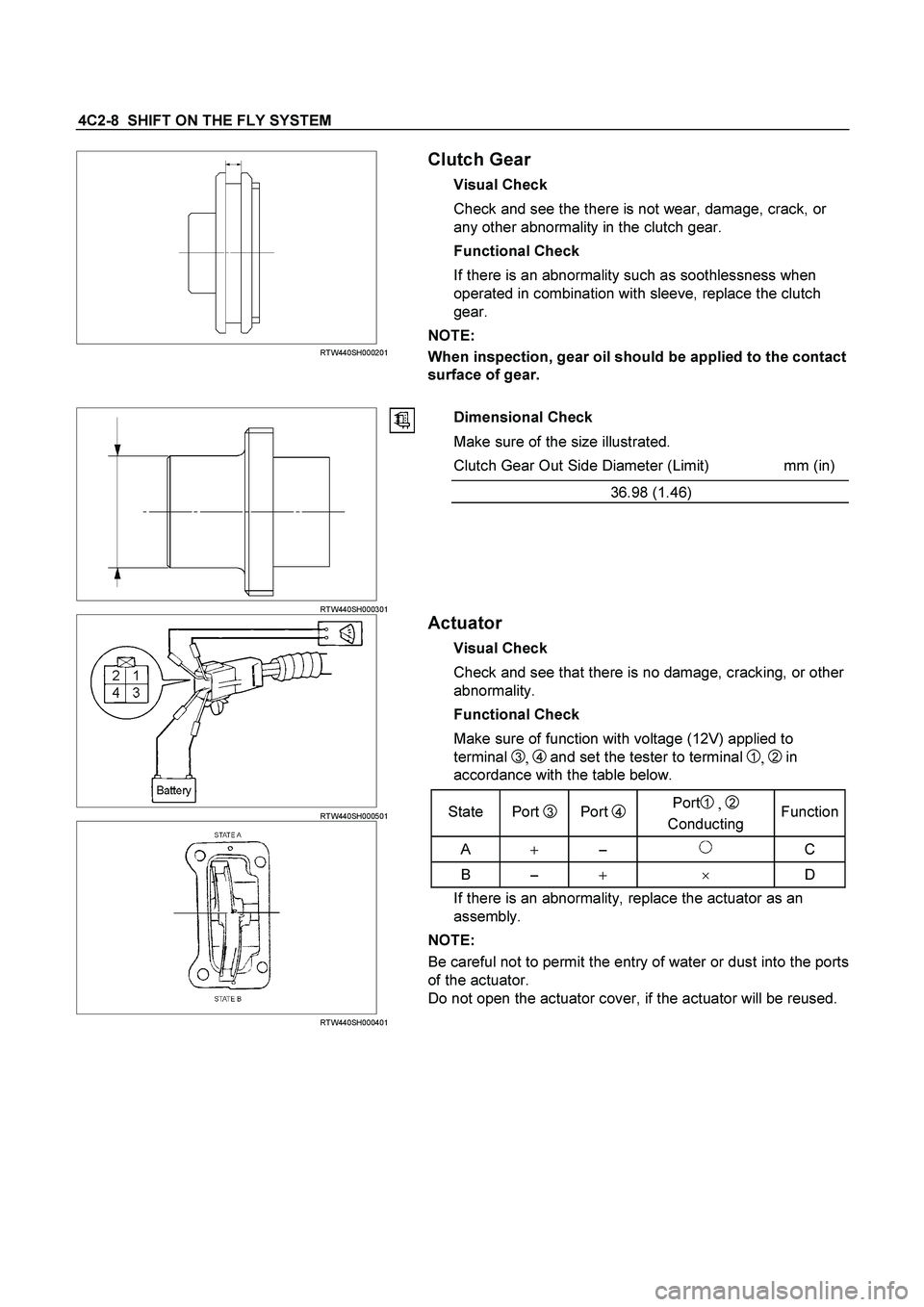

ISUZU TF SERIES 2004 Workshop Manual 4C2-8 SHIFT ON THE FLY SYSTEM RTW440SH000201 Clutch Gear Visual Check Check and see the there is not wear, damage, crack, or any other abnormality in the clutch gear. Functional Check

Page 307 of 4264

ISUZU TF SERIES 2004 Workshop Manual SHIFT ON THE FLY SYSTEM 4C2-9 RTW440SH000601 RTW440SH000801 Dimension Check Measure illustration sized A, B, and C Limit mm (in) A 64.3 (2.53) B 6.7 (0.26) C 6.7 (0.2

Page 308 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4C2-10 SHIFT ON THE FLY SYSTEM 412RS044 13. Inner Shaft Bearing  Place a new snap ring in inner shaft.  Force a new inner shaft bearing in

Page 309 of 4264

ISUZU TF SERIES 2004 Workshop Manual SHIFT ON THE FLY SYSTEM 4C2-11 5. Actuator  Clean the actuator contact surface with the housing.  Apply liquid gasket to the contact surface on the actuator side.  Align sh

Page 310 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4C2-12 SHIFT ON THE FLY SYSTEM Torque Specifications N   m (kgf   m / lb ft) RTW440LF000801

Page 311 of 4264

ISUZU TF SERIES 2004 Workshop Manual SHIFT ON THE FLY SYSTEM 4C2-13 SPECIAL SERVICE TOOL ILLUSTRATION PART NO. PART NAME 5-8840-0007-0 (J-8092) Grip 5-8840-2407-0 (J-41693) Installer: Oil seal 5-8840-24

Page 312 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4C2-14 SHIFT ON THE FLY SYSTEM MEMO
