Page 3369 of 4264

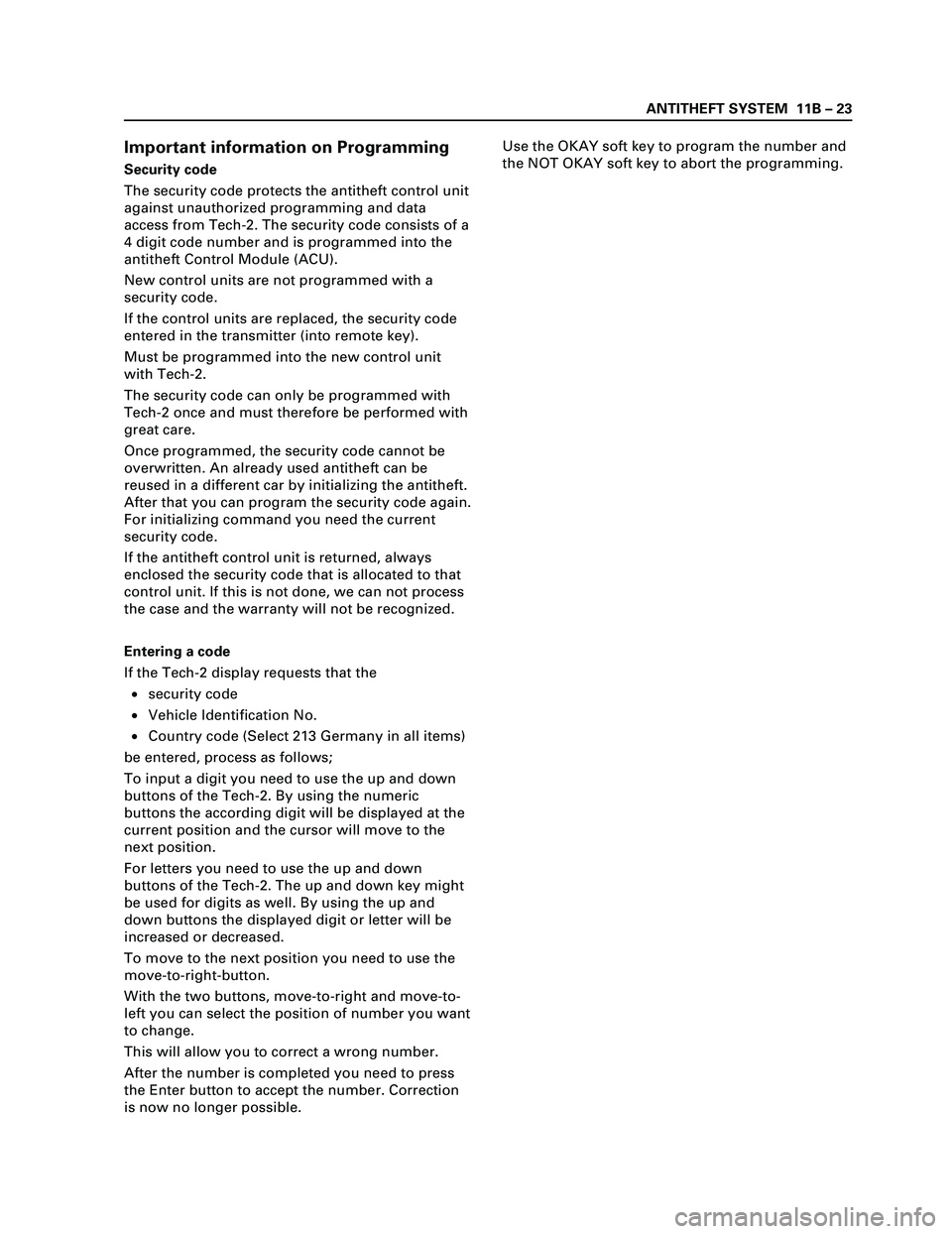

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B

Page 3370 of 4264

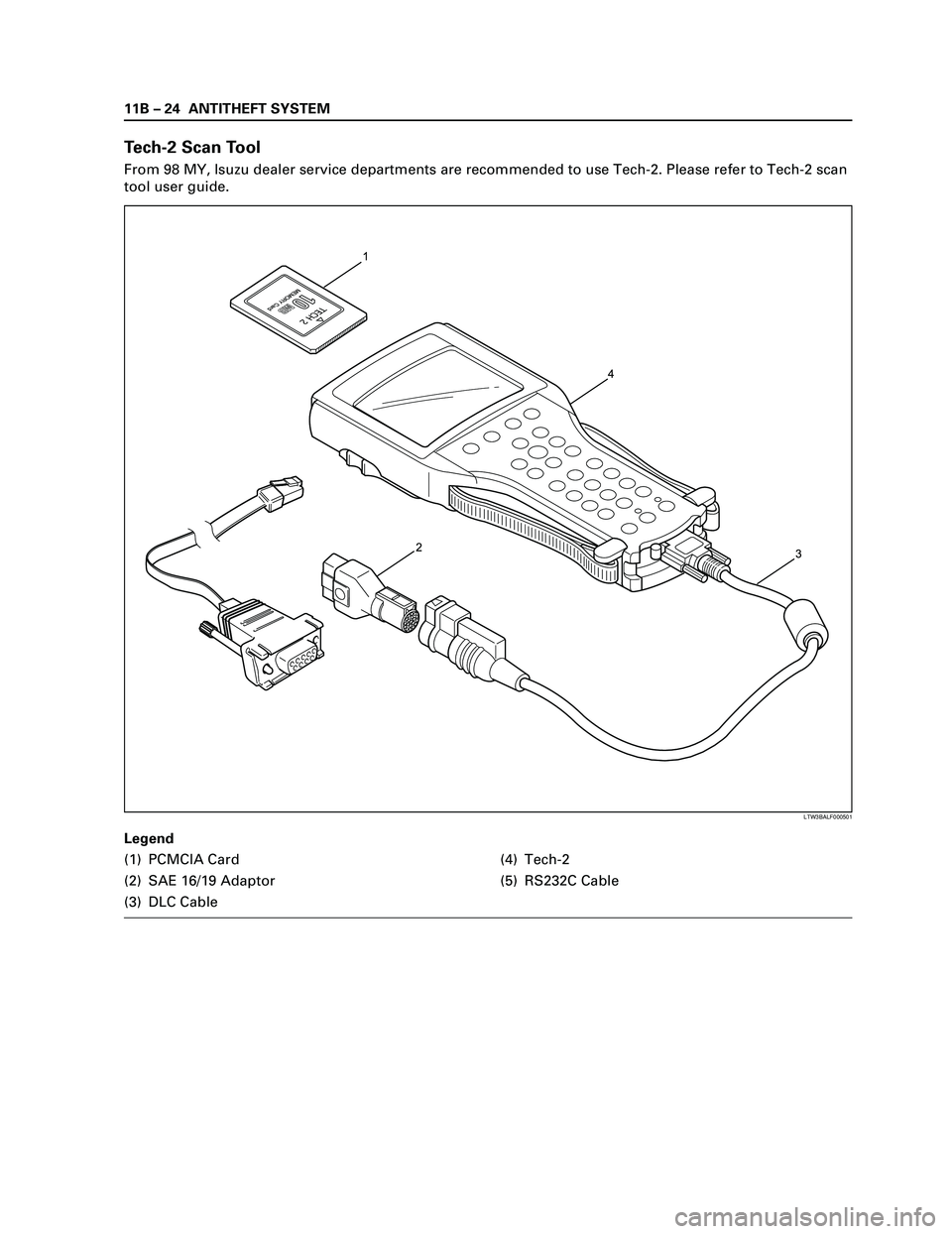

ISUZU TF SERIES 2004 Workshop Manual 11B – 24 ANTITHEFT SYSTEM 1 4 3 2 LTW3BALF000501 Tech-2 Scan Tool From 98 MY, Isuzu dealer service departments are recommended to use Tech-2. Please refer to Tech-2 scan tool user guide. Legend (1)

Page 3371 of 4264

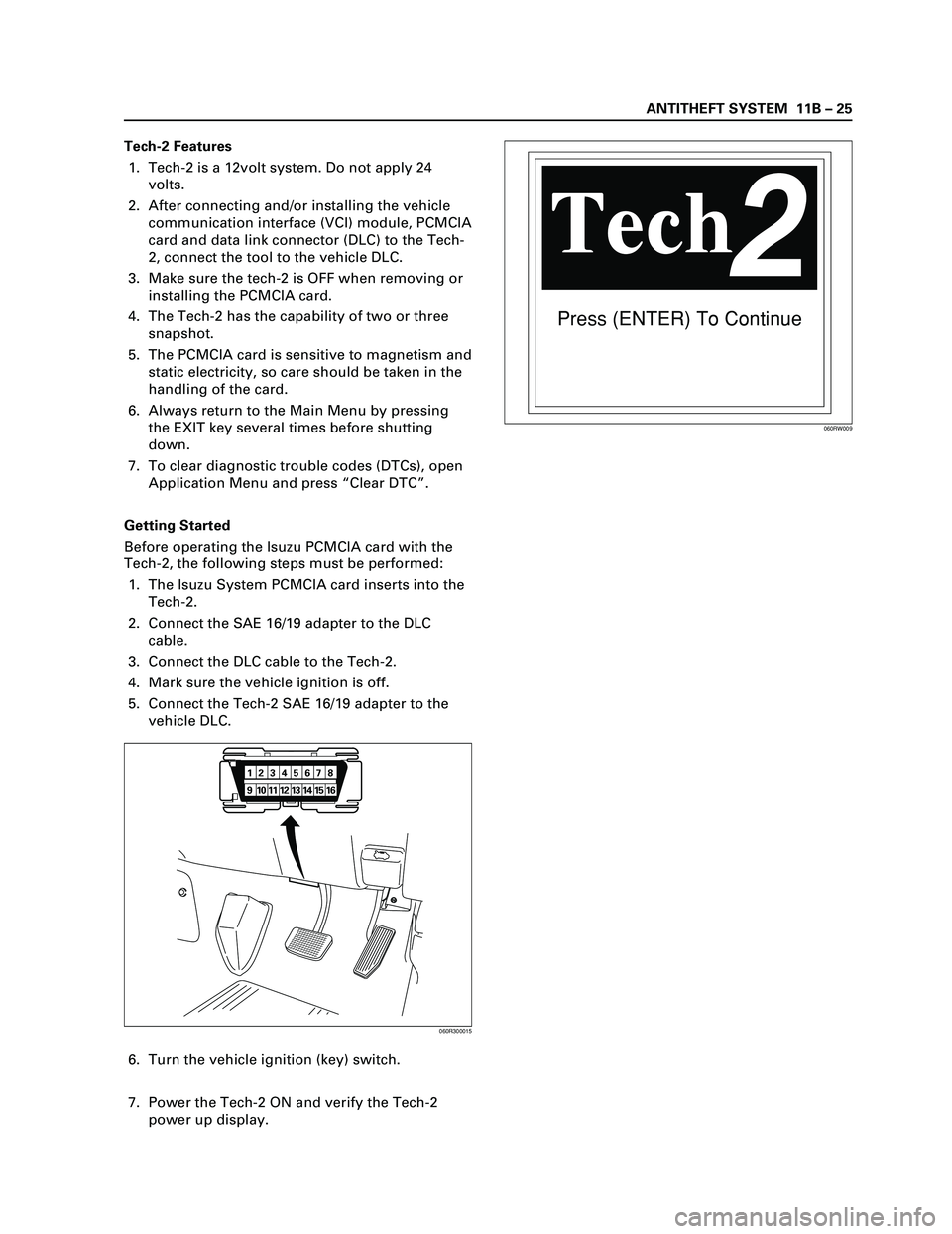

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 25 Tech-2 Features 1. Tech-2 is a 12volt system. Do not apply 24 volts. 2. After connecting and/or installing the vehicle communication interface (VCI) module, PCMCIA card an

Page 3372 of 4264

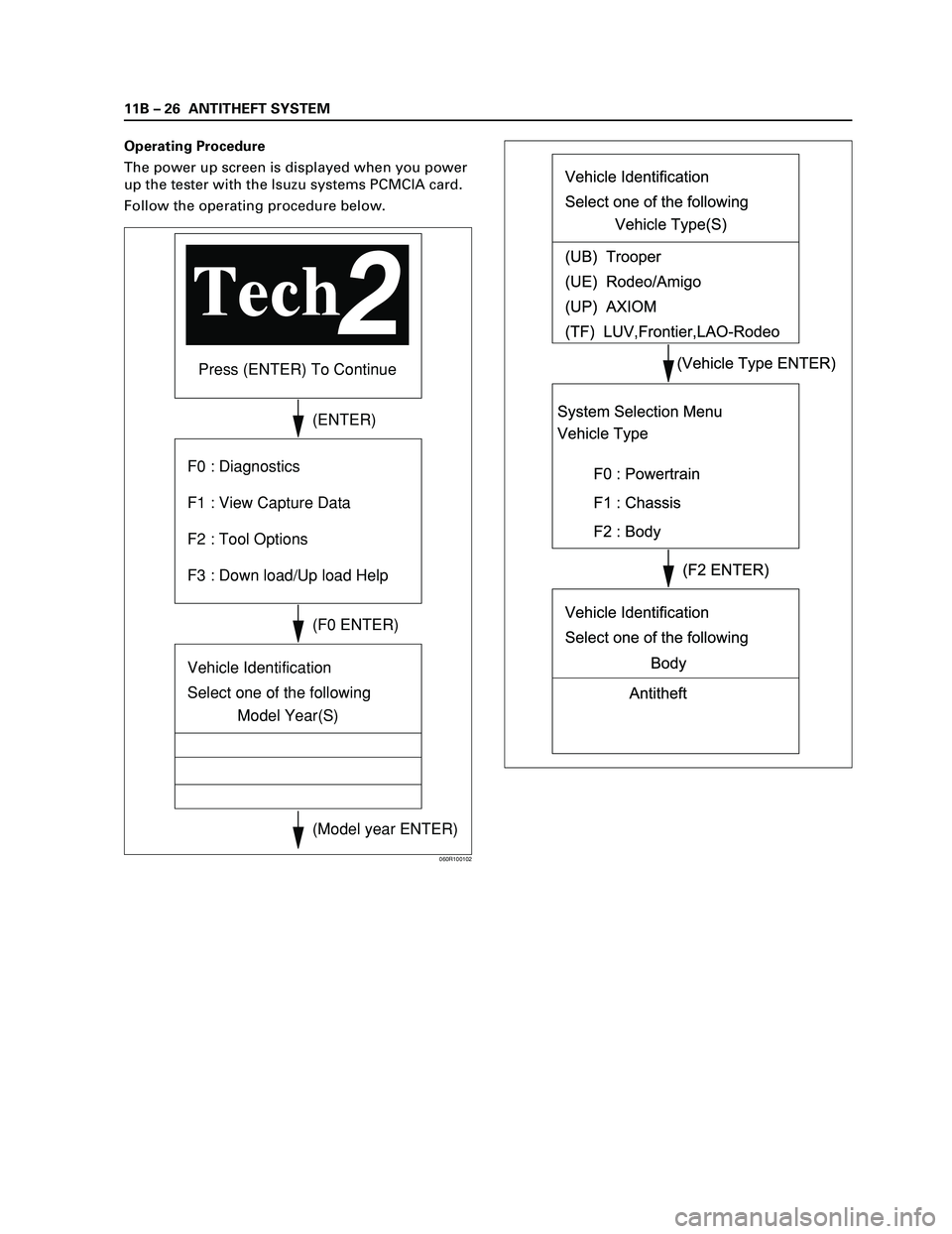

ISUZU TF SERIES 2004 Workshop Manual 11B – 26 ANTITHEFT SYSTEM Operating Procedure The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedure below. Press (ENTER) To

Page 3373 of 4264

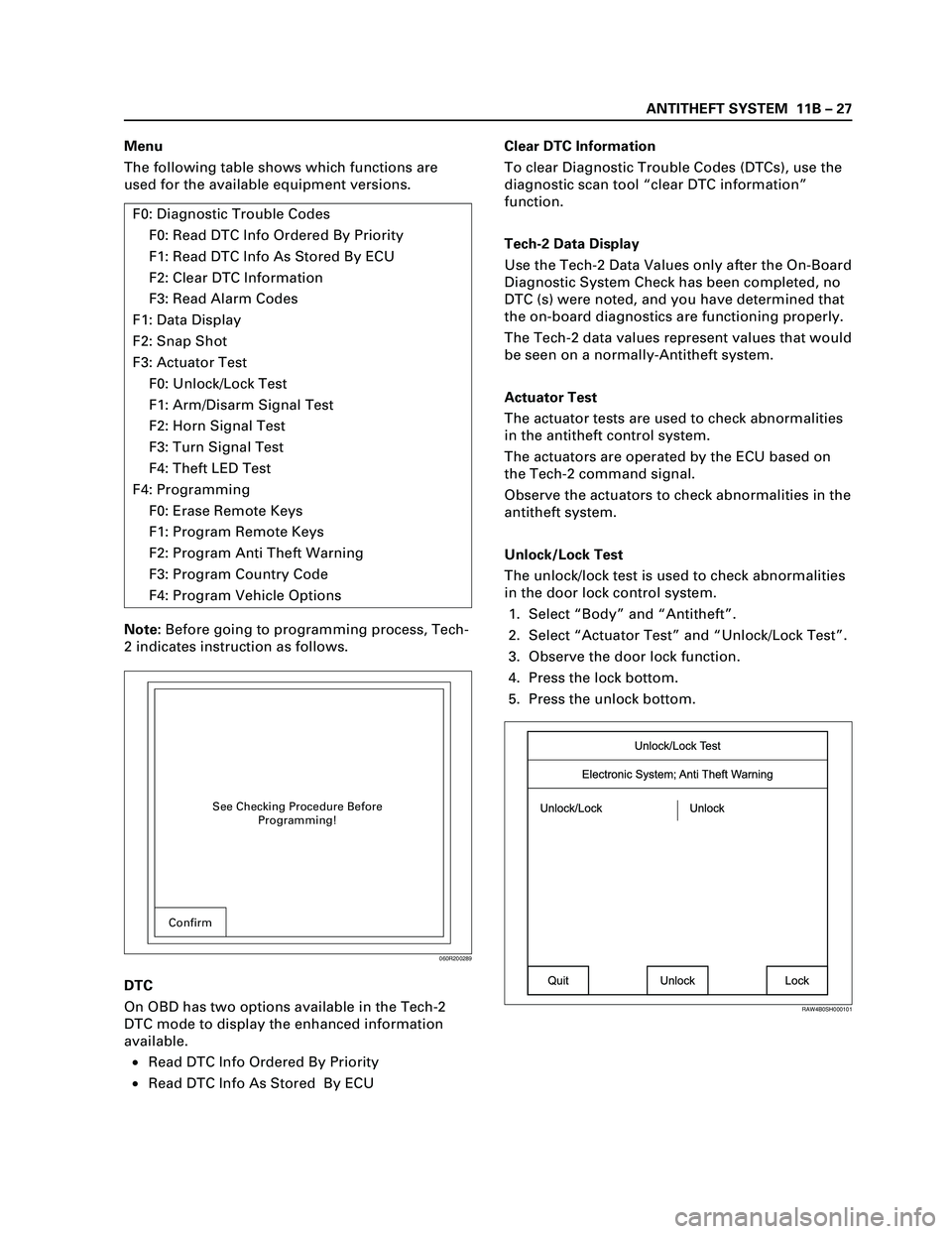

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B

Page 3374 of 4264

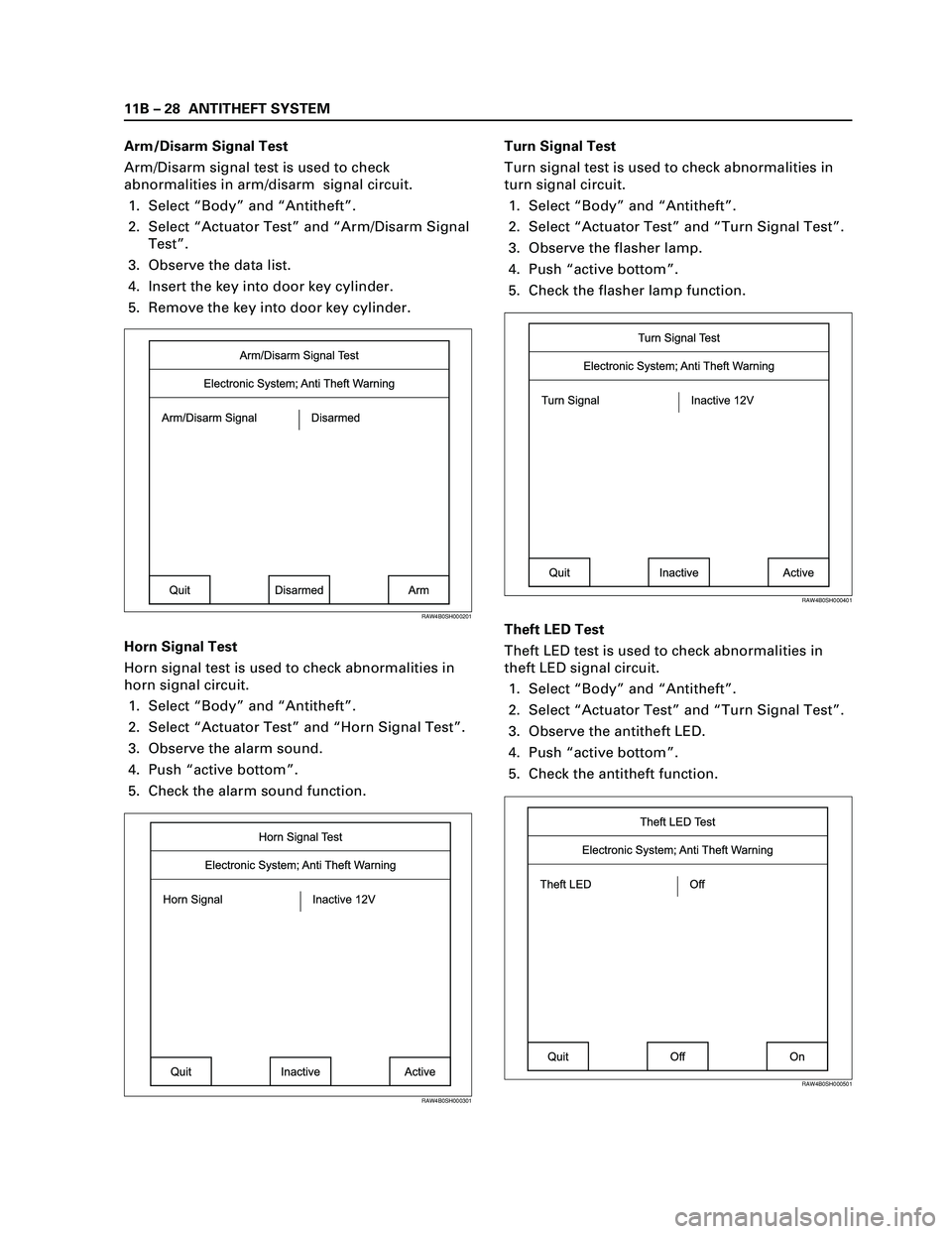

ISUZU TF SERIES 2004 Workshop Manual 11B – 28 ANTITHEFT SYSTEM Arm/Disarm Signal Test Arm/Disarm signal test is used to check abnormalities in arm/disarm signal circuit. 1. Select “Body” and “Antitheft”. 2. Select “Actuator

Page 3375 of 4264

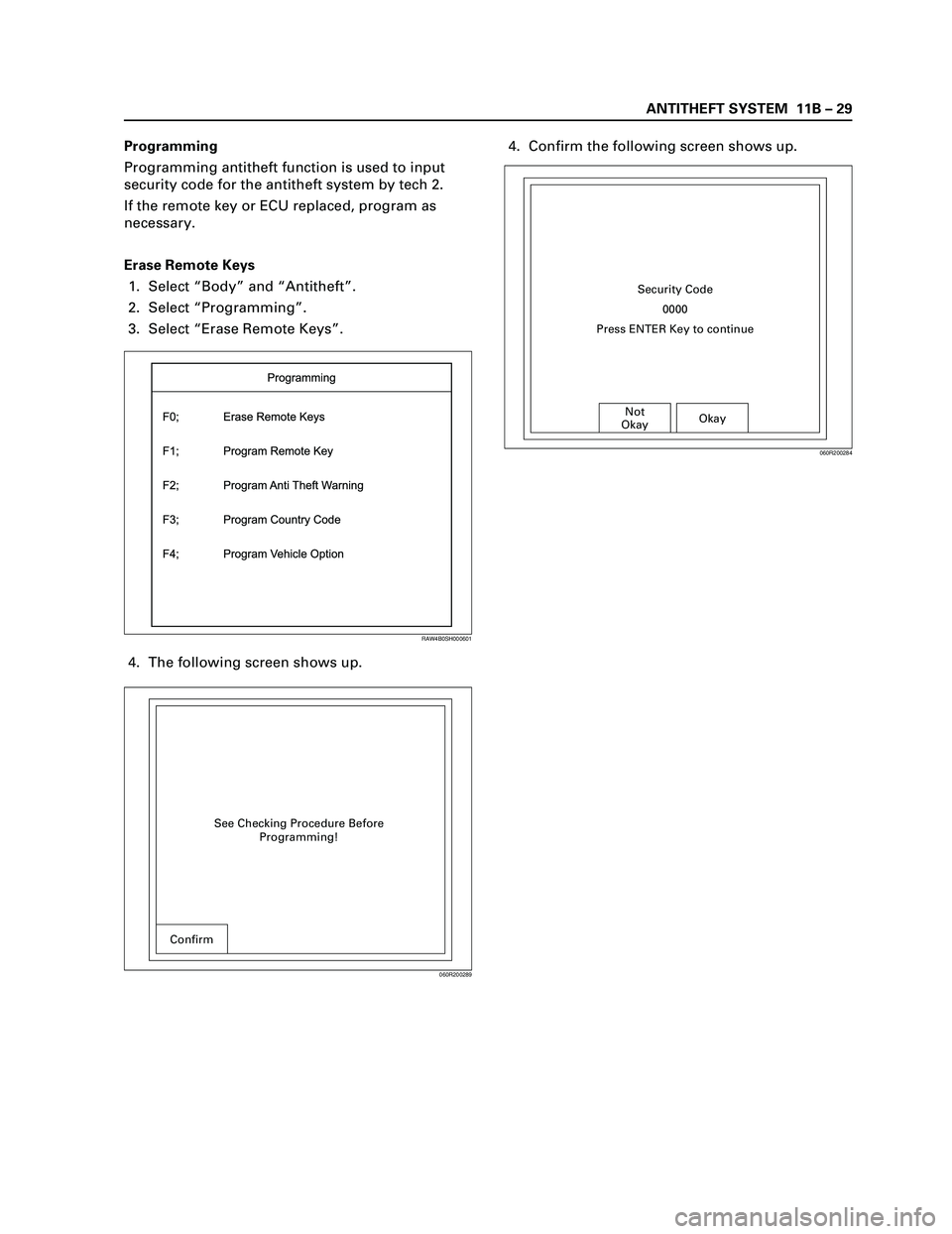

ISUZU TF SERIES 2004 Workshop Manual ANTITHEFT SYSTEM 11B – 29 Programming Programming antitheft function is used to input security code for the antitheft system by tech 2. If the remote key or ECU replaced, program as necessary. Era

Page 3376 of 4264

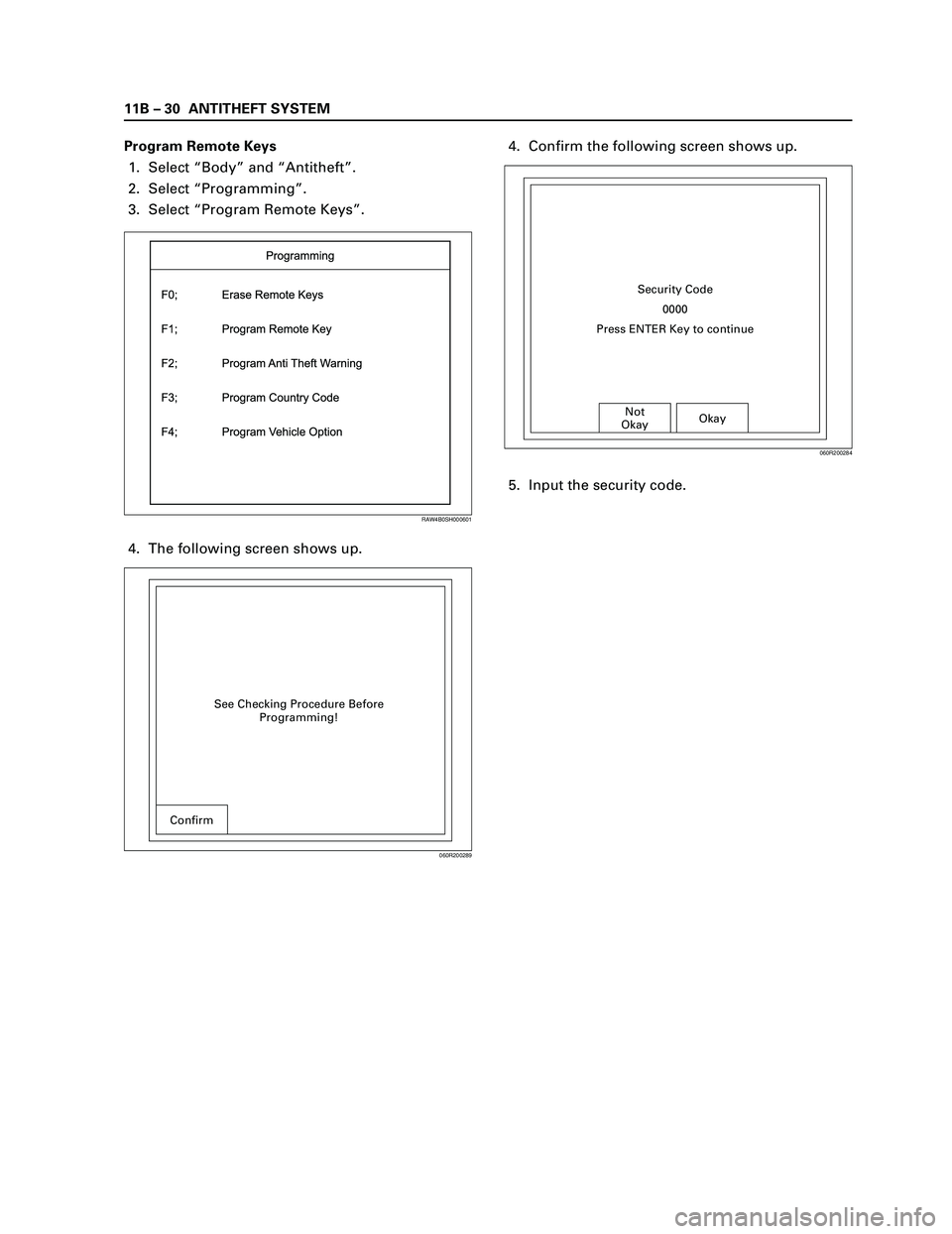

ISUZU TF SERIES 2004 Workshop Manual 11B – 30 ANTITHEFT SYSTEM Program Remote Keys 1. Select “Body” and “Antitheft”. 2. Select “Programming”. 3. Select “Program Remote Keys”. 4. The following screen shows up.4. Confirm
