Page 3297 of 4264

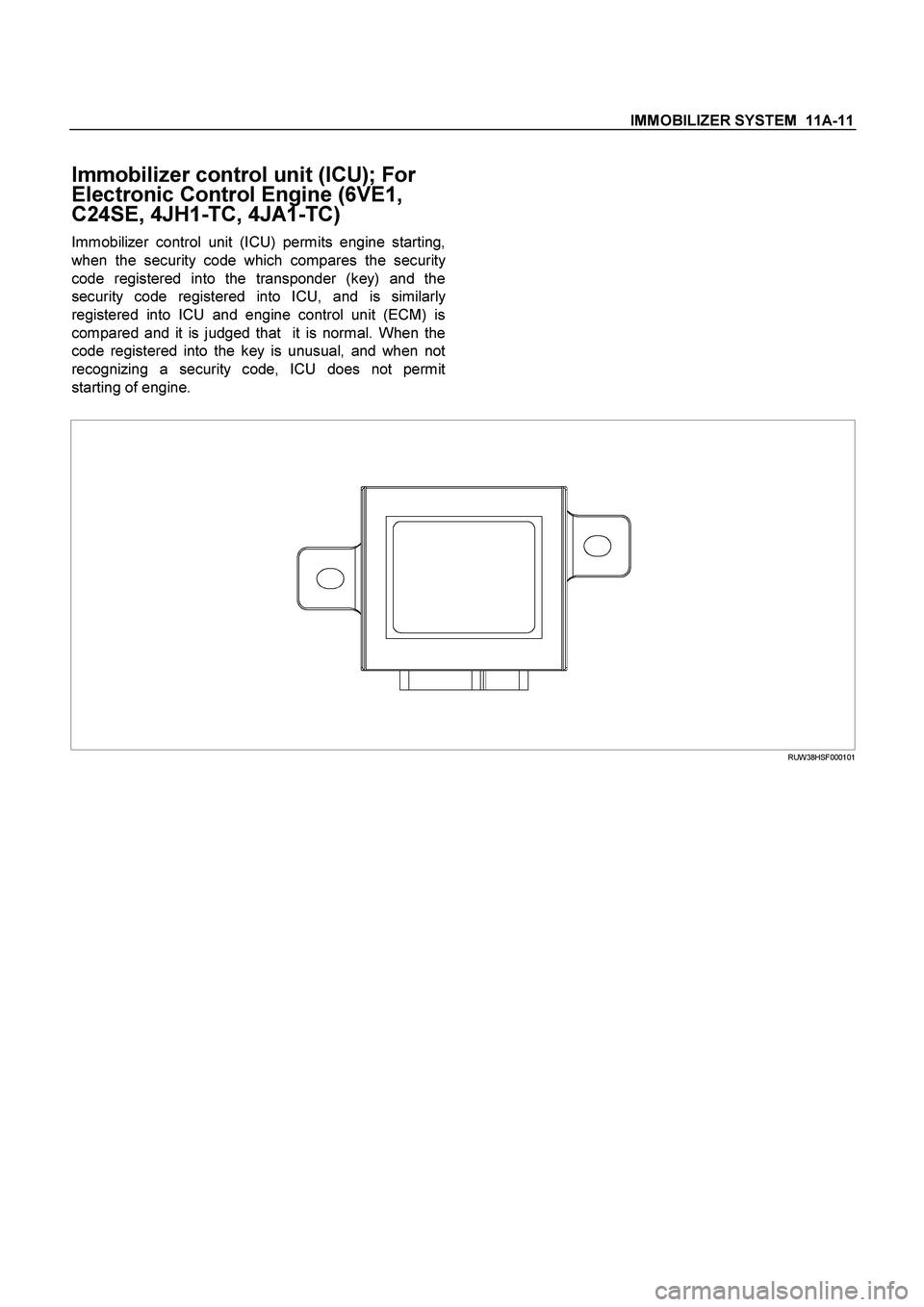

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-11 Immobilizer control unit (ICU); For Electronic Control Engine (6VE1, C24SE, 4JH1-TC, 4JA1-TC) Immobilizer control unit (ICU) permits engine starting, when the security

Page 3298 of 4264

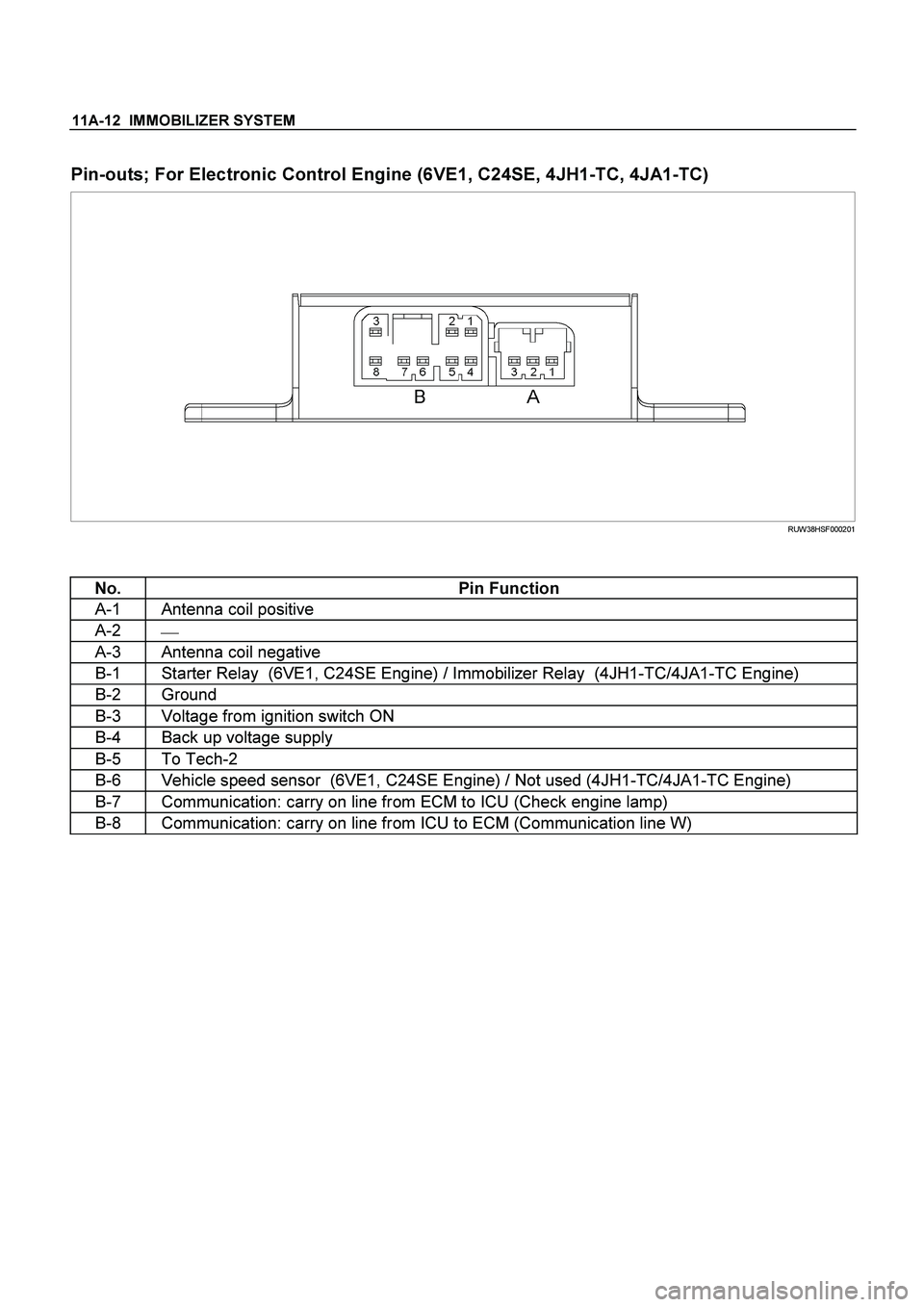

ISUZU TF SERIES 2004 Workshop Manual 11A-12 IMMOBILIZER SYSTEM Pin-outs; For Electronic Control Engine (6VE1, C24SE, 4JH1-TC, 4JA1-TC) RUW38HSF000201 No. Pin Function A-1 Antenna coil positive A-2  A-3 Antenna coil negativ

Page 3299 of 4264

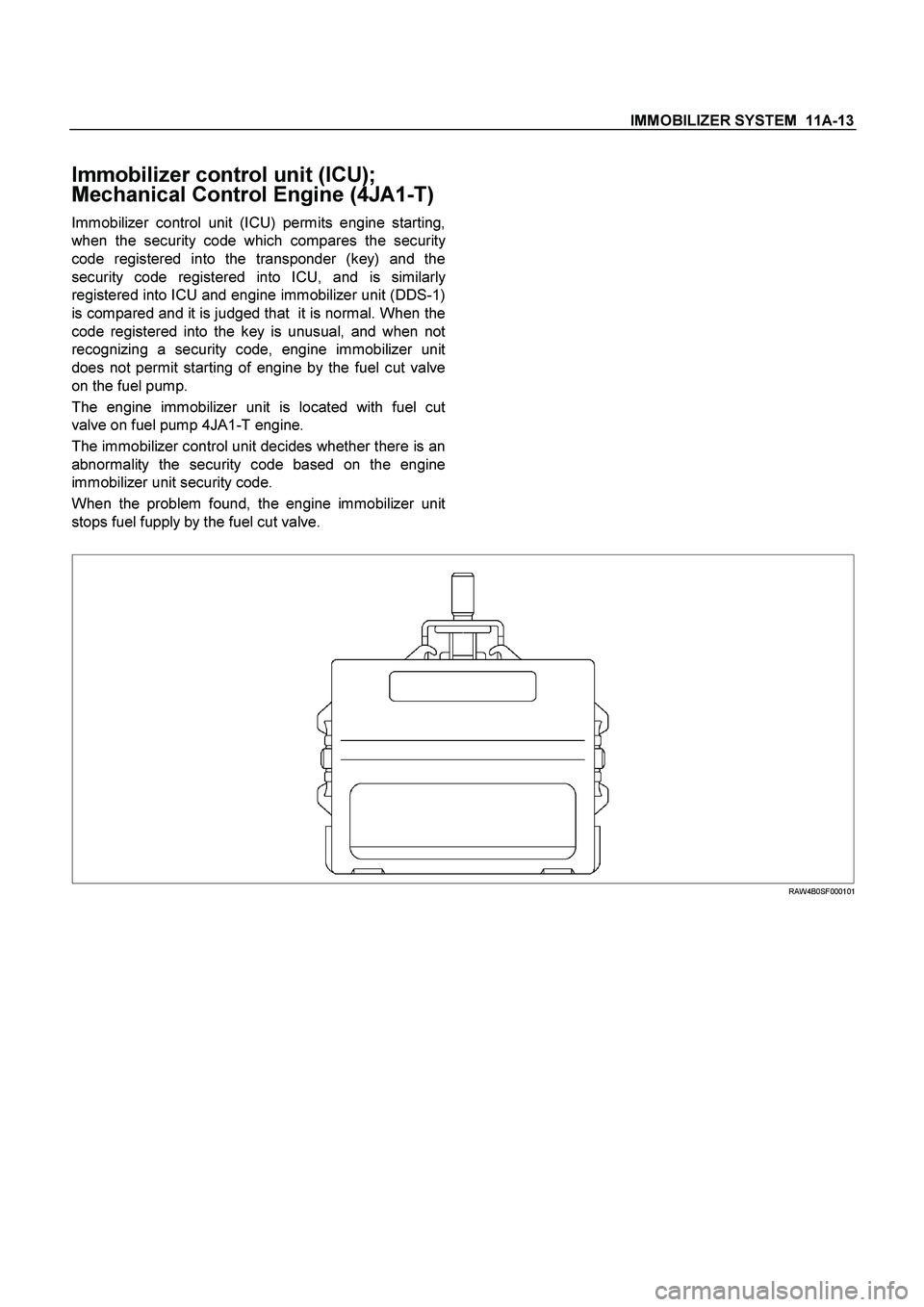

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-13 Immobilizer control unit (ICU); Mechanical Control Engine (4JA1-T) Immobilizer control unit (ICU) permits engine starting, when the security code which compares the secur

Page 3300 of 4264

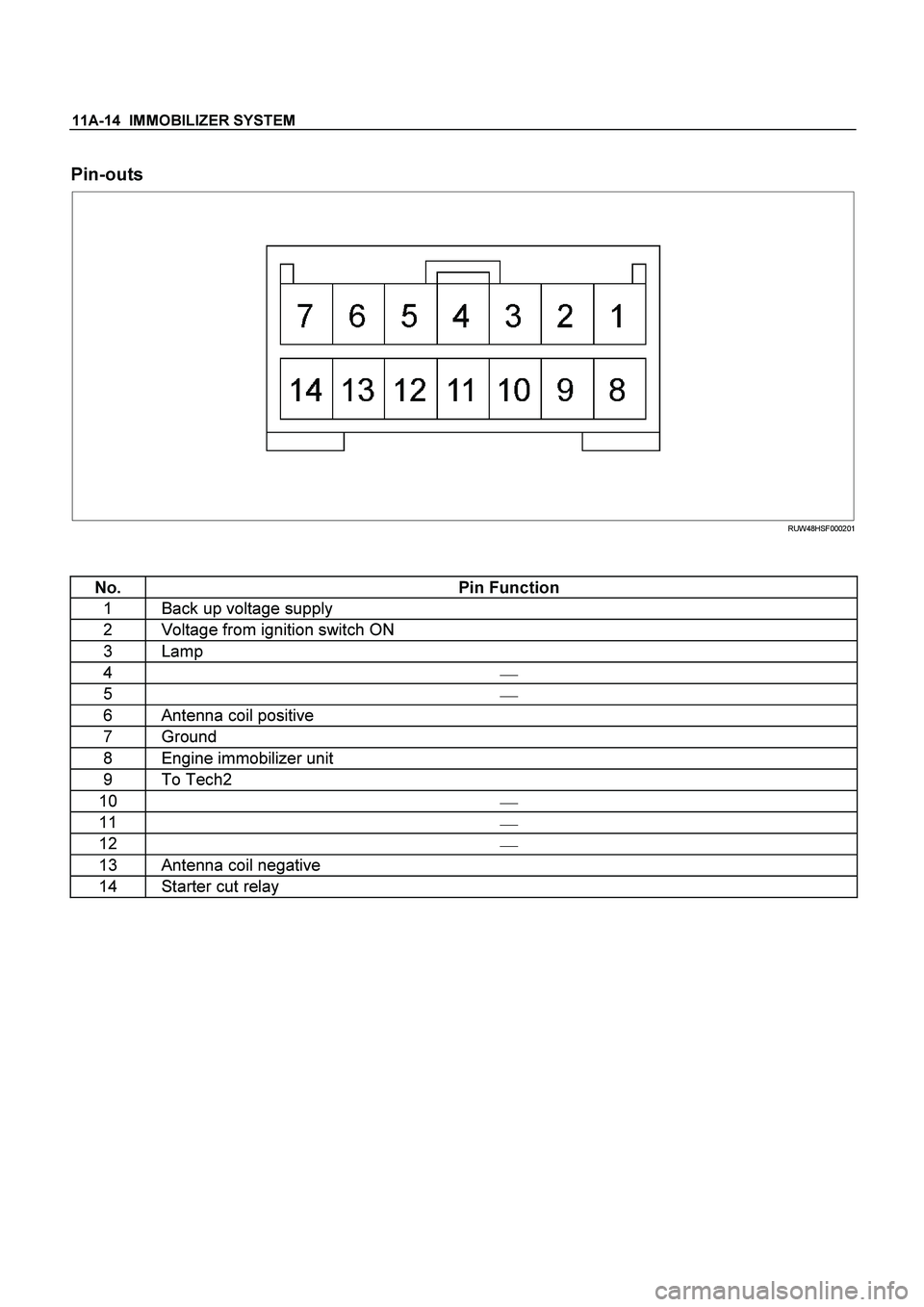

ISUZU TF SERIES 2004 Workshop Manual 11A-14 IMMOBILIZER SYSTEM Pin-outs RUW48HSF000201 No. Pin Function 1 Back up voltage supply 2 Voltage from ignition switch ON 3 Lamp 4  5  6 Antenna coil positive 7 Gro

Page 3301 of 4264

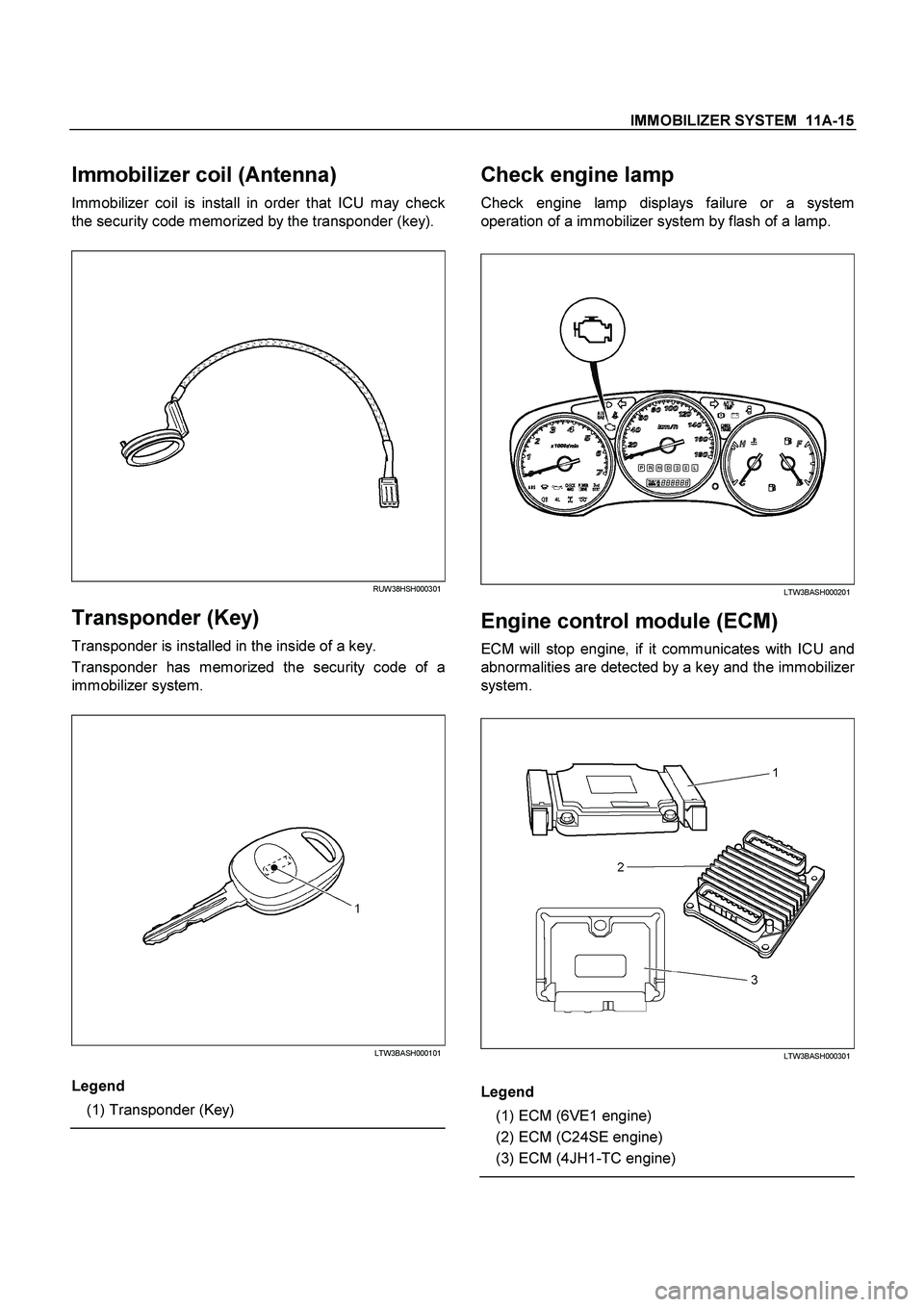

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-15 Immobilizer coil (Antenna) Immobilizer coil is install in order that ICU may check the security code memorized by the transponder (key). RUW38HSH000301 Transponder (Key

Page 3302 of 4264

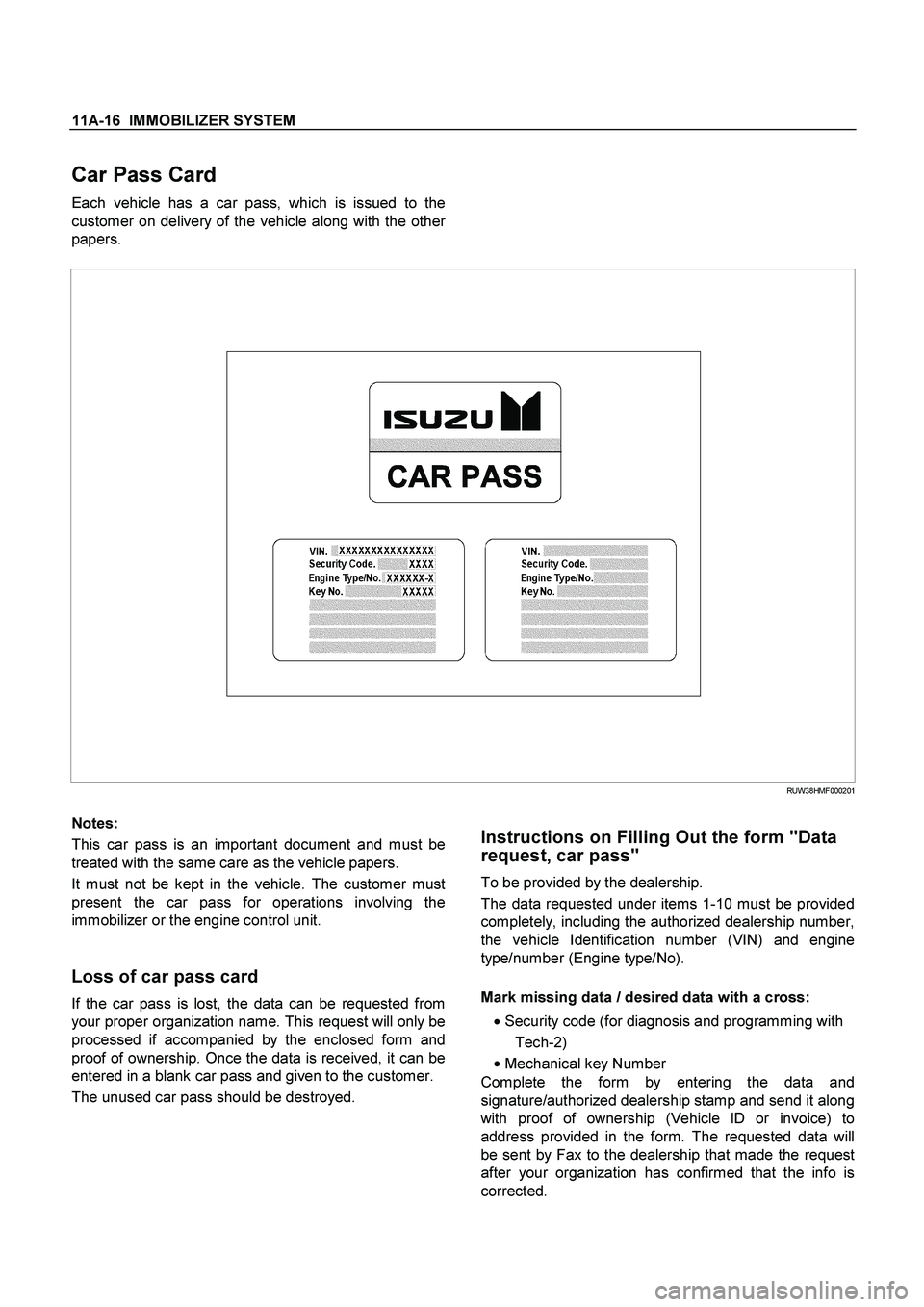

ISUZU TF SERIES 2004 Workshop Manual 11A-16 IMMOBILIZER SYSTEM Car Pass Card Each vehicle has a car pass, which is issued to the customer on delivery of the vehicle along with the othe r papers. RUW38HMF000201 Notes: This

Page 3303 of 4264

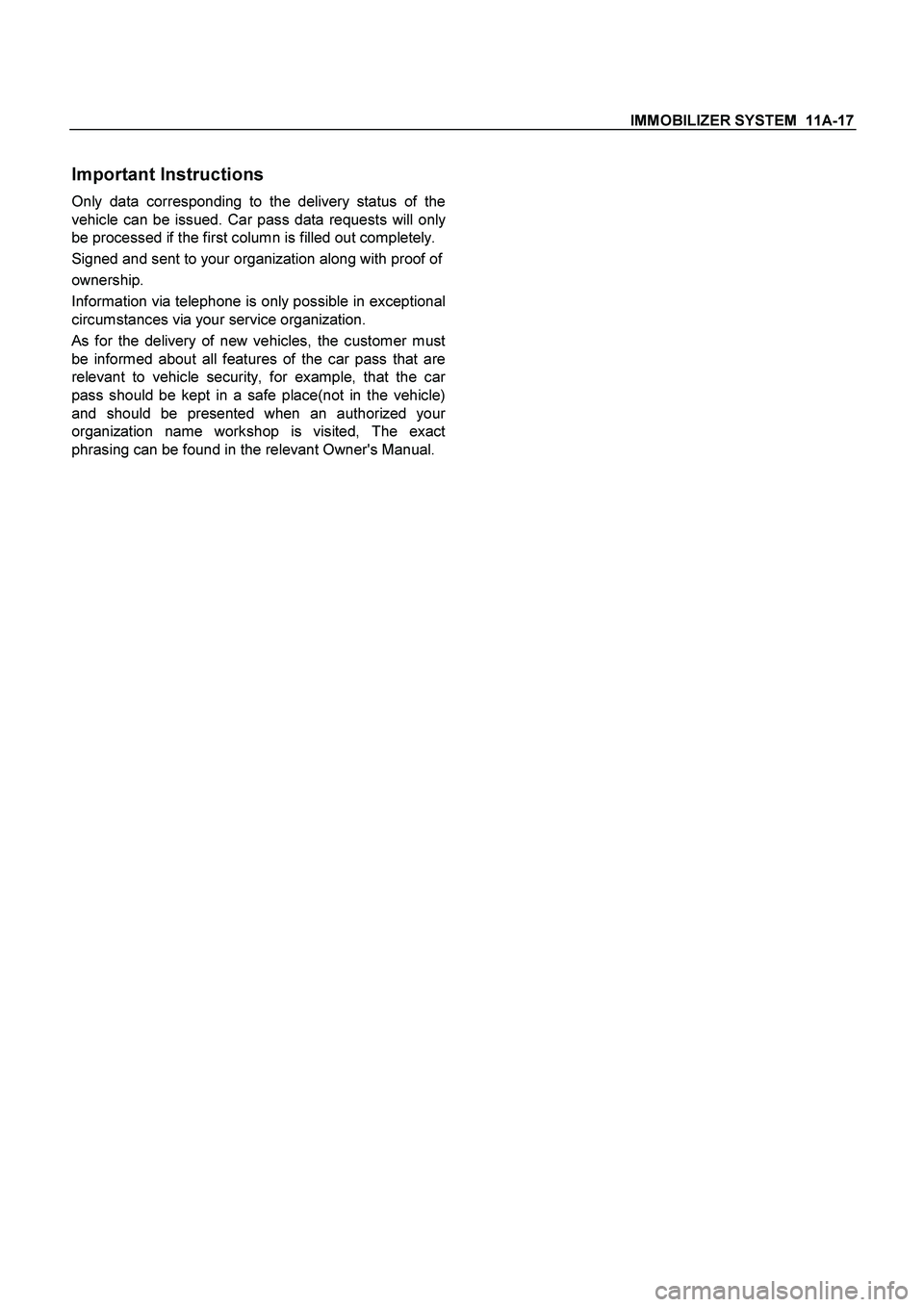

ISUZU TF SERIES 2004 Workshop Manual IMMOBILIZER SYSTEM 11A-17 Important Instructions Only data corresponding to the delivery status of the vehicle can be issued. Car pass data requests will onl y be processed if the first column is

Page 3304 of 4264

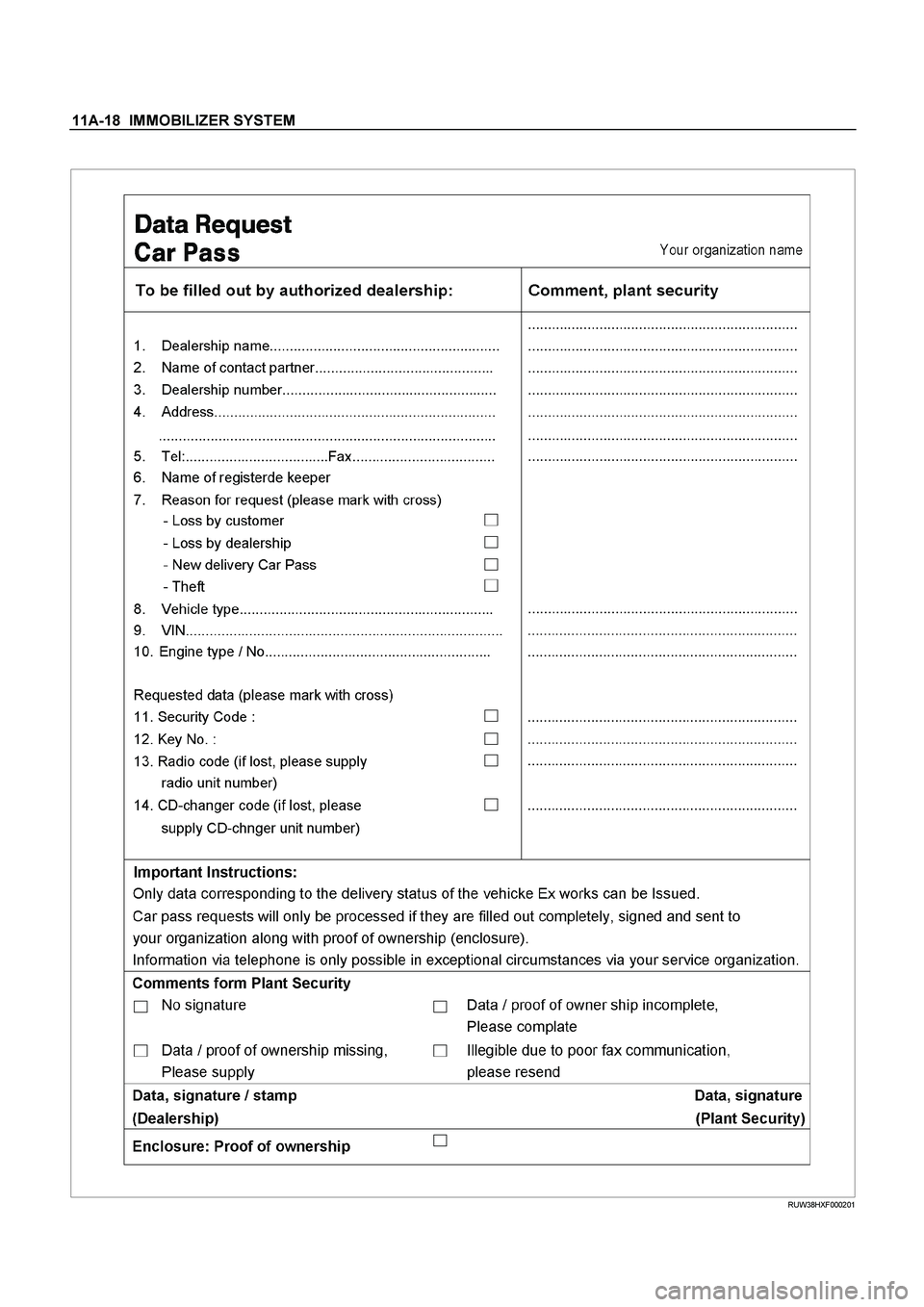

ISUZU TF SERIES 2004 Workshop Manual 11A-18 IMMOBILIZER SYSTEM RUW38HXF000201
