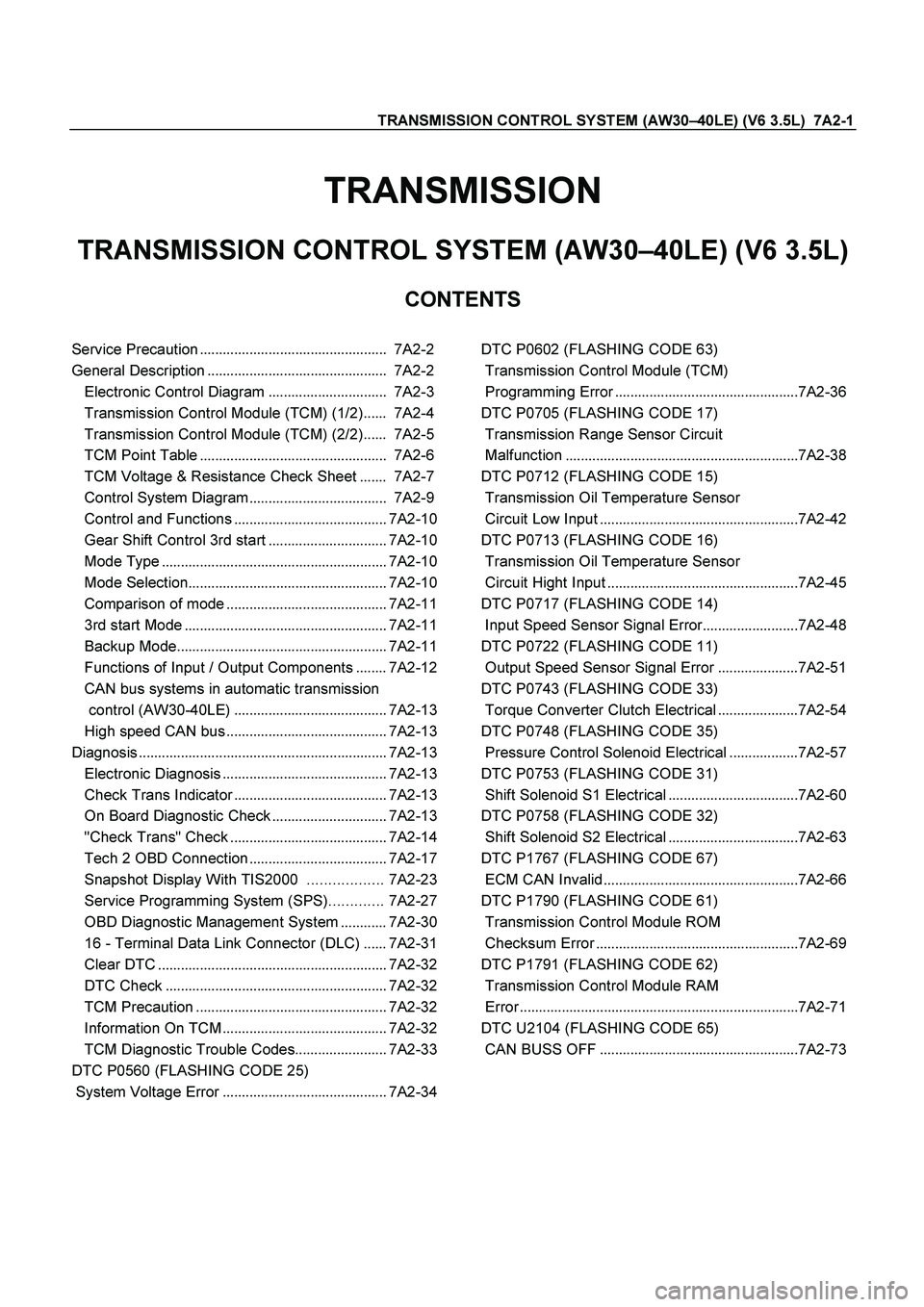

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-1
TRANSMISSION
TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L)
CONTENTS

Service Precaution .....................................

TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-1
TRANSMISSION
TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L)
CONTENTS

Service Precaution .................................................
7A2-2
General Description ...............................................
7A2-2
Electronic Control Diagram ...............................
7A2-3
Transmission Control Module (TCM) (1/2) ......
7A2-4
Transmission Control Module (TCM) (2/2) ......
7A2-5
TCM Point Table .................................................
7A2-6
TCM Voltage & Resistance Check Sheet .......
7A2-7
Control System Diagram ....................................
7A2-9
Control and Functions ........................................
7A2-10
Gear Shift Control 3rd start ...............................
7A2-10
Mode Type ...........................................................
7A2-10
Mode Selection ....................................................
7A2-10
Comparison of mode ..........................................
7A2-11
3rd start Mode .....................................................
7A2-11
Backup Mode .......................................................
7A2-11
Functions of Input / Output Components ........
7A2-12
CAN bus systems in automatic transmission
control (AW30-40LE) ........................................
7A2-13
High speed CAN bus ..........................................
7A2-13
Diagnosis .................................................................
7A2-13
Electronic Diagnosis ...........................................
7A2-13
Check Trans Indicator ........................................
7A2-13
On Board Diagnostic Check ..............................
7A2-13
"Check Trans" Check .........................................
7A2-14
Tech 2 OBD Connection ....................................
7A2-17
Snapshot Display With TIS2000 .................. 7A2-23
Service Programming System (SPS)............. 7A2-27
OBD Diagnostic Management System ............
7A2-30
16 - Terminal Data Link Connector (DLC) ......
7A2-31
Clear DTC ............................................................
7A2-32
DTC Check ..........................................................
7A2-32
TCM Precaution ..................................................
7A2-32
Information On TCM ...........................................
7A2-32
TCM Diagnostic Trouble Codes ........................
7A2-33
DTC P0560 (FLASHING CODE 25)
System Voltage Error ...........................................
7A2-34

DTC P0602 (FLASHING CODE 63)
Transmission Control Module (TCM)
Programming Error ................................................
7A2-36
DTC P0705 (FLASHING CODE 17)
Transmission Range Sensor Circuit
Malfunction .............................................................
7A2-38
DTC P0712 (FLASHING CODE 15)
Transmission Oil Temperature Sensor
Circuit Low Input ....................................................
7A2-42
DTC P0713 (FLASHING CODE 16)
Transmission Oil Temperature Sensor
Circuit Hight Input ..................................................
7A2-45
DTC P0717 (FLASHING CODE 14)
Input Speed Sensor Signal Error .........................
7A2-48
DTC P0722 (FLASHING CODE 11)
Output Speed Sensor Signal Error .....................
7A2-51
DTC P0743 (FLASHING CODE 33)
Torque Converter Clutch Electrical .....................
7A2-54
DTC P0748 (FLASHING CODE 35)
Pressure Control Solenoid Electrical ..................
7A2-57
DTC P0753 (FLASHING CODE 31)
Shift Solenoid S1 Electrical ..................................
7A2-60
DTC P0758 (FLASHING CODE 32)
Shift Solenoid S2 Electrical ..................................
7A2-63
DTC P1767 (FLASHING CODE 67)
ECM CAN Invalid ...................................................
7A2-66
DTC P1790 (FLASHING CODE 61)
Transmission Control Module ROM
Checksum Error .....................................................
7A2-69
DTC P1791 (FLASHING CODE 62)
Transmission Control Module RAM
Error .........................................................................
7A2-71
DTC U2104 (FLASHING CODE 65)
CAN BUSS OFF ....................................................
7A2-73

Page 3682 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A2-2 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

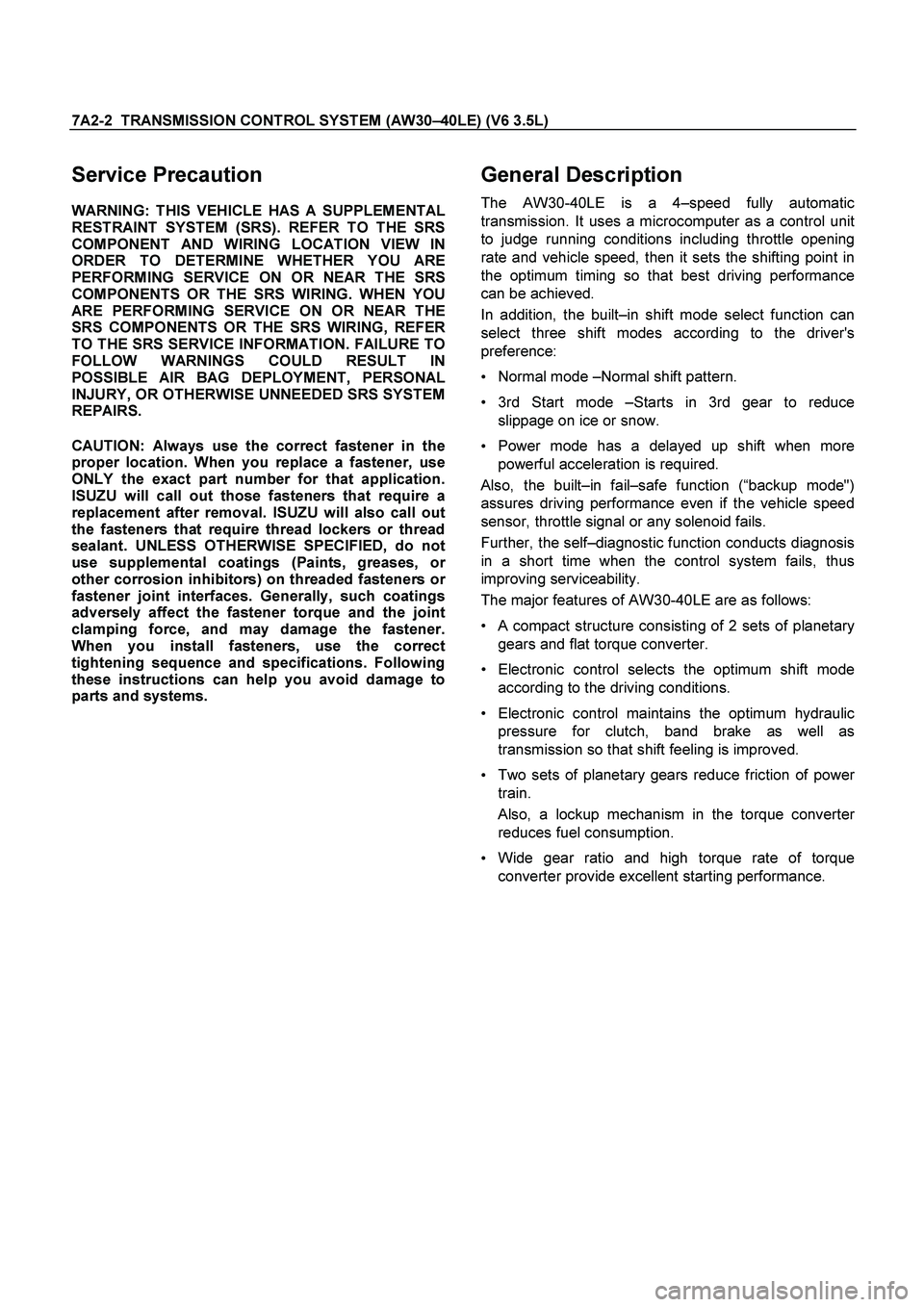

Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION V

7A2-2 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFE
R
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, o
r
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.
General Description
The AW30-40LE is a 4–speed fully automatic
transmission. It uses a microcomputer as a control unit
to judge running conditions including throttle opening
rate and vehicle speed, then it sets the shifting point in
the optimum timing so that best driving performance
can be achieved.
In addition, the built–in shift mode select function can
select three shift modes according to the driver's
preference:
Normal mode –Normal shift pattern.
3rd Start mode –Starts in 3rd gear to reduce
slippage on ice or snow.
Power mode has a delayed up shift when more
powerful acceleration is required.
Also, the built–in fail–safe function (“backup mode")
assures driving performance even if the vehicle speed
sensor, throttle signal or any solenoid fails.
Further, the self–diagnostic function conducts diagnosis
in a short time when the control system fails, thus
improving serviceability.
The major features of AW30-40LE are as follows:

A compact structure consisting of 2 sets of planetary
gears and flat torque converter.
Electronic control selects the optimum shift mode according to the driving conditions.
Electronic control maintains the optimum hydraulic
pressure for clutch, band brake as well as
transmission so that shift feeling is improved.
Two sets of planetary gears reduce friction of powe
r
train.
Also, a lockup mechanism in the torque converter
reduces fuel consumption.
Wide gear ratio and high torque rate of torque
converter provide excellent starting performance.

Page 3683 of 4264

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-3

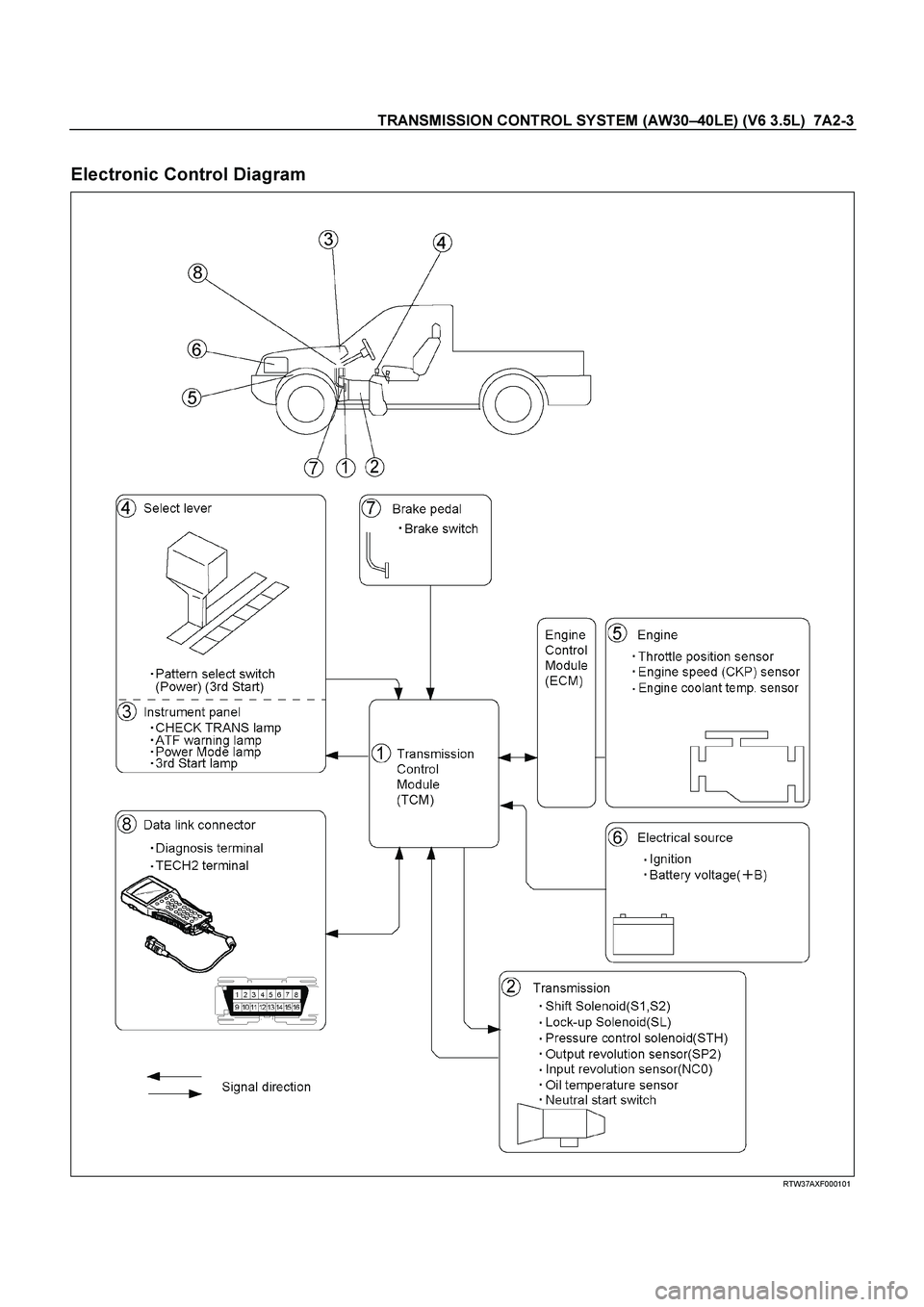

Electronic Control Diagram

RTW37AXF000101

Page 3684 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A2-4 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

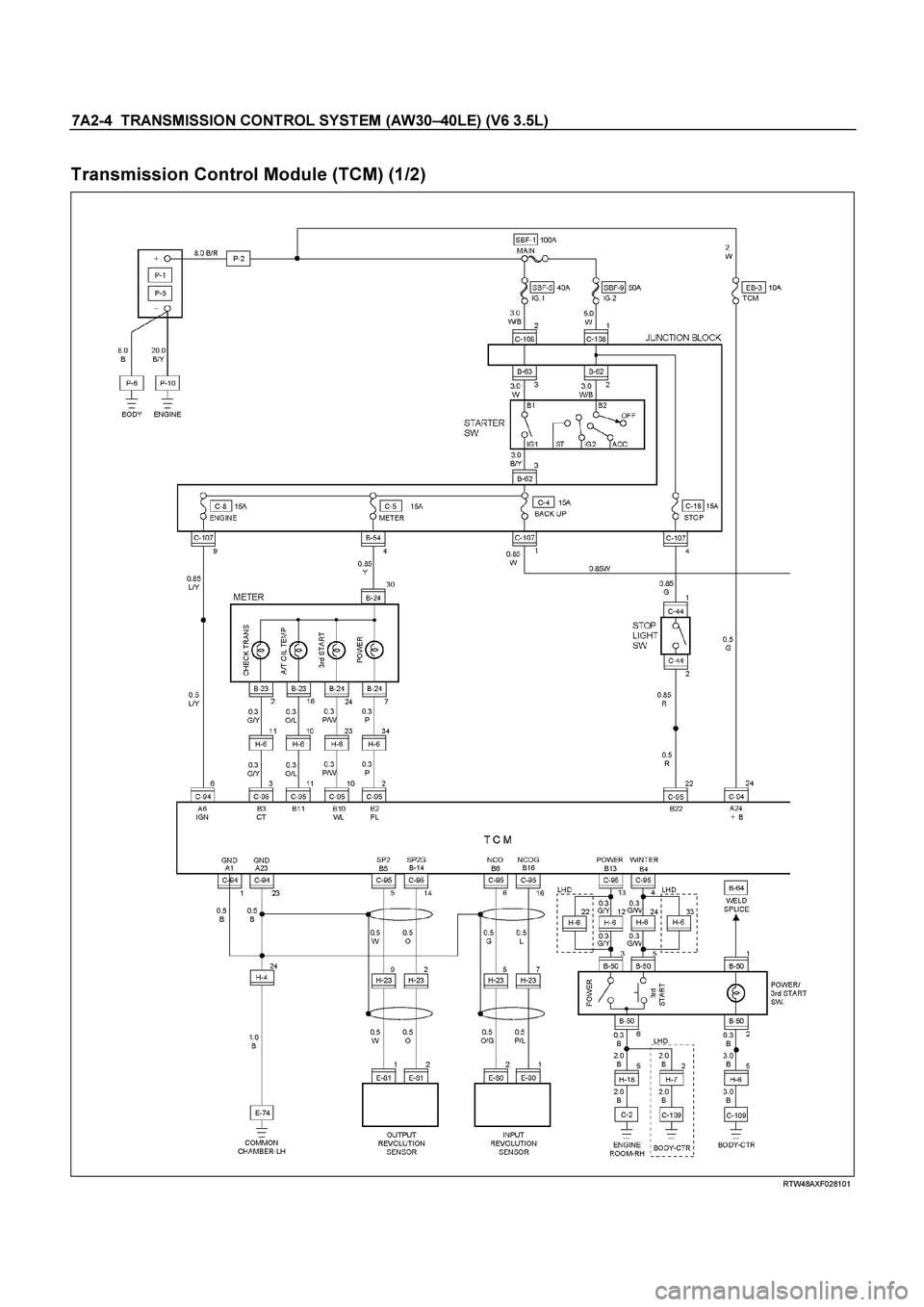

Transmission Control Module (TCM) (1/2)

RTW48AXF028101

Page 3685 of 4264

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-5

Transmission Control Module (TCM) (2/2)

RTW48AXF003101

Page 3686 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A2-6 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

TCM Point Table

RTW37ASF000101-1

PIN No. SIGNAL NAME
A1 GND
A2 PRESSURE CONTROL SOLENOID GND
A3 —
A4 PRESSURE

Page 3687 of 4264

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-7

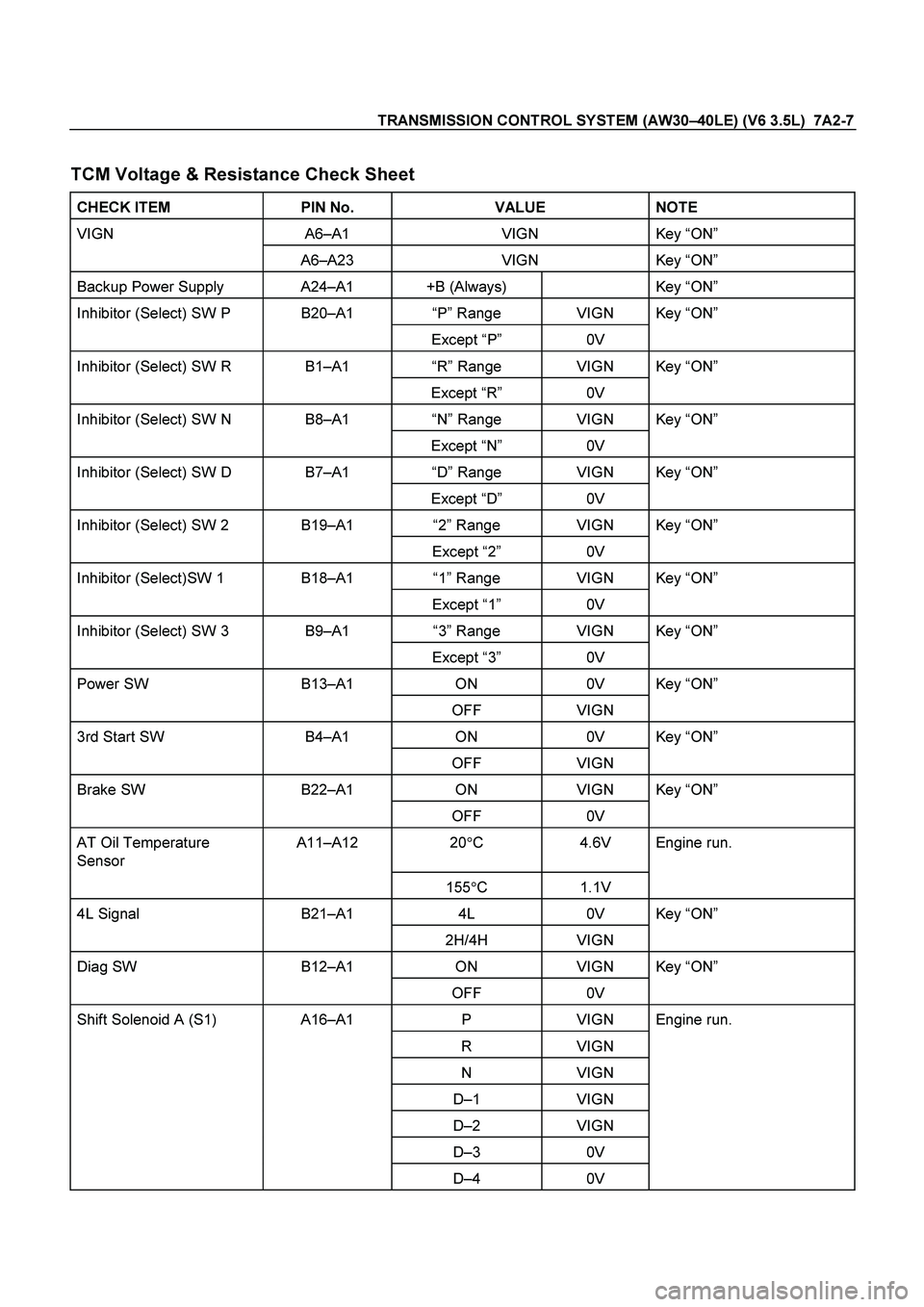

TCM Voltage & Resistance Check Sheet
CHECK ITEM PIN No. VALUE NOTE
VIGN A6 –A1 VIGN
Key “ON ”

A6 –A23 VIGN
Ke

Page 3688 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A2-8 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L)

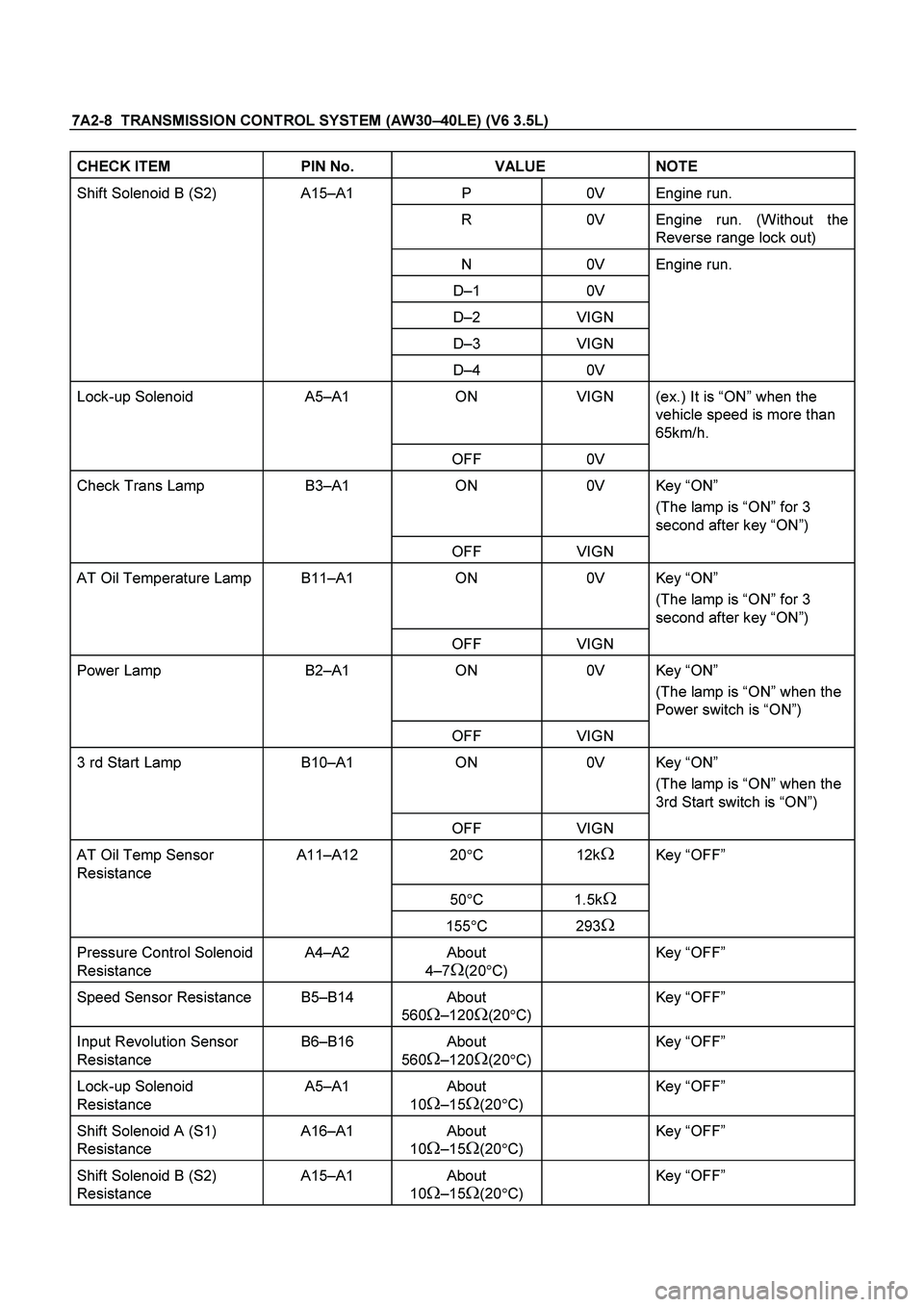

CHECK ITEM PIN No. VALUE NOTE
Shift Solenoid B (S2) A15 –A1 P 0V Engine run.

R 0V Engine run. (Without the
Reverse rang
