Page 3889 of 4264

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (AW30–40LE) 7A4–81 Rear Planetary Gear Assembly and Output Shaft Disassembled View 2 47R20 0005 E nd O FCallo ut Legend (1) Second brake assembly (2) Output shaft (3) Oil seal ring (4)

Page 3890 of 4264

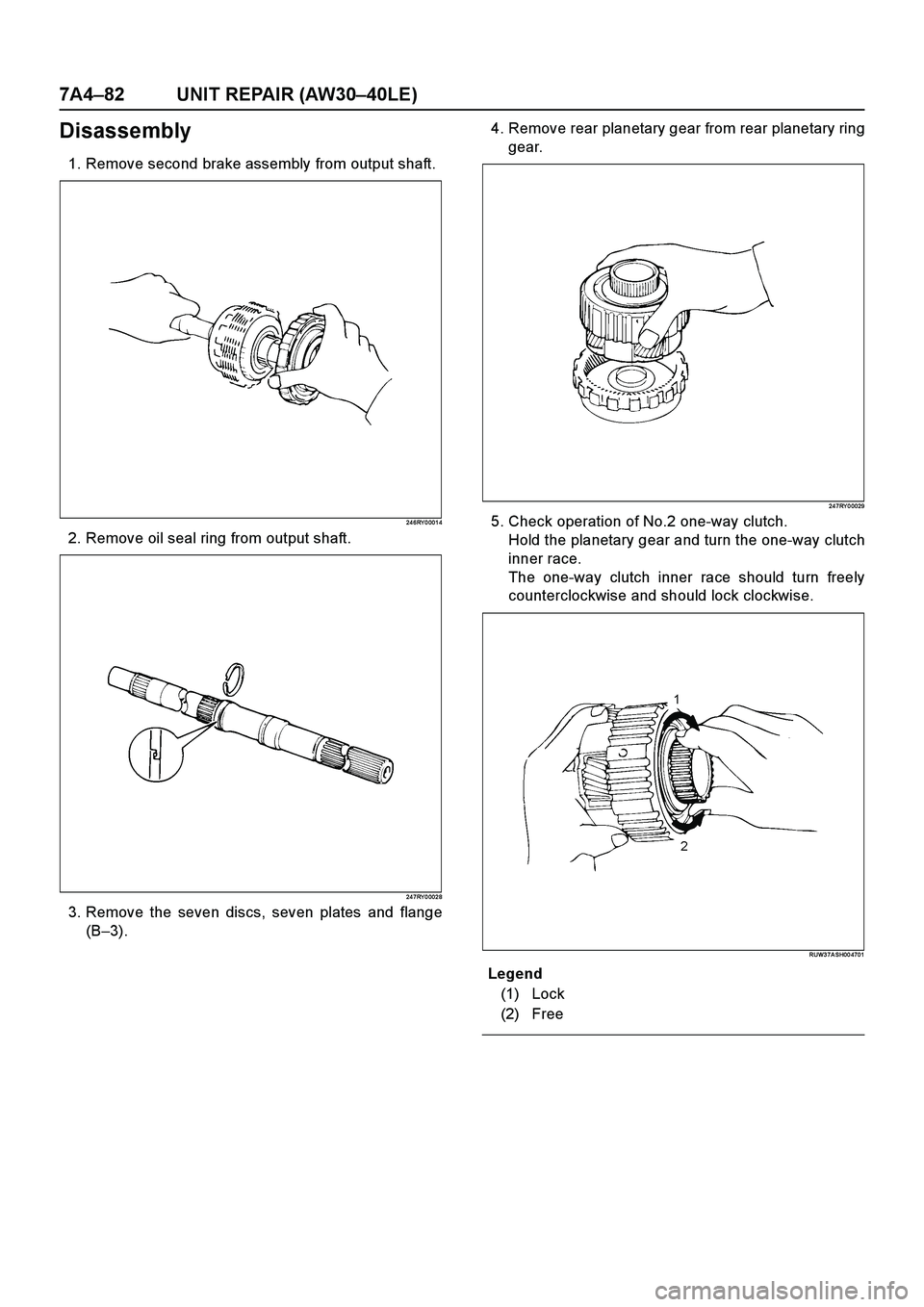

ISUZU TF SERIES 2004 Workshop Manual 7A4–82 UNIT REPAIR (AW30–40LE) Disassembly 1. Remove second brake assembly from output shaft. 24 6RY 0 001 4 2. Remove oil seal ring from output shaft. 24 7RY 0 002 8 3. Remove the seven discs, se

Page 3891 of 4264

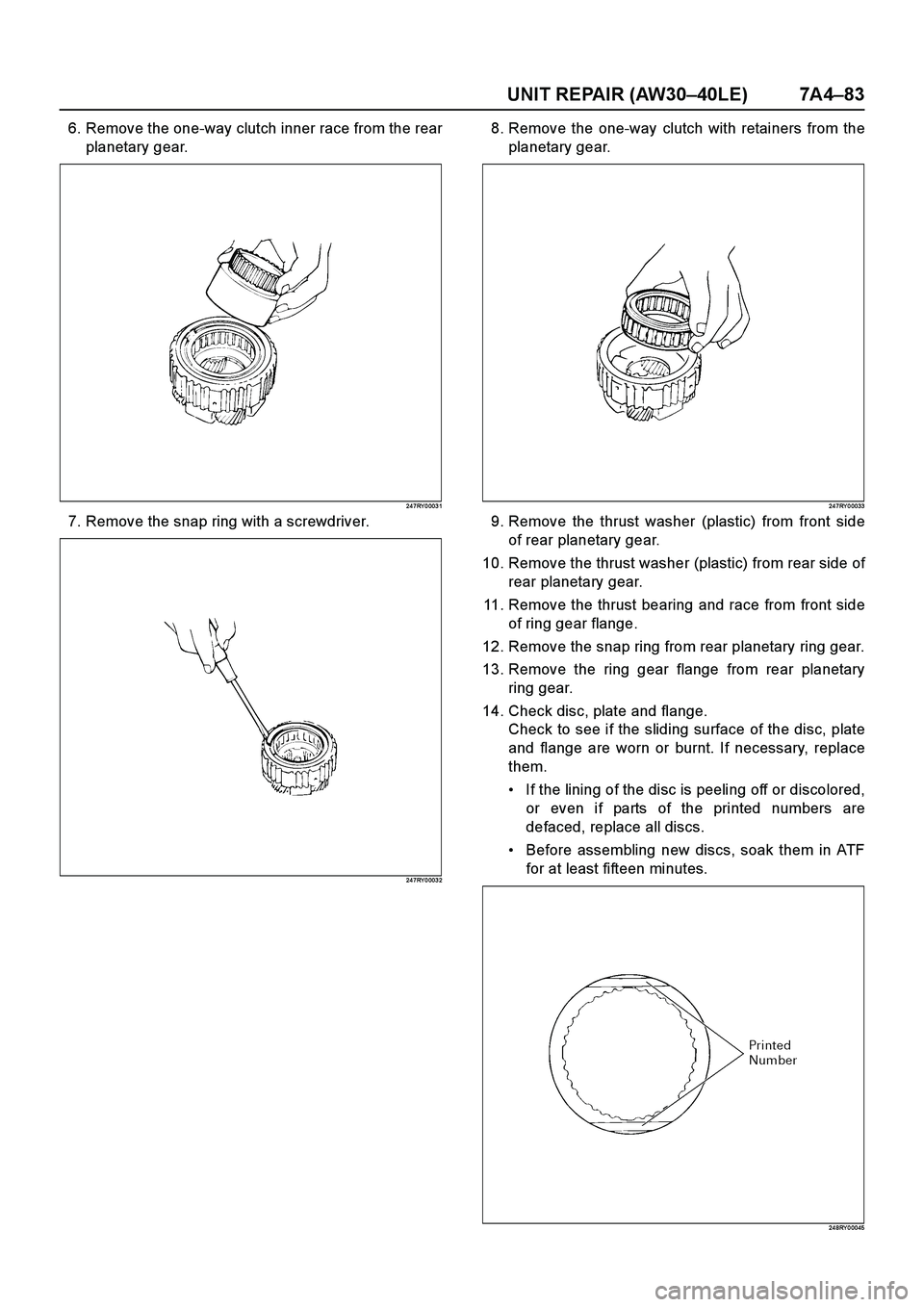

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (AW30–40LE) 7A4–83 6. Remove the one-way clutch inner race from the rear planetary gear. 24 7RY 0 003 1 7. Remove the snap ring with a screwdriver. 24 7RY 0 003 2 8. Remove the one-way

Page 3892 of 4264

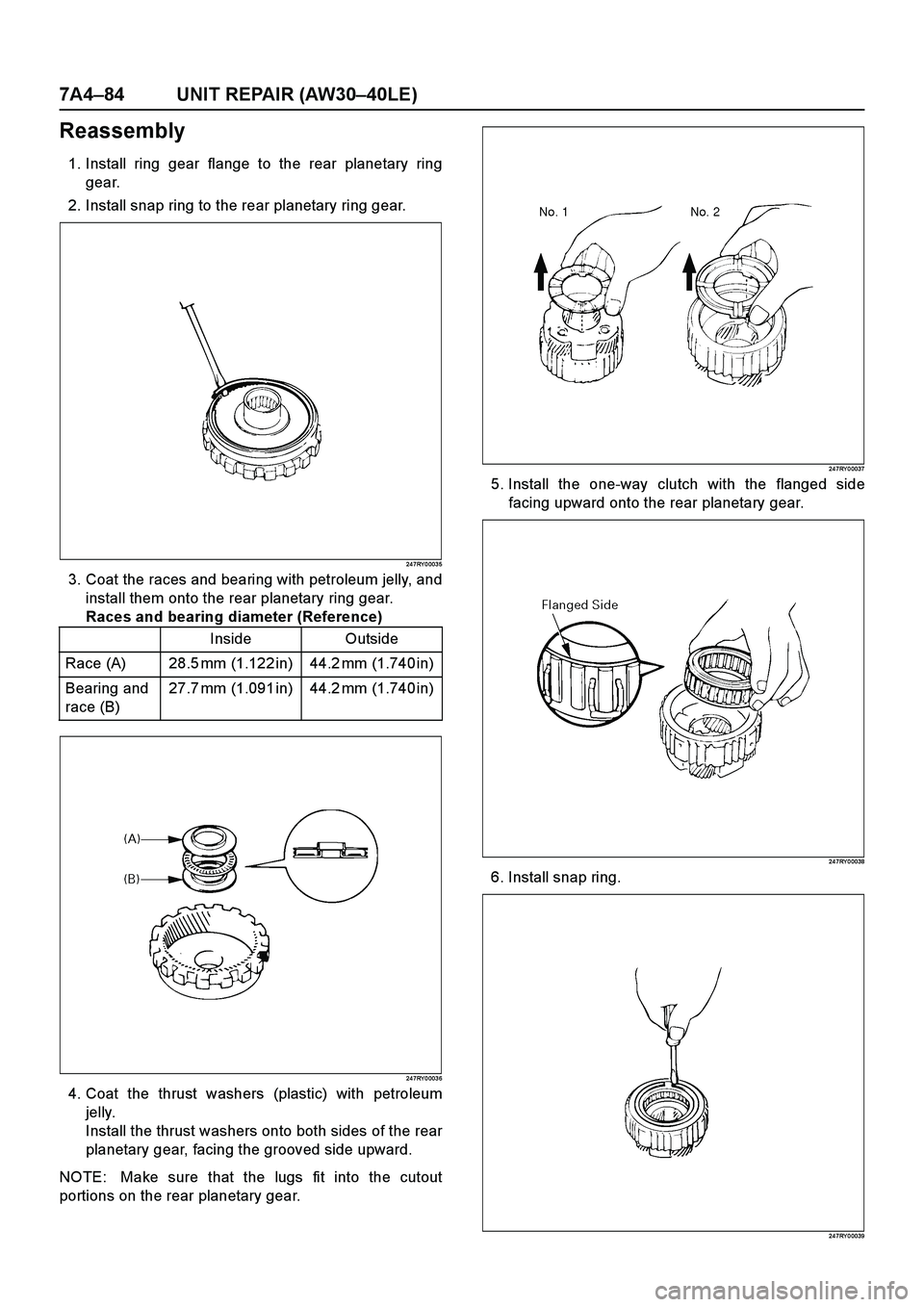

ISUZU TF SERIES 2004 Workshop Manual 7A4–84 UNIT REPAIR (AW30–40LE) Reassembly 1. Install ring gear flange to the rear planetary ring gear. 2. Install snap ring to the rear planetary ring gear. 24 7RY 0 003 5 3. Coat the races and be

Page 3893 of 4264

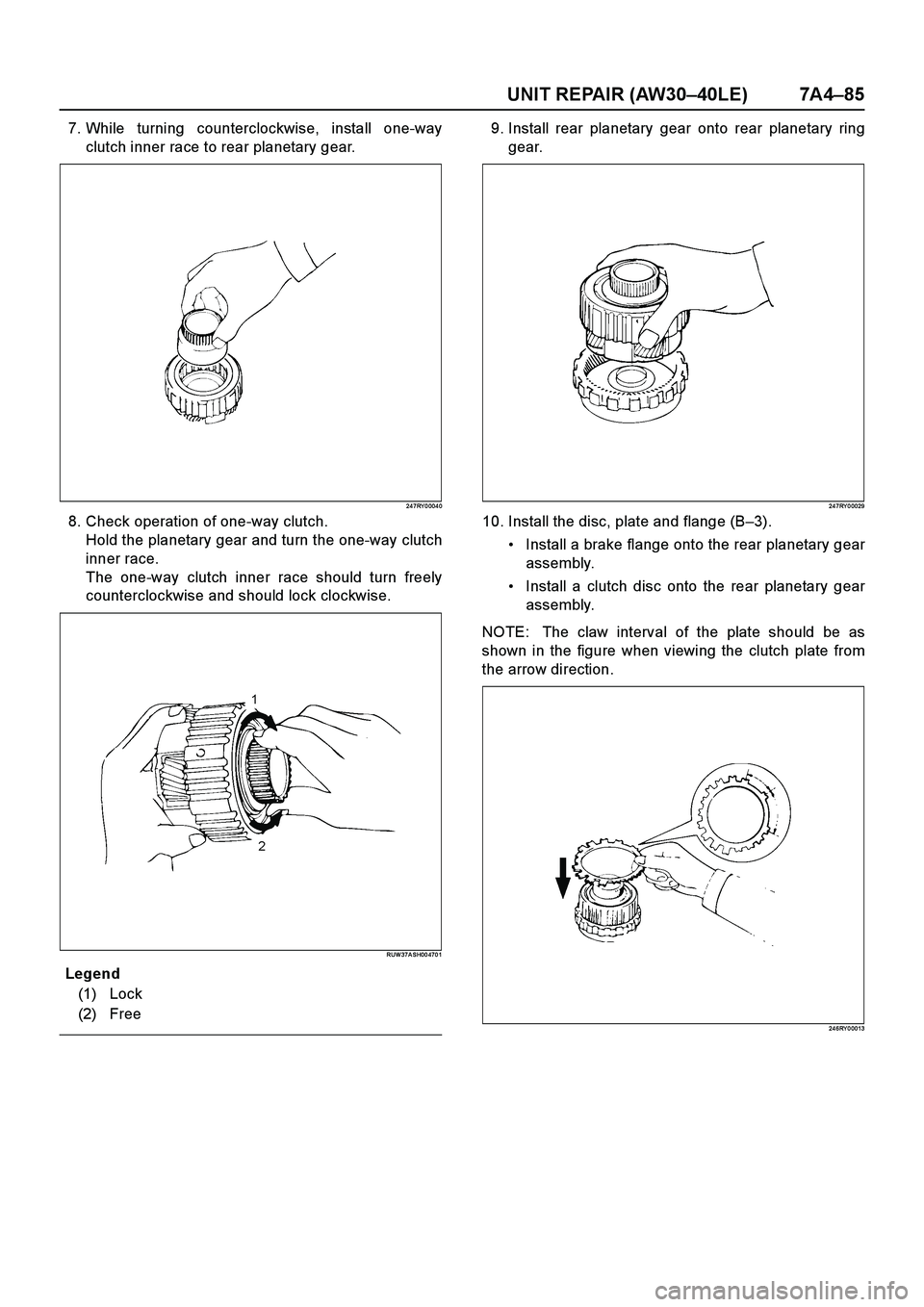

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (AW30–40LE) 7A4–85 7. While turning counterclockwise, install one-way clutch inner race to rear planetary gear. 24 7RY 0 004 0 8. Check operation of one-way clutch. Hold the planetary

Page 3894 of 4264

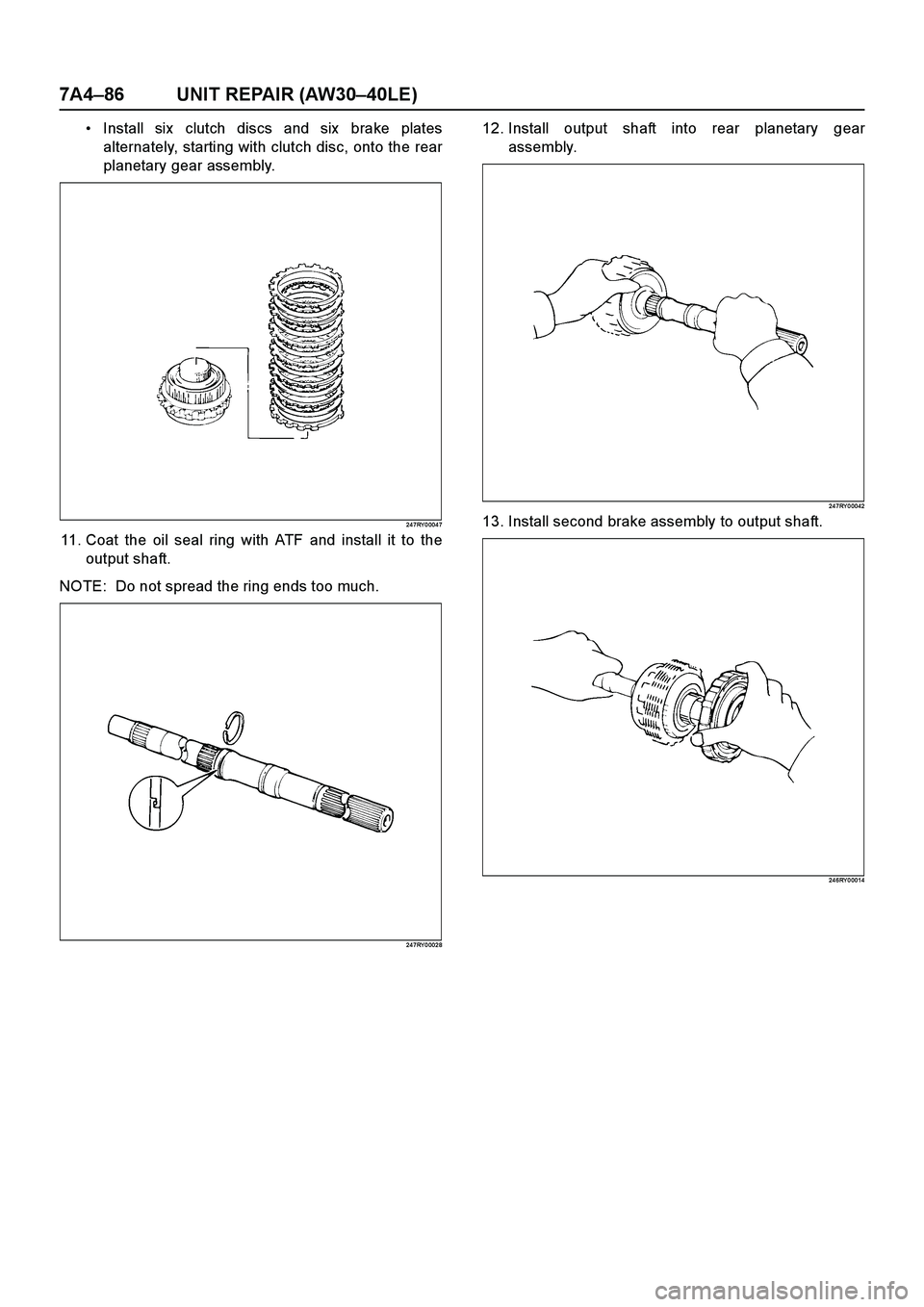

ISUZU TF SERIES 2004 Workshop Manual 7A4–86 UNIT REPAIR (AW30–40LE) Install six clutch discs and six brake plates alternately, starting with clutch disc, onto the rear planetary gear assembly. 24 7RY 0 004 7 11. Coat the oil seal

Page 3895 of 4264

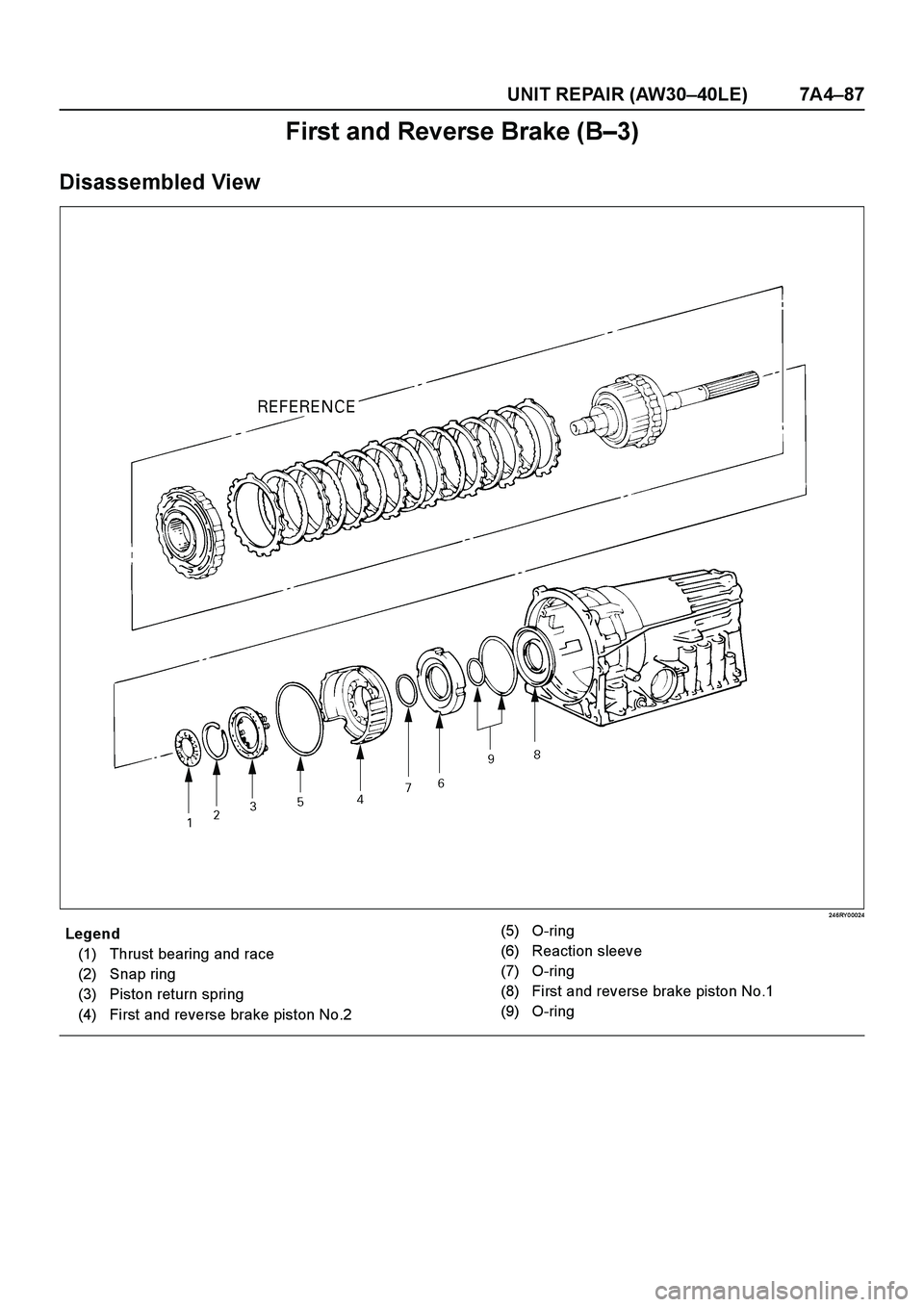

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (AW30–40LE) 7A4–87 First and Reverse Brake (B–3) Disassembled View 24 6RY 0 0024 E nd O FCallo ut Legend (1) Thrust bearing and race (2) Snap ring (3) Piston return spring (4) First

Page 3896 of 4264

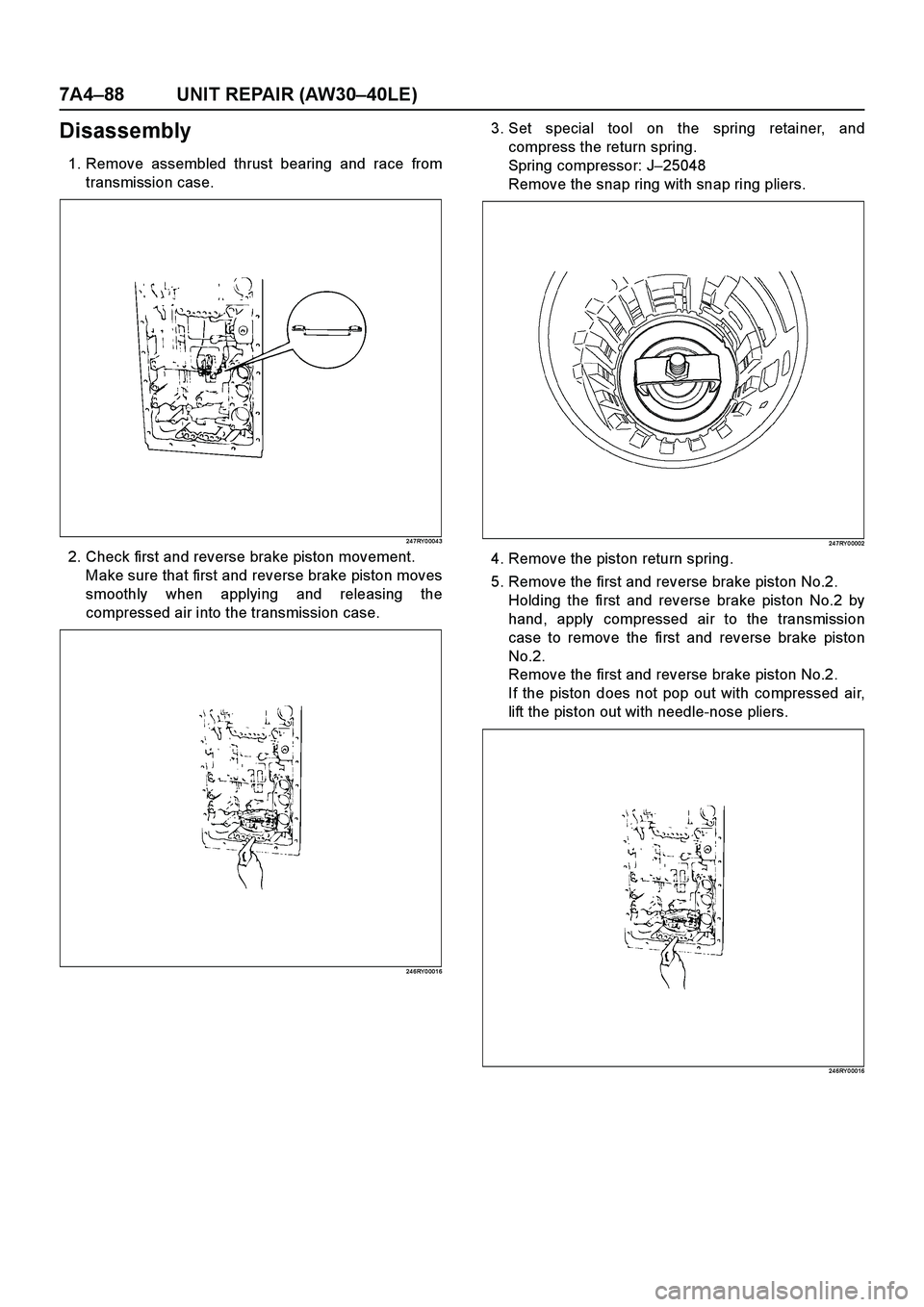

ISUZU TF SERIES 2004 Workshop Manual 7A4–88 UNIT REPAIR (AW30–40LE) Disassembly 1. Remove assembled thrust bearing and race from transmission case. 24 7RY 0 004 3 2. Check first and reverse brake piston movement. Make sure that first
