Page 1537 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E –165
Diagnostic Trouble Code (DTC) P0115 (Sy mptom Code 2) (Flash Code 14)
Engine Coolant Temperature Sensor Circuit Low Input
Step Action Value(s) Y

Page 1538 of 4264

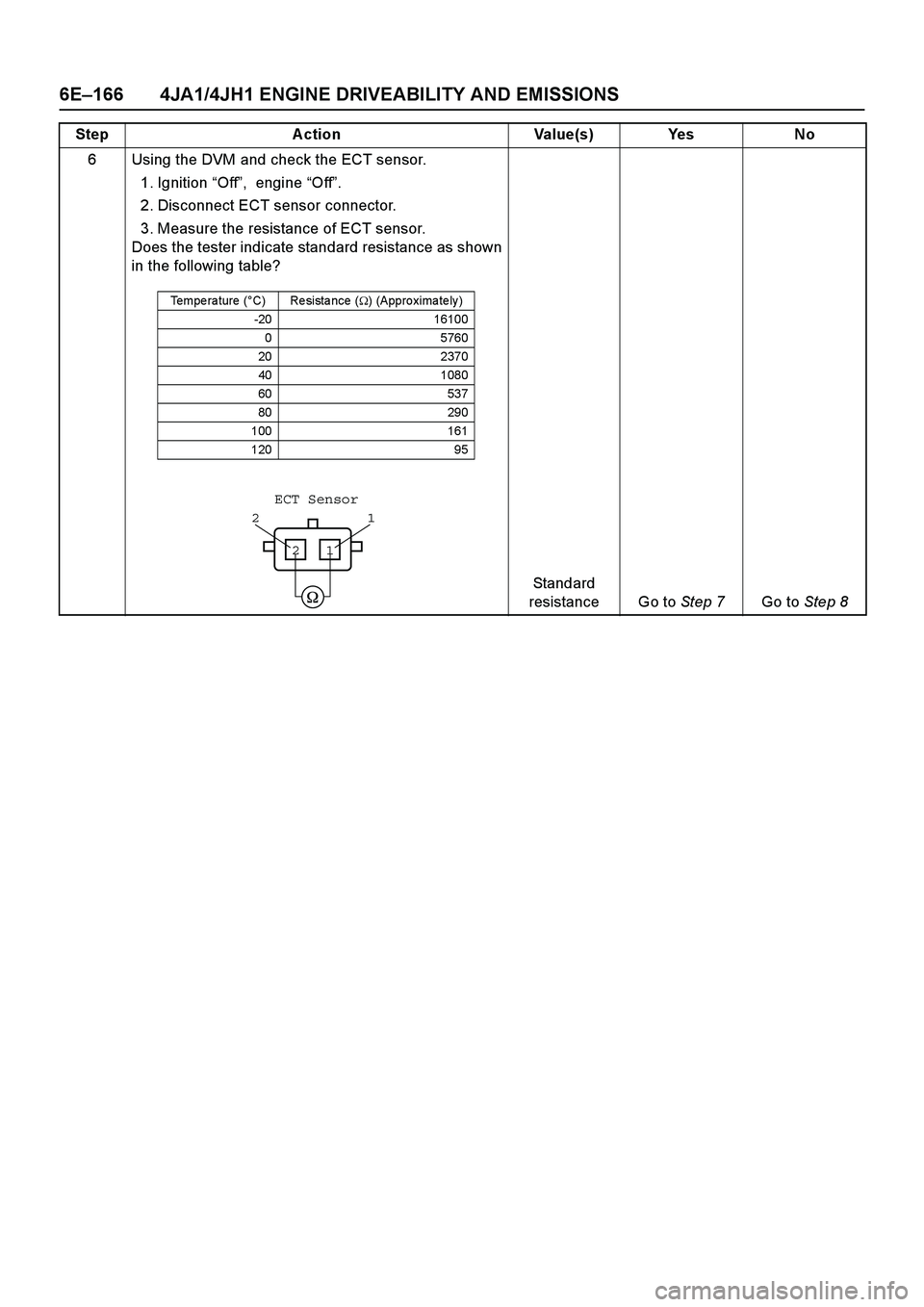

ISUZU TF SERIES 2004 Workshop Manual 6E –166 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
6 Using the DVM and check the ECT sensor.
1. Ignition “Off ”, engine “Off ”.
2. Disconnect ECT sensor connector.
3. Measure the r

Page 1539 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E –167
7 Using the DVM and check the ECT sensor signal
circuit.
Breaker box is available:
1. Ignition “Off ”, engine “Off ”.
2. Install t

Page 1540 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–168 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P0180 (SYMPTOM CODE B)
(FLASH CODE 15) FUEL TEMPERATURE SENSOR CIRCUIT RANGE/
PERFORMANCE
Condition for setting the

Page 1541 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–169
moving connectors and wiring harness related to the
sensor.
Diagnostic Trouble Code (DTC) P0180 (Sy mptom Code B) (Flash Code 15) Fuel
Temperature

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–169
moving connectors and wiring harness related to the
sensor.
Diagnostic Trouble Code (DTC) P0180 (Sy mptom Code B) (Flash Code 15) Fuel
Temperature Sensor Circuit Range/Performance
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0180 (Symptom Code B) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0180 (Symptom Code B) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
4 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 5
5 Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure. —Go to Step 6Go to Step 7
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—
7 Replace the injection pump assembly.
Is the action complete?—Verify repair—

Page 1542 of 4264

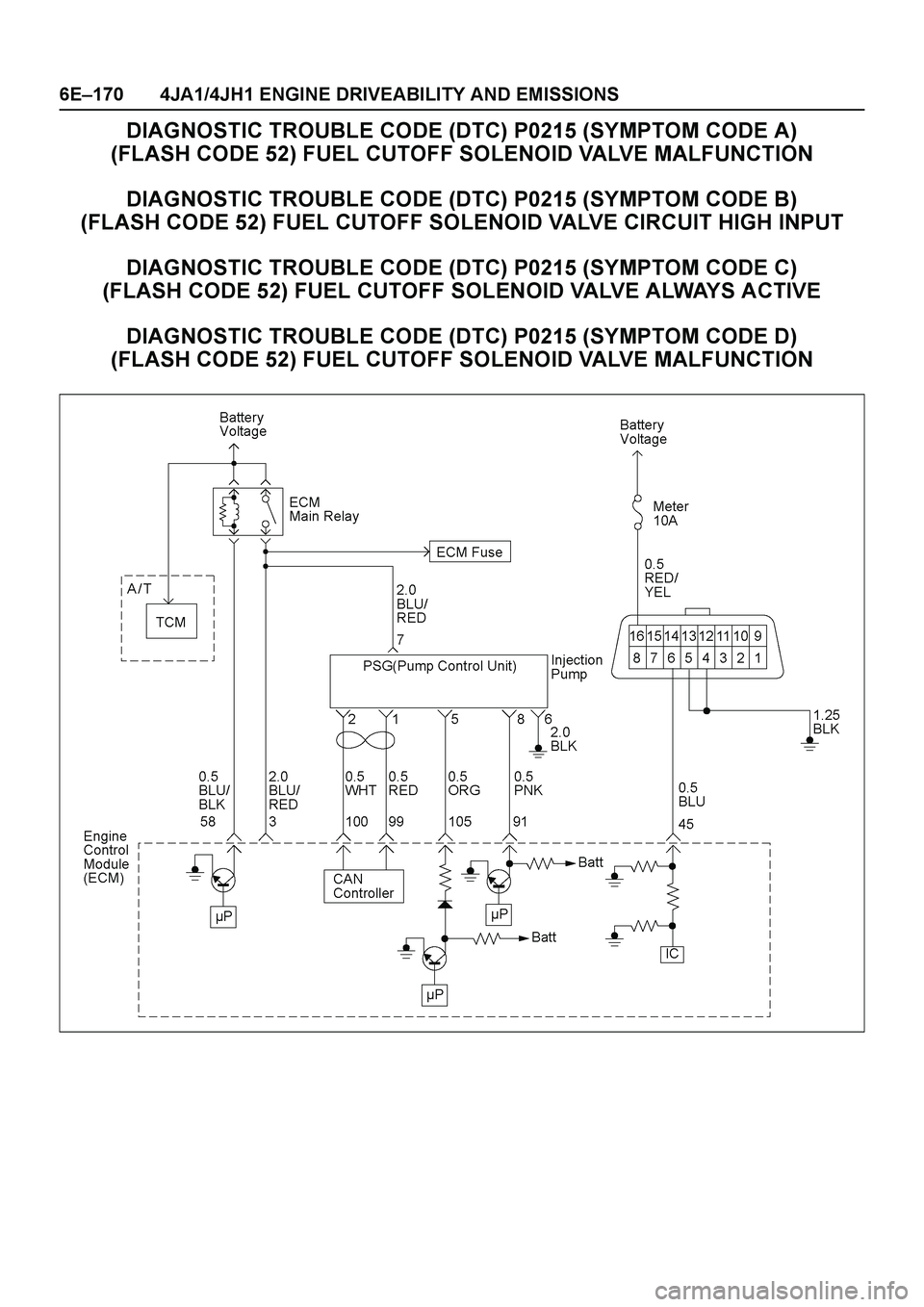

ISUZU TF SERIES 2004 Workshop Manual 6E–170 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P0215 (SYMPTOM CODE A)
(FLASH CODE 52) FUEL CUTOFF SOLENOID VALVE MALFUNCTION
DIAGNOSTIC TROUBLE CODE (DTC) P0215 (S

Page 1543 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–171
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
When the ignition switch is turned “Off”, the fuel
solenoi

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–171
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
When the ignition switch is turned “Off”, the fuel
solenoid valve (MAB) signal is supplied from the ECM to
the PSG. This signal is the command for the PSG to turn
“Off” the engine.
If the MAB signal circuit is short to voltage circuit or
short to ground circuit, DTC P0215 (Symptom Code B)
or P0215 (Symptom Code C) will be stored.
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.
Broken wire inside the insulation.
Check for the following conditions:
Poor connection at ECM and PSG-Inspect harness
connectors for backed out terminals, improper
mating, broken locks, improperly formed or damaged
terminals, and poor terminal to wire connection.
Diagnostic Trouble Code (DTC) P0215 (Sy mptom Code A) (Flash Code 52) Fuel
Cutoff Solenoid Valve Malfunction
Flash
CodeCode Symptom
CodeMIL DTC Name DTC Setting Condition Fail-Safe (Back Up)
52 P0215 A ON Fuel Cutoff Solenoid Valve
Malfunctio n1. Ignition key switch off.
2. Engine spe e d is be lo w
1500rpm.
3. Vehicle speed is below
1.5km/h.
4. PSG (pump co ntrol unit)
recognizes MAB (fuel cutoff
solenoid valve) signal from
the ECM, but the MAB
could not operate. 1. MAB (fuel cutoff solenoid
valve) is operated.
2. Desired injection quantity
becomes 0mg/strk.
B ON Fuel Cutoff Solenoid Valve
Circuit High InputECM does not command
MAB (fue l cutoff so le no id
valve) signal to the PSG
(pump co ntrol unit), but PSG
detected MAB signal line cir-
cuit is high level.Engine do es not sta rt.
C ON Fuel Cutoff Solenoid Valve
Always Active1. Ignition key switch off.
2. Engine spe e d is be lo w
1500rpm.
3. Vehicle speed is below
1.5km/h.
4. PSG (pump co ntrol unit)
does not recognize MAB
(fue l cutoff so le no id v alv e )
signa l from the ECM. 1. MAB (fuel cutoff solenoid
valve) is operated.
2. Desired injection quantity
becomes 0mg/strk.
D ON Fuel Cutoff Solenoid Valve
Malfunctio n1. Ignition key switch off.
2. CAN contro lle r doe s no t
operate Bus-off.No fa il-sa fe fun ctio n.
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0215 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3

Page 1544 of 4264

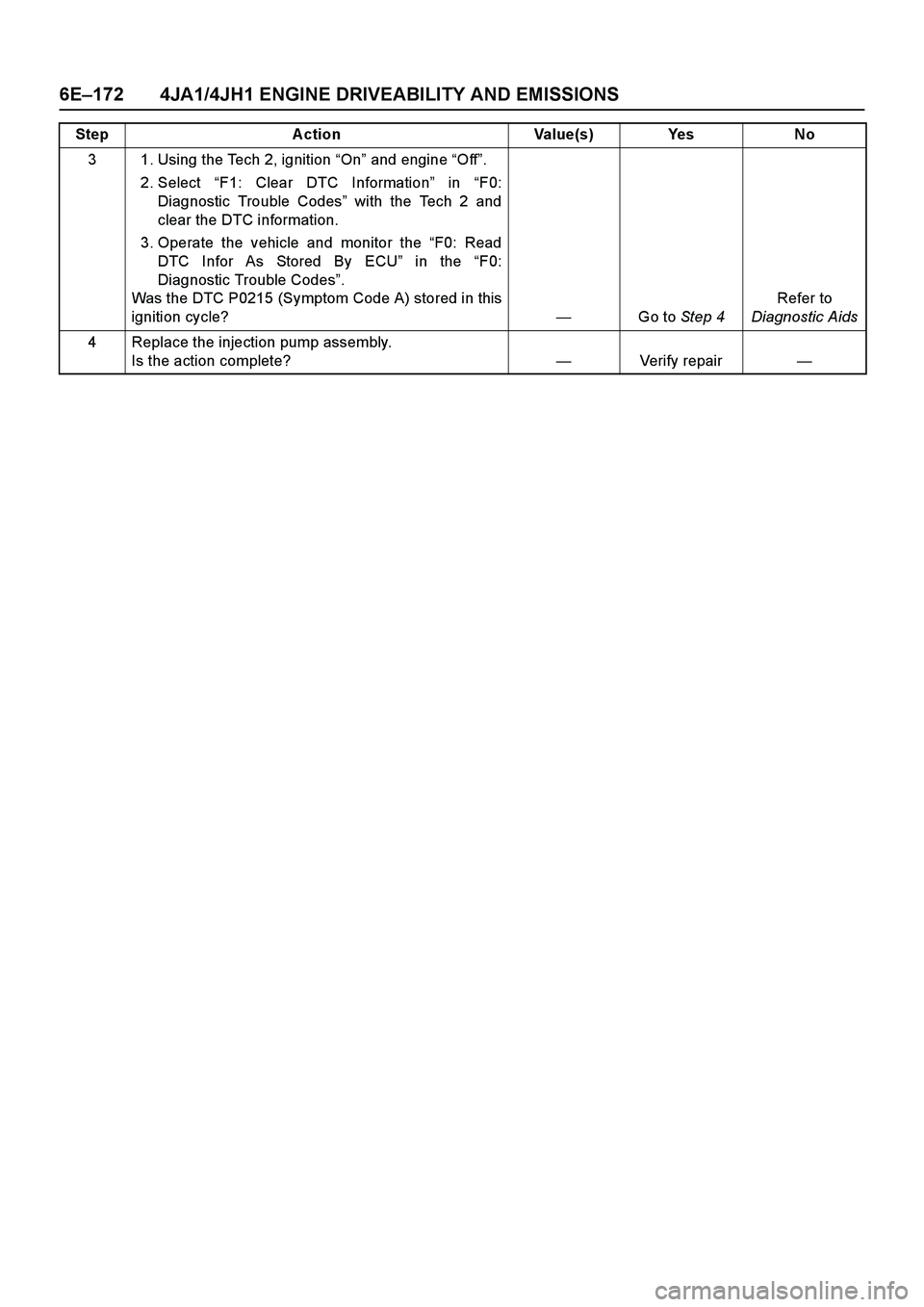

ISUZU TF SERIES 2004 Workshop Manual 6E–172 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” wit
