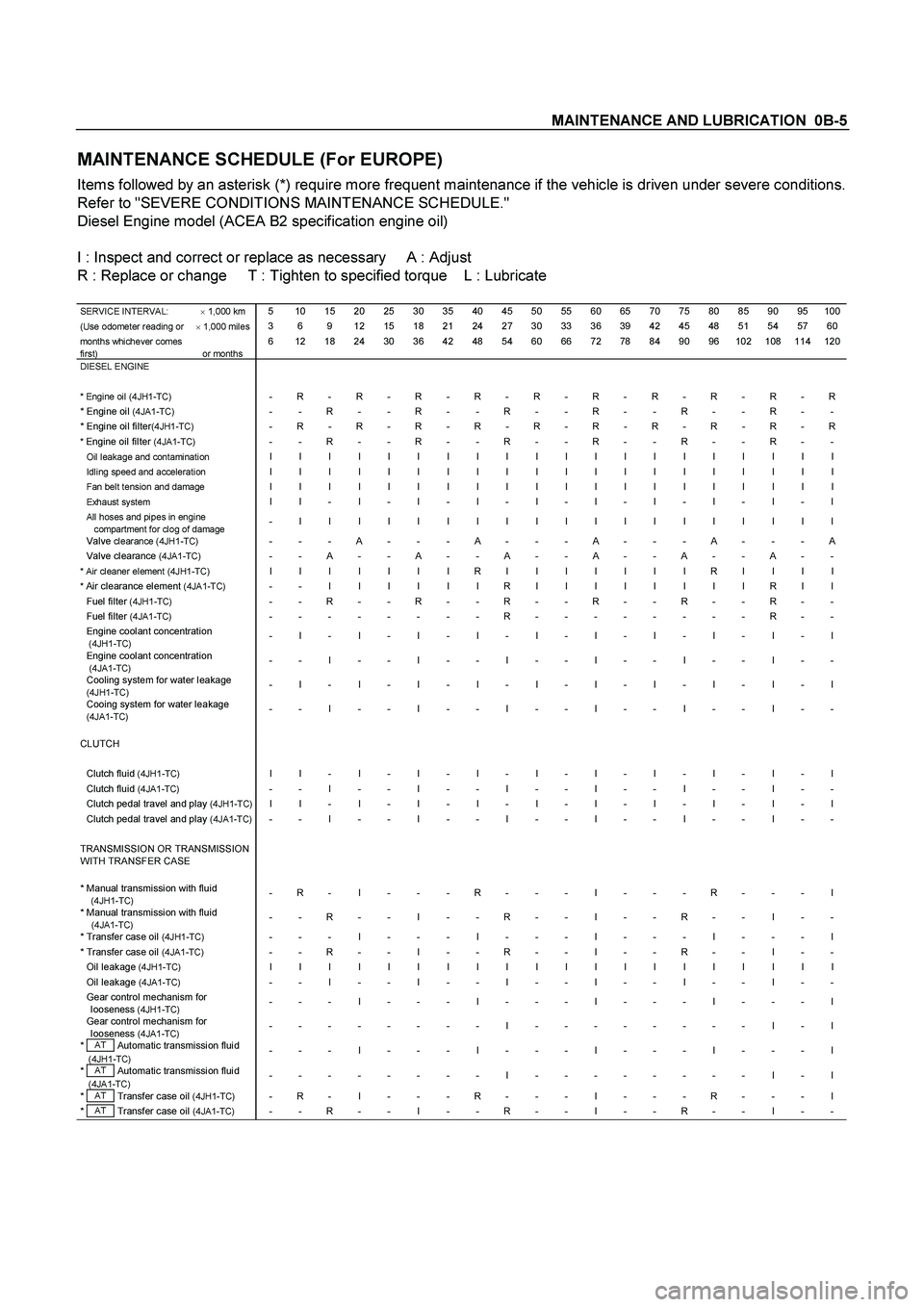

ISUZU TF SERIES 2004 Workshop Manual MAINTENANCE AND LUBRICATION 0B-5
MAINTENANCE SCHEDULE (For EUROPE)
Items followed by an asterisk (*) require more frequent maintenance if the vehicle is driven under severe conditions.
Refer to "S

MAINTENANCE AND LUBRICATION 0B-5
MAINTENANCE SCHEDULE (For EUROPE)
Items followed by an asterisk (*) require more frequent maintenance if the vehicle is driven under severe conditions.
Refer to "SEVERE CONDITIONS MAINTENANCE SCHEDULE."
Diesel Engine model (ACEA B2 specification engine oil)

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate

SERVICE INTERVAL: 1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or 1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
DIESEL ENGINE * Engine oil (4JH1-TC) - R - R - R- R- R- R- R - R - R- R* Engine oil (4JA1-TC) - - R - - R - - R - - R - - R - - R - - * Engine oil filter(4JH1-TC) - R - R - R- R- R- R- R - R - R- R* Engine oil filter (4JA1-TC) - - R - - R - - R - - R - - R - - R - - Oil leakage and contamination I I I I I I I I I I I I I I I I I I I I Idling speed and acceleration I I I I I I I I I I I I I I I I I I I I Fan belt tension and damage I I I I I I I I I I I I I I I I I I I I Exhaust system I I - I - I - I - I - I - I - I - I - I All hoses and pipes in engine
compartment for clog of damage - I I I I I I I I I I I I I I I I I I I
Valve clearance (4JH1-TC) - - - A - - - A - - - A - - - A - - - A Valve clearance (4JA1-TC) - - A - - A - - A - - A - - A - - A - - * Air cleaner element (4JH1-TC) I I I I I I I R I I I I I I I R I I I I * Air clearance element (4JA1-TC) - - I I I I I I R I I I I I I I I R I I Fuel filter (4JH1-TC) - - R - - R - - R - - R - - R - - R - - Fuel filter (4JA1-TC) - - - - - - - - R - - - - - - - - R - - Engine coolant concentration (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Engine coolant concentration
(4JA1-TC) - - I - - I - - I - - I - - I - - I - - Cooling system for water leakage
(4JH1-TC) - I - I - I - I - I - I - I - I - I - I Cooing system for water leakage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - CLUTCH Clutch fluid (4JH1-TC) I I - I - I - I - I - I - I - I - I - I Clutch fluid (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Clutch pedal travel and play (4JH1-TC) I I - I - I - I - I - I - I - I - I - I Clutch pedal travel and play (4JA1-TC) - - I - - I - - I - - I - - I - - I - - TRANSMISSION OR TRANSMISSION
WITH TRANSFER CASE
* Manual transmission with fluid (4JH1-TC) - R - I - - - R - - - I - - - R - - - I * Manual transmission with fluid
(4JA1-TC) - - R - - I - - R - - I - - R - - I - - * Transfer case oil (4JH1-TC) - - - I - - - I - - - I - - - I - - - I * Transfer case oil (4JA1-TC) - - R - - I - - R - - I - - R - - I - - Oil leakage (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Oil leakage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Gear control mechanism for
looseness (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Gear control mechanism for
looseness (4JA1-TC) - - - - - - - - I - - - - - - - - I - I * AT Automatic transmission fluid
(4JH1-TC) - - - I - - - I - - - I - - - I - - - I * AT Automatic transmission fluid (4JA1-TC) - - - - - - - - I - - - - - - - - I - I * AT Transfer case oil (4JH1-TC) - R - I - - - R - - - I - - - R - - - I * AT Transfer case oil (4JA1-TC) - - R - - I - - R - - I - - R - - I - -

Page 2994 of 4264

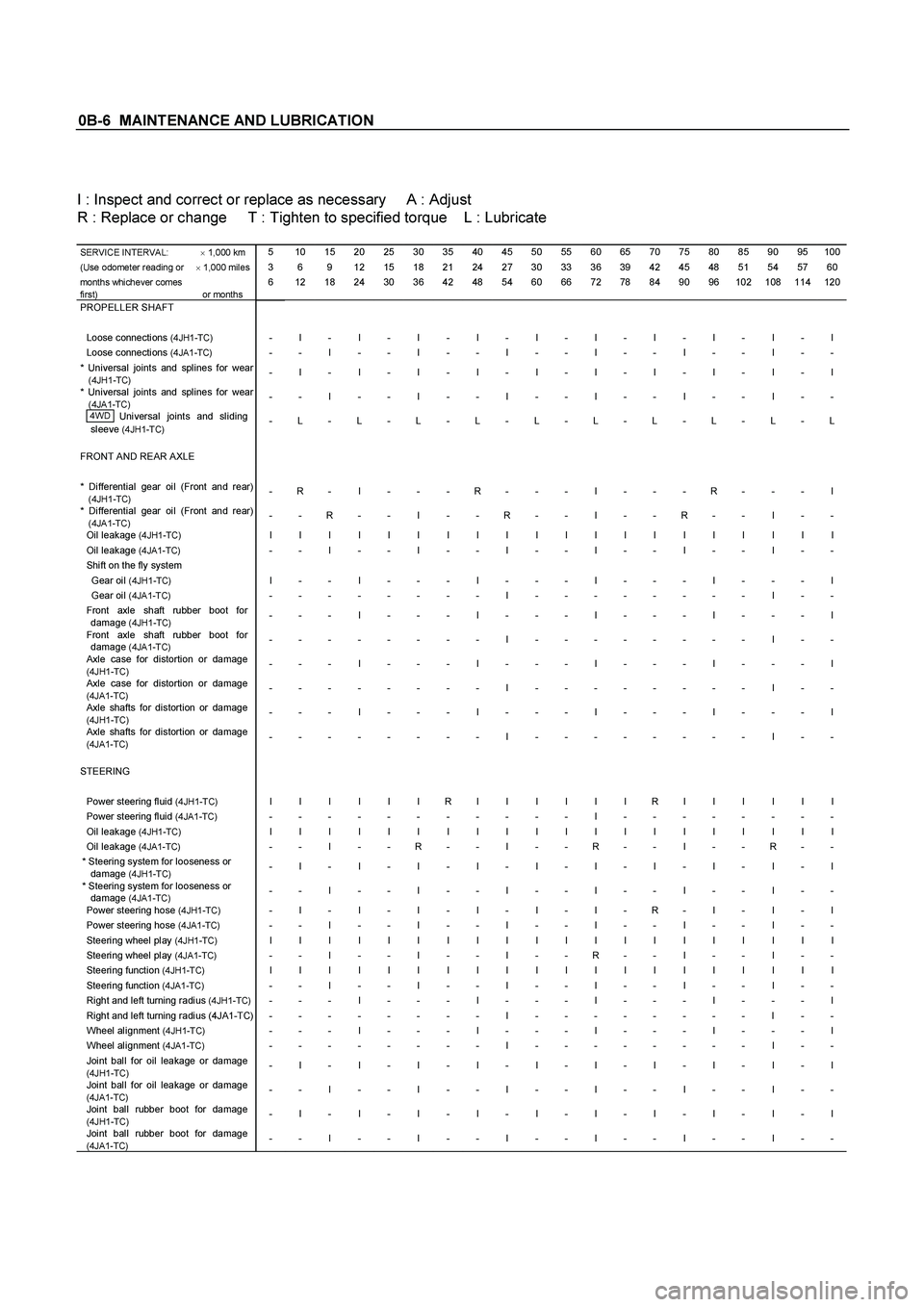

ISUZU TF SERIES 2004 Workshop Manual 0B-6 MAINTENANCE AND LUBRICATION

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:

0B-6 MAINTENANCE AND LUBRICATION

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL: 1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or 1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
PROPELLER SHAFT Loose connections (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Loose connections (4JA1-TC) - - I - - I - - I - - I - - I - - I - - * Universal joints and splines for wear (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Universal joints and splines for wear (4JA1-TC) - - I - - I - - I - - I - - I - - I - - 4WD Universal joints and sliding
sleeve (4JH1-TC) - L - L - L - L - L - L - L - L - L - L FRONT AND REAR AXLE * Differential gear oil (Front and rear) (4JH1-TC) - R - I - - - R - - - I - - - R - - - I * Differential gear oil (Front and rear) (4JA1-TC) - - R - - I - - R - - I - - R - - I - - Oil leakage (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Oil leakage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Shift on the fly system Gear oil (4JH1-TC) I - - I - - - I - - - I - - - I - - - I Gear oil (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Front axle shaft rubber boot for
damage (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Front axle shaft rubber boot for
damage (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Axle case for distortion or damage (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Axle case for distortion or damage (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Axle shafts for distortion or damage (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Axle shafts for distortion or damage (4JA1-TC) - - - - - - - - I - - - - - - - - I - - STEERING Power steering fluid (4JH1-TC) I I I I I I R I I I I I I R I I I I I I Power steering fluid (4JA1-TC) - - - - - - - - - - - I - - - - - - - - Oil leakage (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Oil leakage (4JA1-TC) - - I - - R - - I - - R - - I - - R - - * Steering system for looseness or
damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Steering system for looseness or
damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Power steering hose (4JH1-TC) - I - I - I - I - I - I - R - I - I - I Power steering hose (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Steering wheel play (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Steering wheel play (4JA1-TC) - - I - - I - - I - - R - - I - - I - - Steering function (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Steering function (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Right and left turning radius (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Right and left turning radius (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Wheel alignment (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Wheel alignment (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Joint ball for oil leakage or damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Joint ball for oil leakage or damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Joint ball rubber boot for damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Joint ball rubber boot for damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - -

Page 2995 of 4264

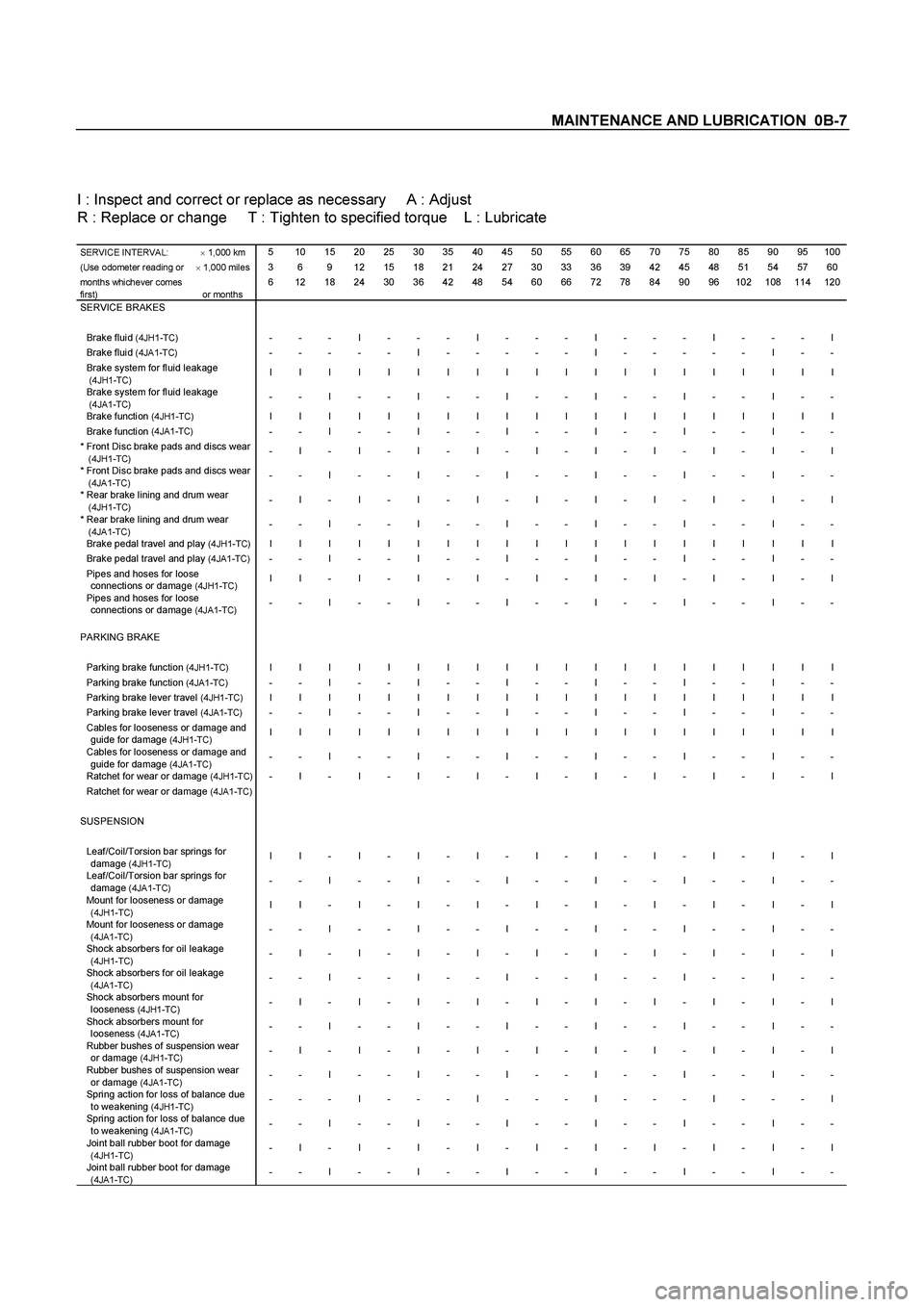

ISUZU TF SERIES 2004 Workshop Manual MAINTENANCE AND LUBRICATION 0B-7

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:

MAINTENANCE AND LUBRICATION 0B-7

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL: 1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or 1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
SERVICE BRAKES Brake fluid (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Brake fluid (4JA1-TC) - - - - - I - - - - - I - - - - - I - - Brake system for fluid leakage
(4JH1-TC) I I I I I I I I I I I I I I I I I I I I Brake system for fluid leakage
(4JA1-TC) - - I - - I - - I - - I - - I - - I - - Brake function (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Brake function (4JA1-TC) - - I - - I - - I - - I - - I - - I - - * Front Disc brake pads and discs wear (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Front Disc brake pads and discs wear (4JA1-TC) - - I - - I - - I - - I - - I - - I - - * Rear brake lining and drum wear (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Rear brake lining and drum wear (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Brake pedal travel and play (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Brake pedal travel and play (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Pipes and hoses for loose
connections or damage (4JH1-TC) I I - I - I - I - I - I - I - I - I - I Pipes and hoses for loose
connections or damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - PARKING BRAKE Parking brake function (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Parking brake function (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Parking brake lever travel (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Parking brake lever travel (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Cables for looseness or damage and
guide for damage (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Cables for looseness or damage and
guide for damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Ratchet for wear or damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Ratchet for wear or damage (4JA1-TC) SUSPENSION Leaf/Coil/Torsion bar springs for
damage (4JH1-TC) I I - I - I - I - I - I - I - I - I - I Leaf/Coil/Torsion bar springs for
damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Mount for looseness or damage (4JH1-TC) I I - I - I - I - I - I - I - I - I - I Mount for looseness or damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Shock absorbers for oil leakage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Shock absorbers for oil leakage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Shock absorbers mount for
looseness (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Shock absorbers mount for
looseness (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Rubber bushes of suspension wear
or damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Rubber bushes of suspension wear
or damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Spring action for loss of balance due
to weakening (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Spring action for loss of balance due
to weakening (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Joint ball rubber boot for damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Joint ball rubber boot for damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - -

Page 2996 of 4264

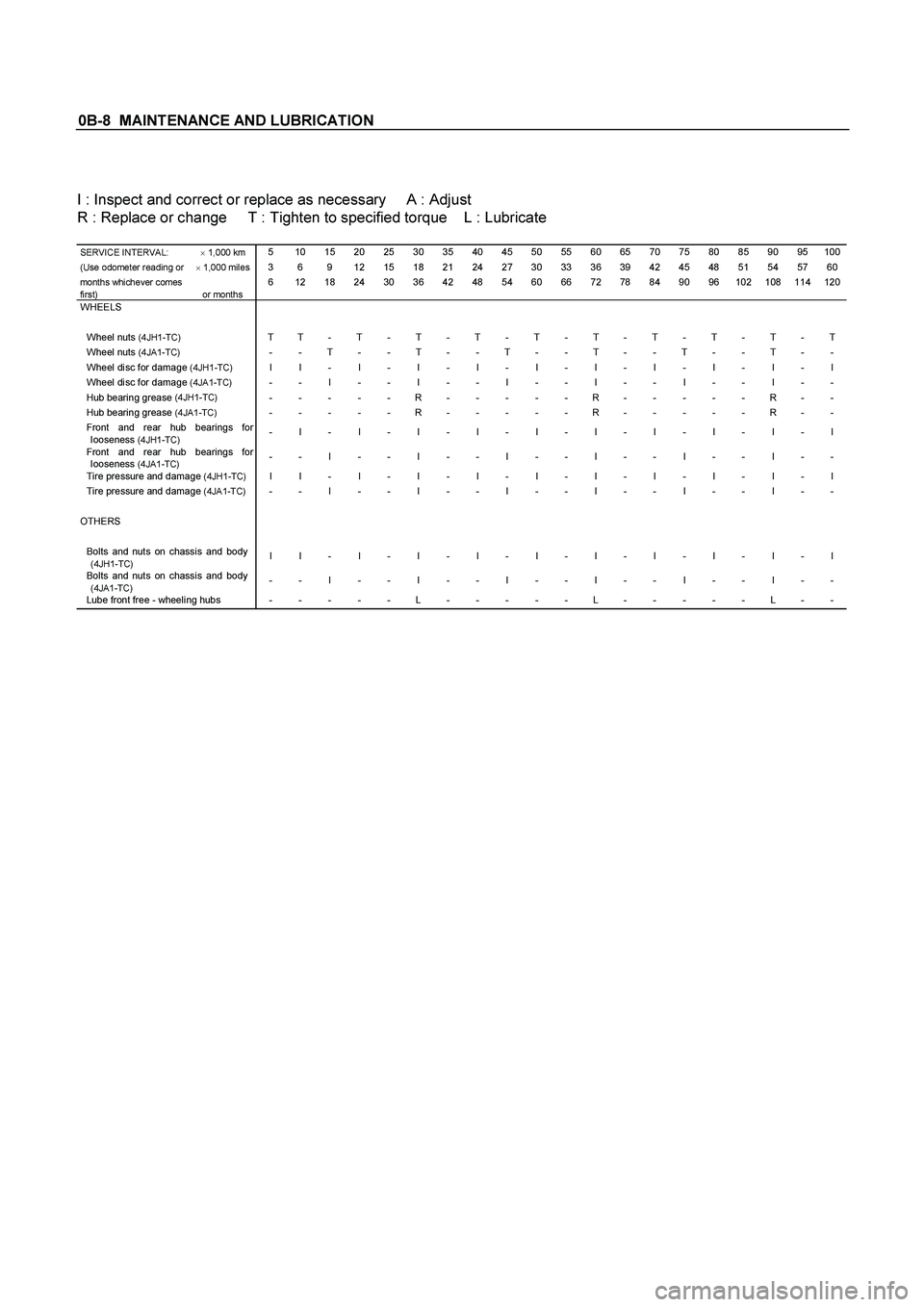

ISUZU TF SERIES 2004 Workshop Manual 0B-8 MAINTENANCE AND LUBRICATION

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:

Page 2997 of 4264

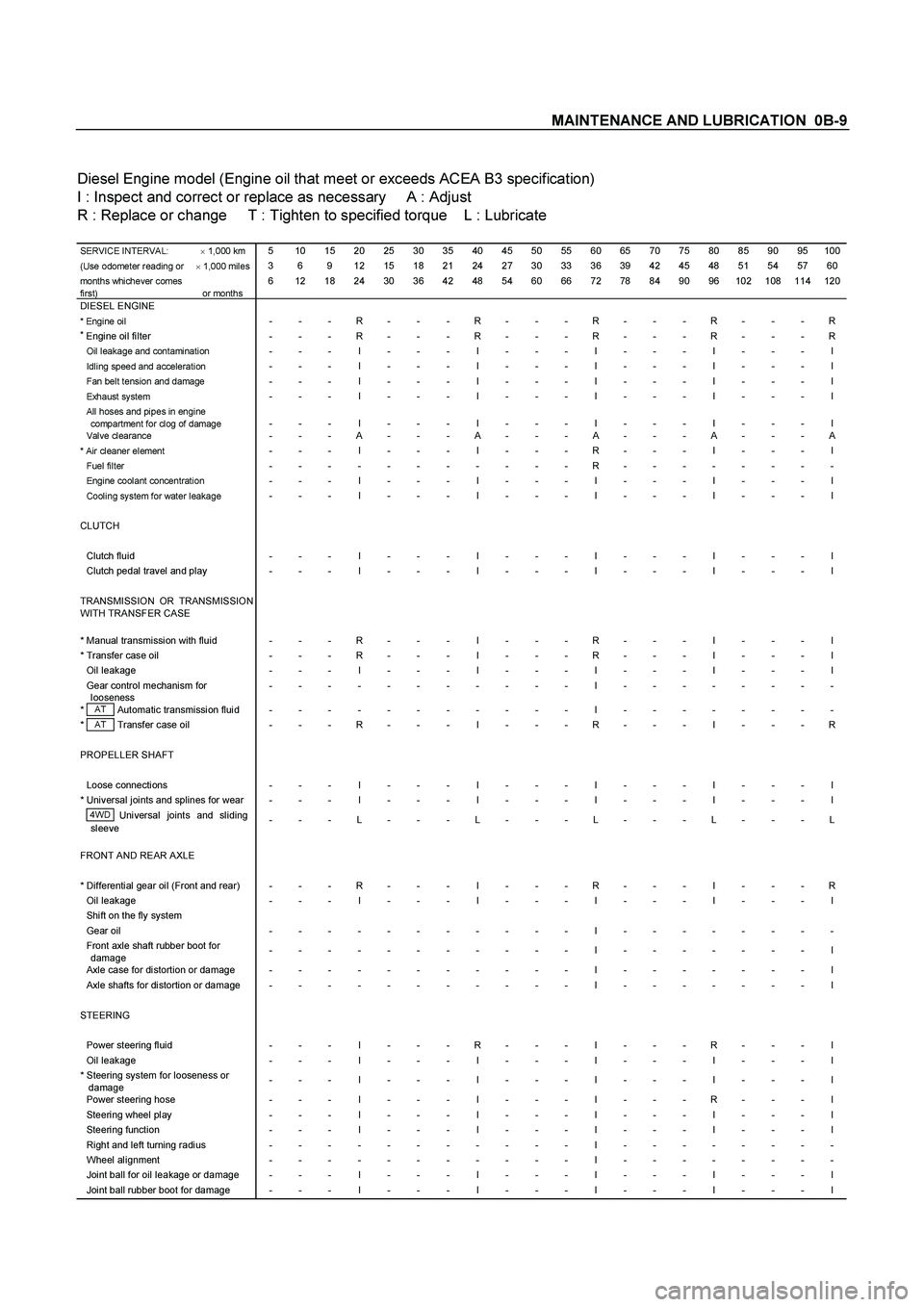

ISUZU TF SERIES 2004 Workshop Manual MAINTENANCE AND LUBRICATION 0B-9

Diesel Engine model (Engine oil that meet or exceeds ACEA B3 specification)
I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change

MAINTENANCE AND LUBRICATION 0B-9

Diesel Engine model (Engine oil that meet or exceeds ACEA B3 specification)
I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate

SERVICE INTERVAL: 1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or 1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
DIESEL ENGINE * Engine oil - - - R - - - R - - - R - - - R - - - R* Engine oil filter - - - R - - - R - - - R - - - R - - - ROil leakage and contamination - - - I - - - I - - - I - - - I - - - I Idling speed and acceleration - - - I - - - I - - - I - - - I - - - I Fan belt tension and damage - - - I - - - I - - - I - - - I - - - I Exhaust system - - - I - - - I - - - I - - - I - - - I All hoses and pipes in engine
compartment for clog of damage
-
-
-
I
-
-
-
I
-
-
-
I
-
-
-
I
-
-
-
I
Valve clearance - - - A - - - A - - - A - - - A - - - A * Air cleaner element - - - I - - - I - - - R - - - I - - - I Fuel filter - - - - - - - - - - - R - - - - - - - - Engine coolant concentration - - - I - - - I - - - I - - - I - - - I Cooling system for water leakage - - - I - - - I - - - I - - - I - - - I CLUTCH Clutch fluid - - - I - - - I - - - I - - - I - - - I Clutch pedal travel and play - - - I - - - I - - - I - - - I - - - I TRANSMISSION OR TRANSMISSION
WITH TRANSFER CASE
* Manual transmission with fluid - - - R - - - I - - - R - - - I - - - I * Transfer case oil - - - R - - - I - - - R - - - I - - - I Oil leakage - - - I - - - I - - - I - - - I - - - I Gear control mechanism for
looseness - - - - - - - - - - - I - - - - - - - -
* AT Automatic transmissi on fl ui d - - - - - - - - - - - I - - - - - - - - * AT Transfer case oil - - - R - - - I - - - R - - - I - - - R PROPELLER SHAFT Loose connections - - - I - - - I - - - I - - - I - - - I * Universal joints and splines for wear - - - I - - - I - - - I - - - I - - - I 4WD Universal joints and sliding
sleeve - - - L - - - L - - - L - - - L - - - L
FRONT AND REAR AXLE * Differential gear oil (Front and rear) - - - R - - - I - - - R - - - I - - - ROil leakage - - - I - - - I - - - I - - - I - - - I Shift on the fly system Gear oi l - - - - - - - - - - - I - - - - - - - - Front axle shaft rubber boot for
damage - - - - - - - - - - - I - - - - - - - I
Axle case for distortion or damage - - - - - - - - - - - I - - - - - - - I Axle shafts for distortion or damage - - - - - - - - - - - I - - - - - - - I STEERING Power steering fluid - - - I - - - R - - - I - - - R - - - I Oil leakage - - - I - - - I - - - I - - - I - - - I * Steering system for looseness or
damage - - - I - - - I - - - I - - - I - - - I
Power steering hose - - - I - - - I - - - I - - - R - - - I Steering wheel play - - - I - - - I - - - I - - - I - - - I Steeri ng function - - - I - - - I - - - I - - - I - - - I Right and left turning radius - - - - - - - - - - - I - - - - - - - - Wheel al i gnment - - - - - - - - - - - I - - - - - - - - Joi nt ball for oil l eakage or damage - - - I - - - I - - - I - - - I - - - I Joi nt ball rubber boot for damage - - - I - - - I - - - I - - - I - - - I

Page 2998 of 4264

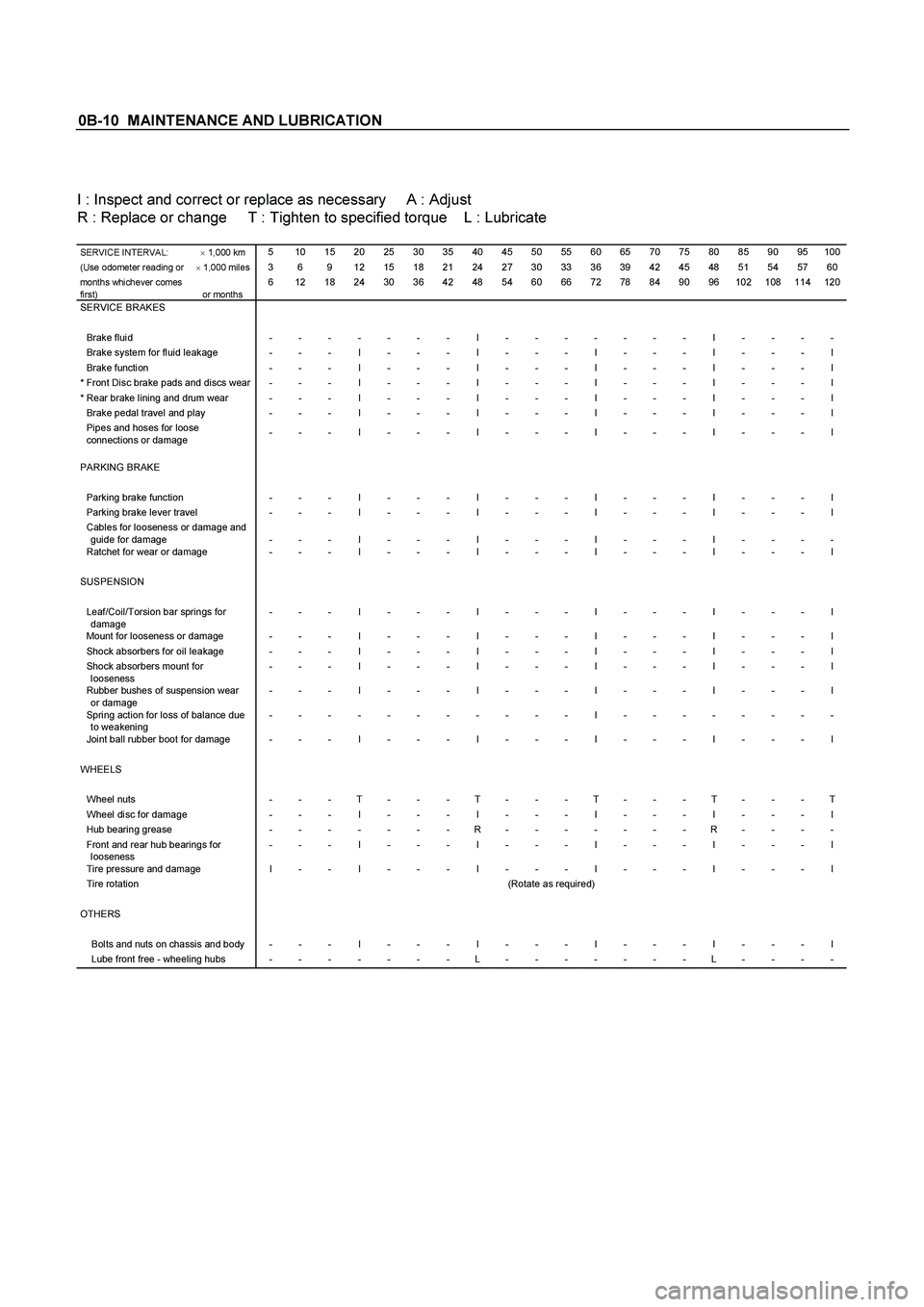

ISUZU TF SERIES 2004 Workshop Manual 0B-10 MAINTENANCE AND LUBRICATION

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:

0B-10 MAINTENANCE AND LUBRICATION

I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL: 1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or 1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
SERVICE BRAKES Brake fluid - - - - - - - I - - - - - - - I - - - - Brake system for fluid leakage - - - I - - - I - - - I - - - I - - - I Brake function - - - I - - - I - - - I - - - I - - - I * Front Disc brake pads and discs wear - - - I - - - I - - - I - - - I - - - I * Rear brake lining and drum wear - - - I - - - I - - - I - - - I - - - I Brake pedal travel and play - - - I - - - I - - - I - - - I - - - I Pipes and hoses for loose
connections or damage - - - I - - - I - - - I - - - I - - - I
PARKING BRAKE Parking brake function - - - I - - - I - - - I - - - I - - - I Parking brake lever travel - - - I - - - I - - - I - - - I - - - I Cables for looseness or damage and
guide for damage
-
-
-
I
-
-
-
I
-
-
-
I
-
-
-
I
-
-
-
-
Ratchet for wear or damage - - - I - - - I - - - I - - - I - - - I SUSPENSION Leaf/Coil/Torsion bar springs for
damage - - - I - - - I - - - I - - - I - - - I
Mount for looseness or damage - - - I - - - I - - - I - - - I - - - I Shock absorbers for oil leakage - - - I - - - I - - - I - - - I - - - I Shock absorbers mount for
looseness - - - I - - - I - - - I - - - I - - - I
Rubber bushes of suspension wear
or damage - - - I - - - I - - - I - - - I - - - I
Spring action for loss of balance due
to weakening - - - - - - - - - - - I - - - - - - - -
Joi nt ball rubber boot for damage - - - I - - - I - - - I - - - I - - - I WHEELS Wheel nuts - - - T - - - T - - - T - - - T - - - T Wheel disc for damage - - - I - - - I - - - I - - - I - - - I Hub bearing grease - - - - - - - R - - - - - - - R - - - - Front and rear hub bearings for
looseness - - - I - - - I - - - I - - - I - - - I
Tire pressure and damage I - - I - - - I - - - I - - - I - - - I Tire rotation (Rotate as required) OTHERS Bolts and nuts on chassis and body - - - I - - - I - - - I - - - I - - - I Lube front free - wheeling hubs - - - - - - - L - - - - - - - L - - - -

Page 2999 of 4264

ISUZU TF SERIES 2004 Workshop Manual MAINTENANCE AND LUBRICATION 0B-11

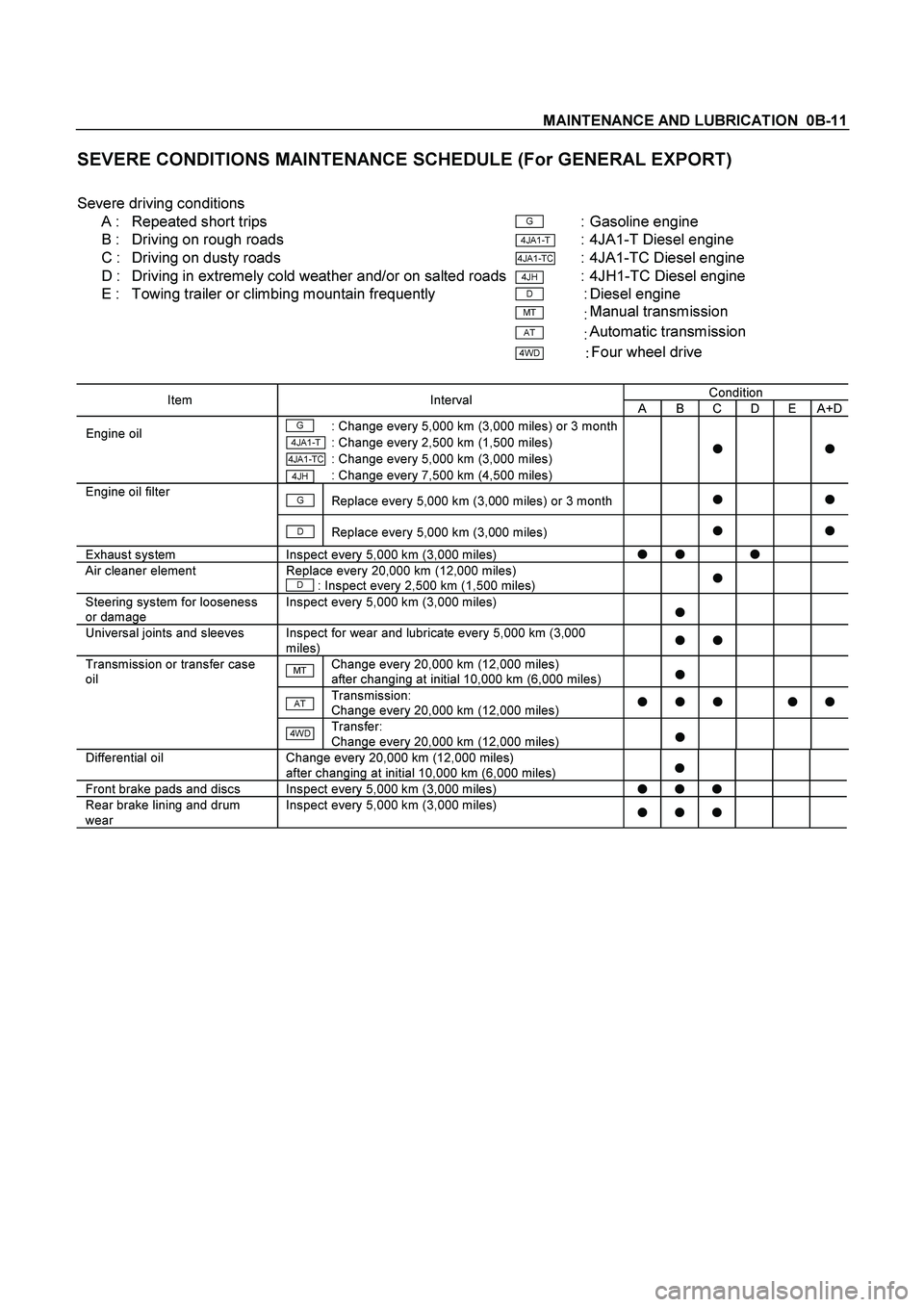

SEVERE CONDITIONS MAINTENANCE SCHEDULE (For GENERAL EXPORT)

Severe driving conditions
A : Repeated short trips
G : Gasoline engine
B : Driving on rough

Page 3000 of 4264

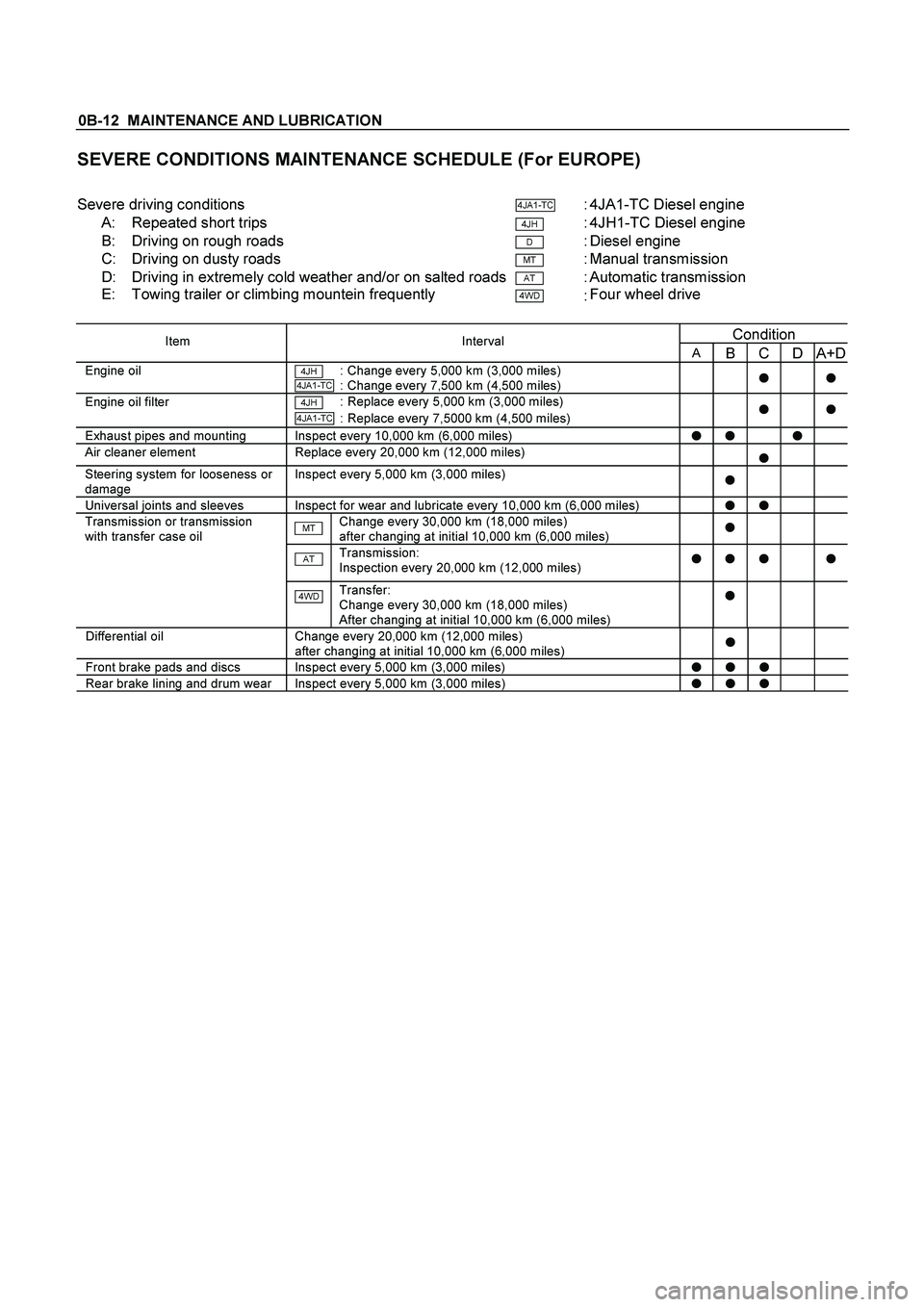

ISUZU TF SERIES 2004 Workshop Manual 0B-12 MAINTENANCE AND LUBRICATION
SEVERE CONDITIONS MAINTENANCE SCHEDULE (For EUROPE)

Severe driving conditions
4JA1-TC : 4JA1-TC Diesel engine
A: Repeated short trips
4JH : 4JH1-TC Diesel e
