2004 ISUZU TF SERIES Workshop Manual

deactivate passenger airbagglove boxservice schedulestart stop buttonwheelbaseflat tire
Popular search:
service schedulelug patternheadlight aimingcoolingoctaneseat memoryfuse diagram
Previous
Next
Load previous 8 pages

Page 4225 of 4264

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-51 248L300007 4.2 mm (0.165 in) 4.4 mm (0.173 in) 4.6 mm (0.181 in) 4.8 mm (0.189 in) 37C&L-SUB40 12.Bearing race 13.Rear internal gear 14.Bearing

Page 4226 of 4264

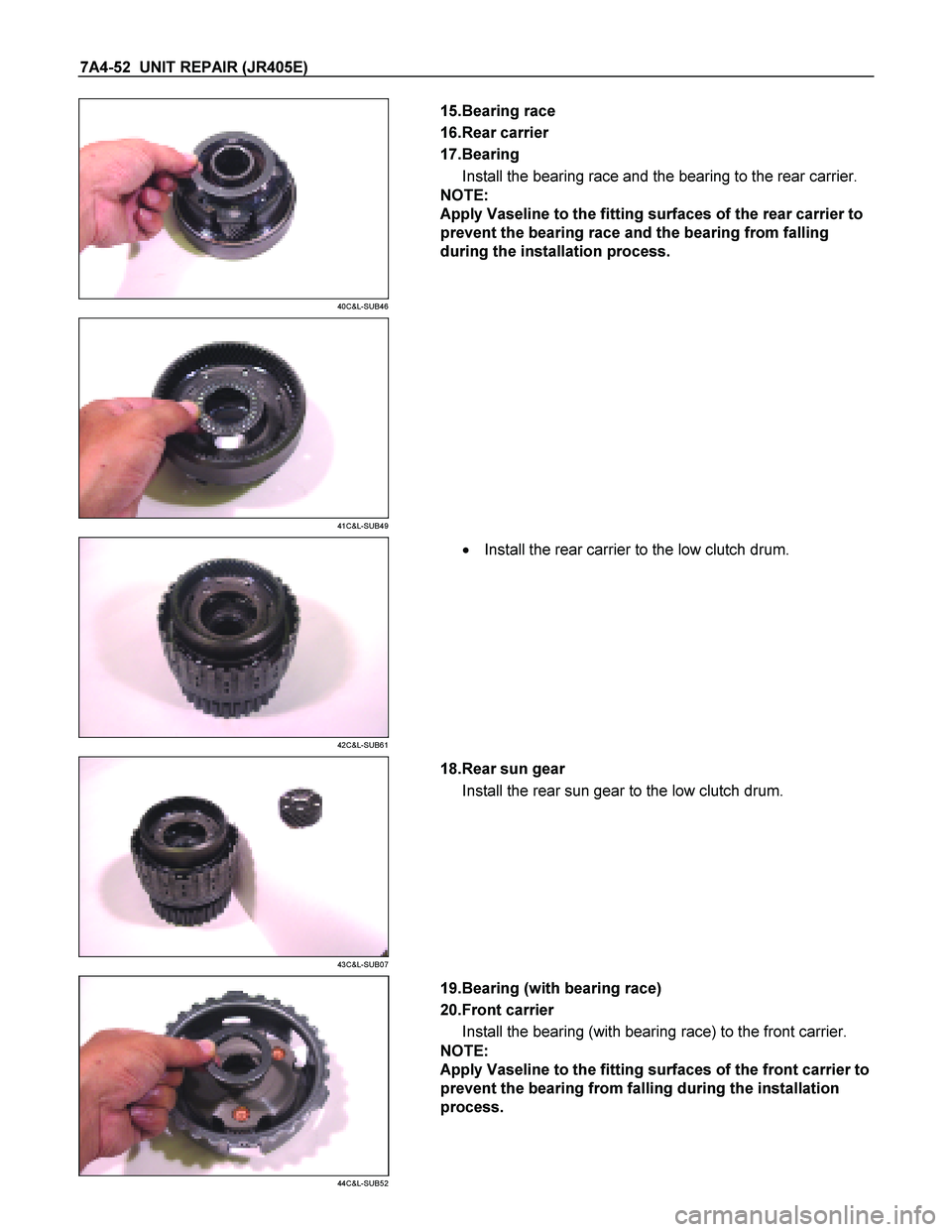

ISUZU TF SERIES 2004 Workshop Manual 7A4-52 UNIT REPAIR (JR405E) 40C&L-SUB46 15.Bearing race 16.Rear carrier 17.Bearing Install the bearing race and the bearing to the rear carrier. NOTE: Apply Vaseline to the fitting

Page 4227 of 4264

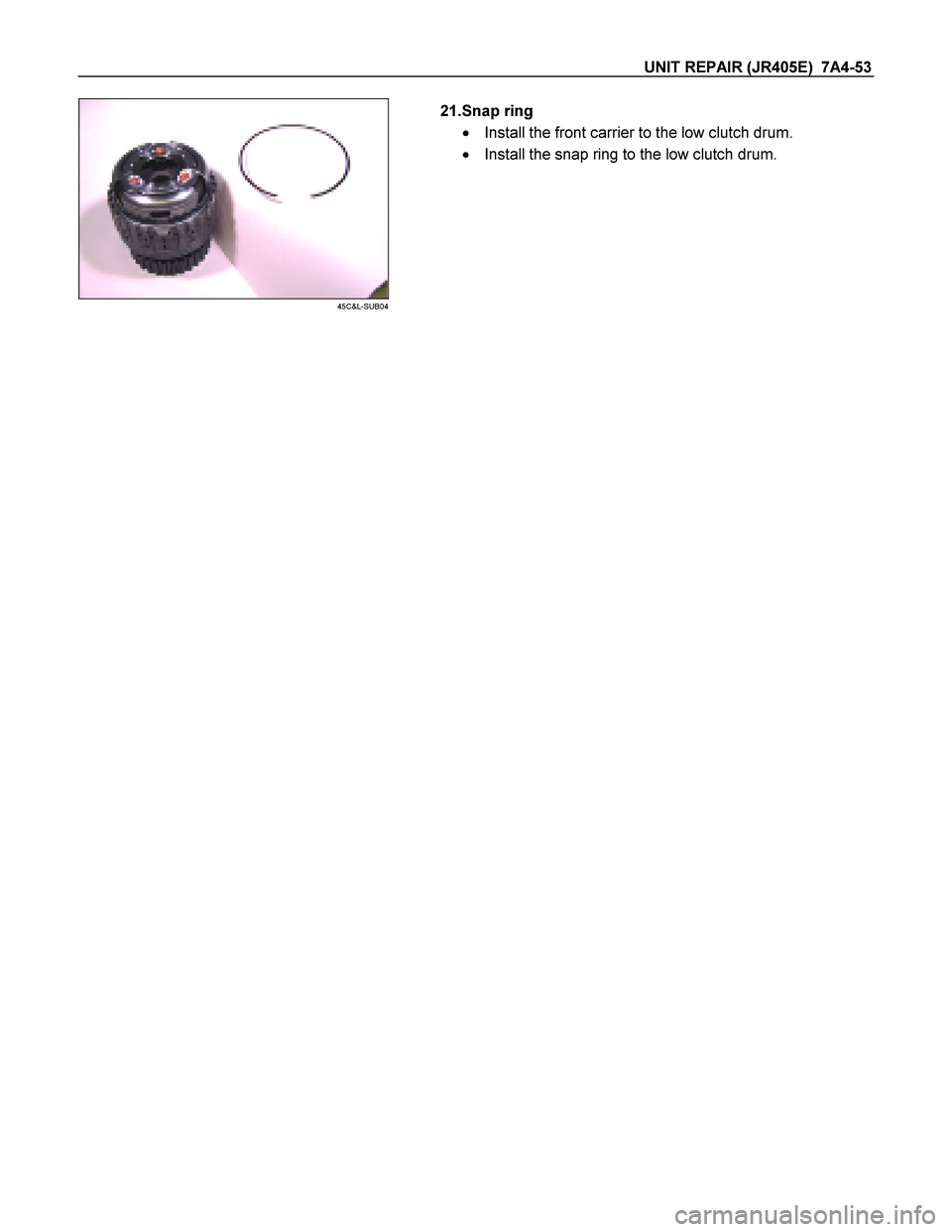

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-53 45C&L-SUB04 21.Snap ring  Install the front carrier to the low clutch drum.  Install the snap ring to the low clutch drum.

Page 4228 of 4264

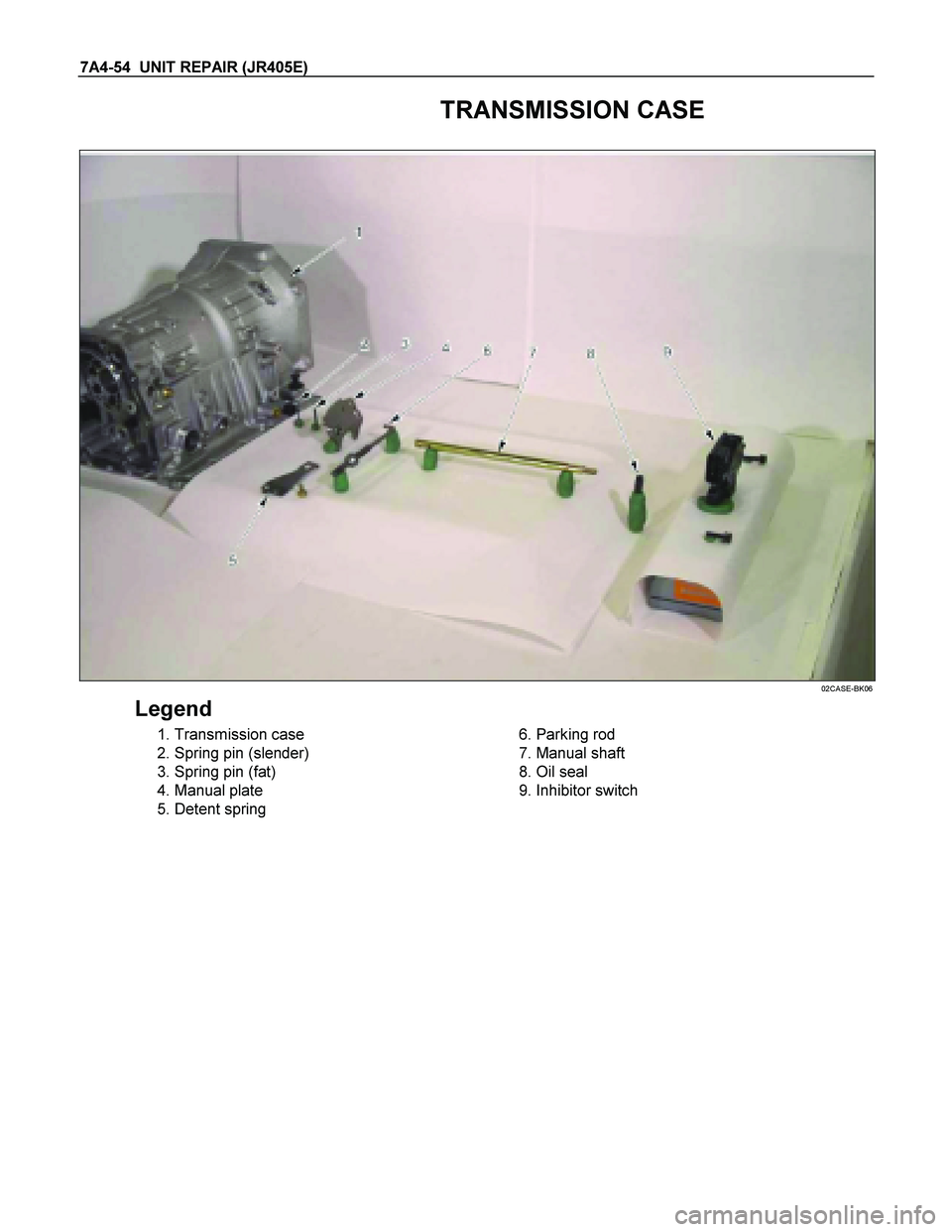

ISUZU TF SERIES 2004 Workshop Manual 7A4-54 UNIT REPAIR (JR405E) TRANSMISSION CASE 02CASE-BK06 Legend 1. Transmission case 2. Spring pin (slender) 3. Spring pin (fat) 4. Manual plate 5. Detent spring 6. P

Page 4229 of 4264

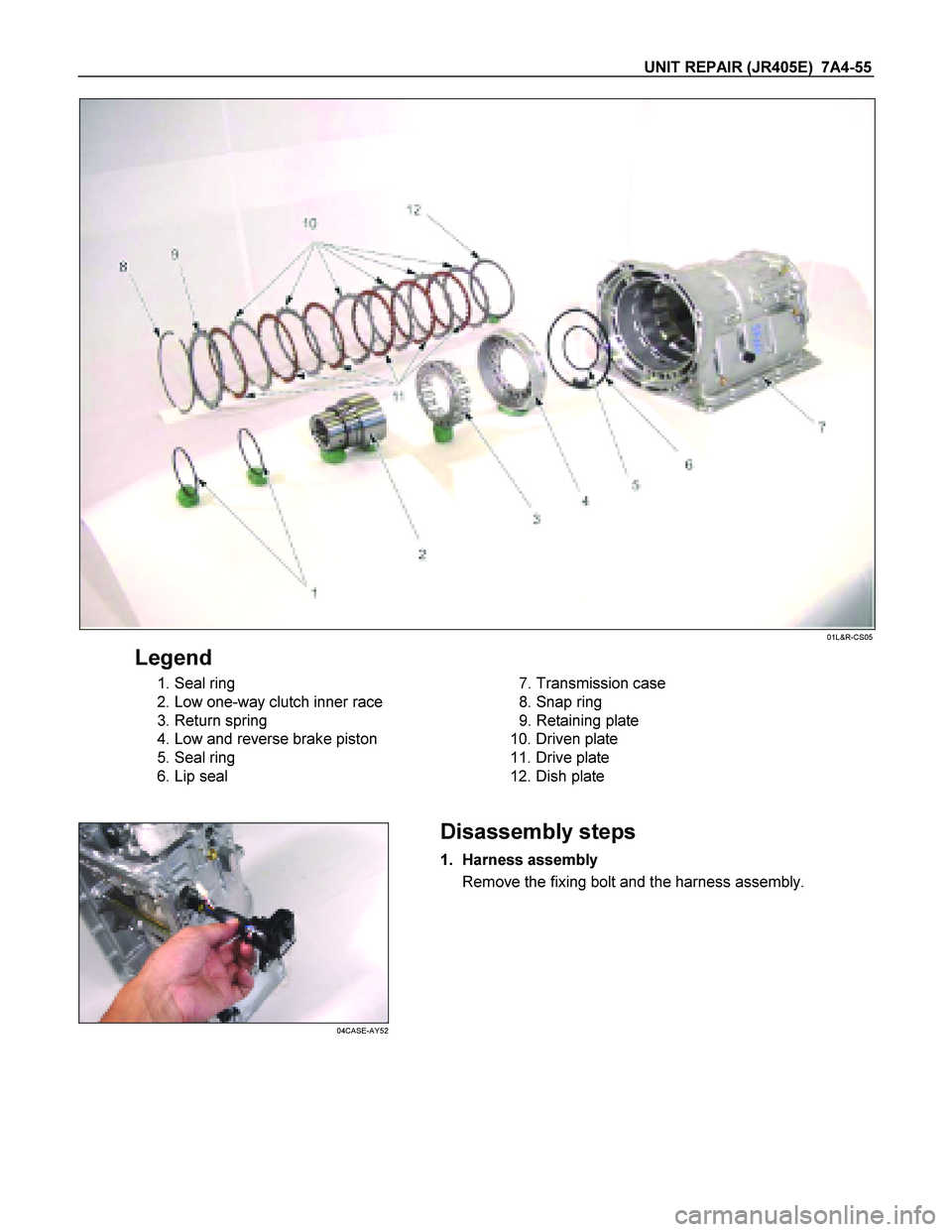

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-55 01L&R-CS05 Legend 1. Seal ring 2. Low one-way clutch inner race 3. Return spring 4. Low and reverse brake piston 5. Seal ring 6. Lip seal 7

Page 4230 of 4264

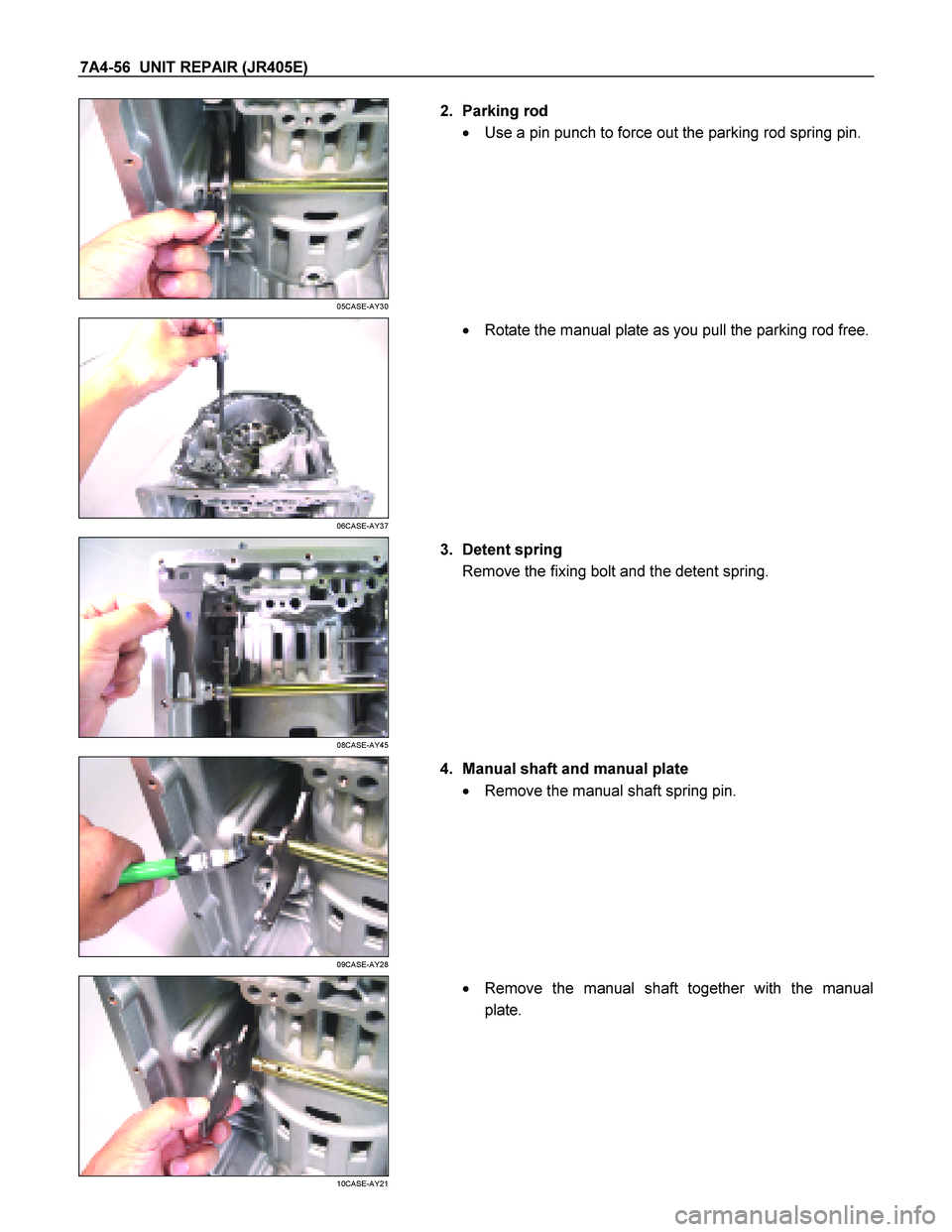

ISUZU TF SERIES 2004 Workshop Manual 7A4-56 UNIT REPAIR (JR405E) 05CASE-AY30 2. Parking rod  Use a pin punch to force out the parking rod spring pin. 06CASE-AY37  Rotate the manual plate as you pull the pa

Page 4231 of 4264

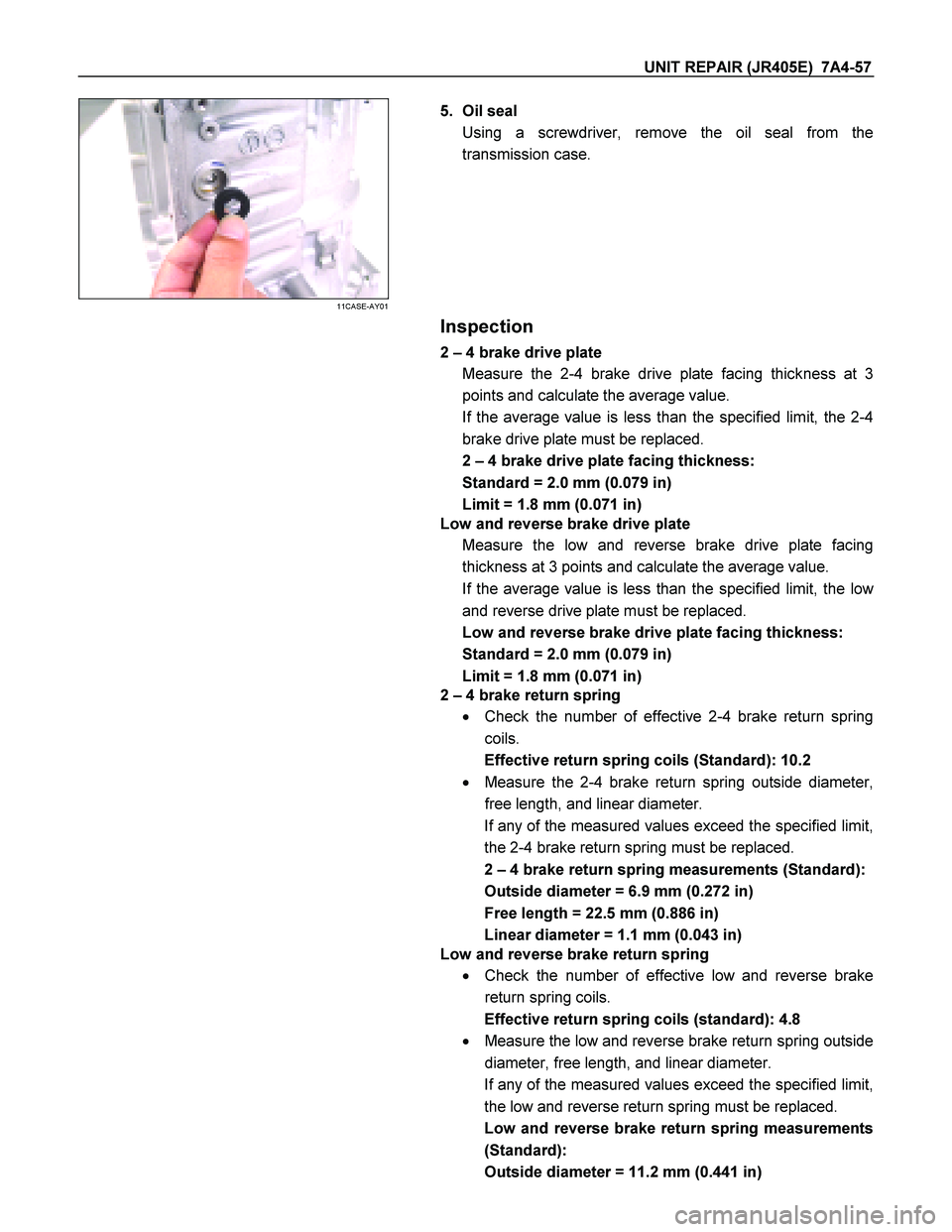

ISUZU TF SERIES 2004 Workshop Manual UNIT REPAIR (JR405E) 7A4-57 11CASE-AY01 5. Oil seal Using a screwdriver, remove the oil seal from the transmission case. Inspection 2 – 4 brake drive plate Measure the 2-

Page 4232 of 4264

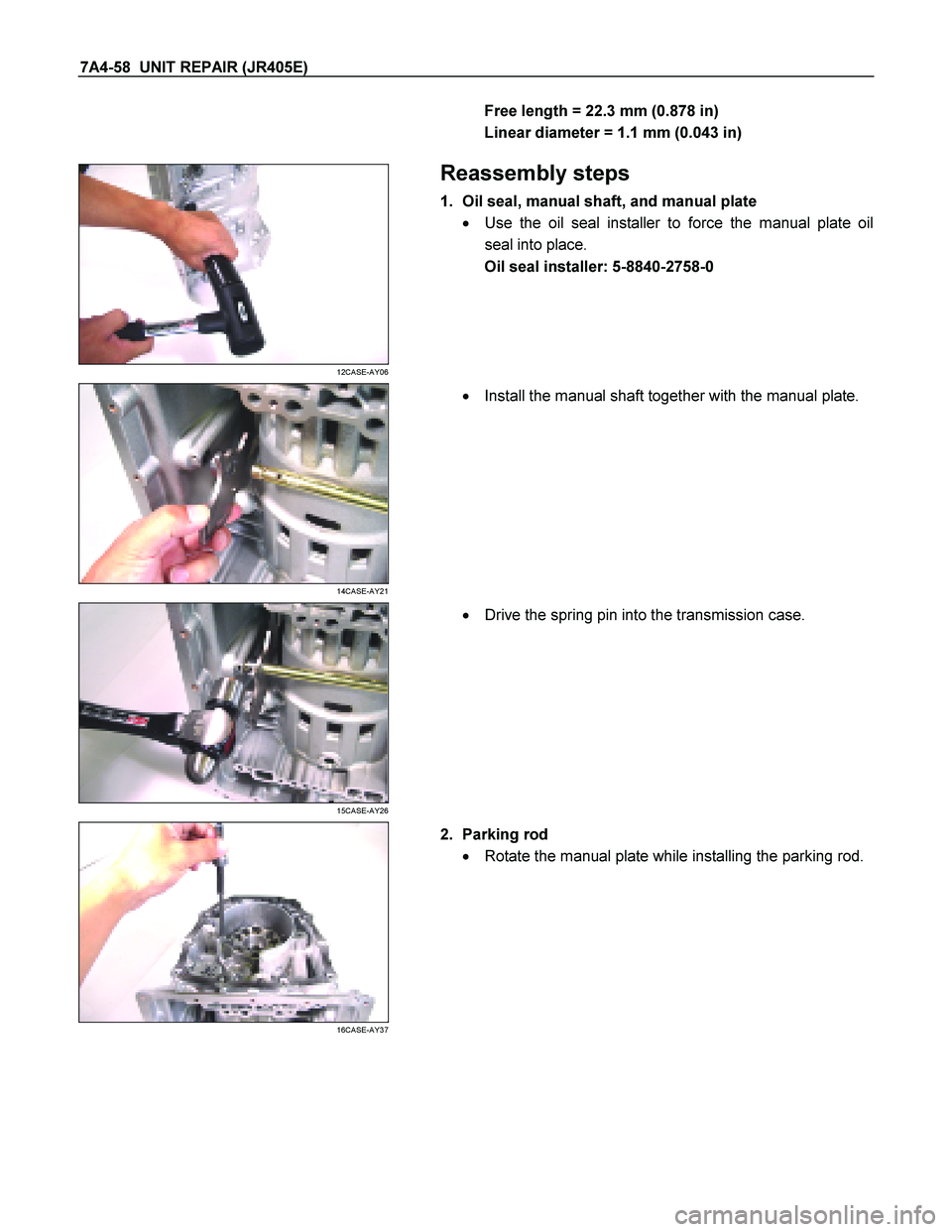

ISUZU TF SERIES 2004 Workshop Manual 7A4-58 UNIT REPAIR (JR405E) Free length = 22.3 mm (0.878 in) Linear diameter = 1.1 mm (0.043 in) 12CASE-AY06 Reassembly steps 1. Oil seal, manual shaft, and manual plate  Use the
