2004 ISUZU TF SERIES Workshop Manual

brake pads replacementESPenginejack pointsdisplaywiper blades
Popular search:
relayparking sensorstyre pressureclutch thicknesswarning lightchange key batteryauxiliary battery
Previous
Next
Load previous 8 pages

Page 3097 of 4264

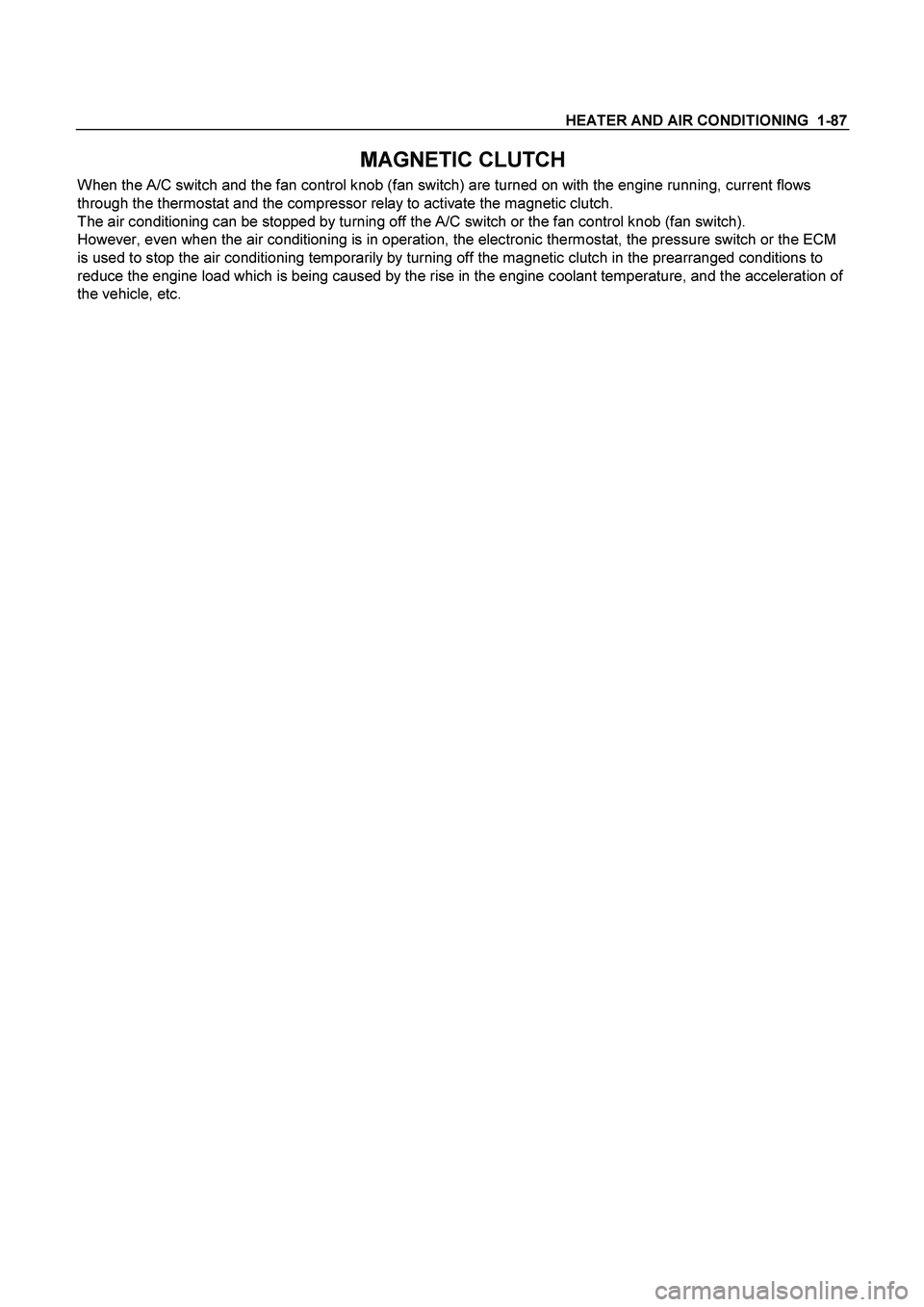

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-87 MAGNETIC CLUTCH When the A/C switch and the fan control knob (fan switch) are turned on with the engine running, current flows through the thermostat and the comp

Page 3098 of 4264

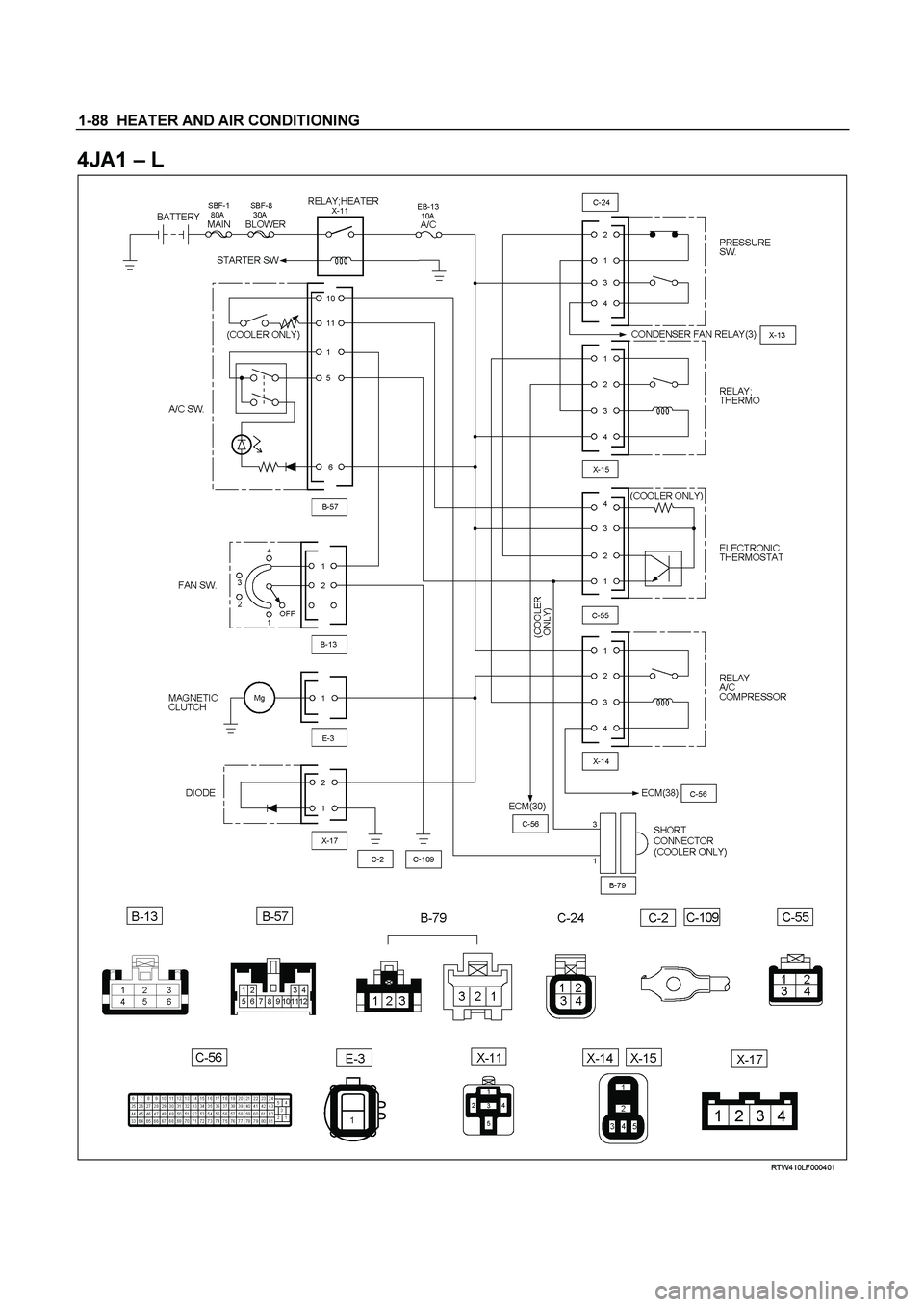

ISUZU TF SERIES 2004 Workshop Manual 1-88 HEATER AND AIR CONDITIONING 4JA1 – L RTW410LF000401

Page 3099 of 4264

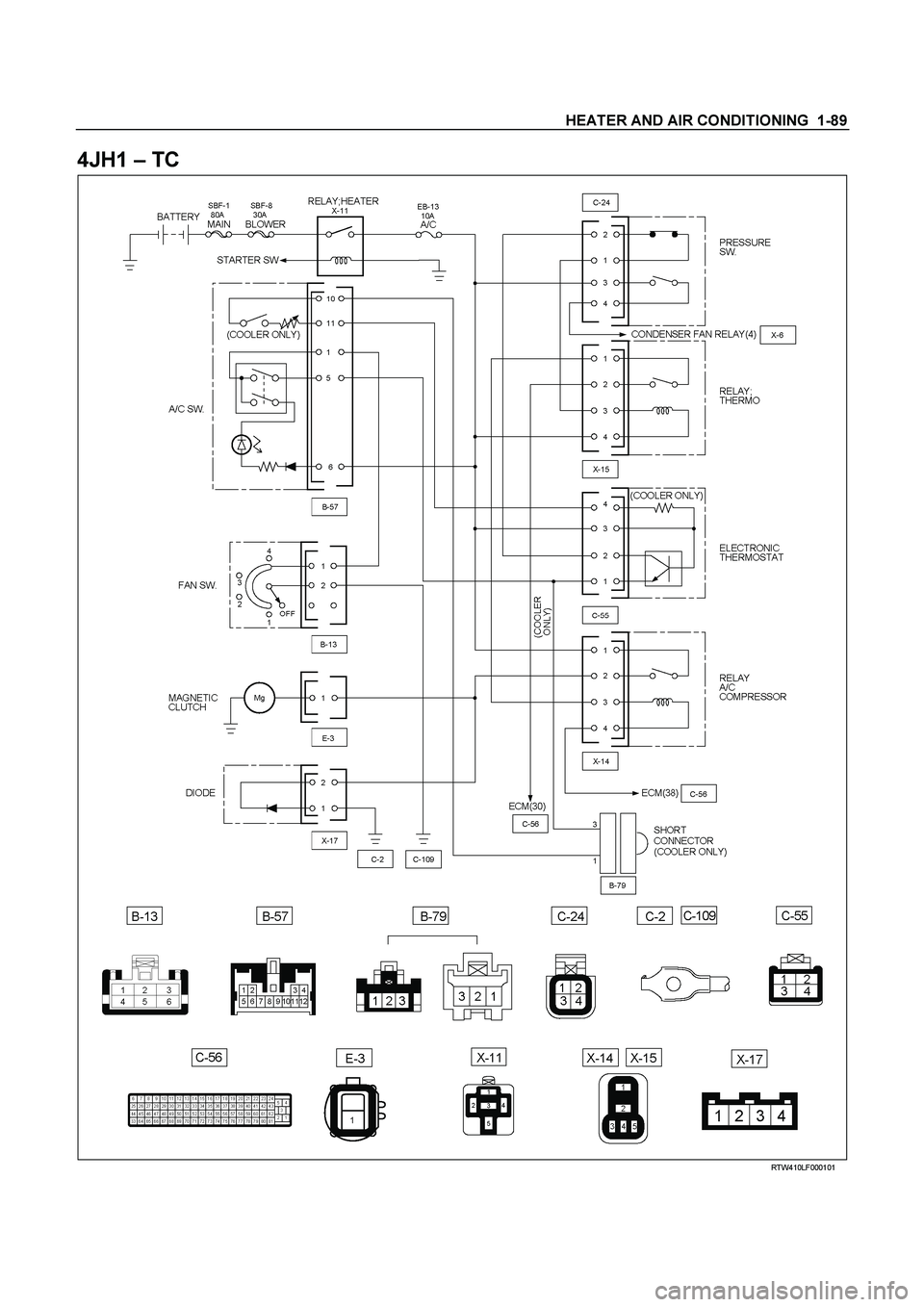

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-89 4JH1 – TC RTW410LF000101

Page 3100 of 4264

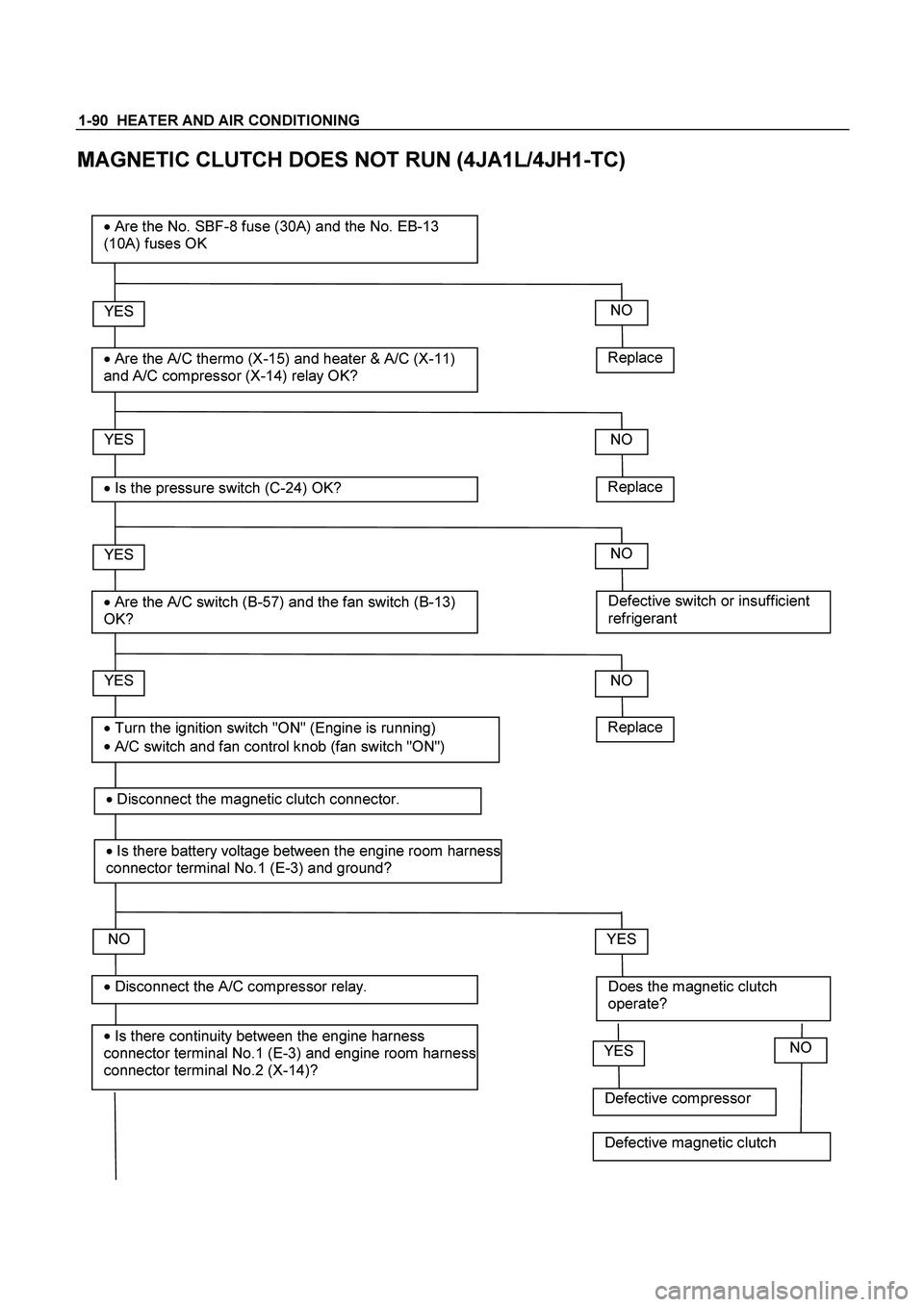

ISUZU TF SERIES 2004 Workshop Manual 1-90 HEATER AND AIR CONDITIONING MAGNETIC CLUTCH DOES NOT RUN (4JA1L/4JH1-TC) Replace YES  Are the A/C thermo (X-15) and heater & A/C (X-11) and A/C compressor (X-14) relay OK?  Are t

Page 3101 of 4264

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-91 Open circuit between the engine harness connector terminal No.1 (E-3) and engine room harness connector terminal No.2 (X-14). YES  Is there battery v

Page 3102 of 4264

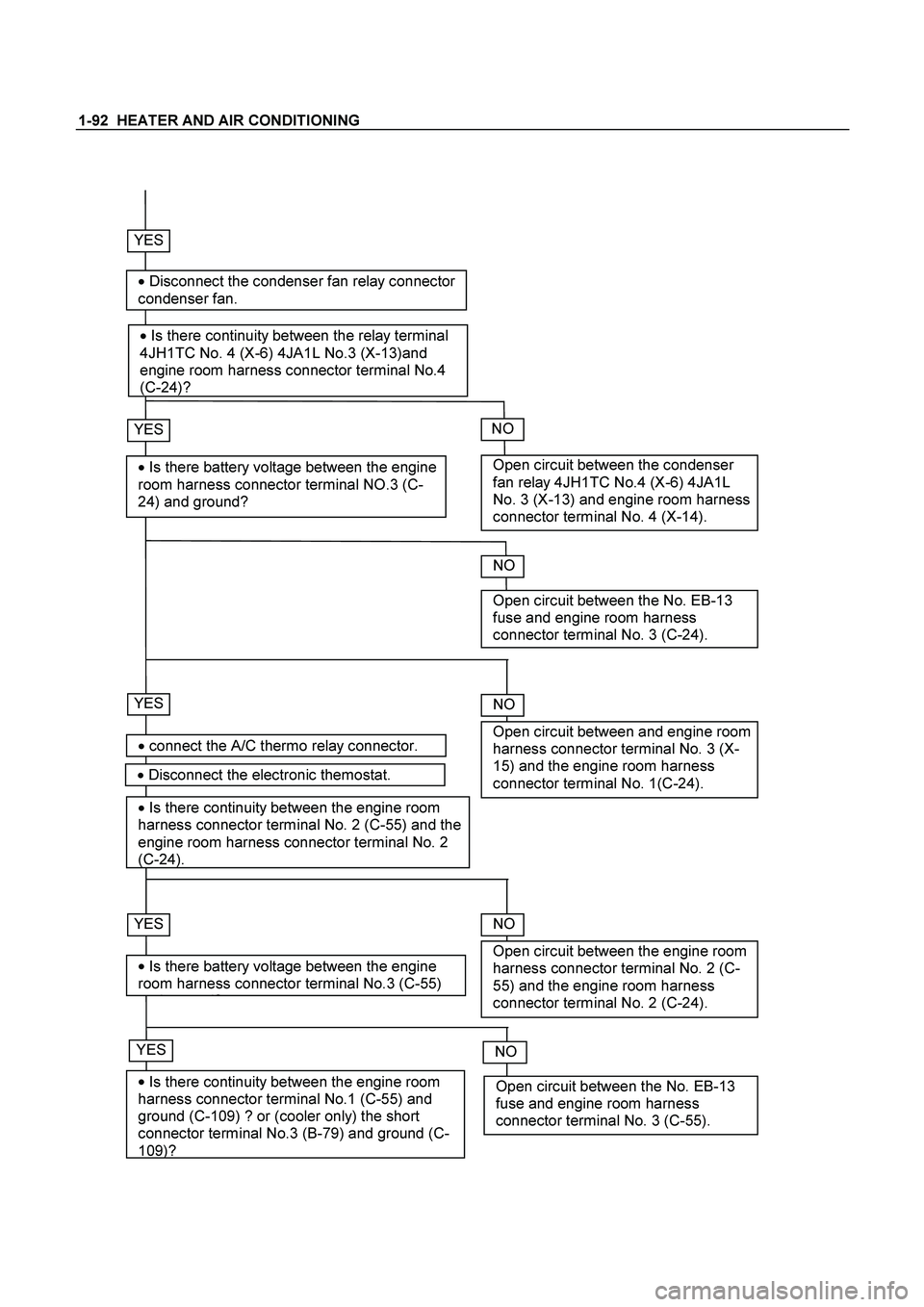

ISUZU TF SERIES 2004 Workshop Manual 1-92 HEATER AND AIR CONDITIONING YES  Disconnect the condenser fan relay connector condenser fan. YES  Is there battery voltage between the engine room harness connector terminal NO.3

Page 3103 of 4264

ISUZU TF SERIES 2004 Workshop Manual HEATER AND AIR CONDITIONING 1-93 YES  Disconnect the A/C switch.  Is there battery voltage between the chassis side harness connector terminal No. 6 (B-57) and ground (C- 109)? Open cir

Page 3104 of 4264

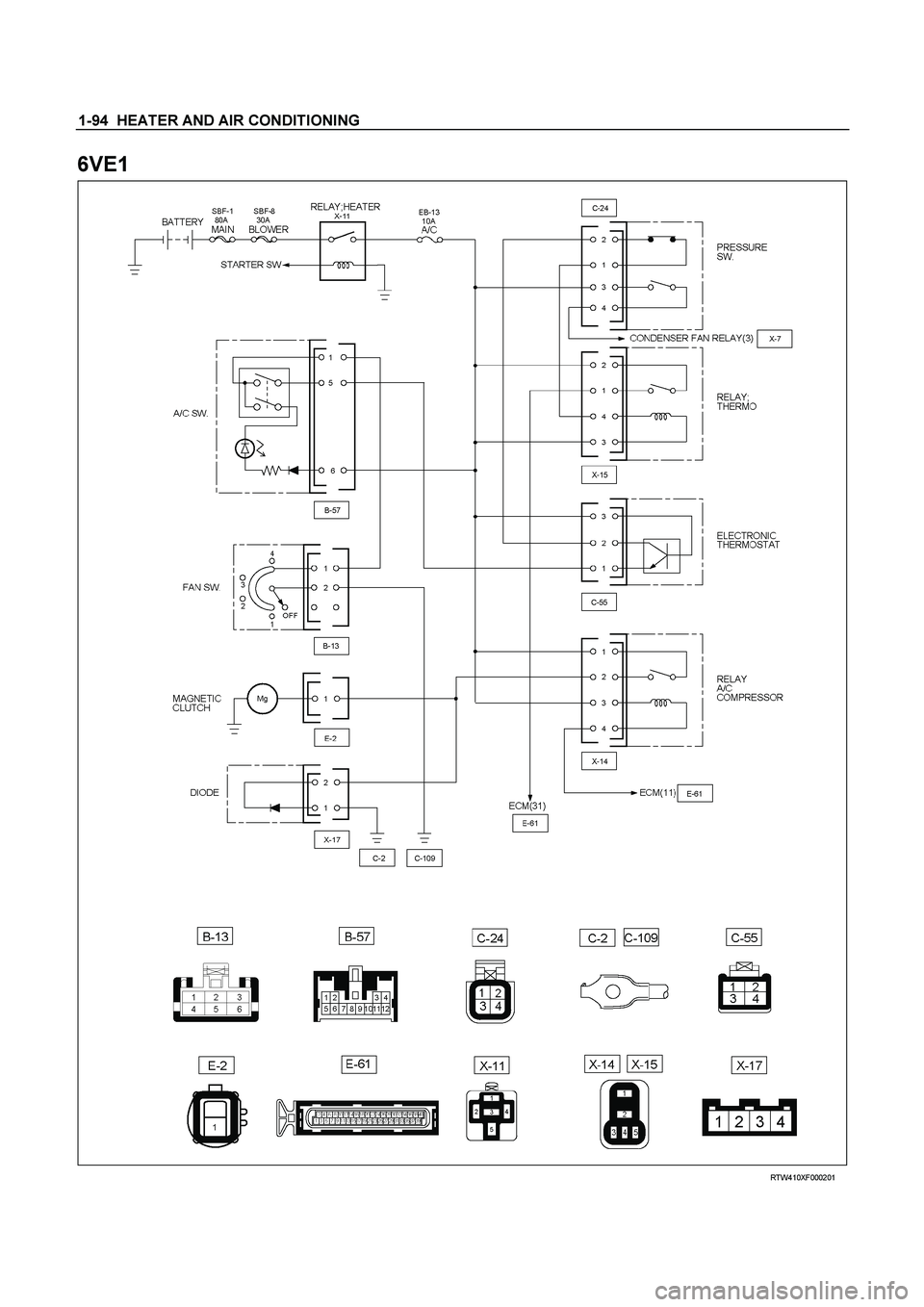

ISUZU TF SERIES 2004 Workshop Manual 1-94 HEATER AND AIR CONDITIONING 6VE1 RTW410XF000201
