Page 1289 of 4264

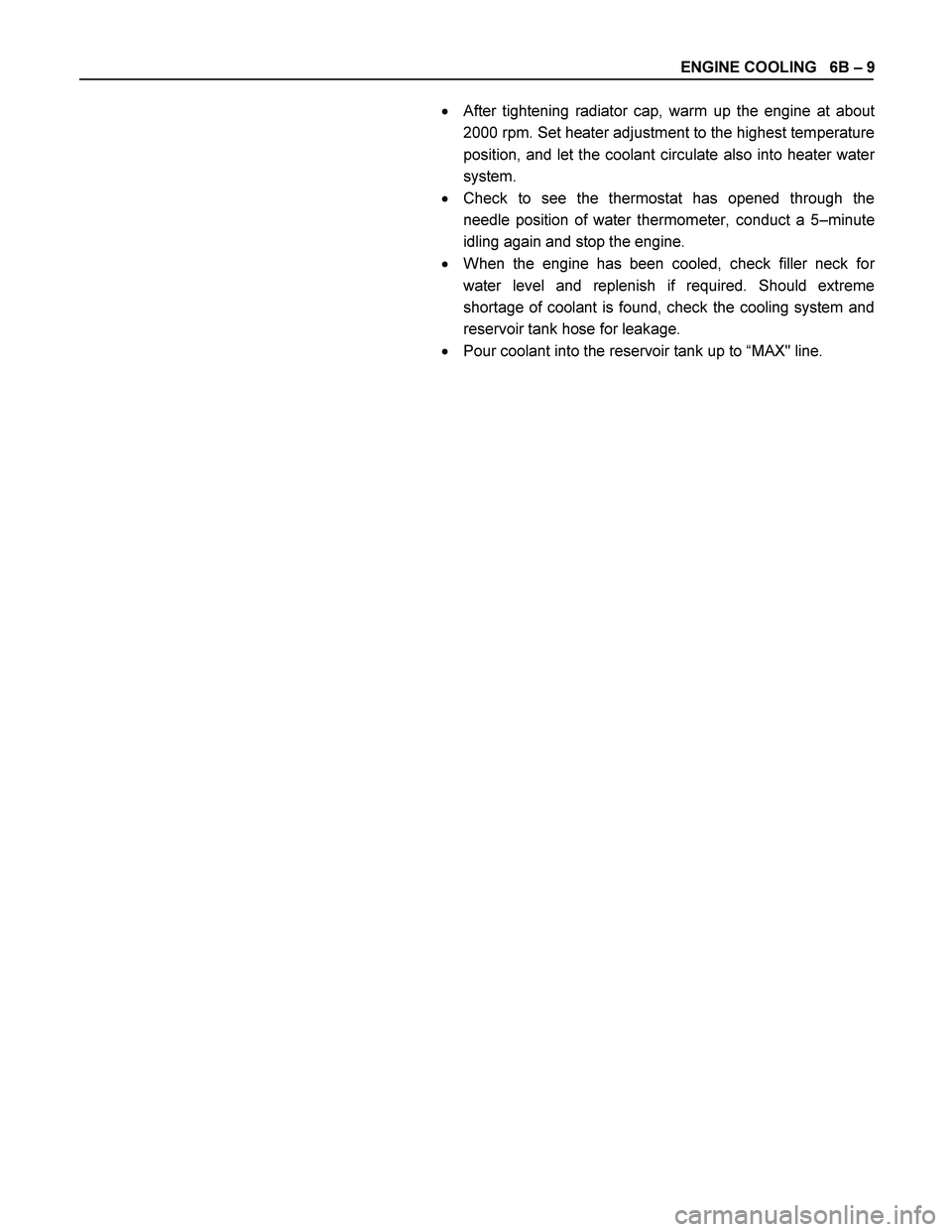

ISUZU TF SERIES 2004 Workshop Manual ENGINE COOLING 6B – 9  After tightening radiator cap, warm up the engine at about 2000 rpm. Set heater adjustment to the highest temperature position, and let the coolant circulate also into

Page 1290 of 4264

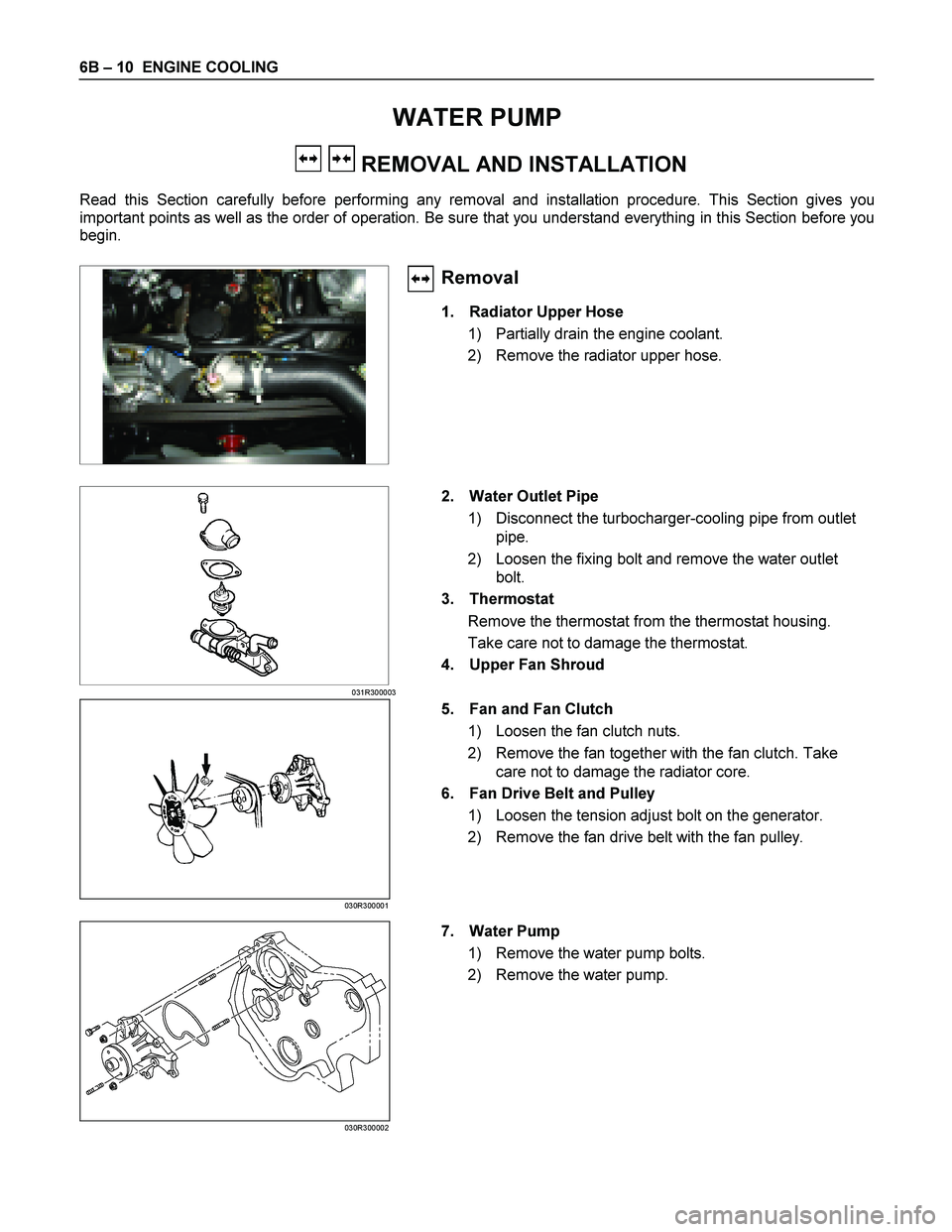

ISUZU TF SERIES 2004 Workshop Manual 6B – 10 ENGINE COOLING WATER PUMP REMOVAL AND INSTALLATION Read this Section carefully before performing any removal and installation procedure. This Section gives you important points

Page 1291 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE COOLING 6B – 11 Inspection and Repair The water pump is not disassembled type. Make necessary parts replacement if extreme wear or damage is found during inspection. Should any of the

Page 1292 of 4264

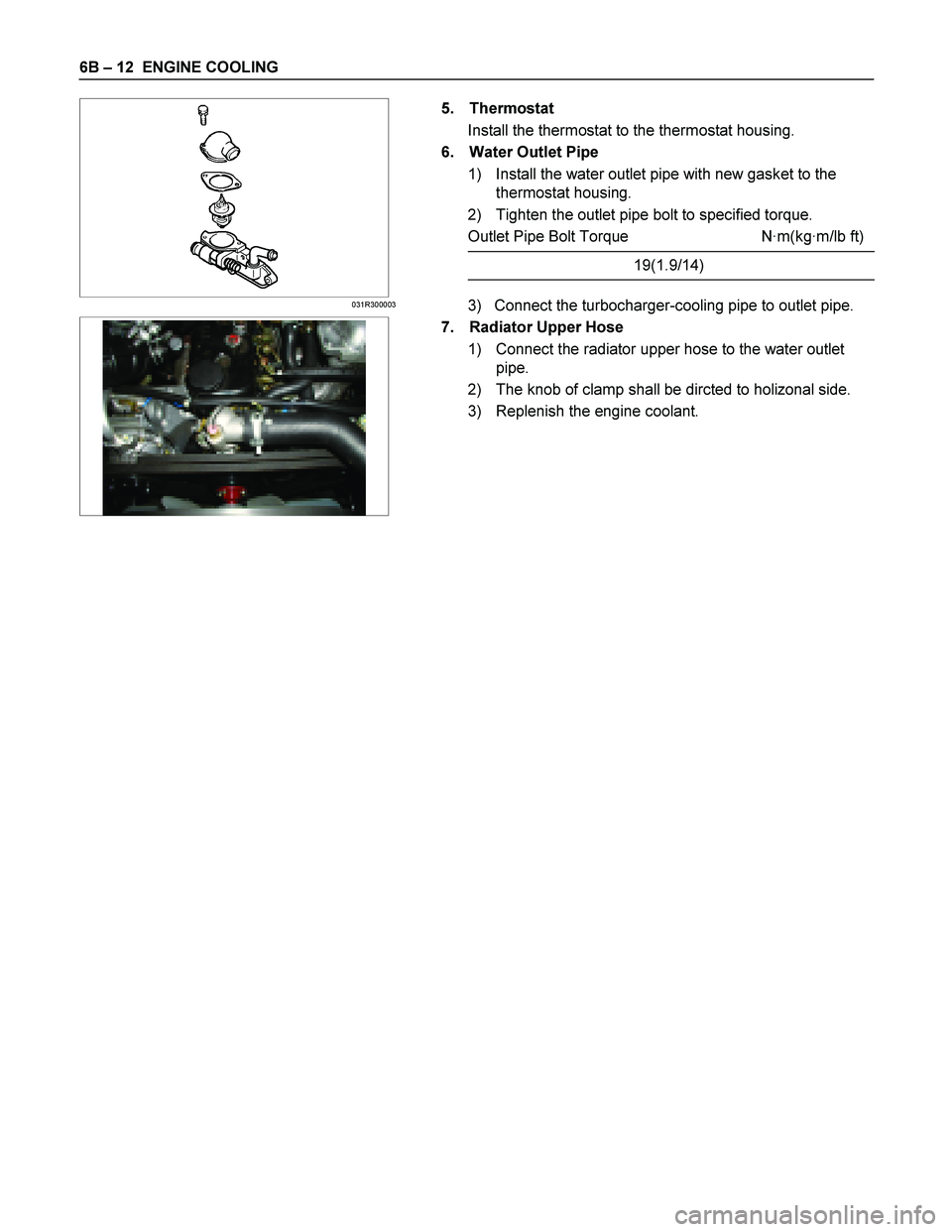

ISUZU TF SERIES 2004 Workshop Manual 6B – 12 ENGINE COOLING 031R300003 5. Thermostat Install the thermostat to the thermostat housing. 6. Water Outlet Pipe 1) Install the water outlet pipe with new gasket to the

Page 1293 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE COOLING 6B – 13 THERMOSTAT REMOVAL AND INSTALLATION Read this Section carefully before performing any removal and installation procedure. This Section gives you important points as

Page 1294 of 4264

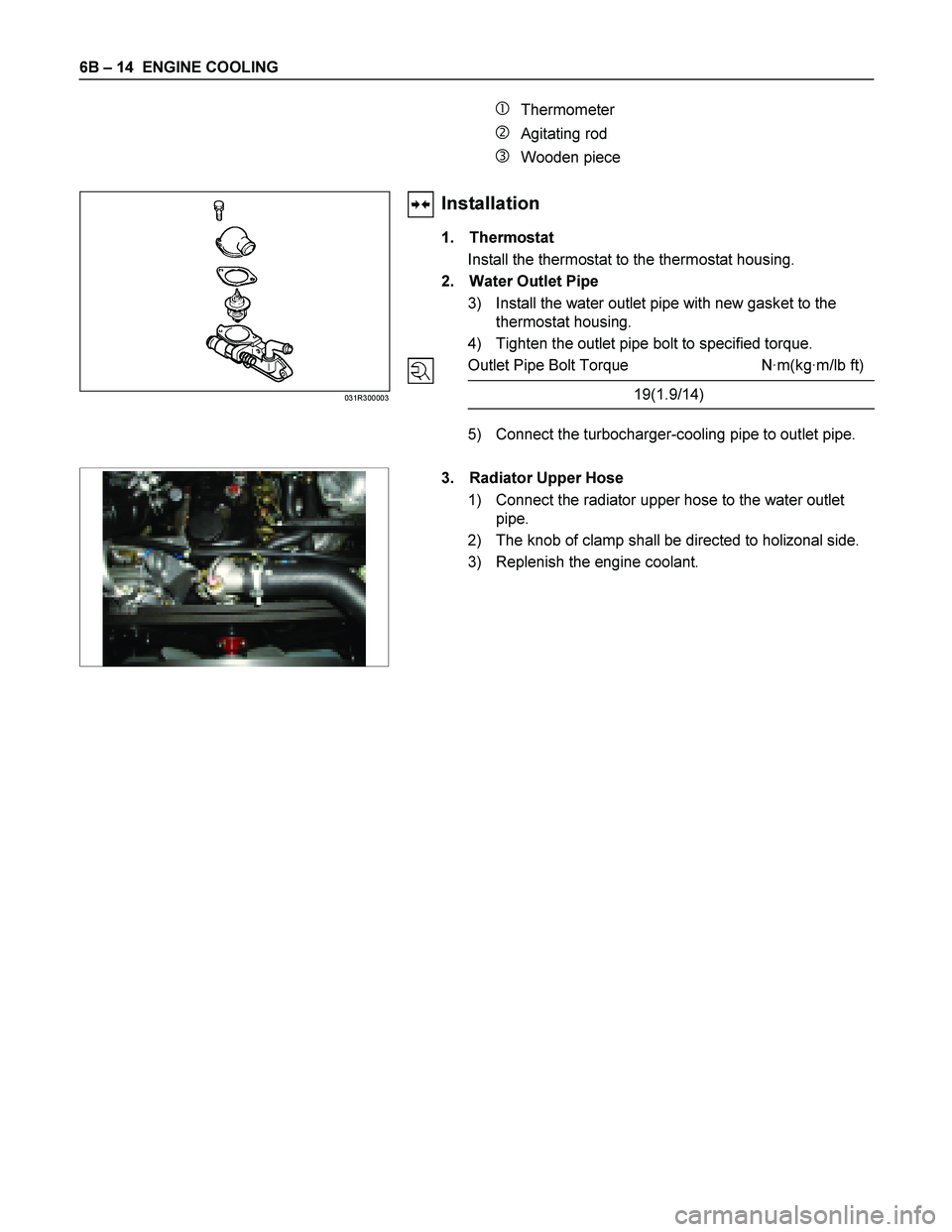

ISUZU TF SERIES 2004 Workshop Manual 6B – 14 ENGINE COOLING  Thermometer  Agitating rod  Wooden piece Installation 1. Thermostat Install the thermostat to the thermostat housing. 2.

Page 1295 of 4264

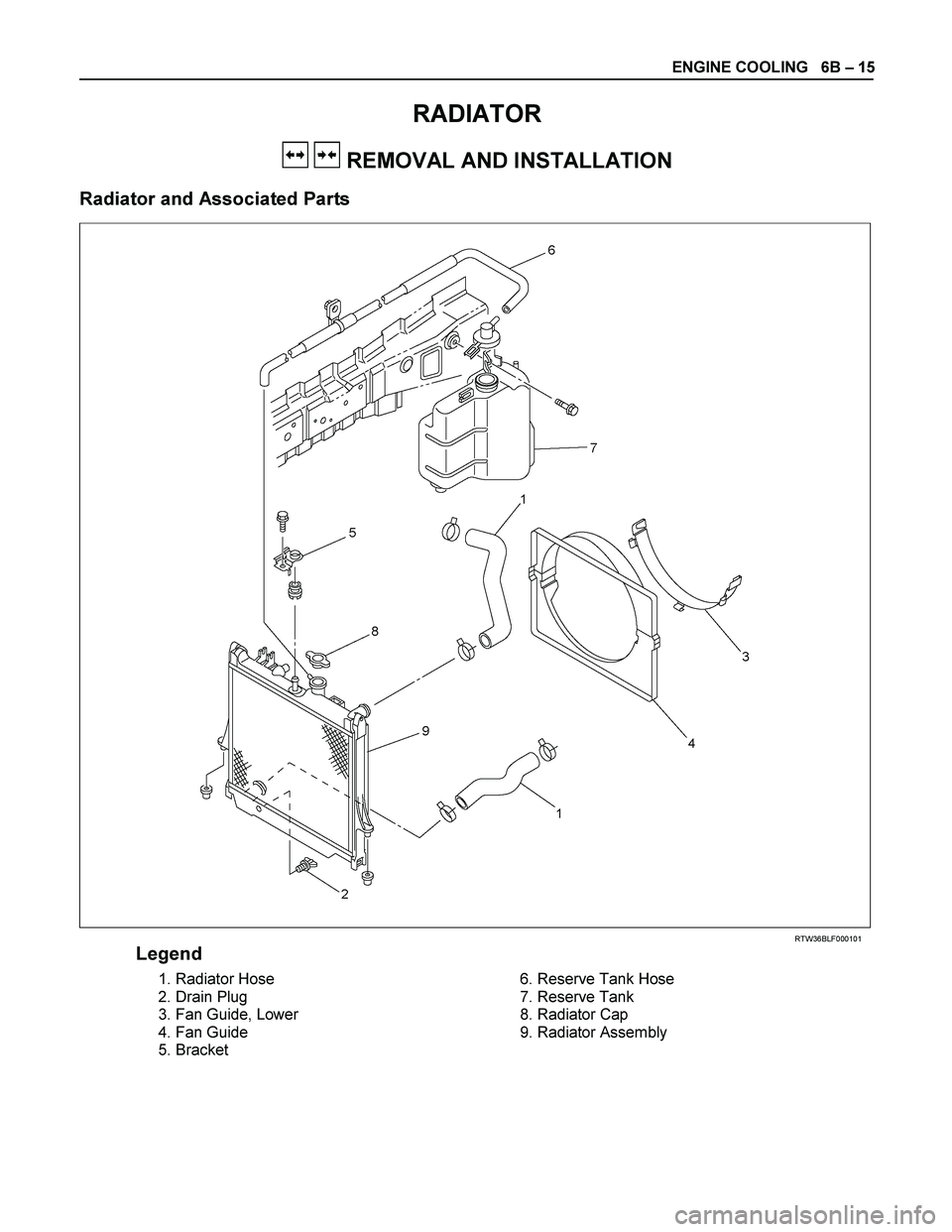

ISUZU TF SERIES 2004 Workshop Manual ENGINE COOLING 6B – 15 RADIATOR REMOVAL AND INSTALLATION Radiator and Associated Parts RTW36BLF000101 Legend 1. Radiator Hose 2. Drain Plug 3. Fan Guide, Lower 4. Fan Guid

Page 1296 of 4264

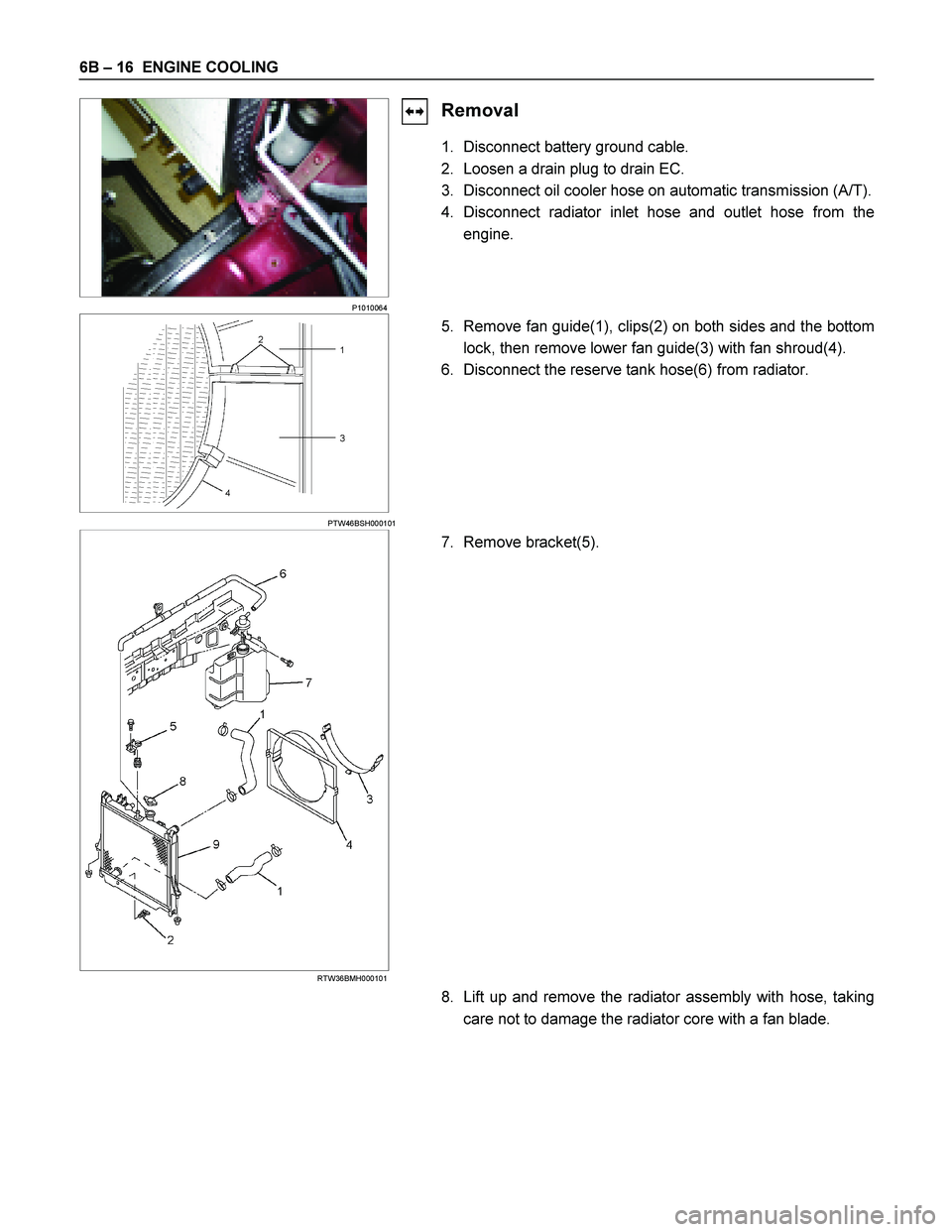

ISUZU TF SERIES 2004 Workshop Manual 6B – 16 ENGINE COOLING P1010064 Removal 1. Disconnect battery ground cable. 2. Loosen a drain plug to drain EC. 3. Disconnect oil cooler hose on automatic transmission (A/T). 4. Discon
