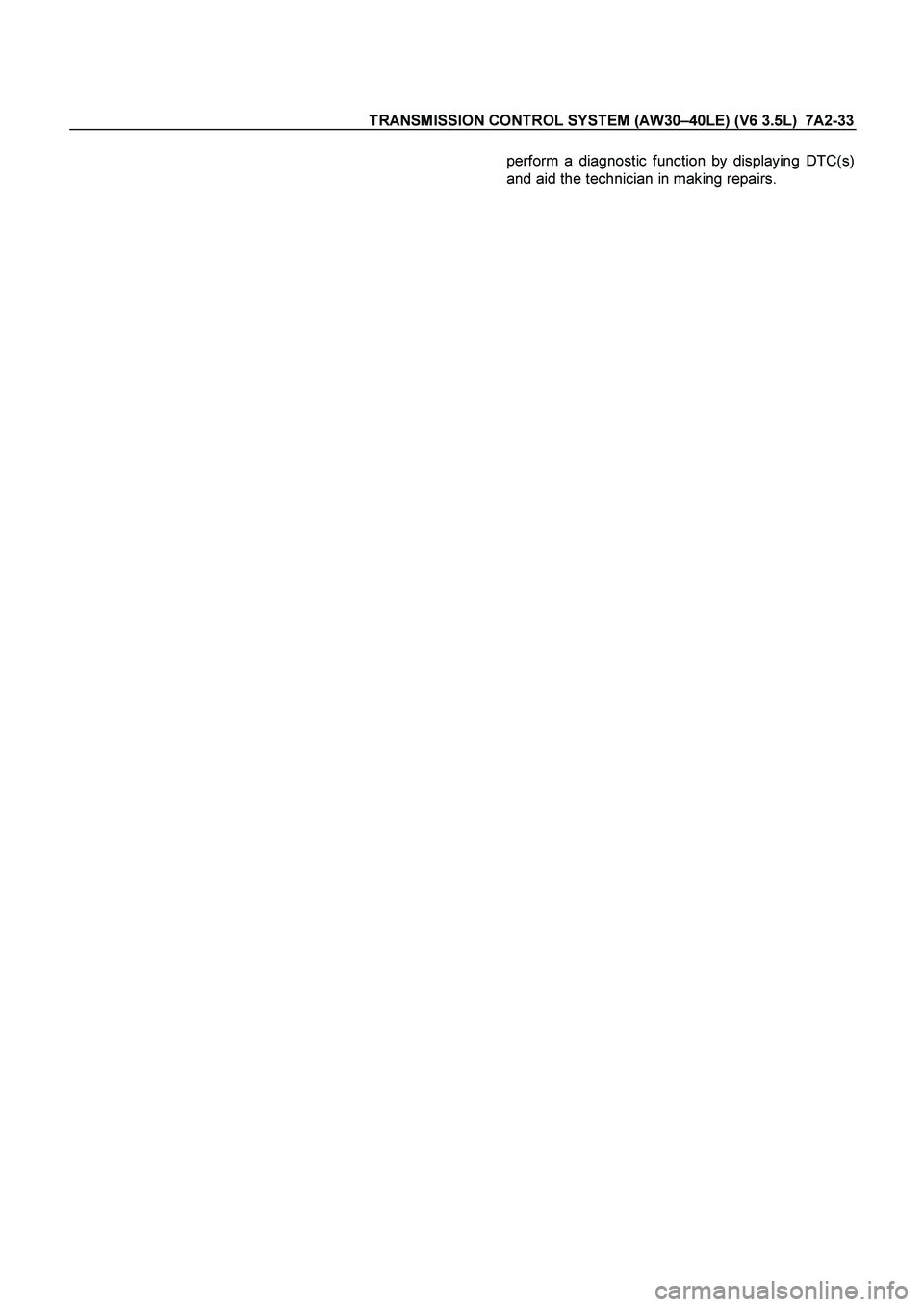

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) 7A2-33 perform a diagnostic function by displaying DTC(s) and aid the technician in making repairs.

Page 3714 of 4264

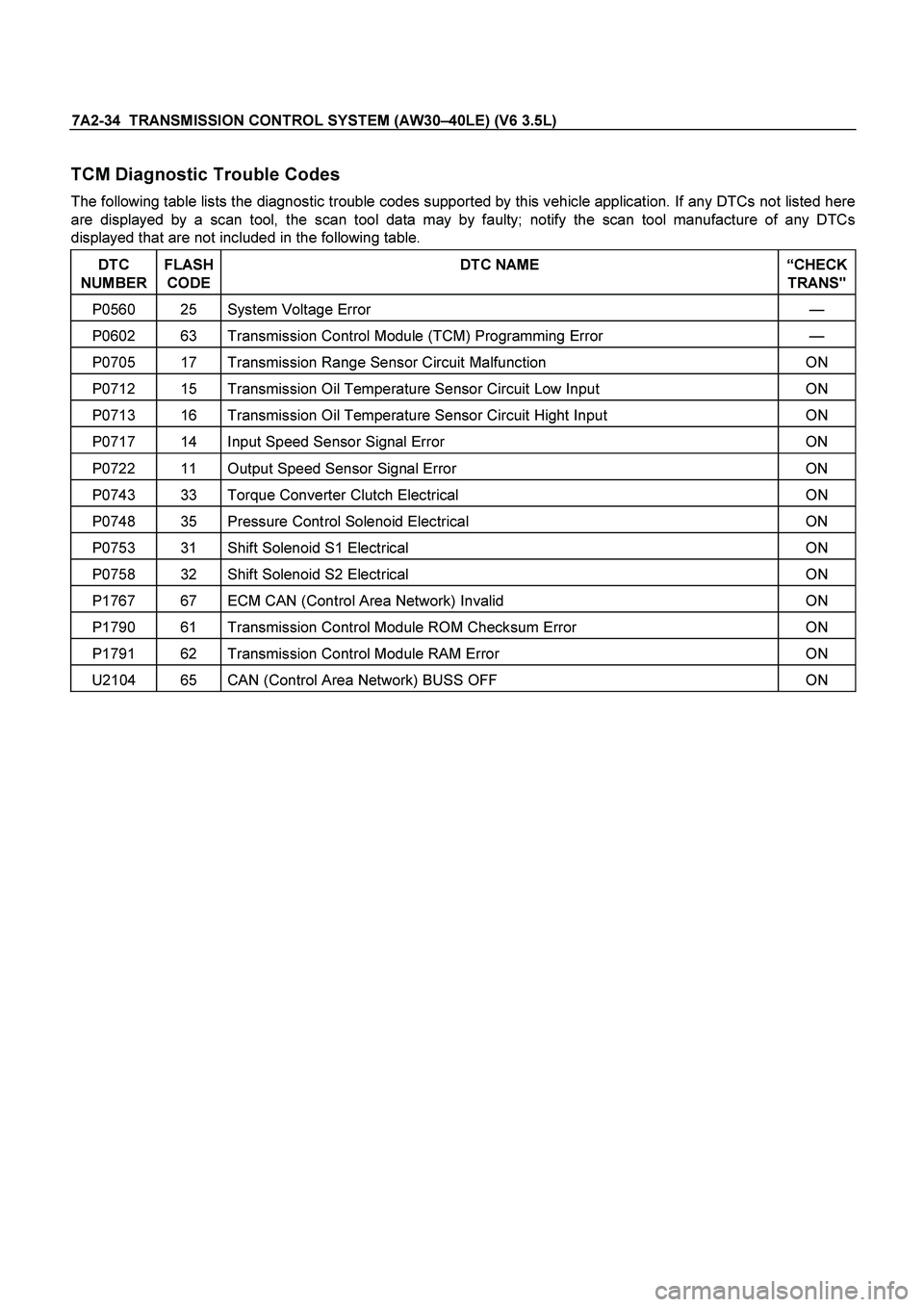

ISUZU TF SERIES 2004 Workshop Manual 7A2-34 TRANSMISSION CONTROL SYSTEM (AW30 –40LE) (V6 3.5L) TCM Diagnostic Trouble Codes The following table lists the diagnostic trouble codes supported by this vehicle application. If any DTCs

Page 3715 of 4264

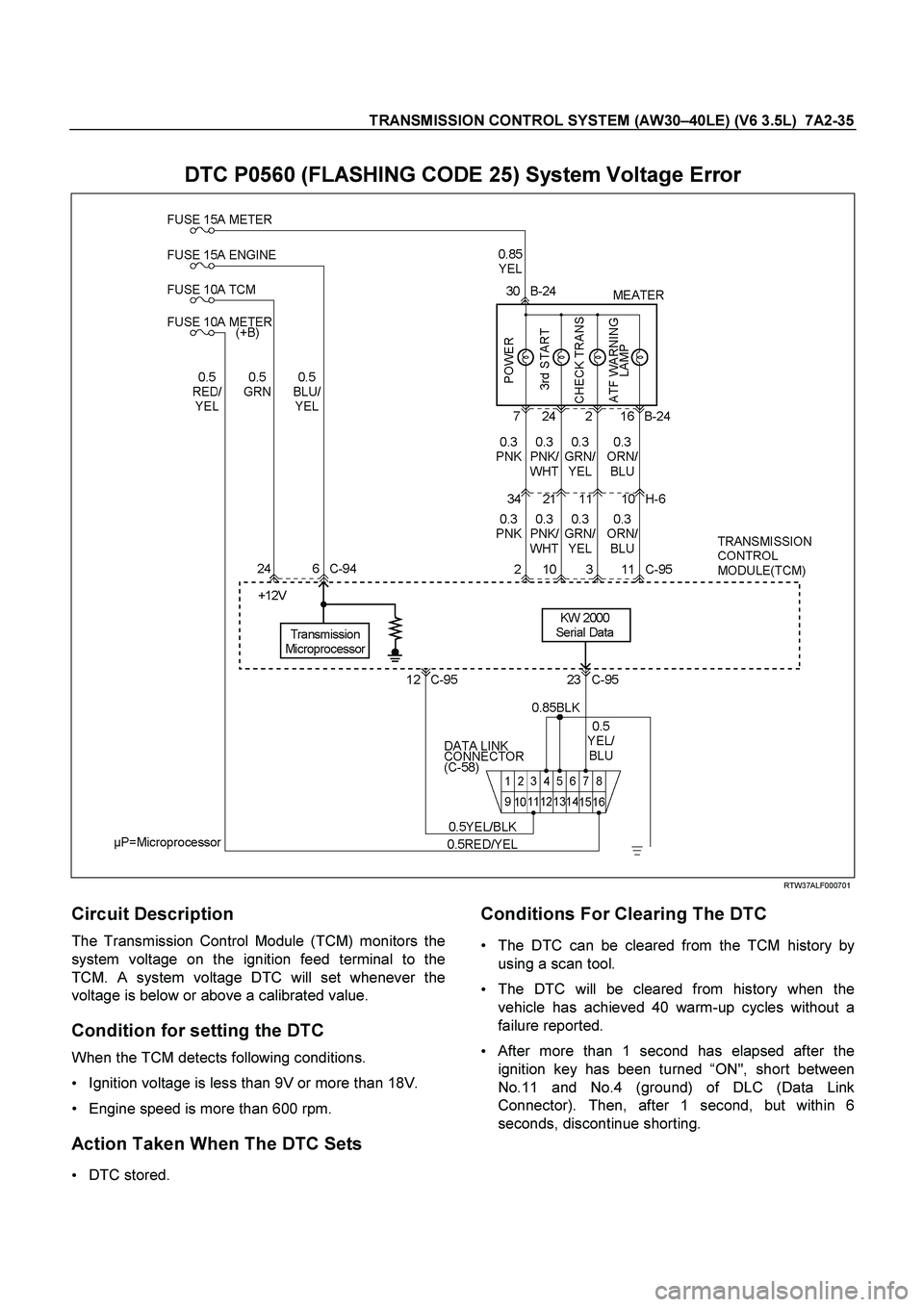

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-35 DTC P0560 (FLASHING CODE 25) System Voltage Error RTW37ALF000701 Circuit Description The Transmission Control Module (TCM) moni

Page 3716 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A2-36 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) Diagnostic Aids  Inspect the wiring for poor electrical connection at the TCM. Look for possible bent, backed out, deformed or damaged

Page 3717 of 4264

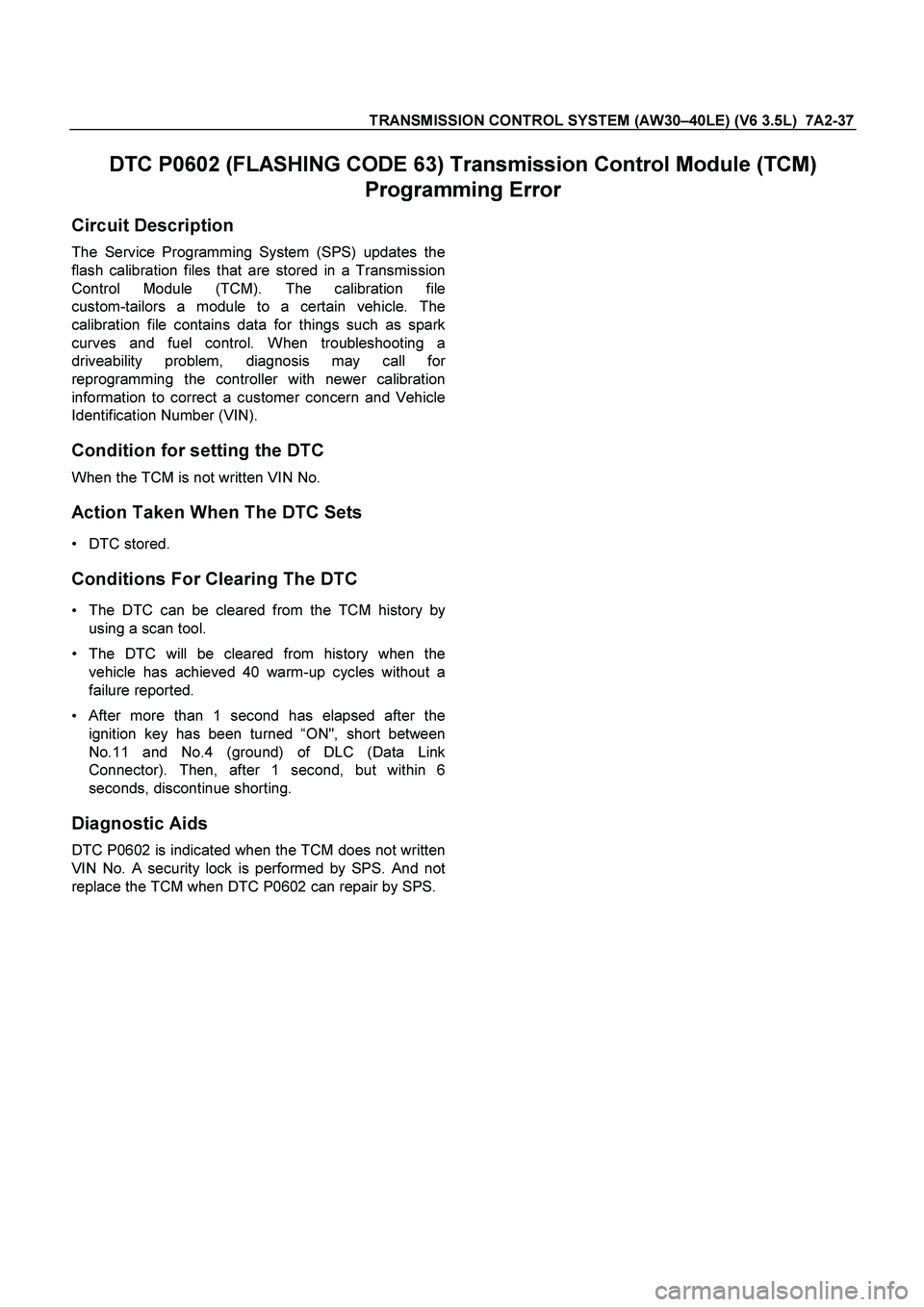

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-37 DTC P0602 (FLASHING CODE 63) Transmission Control Module (TCM) Programming Error Circuit Description The Service Programming System (SP

Page 3718 of 4264

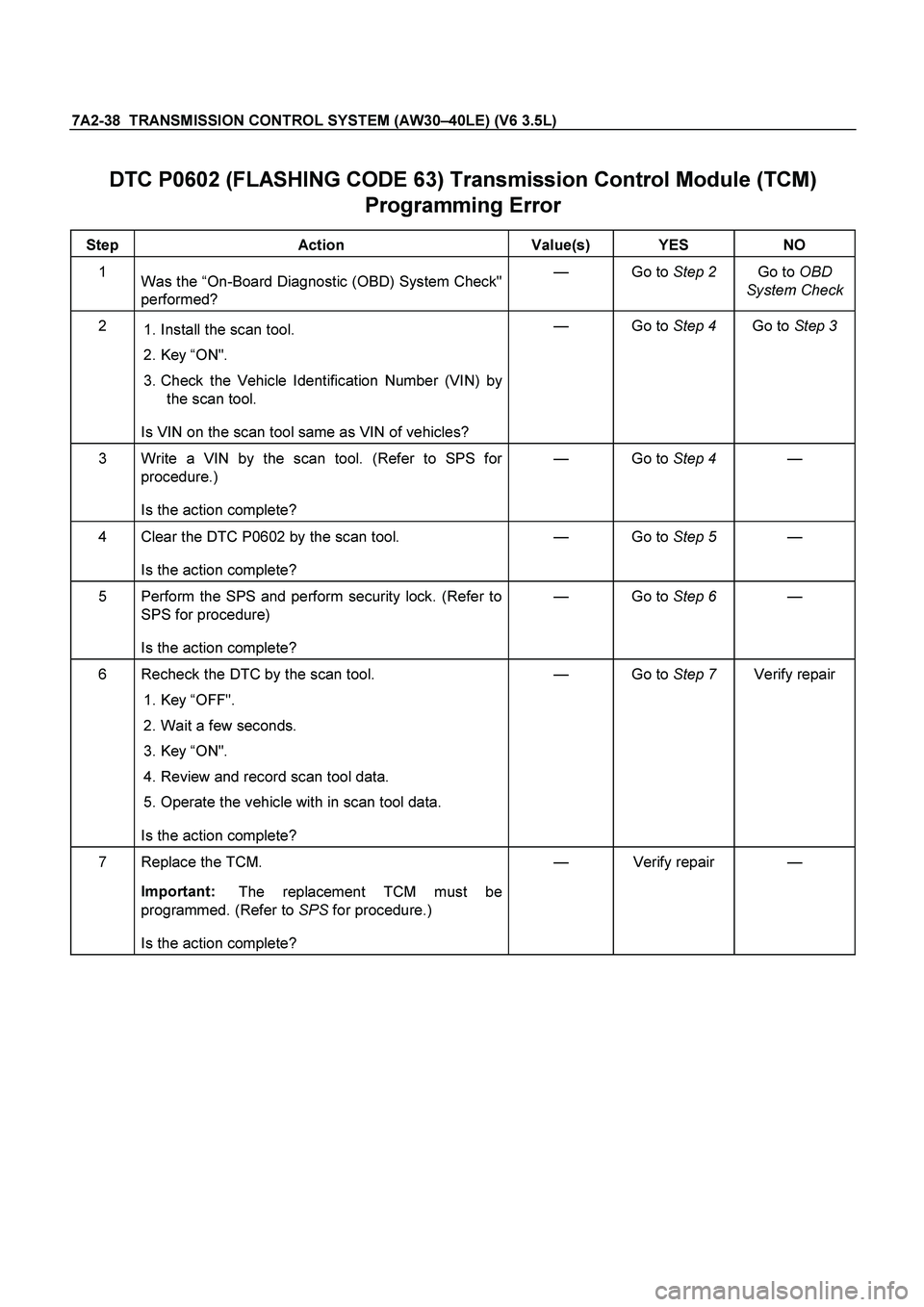

ISUZU TF SERIES 2004 Workshop Manual 7A2-38 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) DTC P0602 (FLASHING CODE 63) Transmission Control Module (TCM) Programming Error Step Action Value(s) YES NO 1 Was the “On-Board

Page 3719 of 4264

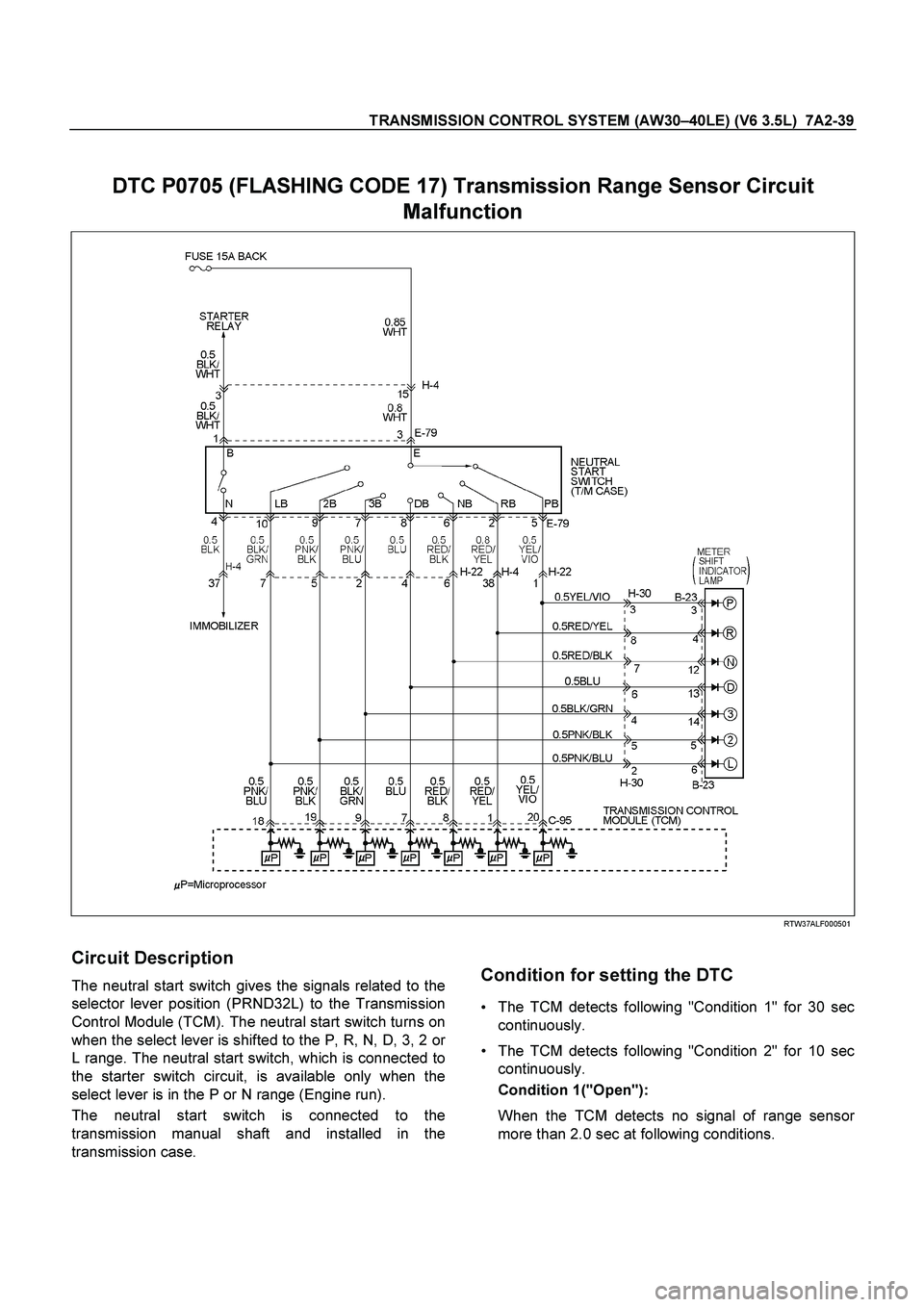

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-39 DTC P0705 (FLASHING CODE 17) Transmission Range Sensor Circuit Malfunction RTW37ALF000501 Circuit Description The neutral star

Page 3720 of 4264

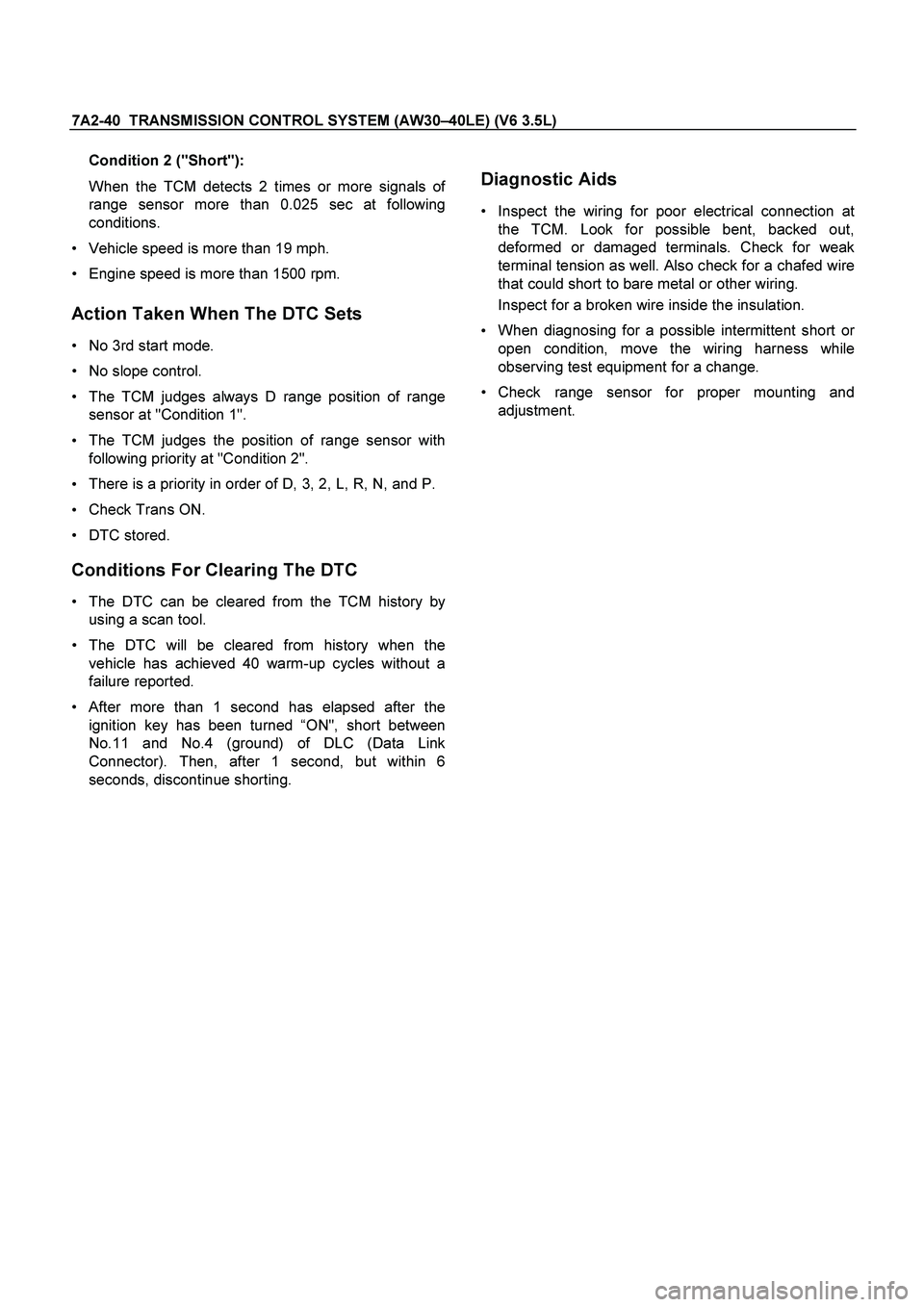

ISUZU TF SERIES 2004 Workshop Manual 7A2-40 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) Condition 2 ("Short"): When the TCM detects 2 times or more signals o f range sensor more than 0.025 sec at following conditions.  Veh
