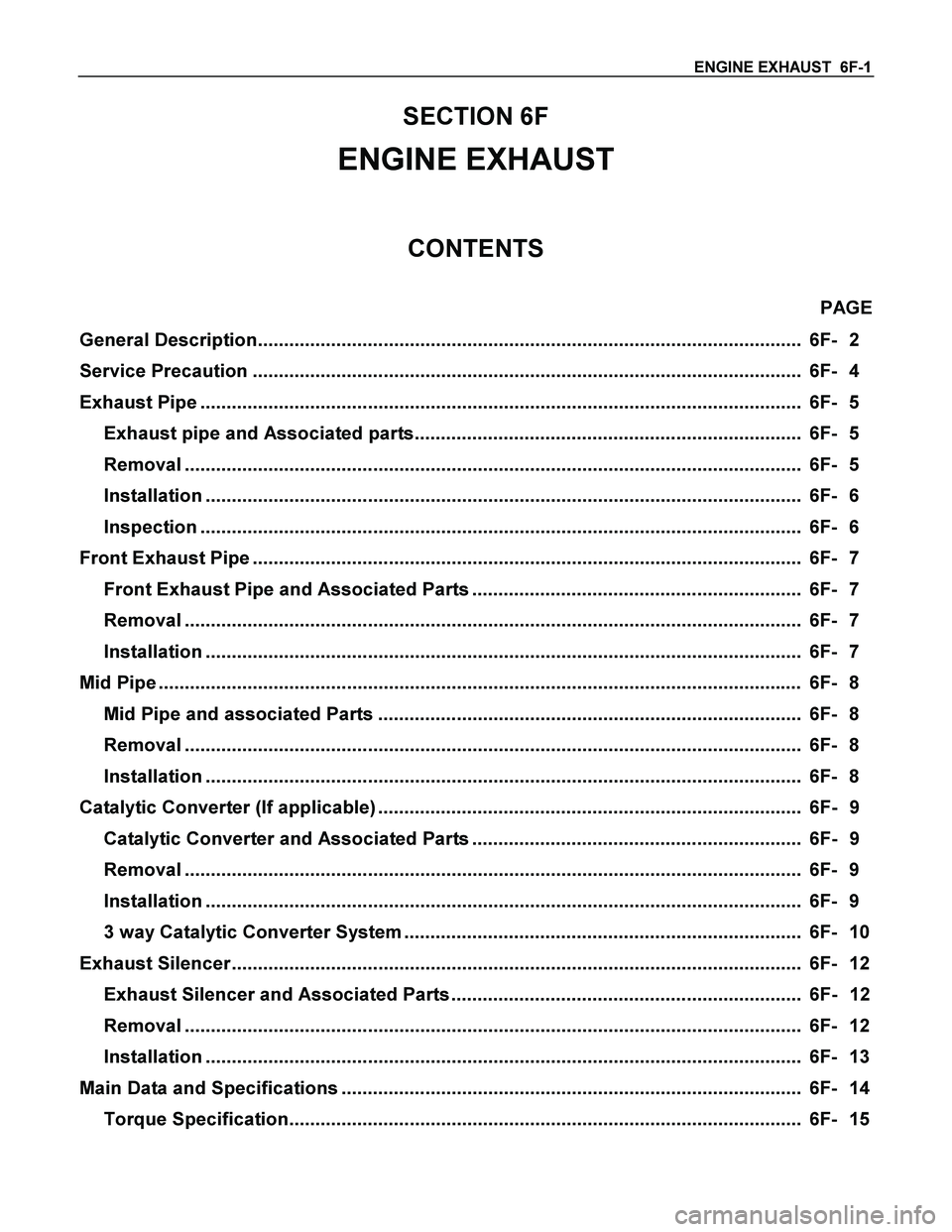

ISUZU TF SERIES 2004 Workshop Manual ENGINE EXHAUST 6F-1
SECTION 6F
ENGINE EXHAUST
CONTENTS
PAGE
General Description........................................................................................................ 6F- 2
Ser

ENGINE EXHAUST 6F-1
SECTION 6F
ENGINE EXHAUST
CONTENTS
PAGE
General Description........................................................................................................ 6F- 2
Service Precaution ......................................................................................................... 6F- 4
Exhaust Pipe ................................................................................................................... 6F- 5
Exhaust pipe and Associated parts.......................................................................... 6F- 5
Removal ...................................................................................................................... 6F- 5
Installation .................................................................................................................. 6F- 6
Inspection ................................................................................................................... 6F- 6
Front Exhaust Pipe ......................................................................................................... 6F- 7
Front Exhaust Pipe and Associated Parts ............................................................... 6F- 7
Removal ...................................................................................................................... 6F- 7
Installation .................................................................................................................. 6F- 7
Mid Pipe ........................................................................................................................... 6F- 8
Mid Pipe and associated Parts ................................................................................. 6F- 8
Removal ...................................................................................................................... 6F- 8
Installation .................................................................................................................. 6F- 8
Catalytic Converter (If applicable) ................................................................................. 6F- 9
Catalytic Converter and Associated Parts ............................................................... 6F- 9
Removal ...................................................................................................................... 6F- 9
Installation .................................................................................................................. 6F- 9
3 way Catalytic Converter System ............................................................................ 6F- 10
Exhaust Silencer ............................................................................................................. 6F- 12
Exhaust Silencer and Associated Parts ................................................................... 6F- 12
Removal ...................................................................................................................... 6F- 12
Installation .................................................................................................................. 6F- 13
Main Data and Specifications ........................................................................................ 6F- 14
Torque Specification.................................................................................................. 6F- 15

Page 2858 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6F-2 ENGINE EXHAUST
General Description

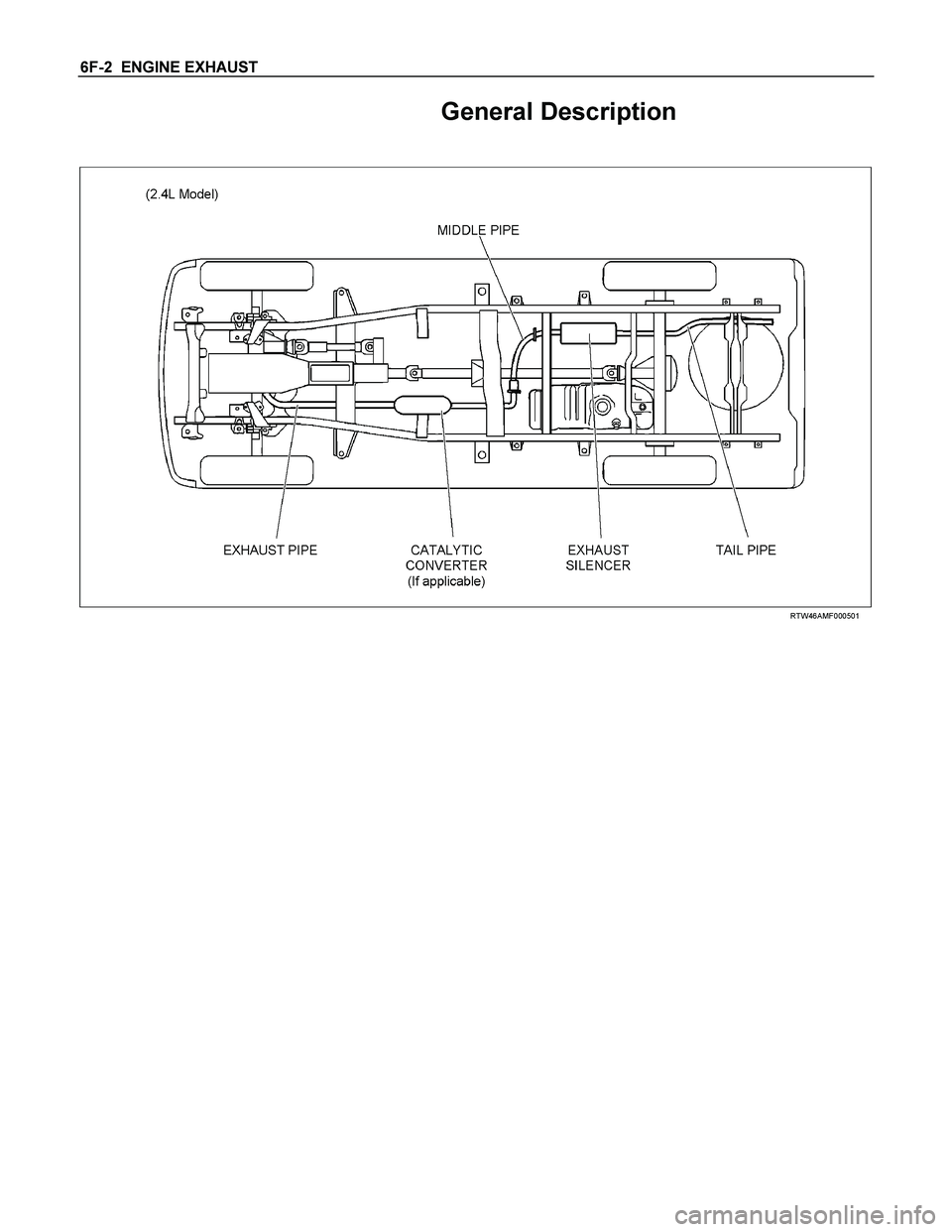

RTW46AMF000501

Page 2859 of 4264

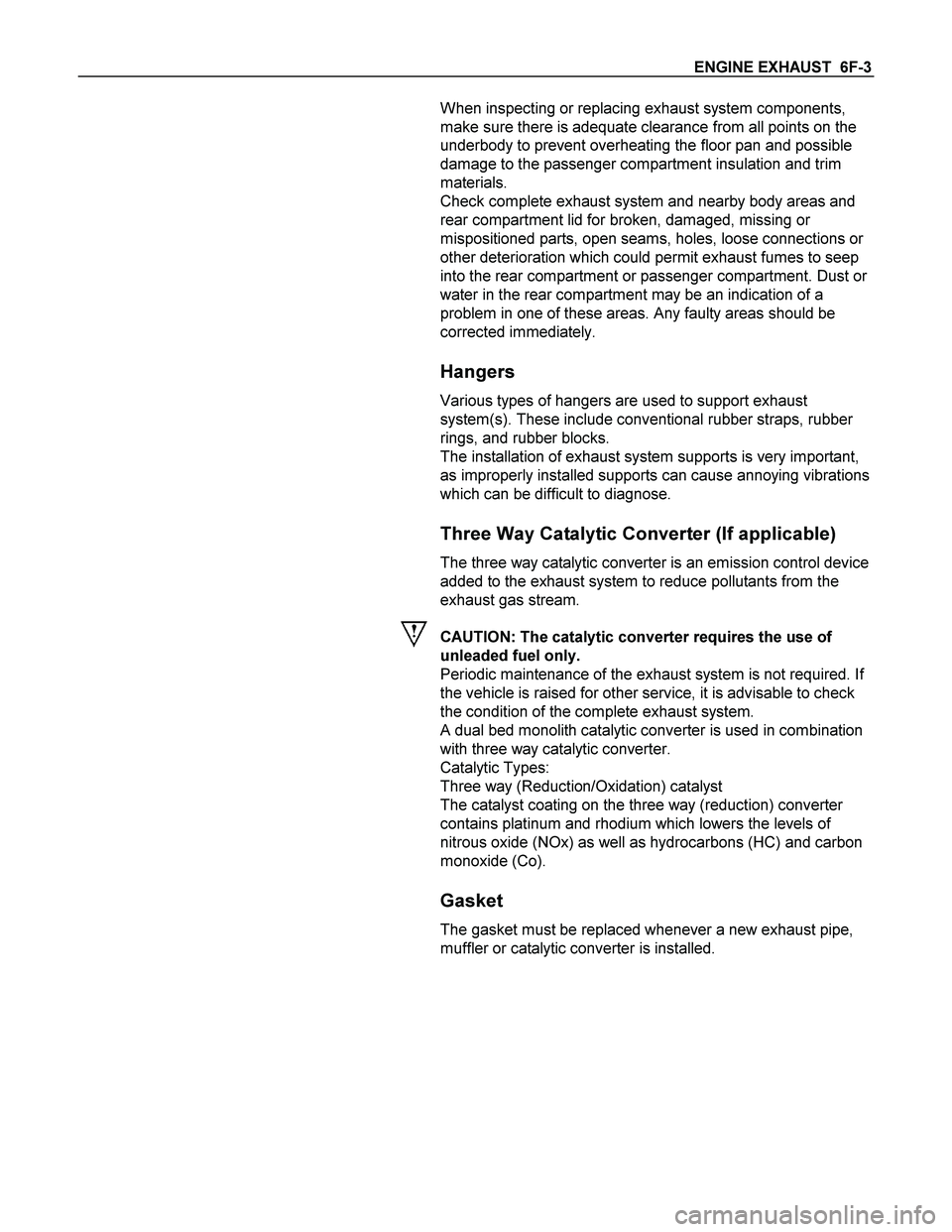

ISUZU TF SERIES 2004 Workshop Manual ENGINE EXHAUST 6F-3

When inspecting or replacing exhaust system components,
make sure there is adequate clearance from all points on the

Page 2860 of 4264

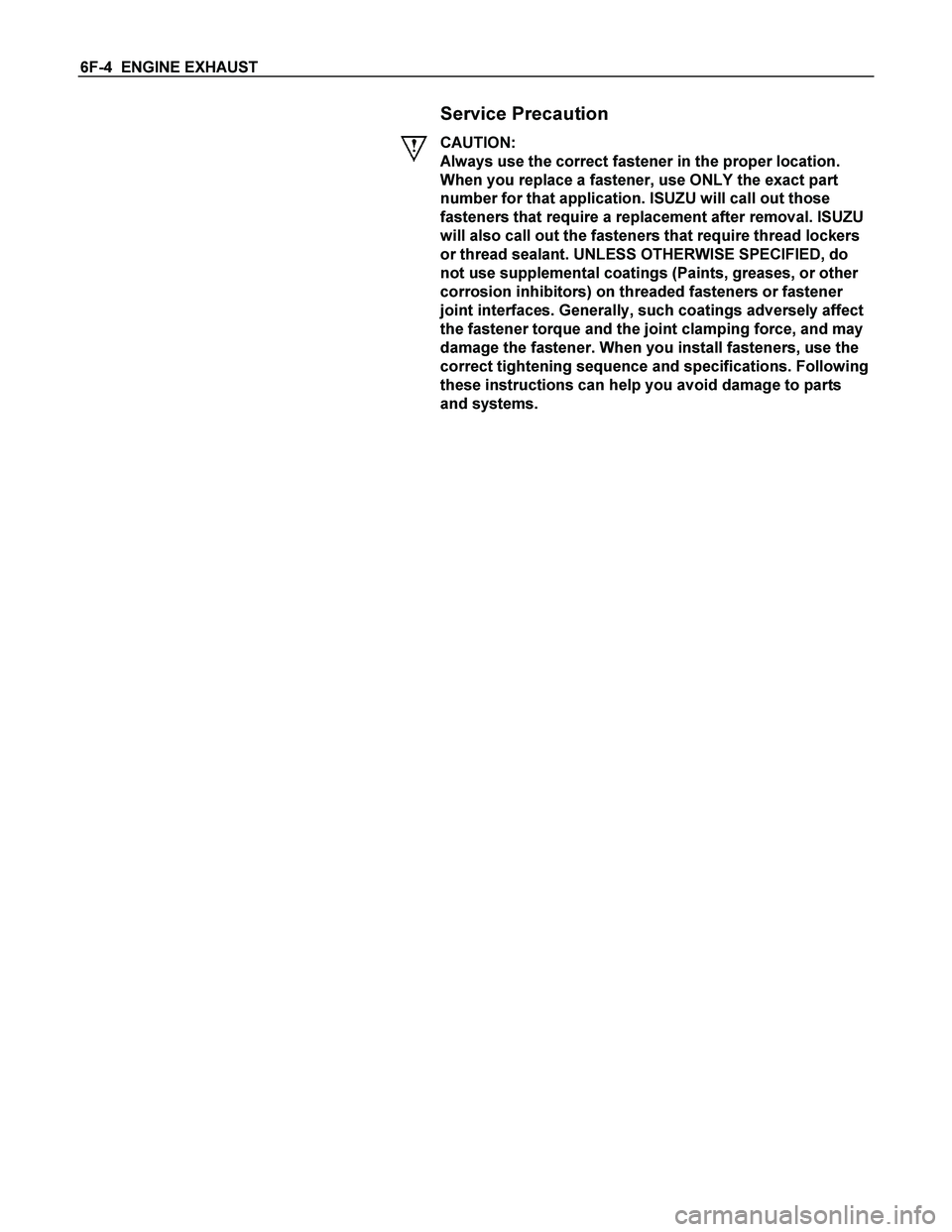

ISUZU TF SERIES 2004 Workshop Manual 6F-4 ENGINE EXHAUST

Service Precaution
CAUTION:
Always use the correct fastener in the proper location.
When you replace a fastener, use ONLY the exact part
number for that application. I

Page 2861 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE EXHAUST 6F-5
Exhaust Pipe
Exhaust Pipe and Associated parts

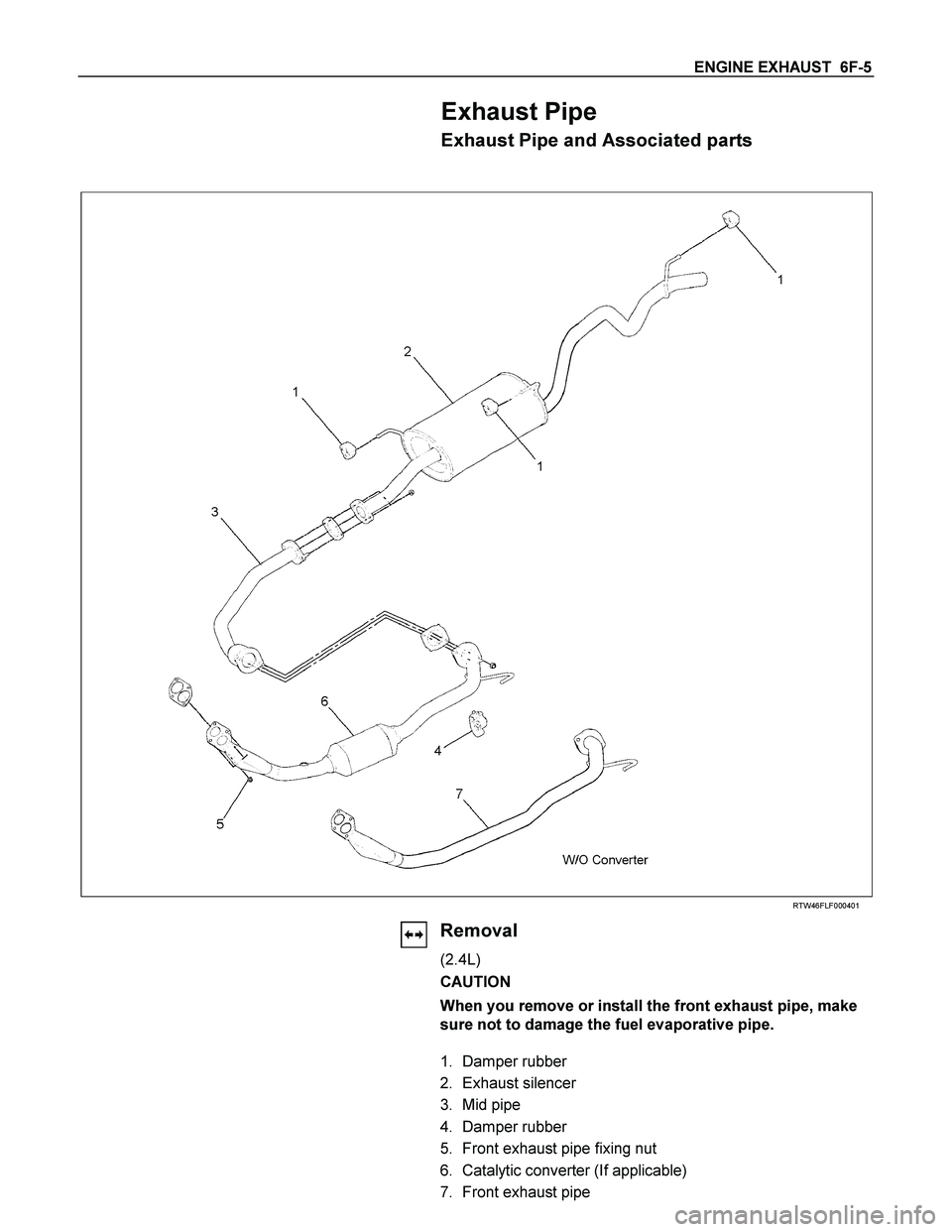

RTW46FLF000401

Removal
(2.4L)
CAUTION
When you remove or install the front exhaust pipe,

Page 2862 of 4264

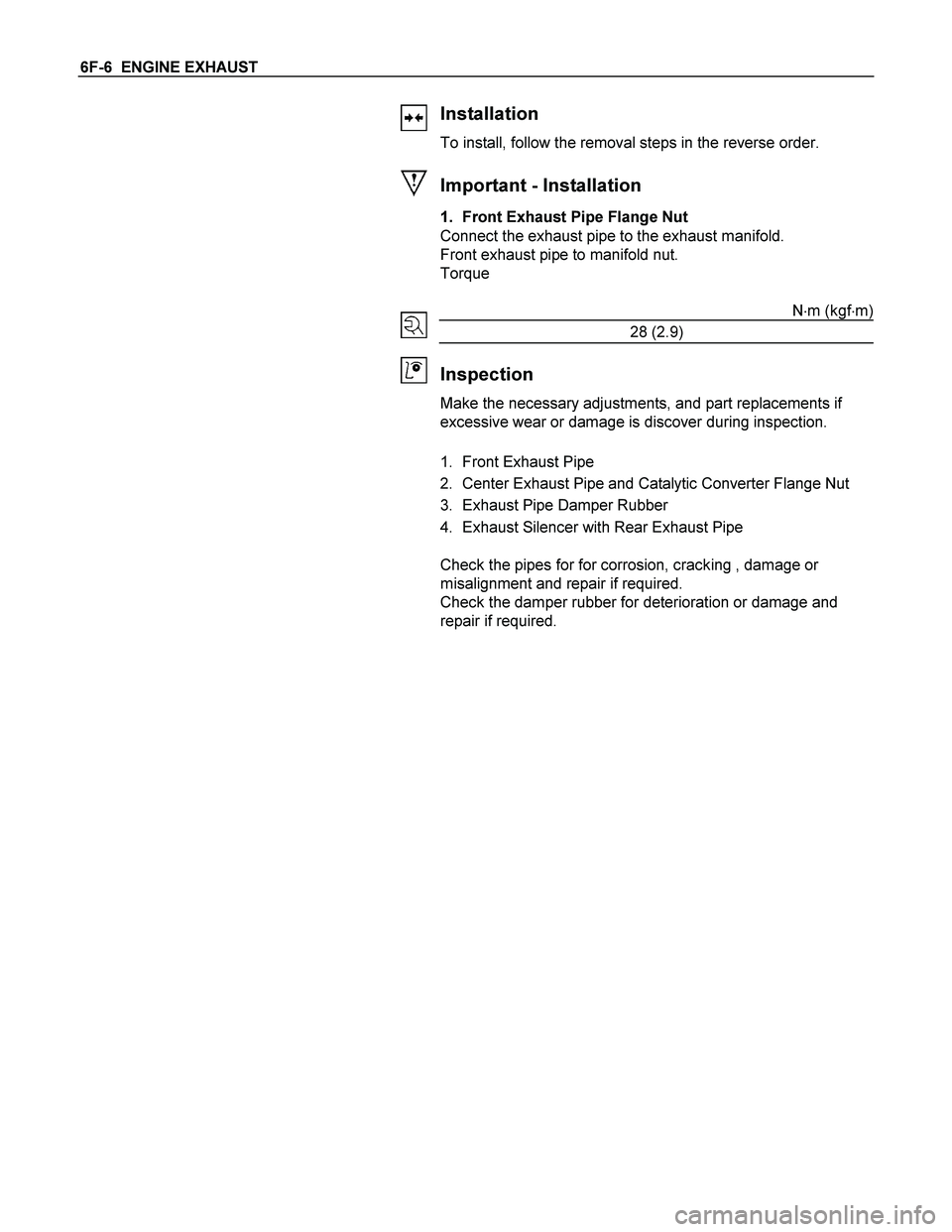

ISUZU TF SERIES 2004 Workshop Manual 6F-6 ENGINE EXHAUST

Installation
To install, follow the removal steps in the reverse order.

Important - Installation
1. Front Exhaust Pipe Flange Nut
Connect the exhaust

Page 2863 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE EXHAUST 6F-7
Front Exhaust Pipe (W/O Catalytic
Converter)
Front Exhaust Pipe and Associated Parts

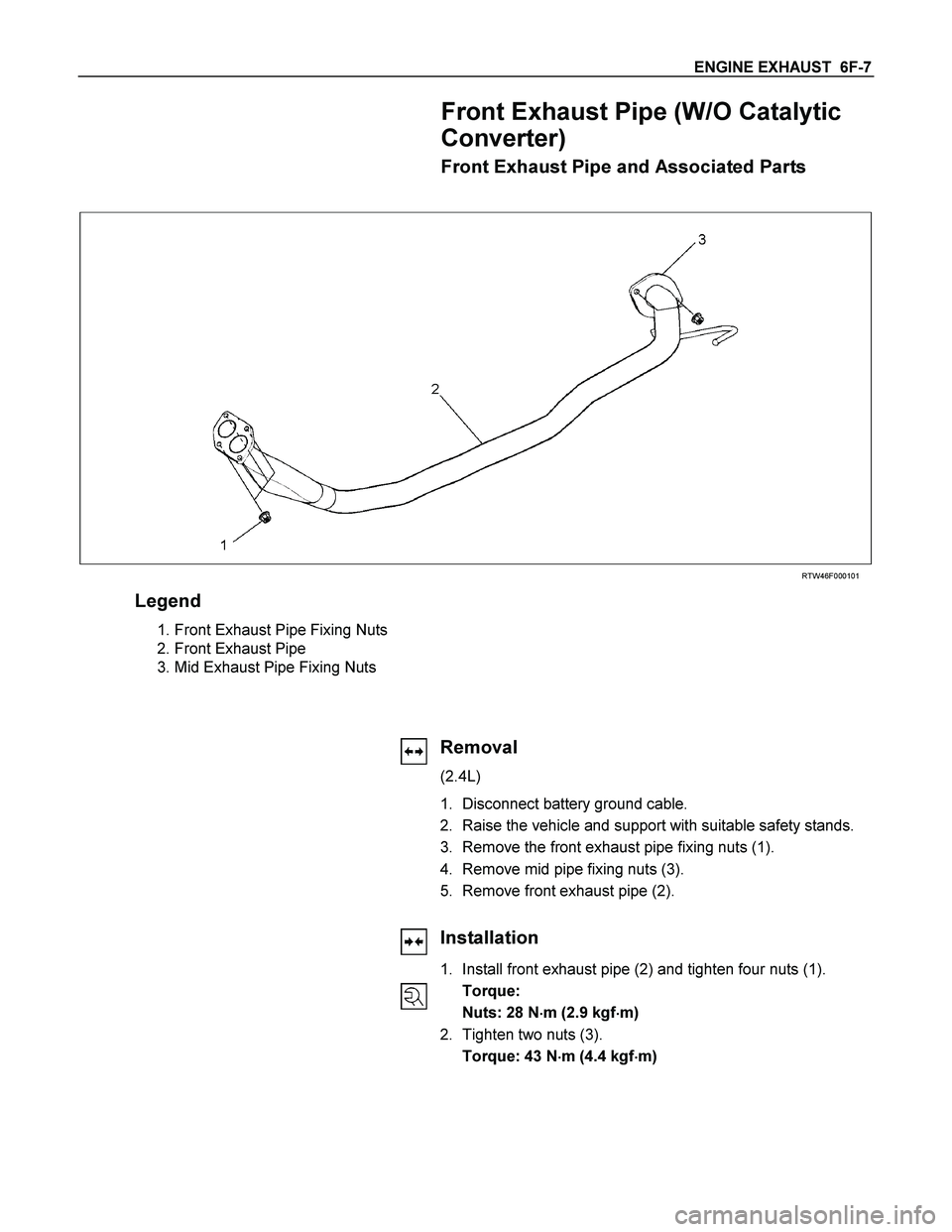

RTW46F000101
Legend
1. Front Exhaust Pipe Fixing Nuts
2. Front Exhaust Pip

Page 2864 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6F-8 ENGINE EXHAUST
Mid Pipe
Mid Pipe and Associated Parts

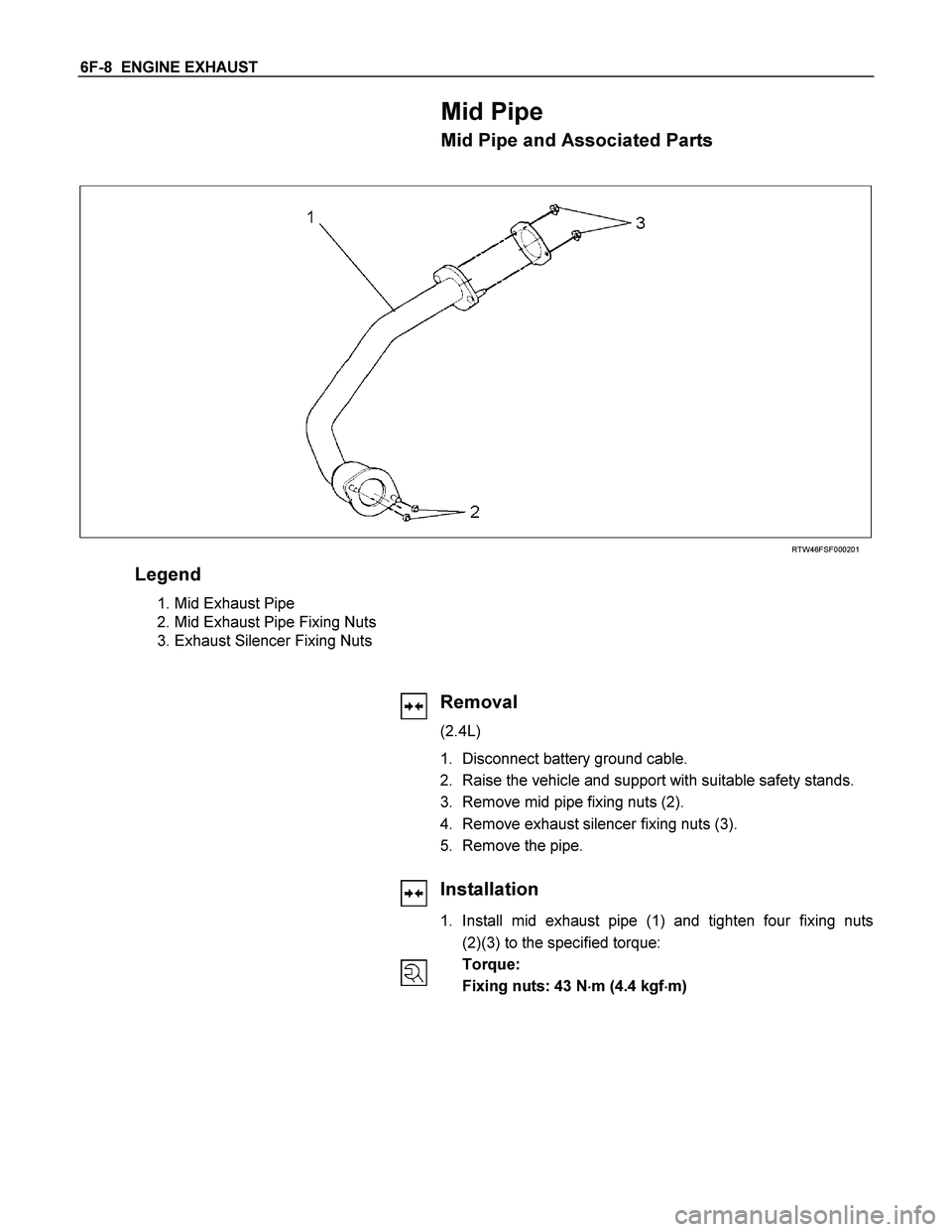

RTW46FSF000201
Legend
1. Mid Exhaust Pipe
2. Mid Exhaust Pipe Fixing Nuts
3. Exhaust Silencer Fixing Nuts
