Page 2593 of 4264

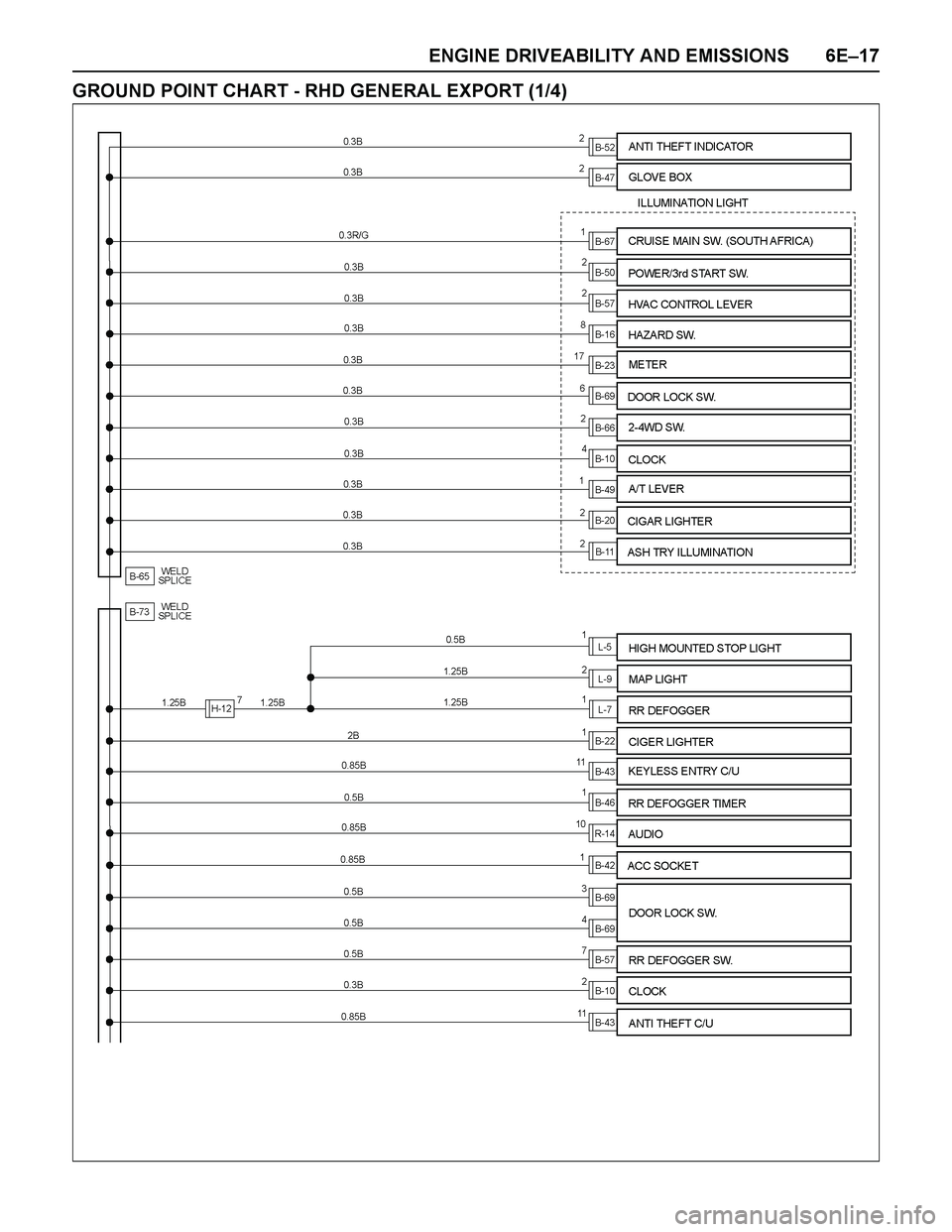

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–17 GROUND POINT CHART - RHD GENERAL EXPORT (1/4)

Page 2594 of 4264

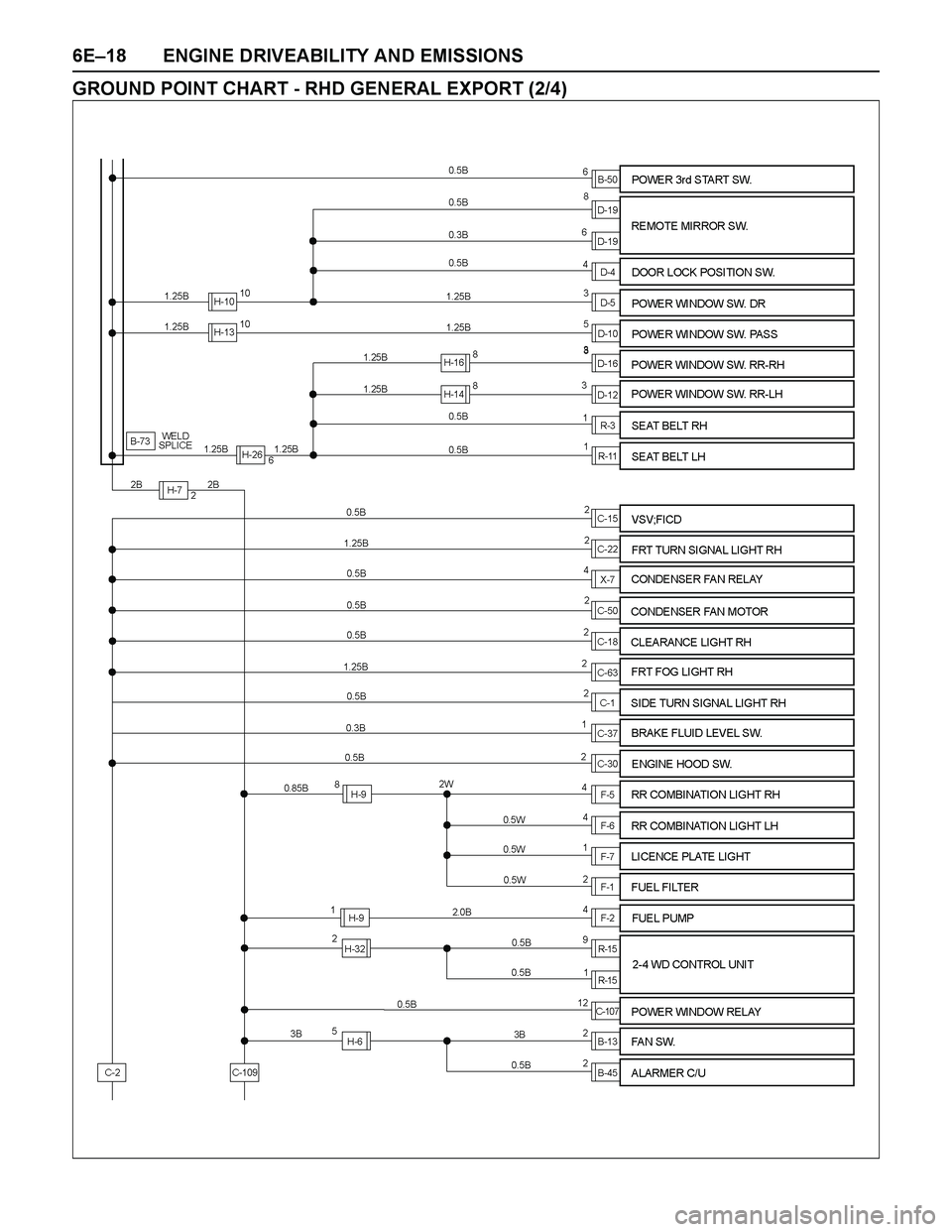

ISUZU TF SERIES 2004 Workshop Manual 6E–18 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART - RHD GENERAL EXPORT (2/4)

Page 2595 of 4264

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–19 GROUND POINT CHART - RHD GENERAL EXPORT (3/4)

Page 2596 of 4264

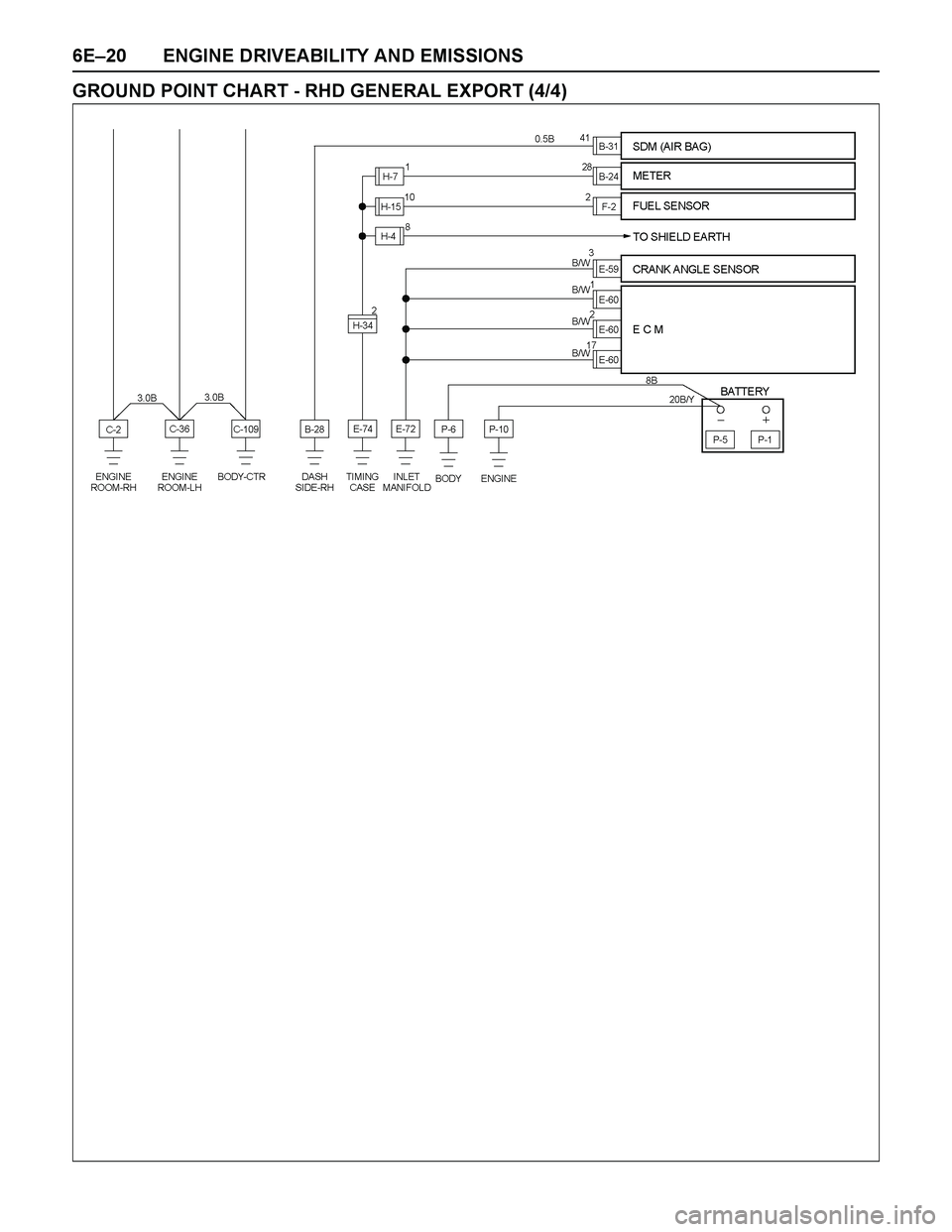

ISUZU TF SERIES 2004 Workshop Manual 6E–20 ENGINE DRIVEABILITY AND EMISSIONS GROUND POINT CHART - RHD GENERAL EXPORT (4/4)

Page 2597 of 4264

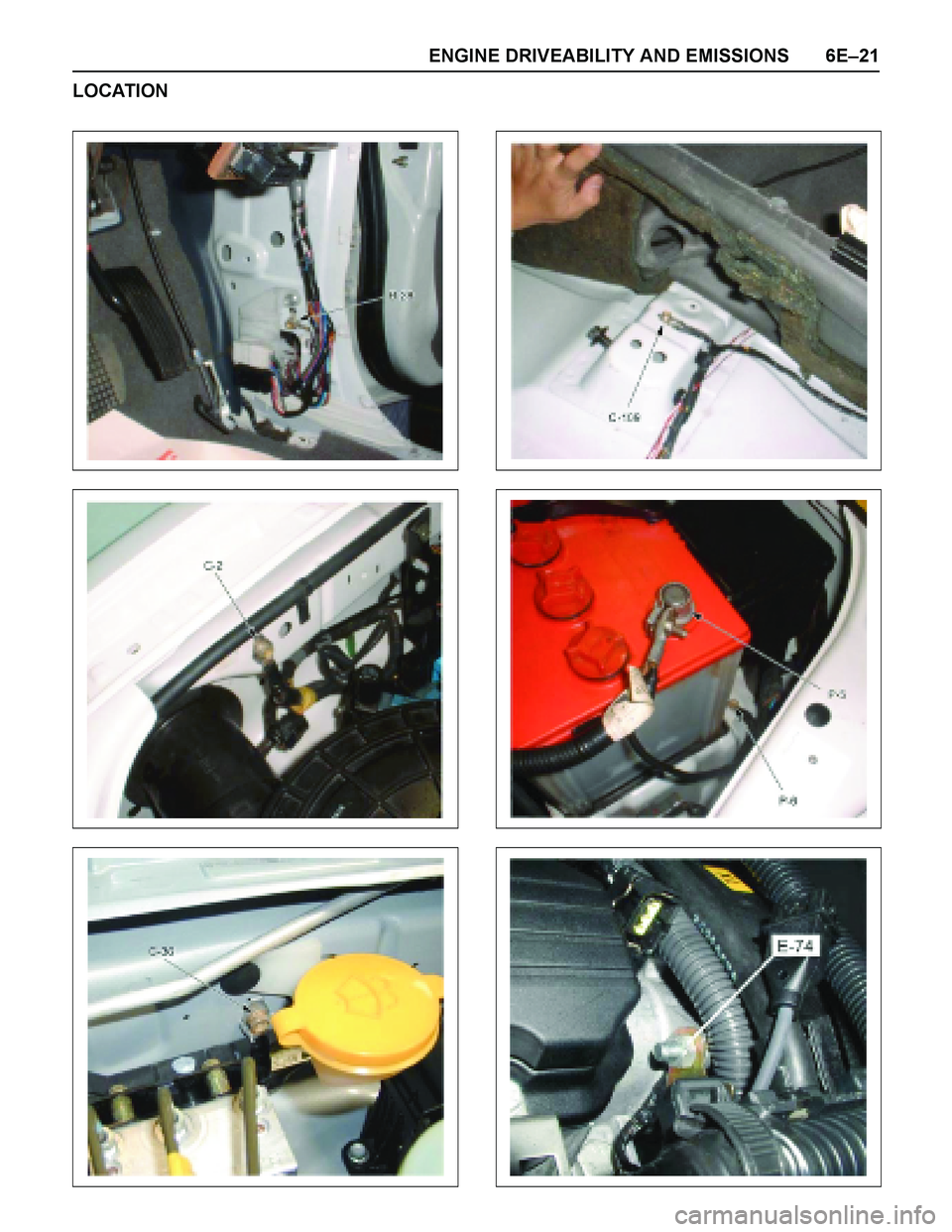

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–21 LOCATION

Page 2598 of 4264

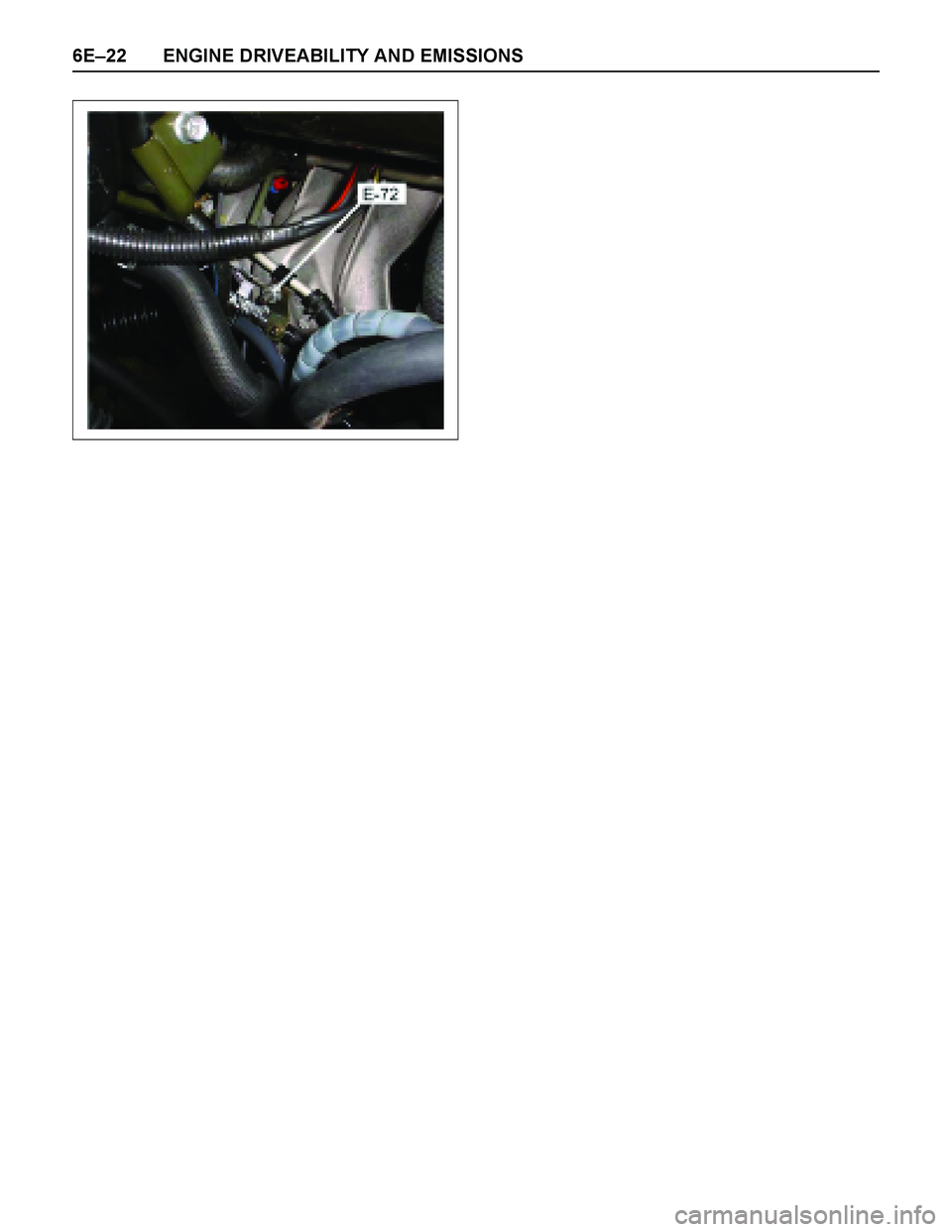

ISUZU TF SERIES 2004 Workshop Manual 6E–22 ENGINE DRIVEABILITY AND EMISSIONS

Page 2599 of 4264

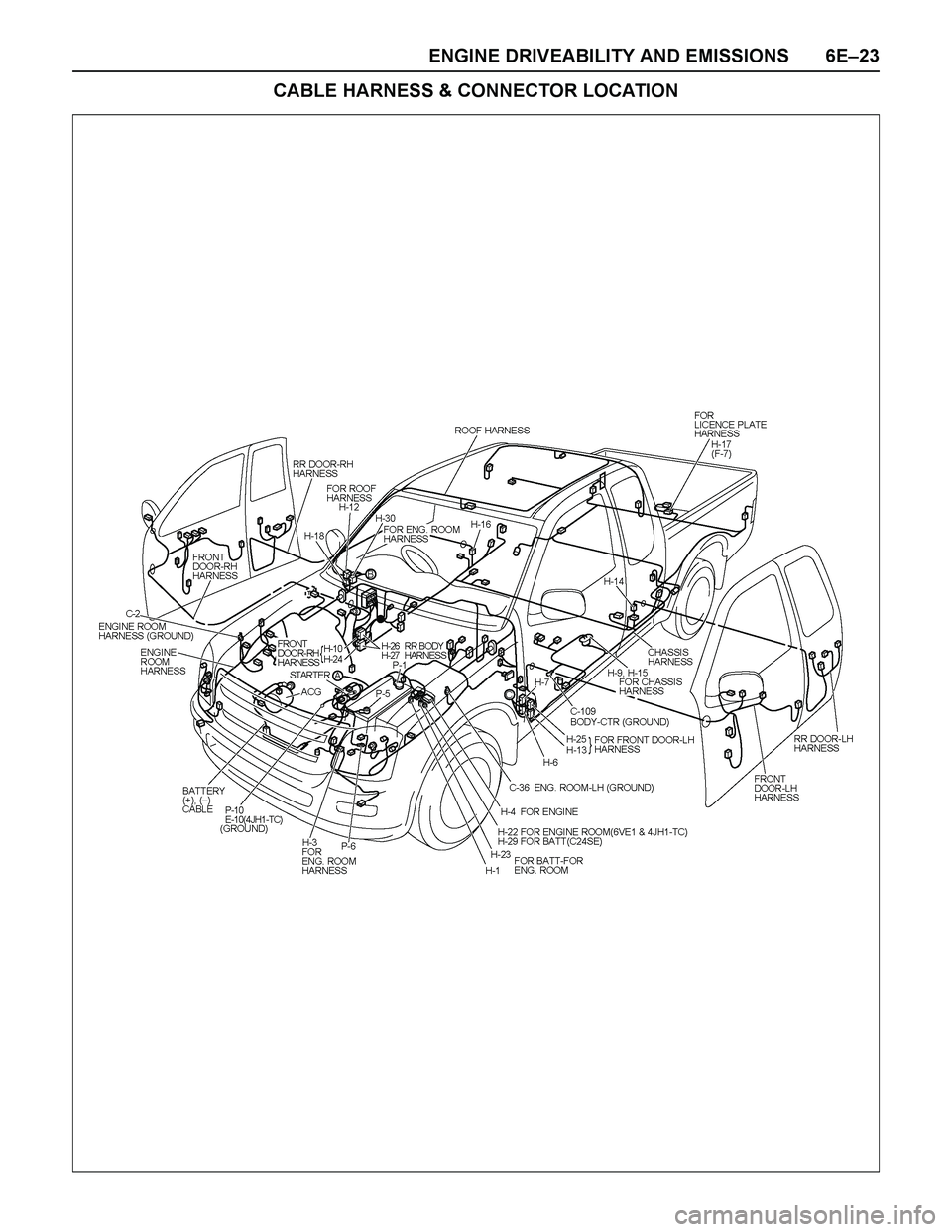

ISUZU TF SERIES 2004 Workshop Manual ENGINE DRIVEABILITY AND EMISSIONS 6E–23 CABLE HARNESS & CONNECTOR LOCATION

Page 2600 of 4264

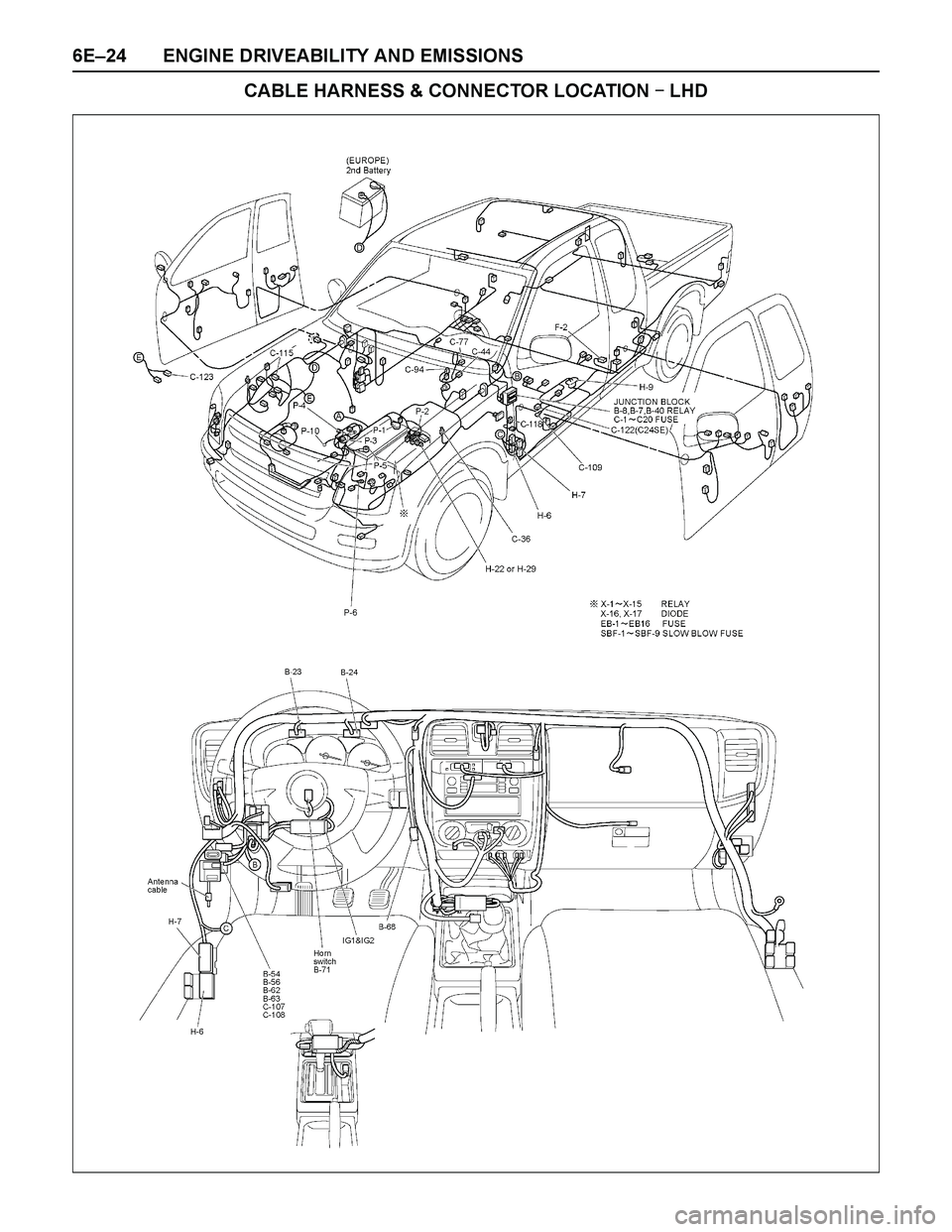

ISUZU TF SERIES 2004 Workshop Manual 6E–24 ENGINE DRIVEABILITY AND EMISSIONS CABLE HARNESS & CONNECTOR LOCATION    LHD
