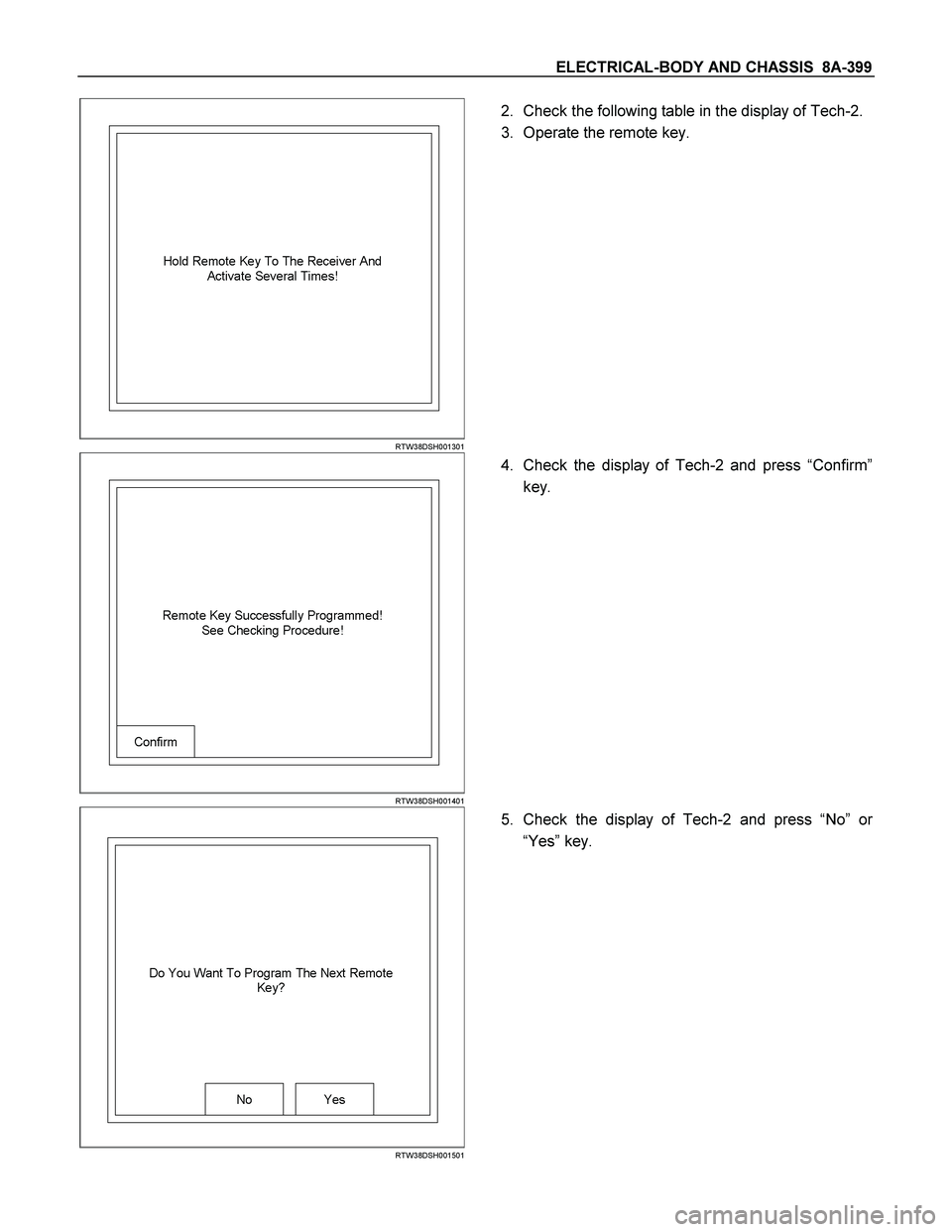

Page 1057 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-399 RTW38DSH001301 2. Check the following table in the display of Tech-2. 3. Operate the remote key. RTW38DSH001401 4. Check the display of Tech-2 and press

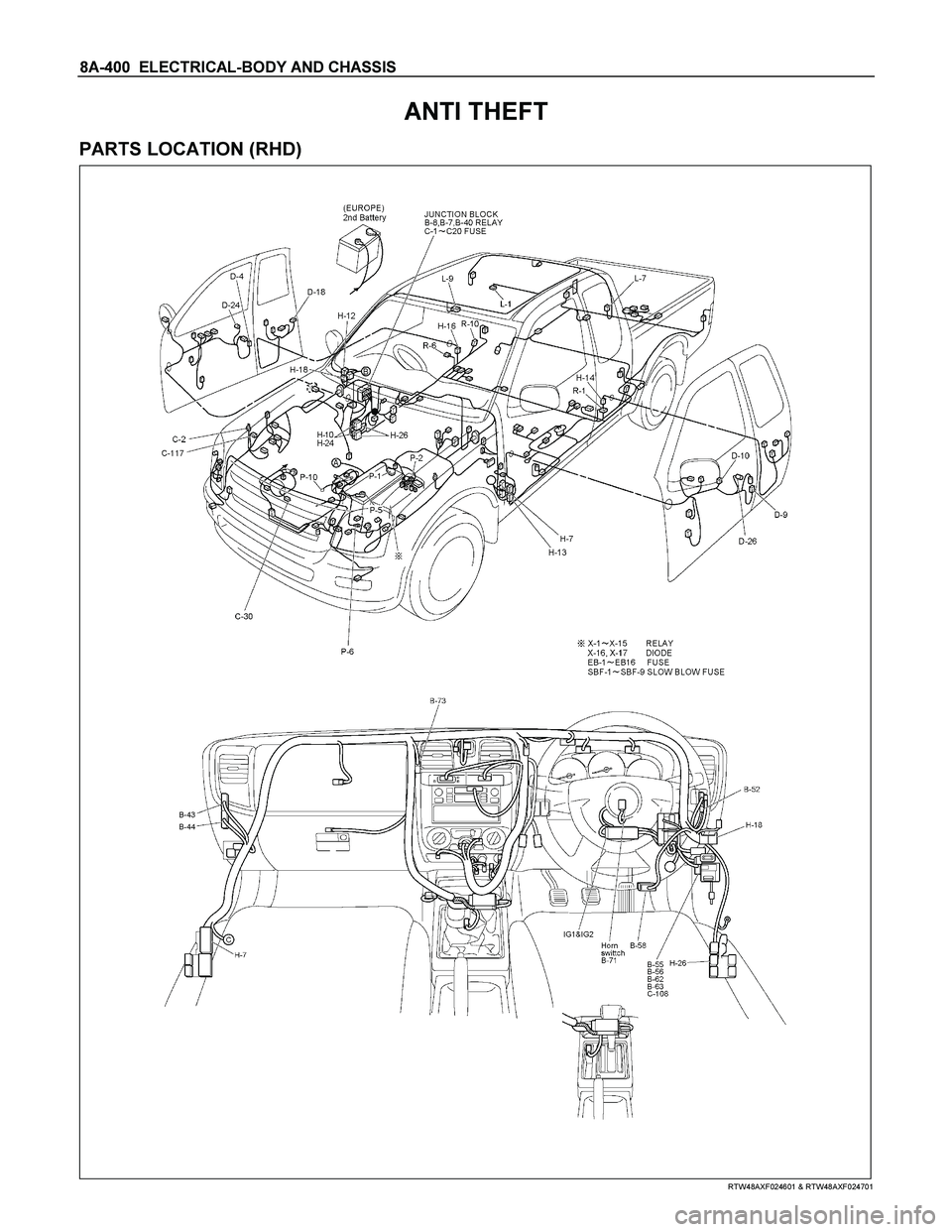

Page 1058 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-400 ELECTRICAL-BODY AND CHASSIS ANTI THEFT PARTS LOCATION (RHD) RTW48AXF024601 & RTW48AXF024701

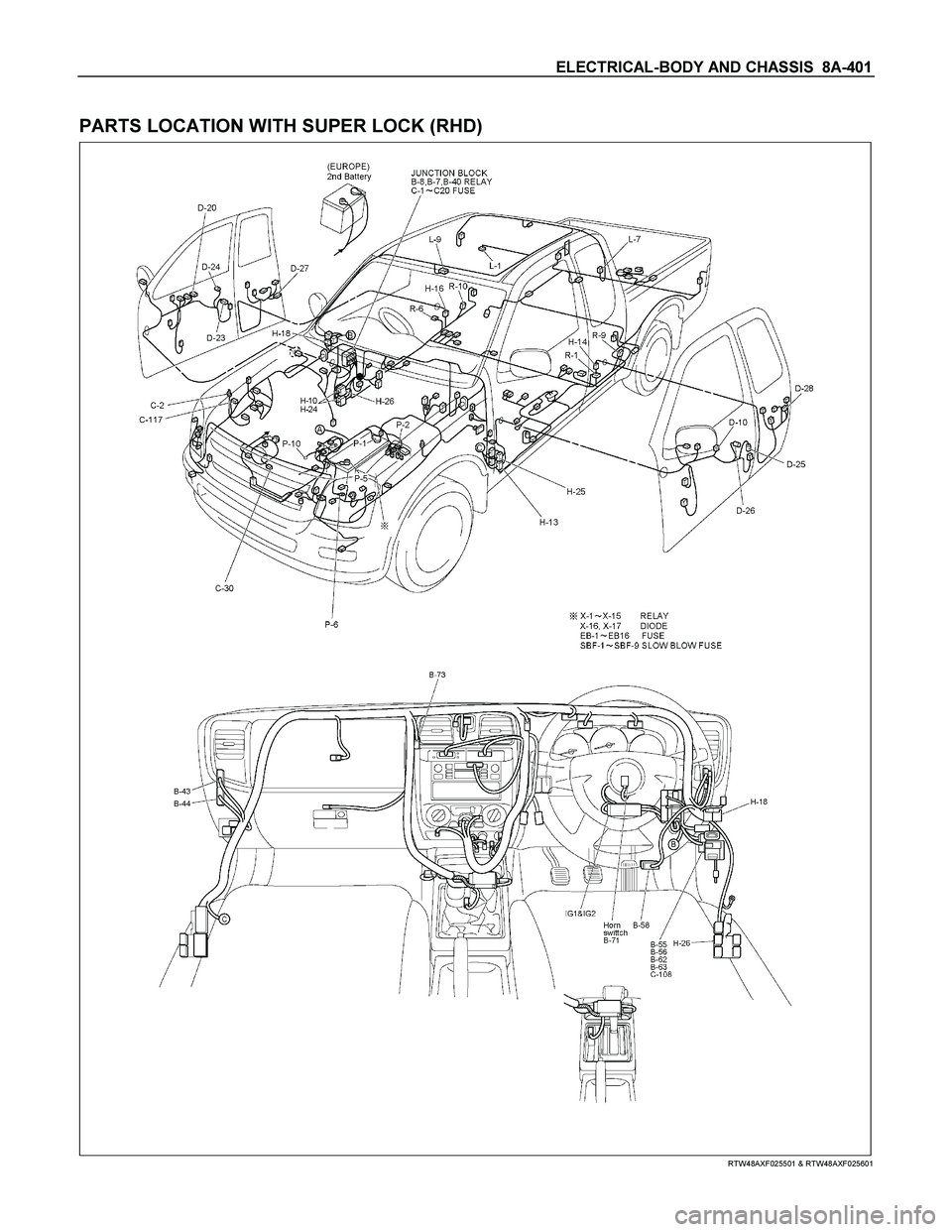

Page 1059 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-401 PARTS LOCATION WITH SUPER LOCK (RHD) RTW48AXF025501 & RTW48AXF025601

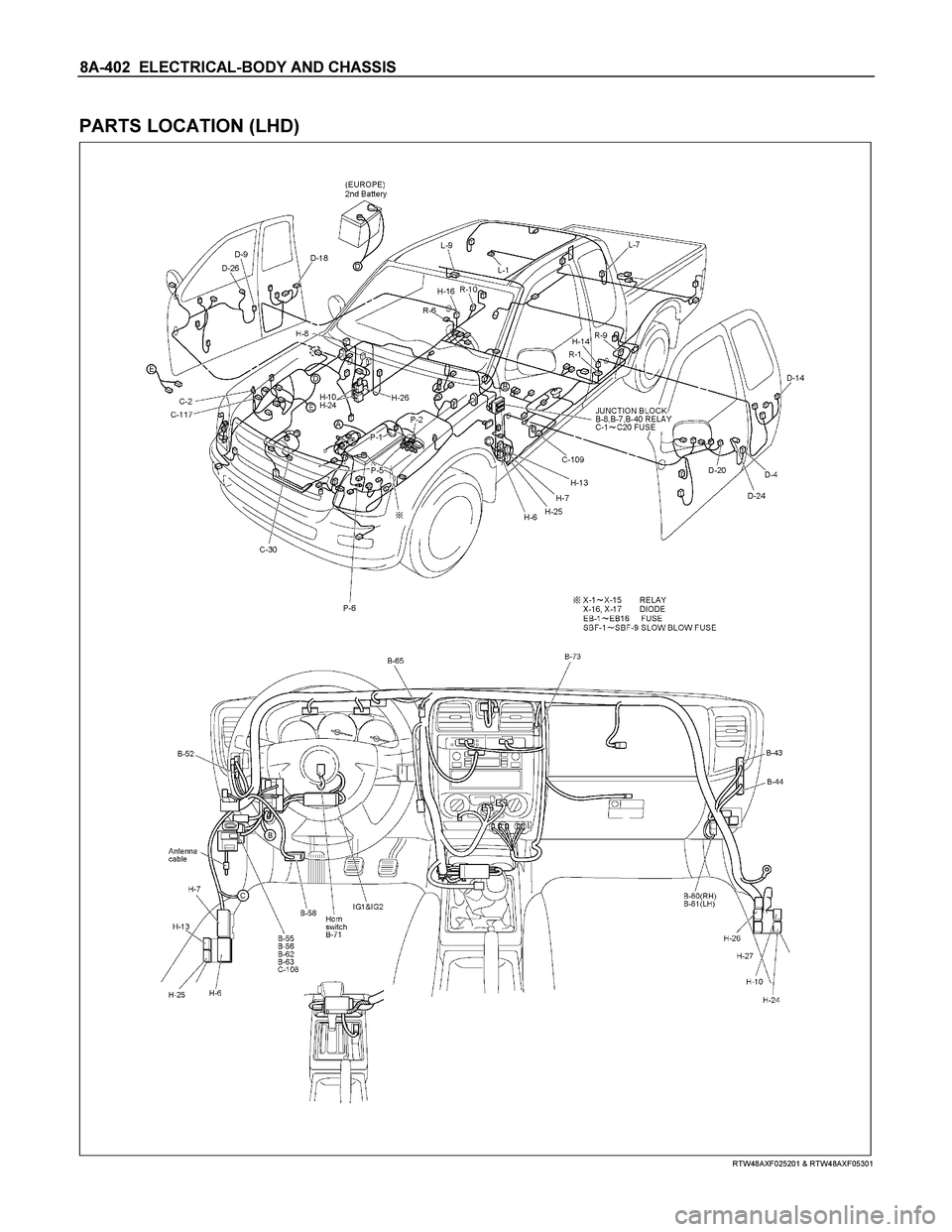

Page 1060 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-402 ELECTRICAL-BODY AND CHASSIS PARTS LOCATION (LHD) RTW48AXF025201 & RTW48AXF05301

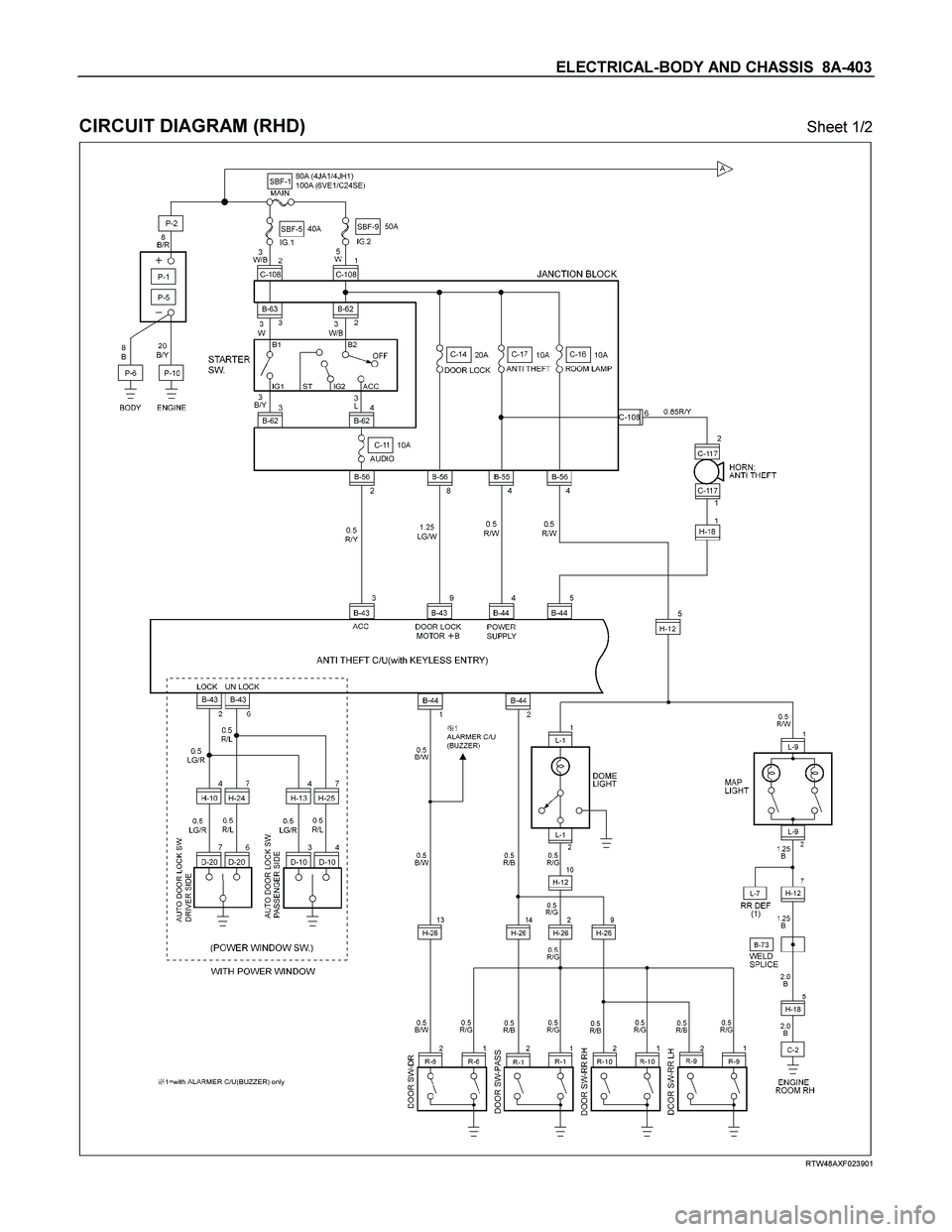

Page 1061 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-403 CIRCUIT DIAGRAM (RHD) Sheet 1/2 RTW48AXF023901

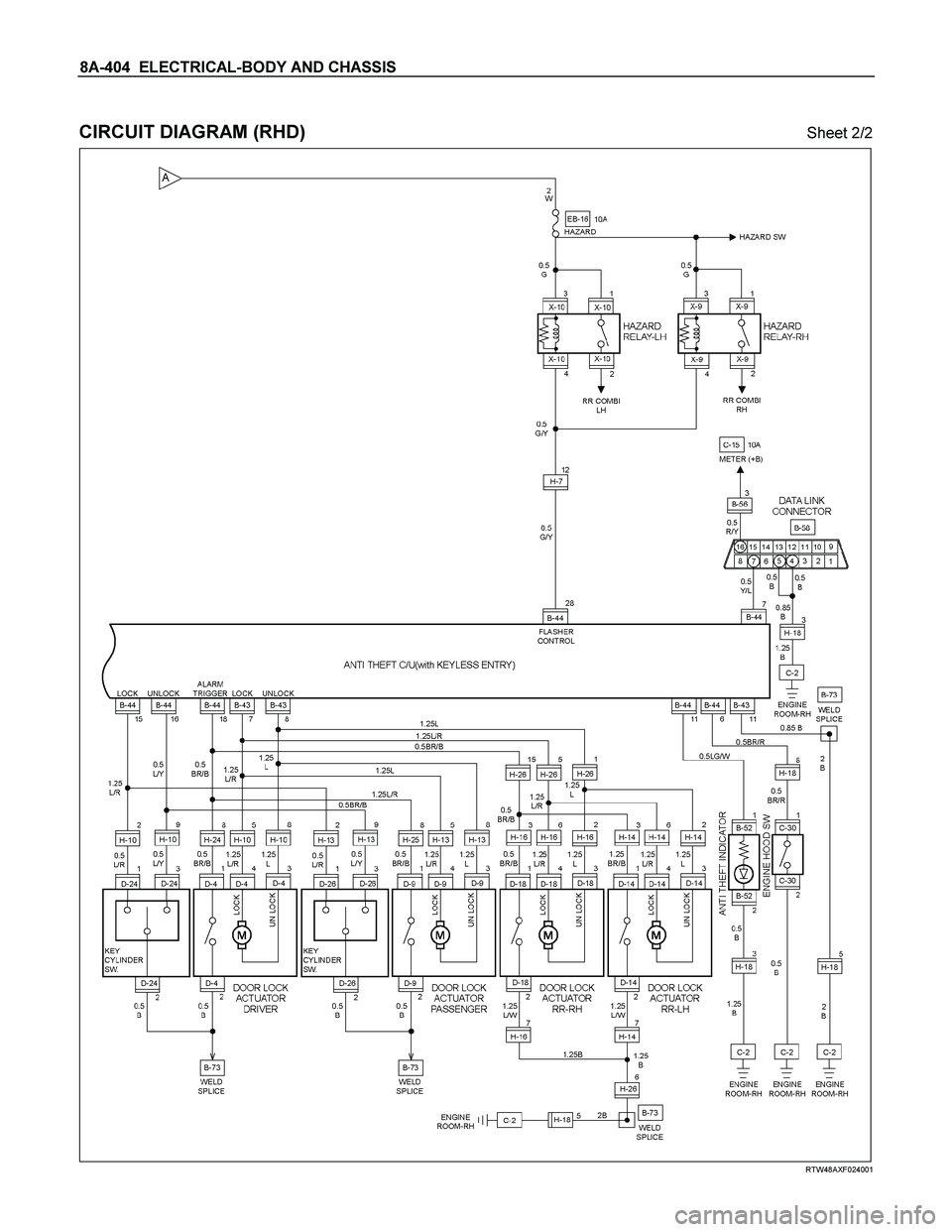

Page 1062 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-404 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM (RHD) Sheet 2/2 RTW48AXF024001

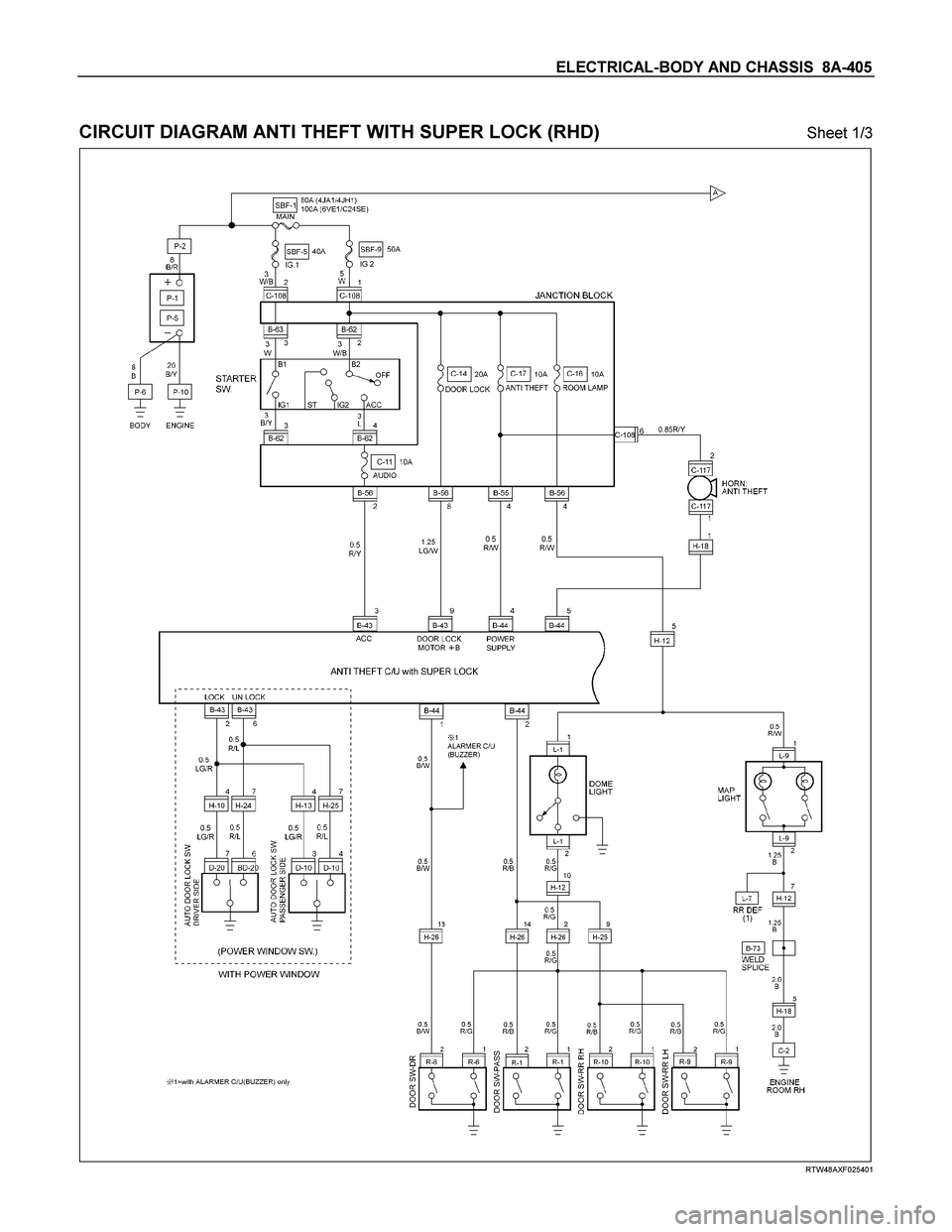

Page 1063 of 4264

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-405 CIRCUIT DIAGRAM ANTI THEFT WITH SUPER LOCK (RHD) Sheet 1/3 RTW48AXF025401

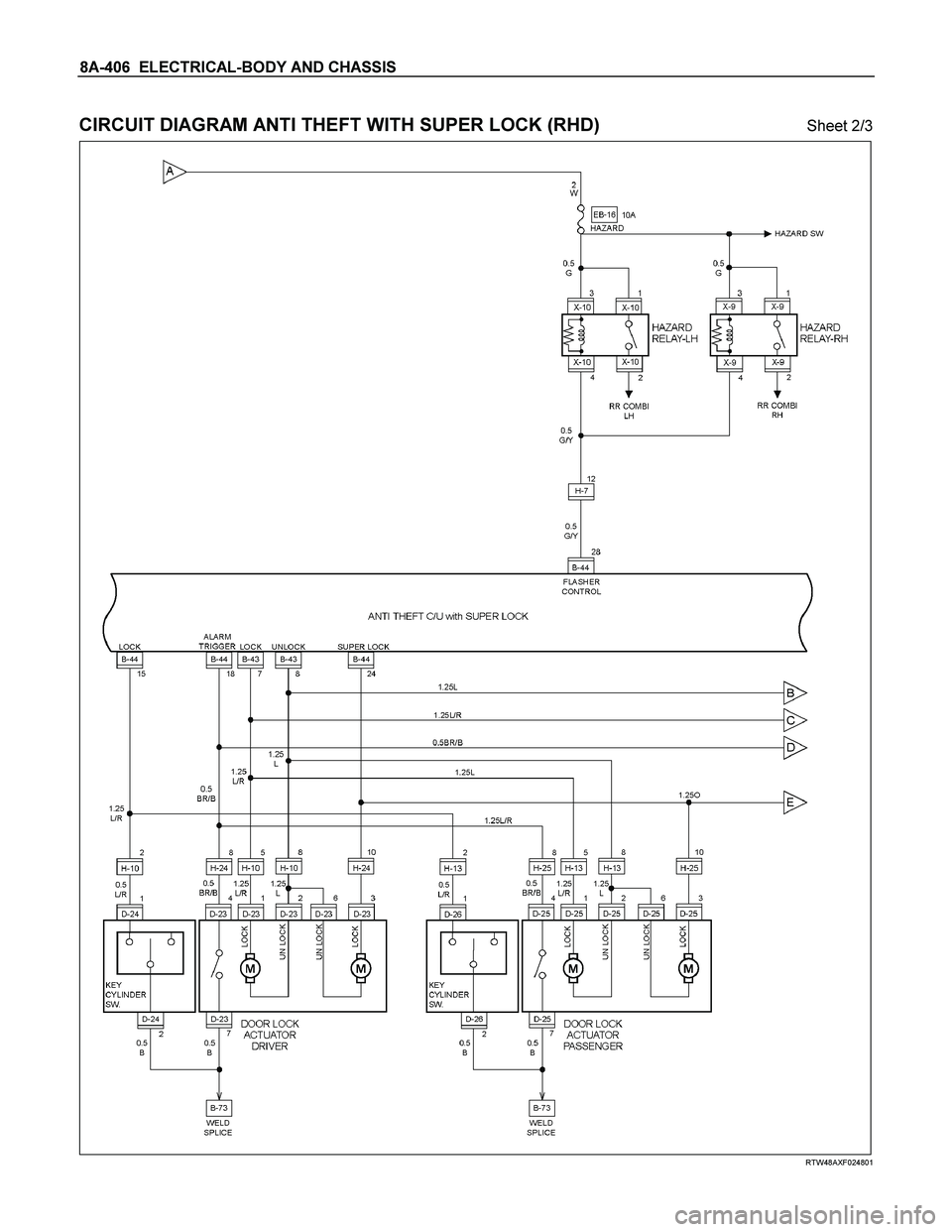

Page 1064 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-406 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM ANTI THEFT WITH SUPER LOCK (RHD) Sheet 2/3 RTW48AXF024801
