Page 2425 of 4264

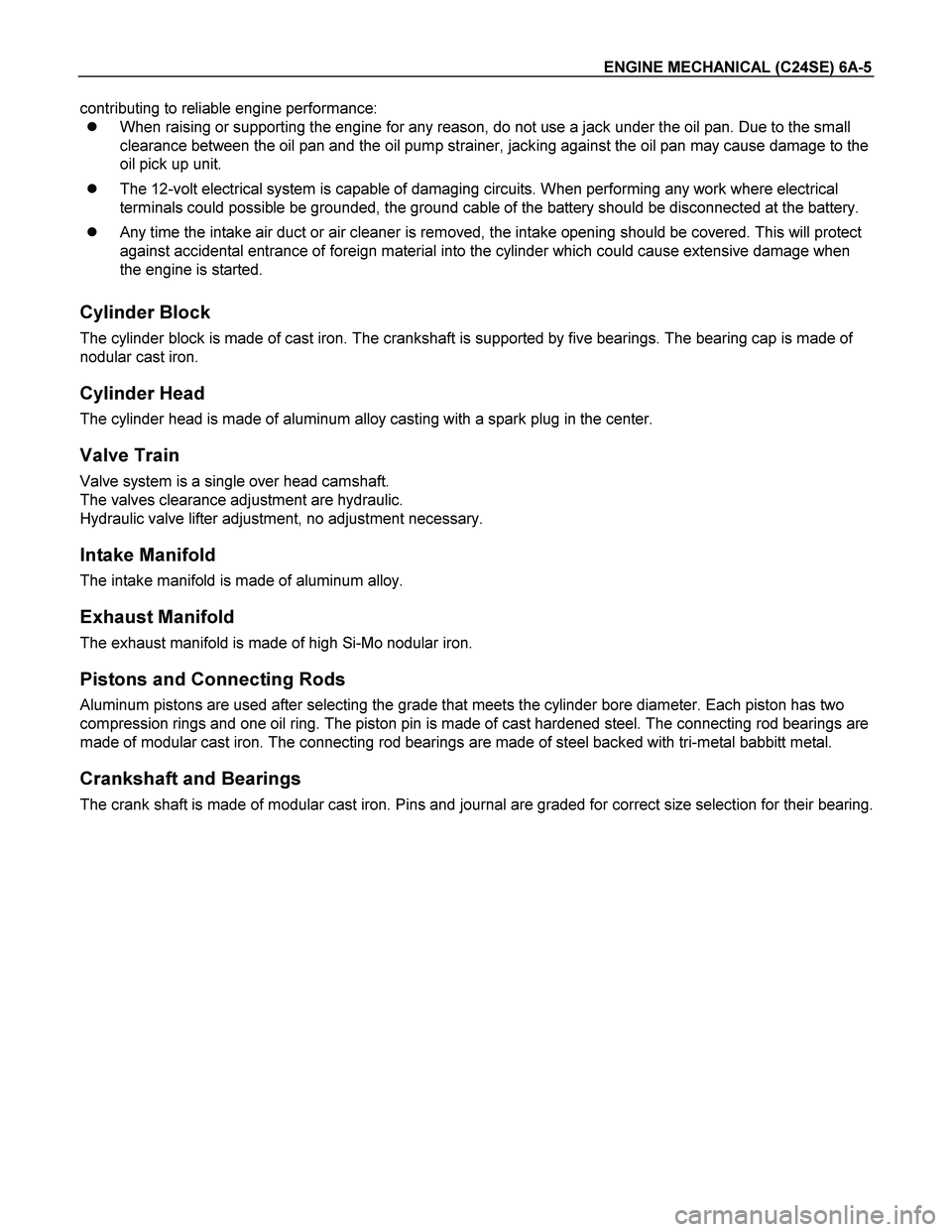

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (C24SE) 6A-5 contributing to reliable engine performance:  When raising or supporting the engine for any reason, do not use a jack under the oil pan. Due to the small clearance

Page 2426 of 4264

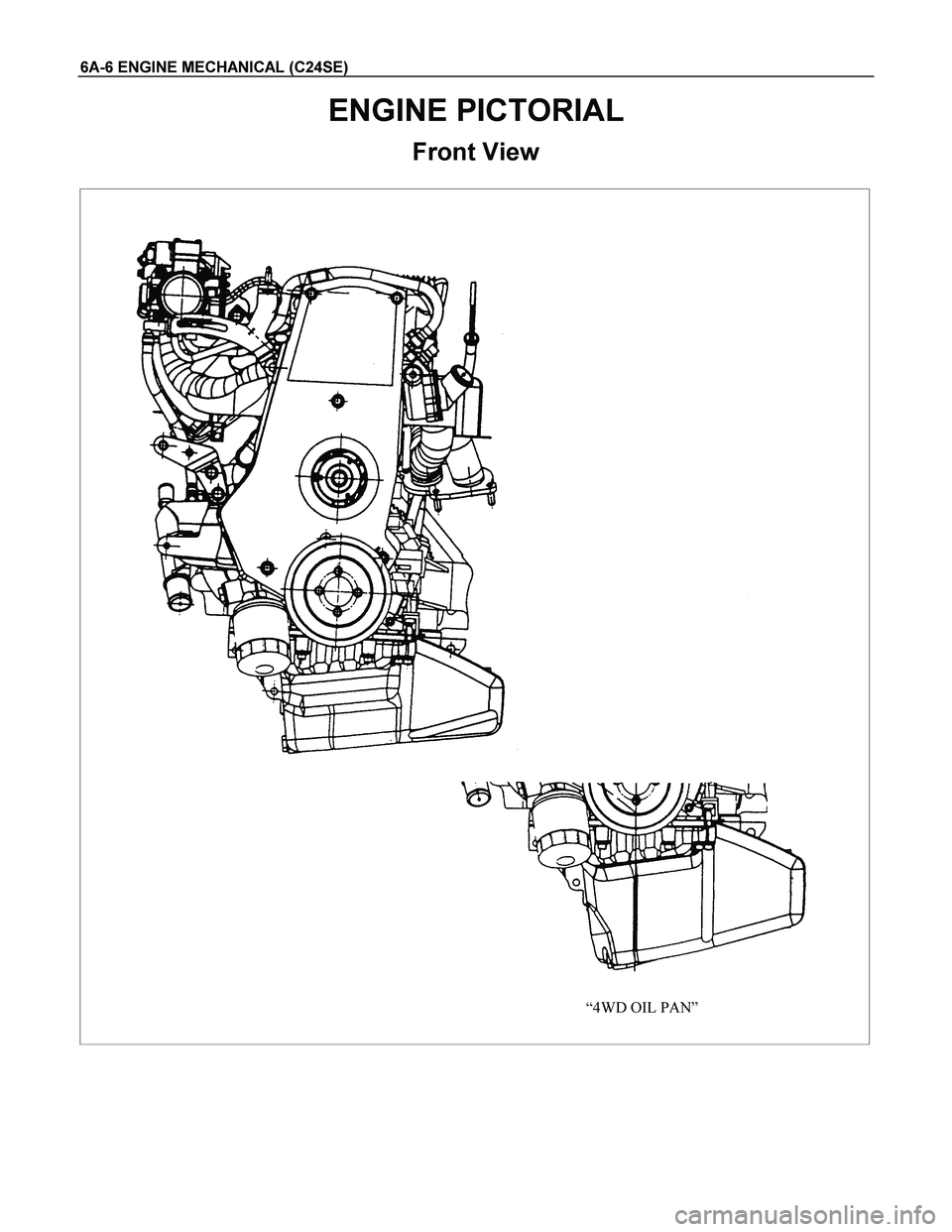

ISUZU TF SERIES 2004 Workshop Manual 6A-6 ENGINE MECHANICAL (C24SE) ENGINE PICTORIAL Front View “4WD OIL PAN”

Page 2427 of 4264

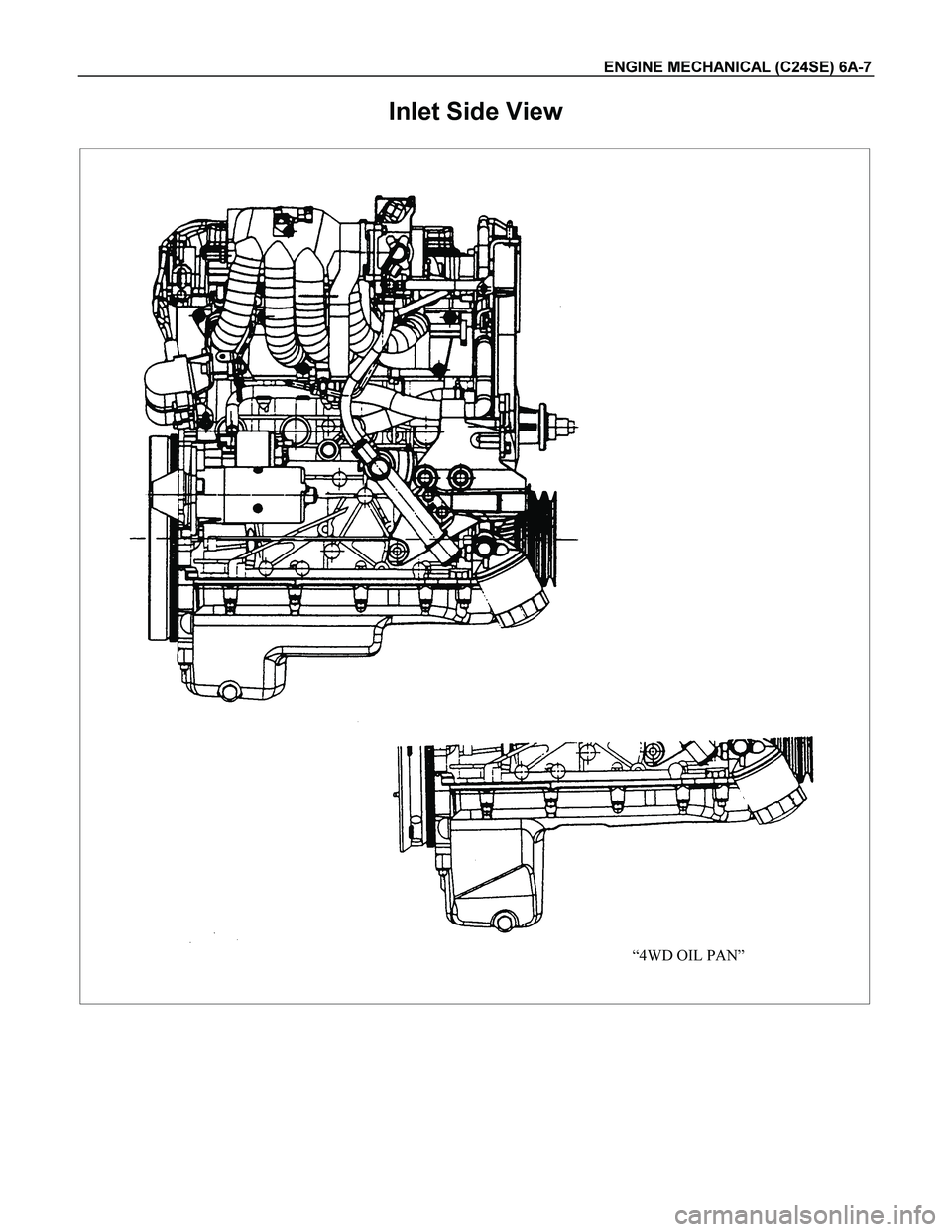

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (C24SE) 6A-7 Inlet Side View “4WD OIL PAN”

Page 2428 of 4264

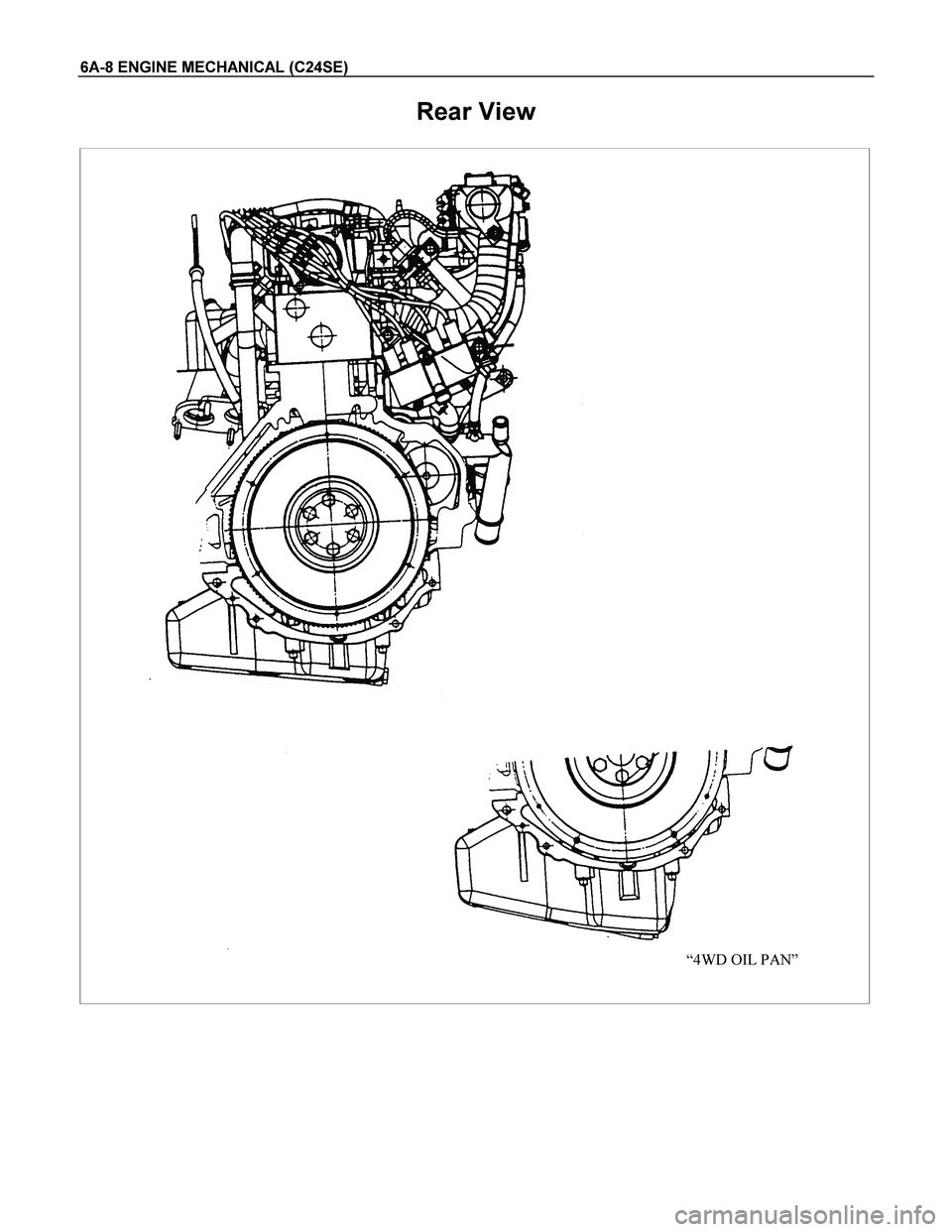

ISUZU TF SERIES 2004 Workshop Manual 6A-8 ENGINE MECHANICAL (C24SE) Rear View “4WD OIL PAN”

Page 2429 of 4264

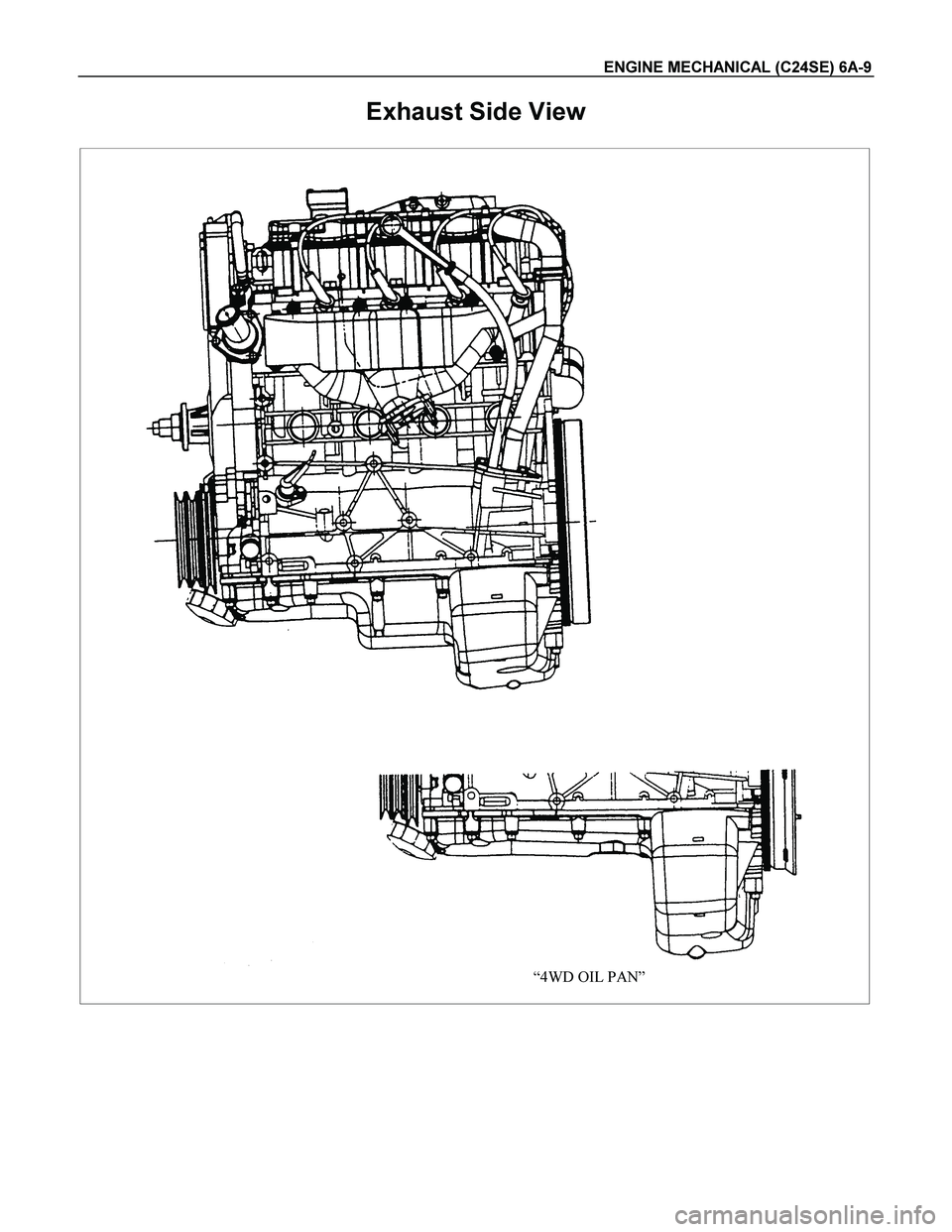

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (C24SE) 6A-9 Exhaust Side View “4WD OIL PAN”

Page 2430 of 4264

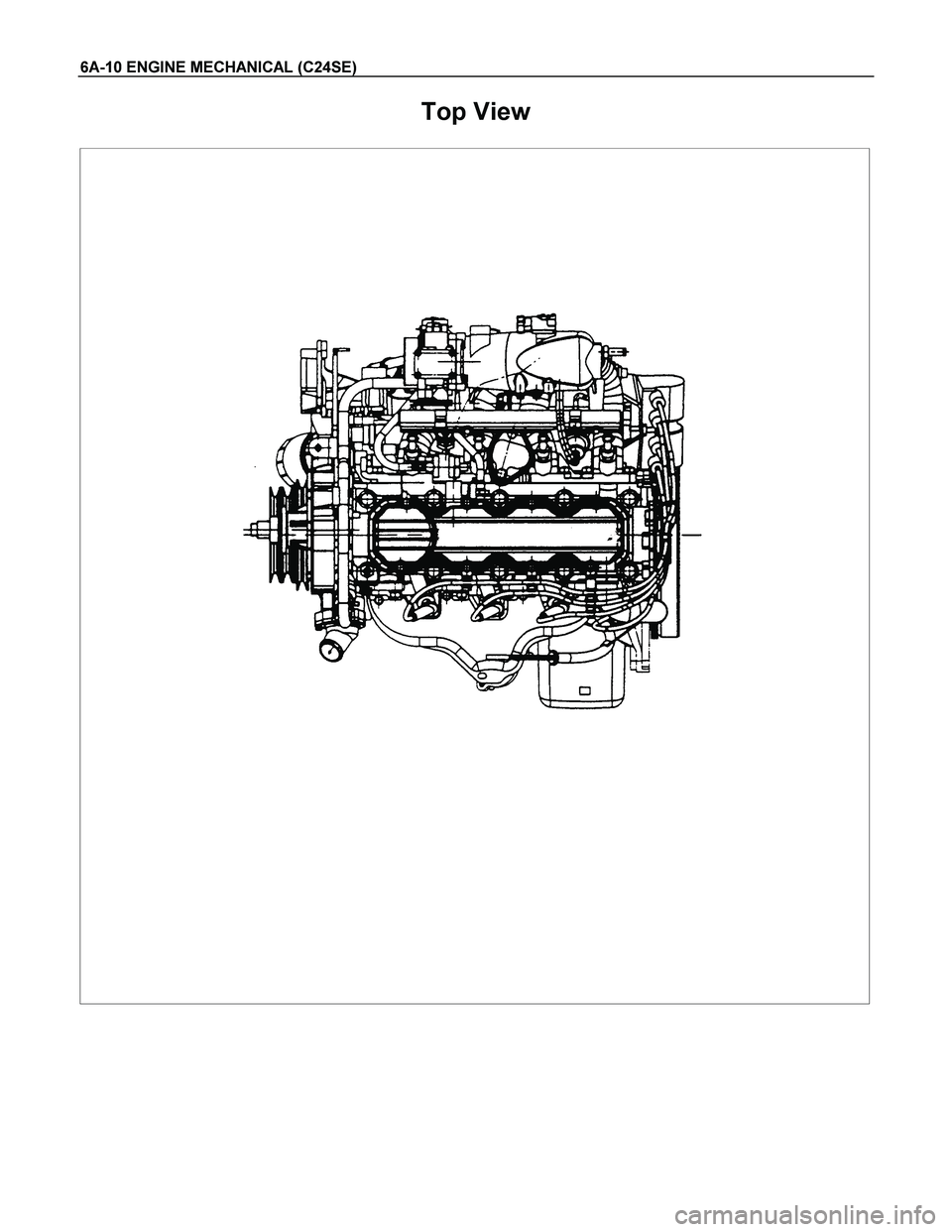

ISUZU TF SERIES 2004 Workshop Manual 6A-10 ENGINE MECHANICAL (C24SE) Top View

Page 2431 of 4264

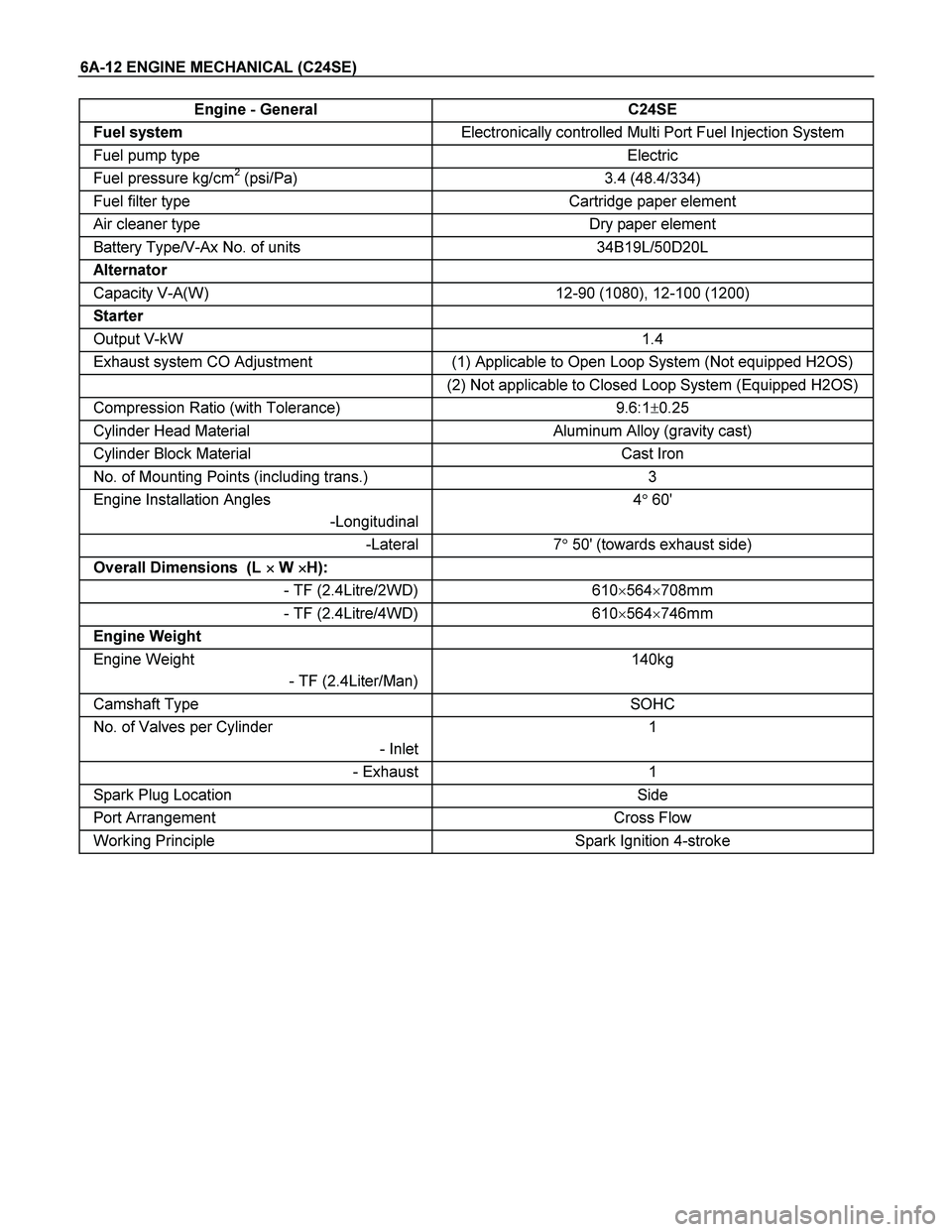

ISUZU TF SERIES 2004 Workshop Manual ENGINE MECHANICAL (C24SE) 6A-11 Main Data and Specifications Engine - General C24SE Engine type Four-cycle, water cooled cross-flow with single over head camshaft Micro-computer control, fuel i

Page 2432 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6A-12 ENGINE MECHANICAL (C24SE) Engine - General C24SE Fuel system Electronically controlled Multi Port Fuel Injection System Fuel pump type Electric Fuel pressure kg/cm2 (psi/Pa) 3.4 (48.4/334
