Page 2761 of 4264

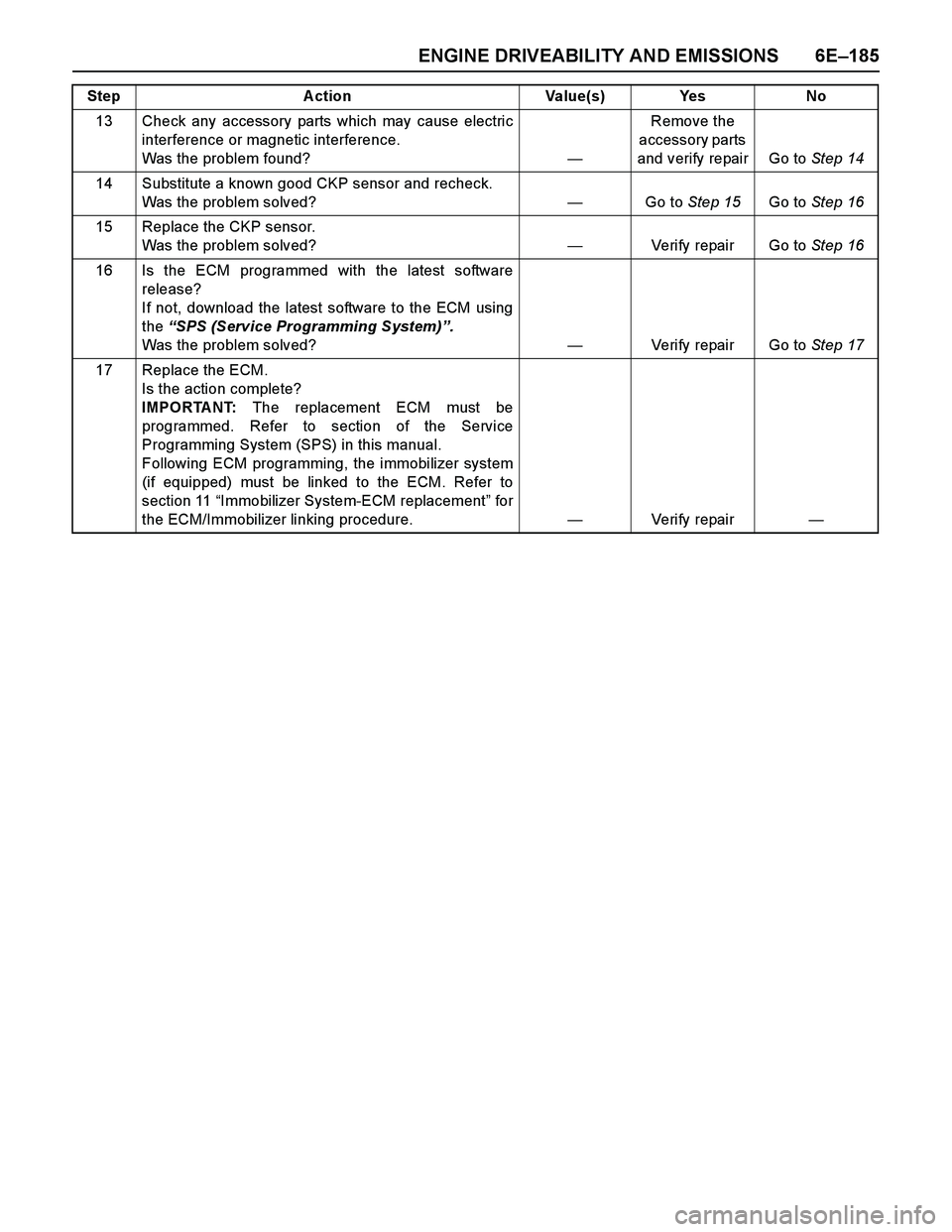

ENGINE DRIVEABILITY AND EMISSIONS 6E–185
13 Check any accessory parts which may cause electric
interference or magnetic interference.
Was the problem found?—Remove the
accessory parts
and verify repair Go to Step 14
14 Substitute a known good CKP sensor and recheck.
Was the problem solved?—Go to Step 15Go to Step 16
15 Replace the CKP sensor.
Was the problem solved?—Verify repair Go to Step 16
16 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 17
17 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Veri fy repai r— Step A ction Value(s) Yes No
Page 2762 of 4264

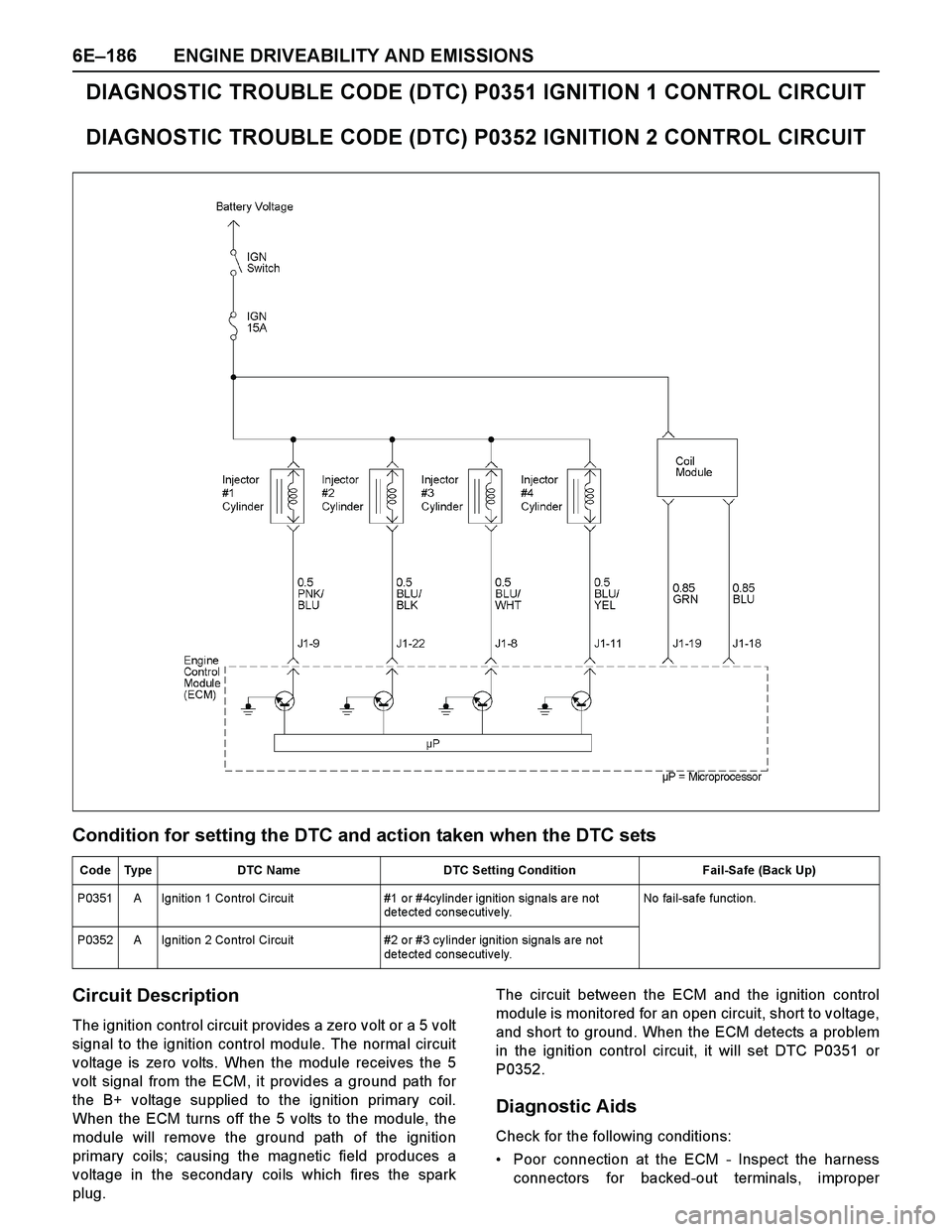

6E–186 ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P0351 IGNITION 1 CONTROL CIRCUIT
DIAGNOSTIC TROUBLE CODE (DTC) P0352 IGNITION 2 CONTROL CIRCUIT
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The ignition control circuit provides a zero volt or a 5 volt
signal to the ignition control module. The normal circuit
voltage is zero volts. When the module receives the 5
volt signal from the ECM, it provides a ground path for
the B+ voltage supplied to the ignition primary coil.
When the ECM turns off the 5 volts to the module, the
module will remove the ground path of the ignition
primary coils; causing the magnetic field produces a
voltage in the secondary coils which fires the spark
plug.The circuit between the ECM and the ignition control
module is monitored for an open circuit, short to voltage,
and short to ground. When the ECM detects a problem
in the ignition control circuit, it will set DTC P0351 or
P0352.
Diagnostic Aids
Check for the following conditions:
Poor connection at the ECM - Inspect the harness
connectors for backed-out terminals, improper
Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0351 A Ignition 1 Control Circuit #1 or #4cylinder ignition signals are not
detected consecutively.No fail-safe function.
P0352 A Ignition 2 Control Circuit #2 or #3 cylinder ignition signals are not
detected consecutively.
Page 2763 of 4264

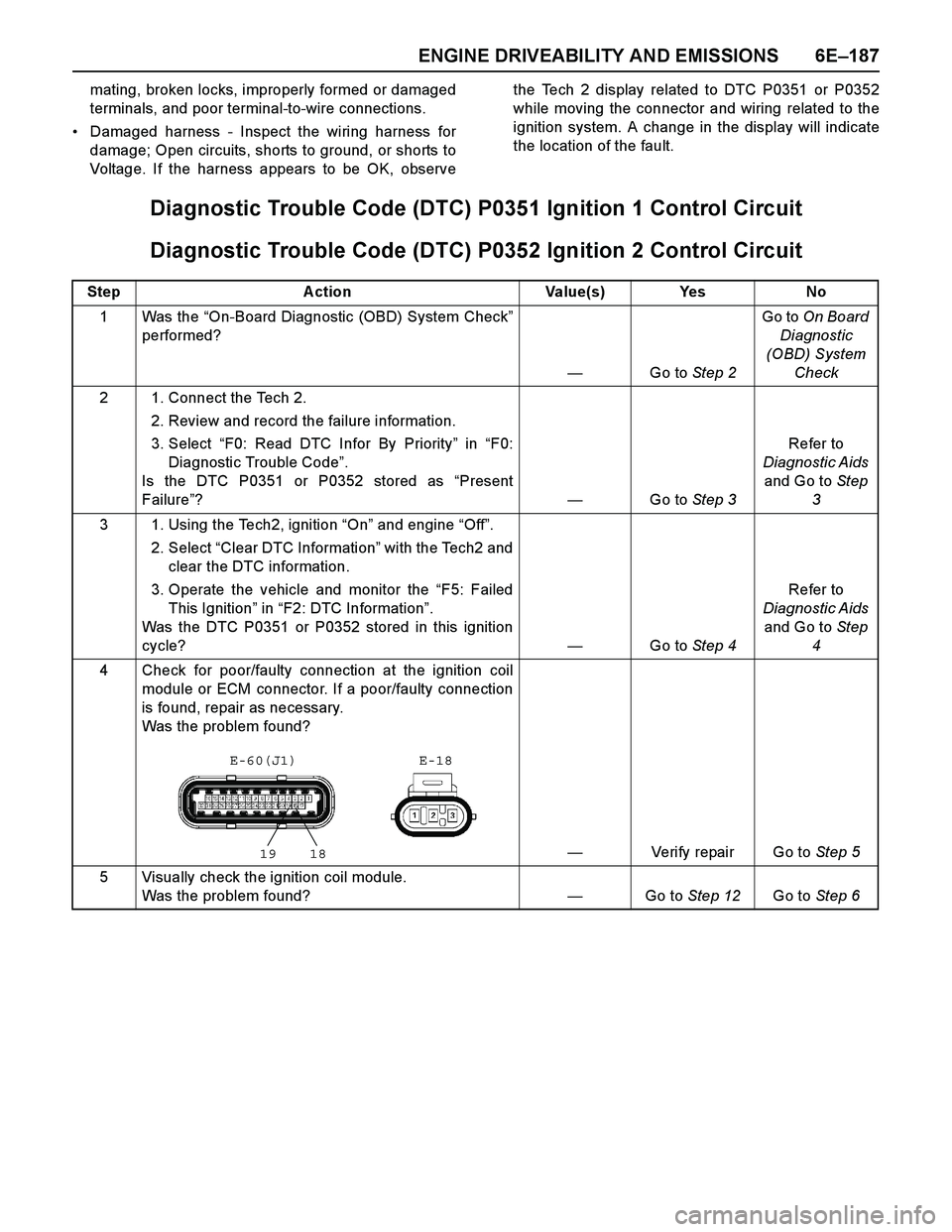

ENGINE DRIVEABILITY AND EMISSIONS 6E–187
mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connections.
Damaged harness - Inspect the wiring harness for
damage; Open circuits, shorts to ground, or shorts to
Voltage. If the harness appears to be OK, observethe Tech 2 display related to DTC P0351 or P0352
while moving the connector and wiring related to the
ignition system. A change in the display will indicate
the location of the fault.
Diagnostic Trouble Code (DTC) P0351 Ignition 1 Control Circuit
Diagnostic Trouble Code (DTC) P0352 Ignition 2 Control Circuit
Step A ction Value(s) Yes No
1 Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor By Priority” in “F0:
Diagnostic Trouble Code”.
Is the DTC P0351 or P0352 stored as “Present
Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech2, ignition “On” and engine “Off”.
2. Select “Clear DTC Information” with the Tech2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F5: Failed
This Ignition” in “F2: DTC Information”.
Was the DTC P0351 or P0352 stored in this ignition
cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Check for poor/faulty connection at the ignition coil
module or ECM connector. If a poor/faulty connection
is found, repair as necessary.
Was the problem found?
—Verify repair Go to Step 5
5 Visually check the ignition coil module.
Was the problem found?—Go to Step 12Go to Step 6
19 18
E-60(J1) E-18
Page 2764 of 4264

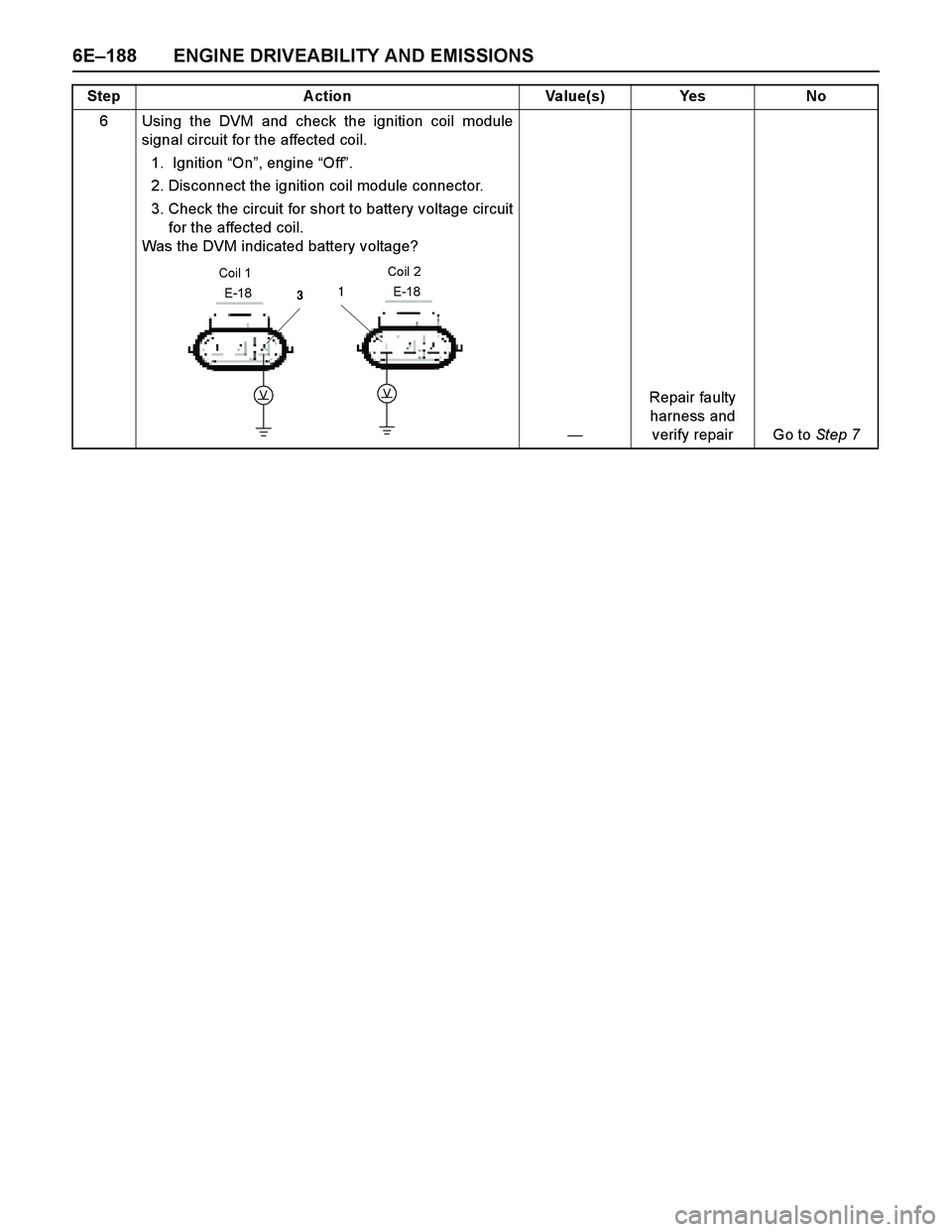

6E–188 ENGINE DRIVEABILITY AND EMISSIONS
6 Using the DVM and check the ignition coil module
signal circuit for the affected coil.
1. Ignition “On”, engine “Off”.
2. Disconnect the ignition coil module connector.
3. Check the circuit for short to battery voltage circuit
for the affected coil.
Was the DVM indicated battery voltage?
—Repair faulty
harness and
verify repair Go to Step 7 Step A ction Value(s) Yes No
E-18
Co il 2
V
E-18
Coil 1
V
Page 2765 of 4264

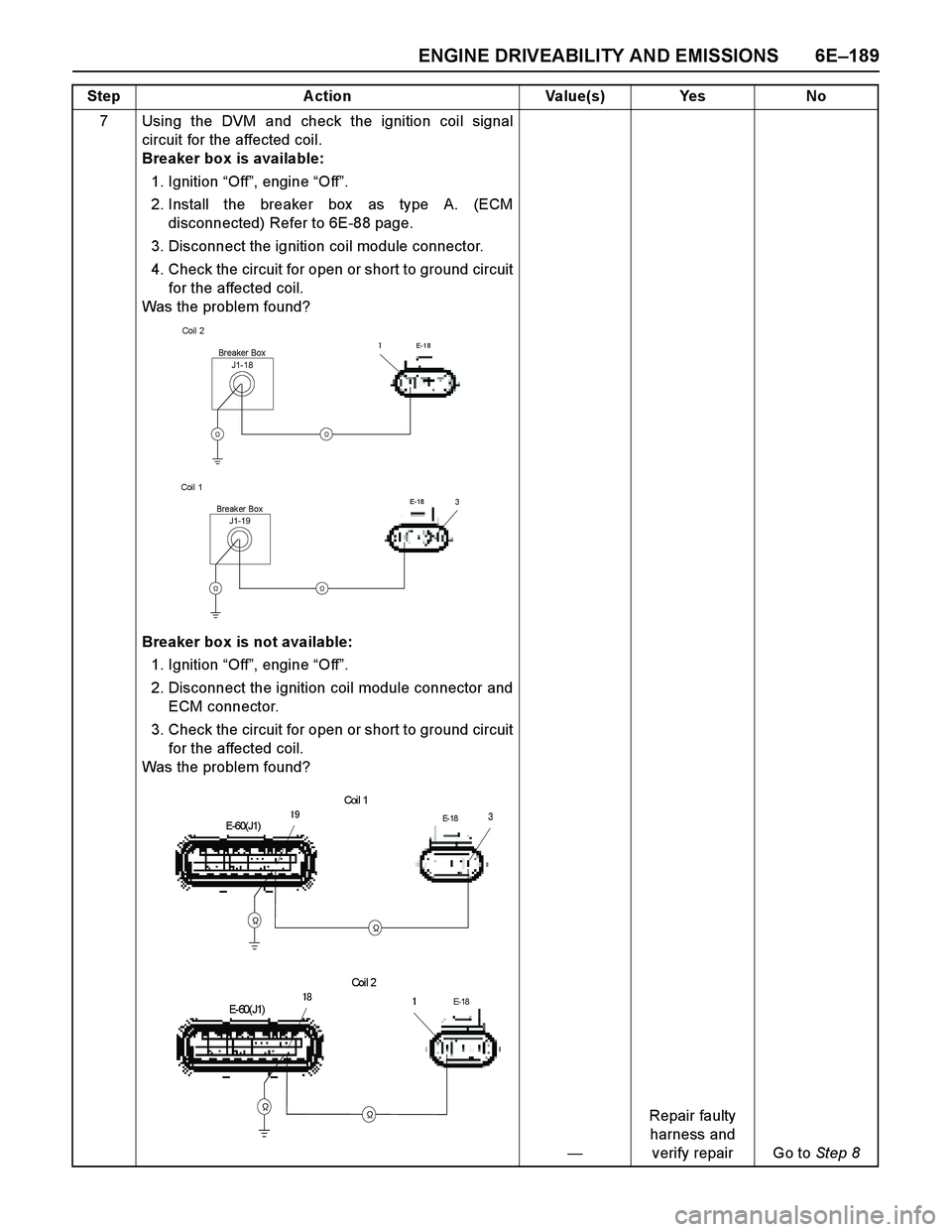

ENGINE DRIVEABILITY AND EMISSIONS 6E–189
7 Using the DVM and check the ignition coil signal
circuit for the affected coil.
Breaker box is available:
1. Ignition “Off”, engine “Off”.
2. Install the breaker box as type A. (ECM
disconnected) Refer to 6E-88 page.
3. Disconnect the ignition coil module connector.
4. Check the circuit for open or short to ground circuit
for the affected coil.
Was the problem found?
Breaker box is not available:
1. Ignition “Off”, engine “Off”.
2. Disconnect the ignition coil module connector and
ECM connector.
3. Check the circuit for open or short to ground circuit
for the affected coil.
Was the problem found?
—Repair faulty
harness and
verify repair Go to Step 8 Step A ction Value(s) Yes No
J1-18Breaker BoxE-1 8Coil 2
J1-19Breaker BoxE-18Coil 1
E- 18
Co i l 2
E- 60( J1)
E- 18
Coi l 1
E-60(J1)
Page 2766 of 4264

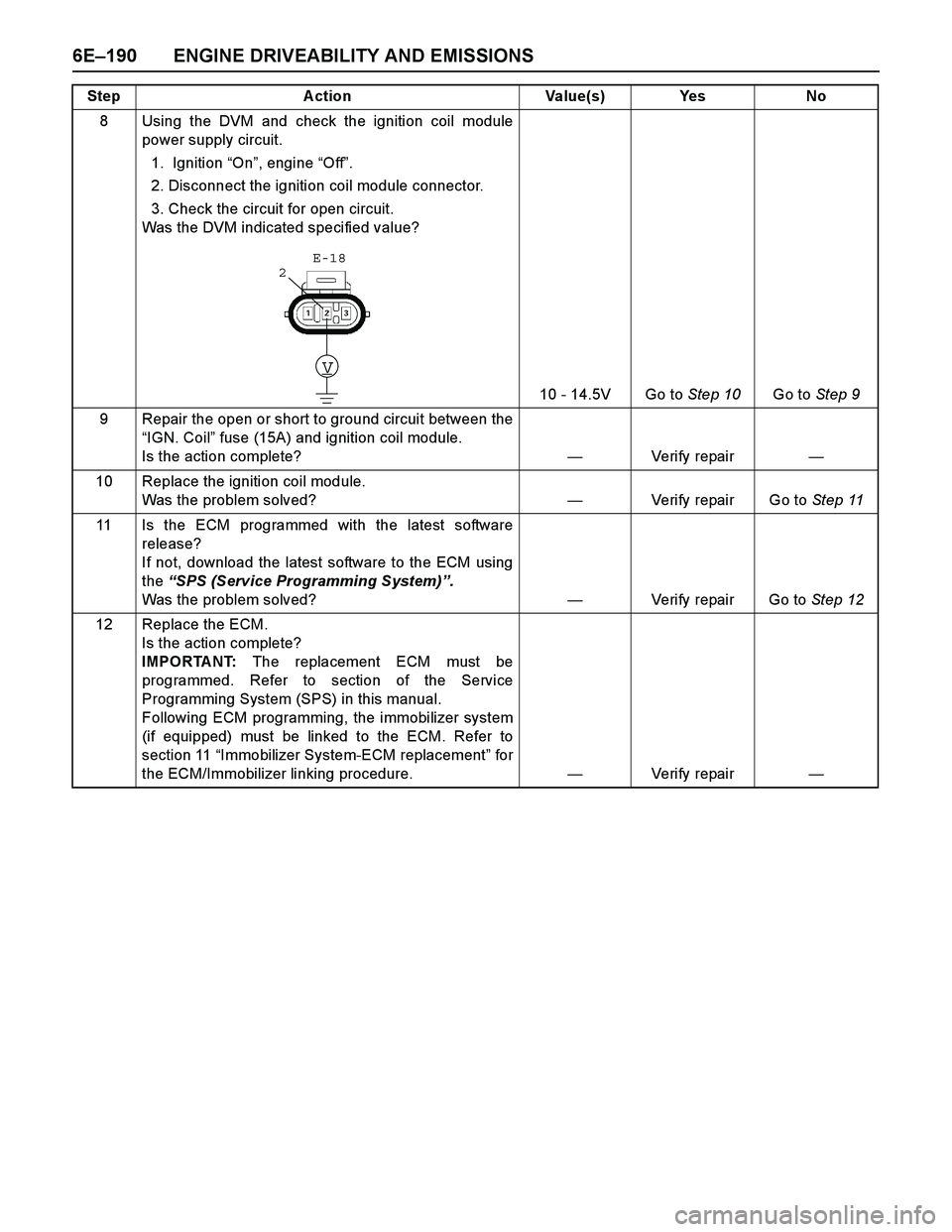

6E–190 ENGINE DRIVEABILITY AND EMISSIONS
8 Using the DVM and check the ignition coil module
power supply circuit.
1. Ignition “On”, engine “Off”.
2. Disconnect the ignition coil module connector.
3. Check the circuit for open circuit.
Was the DVM indicated specified value?
10 - 14.5V Go to Step 10Go to Step 9
9 Repair the open or short to ground circuit between the
“IGN. Coil” fuse (15A) and ignition coil module.
Is the action complete?—Veri fy repai r—
10 Replace the ignition coil module.
Was the problem solved?—Verify repair Go to Step 11
11 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 12
12 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Veri fy repai r— Step A ction Value(s) Yes No
V
E-18
2
Page 2767 of 4264

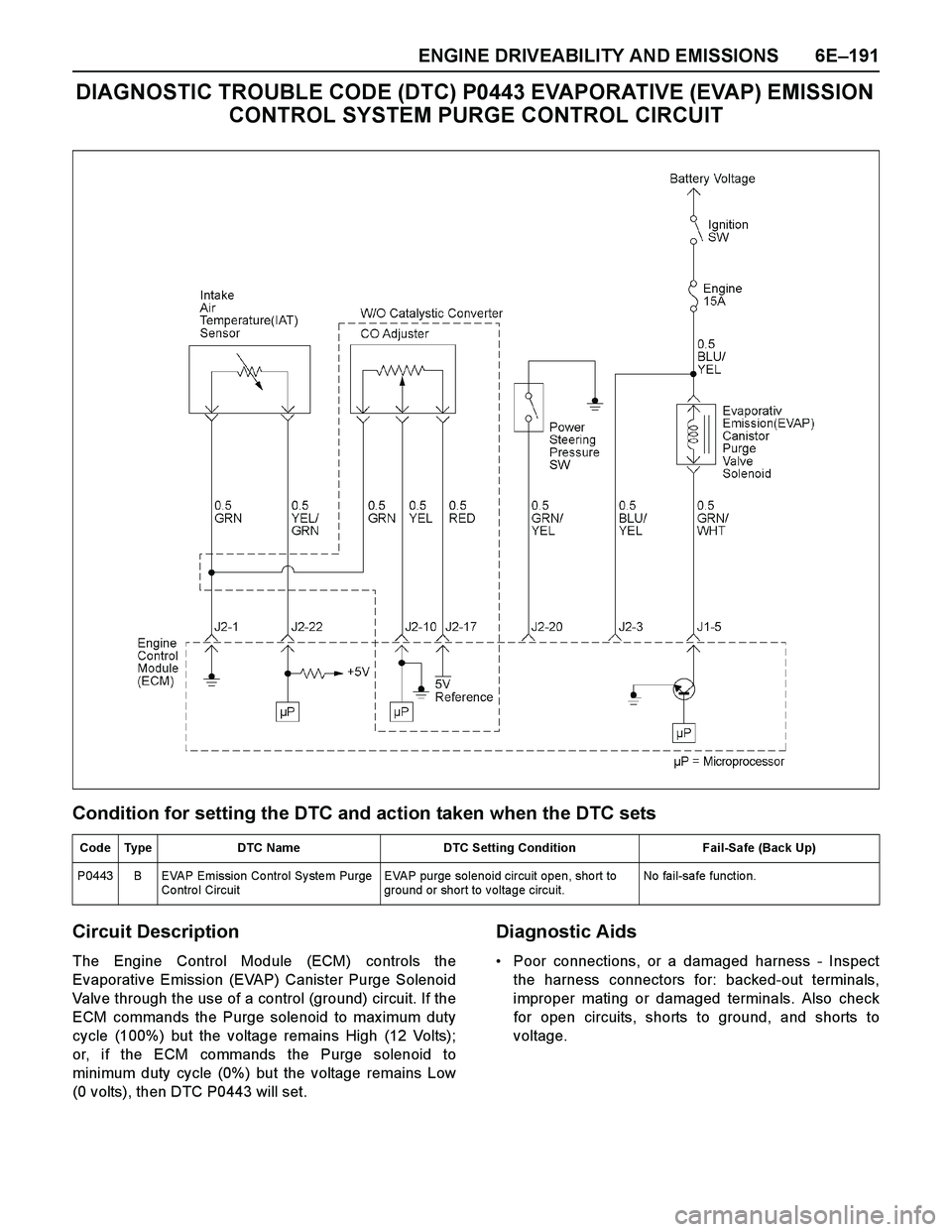

ENGINE DRIVEABILITY AND EMISSIONS 6E–191
DIAGNOSTIC TROUBLE CODE (DTC) P0443 EVAPORATIVE (EVAP) EMISSION
CONTROL SYSTEM PURGE CONTROL CIRCUIT
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The Engine Control Module (ECM) controls the
Evaporative Emission (EVAP) Canister Purge Solenoid
Valve through the use of a control (ground) circuit. If the
ECM commands the Purge solenoid to max imum duty
cycle (100%) but the voltage remains High (12 Volts);
or, if the ECM commands the Purge solenoid to
minimum duty cycle (0%) but the voltage remains Low
(0 volts), then DTC P0443 will set.
Diagnostic Aids
Poor connections, or a damaged harness - Inspect
the harness connectors for: backed-out terminals,
improper mating or damaged terminals. Also check
for open circuits, shorts to ground, and shorts to
voltage.
Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0443 B EVAP Emission Co ntrol Sy ste m Purge
Co ntro l CircuitEVAP purge solenoid circuit open, short to
ground or short to voltage circuit.No fail-safe function.
Page 2768 of 4264

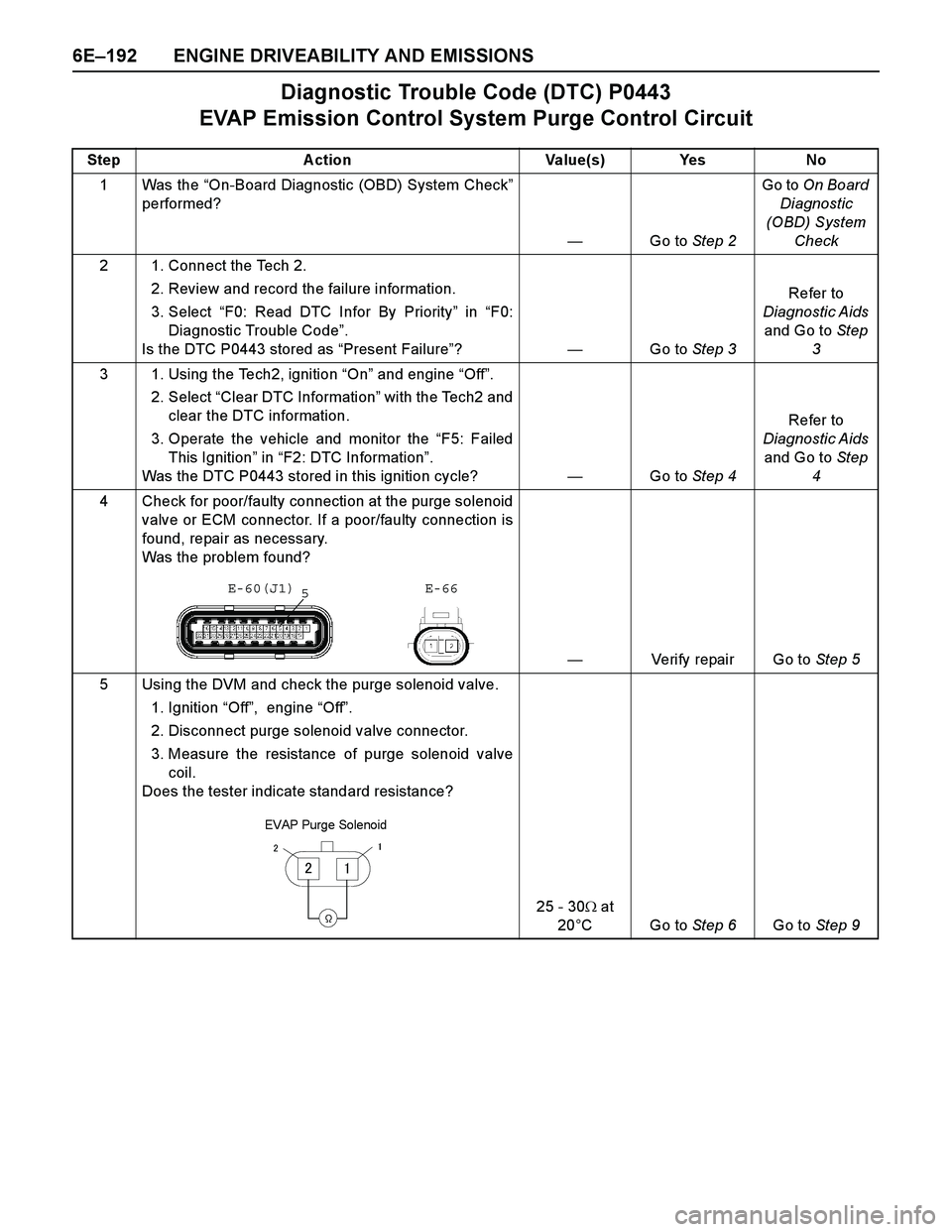

6E–192 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0443
EVAP Emission Control System Purge Control Circuit
Step A ction Value(s) Yes No
1 Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor By Priority” in “F0:
Diagnostic Trouble Code”.
Is the DTC P0443 stored as “Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech2, ignition “On” and engine “Off”.
2. Select “Clear DTC Information” with the Tech2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F5: Failed
This Ignition” in “F2: DTC Information”.
Was the DTC P0443 stored in this ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Check for poor/faulty connection at the purge solenoid
valve or ECM connector. If a poor/faulty connection is
found, repair as necessary.
Was the problem found?
—Verify repair Go to Step 5
5 Using the DVM and check the purge solenoid valve.
1. Ignition “Off”, engine “Off”.
2. Disconnect purge solenoid valve connector.
3. Measure the resistance of purge solenoid valve
coil.
Does the tester indicate standard resistance?
25 - 30at
20°CGo to Step 6Go to Step 9
5 E-60(J1) E-66
EVAP Purg e So le no id
