2004 ISUZU TF SERIES Workshop Manual

automatic transmission warning lights keyless fuel additives check engine climate control

Load previous 8 pages

Page 489 of 4264

ISUZU TF SERIES 2004 Workshop Manual BRAKES 5C-63
4JA1-T/4JA1-TC/4JH1-TC LHD Model (without 2nd Battery)

RTW45CMF0002

4JA1-T/4JA1-TC/4JH1-TC RHD Model

331R300008

Page 490 of 4264

ISUZU TF SERIES 2004 Workshop Manual 5C-64 BRAKES
MEMO

Page 491 of 4264

ISUZU TF SERIES 2004 Workshop Manual PARKING BRAKE SYSTEM 5D-1

SECTION 5D
BRAKES
PARKING BRAKE SYSTEM
CONTENTS

Service Precaution .......................................... 5D-1
Service Precaution .............................

PARKING BRAKE SYSTEM 5D-1

SECTION 5D
BRAKES
PARKING BRAKE SYSTEM
CONTENTS

Service Precaution .......................................... 5D-1
Service Precaution ....................................... 5D-1
General Description ...................................... 5D-1
Parking Brake Lever ........................................ 5D-2
Parking Brake Lever Assembly and
Associated Parts (Bench Seat) .................. 5D-2
Removal ....................................................... 5D-3
Installation............................................................
5D-3
Front Parking Brake Cable....................................
5D-5
Front Parking Brake Cable and Associated
Parts (Bench Seat).........................................
5D-5
Removal...............................................................
5D-6
Installation............................................................
5D-6
Parking Brake Lever...............................................
5D-8
Parking Brake Lever Assembly and Associated
Parts (Buckle Seat)....................................... 5D-8
Removal ....................................................... 5D-8
Installation .................................................... 5D-8
Parking Brake Rear Cable ............................... 5D-9
Parking Brake Rear Cable and Associated
Parts ............................................................ 5D-9
Removal ....................................................... 5D-10
Installation .................................................... 5D-10
Inspection and Repair ................................... 5D-11
Parking Brake Adjustment ............................ 5D-11
Main Data and Specifications........................... 5D-12
Troubleshooting ............................................ 5D-13

Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFE
R
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, o
r
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

General Description
Pulling up the parking brake lever by hand will set the
parking brake. By means of a ratchet type lock, the
lever can be held in that position until it is released. The
position of the lever is transmitted through cable/leve
r
systems to the rear wheels. These parts are designed
to obtain sufficient braking force even when parking on
slopes. When the parking brake is set, or when the
ignition SW is in the "ON" position, the brake warning
light illuminates. The rear wheel parking brake is a
leading-trailing brake (mechanical inside expansion
type) built in the rear drum brake. Parking brake
adjustment is made through the adjusting hole (bored
through back plate). Parking brake lever stroke should
be adjusted to 8
14 notches with 30kg (bench seat) o
r
6
8 notches with 30kg (bucket seat). Refer to “Parking
Brake Adjustment" in this section.

Page 492 of 4264

ISUZU TF SERIES 2004 Workshop Manual 5D-2 PARKING BRAKE SYSTEM

Parking Brake Lever
Parking Brake Lever Assembly and Associated Parts (Bench Seat)

This illustration is based on RHD model.
740R300010

Legend

(1)
Front Co

Page 493 of 4264

ISUZU TF SERIES 2004 Workshop Manual PARKING BRAKE SYSTEM 5D-3

This illustration shows RHD model
LHD model is opposite.
RTW35DLH000101

Legend

(1)
Nut

(2)
Bolt and Washer

(3)
Adjust Nut

(4)
Bolt

Page 494 of 4264

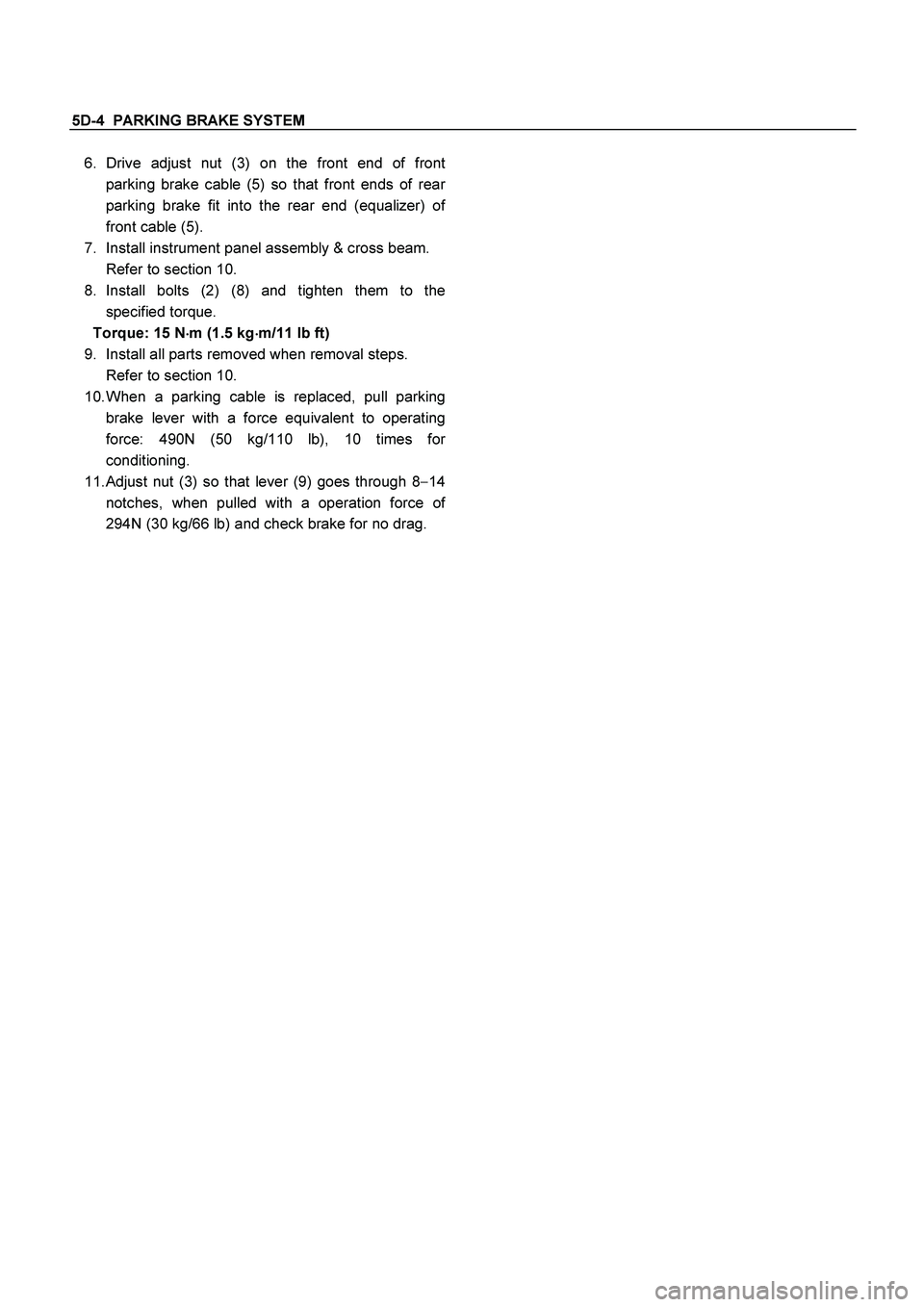

ISUZU TF SERIES 2004 Workshop Manual 5D-4 PARKING BRAKE SYSTEM

6. Drive adjust nut (3) on the front end of front
parking brake cable (5) so that front ends of rea
r
parking brake fit into the rear end (equalizer) of
front cable (5).

Page 495 of 4264

ISUZU TF SERIES 2004 Workshop Manual PARKING BRAKE SYSTEM 5D-5

Front Parking Brake Cable
Front Parking Brake Cable and Associated Parts (Bench Seat)

750R300003

Legend

(1)
Shift Knob (manual transmission)

(2)
Front

Page 496 of 4264

ISUZU TF SERIES 2004 Workshop Manual 5D-6 PARKING BRAKE SYSTEM

This illustration is based on RHD model.
RTW35DMF000101

Legend

(1)
Adjust Nut

(2)
Clip

(3)
Bolt

(4)
Bolt

(5)
Parking Brake Cable T-end
