Page 825 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-167
3. High mounted stoplight does not light
Checkpoint Trouble Cause Countermeasure
Repair or replace the high
mounted stoplight
Continuity between 3
L-5 -
1
L-5
High mounted stoplight
malfunction
NG
Repair an open circuit or
connector contact between
3
L-5 - 8 H-6
Voltage between 1 L-5 -
ground with brake pedal
depressed
(Should be battery voltage
present)
Open circuit or poor connector
contact
NG OK
Repair grounding point contact
C-2
Grounding point
C-2
Poor grounding point contact
NG
OK
Page 826 of 4264
8A-168 ELECTRICAL-BODY AND CHASSIS
TURN SIGNAL LIGHT AND HAZARD WARNING LIGHT
1. Turn signal light does not light on both sides (RH and LH)
Checkpoint Trouble Cause Countermeasure
Replace the flasher unit
Flasher unit malfunction
NG
Repair or replace the
combination switch
Turn signal switch continuity
between connector
5
B-60 - 6 B-60 and
5
B-60 - 7 B-60 when
turn signal switch operates
Short circuit between
connector 3
B-61 - 1 B-61
when turn signal switch
operates with starter switch
in “ON” position (Turn
signal light should be ON)
Poor switch point contact or
faulty switch
NG OK
Reinstall or replace fuse No.
EB-16 (10A)
Fuse No. EB-16 (10A, Fuse
box)
Poor fuse contact or blown
fuse
NG
OK OK
Repair open circuit or
connector contact
Continuity between
connector 2
B-61 -ground
(Should be continuity)
Open circuit or poor connector
contact
NG
Page 827 of 4264

ELECTRICAL-BODY AND CHASSIS 8A-169
2. Turn signal light does not light on one side (RH or LH)
Checkpoint Trouble Cause Countermeasure
Repair open circuit or
connector contact
Open circuit or poor connector
contact
NG
(LH)
Continuity between
3
C-25 - 6 B-60 (FRT),
1
C-35 - 6 B-60 (SIDE)
1
F-6 - 6 B-60 (RR)
(RH)
Continuity between
3
C-18 - 7 B-60 (FRT),
1
C-1 - 7 B-60 (SIDE)
1
F-5 - 7 B-60 (RR)
Repair or replace the
combination switch
Turn signal switch continuity
Poor switch point contact or
faulty switch
NG
OK OK
Repair open circuit or
connector contact
Open circuit or poor connector
contact
NG
3. Hazard warning light does not light
Repair or replace the hazard
SW.
Hazard SW. malfunction
NG
Voltage between 5 B-16 -
ground (Should be battery
voltage present)
Hazard SW. continuity
Reinstall or replace the fuse
No. EB-16 (10A)
Fuse No. EB-16 (10A, Relay
and fuse box)
Poor fuse contact or blown
fuse
NG
OK OK
Repair open circuit or
connector contact
Open circuit or poor
connector contact between
fuse No. EB-16 (10A) -
5
B-16 NG
4. Flashing rate too fast (One side)
Replace the bulb or repair
open circuitInspect bulbBurned out bulb NG
Page 828 of 4264
8A-170 ELECTRICAL-BODY AND CHASSIS
BACKUP LIGHT
1. Backup light does not light on one side (RH or LH)
Checkpoint Trouble Cause Countermeasure
Repair grounding point contactPoor ground contact NGGrounding point
Replace the bulb or repair
connector contactBackup light bulb continuityBurned out bulb or poor
connector contact NG
OK
2. Backup light does not light on both sides
Repair or replace the switch
Poor switch point contact of
faulty switch
NG
Voltage between 5 F-6
(5
F-5 ) - ground with
starter switch ON and shift
lever into reverse position
(Should be battery voltage
present)
Back up light switch (mode
switch) continuity
Reinstall or replace fuse No.
C-4 (15A)
Fuse No. C-4 (15A, Fuse box)
Poor fuse contact or blown
fuse
NG
OK OK
Repair open circuit or
connector contact
Open circuit or poor connector
contact
NG
Page 829 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-171
HORN
1. Both sides of horn do not sound
Checkpoint Trouble Cause Countermeasure
Repair the grounding point
Poor ground contact
NG
Horn relay
Grounding point
Reinstall or replace fuse No.
EB-15 (10A)
Fuse No EB-15 (10A, Relay
and fuse box)
Poor fuse contact or blown
fuse
NG
OK OK
Reinstall or replace the horn
relay
Poor relay contact or faulty
horn relay
NG
Voltage between connector
3
X-3 - ground or 1 X-3
- ground (Should be battery
voltage present) OK
Repair open circuit or
reconnect the connector
Open circuit or poor connector
contact between fuse No. EB-
15 (10A) and horn relay
NG
Remove steering pad and
steering wheel
OK
Horn switch continuity
OK
Repair or replace the horn
switch
Poor switch point contact or
faulty switch
NG
Continuity between
4
X-3 - 10 B-60
2
X-3 - 1 C-20 (1 C-21) OK
Repair open circuit or
connector contact
Open circuit or poor connector
contact
NG
Page 830 of 4264
8A-172 ELECTRICAL-BODY AND CHASSIS
2. One side of horn does not blow
Checkpoint Trouble Cause Countermeasure
Repair open circuit or
reconnect the connectorOpen circuit or poor connector
contact NG
Voltage between 1 C-20
(1 C-21) - ground with
horn switch depressed
(Should be battery voltage
present)
Replace the horn assemblyHorn continuity between
connectorsFaulty horn assembly NG
OK
3. Insufficient horn volume
Clfean and/or remove the
foreign materialStain foreign material in the
horn NGHorn
Recharge or replace the
batteryBattery conditionDischarged battery NG
OK

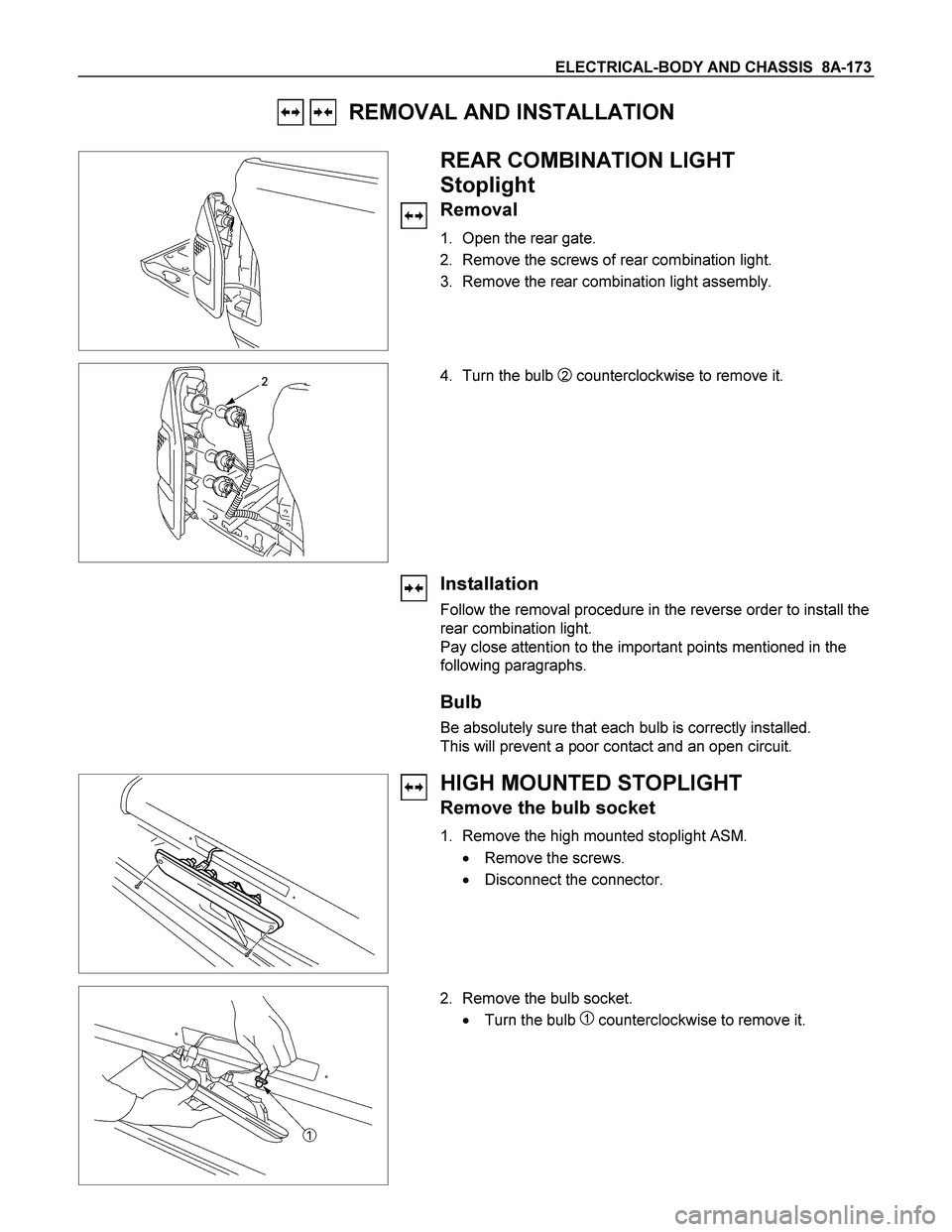

Page 831 of 4264
ELECTRICAL-BODY AND CHASSIS 8A-173
REMOVAL AND INSTALLATION
REAR COMBINATION LIGHT
Stoplight
Removal
1. Open the rear gate.
2. Remove the screws of rear combination light.
3. Remove the rear combination light assembly.
4. Turn the bulb 2 counterclockwise to remove it.
Installation
Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.
Bulb
Be absolutely sure that each bulb is correctly installed.
This will prevent a poor contact and an open circuit.
HIGH MOUNTED STOPLIGHT
Remove the bulb socket
1. Remove the high mounted stoplight ASM.
Remove the screws.
Disconnect the connector.
2. Remove the bulb socket.
Turn the bulb
1 counterclockwise to remove it.
Page 832 of 4264

8A-174 ELECTRICAL-BODY AND CHASSIS
Installation
Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.
Bulb
Be absolutely sure that each bulb is correctly installed.
This will prevent a poor contact and an open circuit.
SIDE TURN LIGHT
Removal
1. Remove the lens 1.
Pull the light/bulb toward you while pushing the ligh
t
housing in the rear direction of the vehicle to release its
lock.
Remove the socket by turning it counterclockwise.
2. Pull the bulb
2 to remove it.
Installation
Follow the removal procedure in the reverse order to install the
side turn light.
Pay close attention to the important points mentioned in the
following paragraphs.
Bulb
Be absolutely sure that the side turn light bulb is correctly
installed.
This will prevent a poor contact and an open circuit.
REAR COMBINATION LIGHT
Turn Signal Light
Removal
1. Open the rear gate.
2. Remove the screws.
3. Remove the rear combination light assembly.
4. Turn the bulb 1 counterclockwise to remove it.
