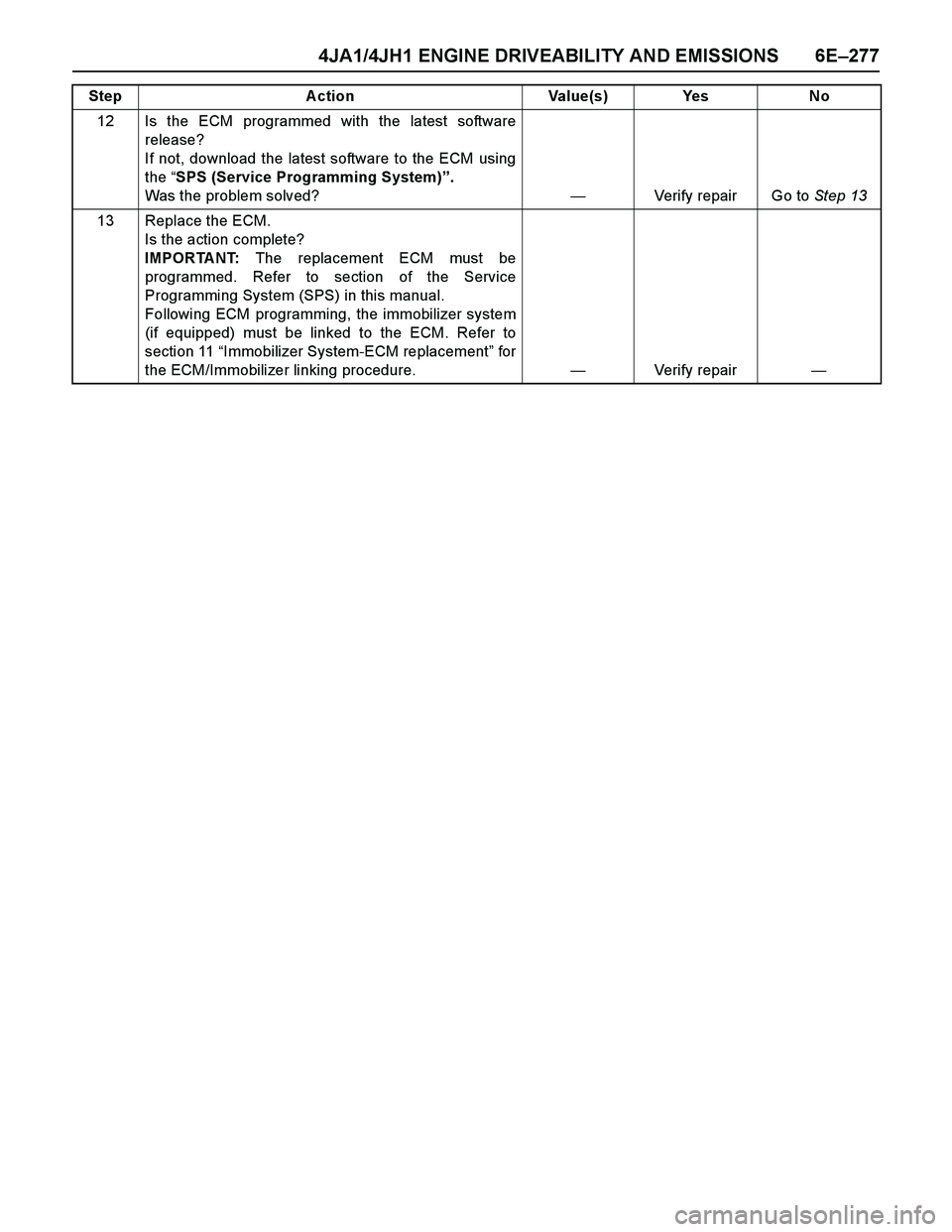

Page 1649 of 4264
4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–277
12 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 13
13 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
Page 1650 of 4264

6E–278 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS

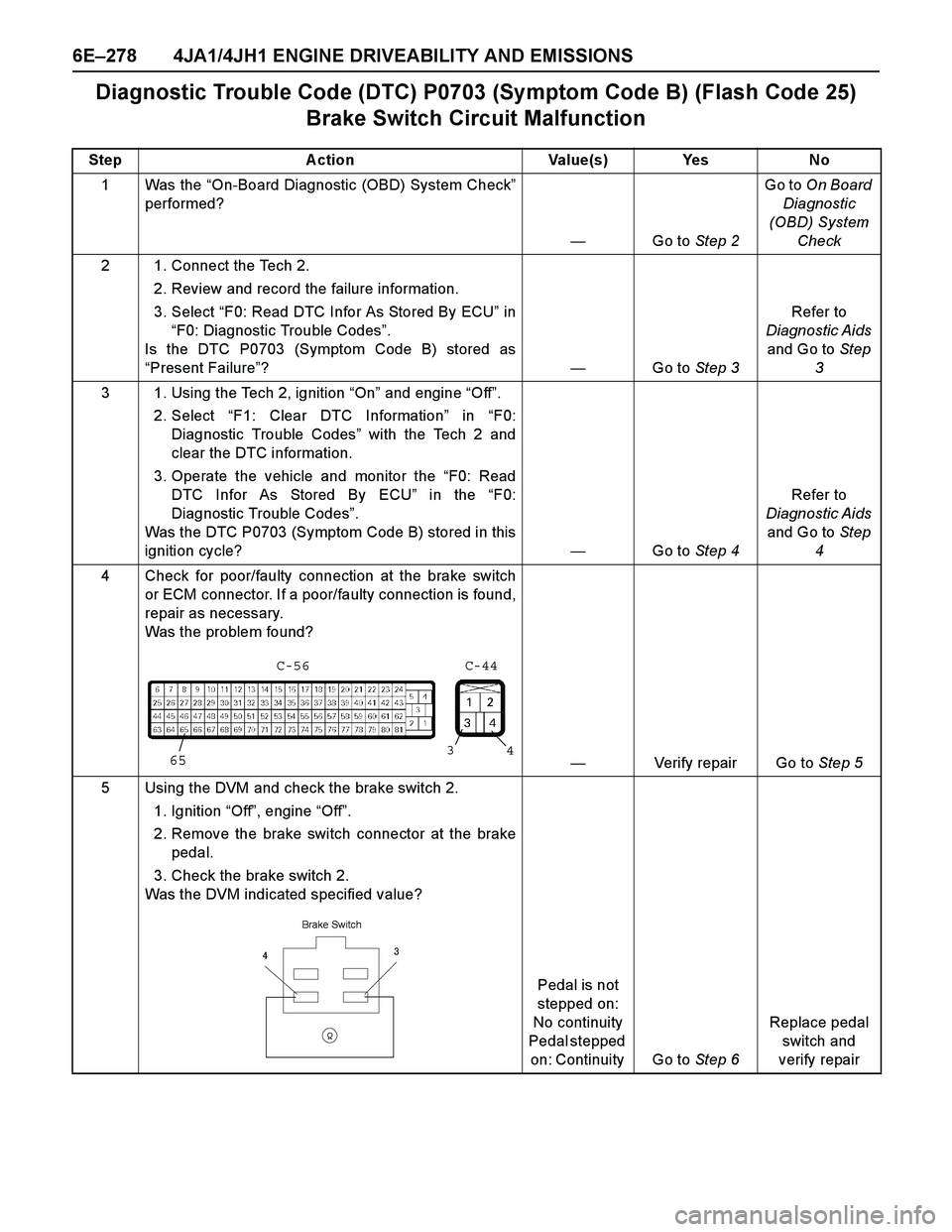

Diagnostic Trouble Code (DTC) P0703 (Symptom Code B) (Flash Code 25)
Brake Switch Circuit Malfunction
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0703 (Symptom Code B) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0703 (Symptom Code B) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Check for poor/faulty connection at the brake switch
or ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?
—Verify repair Go to Step 5
5 Using the DVM and check the brake switch 2.
1. Ignition “Off”, engine “Off”.
2. Remove the brake switch connector at the brake
pedal.
3. Check the brake switch 2.
Was the DVM indicated specified value?
Pedal is not
stepped on:
No continuity
Pedal stepped
on: Continuity Go to Step 6Replace pedal
switch and
verify repair
653
4 C-56 C-44
Brake Switch
Page 1651 of 4264

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–279
6 Using the DVM and check the brake switch 2 power
supply circuit.
1. Ignition “On”, engine “Off”.
2. Remove the brake switch connector from the
brake switch.
3. Check the circuit for open circuit.
Was the DVM indicated specified value?
10-14.5V Go to Step 8Go to Step 7
7 Repair the open circuit between the “ECM fuse (10A)”
and brake switch 2.
Is the action complete?—Verify repair—
8 Using the DVM and check the brake switch 2 circuit.
Breaker box is available:
1. Ignition “Off”, engine “Off”.
2. Install the breaker box as type B. (ECM
connected)
3. Ignition “On”, engine “Off”.
4. Check the circuit for open or short to voltage
circuit.
Was the DVM indicated specified value?
Breaker box is not available:
1. Ignition “On”, engine “Off”.
2. Back probe the DVM to the brake switch 2 and
check the circuit for open or short to voltage
circuit.
Was the problem found?
Pedal is not
stepped on:
10-14.5V
Pedal stepped
on: Less than
1V Go to Step 11Fix ed at 10-
14.5V: Go to
Step 9
Fix ed at less
than 1V: Go to
Step 10 Step Action Value(s) Yes No
V
3C-44
65Breaker Box
V
V
4 C-44
Page 1652 of 4264

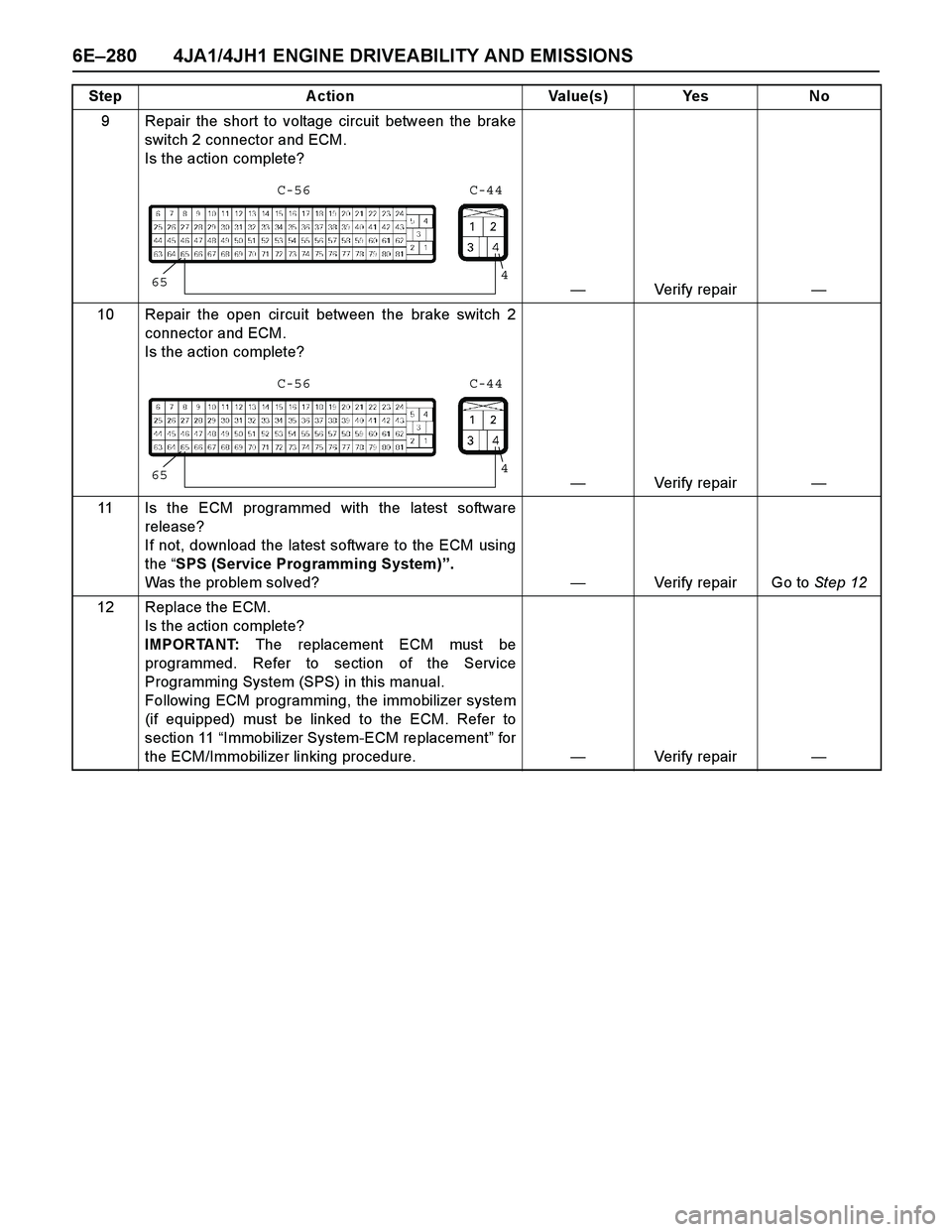

6E–280 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
9 Repair the short to voltage circuit between the brake
switch 2 connector and ECM.
Is the action complete?
—Verify repair—
10 Repair the open circuit between the brake switch 2
connector and ECM.
Is the action complete?
—Verify repair—
11 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 12
12 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
654
C-56 C-44
654
C-56 C-44
Page 1653 of 4264

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–281

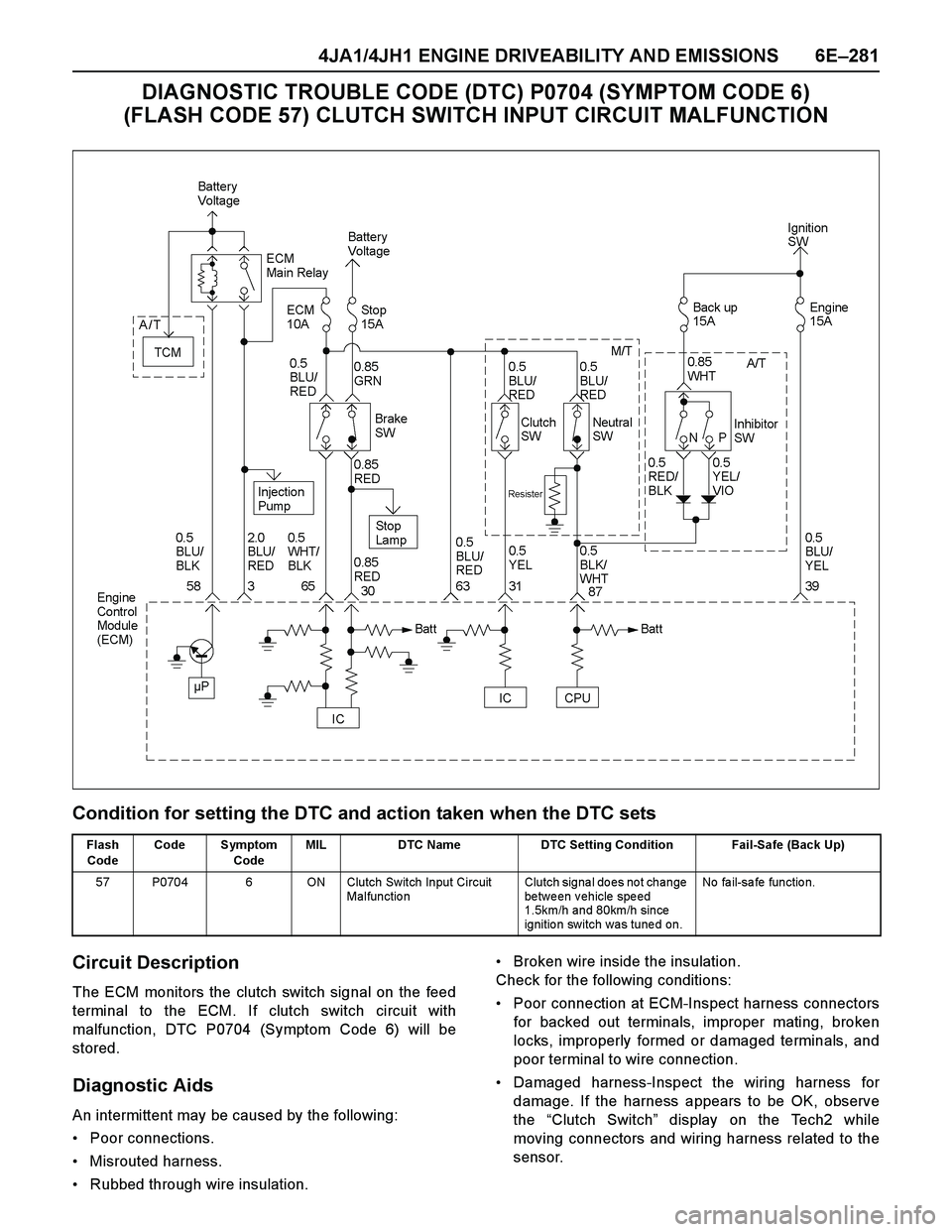

DIAGNOSTIC TROUBLE CODE (DTC) P0704 (SYMPTOM CODE 6)
(FLASH CODE 57) CLUTCH SWITCH INPUT CIRCUIT MALFUNCTION
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The ECM monitors the clutch switch signal on the feed
terminal to the ECM. If clutch switch circuit with
malfunction, DTC P0704 (Symptom Code 6) will be
stored.
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.Broken wire inside the insulation.
Check for the following conditions:
Poor connection at ECM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.
Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe
the “Clutch Switch” display on the Tech2 while
moving connectors and wiring harness related to the
sensor.
Flash
CodeCode Symptom
CodeMIL DTC Name DTC Setting Condition Fail-Safe (Back Up)
57 P0704 6 ON Clutch Switch Input Circuit
Malfunctio nClutch signa l do es no t change
between vehicle speed
1.5km/h and 80km/h since
ignitio n switch was tune d on. No fa il-sa fe fun ctio n.
Page 1654 of 4264

6E–282 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0704 (Symptom Code 6) (Flash Code 57)
Clutch Switch Input Circuit Malfunction
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P0704 (Symptom Code 6) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P0704 (Symptom Code 6) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Check for poor/faulty connection at the clutch switch
or ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?
—Verify repair Go to Step 5
5 Using the DVM and check the clutch switch.
1. Ignition “Off”, engine “Off”.
2. Remove the clutch switch connector at the clutch
pedal.
3. Check the clutch switch.
Was the DVM indicated specified value?
Pedal is not
stepped on:
Continuity
Pedal stepped
on: No
continuity Go to Step 6Replace pedal
switch and
verify repair
311
2
C-56 C-77
Clutch Sw itch
Page 1655 of 4264

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–283
6 Using the DVM and check the clutch switch power supply circuit.
1. Ignition “On”, engine “Off”.
2. Remove the clutch switch connector from the clutch switch.
3. Check the circuit for open circuit.
Was the DVM indicated specified value?
10-14.5V Go to Step 8Go to Step 7
7 Repair the open circuit between the “ECM fuse (10A)” and clutch switch.
Is the action complete? — Verify repair —
8 Using the DVM and check the clutch switch circuit. Breaker box is available:
1. Ignition “Off”, engine “Off”.
2. Install the breaker box as type B. (ECM connected) Ref. Page 6E-104
3. Ignition “On”, engine “Off”.
4. Check the circuit for open or short to voltage circuit.
Was the DVM indicated specified value?
Breaker box is not available: 1. Ignition “On”, engine “Off”.
2. Back probe the DVM to the clutch switch and check the circuit for open or short to voltage
circuit.
Was the problem found?
Pedal is not
stepped on: 10-14.5V
Pedal stepped on: Less than 1V Go to Step 11 Fix ed at 10-
14.5V: Go to Step 9
Fix ed at less
than 1V: Go to Step 10
Step Action Value(s) Yes No
V
1
2
C-77
31Breaker Box
V
V
2
C-77
Page 1656 of 4264
6E–284 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
9 Repair the short to voltage circuit between the clutch
switch connector and ECM.
Is the action complete?
—Verify repair—
10 Repair the open circuit between the clutch switch
connector and ECM.
Is the action complete?
—Verify repair—
11 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 12
12 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
312
C-56 C-77
312
C-56 C-77
