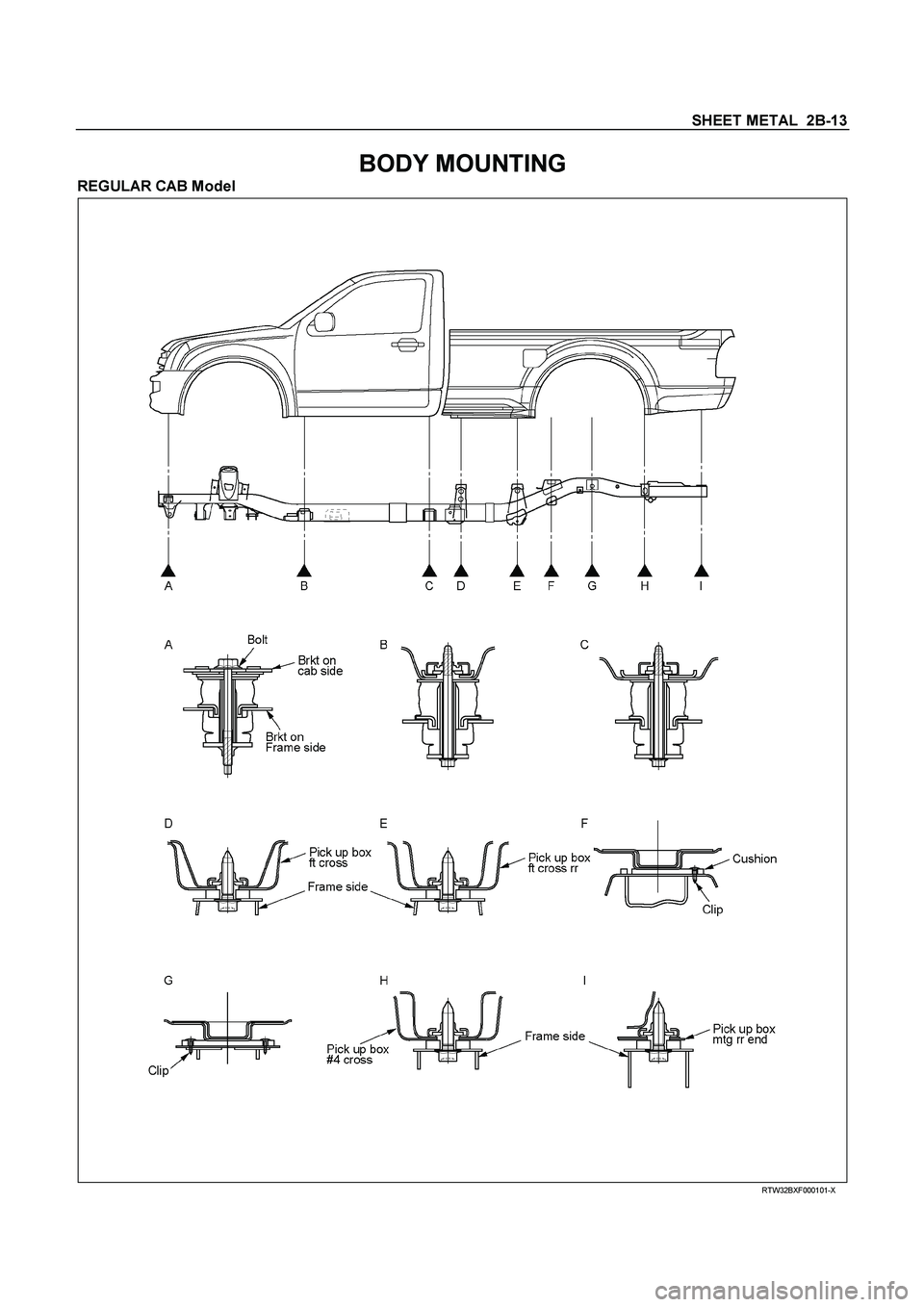

ISUZU TF SERIES 2004 Workshop Manual SHEET METAL 2B-13 BODY MOUNTING REGULAR CAB Model RTW32BXF000101-X

Page 2946 of 4264

ISUZU TF SERIES 2004 Workshop Manual 2B-14 SHEET METAL Important Operations – Installation Bolt : A Torque N m(kgf m/lb ft) 50 (5.1 / 37) Bolt : B,C Torque N m(kgf m/lb ft) 72 (7.3 / 53) Bolt : D,E,H,

Page 2947 of 4264

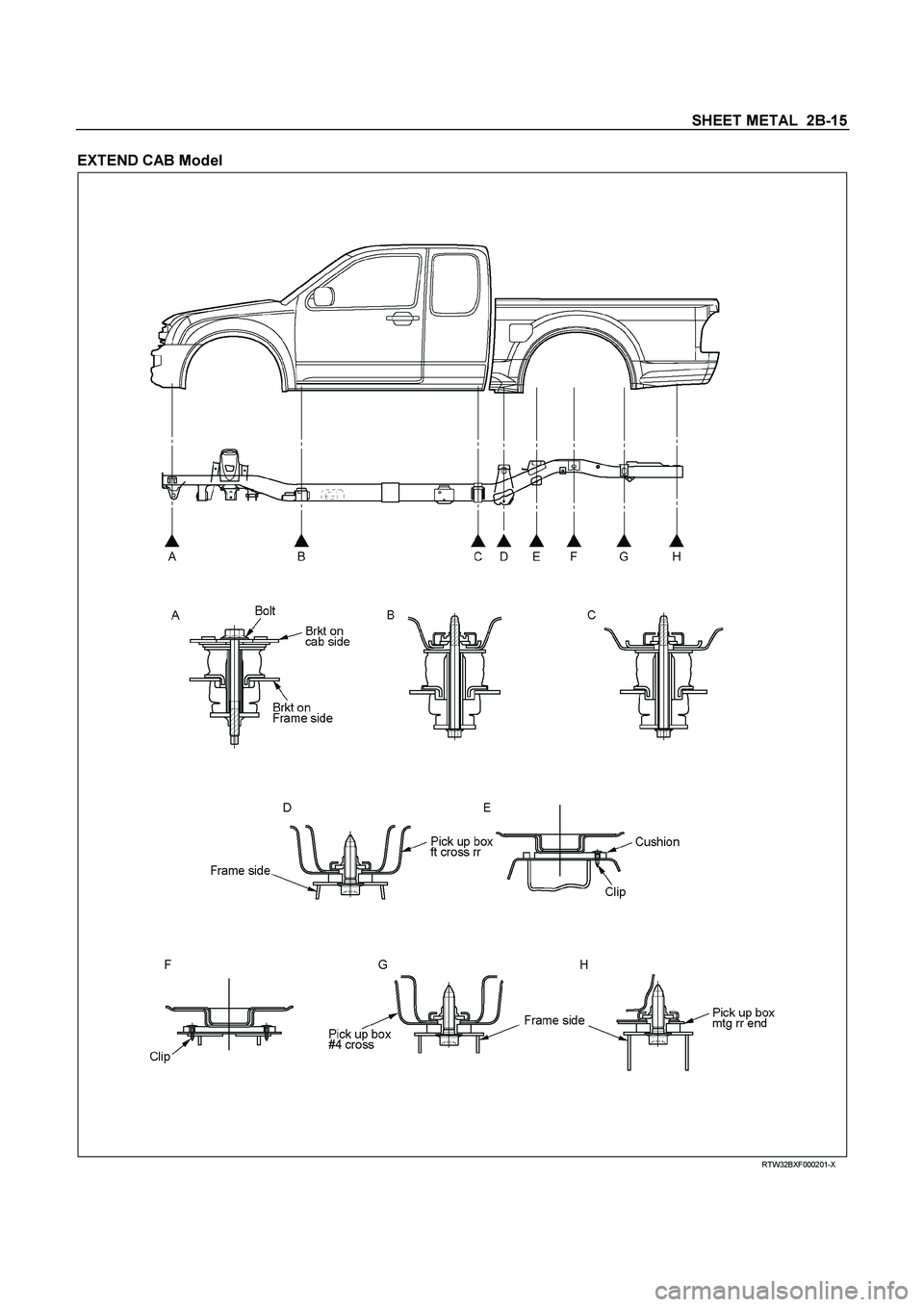

ISUZU TF SERIES 2004 Workshop Manual SHEET METAL 2B-15 EXTEND CAB Model RTW32BXF000201-X

Page 2948 of 4264

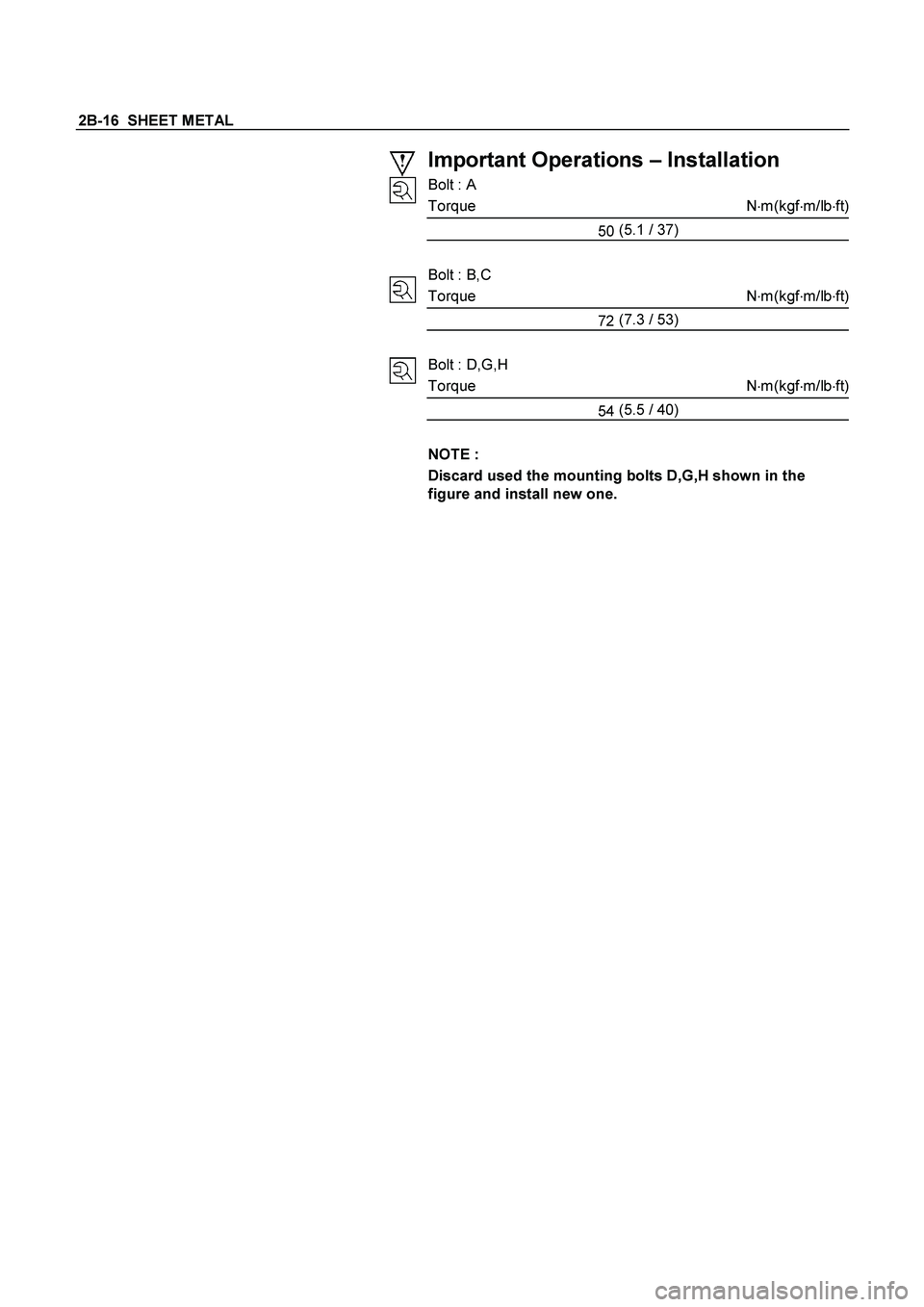

ISUZU TF SERIES 2004 Workshop Manual 2B-16 SHEET METAL Important Operations – Installation Bolt : A Torque N m(kgf m/lb ft) 50 (5.1 / 37) Bolt : B,C Torque N m(kgf m/lb ft) 72 (7.3 / 53) Bolt : D,G,H

Page 2949 of 4264

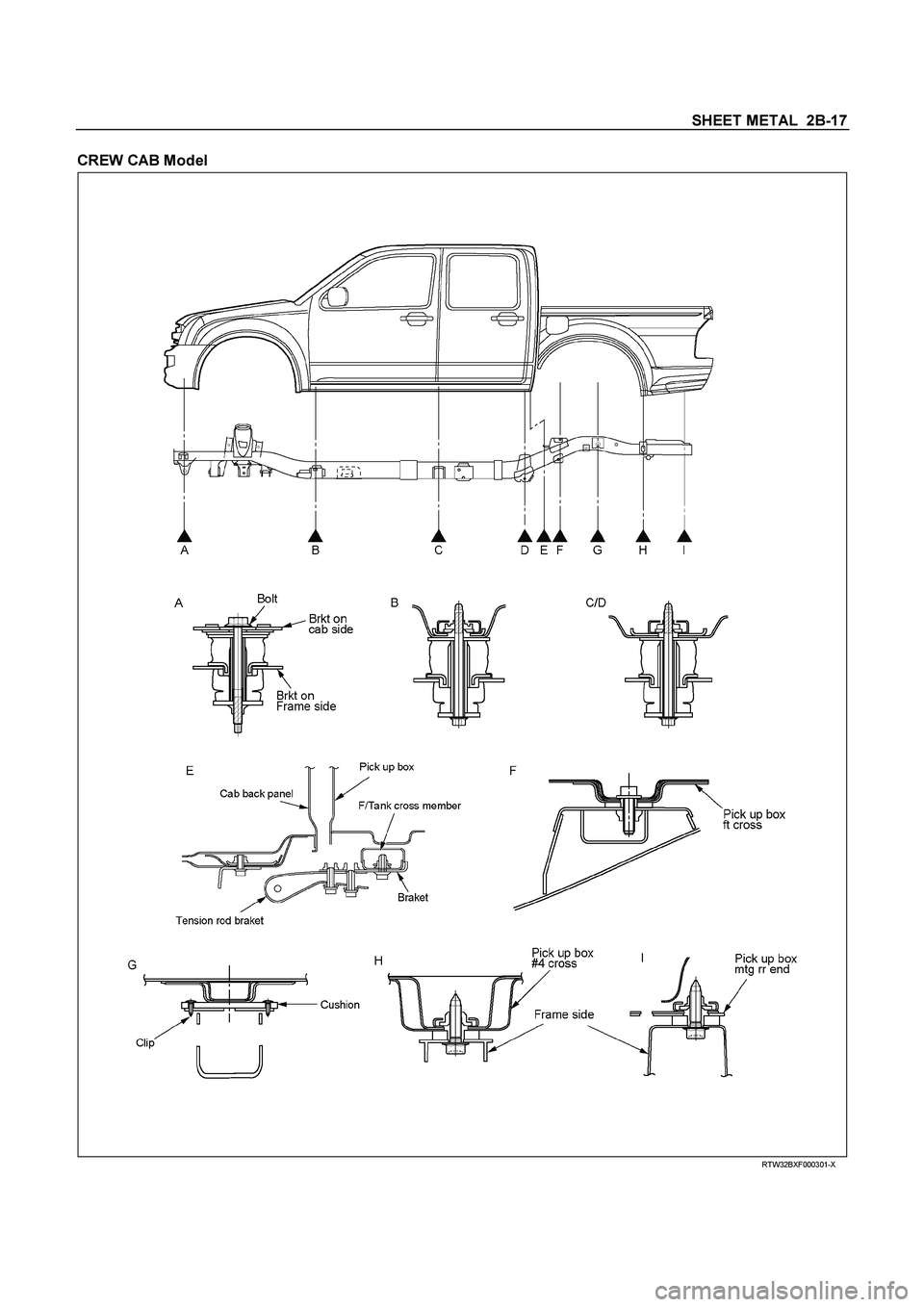

ISUZU TF SERIES 2004 Workshop Manual SHEET METAL 2B-17 CREW CAB Model RTW32BXF000301-X

Page 2950 of 4264

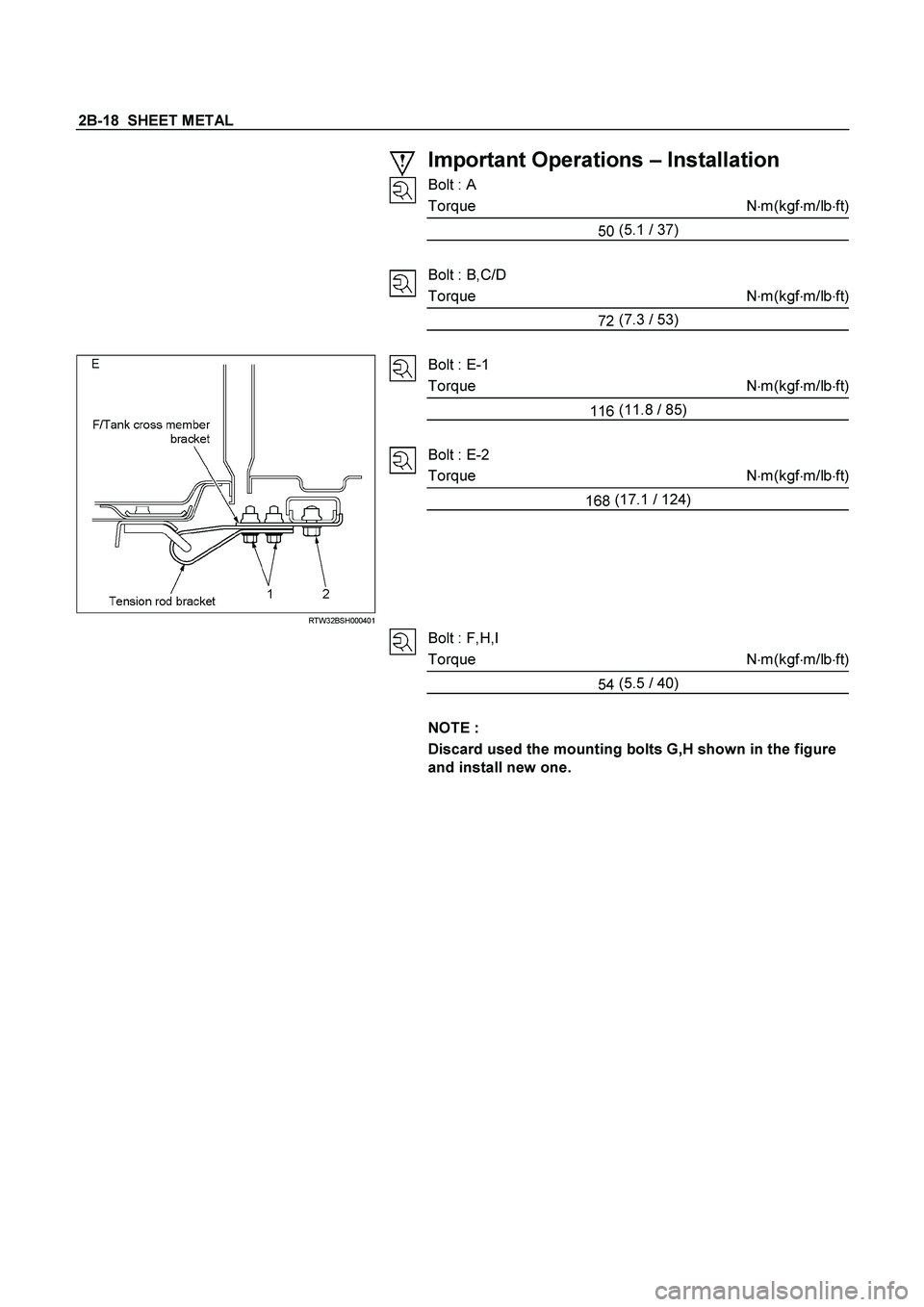

ISUZU TF SERIES 2004 Workshop Manual 2B-18 SHEET METAL Important Operations – Installation Bolt : A Torque N m(kgf m/lb ft) 50 (5.1 / 37) Bolt : B,C/D Torque N m(kgf m/lb ft) 72 (7.3 / 53) RTW32BSH000401

Page 2951 of 4264

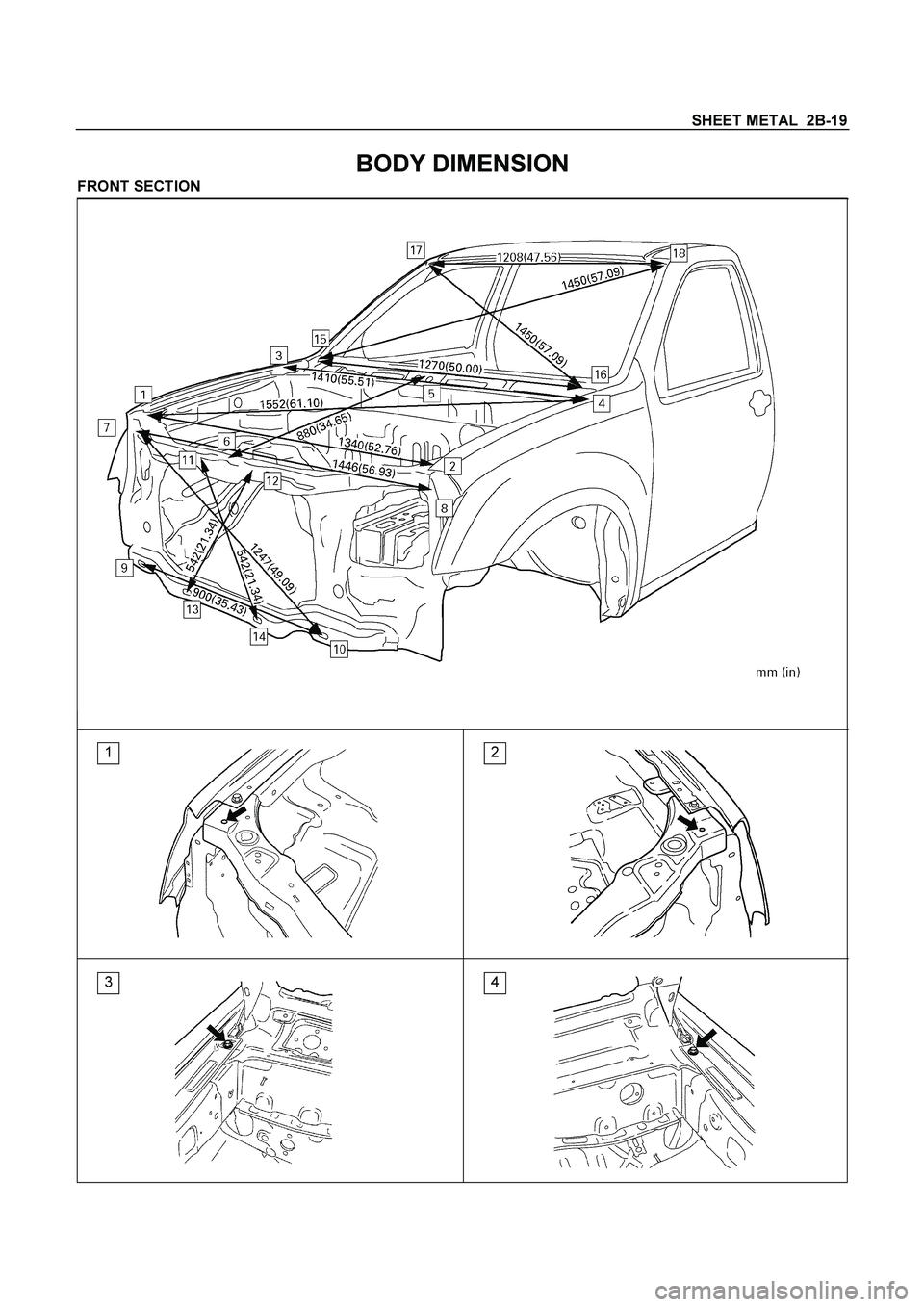

ISUZU TF SERIES 2004 Workshop Manual SHEET METAL 2B-19 BODY DIMENSION FRONT SECTION 1 2 3 4

Page 2952 of 4264

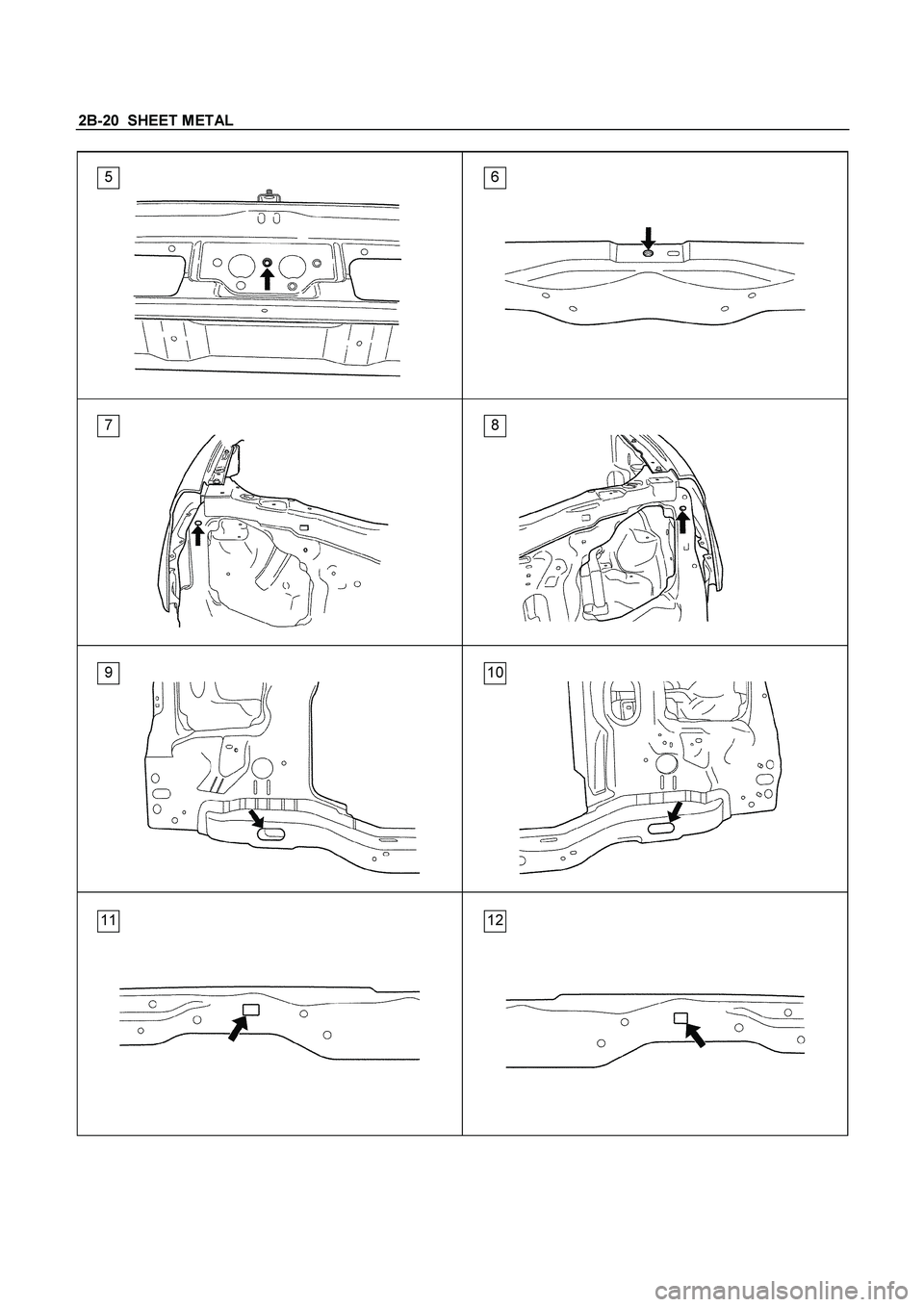

ISUZU TF SERIES 2004 Workshop Manual 2B-20 SHEET METAL 5 6 7 8 9 10 11 12
