Page 3721 of 4264

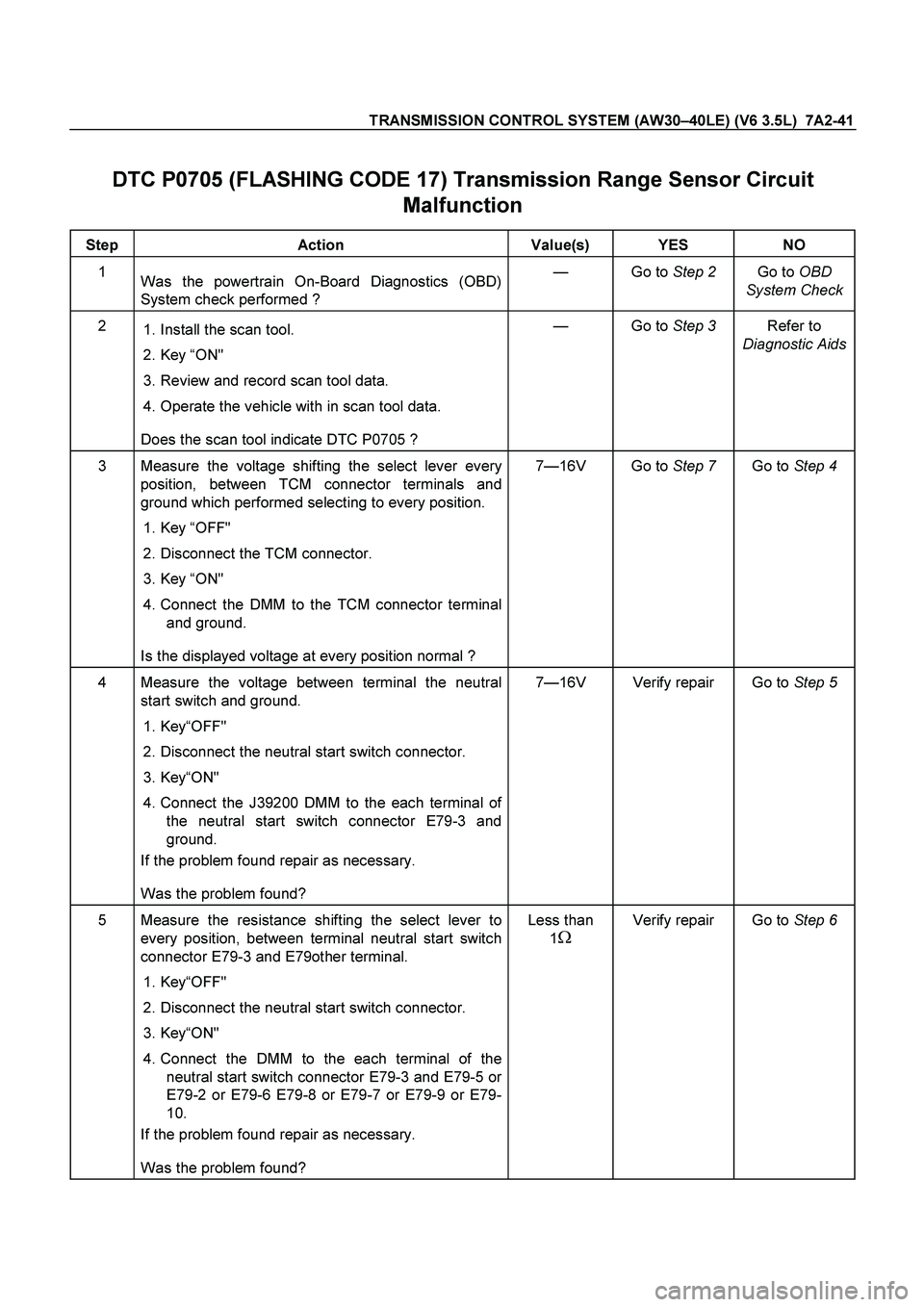

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-41 DTC P0705 (FLASHING CODE 17) Transmission Range Sensor Circuit Malfunction Step Action Value(s) YES NO 1 Was the powertrain On-Boa

Page 3722 of 4264

ISUZU TF SERIES 2004 Workshop Manual 7A2-42 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) Step Action Value(s) YES NO 6 Check the wire between terminal C-95 and E-79 for open. 1. Connect the J39200 DMM to the each termina

Page 3723 of 4264

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-43 DTC P0712 (FLASHING CODE 15) Transmission Oil Temperature Sensor Circuit Low Input RTW37AMF000201 Circuit Description The oil tem

Page 3724 of 4264

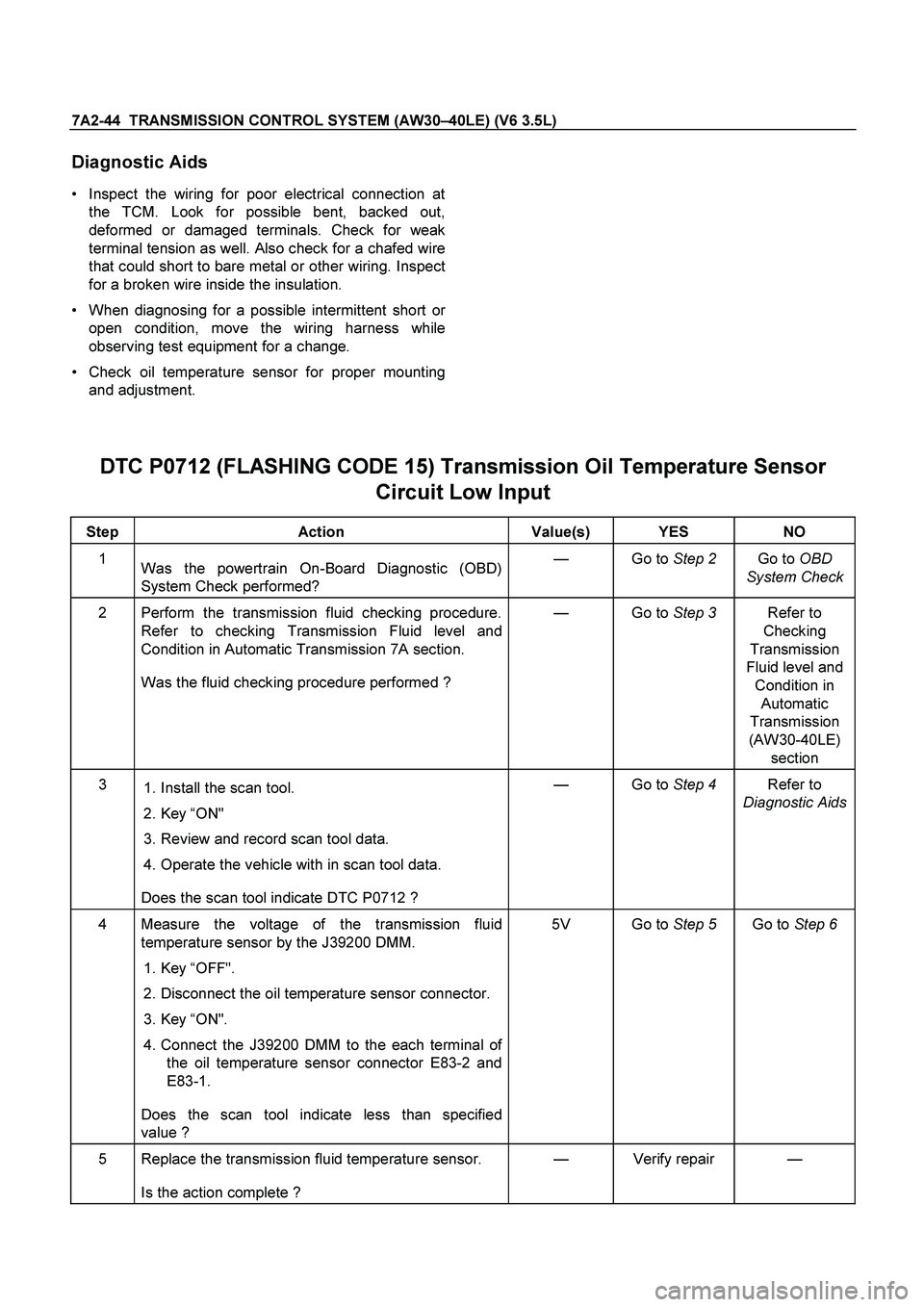

ISUZU TF SERIES 2004 Workshop Manual 7A2-44 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) Diagnostic Aids  Inspect the wiring for poor electrical connection at the TCM. Look for possible bent, backed out, deformed or damaged

Page 3725 of 4264

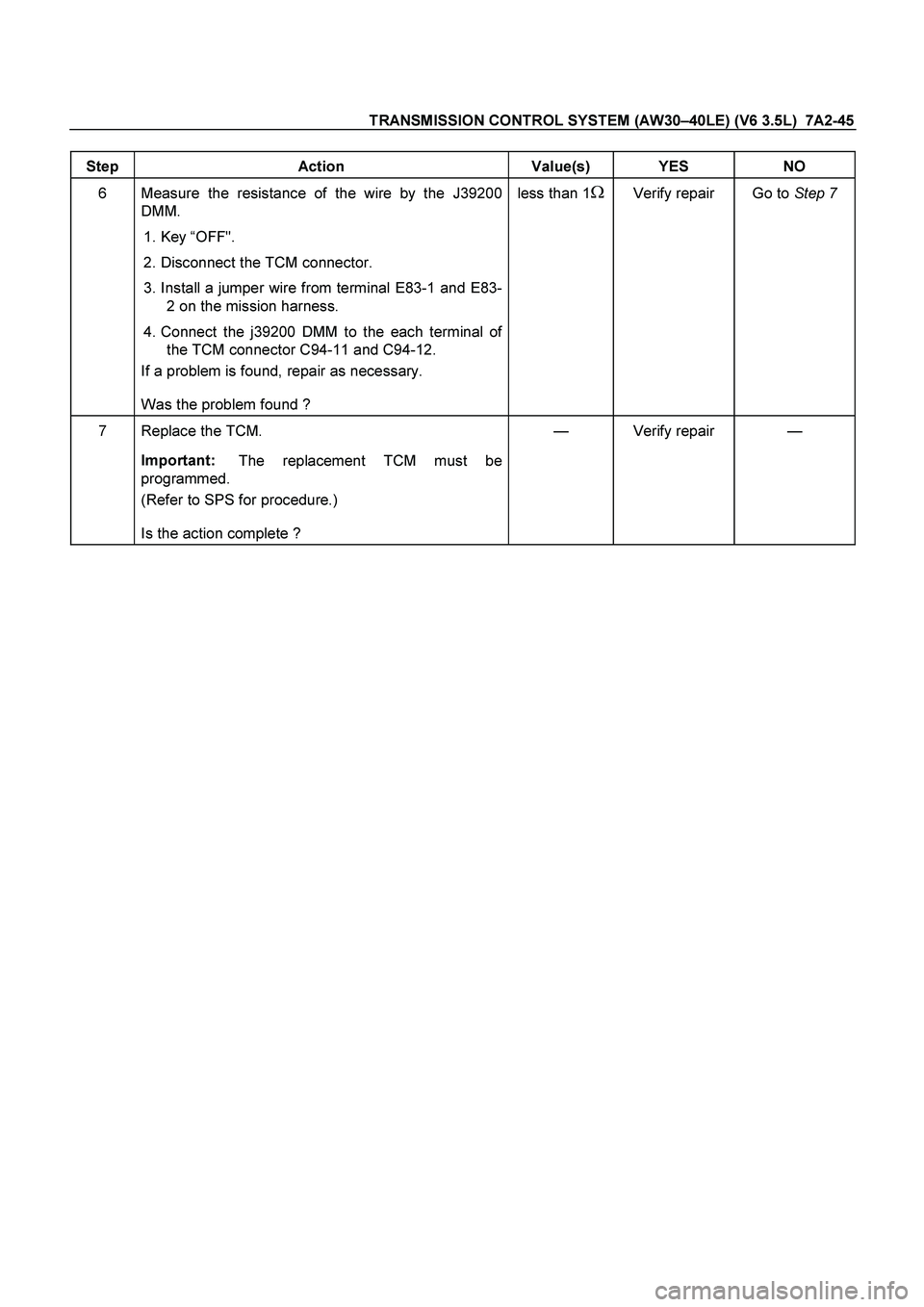

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-45 Step Action Value(s) YES NO 6 Measure the resistance of the wire by the J39200 DMM. 1. Key “OFF". 2. Disconnect the TCM connect

Page 3726 of 4264

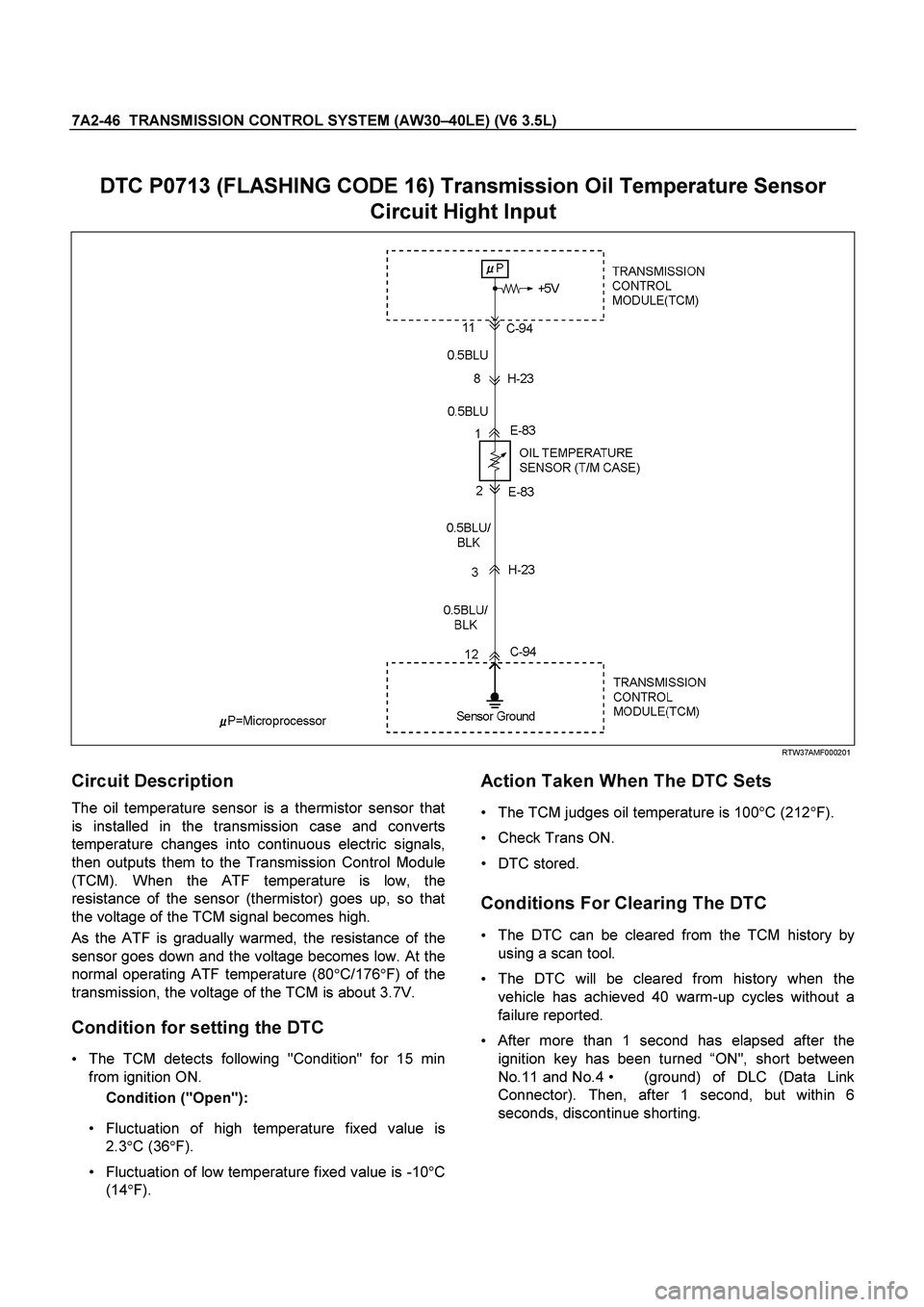

ISUZU TF SERIES 2004 Workshop Manual 7A2-46 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) DTC P0713 (FLASHING CODE 16) Transmission Oil Temperature Sensor Circuit Hight Input RTW37AMF000201 Circuit Description The oil t

Page 3727 of 4264

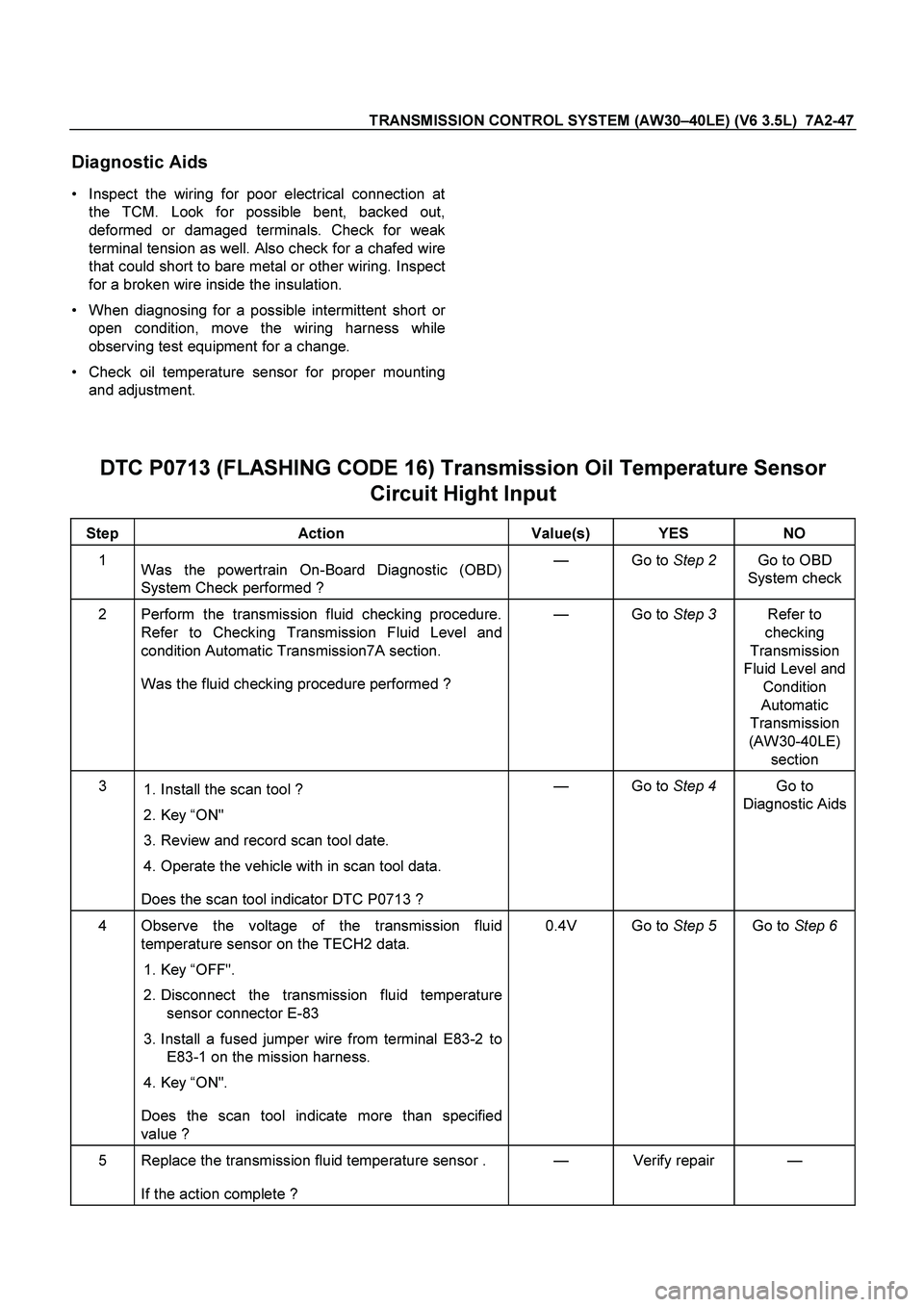

ISUZU TF SERIES 2004 Workshop Manual TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) 7A2-47 Diagnostic Aids  Inspect the wiring for poor electrical connection at the TCM. Look for possible bent, backed out, deformed or damaged

Page 3728 of 4264

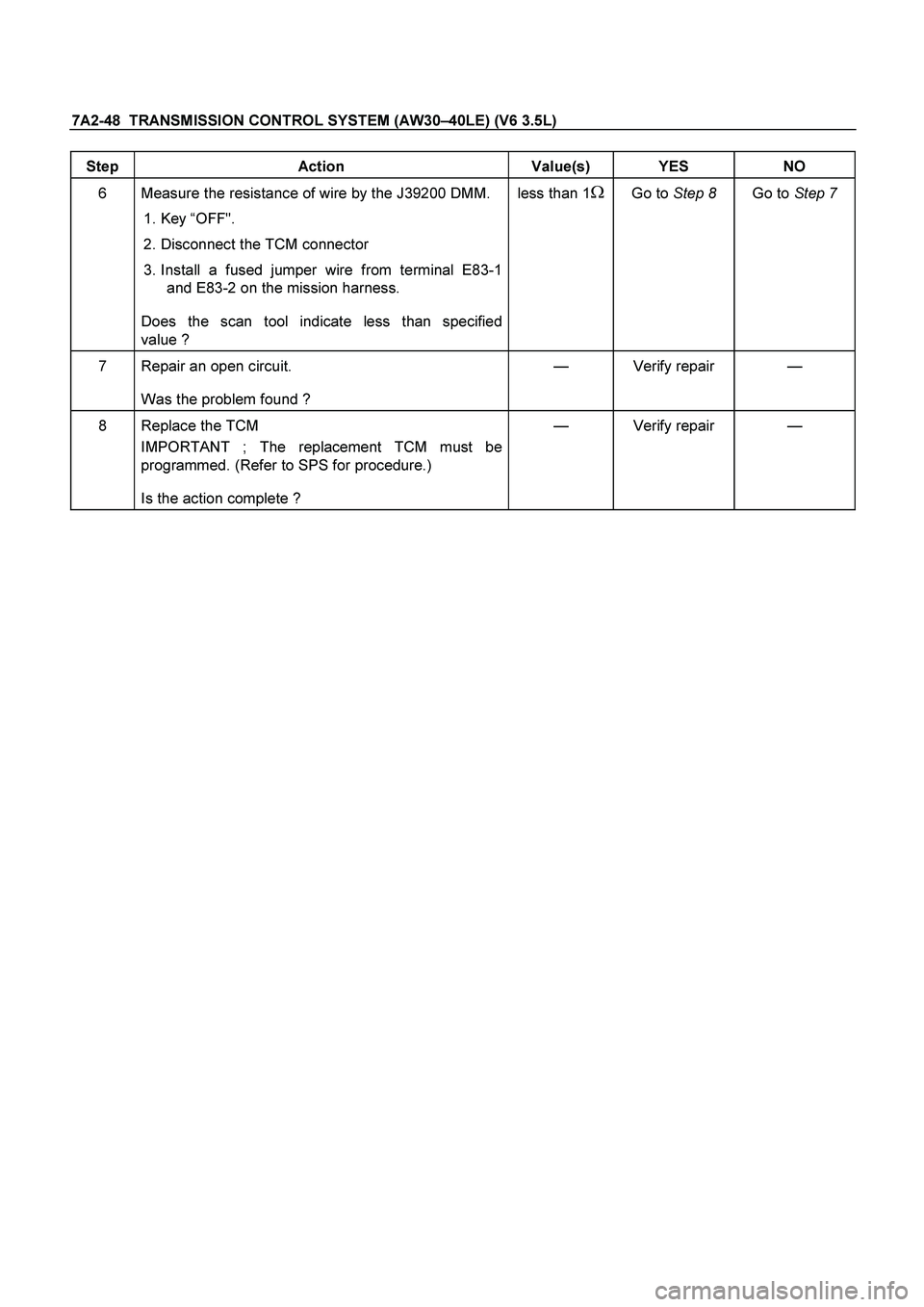

ISUZU TF SERIES 2004 Workshop Manual 7A2-48 TRANSMISSION CONTROL SYSTEM (AW30–40LE) (V6 3.5L) Step Action Value(s) YES NO 6 Measure the resistance of wire by the J39200 DMM. 1. Key “OFF". 2. Disconnect the TCM connector
