Page 1521 of 4264

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–149
7 Repair the short to battery voltage circuit between the
ECM and vacuum pressure sensor.

Page 1522 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–150 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0105 (Symptom Code 9) (Flash Code 34)
Vacuum Pressure Sensor Voltage Supply Circuit Low Input
Step Action Value(s)

Page 1523 of 4264

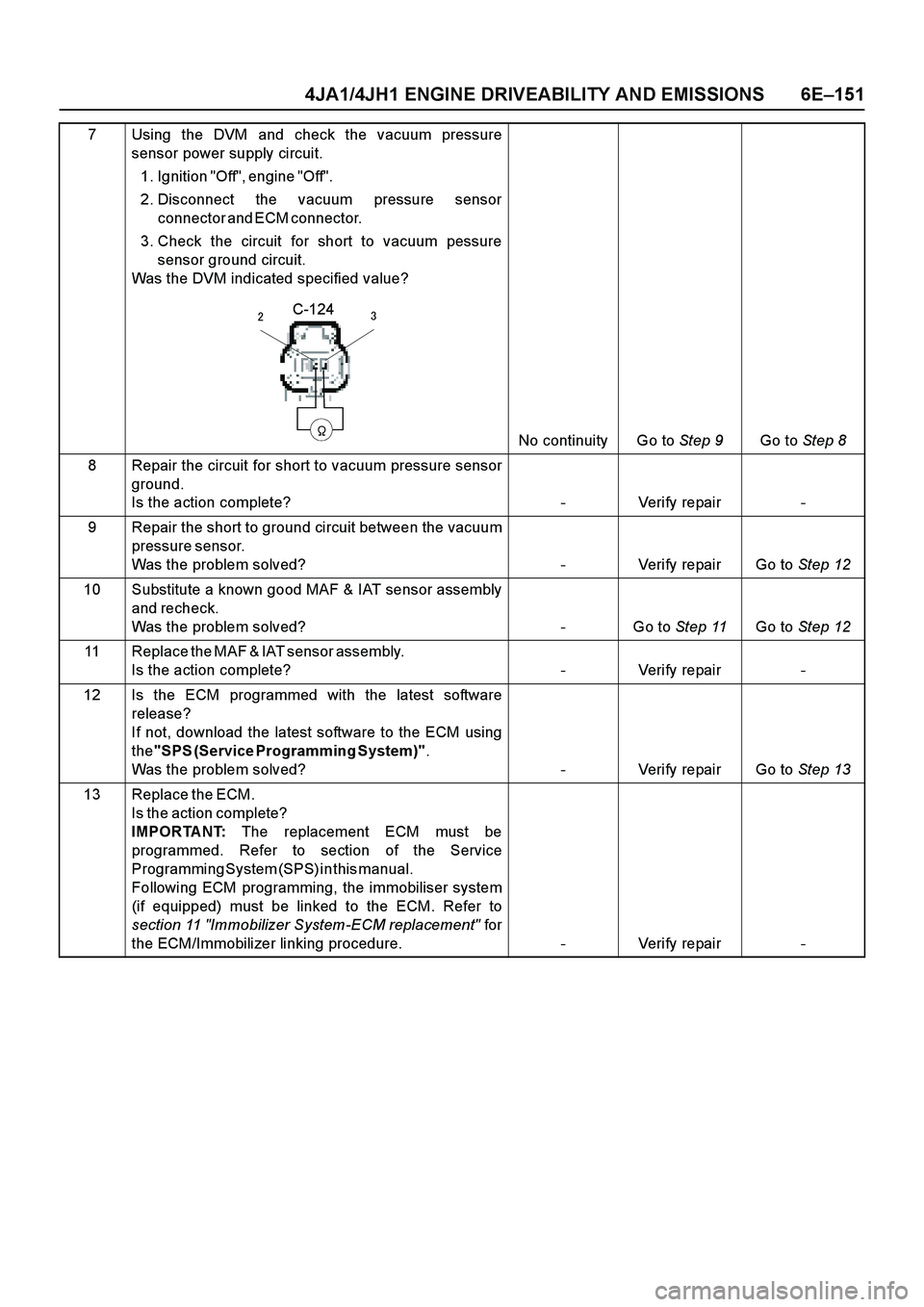

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–151
7 Using the DVM and check the vacuum pressure
sensor power supply circuit.
1 . I g n i t i o n " O f f " , e n g i n e " O f f " .

Page 1524 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E–152 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P0110 (SYMPTOM CODE 1)
(FLASH CODE 23) INTAKE AIR TEMPERATURE (IAT) SENSOR CIRCUIT HIGH
INPUT
DIAGNOSTIC TROUBLE CO

Page 1525 of 4264

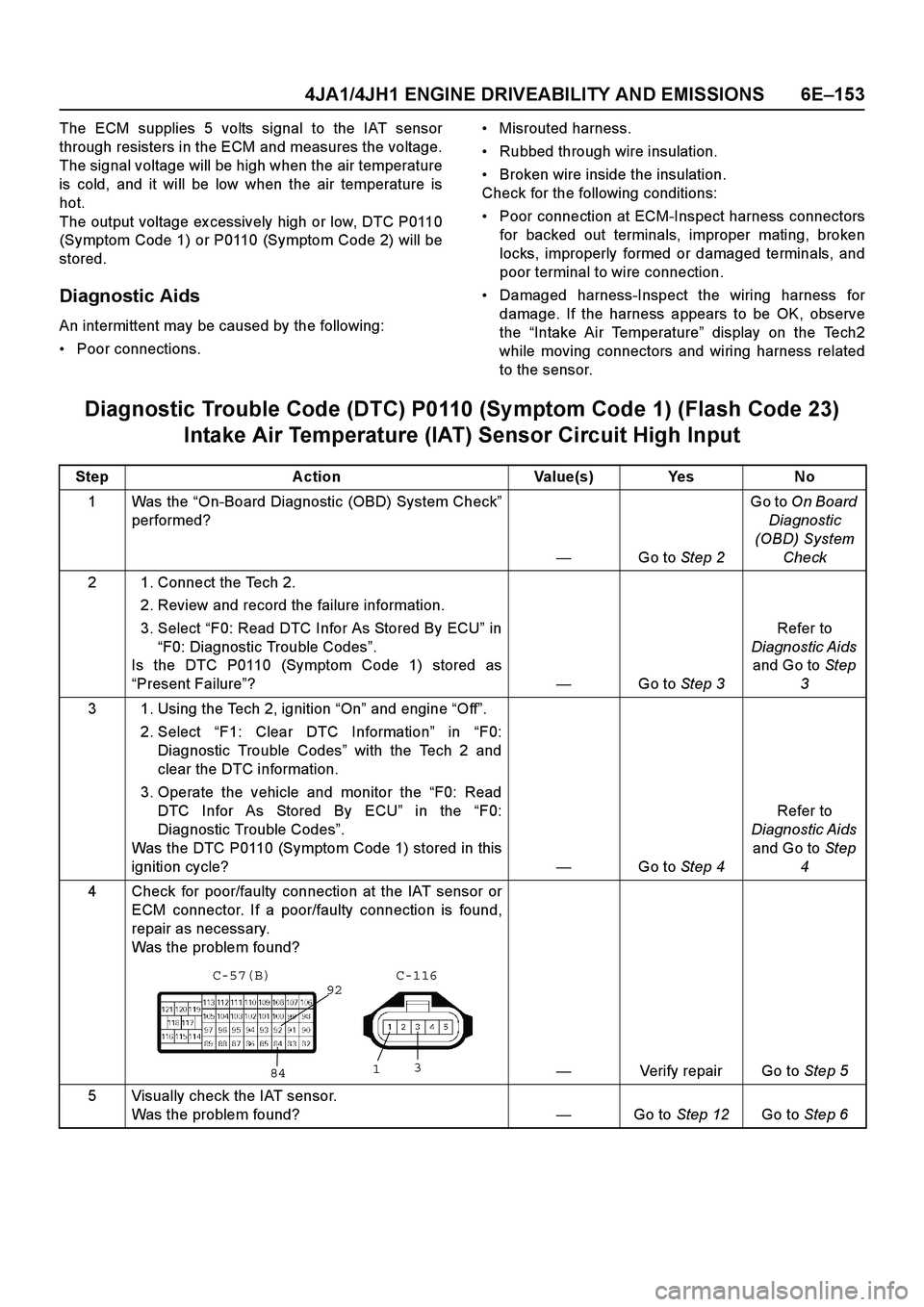

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E –153
The ECM supplies 5 volts signal to the IAT sensor
through resisters in the ECM and measures the voltage.
The signal voltage will be high when the

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E –153
The ECM supplies 5 volts signal to the IAT sensor
through resisters in the ECM and measures the voltage.
The signal voltage will be high when the air temperature
is cold, and it will be low when the air temperature is
hot.
The output voltage ex cessively high or low, DTC P0110
(Symptom Code 1) or P0110 (Symptom Code 2) will be
stored.
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.
Broken wire inside the insulation.
Check for the following conditions:
Poor connection at ECM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.
Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe
the “Intake Air Temperature ” display on the Tech2
while moving connectors and wiring harness related
to the sensor.
Diagnostic Trouble Code (DTC) P0110 (Sy mptom Code 1) (Flash Code 23)
Intake Air Temperature (IAT) Sensor Circuit High Input
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check ”
performed?
— Go to Step 2 Go to
On Board
Diagnostic
(OBD) System Check
2 1. Connect the Tech 2. 2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU ” in
“ F0: Diagnostic Trouble Codes ”.
Is the DTC P0110 (Symptom Code 1) stored as
“ Present Failure ”? —Go to Step 3 Refer to
Diagnostic Aids and Go to Step
3
3 1. Using the Tech 2, ignition “On ” and engine “Off ”.
2. Select “F1: Clear DTC Information ” in “F0:
Diagnostic Trouble Codes ” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU ” in the “F0:
Diagnostic Trouble Codes ”.
Was the DTC P0110 (Symptom Code 1) stored in this
ignition cycle? —Go to Step 4 Refer to
Diagnostic Aids and Go to Step
4
4 Check for poor/faulty connection at the IAT sensor or ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?
— Verify repair Go to Step 5
5 Visually check the IAT sensor. Was the problem found? —Go to Step 12 Go to Step 6
92
84
1 3
C-116
C-57(B)

Page 1526 of 4264

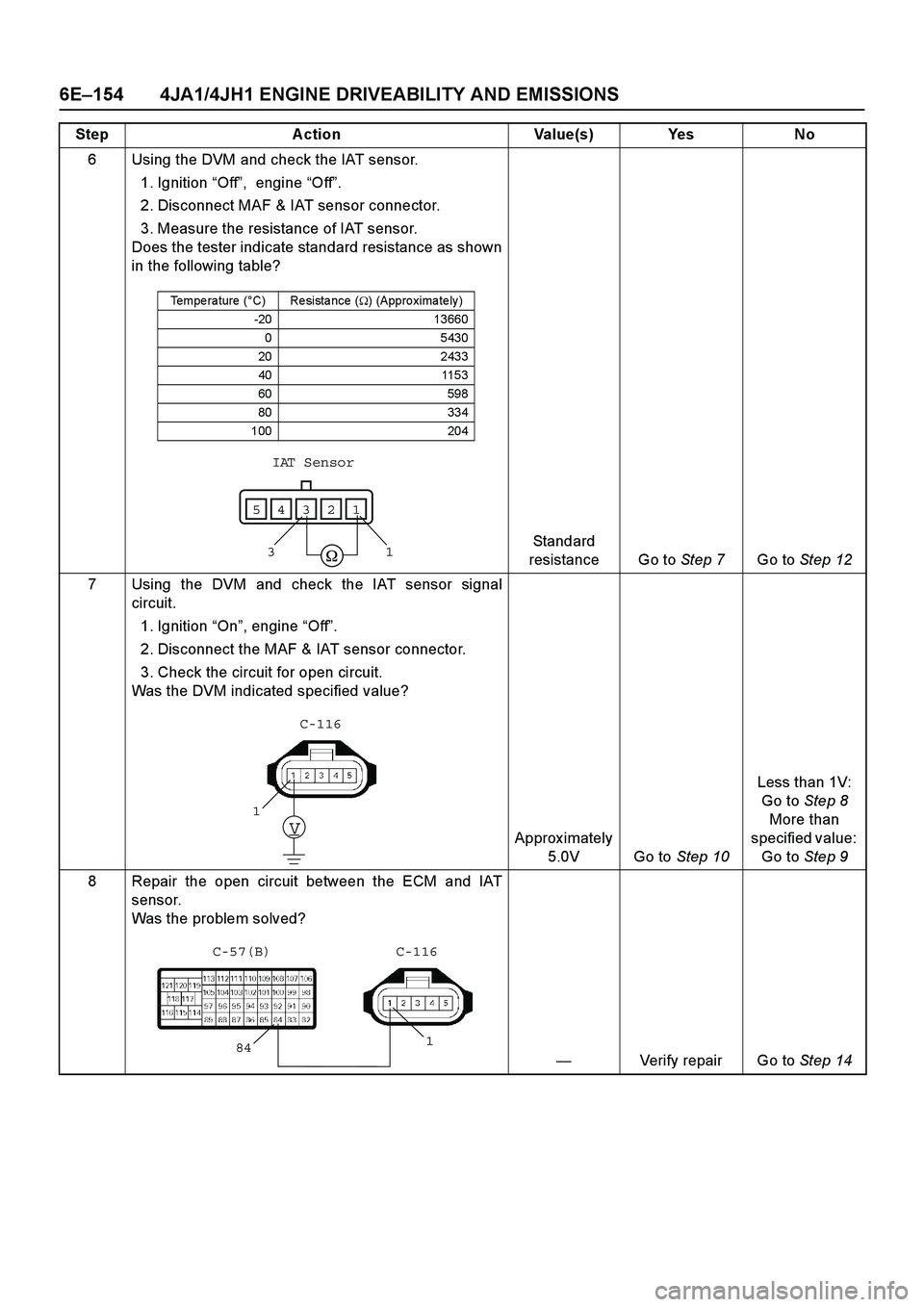

ISUZU TF SERIES 2004 Workshop Manual 6E –154 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
6 Using the DVM and check the IAT sensor.
1. Ignition “Off ”, engine “Off ”.
2. Disconnect MAF & IAT sensor connector.
3. Measure

Page 1527 of 4264

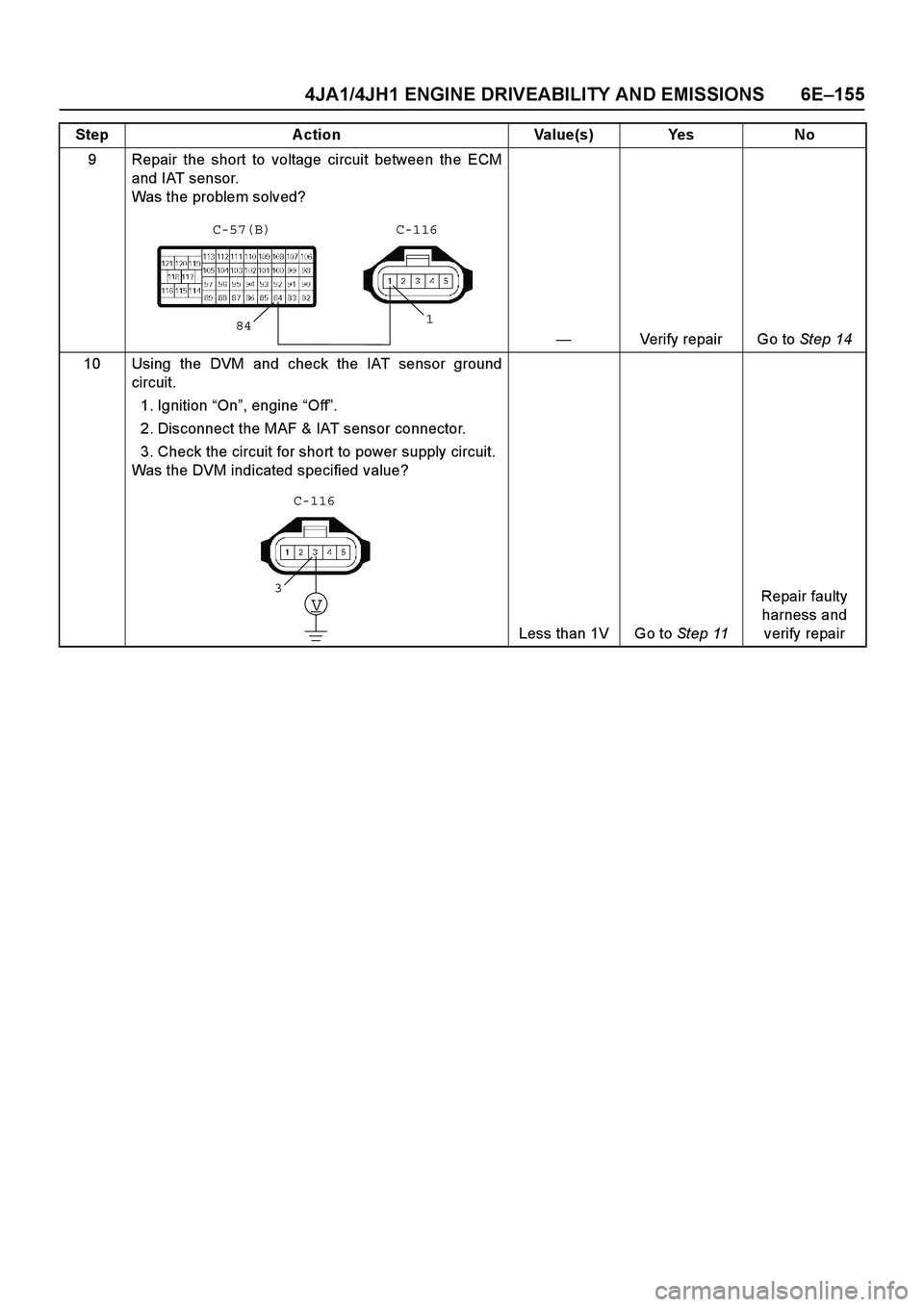

ISUZU TF SERIES 2004 Workshop Manual 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E –155
9 Repair the short to voltage circuit between the ECM
and IAT sensor.
Was the problem solved?
— Verify repair Go to Step 14
10 Using the DV

Page 1528 of 4264

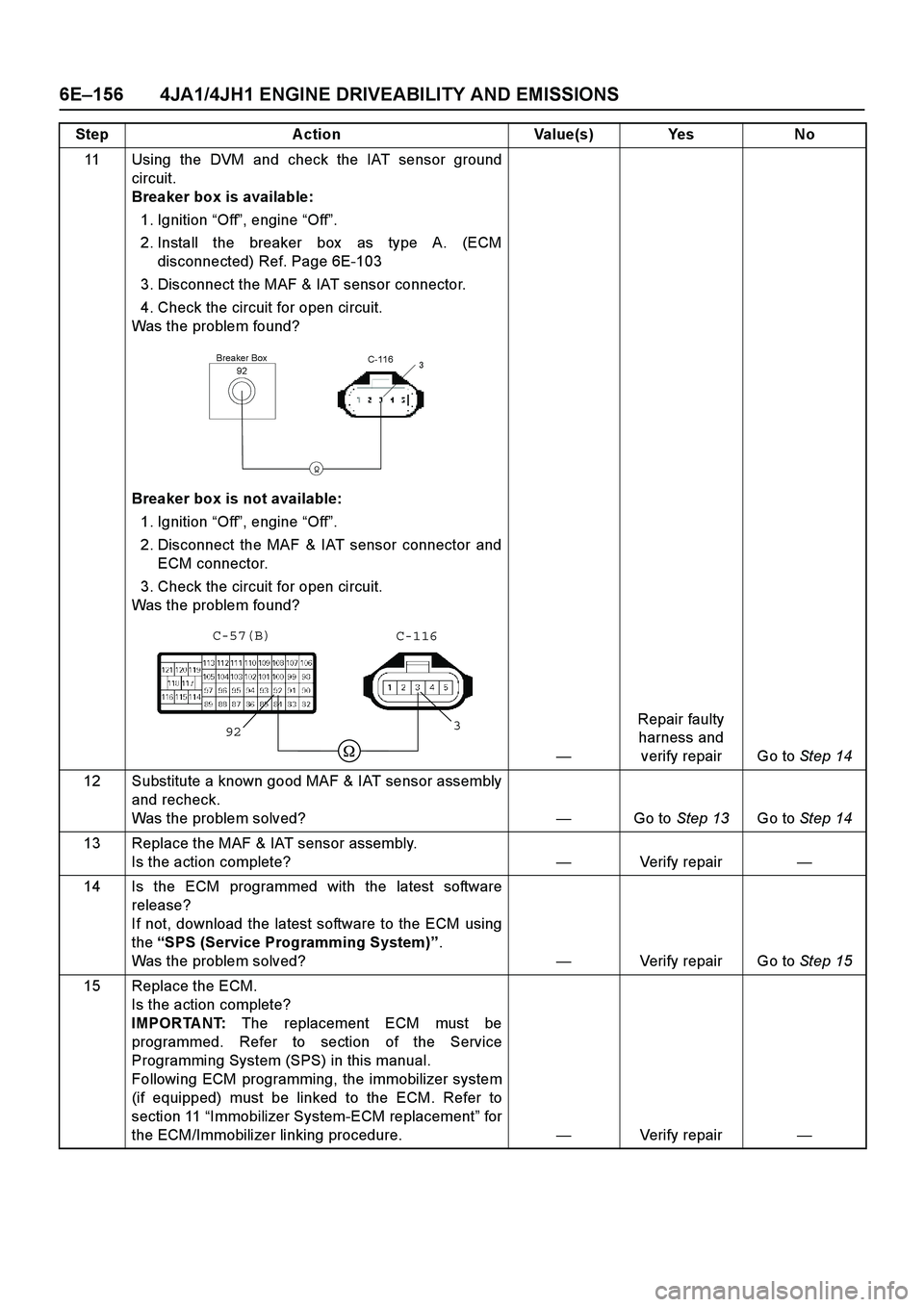

ISUZU TF SERIES 2004 Workshop Manual 6E –156 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
11 Using the DVM and check the IAT sensor ground
circuit.
Breaker box is available:
1. Ignition “Off ”, engine “Off ”.
2. Install
