Page 3473 of 4264

ISUZU TF SERIES 2004 Workshop Manual POWER-ASSISTED STEERING SYSTEM 3B-43 Combination Switch Combination Switch and Associated Parts This illustration is based on the RHD model. RTW43BLF000601 Legend (1) Steering Column Cover

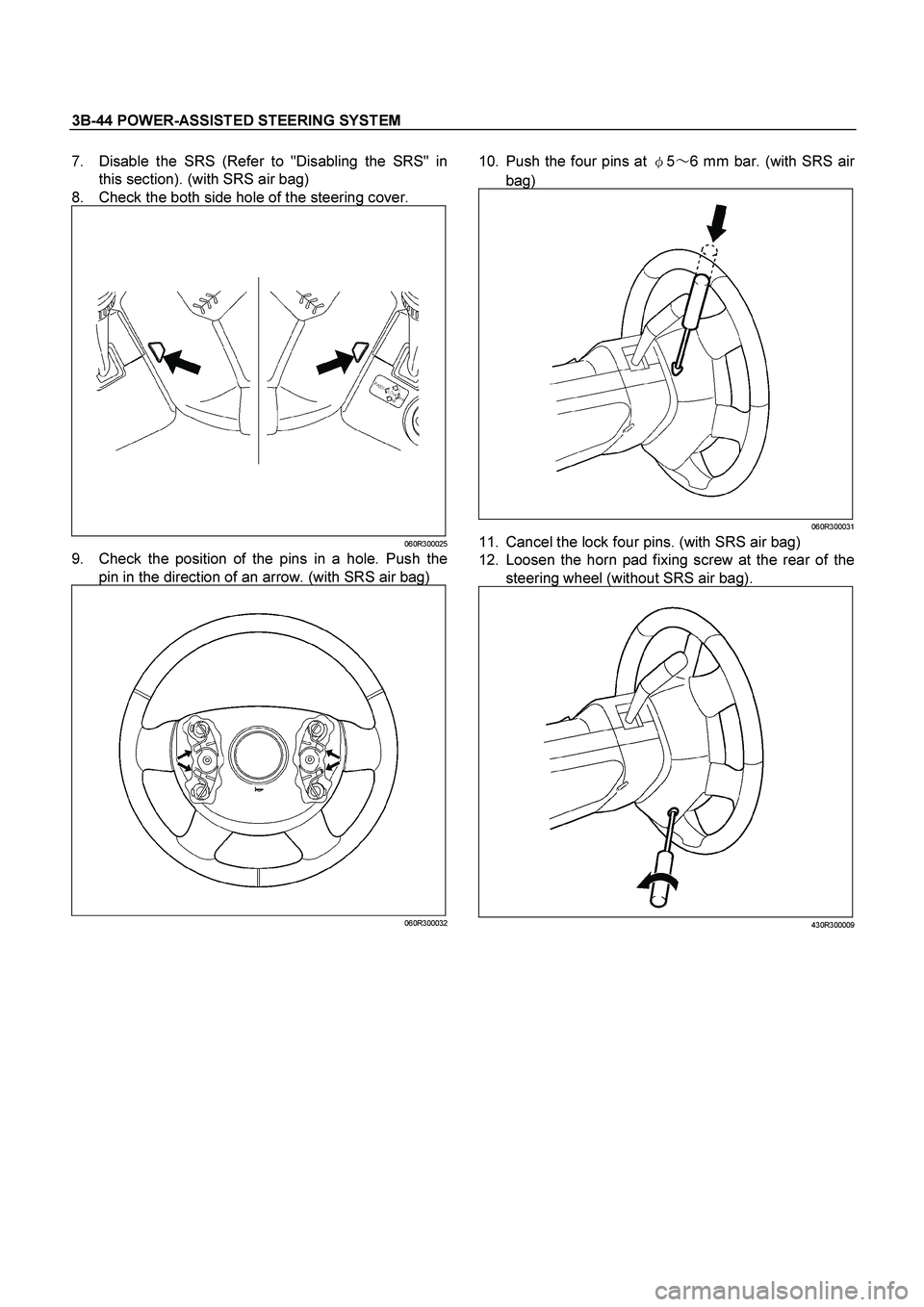

Page 3474 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3B-44 POWER-ASSISTED STEERING SYSTEM 7. Disable the SRS (Refer to "Disabling the SRS" in this section). (with SRS air bag) 8. Check the both side hole of the steering cover. 060R300025 9. Check

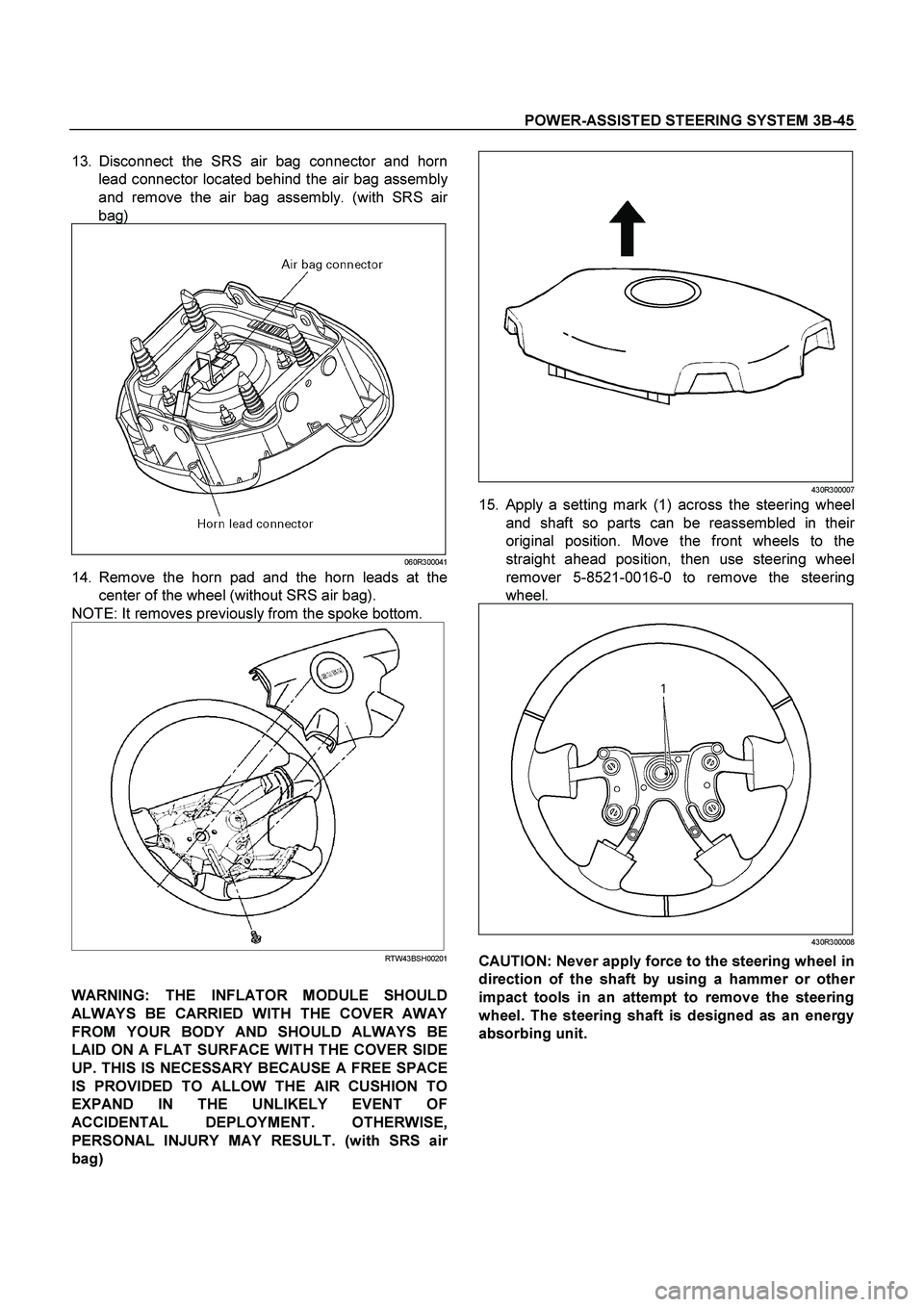

Page 3475 of 4264

ISUZU TF SERIES 2004 Workshop Manual POWER-ASSISTED STEERING SYSTEM 3B-45 13. Disconnect the SRS air bag connector and horn lead connector located behind the air bag assembl y and remove the air bag assembly. (with SRS air bag) 060R30

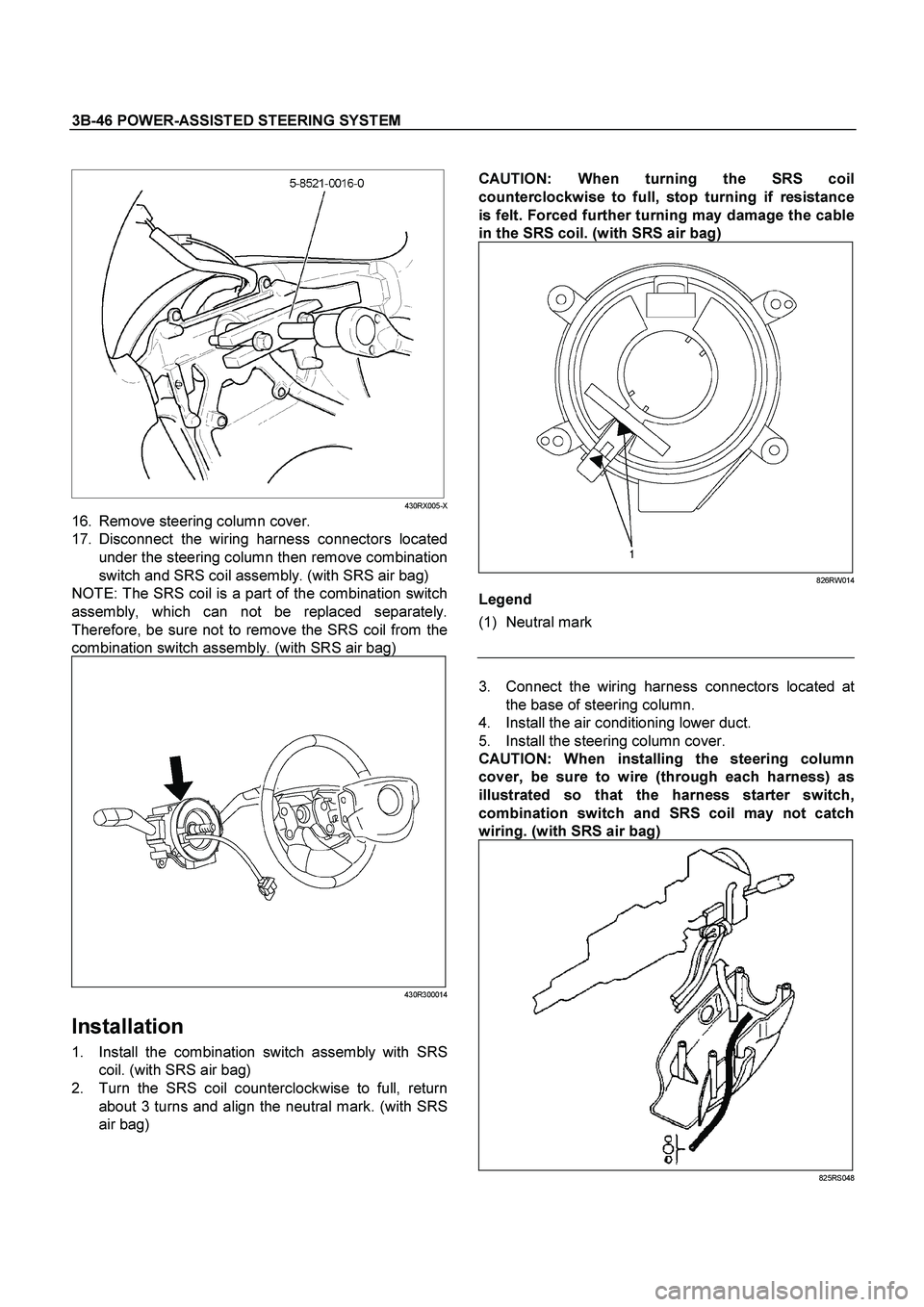

Page 3476 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3B-46 POWER-ASSISTED STEERING SYSTEM CAUTION: When turning the SRS coil counterclockwise to full, stop turning if resistance is felt. Forced further turning may damage the cable in the SRS coi

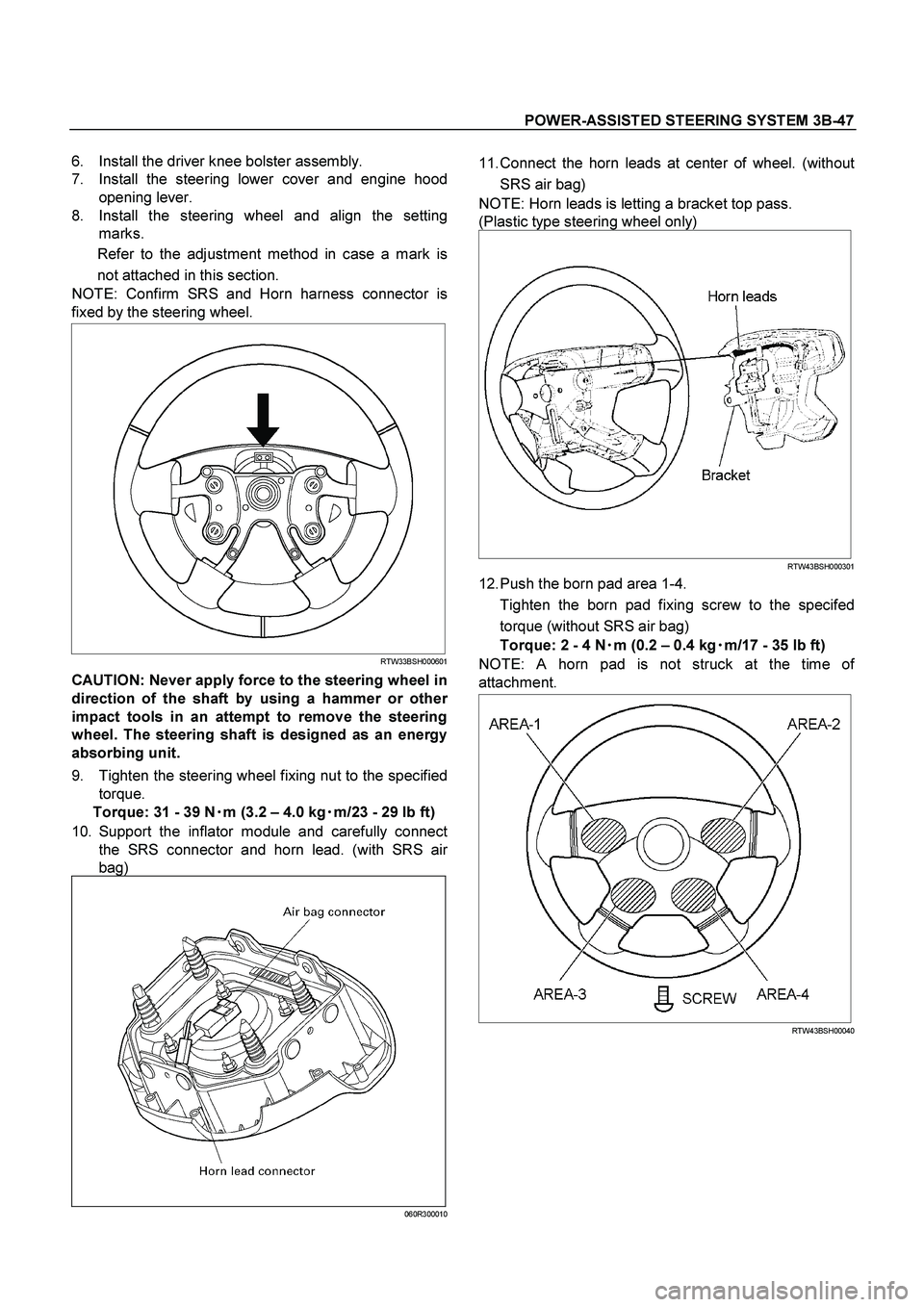

Page 3477 of 4264

ISUZU TF SERIES 2004 Workshop Manual POWER-ASSISTED STEERING SYSTEM 3B-47 6. Install the driver knee bolster assembly. 7. Install the steering lower cover and engine hood opening lever. 8. Install the steering wheel and align the

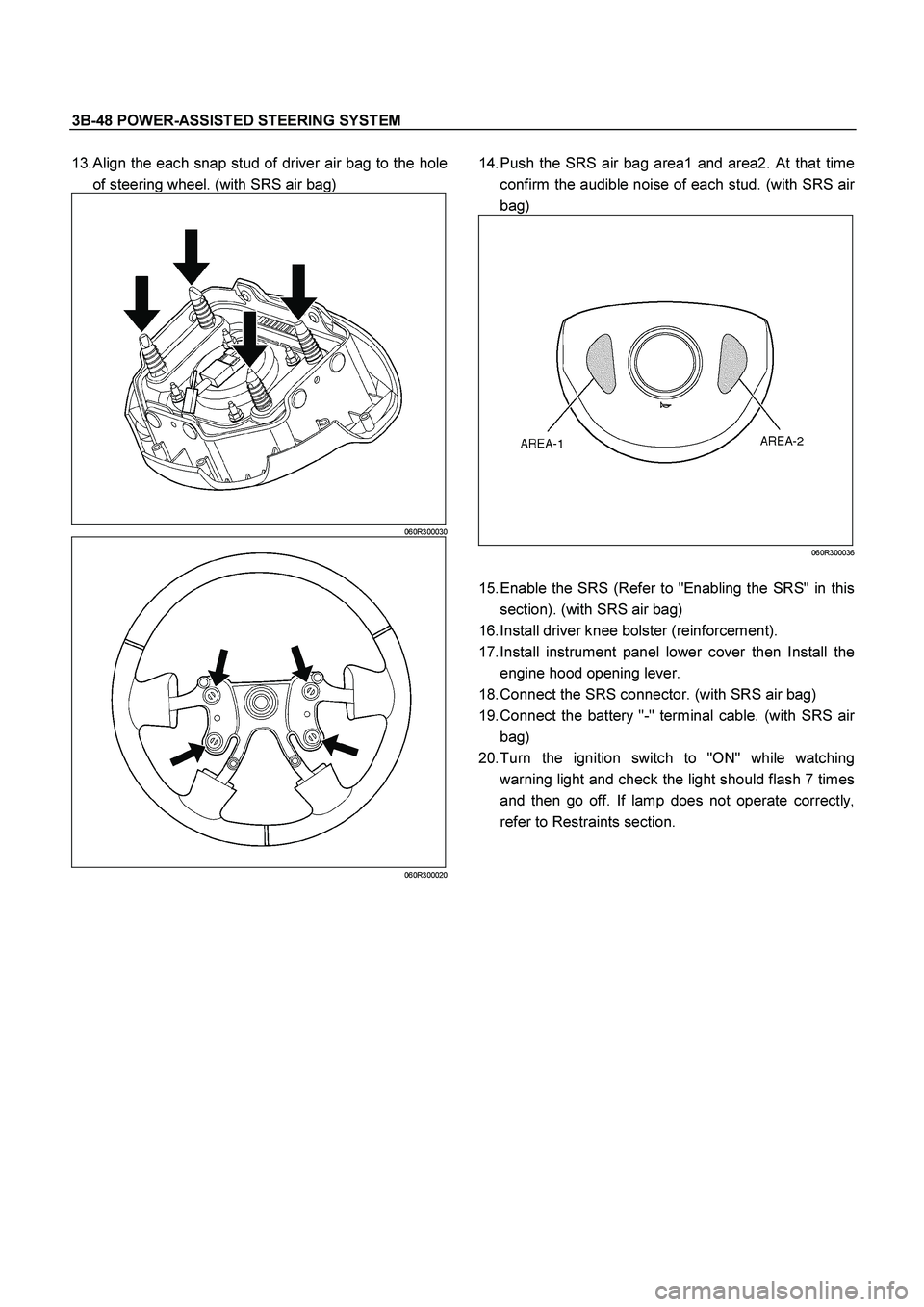

Page 3478 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3B-48 POWER-ASSISTED STEERING SYSTEM 13. Align the each snap stud of driver air bag to the hole of steering wheel. (with SRS air bag) 060R300030 060R300020 14. Push the SRS air bag area1 and area

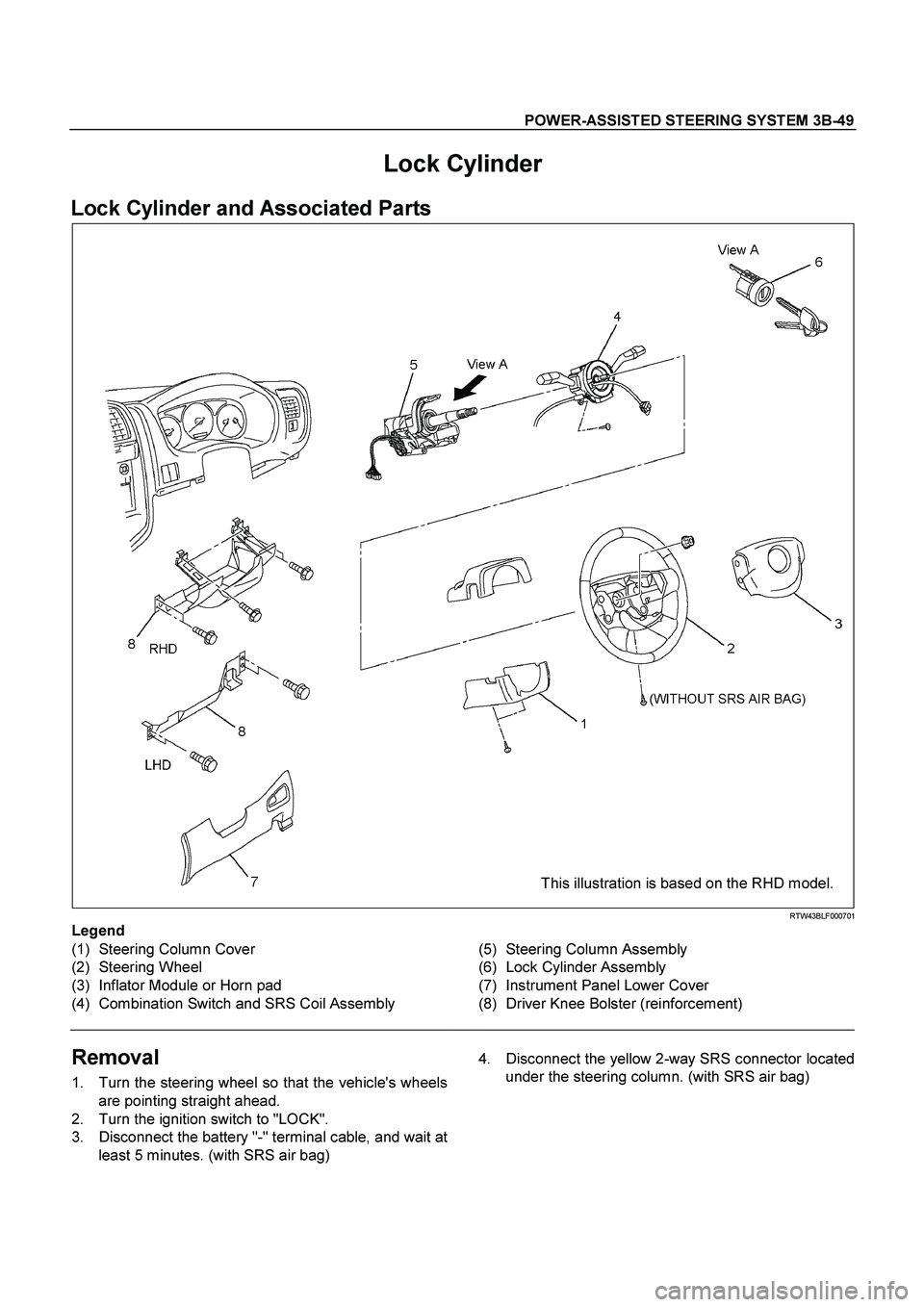

Page 3479 of 4264

ISUZU TF SERIES 2004 Workshop Manual POWER-ASSISTED STEERING SYSTEM 3B-49 Lock Cylinder Lock Cylinder and Associated Parts This illustration is based on the RHD model. RTW43BLF000701 Legend (1) Steering Column Cover (2) Steeri

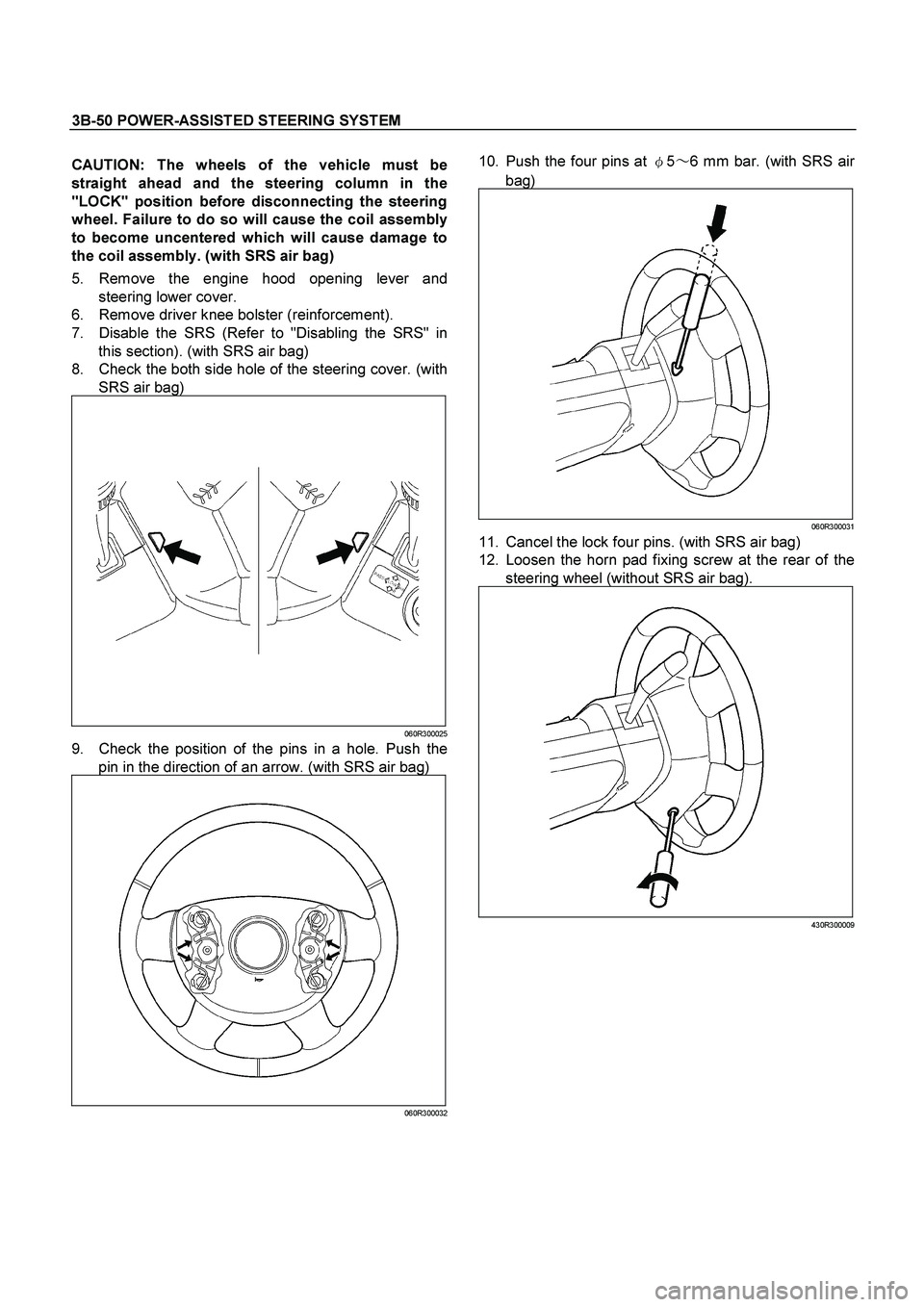

Page 3480 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3B-50 POWER-ASSISTED STEERING SYSTEM CAUTION: The wheels of the vehicle must be straight ahead and the steering column in the "LOCK" position before disconnecting the steering wheel. Failure to do s
