Page 2241 of 4264

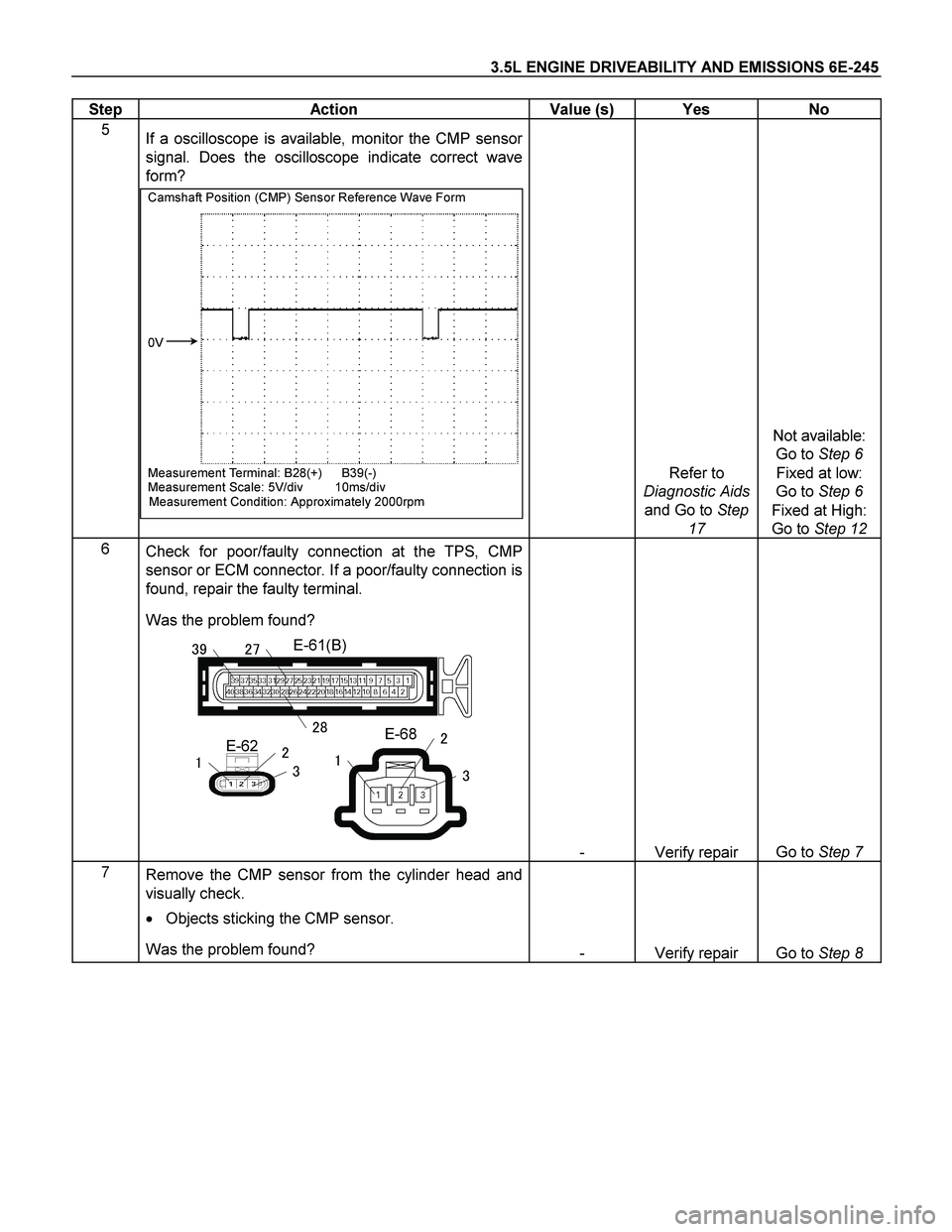

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-245
Step Action Value (s) Yes No
5

If a oscilloscope is available, monitor the CMP sensor
signal. Does the oscilloscope indicate correct wave
for

Page 2242 of 4264

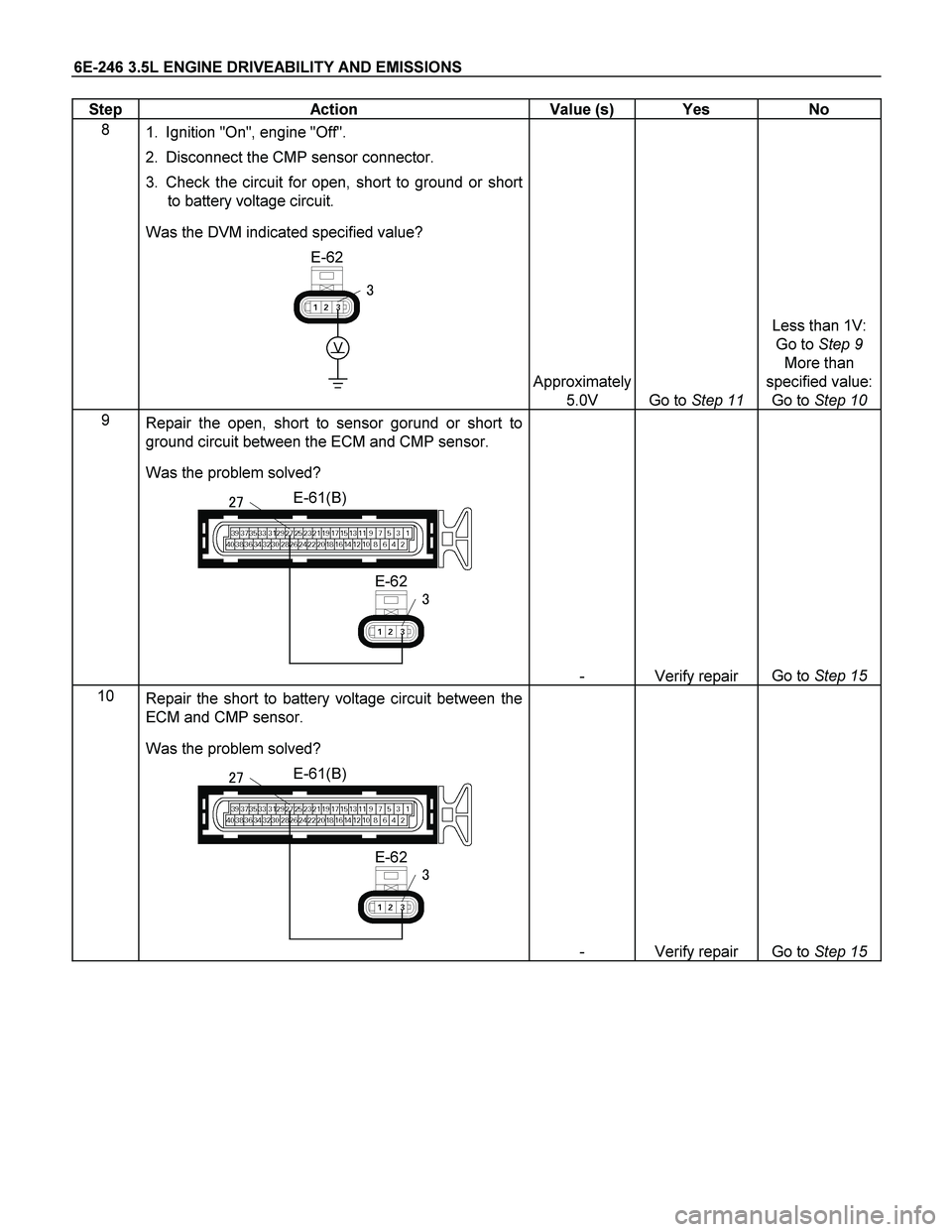

ISUZU TF SERIES 2004 Workshop Manual 6E-246 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
8
1. Ignition "On", engine "Off".
2. Disconnect the CMP sensor connector.
3. Check the circuit for open, short

Page 2243 of 4264

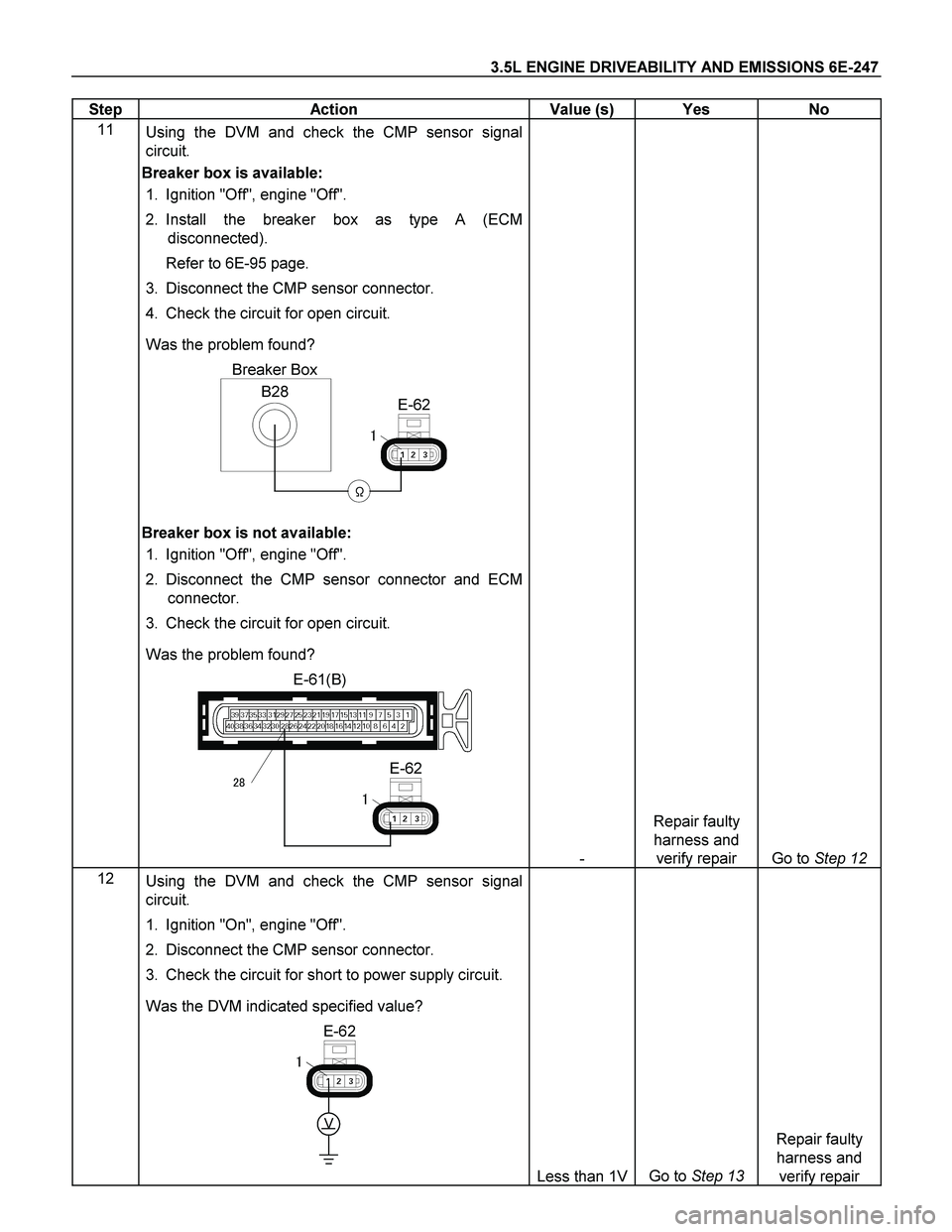

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-247
Step Action Value (s) Yes No
11

Using the DVM and check the CMP sensor signal
circuit.
Breaker box is available:
1. Ignition "Off", engine

Page 2244 of 4264

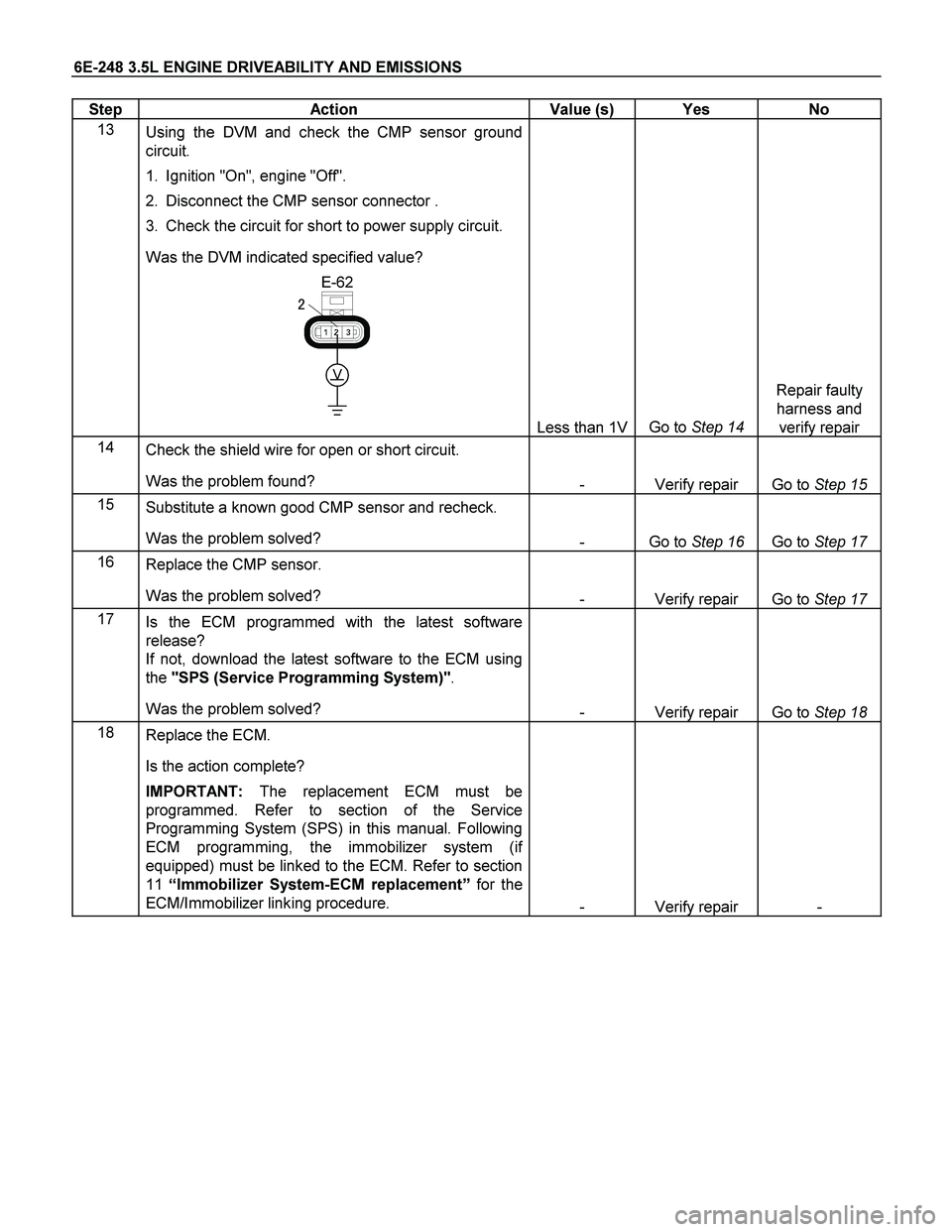

ISUZU TF SERIES 2004 Workshop Manual 6E-248 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
13
Using the DVM and check the CMP sensor ground
circuit.
1. Ignition "On", engine "Off".
2. Disconnect the CM

Page 2245 of 4264

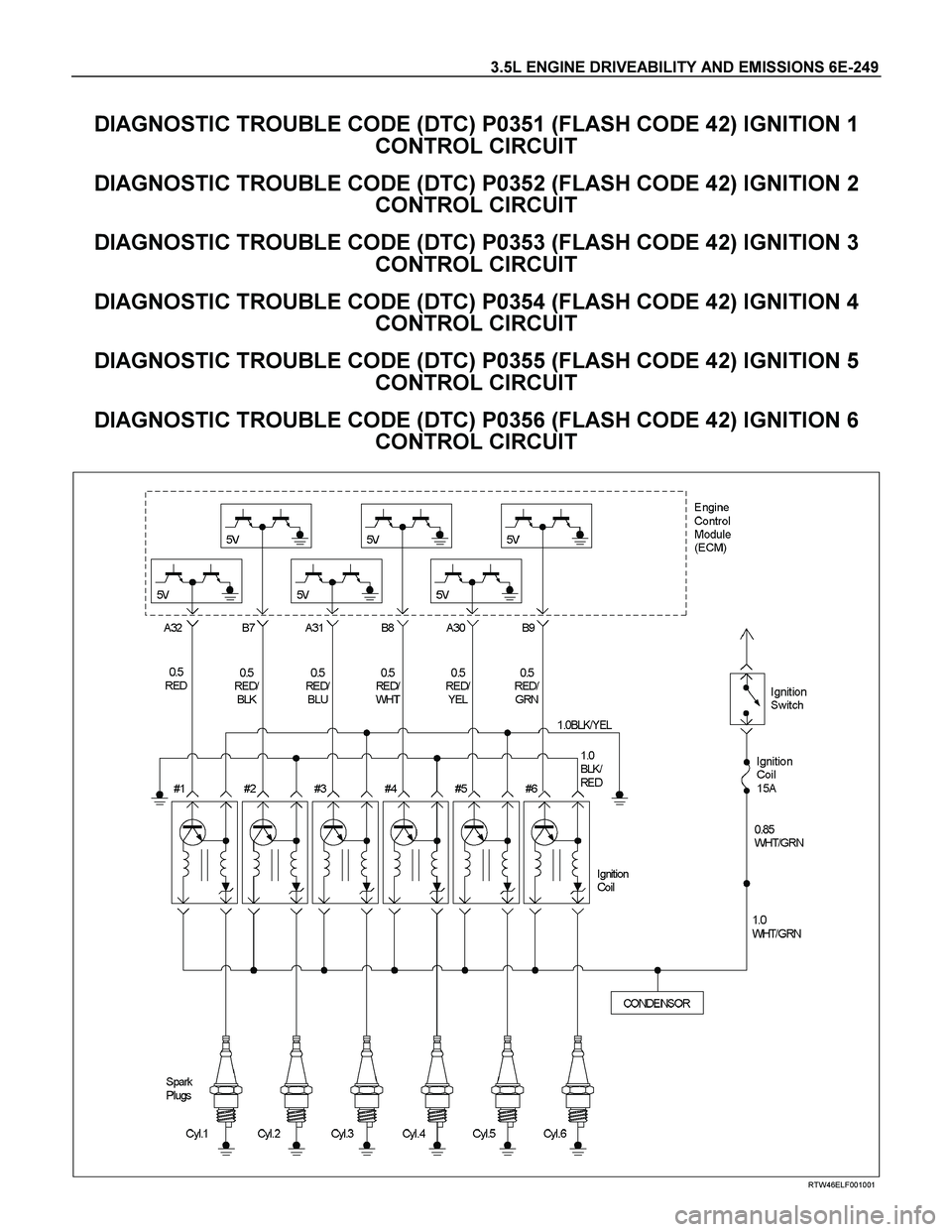

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-249
DIAGNOSTIC TROUBLE CODE (DTC) P0351 (FLASH CODE 42) IGNITION 1
CONTROL CIRCUIT
DIAGNOSTIC TROUBLE CODE (DTC) P0352 (FLASH CODE 42) IGNITION 2
CONTR

Page 2246 of 4264

ISUZU TF SERIES 2004 Workshop Manual 6E-250 3.5L ENGINE DRIVEABILITY AND EMISSIONS

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0351

6E-250 3.5L ENGINE DRIVEABILITY AND EMISSIONS

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0351 A Ignition 1 Control
Circuit
P0352 A Ignition 2 Control
Circuit
P0353 A Ignition 3 Control
Circuit
P0354 A Ignition 4 Control
Circuit
P0355 A Ignition 5 Control
Circuit
42
P0356 A Ignition 6 Control
Circuit 1. No DTC relating to CMP sensor and CKP sensor.
2. Engine speed is between 250rpm and 850 rpm.
3. 10 ignition signals are not detected consecutively. Fuel cut is operated more than
2000rpm.

CIRCUIT DESCRIPTION
The Engine Control Module's (ECM) control circuit 1
provides a zero-volt or a 5-volt output signal to the
ignition coil. The normal voltage on the circuit is zero
volts. When the ignition coil receives the 5-volt signal
from the ECM, it provides a ground path for the B+
supply to the primary side of the number 1 ignition coil.
When the ECM shuts off the 5 volts to the ignition coil,
the ignition coil turns “OFF." This causes the ignition coil
primary magnetic field to collapse, producing a voltage
in the secondary coil which fires the spark plug.
The circuit between the ECM and ignition coil is
monitored for an open circuit, short to voltage, and shor
t
to ground. When the ECM detects a problem on ignition
control circuit, it will set a DTC P0351, P0352, P0353,
P0354, P0355 or P0356.

DIAGNOSTIC AIDS
Check for the following conditions:
Poor connection at ECM – Inspect the harness
connectors for backed-out terminals, imprope
r
mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connections.
Damaged harness –Inspect the wiring harness fo
r
damage. If the harness appears to be OK, observe
the Tech 2 display related to DTC P0351 or P0352,
P0353, P0354, P0355 or P0356 while moving the
connector and wiring related to the ignition system.
A
change in the display will indicate the location of the
fault.
Reviewing the Failure Records vehicle mileage since
the diagnostic test last failed may help determine ho
w
often the condition that caused the DTC to be set
occurs. This may assist in diagnosing the condition.

Page 2247 of 4264

ISUZU TF SERIES 2004 Workshop Manual 3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-251
Diagnostic Trouble Code (DTC) P0351 (Flash Code 42) Ignition 1
Control Circuit
Diagnostic Trouble Code (DTC) P0352 (Flash Code 42) Ignition 2
Contr

Page 2248 of 4264

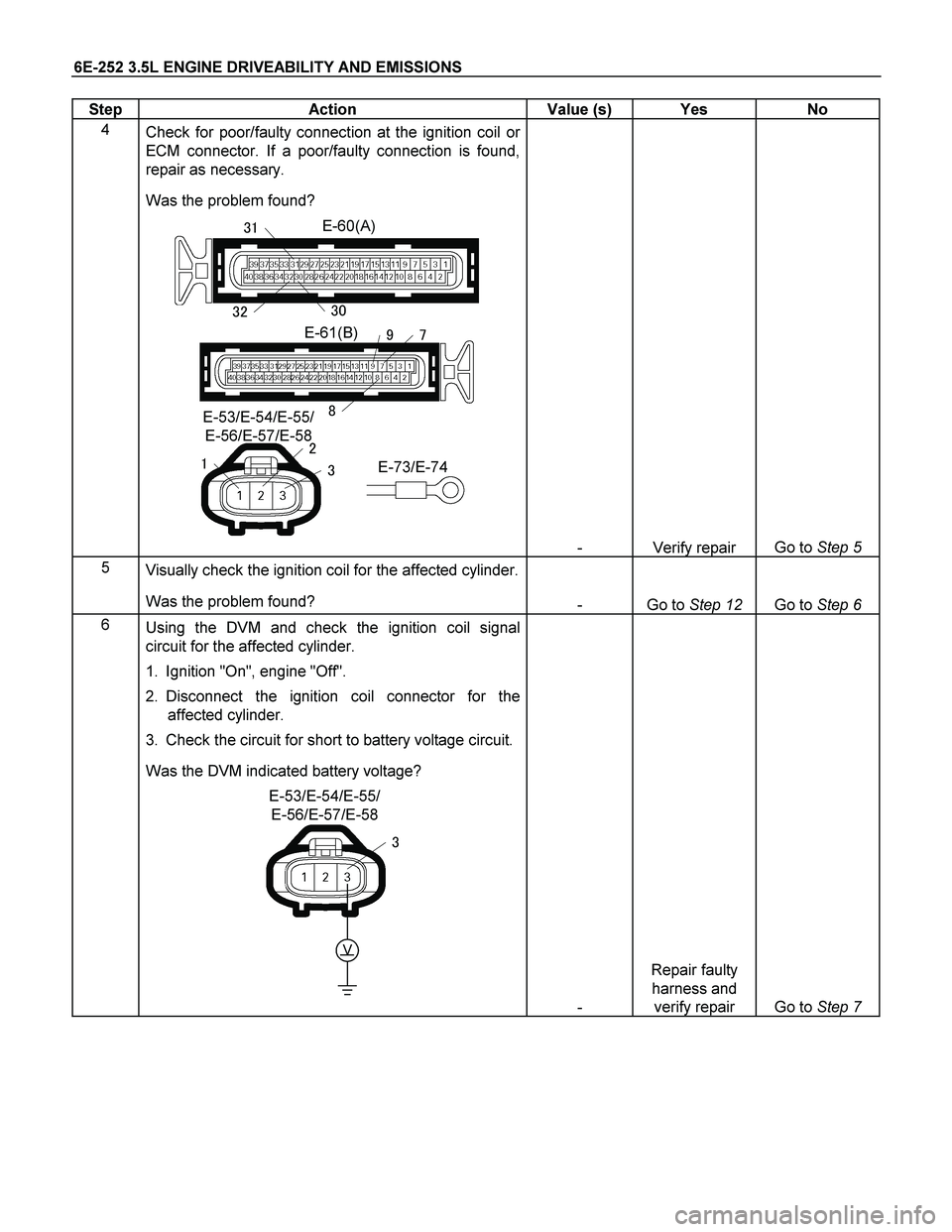

ISUZU TF SERIES 2004 Workshop Manual 6E-252 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Step Action Value (s) Yes No
4
Check for poor/faulty connection at the ignition coil or
ECM connector. If a poor/faulty connection is found,
rep
